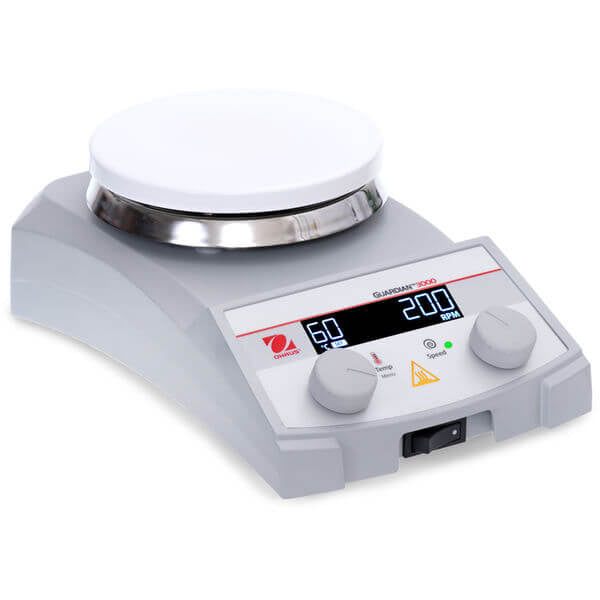

OHAUS Guardian 3000 heating stirrer

The OHAUS Guardian 3000 heating stirrer is a cost-effective yet powerful solution for safe and efficient heating and stirring in laboratory environments. Thanks to its robust design, prominent hot surface warning and precise temperature control, it offers high reliability, safety and durability compared to similar products.

Reliability and ease of use

This heating stirrer system has been specially developed for the rapid heating of liquids up to 500 °C (depending on the model also up to 380 °C with ceramic-coated steel plates) and ensures consistent stirring performance at speeds of 80 to 1,600 rpm. Users benefit from a clear user interface with an easy-to-read LCD display that shows both current temperature and speed data. A clearly visible indicator light warns as soon as the plate reaches a temperature above 40 °C.

- Capacity up to 15 litres - Plate sizes: 102 x 102 mm, 178 x 178 mm or 135 mm (round) - Temperature range: Up to max. 500 °C or up to 380 °C (ceramic-coated steel) - Digital control and LCD display - Power: 550 W or 1050 W depending on version - TÜV-certified

The metallic housing structure is designed so that dirt can be easily removed. In addition, the hard-wearing design and chemical-resistant surface coating make the device a reliable partner for everyday laboratory work. An integrated stand rod holder makes it easy to attach sensors such as Pt1000 to ensure precise measurement results in the test setup. The space-saving dimensions and the powerful heating system round off the overall package.

In addition to safety aspects such as the SafetyHeat early detection system, which stops the heating function in good time in the event of temperature deviations, the button for switching off the heating is also located in the front area and is easily accessible. The green status indicator lights up when heating and stirring are in progress and switches off as soon as these functions are complete.Standards and certifications

The heating stirrer is tested in accordance with TÜV specifications. This shows that the manufacturer follows the highest safety standards during development. This certification gives laboratory users additional safety in daily use, especially in sensitive areas where consistent and reproducible conditions are required.

Concrete application examples

- Preparation of buffer and reagent solutions in biotechnology to gently mix sensitive enzymes or proteins at stable temperatures
. - Carrying out syntheses in chemical research in which substances such as alcohols or acids are heated and stirred evenly.
- Condensation processes in pharmaceutical development, for example when evaporating or heating samples before analysing them.
- Media preparation in microbiology, for example in the production of culture media for various microbial cultures that require precise temperature control.

Frequently asked questions

How is the temperature fully controlled

?

The optional Pt1000 temperature probe can be connected to measure the sample temperature directly in the vessel. This compensates for deviations in the plate surface temperature and ensures constant values throughout the application.

Is the stirring rod easy to clean?

Yes, the supplied PTFE-coated stirring rod is resistant to chemicals and is easy to clean. The robust metal housing with smooth front panel also makes cleaning quick and safe.

How is overheating prevented?

The integrated SafetyHeat system recognises possible overheating and switches off the heating function automatically. In addition, a clearly visible LED display warns the user as soon as the plate exceeds 40 °C.

Can the heating stirrer be used for long-term experiments?

Thanks to its robust design and reliable temperature stability, this device is also suitable for longer test series. The combination of strong stirrer drive and powerful heating element allows for repeated and consistent results.

Is calibration possible?

Yes, the device has a single-point calibration function for temperature measurement. This makes test series more reproducible, especially when precise absolute temperatures are required for sensitive applications.

Conclusion

This compact laboratory solution offers a convincing combination of safety, durability and efficiency. With its sophisticated design and extensive safety functions, it is ideal for a wide range of applications in biological, chemical and pharmaceutical environments. Its precise heating and stirring performance and ease of use make it an extremely reliable choice for demanding laboratory tasks.

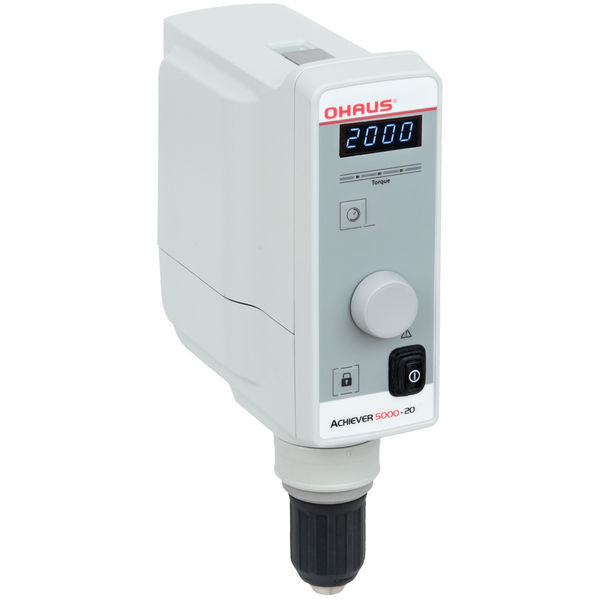

OHAUS overhead stirrer

The powerful stirring systems in the Achiever 5000 series are specially designed to mix liquids of different viscosities safely and precisely. Whether in everyday laboratory work or in demanding research projects: Compared to similar models, these devices offer a remarkable combination of performance, ease of use and durability. They have proven themselves in many industries, including pharmaceuticals, cosmetics and chemicals, thanks to their brushless motor, robust design and variable speed ranges.

Performance features and technology

The versatile device deck enables flexible adaptation to a wide range of applications - from dissolving fine powder mixtures to emulsifying viscous media. The lockable speed controller, together with motor overload detection, ensures consistent stirring and increases safety at every stage of the mixing process. Other important data and features:

- Speed range depending on model: 6 to 400 rpm or 30 to 2000 rpm
- Max. Capacity: up to 100 litres (depending on model)
- Maximum torque: from 20 Ncm to 200 Ncm
- High tolerance for viscosities: up to 100,000 mPa s
- Sealed aluminium housing with protection class IP54
- LED display with timer function (1 minute to 99 hours, 59 minutes)
- Quick change and clamping of the shaft without tools

The quick-release chuck is a key equipment feature that allows uncomplicated setup. The brushless motor with torque equalisation technology, which works quietly and consistently even in high-speed applications, is particularly outstanding. Digital controls and a lock button to prevent accidental changes to the settings also minimise the risk of process errors. The built-in motor overload detection ensures a high level of process reliability, switching off the stirrer in good time before the device or the sample material could be damaged.

Certifications and standards

All models in the Achiever 5000 series fulfil important safety requirements for professional use in laboratories and industry. They have an IP54 protection rating, which protects them against splash water and dust particles. In addition, they offer proven safety certification (cNemkous), which complies with international guidelines and guarantees reliable protection in different environmental conditions. Thanks to the robust design and resistant materials, these agitator systems are also suitable for long operating times in demanding conditions.

Application examples

- Production of cosmetic emulsions (e.g. creams, lotions or gels)
- Homogenisation and dispersion of paints, varnishes or pigment mixtures in the paint and coating industry
- Dissolving solids in the pharmaceutical and biotechnology industries, for example in the production of active ingredients or when preparing culture media
- Mixing highly viscous substances in construction chemistry, such as adhesives, resins, levelling compounds or cement slurries

The wide range of accessories - from different agitator shafts to rotor attachments - allows use in many variable scenarios. Thanks to the precise speed control and stable torque, physical properties such as viscosity or homogeneity can be reliably controlled and documented.

FAQ

How long can you stir without interruption?

Each model is designed for continuous operation for up to several hours. The integrated overload protection switches the appliance off in good time at dangerous operating values.

Which liquids are suitable for this stirrer?

From aqueous solutions to very viscous media such as pasty preparations: Thanks to the high viscosity range of up to 100,000 mPa s, almost any medium can be processed.

Is regular calibration necessary

The speed accuracy of ±1 rpm is maintained without the need for frequent calibrations. For particularly sensitive processes, an annual check may be advisable.

How to change the stirring tool

Simply release the lock button and open the quick-release chuck. The shaft or stirrer can be changed in just a few seconds without any tools.

Can the speed be changed during mixing?

Yes, you can also adjust the speed during operation using the digital control knob. A soft-start function ensures that no sudden load changes occur.

Conclusion

The Achiever 5000 series is characterised by high performance, freedom from wear and a strong focus on user safety. Anyone who has to cope with robust mixing tasks in the laboratory or in production will find a combination of state-of-the-art motor technology, practice-orientated design and comprehensive overload protection. The user-friendly chuck and high-torque drive make processes more efficient and reliably protect sample materials. To summarise, the models in this series offer a wide range of applications that meet the highest professional demands - a key reason why so many professionals rely on this overhead stirrer for demanding stirring processes.

OHAUS Guardian 7000 heating stirrer

This advanced solution for laboratory applications combines reliable heating and stirring in one device. With its sophisticated sensor technology and innovative safety features, this digital heating stirrer is ideal for temperature-sensitive chemistry and biology applications where uniform temperature distribution is essential. Thanks to its robust design, easy-to-read display and versatile application options, the device offers a decisive advantage over many comparable models on the market: it guarantees maximum precision and convenience for all stirring and heating processes.

Powerful features for safe and precise work

The Guardian 7000 series from OHAUS impresses with numerous functions that guarantee high reliability, the best possible user safety and long-term performance in demanding laboratory environments. Particularly noteworthy are:

- Heating and stirring in a single operation: Versatile application options for dissolving, heating or boiling solutions up to 500 °C (with the ceramic plates)
- High capacity: Models for liquid volumes of up to 20 litres, ideal for large sample volumes
- Precise speed range: From 60 to 1600 rpm with a stable control of ±2 % so that liquids are evenly mixed
- SafetyHeat function: An integrated monitoring system with double safety that switches off in good time in the event of potential overheating
- SmartPresence and SmartLink technology: Recognises users in close proximity and protects the laboratory by automatically deactivating the heating system if no one is at the device for an extended period of time (Bluetooth dongle available as an accessory)
- Easy calibration: Five adjustable temperature points for the heating plate and sensor to ensure reproducible results
- Robust construction: ceramic or aluminium plate, tempered glass in the front and chemical-resistant surfaces for a long service life

The ceramic models reach temperatures of up to 500 °C, while the aluminium versions are ideal for rapid heat transfer up to 380 °C. A powerful motor ensures a homogeneous mixture, even at higher viscosities, while the magnetic clutch enables safe stirring without stalling the stirring core. In addition, the backlit LCD display provides you with precise information about the temperature, speed and timer at all times.

Certifications and standards

All models have TÜV safety certification to guarantee users reliable quality and standard-compliant operation. The IP21 degree of protection also indicates that the devices are protected against dripping water and are ideally equipped to protect against splashes and moisture in everyday laboratory work.

Application examples

This heating and stirring system scores highly in many areas of the laboratory and research thanks to its efficiency and safety. Typical areas of application include:

- pH optimisation in biotechnology: targeted heating of buffer solutions protects sensitive organic substances
- Endothermic reactions in synthesis laboratories: precise temperature control enables controlled reaction conditions in sensitive chemical processes
- Media preparation in microbiology: Uniform dissolution of agar, culture media and protective reagents
- Sterilisation and fixation processes: Suitable for targeted heating until unwanted microorganisms are killed, for example when handling heat-resistant materials

Thanks to its flexible use in a wide temperature and speed range, the device can also be used for the gentle boiling and evaporation of solvents, the dissolution of powders in liquids and for routine QC work in the pharmaceutical industry. Frequently used substances such as buffers, organic solvents or culture media benefit from constant and precisely adjustable temperatures.

FAQ

How can the temperature on the device be set particularly precisely?

The device ensures precise temperature measurement directly in the sample using the temperature probe (Pt1000) supplied. In addition, the ramp for heating and cooling can be individually adjusted using SmartRate.

Does the outer surface of the stirrer remain cool?

The so-called SmartHousing is designed so that the housing remains cool even at high temperatures. Chemical-resistant materials ensure that the surface is easy to clean and increase safety in the laboratory.

Can different ramp programmes be stored?

Recurring applications can be programmed via USB connection and SmartLink technology. This allows defined ramp profiles to be reproduced at any time, which speeds up the workflow, especially for sensitive processes.

How easy is maintenance?

Cleaning is straightforward, as all components, from the glass console to the ceramic or aluminium-coated heating surface, are chemically resistant. If required, a protective cover can be added to further increase the service life.

Is operation also possible when wearing gloves?

The illuminated operating buttons are large and respond reliably, even when users are working with laboratory gloves. The display remains easy to read and ensures safe handling.

Conclusion

With its combination of safety, performance and flexible application options, the OHAUS Guardian 7000 heating stirrer is an indispensable tool in modern laboratories. Thanks to integrated protection functions, extensive calibration options and intelligent technologies, the system is ideal for precise and reliable processes. Whether in chemical synthesis, microbiological studies or biotechnological research, this digital heating stirrer offers a high level of control and safety, allowing users to carry out their experiments and procedures efficiently.

C-MAG MS 4
Magnetic stirrer without heating. Glass-ceramic surface, characterised by very good chemical resistance.

• Powerful motor for stirring quantities up to 5 l (H2O).
• Remote operating surface to protect against leaking liquids
• Speed range: 100 - 1500 1/min

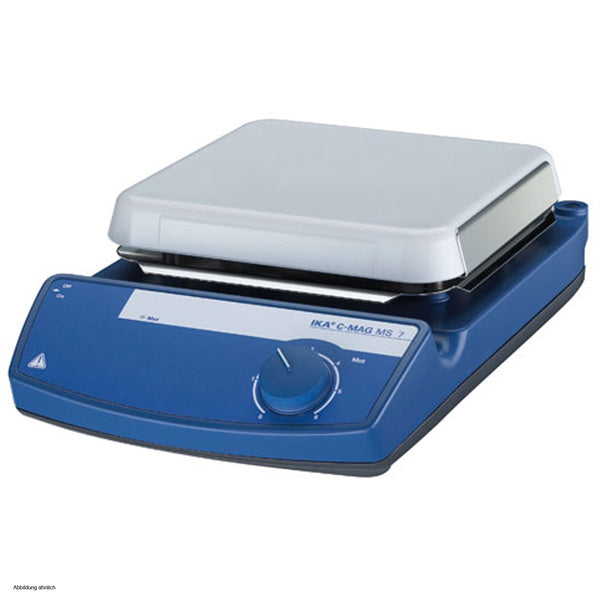

C-MAG MS 7
Magnetic stirrer without heating. Glass-ceramic surface with excellent chemical resistance.

• Powerful motor for stirring quantities up to 10 l (H2O)
• Remote operating surface to protect against leaking liquids
• Speed range: 100 - 1500 1/min

C-MAG MS 10
Magnetic stirrer without heating. Glass-ceramic surface with excellent chemical resistance.

• Powerful motor for stirring quantities up to 15 l (H2O)
• Remote operating surface to protect against leaking liquids
• Speed range: 100 - 1500 1/min

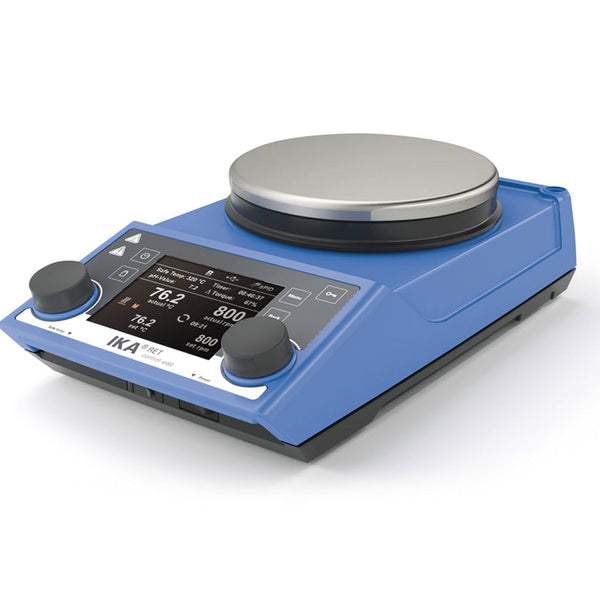

RET control-visc
PATENTED WORLD'S FIRST: Safety magnetic stirrer with heating and integrated scale.
A clear multilingual TFT display facilitates the setting of all parameters.
An integrated temperature control and the supplied PT 100 temperature sensor enable the temperature to be controlled with high precision directly in the medium.
The heating plate is made of a stainless steel composite material. It reaches a temperature of 340 °C and thus guarantees short heat-up times.
An RS 232 and a USB interface enable the magnetic stirrer to be controlled and all test parameters to be documented.
The switchable lock function prevents accidental adjustment of the speed and temperature.
For user protection, the current temperature is displayed even when the unit is switched off.
Below 50 °C, the display switches off automatically.

• BNC socket for connecting a pH electrode
• Adjustable temperature control mode: fast heating or highly accurate temperature control
• Double sensor for simultaneous control of the heat transfer medium temperature and the medium temperature
• Timer and countdown function
• Display of the trend change in viscosity
• Magnetic abrasion detection
• Interval operation
• Choice of different operating modes
• Adjustable safety circuit of the hotplate temperature from 50 to 380 °C
• Transparent protective cover included in delivery
• Error code display in case of malfunction
• Exact temperature and speed setting via digital display; even when the function is switched off
• Safety magnetic stirrer with heating suitable for unattended operation
• Closed construction (IP 42) guarantees long service life
• Automatic switch-off of the temperature control function if the connected external temperature sensor is not immersed in the medium Function selectable, timeout time adjustable (Error 5)

Scope of delivery

• RET control-visc
• PT 100.70 temperature sensor
• Magnetic rod IKAFLON 30
• Magnetic rod IKAFLON 40
• Screw driver
• H 104 Protective cover for RET control
• USB cable - USB A to Micro-B, 2 m

RET control-visc white
PATENTED WORLD'S FIRST: Safety magnetic stirrer with heating and integrated scale.
A clear multilingual TFT display makes it easy to set all parameters.
An integrated temperature control and the supplied PT 100 temperature sensor enable the temperature to be controlled with high precision directly in the medium.
The heating plate is made of a stainless steel composite material with a chemically resistant white ceramic coating. It reaches a temperature of 340 °C and thus guarantees short heating times.
An RS 232 and a USB interface enable the magnetic stirrer to be controlled and all test parameters to be documented.
The switchable lock function prevents accidental adjustment of the speed and temperature.
For user protection, the current temperature is displayed even when the unit is switched off.
Below 50 °C, the display switches off automatically.

• BNC socket for connecting a pH electrode
• Adjustable temperature control mode: fast heating or highly accurate temperature control
• Dual sensor for simultaneous control of the heat transfer medium temperature and the medium temperature
• Timer and countdown function
• Display of the trend change in viscosity
• Magnetic abrasion detection
• Interval operation
• Choice of different operating modes
• Adjustable safety circuit of the hotplate temperature from 50 to 380 °C
• Transparent protective cover included in delivery
• Error code display in case of malfunction
• Exact temperature and speed setting via digital display; even when the function is switched off
• Safety magnetic stirrer with heating suitable for unattended operation
• Closed construction (IP 42) guarantees long service life
• Automatic switch-off of the temperature control function if the connected external temperature sensor is not immersed in the medium Function selectable, timeout time adjustable (Error 5)

Scope of delivery

• RET control-visc white
• PT 100.70 temperature sensor
• Magnetic rod IKAFLON 30
• Magnetic rod IKAFLON 40
• Screw driver
• H 104 Protective cover for RET control
• USB cable - USB A to Micro-B, 2 m

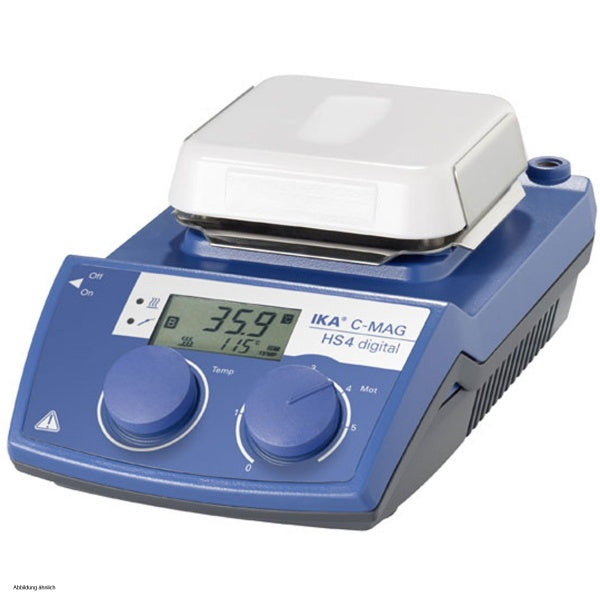

C-MAG HS 4
Magnetic stirrer with heating and heating plate made of glass ceramic, which is characterised by very good chemical resistance.

• Powerful motor for stirring quantities up to 5 l (H2O).
• Fixed safety circuit of 550 °C
• Hot Top Indicator: Hot surface warning to protect against burns!
• Exact temperature setting via digital display (LED)
• Error code display in case of malfunction
• Offset operating surface to protect against leaking liquids

Scope of delivery C-MAG HS 4

• Magnetic rod IKAFLON 20
• Solenoid bar IKAFLON 30
• Magnetic rod IKAFLON 40

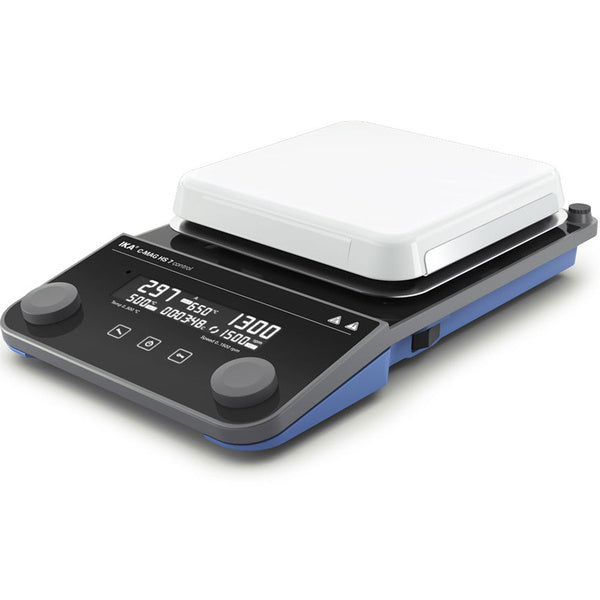

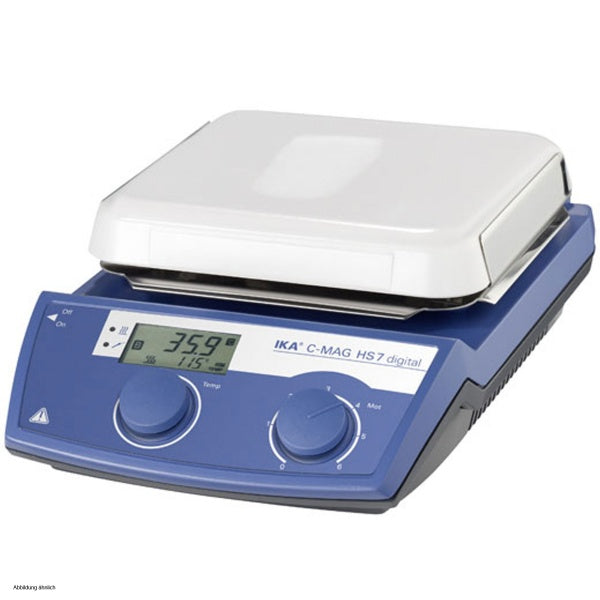

C-MAG HS 7
Magnetic stirrer with heating and heating plate made of glass ceramic. This is characterised by very good chemical resistance.

• Powerful motor for stirring quantities up to 10 l (H2O)
• Fixed safety circuit of 550 °C
• Hot Top Indicator: Hot surface warning to protect against burns!
• Exact temperature setting via digital display (LED)
• DIN socket 12878 for connection of an electronic contact thermometer e.g. ETS-D5 for high-precision temperature control
• Error code display in case of malfunction
• Offset operating surface to protect against leaking liquids

Scope of delivery C-MAG HS 7

• Magnetic rod IKAFLON 20
• Solenoid bar IKAFLON 30
• Magnetic rod IKAFLON 40

C-MAG HS 7 Package
Magnetic stirrer with heating and heating plate made of glass ceramic. DIN socket 12878 for connection of an electronic contact thermometer, e.g. ETS-D5.

Scope of delivery C-MAG HS 7

• ETS-D5
• H 16 V stand rod
• H 44 Cross socket
• H 38 Holding rod

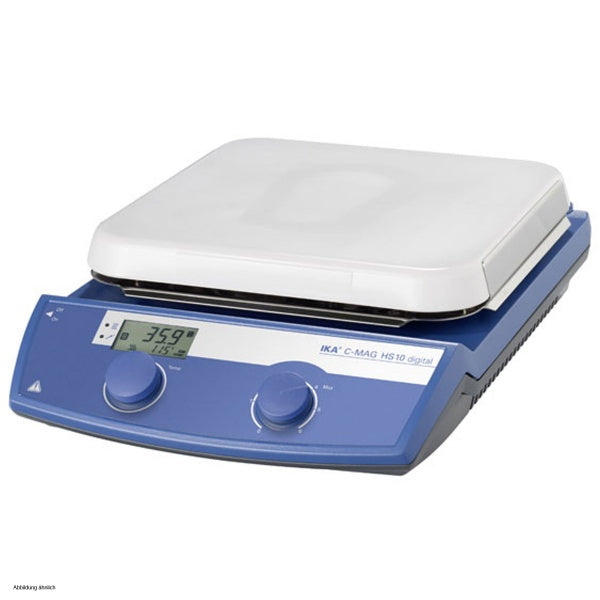

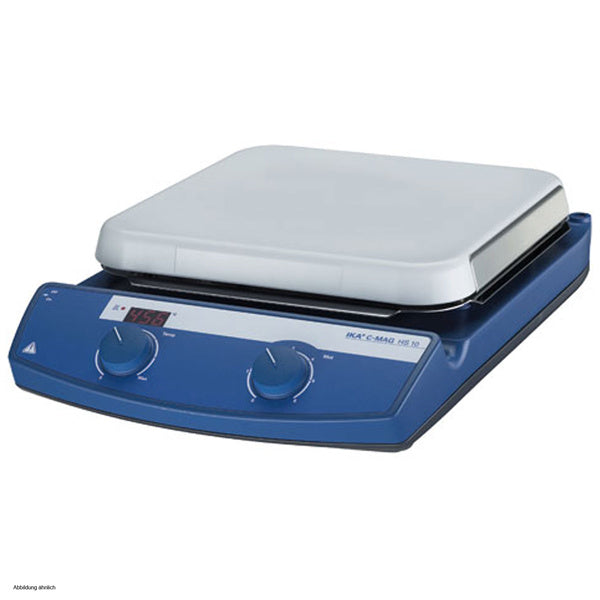

C-MAG HS 10
Magnetic stirrer with heating and heating plate made of glass ceramic. This is characterised by very good chemical resistance.

• Powerful motor for stirring quantities up to 15 l (H2O)
• Fixed safety circuit of 550 °C
• Hot Top Indicator: Hot surface warning to protect against burns!
• Exact temperature setting via digital display (LED)
• DIN socket 12878 for connection of an electronic contact thermometer e.g. ETS-D5 for high-precision temperature control
• Error code display in case of malfunction
• Offset operating surface to protect against leaking liquids

Scope of delivery C-MAG HS 10

• Magnetic rod IKAFLON 20
• Solenoid bar IKAFLON 30
• Magnetic rod IKAFLON 40

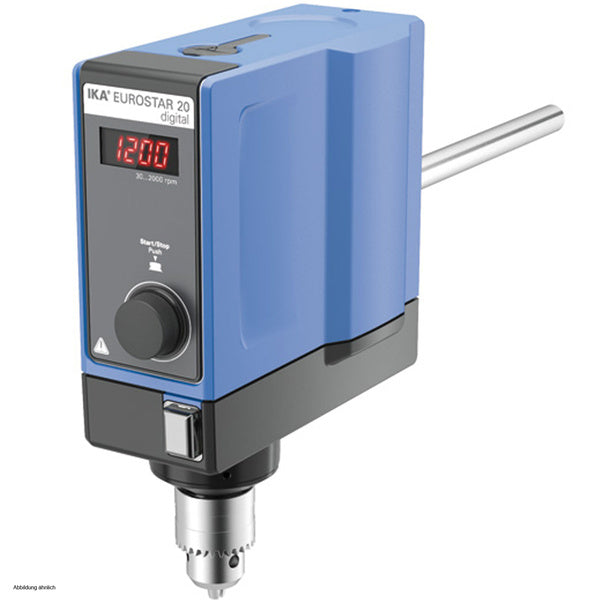

EUROSTAR 20 digital
Stirrer for simple stirring tasks up to 15 l (H2O).
A microprocessor-controlled regulation keeps the speed set between 0/30 - 2,000 min-1 constant.
An electronic safety circuit guarantees that the unit is switched off in the event of a fault or overload.
Set speed and actual speed are continuously adjusted. Thus, the speed remains constant even if the viscosity of the medium changes.

• Digital display of the speed
• Infinitely variable speed
• Stirring shafts can be plugged through
• Overload protection
• Short-term overload operation
• Slim design
• High running smoothness
• Error code display

Scope of delivery

• EUROSTAR 20 digital
• Chuck key

EUROSTAR 20 high speed digital
High-speed laboratory stirrer for intensive mixing of samples up to 20 l (H2O).
A microprocessor-controlled regulation keeps the speed set between 0/150 - 6,000 min-1 constant.
An electronic safety circuit guarantees that the unit is switched off in the event of a fault or overload.
Set speed and actual speed are continuously adjusted. Thus, the speed remains constant even if the viscosity of the medium changes.
The precision stirrer shaft supplied is 280 mm long and has a maximum immersion depth of 220 mm.

• Digital speed display
• Infinitely variable speed
• Tapered mounting for precision shaft
• Overload protection
• Short-term overload operation
• Narrow design
• High running smoothness
• Error code display

Scope of delivery

• EUROSTAR 20 high speed digital
• R 6000 precision shaft
• Open-end wrench
• Hook spanner

EUROSTAR 20 high speed control
High-speed agitator with removable remote control and digital TFT display for quantities up to 20 l (H2O).
A microprocessor-controlled regulation keeps the speed set between 0/150 - 6000 min-1 constant.
The RS 232 and USB interfaces of the laboratory stirrer allow the control and documentation of all parameters, as well as an update of the current firmware.
A torque trend display informs about viscosity changes of the sample.
The supplied precision stirrer shaft is 280 mm long and has a maximum immersion depth of 220 mm.

• Multilingual TFT display
• Programmable functions
• Integrated temperature measurement
• Interval operation
• Timer
• Adjustable safety circuit
• Locking function
• Infinitely variable speed
• Overload protection
• Short-time overload operation
• Narrow design
• High running smoothness
• Error code display
• H 67.60 temperature sensor and WH 11 WiCo bracket included in scope of delivery

Scope of delivery

• EUROSTAR 20 high speed control
• R 6000 precision shaft
• Open-end wrench
• Hook spanner
• H 67.60 Temperature sensor, stainless steel
• WH11
• OS 1.0 WiCo power supply unit
• USB cable - USB A to micro B, 2 m
• USB cable micro A - micro B 2.0
• Screw driver
• Protective cover for WiCo contact

EUROSTAR 40 digital
Universal stirrer for simple stirring tasks up to 25 l (H2O).
A microprocessor-controlled regulation keeps the speed set between 0/30 - 2000 min-1 constant.
An electronic safety circuit guarantees that the unit is switched off in the event of a fault or overload.
Set speed and actual speed are continuously adjusted. Thus, the speed remains constant even if the viscosity of the medium changes.

• Digital display of the speed
• Infinitely variable speed
• Stirring shafts can be plugged through
• Overload protection
• Short-term overload operation
• Slim design
• High running smoothness
• Error code display

Scope of delivery

• EUROSTAR 40 digital
• Chuck key

EUROSTAR 60 control
Universal agitator with removable remote control and digital TFT display for quantities up to 40 l (H2O).
A microprocessor-controlled regulation keeps the speed set between 0/30 - 2000 min-1 constant.
The RS 232 and USB interfaces of the laboratory stirrer allow the control and documentation of all parameters.
A torque trend display informs about viscosity changes of the sample.
An electronic safety circuit guarantees that the unit is switched off in the event of a fault or overload.
Set speed and actual speed are continuously adjusted. Thus, the speed remains constant even if the viscosity of the medium changes.

• Multilingual TFT display
• Programmable functions
• Integrated temperature measurement
• Interval operation
• Timer switch
• Adjustable safety circuit
• Locking function
• Infinitely adjustable speeds
• Stirring shafts can be plugged through
• Overload protection
• Short-term overload operation
• Slim design
• High running smoothness
• Error code display
• H 67.60 temperature sensor and WH 11 WiCo bracket included in scope of delivery

Scope of delivery

• EUROSTAR 60 control
• H 67.60 Temperature sensor, stainless steel
• WH11
• OS 1.0 WiCo power supply unit
• USB cable - USB A to micro B, 2 m
• USB cable micro A - micro B 2.0
• Screw driver
• Protective cover for WiCo contact
• Chuck key

EUROSTAR 100 digital
Powerful agitator for highly viscous media and intensive mixing of quantities up to 100 l (H2O).
A microprocessor-controlled regulation keeps the speed set between 0/30 - 1,300 min-1 constant.
An electronic safety circuit guarantees that the unit is switched off in the event of a fault or overload.
Set speed and actual speed are continuously adjusted. Thus, the speed remains constant even if the viscosity of the medium changes.

• Digital display of the speed
• Infinitely variable speed
• Stirring shafts can be plugged through
• Overload protection
• Short-term overload operation
• Slim design
• High running smoothness
• Error code display
• Scope of delivery
• EUROSTAR 100 digital
• Chuck key

EUROSTAR 100 control P4
The extremely powerful agitator of the EUROSTAR 100 control P4 with removable remote control and digital TFT display is suitable for highly viscous media and offers a torque of up to 320 Ncm.
A microprocessor-controlled regulation keeps the speed set between 0/10 - 300 rpm constant.
The RS 232 and USB interfaces of the agitator allow the control and documentation of all parameters.
In addition, an integrated torque trend display informs about viscosity changes and an electronic safety circuit guarantees that the unit is switched off in the event of a fault or overload.
Set speed and actual speed are continuously adjusted, so the speed remains constant even if the viscosity of the medium changes.

• Reversal of direction of rotation
• Multilingual TFT display
• Programmable functions
• Integrated temperature measurement
• Interval operation
• Timer
• Adjustable safety circuit
• Locking function
• Infinitely variable speed
• Stirring shafts can be plugged through
• Overload protection
• Short-term overload operation
• High running smoothness
• Error code display
• H 67.60 temperature sensor and WH 11 WiCo bracket included in scope of delivery

Scope of delivery

• EUROSTAR 100 control P4
• H 67.60 Temperature sensor, stainless steel
• WH11
• OS 1.0 WiCo power supply unit
• USB cable - USB A to micro B, 2 m
• USB cable micro A - micro B 2.0
• Screw driver
• Protective cover for WiCo contact
• Chuck key

EUROSTAR 200 control
Extremely powerful agitator for highly viscous media and intensive mixing of quantities up to 100 l (H2O).
With removable remote control and digital TFT display.
A microprocessor-controlled regulation keeps the speed set between 0/6 - 2,000 min-1 (two speed ranges) constant.
The RS 232 and USB interfaces of the laboratory stirrer allow control and documentation of all parameters.
An integrated torque trend display measures the viscosity change of the sample. An electronic safety circuit guarantees that the unit is switched off in the event of a fault or overload.
Set and actual speed are continuously adjusted. Thus, the speed remains constant even if the viscosity of the medium changes.

• Multilingual TFT display
• Programmable functions
• Integrated temperature measurement
• Interval operation
• Timer switch
• Adjustable safety circuit
• Locking function
• Infinitely adjustable speeds
• Stirring shafts can be plugged through
• Overload protection
• Short-term overload operation
• Slim design
• High running smoothness
• Error code display
• H 67.60 temperature sensor and WH 11 WiCo bracket included in scope of delivery

Scope of delivery

• EUROSTAR 200 control
• H 67.60 Temperature sensor, stainless steel
• WH11
• OS 1.0 WiCo power supply unit
• USB cable - USB A to micro B, 2 m
• USB cable micro A - micro B 2.0
• Screw driver
• Protective cover for WiCo contact
• Chuck key

EUROSTAR 200 control P4
Extremely powerful agitator for highly viscous media for quantities up to 100 l (H2O).
With removable remote control and digital TFT display.
A microprocessor-controlled regulation keeps the speed set between 0/4 - 530 min-1 (two speed ranges) constant.
The RS 232 and USB interfaces of the agitator allow control and documentation of all parameters.
An integrated torque trend display informs about viscosity changes.
An electronic safety circuit guarantees that the unit is switched off in the event of a fault or overload.
Set speed and actual speed are continuously adjusted. Thus, the speed remains constant even if the viscosity of the medium changes.

• Multilingual TFT display
• Programmable functions
• Integrated temperature measurement
• Interval operation
• Timer switch
• Adjustable safety circuit
• Locking function
• Infinitely adjustable speeds
• Overload protection
• Short-time overload operation
• Narrow design
• High running smoothness
• Error code display
• H 67.60 temperature sensor and WH 11 WiCo bracket included in scope of delivery

Scope of delivery

• EUROSTAR 200 control P4
• H 67.60 Temperature sensor, stainless steel
• WH11
• OS 1.0 WiCo power supply unit
• USB cable - USB A to micro B, 2 m
• USB cable micro A - micro B 2.0
• Screw driver
• Protective cover for WiCo contact
• Chuck key

EUROSTAR 400 control
Powerful agitator for highly viscous media and intensive mixing of quantities up to 150 l (H2O).
With removable remote control and digital TFT display.
A microprocessor-controlled regulation keeps the speed set between 0/6 - 2,000 min-1 (two speed ranges) constant.
The RS 232 and USB interfaces of the laboratory stirrer allow control and documentation of all parameters.
An integrated torque trend display measures the viscosity change of the sample.
An electronic safety circuit guarantees that the unit is switched off in the event of a fault or overload.
Set and actual speed are continuously adjusted. Thus, the speed remains constant even if the viscosity of the medium changes.

• Multilingual TFT display
• Programmable functions
• Integrated temperature measurement
• Interval operation
• Timer switch
• Adjustable safety circuit
• Locking function
• Infinitely adjustable speeds
• Stirring shafts can be plugged through
• Overload protection
• Short-term overload operation
• Slim design
• H 67.60 temperature sensor and WH 11 WiCo bracket included in scope of delivery

Scope of delivery

• EUROSTAR 400 control
• H 67.60 Temperature sensor, stainless steel
• WH11
• OS 1.0 WiCo power supply unit
• USB cable - USB A to micro B, 2 m
• USB cable micro A - micro B 2.0
• Screw driver
• Protective cover for WiCo contact
• Chuck key

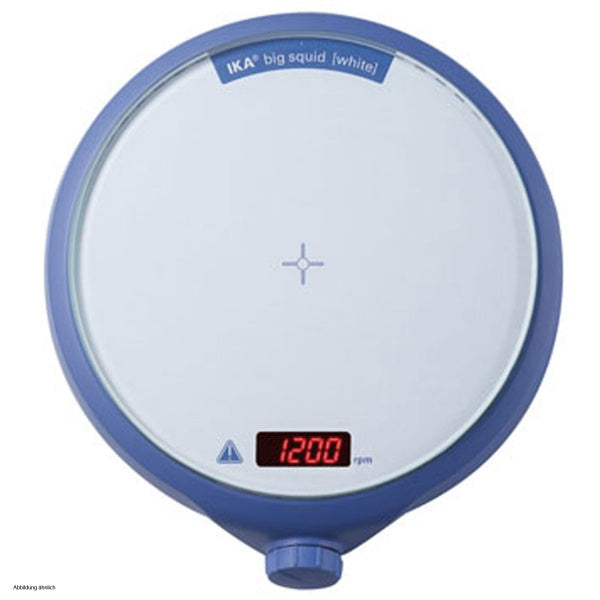

IKA magnetic stirrer big squid IKAMAG® white: The further development of the magnetic stirrer now with a new design.

• new: With digital speed display (LED)
• new: Electronically controlled motor for more power
• new: Larger speed range from 0 - 2,500 rpm
• Glass installation surface (good chemical resistance), plastic base made of TPC-ET
• Recyclable materials

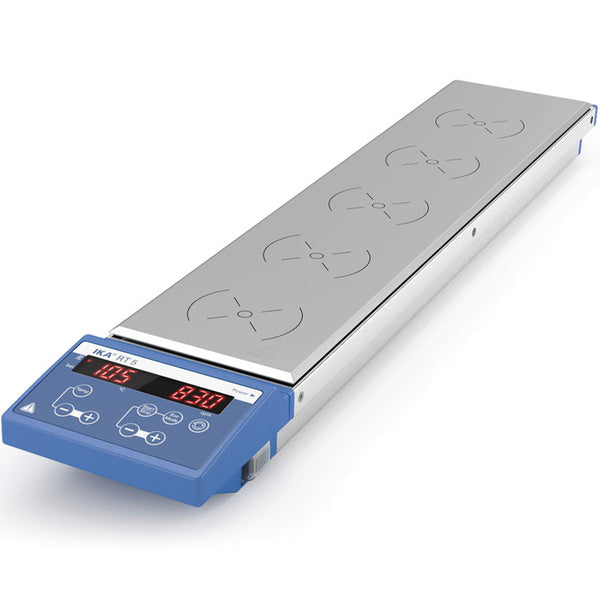

RT 5
Digital multi-position magnetic stirrer with 5 synchronously running stirring positions and heating function.
Due to a noiseless coil drive technology, the speeds at all stirring positions are identical. This allows serial tests to be carried out under reproducible conditions.
The surface temperatures can be continuously adjusted up to 120 °C, resulting in a medium temperature of up to 70 °C (depending on the vessel used).
The speeds are kept constant even during load changes.

• Very homogeneous temperature distribution of the heating plate due to foil heating
• Adjustable reversal of direction of rotation
• Eco-mode for low heating of the surface
• Wear-free coil drive
• Error code display
• Simple operation through foil keypad
• Suitable for continuous operation
• Speed range: 0 - 1000 1/min

Scope of delivery

• RT 5
• Silicone mat for protection and optimised temperature distribution

RT 10
Digital multi-position magnetic stirrer with 10 synchronous stirring positions and heating function.
Due to a noiseless coil drive technology, the speeds at all stirring positions are identical. This allows serial tests to be carried out under reproducible conditions.
The surface temperatures can be continuously adjusted up to 120 °C, resulting in a medium temperature of up to 70 °C (depending on the vessel used).
The speeds are kept constant even during load changes.

• Very homogeneous temperature distribution of the heating plate due to foil heating
• Adjustable reversal of direction of rotation
• Eco-mode for low heating of the surface
• Wear-free coil drive
• Error code display
• Simple operation through foil keypad
• Suitable for continuous operation
• Speed range: 0 - 1000 1/min

Scope of delivery

• RT 10
• Silicone mat for protection and optimised temperature distribution

RT 15
Digital multi-position magnetic stirrer with 15 synchronous stirring positions and heating function.
Due to a noiseless coil drive technology, the speeds at all stirring positions are identical. This allows serial tests to be carried out under reproducible conditions.
The surface temperatures can be continuously adjusted up to 120 °C, resulting in a medium temperature of up to 70 °C (depending on the vessel used).
The speeds are kept constant even during load changes.

• Very homogeneous temperature distribution of the heating plate due to foil heating
• Adjustable reversal of direction of rotation
• Eco-mode for low heating of the surface
• Wear-free coil drive
• Error code display
• Simple operation through foil keypad
• Suitable for continuous operation
• Speed range: 0 - 1000 1/min

Scope of delivery

• RT 15
• Silicone mat for protection and optimised temperature distribution

SHP Steriltechnik LABOMAG Multipoint magnetic stirrer 2x6

A broad range of  Multipoint magnetic stirrers allows various and flexible applications in medical, biotechnological and chemical laboratories. Thereby all LABOMAG Magnetic stirrers convince with an attractive design, handiness and functionality:

• 2 selectable stirring point distances
• slim and space saving
• easy to clean and sturdy surfaces
• Made in Germany in consideration of German quality standards

Sturdy and long-living drive
The wear-free inductive drive ensures a powerful and homogeneous mixing of liquids while having a constant stirring speed. Due to the Soft-start-function the stirring bar starts running evenly and centered. All stirring positions are stirring synchronously for a uniform mixing of media.

• only low heat transfer to the stirred liquid
• integrated change of stirring direction ensures even more homogeneous mixing of liquid
• reliable and durable - tested in long-term usage

Three different housing materials LABOMAG Multipoint magnetic stirrers have a completely encapsulated and tight interior space. They are available in 3 qualities:

• Industrial standard housing made of brushed stainless steel immerseable in water bath up to 60 °C
• Laboratory standard housing made of powder coated stainless steel
• Pharmaceutical industry housing made of electro-polished stainless steel immerseable in water bath up to 60 °C

User-friendly operation
The separate control unit is easy to use. Integrated LEDs visualise the recent stirring speed. The controller memorises the last setting of stirring speed and stirring direction. A USB interface is integrated as serial function. The control unit is always included in price for all Labomag magnetic stirrers.

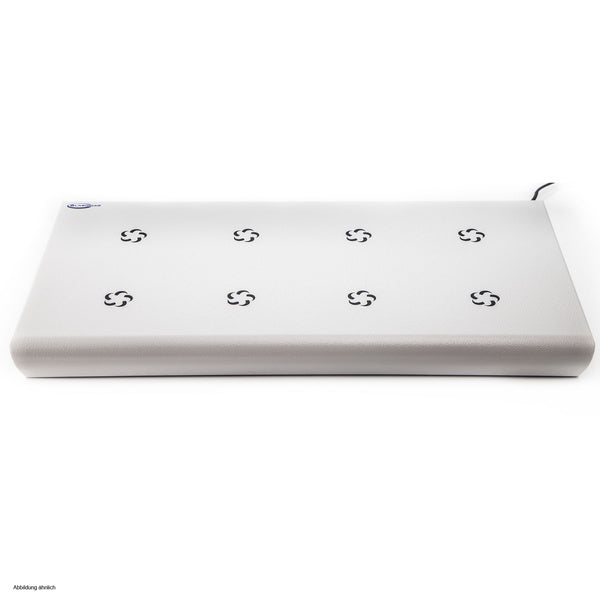

SHP Steriltechnik LABOMAG Multipoint magnetic stirrer 2x4

A broad range of  Multipoint magnetic stirrers allows various and flexible applications in medical, biotechnological and chemical laboratories. Thereby all LABOMAG Magnetic stirrers convince with an attractive design, handiness and functionality:

• 2 selectable stirring point distances
• slim and space saving
• easy to clean and sturdy surfaces
• Made in Germany in consideration of German quality standards

Sturdy and long-living drive
The wear-free inductive drive ensures a powerful and homogeneous mixing of liquids while having a constant stirring speed. Due to the Soft-start-function the stirring bar starts running evenly and centered. All stirring positions are stirring synchronously for a uniform mixing of media.

• only low heat transfer to the stirred liquid
• integrated change of stirring direction ensures even more homogeneous mixing of liquid
• reliable and durable - tested in long-term usage

Three different housing materials LABOMAG Multipoint magnetic stirrers have a completely encapsulated and tight interior space. They are available in 3 qualities:

• Industrial standard housing made of brushed stainless steel immerseable in water bath up to 60 °C
• Laboratory standard housing made of powder coated stainless steel
• Pharmaceutical industry housing made of electro-polished stainless steel immerseable in water bath up to 60 °C

User-friendly operation
The separate control unit is easy to use. Integrated LEDs visualise the recent stirring speed. The controller memorises the last setting of stirring speed and stirring direction. A USB interface is integrated as serial function. The control unit is always included in price for all Labomag magnetic stirrers.

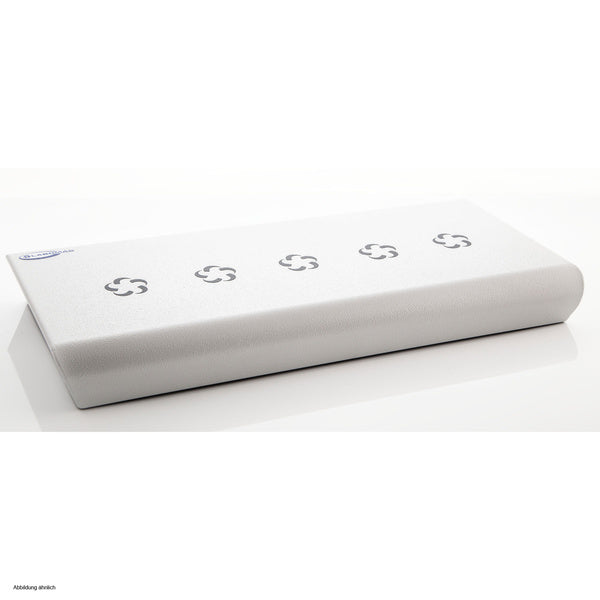

SHP Steriltechnik LABOMAG Multipoint magnetic stirrer 1x5

A broad range of  Multipoint magnetic stirrers allows various and flexible applications in medical, biotechnological and chemical laboratories. Thereby all LABOMAG Magnetic stirrers convince with an attractive design, handiness and functionality:

• 2 selectable stirring point distances
• slim and space saving
• easy to clean and sturdy surfaces
• Made in Germany in consideration of German quality standards

Sturdy and long-living drive
The wear-free inductive drive ensures a powerful and homogeneous mixing of liquids while having a constant stirring speed. Due to the Soft-start-function the stirring bar starts running evenly and centered. All stirring positions are stirring synchronously for a uniform mixing of media.

• only low heat transfer to the stirred liquid
• integrated change of stirring direction ensures even more homogeneous mixing of liquid
• reliable and durable - tested in long-term usage

Three different housing materials LABOMAG Multipoint magnetic stirrers have a completely encapsulated and tight interior space. They are available in 3 qualities:

• Industrial standard housing made of brushed stainless steel immerseable in water bath up to 60 °C
• Laboratory standard housing made of powder coated stainless steel
• Pharmaceutical industry housing made of electro-polished stainless steel immerseable in water bath up to 60 °C

User-friendly operation
The separate control unit is easy to use. Integrated LEDs visualise the recent stirring speed. The controller memorises the last setting of stirring speed and stirring direction. A USB interface is integrated as serial function. The control unit is always included in price for all Labomag magnetic stirrers.
