Heating Technology

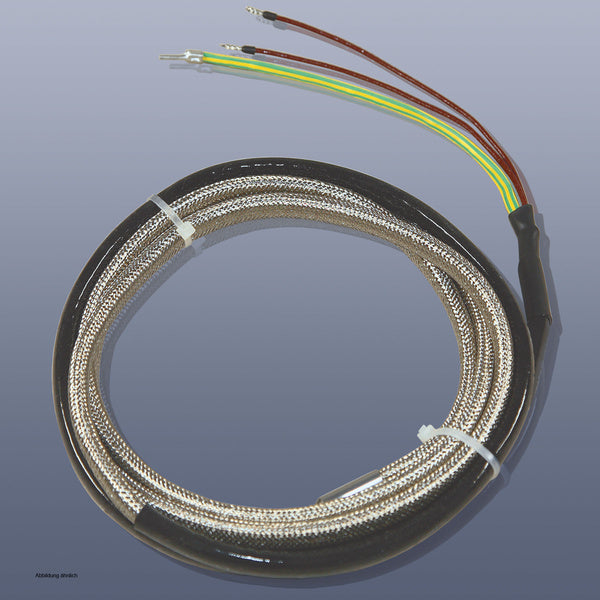

ISOHEAT KM-HT-G Glass fibre-insulated heating tape

Description:
Ready-made and flexible resistive heating cable with nickel-plated copper outer braid as a protective conductor.

features:

• high performance allow short heating
• Heating of complex parts
• Braiding protects mechanically and electrically (protectively earthed)
• not protected against moisture

Examples of use:
This standard heating tape is particularly suitable for tempering machine parts, equipment, pipes and structures in the industry.

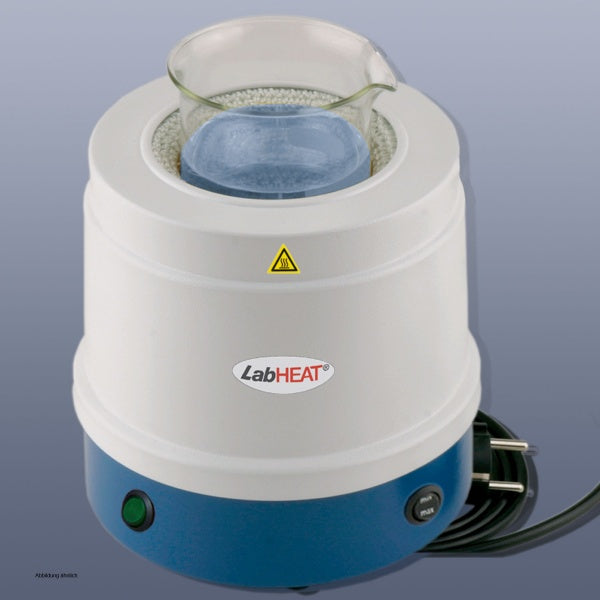

ISOHEAT KM-MNB metal-cased heating mantles for beakers, low form
Flexible glass yarn heating element; plastic coated, chemical-resistant metal housing with built-in-power-on and heating zone switch
Designed and technical identical to series KM-M; but with a flexible heating element for low-sided beakers.
max. heating element temperature 450 °C
1,5 m power supply (earthed) cable and RCD (residual current detection)
nominal voltage 230 V AC

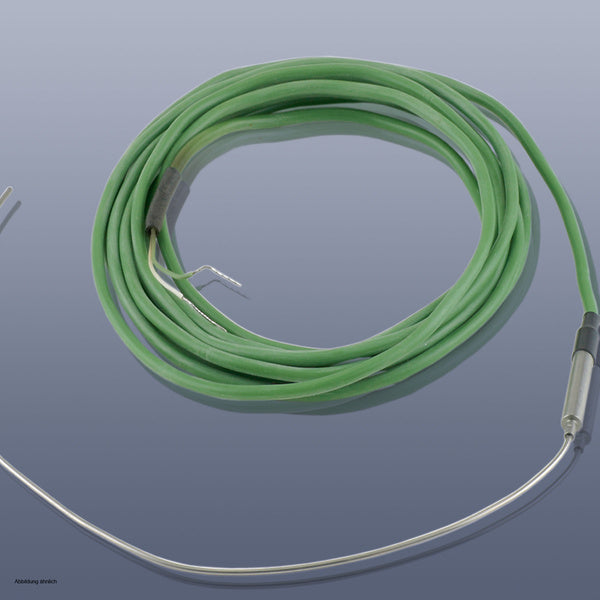

ISOHEAT KM-TNS Temperature sensor

• NiCr-Ni
• thermocouple
• bulb sensor

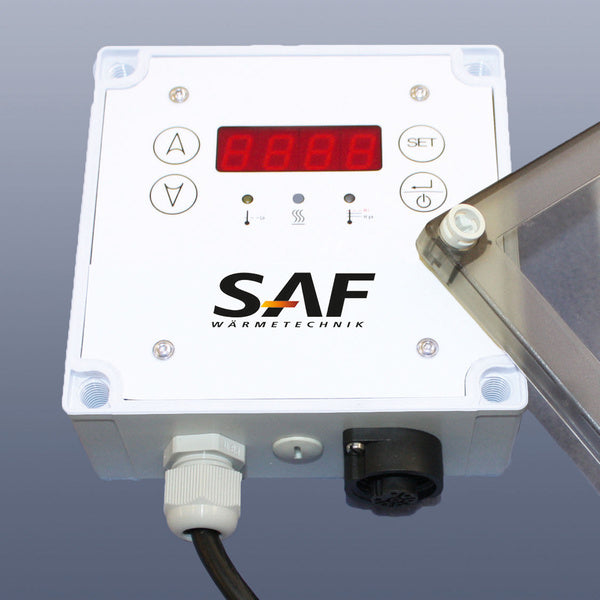

ISOHEAT Series KM-EC1000 Electronic Temperature Controller

Electronic temperature controller with microprocessor control for demanding applications.
The user can choose between direct terminal connection or a common connection of heater and sensor via a 7-pole socket.

The transparent cover protects against unintentional adjustment of the temperature.

• Sturdy polycarbonate housing with transparent cover
• LEDs for mains, operation and fault (sensor break)
• PID self-optimisation
• Operation via function key
• Settings via parameter level
• Input: PT100 or thermocouple
• Direct connection of supply line and heating via terminals (KM-EC1000)
• On request also available with 1.5 m mains cable (KM-EC1010) and additional 7-pole round socket (KM-EC1020) for plugging in heater and sensor

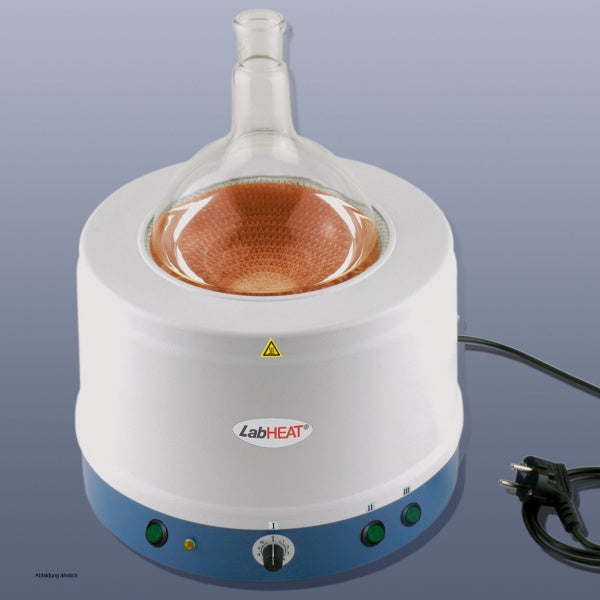

ISOHEAT KM-MPE metal-cased heating mantles
Flexible glass yarn heating element; plastic coated, chemical-resistant metal housing with built-in-power-on and heating zone switch and addition equipped with a controller which allows a continuous adjustment of power.
Designed and technical identical to series KM-ME; but to used for round flasks of three different sizes.
max. heating element temperature 450 °C
1,5 m power supply (earthed) cable and RCD (residual current detection)
nominal voltage 230 V AC

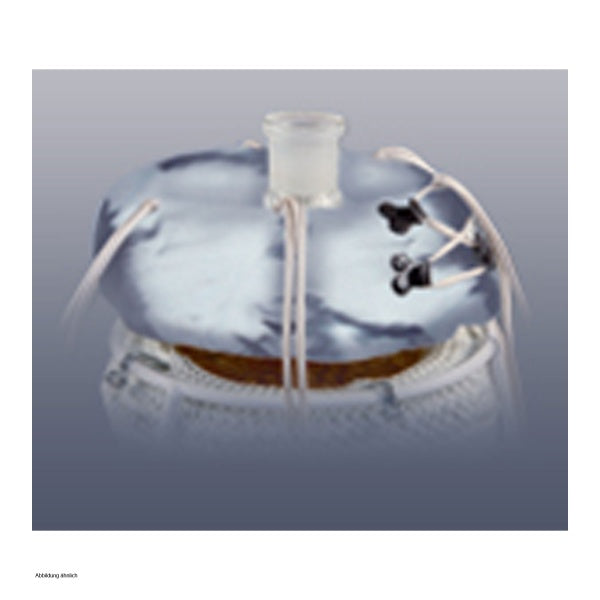

ISOHEAT KM-IRB insulating mantles

• for flasks, round bottom with up to 3 necks
• to prevent heat losses occuring at the upper flask halves
• they are especially suited to prevent condensation and thus re-cooling, as well as to ensure the desired temperature of the flask contents is even above 250°C
• flexible glass yarn element (a gentle treatment of the glassware)
• high quality design (made by hand work)
• for operating temperatures up to 450°C

ISOHEAT KM-IRU insulating mantles, unheated

• for flasks, round bottom with up to 3 necks
• to prevent heat losses occuring at the upper flask halves
• they are especially suited to prevent condensation and thus re-cooling, as well as to ensure the desired temperature of the flask contents is even above 250°C
• flexible glass yarn element (a gentle treatment of the glassware)
• high quality design (made by hand work)

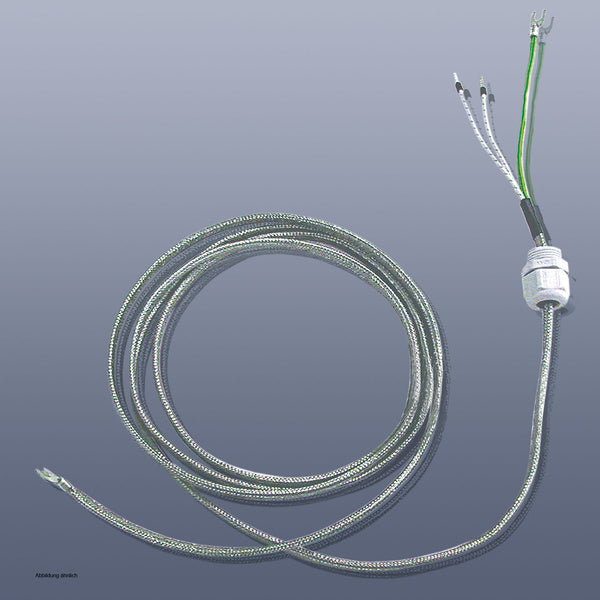

ISOHEAT KM-HT-CN PTFE-insulated heating tape

Description:
Ready-made and flexible PTFE insulated heating tape with nickel-plated copper outer braid as a protective conductor.

features:

• splashproof
• very cheap heating tape
• very flexible
• Braiding and protection, and electric (protectively earthed)

Examples of use:
This PTFE insulated heating cable is particularly suitable for use in pump and valve heaters, heaters for Laboratory setups and for temperature is kept constant by Oils, fats, waxes, chemicals, etc.

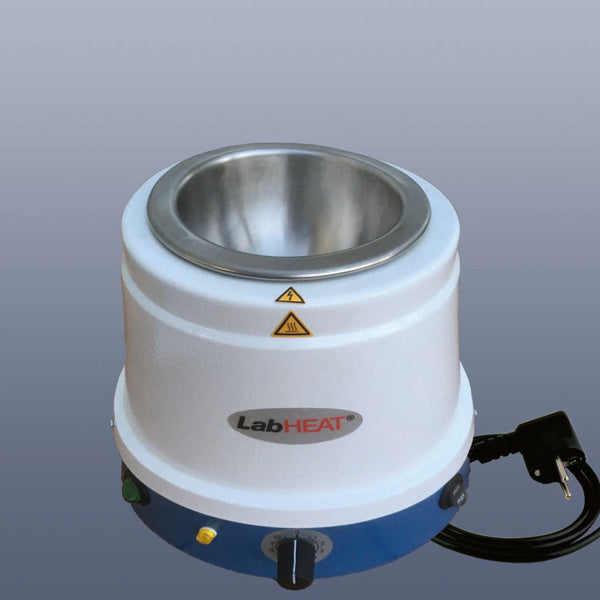

ISOHEAT KM-MEB Housing Heating Hood
For operating temperatures up to 450 °C

• with built-in controller for stepless power adjustment
• for round bottom flasks
• Corrosion-resistant stainless steel heating pan: liquid leaking due to vessel rupture does not cause failure of the heating mantle and the collected liquid can be removed again
• Plastic-coated metal housing: chemical-resistant and highly stable
• thermally insulated and protective grounding: thermal insulation between heater and outer casing prevents heat dissipation to the outside
• prepared threaded holes at the back allow connection of our KM-SK stand clamp (accessory)
• built-in mains and heating zone switch
• with personal protection switch (FI switch)

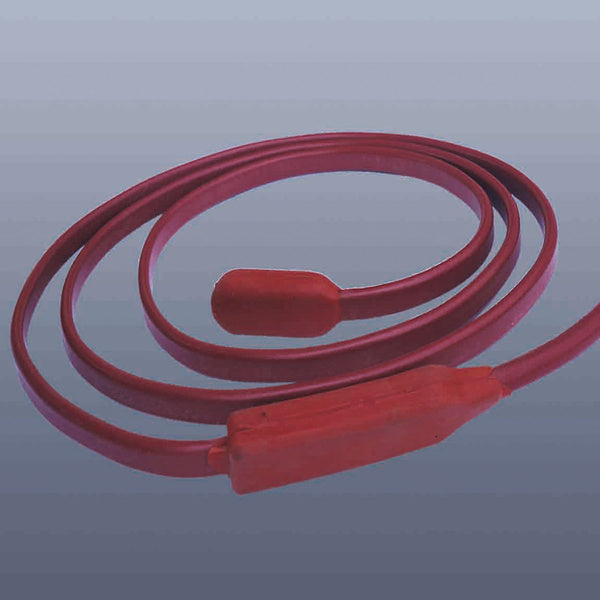

ISOHEAT KM-HT-203 Silicone insulated heating tape
For operating temperatures up to 200 °C

Ready-made and flexible heating tape of the highest quality.
The silicone-sheathed heating conductors are enclosed in a copper-nickel-plated protective conductor braid and a high-quality silicone rubber serves as the outer sheath.

• waterproof
• high performance enables short heat-up times
• easy to clean - due to its smooth surface, especially recommended where food is produced and stored
• Protective braiding inside protects electrically (protective earthing).

Application examples:
In addition to applications such as heat preservation on machine parts, frame heating or pipe trace heating, this standard heating tape is also intended for permanent use in laboratories and pilot plants, generally where experimental set-ups are created.

ISOHEAT Series KM-EC3000 Controller/Limiter Combination

Electronic temperature controller/limiter combination with microprocessor control.
The user can choose between direct terminal connection or a common connection of heater and sensor via a 7-pin socket.
The controller-limiter function is also possible with only one sensor.
The transparent cover protects against unintentional adjustment of the temperature.

• Sturdy polycarbonate housing with transparent cover
• LEDs for mains, operation and fault (sensor break)
• PID self-optimisation
• Operation via function key
• Settings via parameter level
• potential contact 10 A
• Input: up to 2 x Pt-100
• freely adjustable temperature range 0 to 450 °C
• direct connection of supply cable and heating via terminals (KM-EC3000)
• on request also available with 1.5 m mains cable (KM-EC3010) and additional 7-pole round socket (KM-EC3020) for plugging in heater and sensor

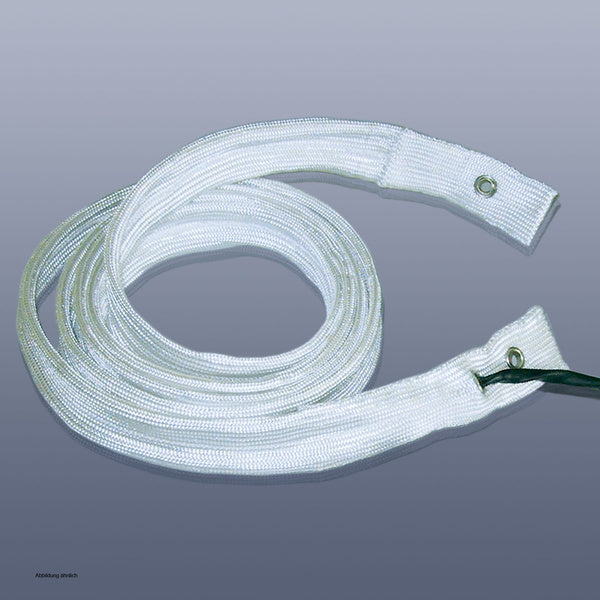

ISOHEAT KM-HT-BS30 Glass fibre-insulated heating tape

Description:
Ready-made and flexible resistive heating tape with glass insulated, flexible fabric and internal heat conductors with protective jacket.

features:

• high performance
• wide-scale heat transfer
• very flexible design
• Protective conductor braiding inside
• not protected against moisture

Examples of use:
This heating cable is preferably used in the laboratory and pilot plant for heating and compensate for heat losses at short tubes and smaller structures and where must be rapidly heated by high power concentrations.

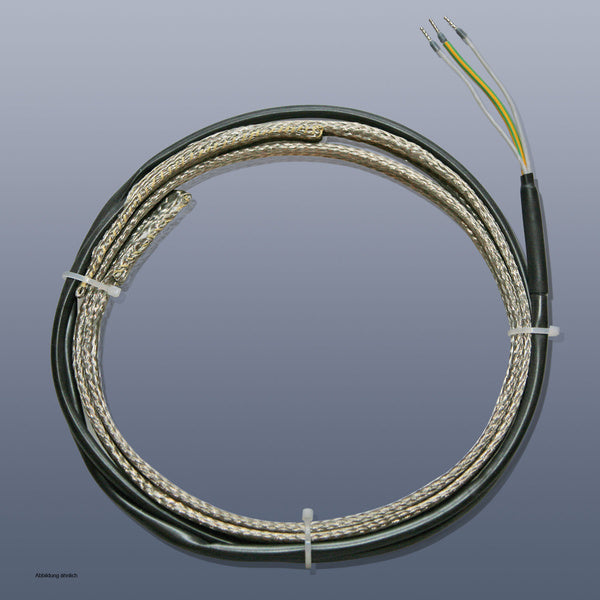

ISOHEAT KM-HT-PSS PTFE-insulated heating tape

Description:
Ready-made and flexible PTFE insulated heating tape with nickel-plated copper outer braid as a protective conductor.

features:

• splashproof
• high performance
• very flexible
• Braiding protects mechanically and electrically (protectively earthed)

Examples of use:
This PTFE insulated heating cable is particularly suitable for use in pump and valve heaters, heaters for laboratory setups, and for maintaining a constant temperature of oils, fats, waxes, adhesives, chemicals, etc.

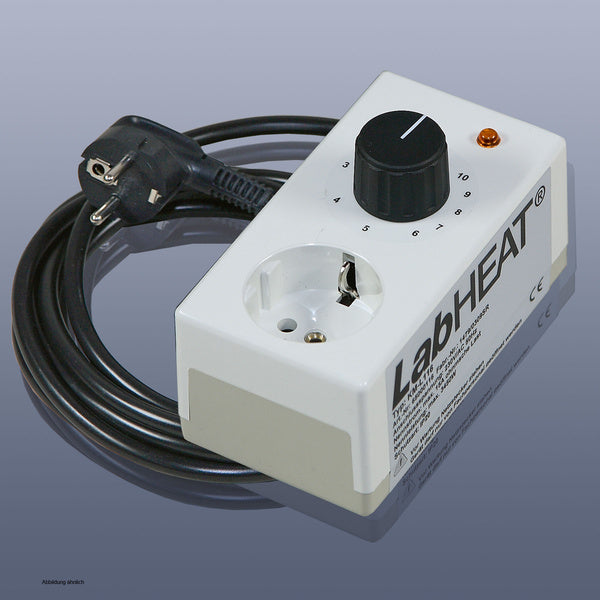

ISOHEAT KM-L116 Power controller

Description:

Plug pavers, electromechanical power regulator in a sturdy plastic housing for the targeted dose of heat output of heating mantles, heating tapes, heating cables, etc.

features:

• simple, ready to plug Upstream
• stepless power adjustment 0 - 100%
• Switching capacity up to 3450 W
• The load is two-pole and off
• Signal light shows the functioning status of the consumer

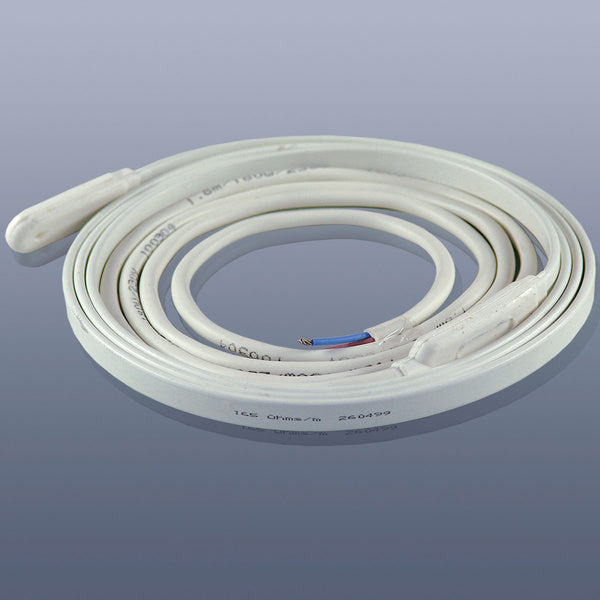

ISOHEAT KM-HT-201 Silicone insulated heating tape
For operating temperatures up to 200 °C

Ready-made and very flexible heating tape of the highest quality.
The heating conductors are enclosed in high-quality silicone rubber.
The heating tape can only be used with additional protective measures.

• waterproof
• particularly flexible
• easy to clean - due to its smooth surface, especially recommended where food is produced and stored
• without protective conductor braid

Application examples:
In addition to heating moulded parts or pipes with small diameters, this short standard heating tape is also intended for permanent use in laboratories and pilot plants, generally where experimental set-ups are created.

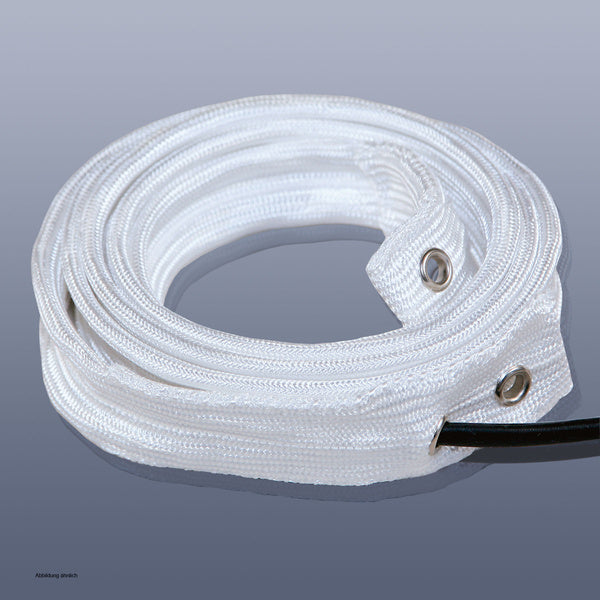

ISOHEAT KM-HT-H Silikat-insulated heating tape

Description:
Ready-made and flexible resistive heating tape processed with a high quality quartz fiber fabric, which allows use up to 900 ° C heating element temperature. Including additional electrical protection measures, it is essential to work with a temperature control.

features:

• high operating temperatures
• high performance
• wide-scale heat transfer
• very flexible design
• not protected against moisture
• without a protective conductor braiding

Examples of use:
This heating cable is used in laboratory and pilot plant, where rapidly heated by high power levels and high temperatures have to be reached.

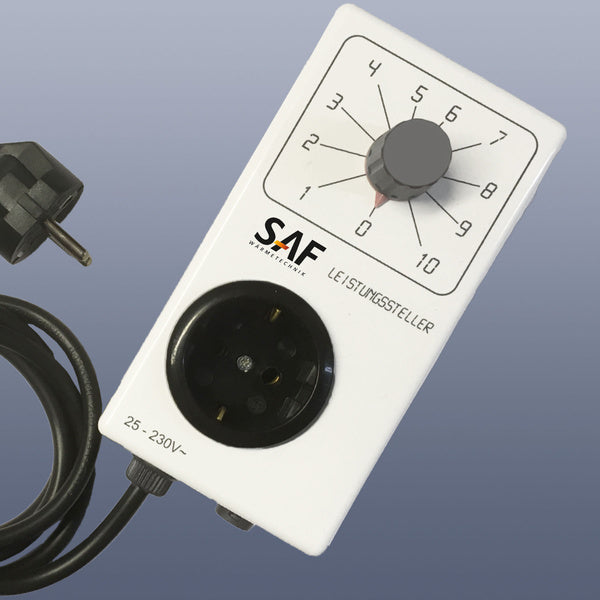

ISOHEAT KM-L220 Power Controller

Ready-to-connect, electromechanical power controller in a sturdy plastic housing with phase angle control for targeted control of the heating power of heating mantles, heating tapes, heating cables, etc. This power controller can also be used for infinitely variable speed adjustment of universal motors.

This power controller can also be used for stepless speed adjustment of universal motors, but not for motors with starting or operating capacitor.

• simple, ready-to-plug-in connection
• stepless power adjustment 0-100%
• switching capacity up to 2000 W
• the consumer is switched on and off with two poles
• also for transformers and universal motors

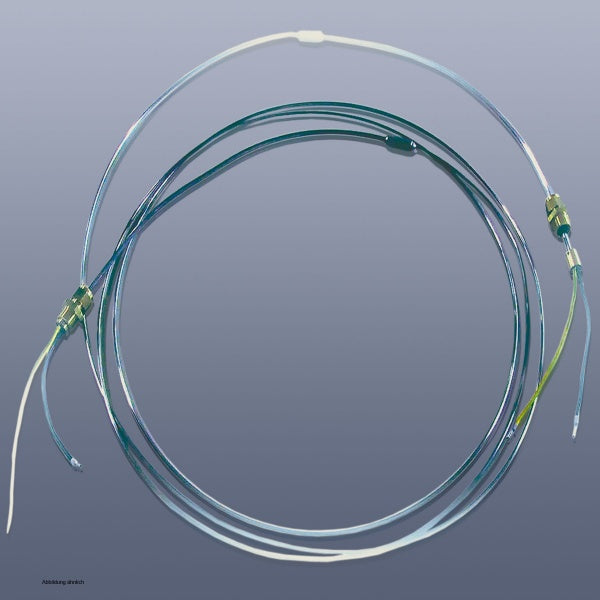

ISOHEAT KM-HC-SS Mineral-insulated heating cable

Description:
Ready-made, mineral insulated heating cable with metal sheath of stainless steel 1.4541. Extremely resistant heating cable for transferring large heat outputs.

Examples of use:
Container heaters, Tauchheizköper, pump and valve heaters, process heaters, pipe heating, mold and plate heaters, etc.

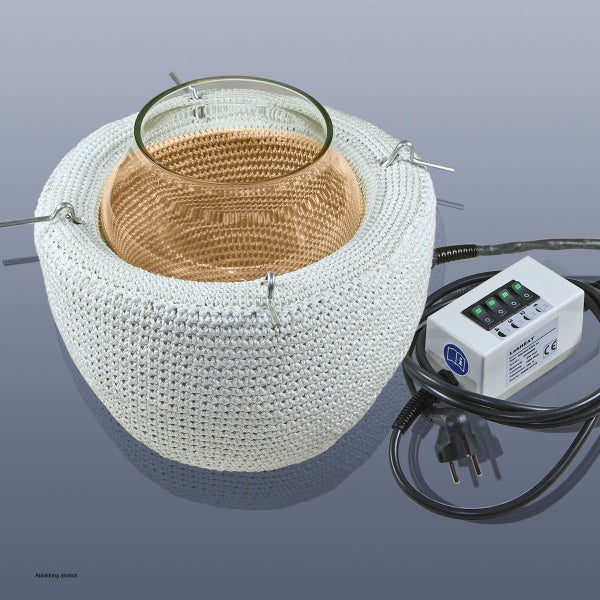

ISOHEAT KM-GF Standard heating mantles for reaction vessels, flat flange
Flexible glass silk heating element in form for reaction vessels up to 10 L;  max. heating element temperature 450°C;
1,5 m power supply (earthed) cable with heating-zone switch and RCD (residual current detection); nominal voltage 230 V AC.

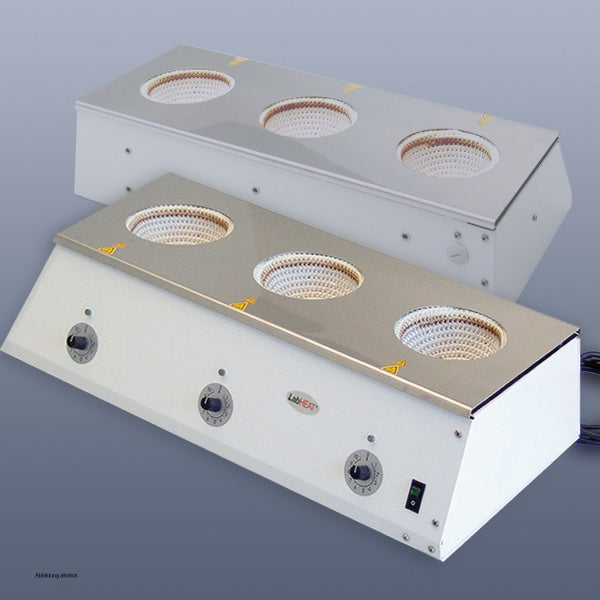

ISOHEAT KM-R3 Serial heating units for flasks, round bottom
Serial heating unit in plastic coated, chemical-restistant metal housing with three heating positions. Each heating position is separately controlled via controller.
max. heating element temperature 450 °C
1,5 m power supply (earthed) cable and RCD (residual current detection)
nominal voltage 230 V AC

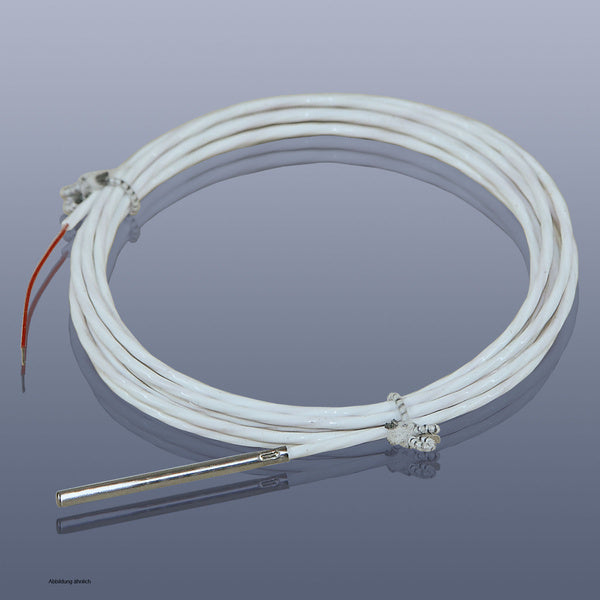

ISOHEAT KM-TC-PT Temperature sensor

• PT 100 2-wire
• Sheath element sensor

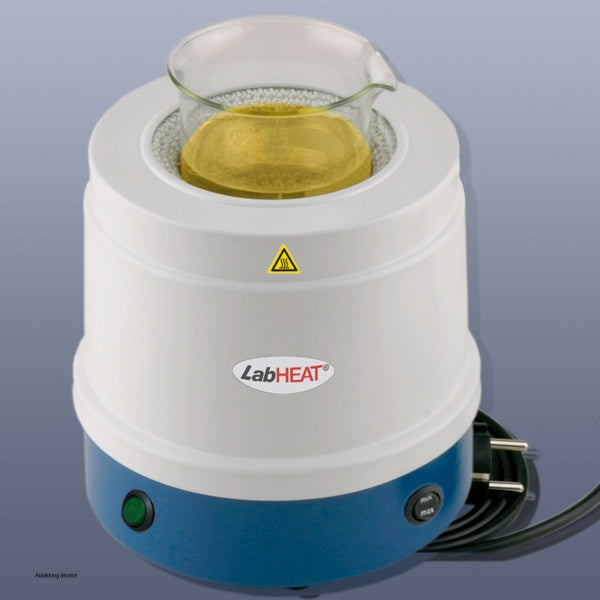

ISOHEAT KM-MHB metal-cased heating mantles for beakers, high form
Flexible glass yarn heating element; plastic coated, chemical-resistant metal housing with built-in-power-on and heating zone switch
Designed and technical identical to series KM-M; but with a flexible heating element for high-sided beakers.
max. heating element temperature 450 °C
1,5 m power supply (earthed) cable and RCD (residual current detection)
nominal voltage 230 V AC

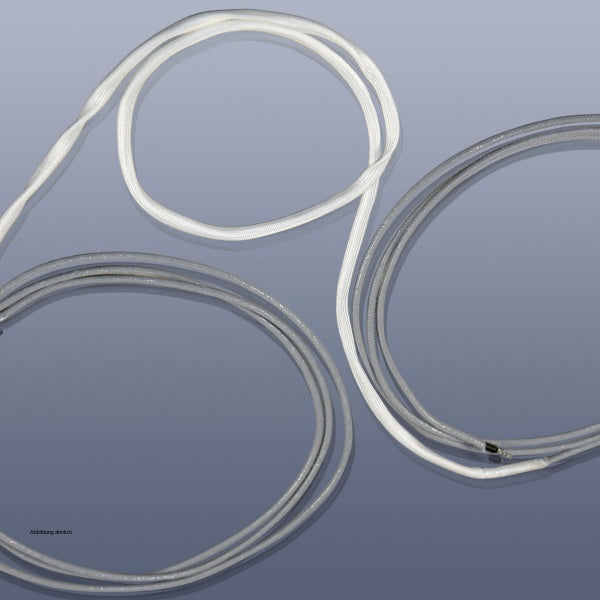

ISOHEAT KM-HC-H Silikat-insulated heating cable

Description:
Ready-made and very flexible heating with a heat-resistant, high-quality quartz glass yarn processed, which allows use up to 900 ° C heating element temperature. Including additional electrical protection measures, it is essential to work with a temperature control.

features:

• high power per meter
• high operating temperatures
• extremely flexible
• small wrapping radius
• not protected against moisture
• without a protective conductor braiding

Examples of use:
This heating cable is used in laboratory and pilot plant, resulting in high performance levels warmed up quickly and high temperatures have to be reached.

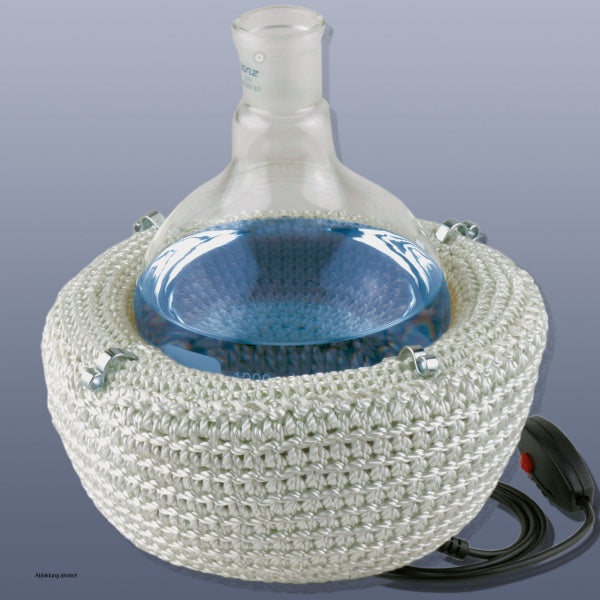

ISOHEAT KM-GH Standard heating mantles for flasks, round bottom Designed identical to series KM-G; but the heating element is made of heat-resistant quartz yarn and permites a maximum temperature up to 900 °C;
1,5 m power supply (earthed) cable with heating-zone switch and RCD (residual current detection); nominal voltage 230 V AC.

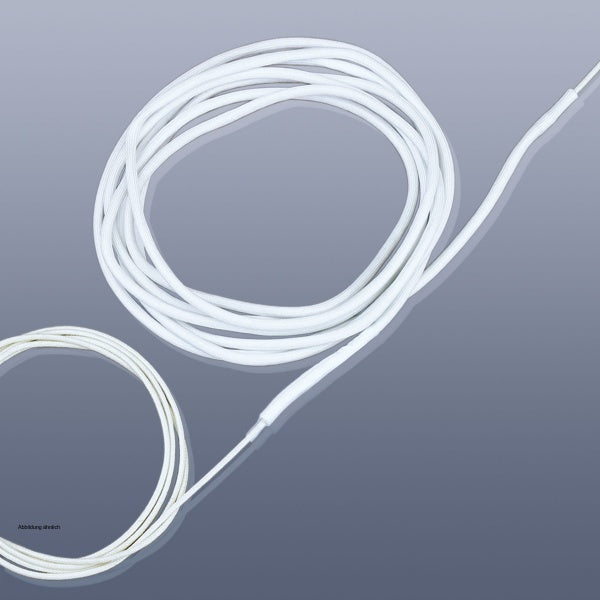

ISOHEAT KM-HC-G glass fibre-insulated heating cable

Description:
Ready-made and very flexible heating tape with glass-insulated, flexible fabric. It can be used in dry rooms only with the involvement of additional electrical protection measures.

features:

• constant power per meter
• extremely flexible
• small wrapping radius
• not protected against moisture
• without a protective conductor braiding

Examples of use:
Set of tubes, experimental setups, valves or other parts with small dimensions concentrated power to be applied, then this heating cable is an ideal and inexpensive solution. A wide field of application finds these heating in laboratory and pilot plant.

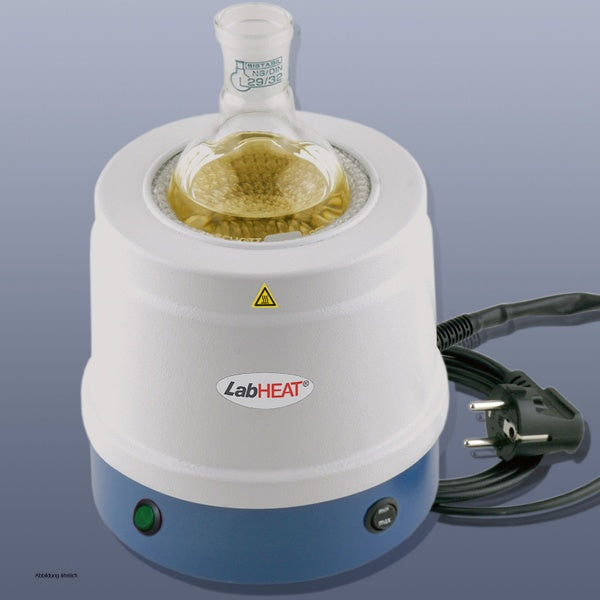

ISOHEAT KM-M metal-cased heating mantles
Flexible glass yarn heating element; plastic coated, chemical-resistant metal housing with built-in-power-on and heating zone switch
max. heating element temperature 450 °C
1,5 m power supply (earthed) cable and RCD (residual current detection)
nominal voltage 230 V AC.

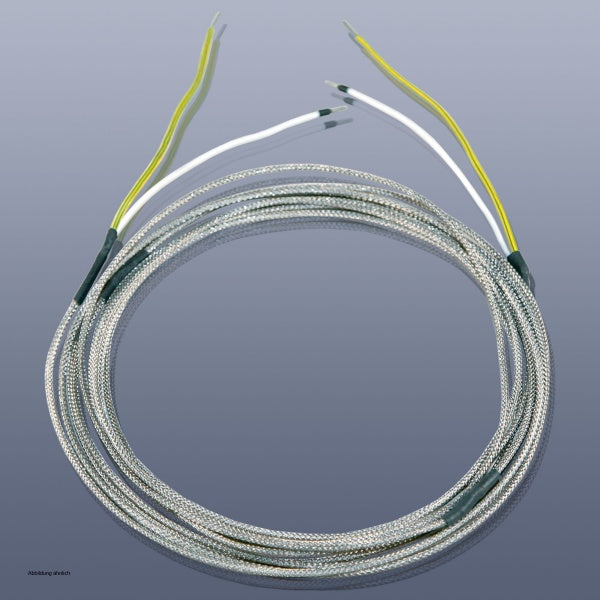

ISOHEAT KM-HC-GS glass fibre-insulated heating cable

Description:
Ready-made and flexible, glass silk-insulated heating cable with copper-nickel outer braid as a protective conductor.

features:

• easy to install
• very fexible
• Braiding protects mechanically and electrically (protectively earthed)
• not protected against moisture

Examples of use:
Pump and valve heaters, pipe heaters, temperature control of machine parts and equipment, tank heaters, heaters for transport containers, etc.
