LED Technology

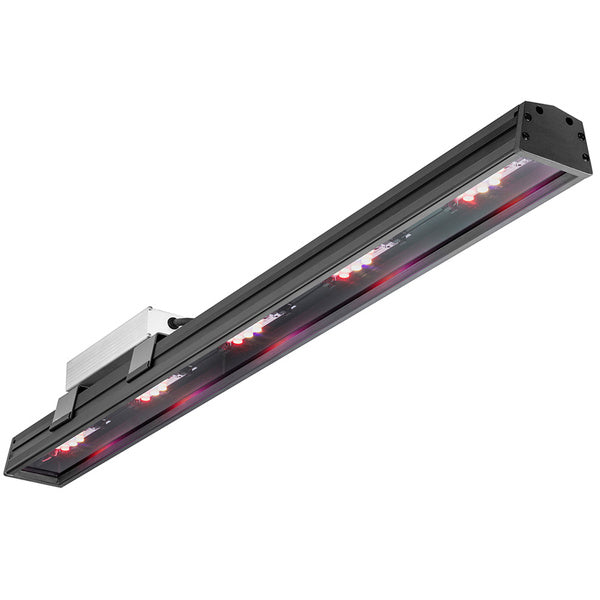

LEDON Linear luminaire SCALAR LED PFL 1000x82x105 122W On Top
Lumeolux Horticulture Linear luminaire with converter

When lighting plants indoors, the right light spectrum is essential to achieve optimum results. Our light spectrum has been created according to the latest scientific findings. This luminaire fulfils all the requirements for professional lighting. It convinces with its robust construction and low energy consumption.

With
its IP64 protection class and robust anodised aluminium housing, SCALAR is the perfect basic product for large-area lighting in production horticulture. The wavelength can be adjusted between 400 and 760nm - depending on the growth phase.
A special reflector construction defines the optimal beam angle of 90°, which allows a controlled illumination of the yard sector without corner losses. The linear luminaires with accessories allow for a wide range of mounting options - for efficient use of light, space and supply infrastructure.

• Weight: 4,6 kg
• Passively cooled
• Compact design for minimum shadow casting
• Adaptation to the desired cultivation area due to the modular design: from private indoor cultivation to large greenhouses
• Special lengths on request
• 3 years manufacturer warranty

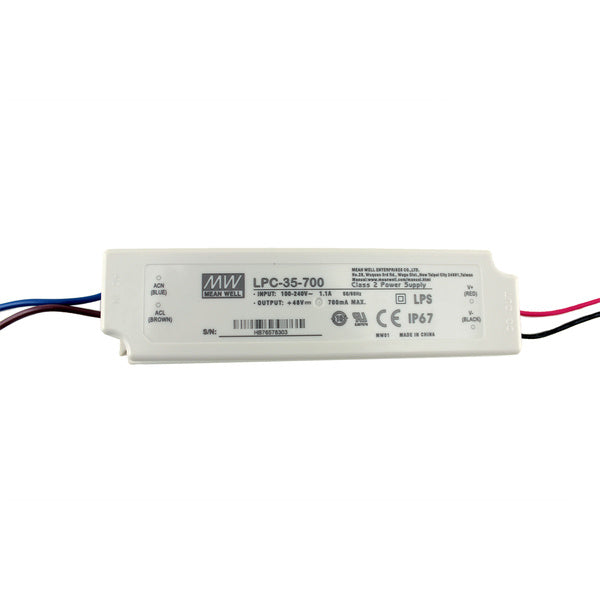

pro-emit Driver MeanWell LPC-35-700

Meanwell is known for its efficient and durable drivers in the LED market and has set a standard for high quality and effective LED lighting.
With a 2 year manufacturer's warranty and efficiency up to 85%, the MeanWell LPC-35-700 driver is a good investment. IP67 provides the appropriate protection.

The MeanWell LPC-35-700 is used to power the Far Red Led modules with 700 mA.

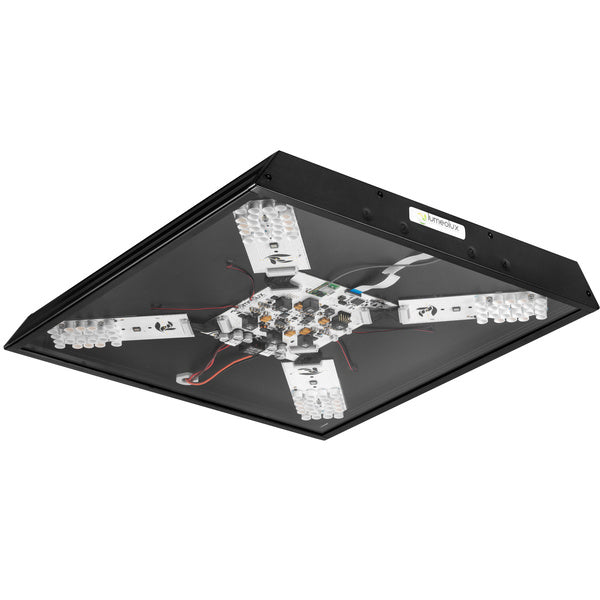

LEDON surface luminaire DISCUS LED PFL 400x400x30 300W Lumeolux
Horticulture surface luminaire When

lighting plants indoors, the right light spectrum for the respective plant phase is important. In order to control plant growth, it helps to use adapted light spectra and adjust lighting times. With the Lumeolux DISCUS, LEDON offers the possibility of creating your own light spectra and simulating the course of the day. In addition, there are further features that can be controlled via app.

The all-rounder in LED plant lighting
The square luminaire made of high-quality aluminium incorporates the latest generation of LED technology, which promotes both plant growth and the production of valuable colours and ingredients. DISCUS is the only one on the market with the controllable light spectrum and UV peaks that are adapted to the specific wavelength of the respective growth phase. This makes the lamp ideally suited for highly productive plant cultivation, where it can also show off its energy efficiency. The so-called software mode enables savings of up to 50% compared to conventional LED operation.

• PPF/W: 2.7 µmol/J
• Light spectra based on the latest scientific studies
• Combines the growth-promoting wavelengths with the ideal light intensity
• optimum beam angle of 90° thanks to modern reflector technology for large-area lighting
• Proven effectiveness in real applications
• 3 years manufacturer warranty

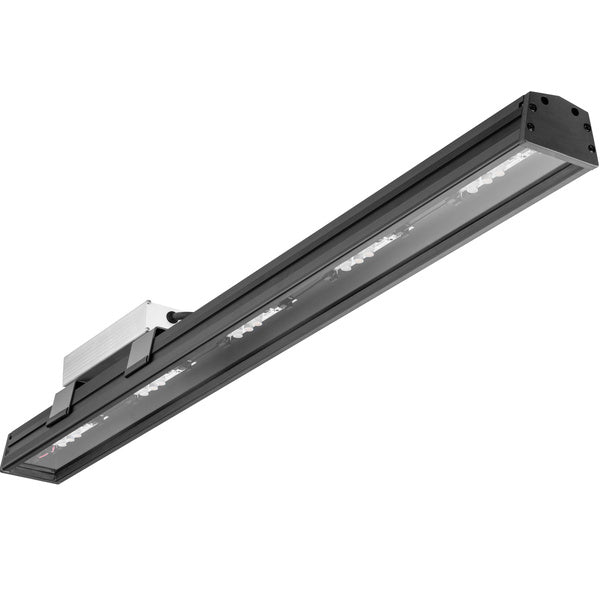

LEDON linear luminaires SCALAR LED PFL QM Package 3 pcs. each 122W
3 pcs. each Lumeolux Horticulture linear

luminaires When lighting plants indoors, the right light spectrum is essential to achieve optimum results. Our light spectrum was created according to the latest scientific findings. This luminaire fulfils all the requirements for professional lighting. It convinces with its robust construction and low energy consumption.

With
its IP64 protection class and robust anodised aluminium housing, SCALAR is the perfect basic product for large-area lighting in production horticulture. The wavelength can be adjusted between 400 and 760nm - depending on the growth phase.
A special reflector construction defines the optimal beam angle of 90°, which allows a controlled illumination of the yard sector without corner losses. The linear luminaires with accessories allow for a wide range of mounting options - for efficient use of light, space and supply infrastructure.

• Weight: 3,6 kg each
• Passively cooled
• Compact design for minimum shadow casting
• Adaptation to the desired cultivation area due to the modular design: from private indoor cultivation to large greenhouses
• Special lengths on request
• 3 years manufacturer warranty

LEDON Linear luminaire SCALAR LED PFL 1000x82x55 122W
Lumeolux Horticulture Linear

luminaire When lighting plants indoors, it is important to have the right light spectrum to achieve optimum results. Our light spectrum was created according to the latest scientific findings. This luminaire fulfils all the requirements for professional lighting. It convinces with its robust construction and low energy consumption.

With
its IP64 protection class and robust anodised aluminium housing, SCALAR is the perfect basic product for large-area lighting in production horticulture. The wavelength can be adjusted between 400 and 760nm - depending on the growth phase.
A special reflector construction defines the optimal beam angle of 90°, which allows a controlled illumination of the yard sector without corner losses. The linear luminaires with accessories allow for a wide range of mounting options - for efficient use of light, space and supply infrastructure.

• Weight: 3,6 kg
• Passively cooled
• Compact design for minimum shadow casting
• Adaptation to the desired cultivation area due to the modular design: from private indoor cultivation to large greenhouses
• Special lengths on request
• 3 years manufacturer warranty

LEDON compact luminaires MANDARIN LED PFL 650 Package 3 pieces of 74W each Lumeolux
Horticulture compact luminaires When

lighting plants indoors, the right light spectrum is essential to achieve optimum results. Our light spectrum was created according to the latest scientific findings. This luminaire is ideal as main lighting for small users or as additional lighting for larger growers. Its energy consumption is minimal.

It doesn't always have to be big At
just 1.56 kg, MANDARIN is the lightweight in the Lumeolux product family and is ideal as the main lighting for smaller growing areas or as additional lighting for larger installations. The modular system allows installation close to the plants for efficient use of space and infrastructure.

• Power: 74W
• Standard dimensions: 650x70x30 mm
• Wavelength: 400-760nm
• Passively cooled
• Maintenance-free
• 3 years manufacturer warranty

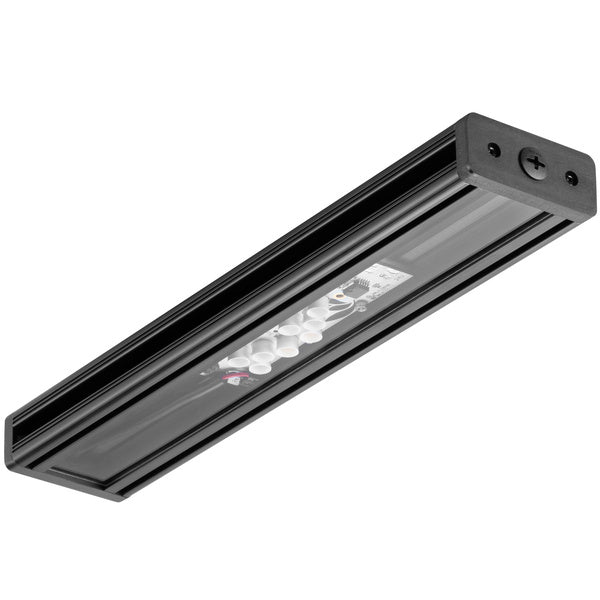

LEDON compact luminaire MANDARIN LED PFL 650x70x30 74W
Lumeolux Horticulture compact

luminaire When lighting plants indoors, it is important to have the right light spectrum to achieve optimum results. Our light spectrum was created according to the latest scientific findings. This luminaire is ideal as main lighting for small users or as additional lighting for larger growers. Its energy consumption is minimal.

It doesn't always have to be big At
just 1.56 kg, MANDARIN is the lightweight in the Lumeolux product family and is ideal as the main lighting for smaller growing areas or as additional lighting for larger installations. The modular system allows installation close to the plants for efficient use of space and infrastructure.

• Power: 74W
• Standard dimensions: 650x70x30 mm
• Wavelength: 400-760nm
• Passively cooled
• Maintenance-free
• 3 years manufacturer warranty

LEDON compact luminaire MANDARIN LED PFL 350x70x30 25W
Lumeolux Horticulture compact

luminaire When lighting plants indoors, it is important to have the right light spectrum to achieve optimum results. Our light spectrum was created according to the latest scientific findings. This luminaire is ideal as main lighting for small users or as additional lighting for larger growers. Its energy consumption is minimal.

It doesn't always have to be big At
just 0.8 kg, MANDARIN is the lightweight in the Lumeolux product family and is ideal as the main lighting for smaller growers or as supplementary lighting for larger installations. The modular system allows installation close to the plants for efficient use of space and infrastructure.

• Power: 25W
• Standard dimensions: 350x70x30 mm
• Wavelength: 400-760nm
• Passively cooled
• Maintenance-free
• 3 years manufacturer warranty

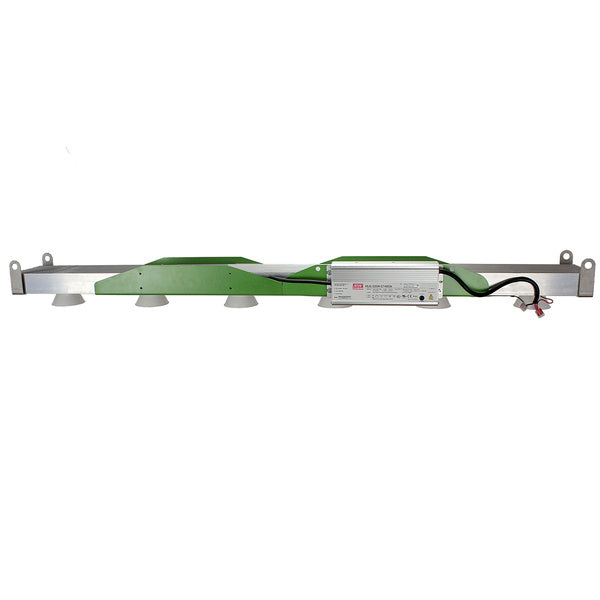

pro-emit LED plant lamp DIY-M-KIT 300W

Our DIY-M-KIT 300W - for all those who like to do something by themselves. Equipped with the currently best COB of the Cree CXB series. This KIT offers with 300 watts of power and its oversized dimensions a solution for all with large rectangular lighting surfaces.

The DIY-M-KIT 300W is designed so that only an Allen key set and a screwdriver are required for installation. All required components are included in the scope of delivery!

This kit can be assembled to a beam version in the standard delivery condition. A square version or other individual solutions (e.g. using aluminium profiles) are of course always possible. For the square version 2x640 mm angles (not included) are required. We can exchange these against the 4x450 mm angles on request.

Overview of the supplied components

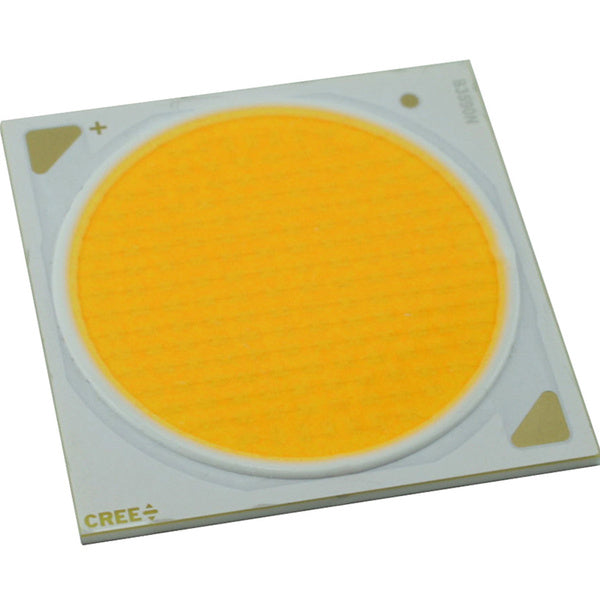

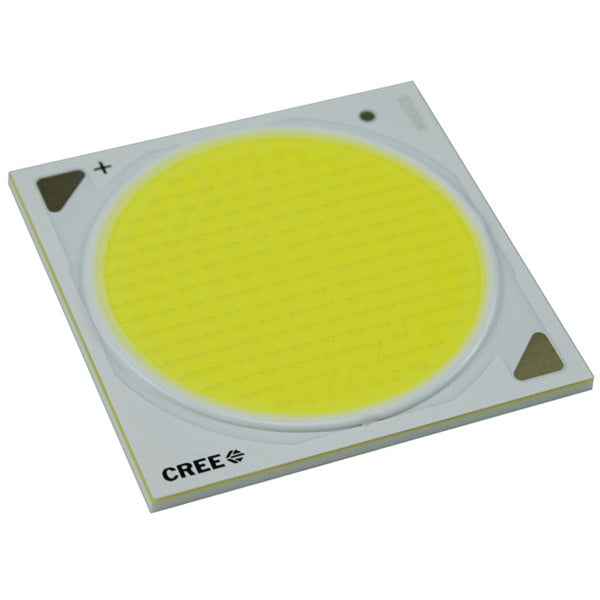

• 6x Cree CXB 3590
• 6x thermal pads for heat dissipation
• 6x Ideal Chip-LOK COB Array Holder
• 6x COB Array Lens Adapter
• 6x Ledil Angelina reflector 90°
• 1x Meanwell HLG 320H C1400A
• 3x heat sink with prepared threads
• 4x 450 mm Angle for mounting Meanwell HLG 320H C1400A and heat sink connection
• 4x stainless steel brackets for suspension of the kit
• 1x 3 m mains connection cable
• 2x 1 m switching wire (black, red)
• 1x 1.5 m Switching wire (blue)
• 2x Wago Terminal Blocks
• 1x socket for strain relief of the mains connection cable
• 16x socket head cap screws M3 x 8mm - hexagon socket - DIN 7984 - galvanized
• 8x cheese head screws M4 x 8mm - galvanized - 8.8 - hexagon socket - DIN 912
• 8x washers DIN 9021 - for M4 - outside diameter 12 mm - galvanized
• 8x Hexagon nuts M4 - SW7 - low, Form B - galvanized 8.0 DiSP - DIN 439
• 4x washers DIN 440 Form R - for M6 - outside diameter 20 mm - galvanized
• 12x oval head screws with hexagon socket and collar M6 x 10 mm

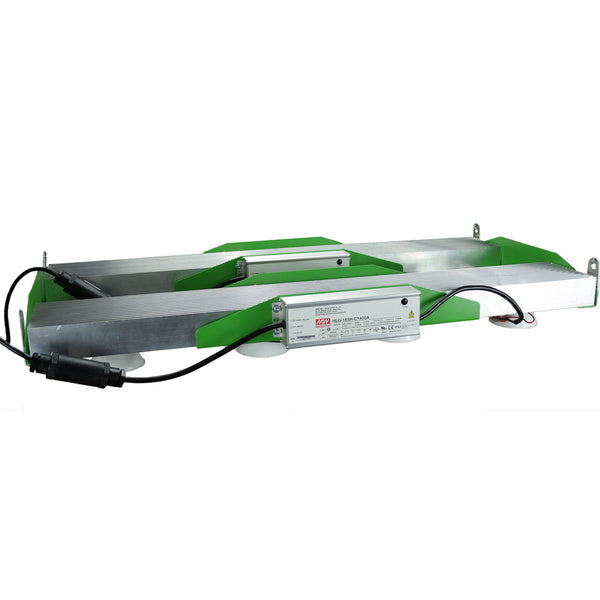

pro-emit LED plant lamp DIY-M-KIT 400W

DIY-M-KIT 400W - for all those who like to put on some hands and want to put 800 PPFD on the surface. Equipped with the currently best COB of the Cree CXB series. This KIT offers 400 watts more power than most plants need! Good that, like all our KITS, it is dimmable, so that the best amount of light can be adjusted to the needs of your plants at any time.

The DIY-M-KIT 400W is designed in such a way that only an Allen key set and a screwdriver are required for installation. All required components are included!

This kit is designed for the assembly of the square version. A construction as single beams is possible, but you don't need the 640 mm connection angles. For single suspension, simply order 2x DIY-M-KIT 200w.

Overview of the supplied components

• 8x Cree CXB 3590
• 8x thermal pads for heat dissipation
• 8x Ideal Chip-LOK COB Array Holder
• 8x COB Array Lens Adapter
• 8x Ledil Angelina Reflector 90°
• 32x Allen screws M3 for fixing the holders and adapters
• 2x Meanwell HLG 185H C1400A (data sheet)
• 8x M4 screws, nuts and washers each for fixing Meanwell HLG 185H C1400A
• 4x heat sink with prepared threads
• 4x 450 mm Angle for mounting Meanwell HLG 185H C1400A and heat sink connection
• 2x 640 mm Angle for connecting both 200w modules to the cuboid structure
• 24x M6 screws for fixing brackets and brackets
• 4x stainless steel brackets for suspension of the kit
• 2x 3 m mains connection cable
• 4x 1 m Switching wire (black, red)
• 2x 1.5 m Switching wire (blue)
• 4x Wago Terminal Blocks
• 2x socket for strain relief of the mains connection cable
• 2x construction and operating instructions

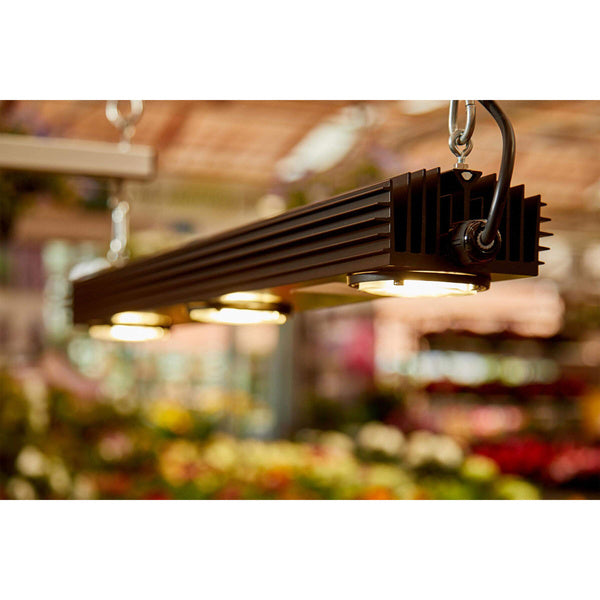

pro-emit LED plant lamp sunbar 150-A
Plug and Play - sunbar

The sunbar 150A is a passively cooled LED plant lamp.
It is equipped with efficient CREE LEDs and offers unbeatably uniform illumination from a distance of 30 cm. The light intensity can be infinitely adjusted directly on the driver from 50-100%. The plug system ensures simple commissioning of the luminaire and safe connection.

• the sunbar 150A is based on the proven and high-quality CREE (CREE CXB 3590) technology.
• optimal light distribution by 102° lenses, already from 30cm distance
• less power consumption, more yield
• less heat generation with the same output
• passively cooled for silent operation
• infinitely dimmable during operation
• 60.000+ hours running time
• IP 67 Protection class
• The system is modularly expandable for larger areas.
• slim design - handmade in Germany
• 5 years warranty

The investment in a future technology is high, but pays off quickly due to the higher efficiency and the associated increase in yield.
There is no need to constantly replace the light source and there are no maintenance costs for this passive system. Simply hang it up, connect it and get started.
A system that will give many years of pleasure.

Scope of delivery

• 1x sunbar LED plant lamp
• 1x 3 meter cold appliance cable

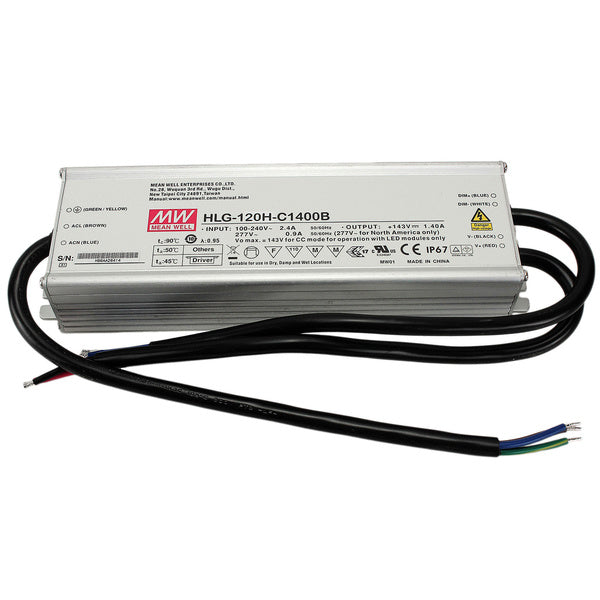

• 1x Meanwell HLG 120-C1400B
• 1x instruction manual

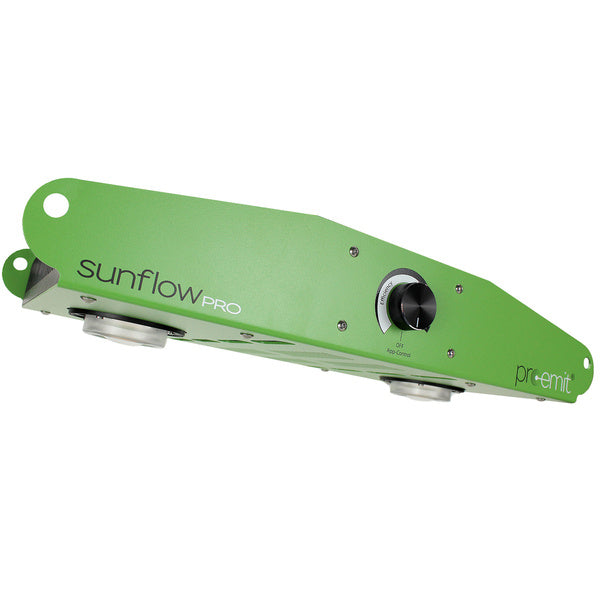

pro-emit LED plant lamp sunflowPRO
Plug and Play - sunflow

sunflowPRO - the efficient LED plant lamp for professionals
The sunflowPRO is an innovative LED plant lamp of the latest generation.
The unique feature of the plant lamp is the advanced Cree CXB 3590 technology, thanks to which plant growth is forced in a highly efficient way. The stepless dimmability, the modular design and the many user-friendly functions round off the features of the sunflowPRO and make it a bestseller in our portfolio.

• the sunflowPRO is based on the latest CREE CXB (CREE CXB 3590) technology
• it delivers an average of 340 PPFD at a distance of 45 cm from the plants - the 150 W used provide the power of a conventional 250 W NDL/HPS lamp
• less power consumption, more yield
• less heat generation with the same output
• passively cooled for silent operation
• infinitely dimmable during operation
• 60,000+ hours running time
• The system is modularly expandable for larger areas - up to 4 sunflows can be connected per sunflowPRO. The power is transferred from sunflow to sunflow. Therefore only one socket is needed for 5 sunflows. No more cable clutter!
• controllable via Bluetooth via Casambi App
• no timer necessary anymore - switching times can be programmed like sunrise and sunset scenarios (increase / dimming of light intensity)
• several sunflowPRO modules can be grouped via APP and make any lighting scenario possible
• noble design - Handmade in Germany
• 5 years warranty

Programmable and expandable - the advantages of sunflowPRO
The plant light is infinitely dimmable and can therefore be perfectly adjusted to the needs of the plant. Using a Bluetooth interface, the user can program complex lighting scenarios and simulate sunrises and sunsets, for example.

The sunflowPRO plant lamp can be supplemented with up to four additional sunflow basic units to form a tailor-made system. Thanks to the modular design, it is child's play to form groups and create intelligent scenarios for optimum growth.
The app used with sunflowPRO enables the user to control the entire system.

Scope of delivery

• 1x sunflowPRO LED plant lamp
• 1x 3 meter cold appliance cable
• 1x instruction manual

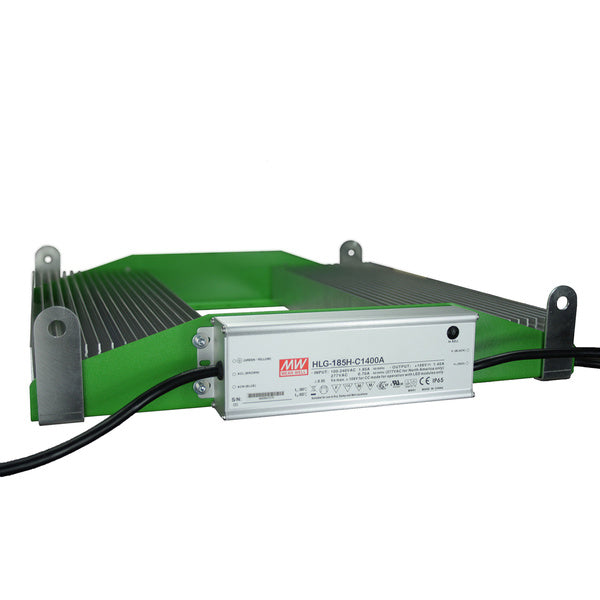

pro-emit LED plant lamp DIY-M-KIT 200W

Our DIY-M-KIT 200W - for all those who like to do something by themselves. Equipped with the currently best COB of the Cree CXB series. This KIT offers with 200 watts of power a good entry into efficient plant breeding.

The DIY-M-KIT 200W is designed in such a way that only an allen key set and a screwdriver are required for assembly. All required components are included!

This kit can be assembled in the beam or ashlar version.

Overview of the supplied components

• 4x Cree CXB 3590
• 4x thermal pads for heat dissipation
• 4x Ideal Chip-LOK COB Array Holder
• 4x COB Array Lens Adapter
• 4x Ledil Angelina 90° reflector
• 16x Allen screws M3 for fixing the holders and adapters

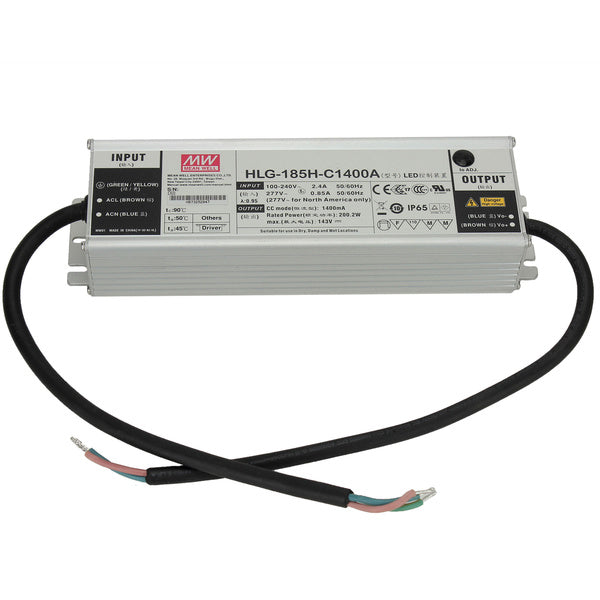

• 1x Meanwell HLG 185H C1400A (data sheet)
• 4x M4 screws, nuts and washers each for fixing Meanwell HLG 185H C1400A
• 2x heat sinks with prepared threads
• 2x 450 mm bracket for mounting Meanwell HLG 185H C1400A and heat sink connection
• 12x M6 screws for fixing the brackets and brackets
• 4x stainless steel brackets for suspension of the kit
• 1x 3 m mains connection cable
• 2x 1 m switching wire (black, red)
• 1x 1.5 m Switching wire (blue)
• 2x Wago Terminal Blocks
• 1x socket for strain relief of the mains connection cable
• 1x construction and operating manual

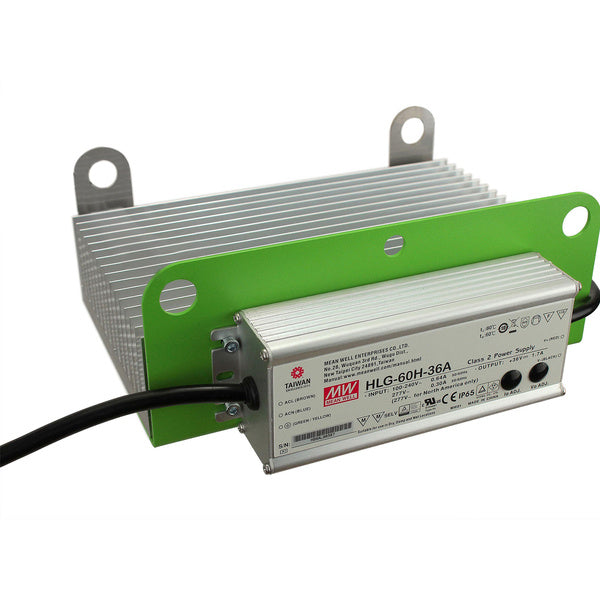

pro-emit LED plant lamp DIY-M-KIT 60W
Our DIY-M-KIT 60W - for all those who like to do something by themselves. Equipped with the currently best COB of the Cree CXB series. This KIT offers with 60 watts of power a good entry into efficient plant breeding.

The DIY-M-KIT 60W is designed in such a way that only an allen key set and a screwdriver are required for assembly. All required components are included!

Overview of the supplied components

• 1x Cree CXB 3590
• 1x thermal pads for heat dissipation
• 1x Ideal Chip-LOK COB Array Holder
• 1x COB Array Lens Adapter
• 1x Ledil Angelina reflector 90°
• 8x Allen screws M3 for fixing the holders and adapters

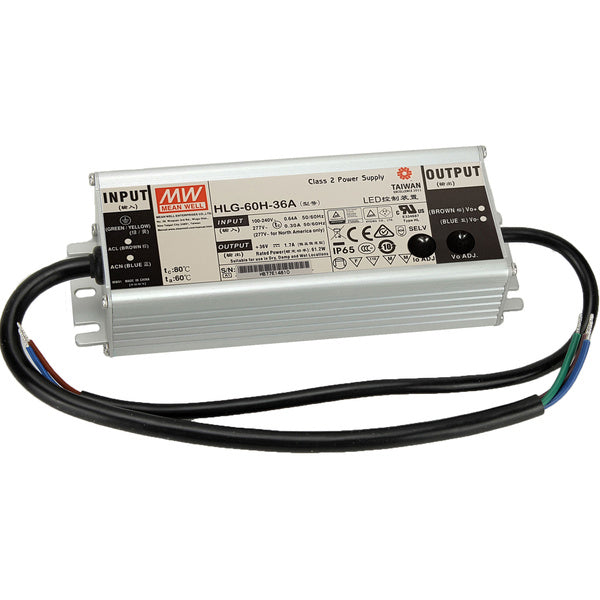

• 1x Meanwell HLG 60H 36A
• 4x M4 screws, nuts and washers each for fastening Meanwell HLG 60H 36A
• 2x washers DIN 440 form R - for M6 - outside diameter 20 mm - galvanized
• 1x heat sink with prepared threads
• 1x 450 mm Angle for mounting the Meanwell HLG 60H 36A
• 6x M6 screws for fixing the bracket
• 2x stainless steel brackets for suspension of the kit
• 1x 3 m mains connection cable
• 2x 1 m switching wire (black, red)
• 1x 1.5 m Switching wire (blue)
• 2x Wago Terminal Blocks
• 1x socket for strain relief of the mains connection cable

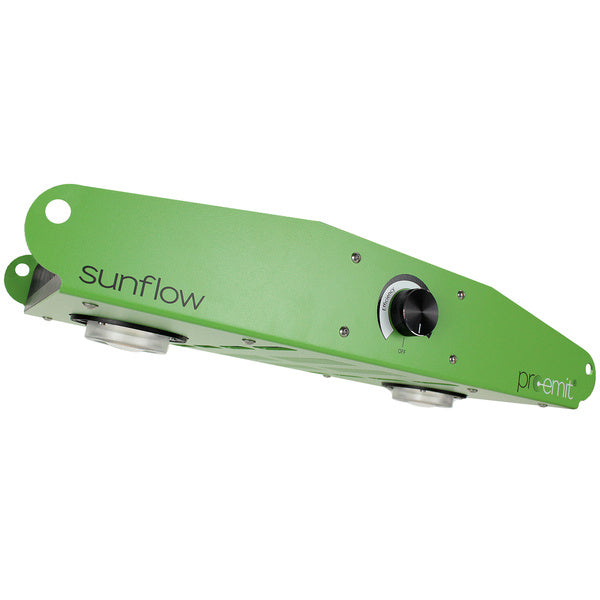

pro-emit LED plant lamp sunflow
Plug and Play - sunflow

sunflow - The LED plant lamp for plant lovers
The sunflow plant lamp is aimed at plant lovers who are looking for a professional, user-friendly and efficient device.
The two innovative LED COBS from the LED specialist CREE are at the heart of the plant lighting system.
The COBS of type CXB 3590 can be operated up to a nominal power of 75 watts each and achieve an efficiency of up to 65%, making very cost-effective operation possible. Unlike conventional plant lamps, heat loss is very low thanks to modern semiconductor technology - additional cooling is not necessary.

• the sunflow is based on the latest CREE CXB (CREE CXB 3590) technology
• it delivers an average of 340 PPFD (1m²) at a distance of 45 cm from the plants - the 150 W used provide the power of a conventional 250 W NDL/HPS lamp
• less power consumption, more yield
• less heat generation with the same output
• passively cooled for silent operation
• infinitely dimmable during operation
• 60,000+ hours running time
• The system is modularly expandable for larger areas - up to 4 sunflows can be connected per sunflowPRO. The power is transferred from sunflow to sunflow. Therefore only one socket is needed for 5 sunflows. No more cable clutter!
• noble design - handmade in Germany
• 5 years warranty

The investment in a future technology is high, but pays off quickly due to the higher efficiency and the associated increase in yield.
There is no need to constantly replace the light source and there are no maintenance costs for this passive system.
Simply hang it up, connect it and get started. A system that will give many years of pleasure.

Scope of delivery

• 1x sunflow LED plant lamp
• 1x 3 meter cold appliance cable
• 1x 1 meter power cable C13/C14
• 1x 1.2 meter 3.5 jack cable
• 1x instruction manual
