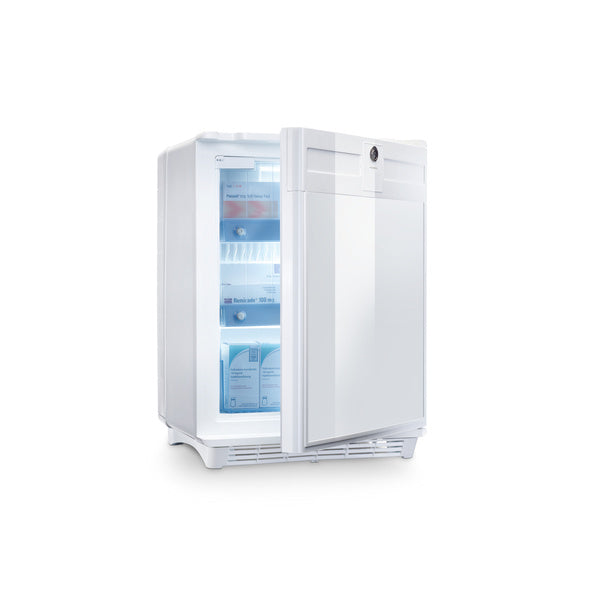

DOMETIC DS 301 H medicine refrigerator

The low-noise refrigerator has been specially developed for the requirements of the healthcare sector to store heat-sensitive medicines reliably and safely. Thanks to its robust design and constant cooling temperature of between 2 °C and 8 °C, it fulfils the strict requirements of hospitals, pharmacies and care facilities. Compared to other models, it is characterised by integrated ventilation, an audible alarm and a door lock, resulting in a high level of safety and user-friendliness.

Performance features and technical data

The compact design and electronic thermostat ensure that the temperature inside always remains stable. The integrated ventilation ensures reliable air circulation, making the refrigerator suitable for particularly temperature-sensitive medicines. Here is an overview of some of the main features:

- Temperature range: +2 °C to +8 °C
- Usable capacity: 27 litres
- Door lock: Integrated for safe storage
- Warning signal: Acoustic alarm when door is open for 20 seconds
- Electrical system: 230 V AC, 65 W, 50/60 Hz
- Dimensions (W x H x D): 422 mm x 580 mm x 393 mm
- Weight: 17 kg

The low-noise absorber technology is based on R717 and ensures whisper-quiet operation (35 dB(A)), meaning that the refrigerator can be used in areas close to patients without any problems. Thanks to the right-hand door hinge, the appliance can even be positioned in confined spaces without compromising on convenience and user-friendliness. In addition, the LED interior lighting provides a quick overview of the contents, especially during stressful work phases.

In addition to the data listed, the three plastic drawers offer flexible organisation of different types of medication. The easy-to-clean surfaces fulfil important hygiene requirements, while the thermometer on the outside provides permanent information about the internal temperature. The storage of minimum and maximum values facilitates the documentation of temperature curves, an essential aspect for quality-assured storage conditions.

Certifications and standards

The refrigerator is CE and CB certified and therefore fulfils the essential safety and quality standards for electrical appliances in the medical environment. These certifications guarantee reliable operation within the prescribed limits as well as compliant behaviour with regard to electrical safety and EMC requirements.

Application examples

This model has been specially designed for use in pharmacies, hospitals, care homes and doctors' surgeries. Safe storage of temperature-sensitive preparations is crucial there. Typical medicines that benefit from stable refrigeration temperatures include vaccines, insulin preparations and certain antibiotics:

1. Vaccine storage in GP surgeries or health centres
2. Storage of insulin in nursing homes for the care of diabetics
3. Storage of sensitive antibiotic prescriptions in hospital wards
4. Storage of hybrid medications that require constant temperatures

The integrated door lock also prevents unauthorised persons from gaining access to sensitive or prescription medicines. This security feature is essential, especially in public or communal areas, in order to comply with legal requirements.

FAQs

What temperature should be set

?

The appliance is set to a range of +2 °C to +8 °C. The exact setting is made electronically and is monitored by the external thermometer.

How loud is the operation

With a noise emission of 35 dB(A), the refrigerator operates particularly quietly. This makes it ideal for rooms where quiet is important, for example on wards or in patient rooms.

Does the refrigerator require regular maintenance?

Regular cleaning and checking of the thermostat and ventilation is advisable to ensure a permanently stable cooling temperature. It is also advisable to check the seals on the door and recognise any weak points at an early stage.

Is the appliance designed for continuous operation?

Yes, reliable cooling around the clock is ensured by the absorber mode. This cooling mechanism ensures consistent performance values without disruptive compressor fluctuations.

How does the appliance react in the event of a power failure?

If the power supply is temporarily interrupted, the internal temperature may rise slightly. To prevent this, the appliance should be reconnected to the mains as soon as possible. An optional warning system or temperature monitoring is recommended to detect deviations at an early stage.

Conclusion

The quiet operation, constant cooling temperature and integrated warning system make this speciality refrigerator an ideal solution for all facilities that require safe and reliable medication storage at an exact temperature. Thanks to various safety features such as a door lock and acoustic alarm, it fulfils high standards of hygiene and protection for sensitive preparations. In addition, the easy-care drawers and LED lighting enable efficient handling. The robust design and precise control are particularly impressive in demanding medical environments, ensuring that sensitive medicines are always optimally cooled.

DOMETIC HC 502 medicine refrigerator

This high-quality refrigerator is specially designed for the safe storage of heat-sensitive medicines. It is characterised by a constant cooling temperature and a robust, user-friendly design. This appliance is primarily used in pharmacies, hospitals and research laboratories to reliably protect medicines in the long term. Compared to similar products on the market, it impresses with its efficient compressor, particularly clear storage and additional safety functions such as the acoustic warning signal.

Reliable refrigeration technology for medical applications

The HC 502 offers a temperature operating range of +2 °C to +8 °C, which is primarily suitable for storing temperature-sensitive pharmaceuticals. Thanks to its energy-efficient compressor cooling, the interior temperature remains stable even at high ambient temperatures. Thanks to the integrated fan, the cold is distributed evenly so that sensitive active ingredients can be stored safely and easily accessible in three metal drawers with roller bearings. An illuminated digital thermometer built into the door allows the interior to be checked quickly, with the min/max values being saved automatically.

Additional benefits include increased security: the appliance has a door lock with two keys. If the door remains open for longer than 20 seconds, a warning signal sounds. This minimises temperature losses and protects valuable preparations. The LED interior lighting allows the contents to be clearly recognised at all times.

Technical highlights

- External dimensions (H × W × D): 592 × 486 × 494 mm
- Energy consumption: approx. 0.44 kWh/24 h
- Fixed internal temperature: 5 °C (adjustable in the range +2 °C to +8 °C)
- Compressor cooling for constantly low temperature levels
- Door lock with alarm function and integrated thermometer
- 3 drawers with 3/4 extension for organised storage
- Robust white housing for easy cleaning

These features make it an ideal solution for storing medicines such as vaccines, insulin or certain laboratory reagents within a defined temperature range. The model is used in many areas where strict storage regulations apply. Typically, the medicine refrigerator can also be integrated under work surfaces and, thanks to its compact format, fits into almost any practice or laboratory set-up to save space.

The manufacturer BPV bases its production on common requirements for pharmaceutical refrigerators. As a rule, corresponding refrigerators are designed in accordance with DIN 58345 or comparable standards to ensure consistent cooling performance. The appliance is also CE-certified, which underpins additional safety and quality standards.

Concrete application examples

- Storage of heat-sensitive vaccines in doctors' surgeries and clinics
- Storage of blood products, provided the temperature requirements are suitable
- Safe storage of antibiotics in pharmacies to maintain effectiveness and shelf life
- Temperature-stable storage of insulin in diabetes centres

This refrigerator is a reliable solution for protecting medicines from temperature fluctuations in all of the above scenarios. Whether pharmaceutical research, hospital laboratory or medical care centre: the refrigerator can be used flexibly and ensures maximum safety.

FAQs

How often should the temperature be checked

?

Thanks to the integrated digital thermometer with min/max memory, a daily visual check is recommended. This means that any deviations can be recognised quickly.

What happens if the door is accidentally left open

After 20 seconds, an acoustic warning signal sounds, indicating that the door should be closed. This keeps the internal temperature stable and the stored medication is not jeopardised.

Is it possible to change the door hinge?

According to the technical specifications, this model does not allow an interchangeable door hinge. Plan accordingly when selecting the location.

What maintenance measures are necessary?

Regular cleaning of the seals and drawers ensures hygiene. Dust should also be removed from the appliance at regular intervals, especially around the ventilation slots on the compressor, to ensure optimum cooling performance is maintained.

How can different active ingredients be stored clearly organised?

The three metal drawers with 3/4 extension are designed to store several categories of medication separately and easily accessible. Transparent panels provide a quick overview.

Conclusion

The HC 502 offers an ideal combination of high performance, energy efficiency and safe storage that is specially tailored to the requirements of the medical environment. The combination of precise cooling technology, practical drawer system, integrated digital thermometer and warning signals makes this solution extremely reliable for storing sensitive medicines and laboratory reagents. Anyone looking for a reliable, easy-to-use and standard-compliant refrigeration solution will find a convincing overall package here.

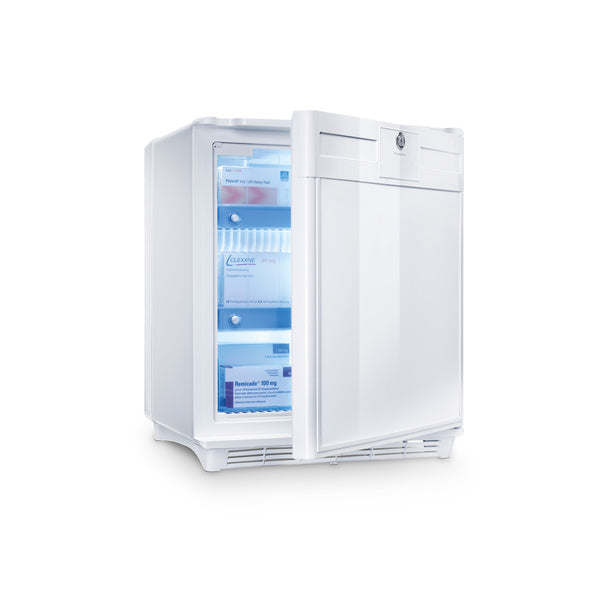

DOMETIC DS 601 H medicine refrigerator

The DOMETIC DS 601 H medicine refrigerator is specially designed to safely store heat-sensitive medicines at constant temperatures between +2 °C and +8 °C. Thanks to its low-noise absorption cooling system and integrated ventilation, this refrigerator is particularly impressive in facilities that require reliable cooling for sensitive medicines. Compared to similar models, it also features an acoustic warning signal when the door is open and an electronic thermostat that enables precise and continuous temperature control.

Efficient cooling and convenience

This refrigerator provides an optimum temperature range for sensitive medicines. The integrated ventilation system ensures a constant flow of cooled air, preventing temperature deviations. Thanks to the absorber technology, the appliance works almost silently and is therefore ideal for areas where quiet and concentration are essential - for example in care homes, clinics and laboratories. If the door is left open for longer than 20 seconds, an acoustic warning signal immediately alerts the user to the status in order to protect the cooling circuit and safeguard the contents in the best possible way.

In addition, the integrated door lock protects the medication from unauthorised access. This is particularly important for hospitals and healthcare facilities, where it must be ensured in accordance with regulations that only authorised personnel have access to sensitive preparations. The usable capacity is 52 litres and comprises several plastic drawers with flexible compartments. This favours clear storage of different types of medication and reduces retrieval time by making it easier to find individual preparations.

Technical features

- Temperature range: +2 °C to +8 °C
- Usable capacity: 52 litres
- Power supply: 230 V (AC) at 50/60 Hz
- Nominal input power: 85 W
- Noise level: 35 dB(A) thanks to absorber system
- Integrated door alarm if the door is open for more than 20 seconds
- Certifications: CB, CE

In addition, the model is equipped with R717 refrigerant in a hermetically sealed system. It has an electronic thermostat for precise temperature settings and LED interior lighting, which makes it much easier to check and remove the medication. The dimensions of 494 mm deep, 592 mm high and 486 mm wide and the low weight of 23 kg make it easy to place in treatment rooms or small pharmacy areas.

As a constant temperature is of the utmost importance for many medical substances, professional users benefit from the robust and durable design. The external thermometer display also supports staff with regular monitoring by documenting the minimum and maximum values. This means it is always clear whether the cold chain has been maintained.

Examples of use

1. In hospital emergency departments for storing acute medicines that require rapid availability.
2. In in-house pharmacies of clinics or care facilities to manage large quantities of frost-sensitive preparations, vaccines or insulins.
3. In research events and laboratory tests for cooling sensitive samples and chemical reagents, especially those that need to be kept constantly below 8 °C.
4. In doctors' surgeries to reliably keep solutions containing active ingredients, vaccines and antibiotics at the optimum temperature level to maintain their effectiveness

FAQs

How loud is the refrigerator in operation?

With a noise emission of around 35 dB(A), the appliance is very quiet. This is thanks to the absorption cooling technology, which is barely noticeable in treatment rooms or waiting rooms.

Does the appliance need to be defrosted regularly?

Due to the stable cooling capacity and the absorber design, frequent defrosting is not necessary. An occasional visual inspection is sufficient to detect possible ice formation at an early stage.

What happens if the door is left open for too long

An acoustic warning signal sounds after 20 seconds without closing the door. This minimises the risk of temperature deviations and helps to maintain the quality of the stored medication.

Is the appliance also suitable for vaccines?

Yes, the defined temperature range between +2 °C and +8 °C and the adjustable electronic control are ideal for cooling vaccines, medicines and other temperature-sensitive preparations in accordance with regulations.

Conclusion

This cooling appliance impresses with its quiet operation, integrated ventilation and comprehensive safety protection. The acoustic door monitoring, electronic thermostat and door lock make a significant contribution to storing sensitive medicines reliably and in accordance with regulations. Professional users benefit from a well thought-out, high-performance design and certified quality. This makes the refrigerator a future-proof choice for clinics, medical facilities, laboratories and wherever the highest demands are placed on medication refrigeration.

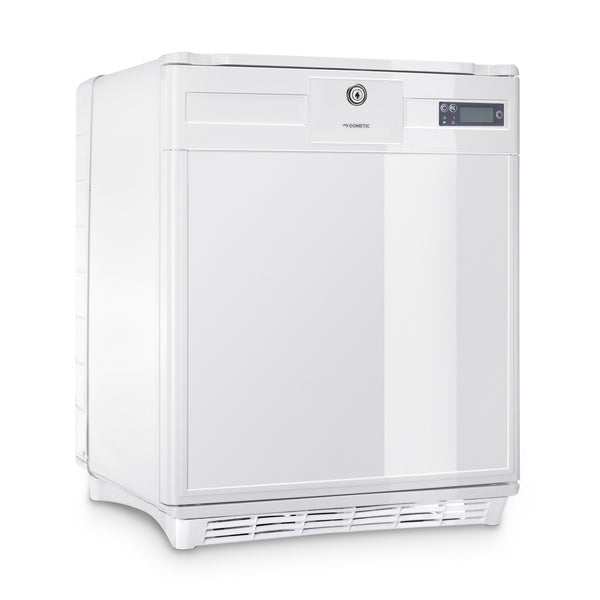

DOMETIC HC 502 DIN medicine refrigerator

This refrigeration solution fulfils all the requirements of DIN 13277 and is specially designed to safely store heat-sensitive medicines between +2 °C and +8 °C. It offers high reliability and protection against incorrect storage, particularly in hospitals, health centres and pharmacies. Compared to many conventional variants, this appliance guarantees constant cooling performance, acoustic warning devices and a well thought-out interior concept that is tailored to the professional storage of injection solutions, vaccines and other sensitive pharmaceutical products.

Efficient cooling for high requirements

The innovative compressor technology ensures even and precise temperature control. An integrated fan distributes the cold efficiently, which ensures maximum product safety. As medicines are often located in sensitive areas such as intensive care units or laboratories, stable cooling is essential. If the door is kept open for longer than 20 seconds, an acoustic warning signal sounds - an essential feature to ensure that valuable and temperature-critical medicines are not cooled unnoticed.

In addition, the appliance is equipped with an electronic thermostat that maintains a fixed temperature of 5 °C and immediately reports any deviations. A digital thermometer memory also documents minimum and maximum values. This allows specialist staff to check at any time whether the cold chain has been consistently maintained.

Overview of important features and technical data

- Temperature range: +2 °C to +8 °C for sensitive medicines
- DIN-13277 certification: Suitable for clinical and pharmacological applications
- Compressor cooling technology: Efficient and constant temperature control
- Capacity: 35 litres with three metal drawers on roller bearings
- Door lock: Integrated lock and audible alarm from 20 seconds of door open
- Interior lighting: LED light for better visibility and quick location of stored specimens
- Electronics: 230 V AC, 50 Hz, 70 W rated input power
- Refrigerant: R600a (38 g), hermetically sealed system

Further advantages result from the sophisticated drawer system. The three metal drawers have flexible compartments to store even different sized medicine packs safely and clearly. At the same time, the transparent front of the individual drawers is practical, as a direct visual check can be carried out without having to rearrange the medication.

Safety is supported by an integrated battery that maintains the interior temperature sensor and the warning signal for around 12 hours in the event of a power failure. The model also has a safety device that protects against sub-zero temperatures. This means that even if the ambient conditions fluctuate, efficient cooling is still guaranteed.

Certifications and standards

Thanks to the CE marking and DIN 13277 certification, this appliance fulfils key standards for medical refrigerators. This means that users in clinics, medical centres and larger pharmacies are on the safe side, both legally and in terms of quality. The reliable achievement of the required temperature ranges is thus officially approved. With the potential-free contact, an external alarm can be optionally installed to further expand the safety concept.

Typical areas of application

- Intensive care units, operating theatres: safe storage of antibiotics and infusion solutions
- Pharmacies and doctors' surgeries: Guaranteed refrigeration of insulin, vaccines and serum ampoules
- Nursing homes: Reliable storage of various sensitive medications
- Research laboratories: storage of samples, reagents and reference solutions

Thanks to its compact size of 580 x 422 x 450 mm (H x W x D) and a relatively low weight of just 22 kg, the appliance fits comfortably in confined working areas. The noise emission of 45 dB(A) is also within a moderate range, meaning that the cooling is hardly noticeable.

FAQs

How often should the temperature be checked

?

In clinical environments, it is advisable to check the temperature at least twice a day. The integrated digital thermometer and the min/max memory make this documentation much easier.

What happens in the event of a power failure

For emergencies, there is a built-in rechargeable battery that continues to operate the indoor temperature display and the warning signal for around 12 hours. As soon as the power returns, the appliance automatically switches to regular cooling mode.

How can an external alarm be connected?

Thanks to the potential-free contact, it is possible to network the appliance with an existing alarm system. This provides even faster notifications in the event of temperature or door opening deviations.

Can vaccines also be stored safely?

Yes, vaccines are often temperature-sensitive and require precise compliance with the cooling range. The appliance is particularly suitable for this purpose thanks to its stable temperature control.

Conclusion

This model is the logical response to the requirements of the professional environment when it comes to the safety and integrity of temperature-sensitive medicines. The combination of precise temperature control, electronic warning system and robust drawer design fulfils the highest demands - whether in a clinic, practice, laboratory or pharmacy. This ensures that pharmaceutical preparations are always stored reliably and protected from temperature fluctuations.

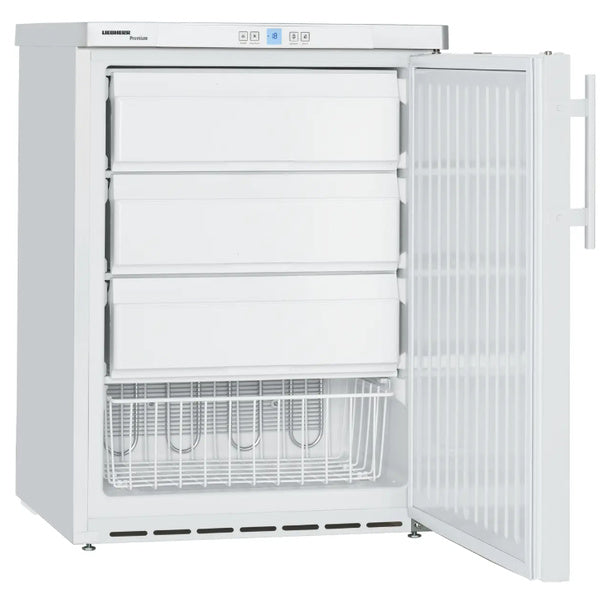

Liebherr freezer GGU 1500 with static freezing system
Liebherr's commercial freezers enable even large quantities of frozen food to be stored safely and economically: the static freezing system can be set to temperatures ranging between -14°C and -28°C.

Stainless steel construction available against extra charge.
Additional accessories and price on request!

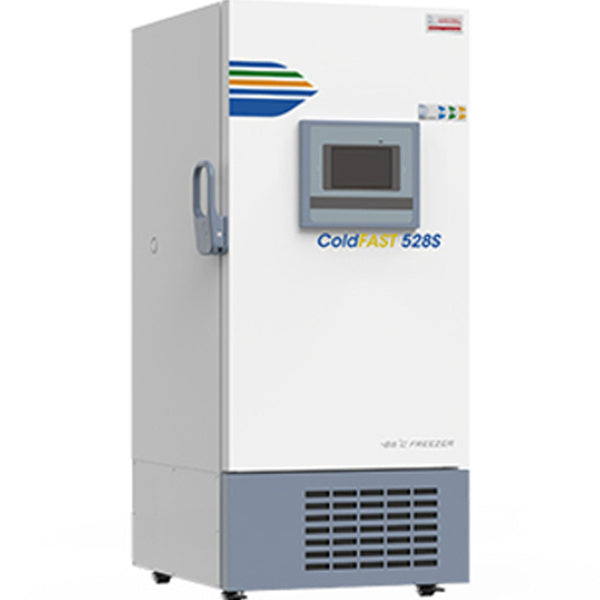

FASTER Ultra Low Temperature Freezer S-Series

FASTER's ColdFAST S-Series of ultra-low temperature freezers are used for samples that are subject to strict requirements for long-term refrigeration, such as viruses, pathogenic substances, red and white blood cells, skin and bone samples, bacteria, sperm and other biological materials, oceanic products, electronic devices and special substances. These freezers are ideal for long-term storage and meet the requirements of facilities such as hospitals, disease prevention and control centres, scientific research institutes, biomedical facilities, farms, fishing companies and the electronics and chemical industries.

Effective door seals to minimise cold loss: The use of multiple door seals significantly reduces the loss of cold air from the compartments. Even when compartments are open during normal operation, the impact on compartment temperatures remains low.

High-performance and reliable cooling fans for energy efficiency: Our highly efficient and extremely reliable cooling fans not only enable energy savings, but also ensure safety during long-term storage thanks to precise temperature control on the compressors. By using the dual cooling cascade system, separate evaporator, compound heat exchanger, optimised break condensation and separation system and a high-performance thermal insulation system, the freezer's energy consumption can be reduced by up to 40 %.

Whisper-quiet operation for a pleasant environment: Thanks to the low-noise direct cooling circuit, the suspension frame and the sound-insulating compartment, the overall noise level of the freezer is significantly reduced. In the S series, the noise level is just 44 to 46 decibels (Db(A)).

Comprehensive alarm functions for maximum safety: Our appliances offer several alarm functions, including over-temperature alarm, under-temperature alarm, sensor error, battery discharge, high ambient temperature and power failure, to ensure the safety of the product and equipment.

Fast recovery time: With an industry-leading recovery time of just 30 minutes with the door open for 1 minute, we offer you optimum efficiency.

Durable painted sheet steel construction: Our S-Series freezers not only offer impressive performance, but also a robust painted sheet steel construction for durability and resilience.

ColdFAST S-Series
The ColdFAST S-Series freezers set a new standard in terms of energy efficiency and flexibility. Thanks to their dual cooling cascade system with 2 compressors, they offer impressive energy savings. These ultra-low temperature freezers cover a wide temperature range, from room temperature to -40 °C and from -40 °C to -86 °C. With a 10-inch display and an innovative refrigerant system that uses propane (high stage) and ethane (low stage), they enable precise cooling conditions for different requirements. The S-Series is the best choice for research laboratories that want maximum flexibility and efficiency.

• High energy efficiency: The S-Series is characterised by high energy savings, which can reduce costs in the long term.
• Wide temperature range: With a temperature range from room temperature to -40°C and from -40°C to -86°C, it offers greater flexibility for various applications.
• Larger display: With a 10-inch display, the S series offers a more user-friendly display and more control over the settings.

Control system
Reliable performance and precision
Our ultra-low temperature freezers ensure impressive cooling performance with a temperature of up to -86 °C in the cooling compartment and remarkable accuracy within a range of 5 °C. This enables extremely reliable storage of your valuable samples.

Flexibility in operating voltage
Our devices are characterised by a wide operating voltage range from 200V to 240V, which allows you to use them safely even in regions with an unstable power supply. This means that your samples remain protected even under demanding conditions.

Precise temperature management and outstanding quality
Our advanced microprocessor control system allows precise temperature control in the range from -40 °C to -86 °C in precise 1 °C increments. In addition, our freezer systems are developed and manufactured according to best practice and using high-quality components.

Optimised cooling technology and reliable tests
Thanks to EBM Papst's ventilation technology, our freezers guarantee optimum air circulation. Each model undergoes rigorous reliability tests, including an ageing test on the control electronics at 85 °C and 85% relative humidity, to ensure the highest quality and reliability.

Highest safety standards: UL and CE certification
Our systems have been awarded the renowned UL and CE certificates, which guarantees maximum application safety.

Comprehensive data recording and long-term storage
The operating data of the system settings, alarm data and temperature data can be recorded every 5 minutes and stored for a period of up to 10 years. This enables long-term and effective recording of the product's operating status.

Adaptable to ambient temperatures
Our devices are suitable for use in a wide temperature range from 16 °C to 32 °C to ensure reliable operation in various ambient conditions.

Dual compressor for increased safety
A unique dual compressor system ensures additional protection for your samples. In the event of a failure of the main compressor, the additional compressor can continue to cool and protect the stored samples at a temperature of -70 ºC.

Real-time monitoring of voltage and ambient temperature
Input voltage and ambient temperature are displayed simultaneously for easy monitoring of ambient conditions.

Maximum security thanks to locking mechanisms
A lockable door handle and/or individual keys prevent unauthorised access to your valuable samples. In addition, the option of attaching an additional padlock provides an extra level of security.

CO2 safety system for additional protection
Our units are equipped with a CO2 safety system, including regulator, alarm backup and CO2 valve, to ensure maximum safety for your samples and equipment.

Features
Intuitive 10'' HD touchscreen: All important information at a glance: The integrated 10'' HD touchscreen shows you all relevant information at a glance.

Multiple user accounts for comprehensive control: The option to add multiple user accounts allows individual logins and the recording of usage and operating data.

Multiple unlocking options for quick access: Optional functions such as card unlocking, fingerprint and face recognition are available to ensure quick access to samples.

Comprehensive security system for reliable protection: A comprehensive security system ensures reliable protection of your samples and data.

72-hour battery back-up: Continuity thanks to battery backup: A 72-hour battery back-up ensures continuity by supplying power to the printer and the microprocessor with touchscreen.

Robust stainless steel hinges: Stability and durability: Solid stainless steel hinges on the doors guarantee stability and durability.

Double compressor for increased safety: A double compressor system increases safety and protects your samples even more effectively.

Reinforced shelves: Maximum loading with flexible height adjustment: Reinforced shelves allow maximum weight loading with flexible height adjustment.

Precise temperature monitoring with PT 1000 temperature sensor: The PT 1000 temperature sensor in a stainless steel protective housing ensures precise temperature monitoring.

Remote alarm: Seamless integration into your building management system: A remote alarm is possible by connecting to the on-site BMS.

USB interface for simple data transfer: A USB interface enables uncomplicated data transfer.

Vacuum release port: Relief at the touch of a button: The vacuum release port enables simple relief.

Easily replaceable pre-filter for clean air: The pre-filter is easy to replace and ensures clean air inside.

Accessories (on request)
Circular chartrecorder: Precise temperature recording: The circular chart recorder is permanently integrated into the control panel and enables precise temperature recording. Thanks to the standard battery power supply, permanent operation is guaranteed even without a mains connection. The interchangeable diagram discs are designed for either 24 hours or 7 days. The actual temperature is written on the diagram disc using a black fibre pen. This ensures accurate temperature measurement in the interior.

Storage racks: Ergonomic storage solution: Optionally available storage racks offer an ergonomically designed solution for easy storage of your samples. The racks are available in various sizes and enable optimum organisation.

CO2 backup system: Additional safety: The CO2 backup system provides additional safety. In the event of a failure, it ensures the protection and maintenance of optimum conditions in your ultra-low temperature freezer.

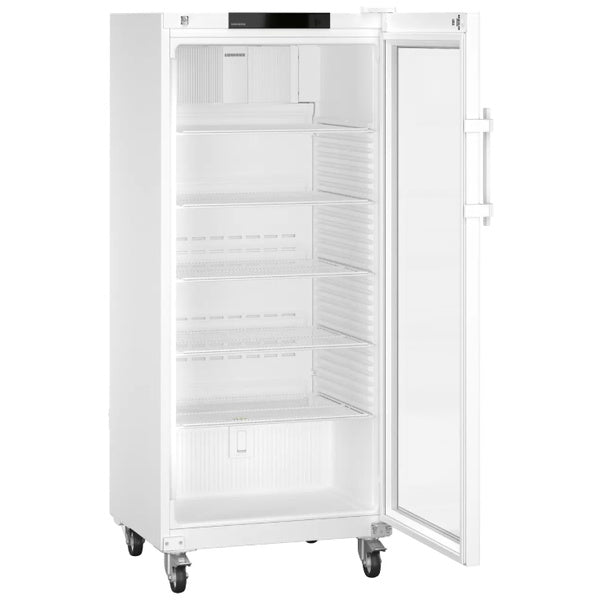

Liebherr medication refrigerator HMFvh Perfection series
for storage of medicines, according to DIN 13277

+2 °C SafetyDevice
If the temperature drops below +2 °C in the event of a malfunction, the SafetyDevice takes control. It stabilises the temperature, activates the alarm and protects the contents from freezing.

Power failure alarm
In the event of a failure, an integrated battery provides a visual and acoustic alarm and takes over the power supply. As soon as power is restored, the time of failure and the maximum temperature reached are displayed.

Vertical LED lighting
The vertical LED lighting ensures optimum illumination of the interior over the entire height of the unit. This not only saves a long search, but also energy costs.

LightAlarm
In the event of an uncontrolled rise in temperature or other problems, the interior light of the appliance starts to flash. This makes it quickly apparent that action is required.

Easy-to-clean interior
The interior container is made of fully recyclable, robust and odourless polystyrene and is manufactured in one piece without joints. This makes it quick and easy to clean in large radii.

Feed-through for external sensors
An integrated opening allows the connection of a separate sensor for additional temperature control without having to drill holes or break the door seal.

SmartLock
SmartLock automatically locks the door in the event of an alarm to prevent products from accidentally circulating after the cold chain has been interrupted. Only authorised persons can unlock it again.

SmartMonitoring
The cloud-based, digital solution continuously monitors and documents temperatures and alerts immediately by email, SMS or phone call in case of deviations.

Integrated WiFi/LAN interface
Via the integrated WiFi/LAN interface, you can easily network your appliances with Liebherr's SmartMonitoring or connect them to local existing systems.

Min./max. temperature recording
The min/max temperature recording stores the minimum and maximum values of the interior and shows on the display whether the storage temperatures were within the tolerance limits.

Antimicrobial handle with opening mechanism
The smooth-running handle has been treated with special antimicrobial substances, making it particularly hygienic. Regular and time-consuming disinfection is no longer necessary.

Replaceable door seal
Save time and money: Liebherr's plug-in door seals are easy to replace. If a seal is damaged, you can replace it yourself without any tools.

Self-closing door <90
To make loading and unloading as well as cleaning easier, the appliance door remains open from an opening angle of approx. 90°, below which it closes automatically for safety's sake.

Note: The equipment details shown depend on the model; the description for the respective model applies.

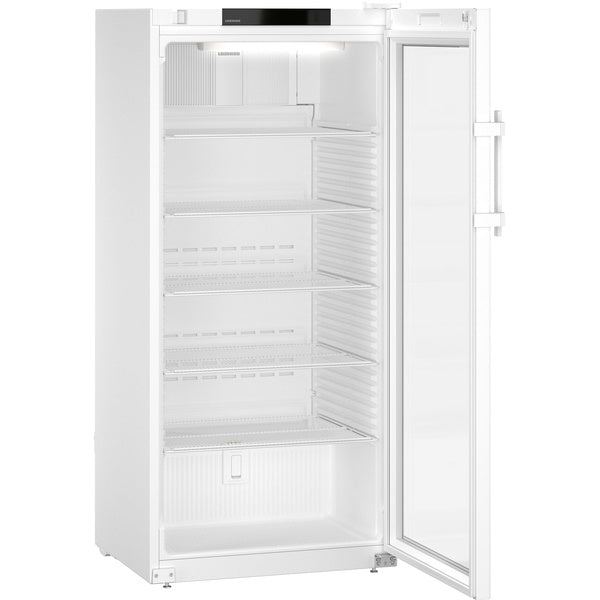

Liebherr Laboratory Cooling Unit SRFvg Performance Series
with plastic inner container

Min./max. temperature recording
The minimum/maximum temperature recording stores the minimum and maximum values of the interior and shows on the display whether the storage temperatures were within the tolerance limits.

+2-°C-SafetyDevice
If the temperature drops below +2 °C in the event of a malfunction, the SafetyDevice takes over control. It stabilises the temperature, activates the alarm and protects the contents from freezing.

Power failure alarm
In the event of a failure, an integrated battery provides a visual and acoustic alarm and takes over the power supply. As soon as power is restored, the time of failure and the maximum temperature reached are displayed.

LightAlarm
In the event of an uncontrolled temperature rise or other problems, the interior light of the unit starts to flash. This quickly indicates the need for action.

Feed-through for external sensors
An integrated opening allows the connection of a separate sensor for additional temperature control without having to drill holes or break the door seal.

Integrated data logger
The integrated logger records temperature profile, alarm history and service information for up to five years. The data can be read out directly from the unit via USB interface.

Mechanical lock
Professional Liebherr units are equipped with a mechanical lock and two keys. This ensures that unauthorised persons cannot access your valuable and sensitive stored goods.

SmartMonitoring
The cloud-based, digital solution continuously monitors and documents temperatures and alerts you immediately by e-mail, SMS or phone call in the event of deviations.

Integrated WiFi/LAN interface
Via the integrated WiFi/LAN interface, you can easily network your equipment with Liebherr's SmartMonitoring or connect it to local existing systems.

Easy-to-clean interior
The interior container made of fully recyclable, robust and odourless polystyrene is manufactured in one piece without joints. This makes it quick and easy to clean in large radii.

Replaceable door seal
Save time and money: Liebherr's plug-in door seals are easily replaced. If a seal is damaged, you can replace it yourself without any tools.

Self-closing door <90
To make loading and unloading as well as cleaning easier, the appliance door remains open from an opening angle of approx. 90°, below which it closes automatically for safety's sake.

Note: The equipment details shown depend on the model; the description for the respective model applies.

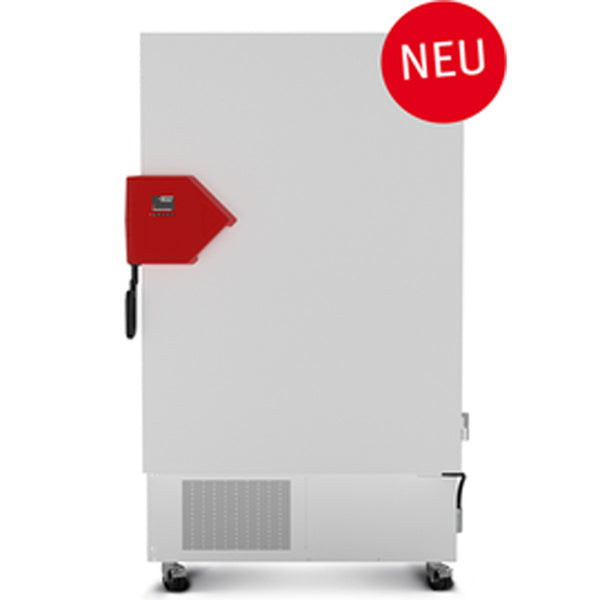

BINDER Ultra low temperature freezer UF V 700
Ultra low temperature freezers with climate-neutral refrigerants

Important characteristics

• Range of temperature controller: -90 °C to -40 °C
• Lowest energy consumption in its class
• Powerful cascade compressor cooling unit
• Environmentally friendly refrigerants R-290 and R-170
• Efficient thermal insulation with vacuum insulation panels
• Innovative door gasket concept reduces buildup of ice
• Ergonomic door handle
• Rust-proof interior made completely of stainless steel
• Detachable inner doors made of stainless steel
• 3 stainless-steel shelves providing flexible placement
• Water cooling (depending on version)
• Zero-voltage alarm contact for in-house alarm system
• Ethernet interface
• Elapsed time indicato
• 2 access ports, diameter 28 mm, rear

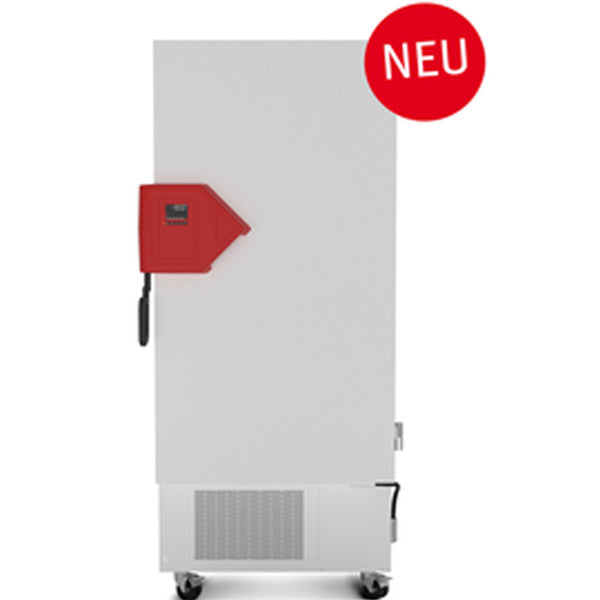

BINDER Ultra low temperature freezer UF V 500
Ultra low temperature freezers with climate-neutral refrigerants

The BINDER ultra low temperature freezer ensures the safe storage of samples at -90 °C. It combines outstanding environmental friendliness with low energy consumption, convenient operation and an individual safety concept.

Important characteristics

• Range of temperature controller: -90 °C to -40 °C
• Lowest energy consumption in its class
• Powerful cascade compressor cooling unit
• Environmentally friendly refrigerants R-290 and R-170
• Efficient thermal insulation with vacuum insulation panels
• Innovative door gasket concept reduces buildup of ice
• Ergonomic door handle
• Rust-proof interior made completely of stainless steel
• Detachable inner doors made of stainless steel
• 3 stainless-steel shelves providing flexible placement
• Water cooling (depending on version)
• Zero-voltage alarm contact for in-house alarm system
• Ethernet interface
• Elapsed time indicato
• 2 access ports, diameter 28 mm, rear

Scotsman Wasserdispenser SCW Serie
Druckwasserkühler

Für mehr Informationen wählen Sie bitte ein Modell.

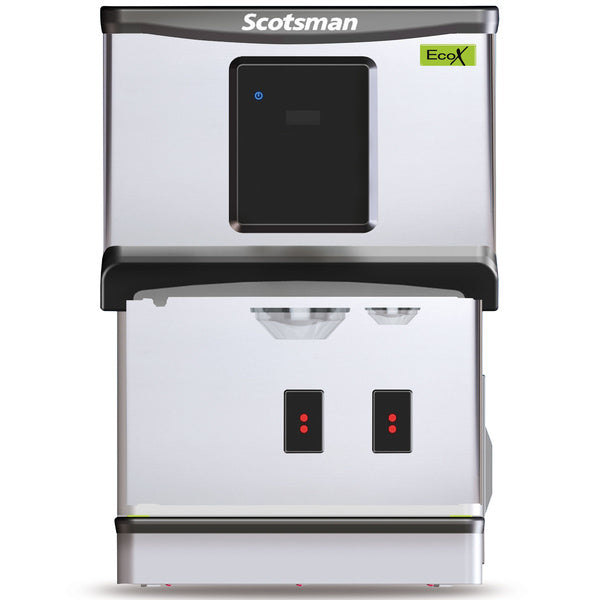

Scotsman Ice and Water Dispenser DXN Series
Agion: The ''intelligent'' material inside the machine only unfolds its antimicrobial properties as soon as germs develop, effectively extending the life of the machine.
Attractive design: Suitable for both traditional pubs and high-end lounges, with no hygiene risk.
Display: Attractive touch screen in two versions (touch active/loose).
Small footprint: A lot of ice in a small space.
EcoX: These models use only natural refrigerant R290 or R744.

Nugget & Cubeleteis
Compressed flake ice in two different types: uniform nuggets or irregular cubelets.
Nuggets and cubelets are suitable for various applications and have become increasingly popular in quick service restaurants in recent years. They are ideal for carbonated drinks, smoothies and food platters.
Long-lasting ice, easy handling as well as high and fast displacement are the secret of success of this type of ice.

Ice sizes
Nugget: 1 g, diameter 11 mm, height 13 mm, residual water content 8 %
Cubelet: 1 g, width 16 mm, height 13 mm, residual water content 8 %.

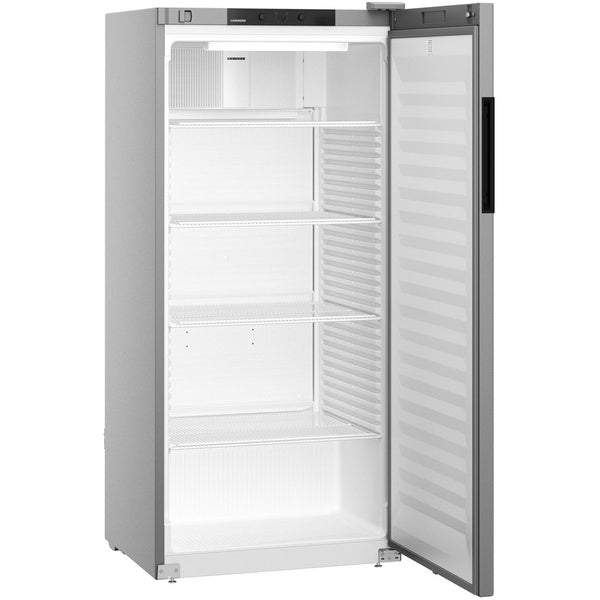

Discover the Liebherr MRFvd 5501

Nothing is left to chance with the reliable Liebherr MRF series refrigerators! The product series also includes the popular MRFvd 5501 model. Regardless of the industry you work in, you can easily store a wide range of samples, medicines, vaccines or other stored goods.

Dynamic cooling, large storage space and high energy efficiency ensure that Malle important items are kept safe and secure in ideal temperature ranges. Take a look at the Liebherr MRFvd 5501 and see if this model is right for your needs.

Uncomplicated temperature regulation

With this model, you can expect a particularly simple solution for temperature regulation. This regulation works electronically and can also be secured with a key. Thanks to the dynamic convection cooling, the contents of the laboratory refrigerator remain evenly cooled. And thanks to the very fine temperature control, your research work or other important contents benefit from the extremely professional cooling conditions.

In addition, the Liebherr refrigerator protects stored substances from sub-zero temperatures. All adjustments and settings are conveniently made at the touch of a button! Depending on the version, use the configuration interface or the built-in buttons.

The lowest appliance temperatures are typically +1 °C to +2 °C. The maximum temperature is 15 °C. The digital display is accurate to 0.1 °C. This gives you extremely accurate information on the cooling temperature.

Automatic defrosting guaranteed!

To make the defrosting process less unpleasant for you, this model is equipped with automatic defrosting. The temporary reversal of the refrigerant circuit under thermal monitoring reduces frost formation. You will then see the evaporation of the condensate in the heated stainless steel bowl directly under the refrigerator base.

Functional design and durable materials

The refrigerator is robustly built and has a total cooling capacity of 544 litres. This provides plenty of space and is ideal for storing items such as samples and medicines. Thanks to its practical dimensions, the refrigerator can be optimally installed at your place of use. This increases flexibility considerably.

Use this generous space to professionally store and cool your materials such as samples, food or other research items weighing up to 60 kg. The even surface is elegant yet durable and its practical handle strip convinces with pronounced ergonomics.

The interior of the refrigerator is smooth and therefore particularly easy to clean. In addition, the model is made of durable stainless steel. The noise level is very low at approx. 50 dB(A), so you won't be disturbed by annoying noises.

Furthermore, this Liebherr refrigerator comes with one fixed shelf and four adjustable shelves. They are made of high-quality plastic. The adjustable shelves allow the storage space to be adapted to individual needs. An integrated stopper prevents the shelves from accidentally slipping and damaging the contents.

Dimensions of this cooling unit:

• Height: 1684 mm
• Width: 747 mm
• Depth: 769 mm
• Cooling capacity (gross): 544 l

For an overview of all technical information, see the technical data sheet.

Interchangeable door hinge

The Liebherr cooling system is equipped with a hinge on the right-hand side. Thanks to its integration into the workstation, the door stop can be replaced quickly and easily. This allows the refrigerator to be optimally installed at the desired workstation and according to your wishes.

Sustainable materials and efficient energy consumption

The MRFvd 5501 will not let you down! The dynamic cooling system ensures good temperature circulation. The result is an extremely homogeneous climate inside the unit. Temperature-sensitive medicines, pharmaceuticals or biological substances thus benefit from optimal storage conditions.

The refrigerator uses the environmentally friendly refrigerants R600a and R290, thus contributing to ideal storage conditions. These substances are particularly environmentally friendly because they have a very low greenhouse effect and do not destroy the ozone layer. These refrigerants have almost completely replaced the previously used refrigerants R134a and R404a.

The operating costs of Liebherr units are always very low. Because sustainable action saves energy. The annual energy consumption of the refrigeration system is approx. 388 kWh/a.

The lockable doors of this model not only protect the stored contents considerably from unauthorised use, but also reduce energy consumption significantly. High-quality, durable and, above all, thermally insulated materials make this possible. This is why this appliance has been classified in energy efficiency class B.

Optimum protection

Temperature deviation or malfunction? Don't worry! The unit's visual and acoustic alarm signals notify you immediately of any unforeseen changes to the equipment!

In the event of an unauthorised door opening, the alarm also sounds after about one minute. The door can also be locked by a separate lock.
