Ingenieurbüro CAT M. Zipperer GmbH Thermo Shaker SH 26.3.1
Microprocessor controlled thermoshaker for 48 Eppendorf-Tubes with 1.5 ml

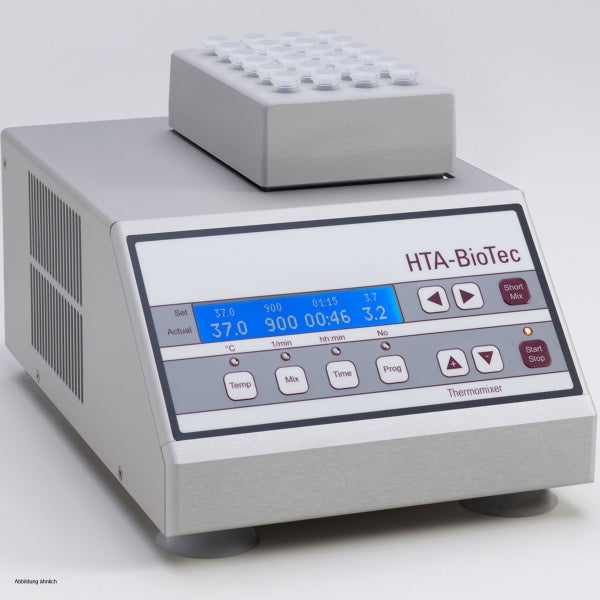

HTA-BioTec Heating Thermoshaker HTM
The smallest Heating Thermoshaker with an enormous efficiency, 180 mm wide. The colourless anodised aluminium box has an appealing, lasting and stable design. Effective mixing separately and/or simultaneously with precision temperatur control due self optimizing digital controller. This guarantees accuracy and reproduction of +/-0,1°C. Short Mix Function.
The innovative new Sensation:
Double capacity of Heating Thermoshaker HTM 2, 180 mm wide. This guarantees lowest temperature (amb.-16°C) and an accuracy of +/-0,3°C. From the diverse HTA program two exchangeable blocks can be inserted into the shaker. Valid for both Cooling Thermoshaker: High performance Peltier elements allow for fast tempering times and a long durability. Undesired heat and cold is lead to the outside with the help of an effective and extremely quiet cooling system.
Innovative block attachmend:
Simply place block on top-like magic-magnets will keep it in the proper position. No screws, no pressing required. To remove the block it is necessary to turn it slightly to ease the magnetic power in order to lift the block.
Program options:
In total, 9 programs with 9 program steps each are available (81 program steps). Temperature curves with fastest possible rates of climbing and fall can be generated.
Modern technique:
Microprocessor control with self optimising digital controller ensures high precision. Simple, logical operation: consistent display of all setpoints and actual values. Comfortable and quick, exact adjustment of setpoints. The serial anti-condensation- and insulating hood is placed over the block if required. Universally usable with external power supply.
USB interface:
A serial USB interface allows documentation and external control of program processes.
Ingenieurbüro CAT M. Zipperer GmbH Thermo Shaker SH 26.3.2
Microprocessor controlled thermoshaker for 48 Eppendorf-Tubes with 2.2 ml
Ingenieurbüro CAT M. Zipperer GmbH Thermo Shaker SH 25
Microprocessor controlled thermoshaker for various vessels, custom made shaking adapters available on request

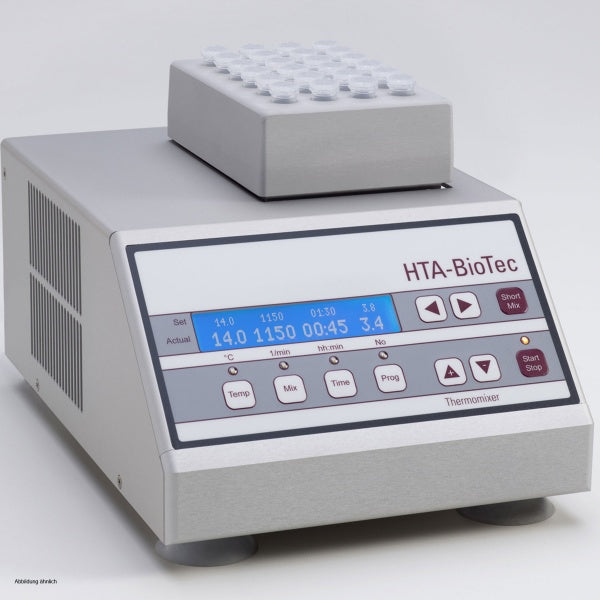

HTA-BioTec Cooling Thermoshaker CTM
The smallest Cooling Thermoshaker with an enormous efficiency, 180 mm wide. The colourless anodised aluminium box has an appealing, lasting and stable design. Effective mixing separately and/or simultaneously with precision temperatur control due self optimizing digital controller. This guarantees accuracy and reproduction of +/-0,1°C. Short Mix Function.
The innovative new Thermoshaker CTM 2, 180 mm wide. This guarantees lowest temperature (amb.-16°C) and an accuracy of +/-0,3°C. From the diverse HTA program two exchangeable blocks can be inserted into the shaker. Valid for both Cooling Thermoshaker: High performance Peltier elements allow for fast tempering times and a long durability. Undesired heat and cold is lead to the outside with the help of an effective and extremely quiet cooling system.
Innovative block attachmend:
Simply place block on top-like magic-magnets will keep it in the proper position. No screws, no pressing required. To remove the block it is necessary to turn it slightly to ease the magnetic power in order to lift the block.
Program options:
In total, 9 programs with 9 program steps each are available (81 program steps). Temperature curves with fastest possible rates of climbing and fall can be generated.
Modern technique:
Microprocessor control with self optimising digital controller ensures high precision. Simple, logical operation: consistent display of all setpoints and actual values. Comfortable and quick, exact adjustment of setpoints. The serial anti-condensation- and insulating hood is placed over the block if required. Universally usable with external power supply.
USB interface:
A serial USB interface allows documentation and external control of program processes.

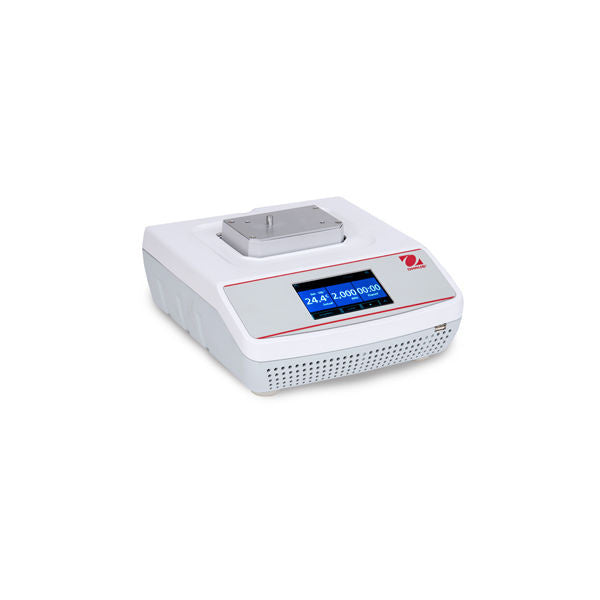

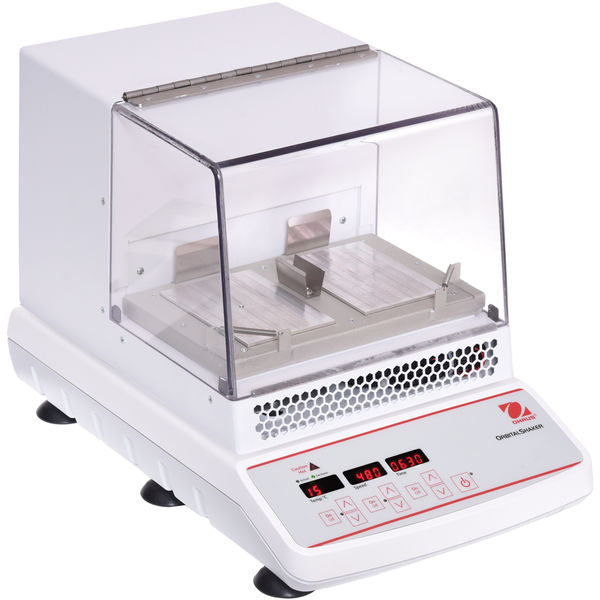

The OHAUS orbital shaker with incubator and cooling function is specially designed to quickly heat, cool and shake samples over a wide temperature range. This versatile device delivers high reliability and consistent results in demanding applications including cell culture, hybridisation, ELISA assays and enzyme reactions. Its precise temperature management and stable orbital motion make it the ideal choice when efficient transfer of energy to the sample and uniform heat distribution are critical.
This model is capable of incubating samples at temperatures from 10 °C below ambient to 65 °C to support a wide range of biological and biochemical processes. The robust design and triple eccentric drive provide reliable orbital motion. The shaking speed can be precisely controlled at all times to ensure reproducible results in every experimental set-up. A particularly striking feature is the integrated Peltier system, which ensures direct thermal coupling between the sample container and the disc surface. This leads to an extremely homogeneous temperature distribution in the samples, even at low speeds.
The intuitive, digital control system allows parameters such as speed, temperature and time to be set precisely. A user-controlled calibration system ensures that particularly sensitive experiments in areas such as immunoassays or PCR preparations are carried out with maximum accuracy. At the same time, safety functions such as an overload indicator or the "Caution, hot!" warning light minimise the risk of damage within the laboratory. In addition, the splash-proof design and robust die-cast aluminium housing reliably protect the electronics from moisture, chemicals and mechanical influences.
- Orbital movement: 3 mm
- Temperature range: 10 °C below room temperature to 65 °C
- Capacity: Holds 2 microplates or 2 module blocks
- Speed range: 100 to 1200 rpm (for modular blocks up to 600 rpm)
- Timer: Between 1 second and 160 hours
- Power supply: 230 V, 50/60 Hz, 1 A
- Net weight: 13.4 kg
In addition, the appliance has excellent temperature uniformity (±0.5 °C at 37 °C) and a speed accuracy of ±2 %. The digital displays are easy to read, giving operators a complete overview of the currently set parameters at all times. The brushless DC motor system is designed for durability while minimising service intervals, which is particularly beneficial in busy laboratory areas. With CE and TÜV certification, the device complies with current norms and safety standards.
Yes. The stable brushless DC motor and the eccentric drive system are designed for continuous operation. Thanks to a timer for up to 160 hours, long-term incubation is also possible without any problems.
The digital control unit enables user-specific temperature calibration. This allows the shaker to be set precisely to the desired test parameters, which is particularly advantageous for sensitive applications.
Which sample vessels can be used
The device offers space for up to 2 microplates or 2 modular blocks. Different inserts are available to support a variety of sample formats.
Yes. Thanks to the splash-proof design and removable polycarbonate lid, all relevant parts can be cleaned and disinfected quickly.
This flexible system covers a wide range of applications by combining both heating and cooling functions with a precise shaking motion. The appliance also impresses with its intuitive operating concept, robust components and consistently high performance. The OHAUS orbital shaker with incubator and cooling function ISICMBCDG is a future-proof choice for anyone who needs reliable, reproducible and easily calibratable results in research or production.

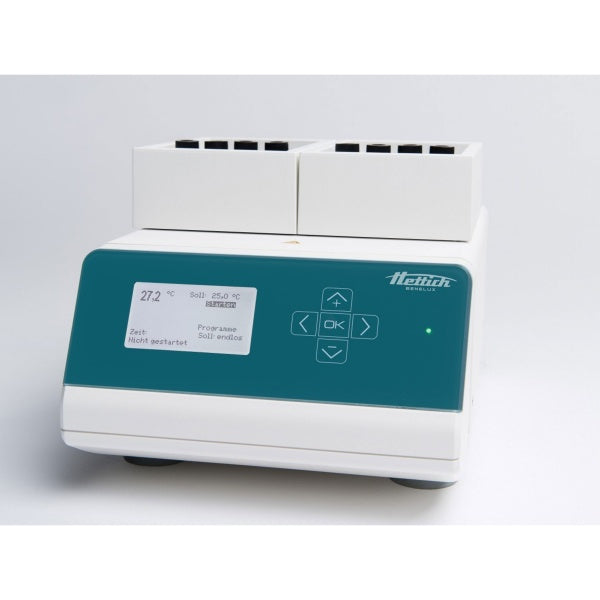

Hettich Benelux Heating Thermo Shaker MHR 23 (formerly "HLC by DITABIS")
The Hettich Benelux Heating Thermo Shaker MHR 23 and the other Hettich Benelux Cooling and Heating Thermo Shaker feature:
Stable construction: the robust housing as well technology are a guarantee reliability.
Highest accuracy: high temperature accuracy (+/- 0.1°C), quickest tempering times and even temperature distribution.
30 different exchangeable blocks for your applications.
Use up to 9 programs with 30 program steps in total, timer, interval shaking & short mix function as well as a broad range of shaking frequencies.
Touch Control Panel for different operation modes - perfectly adapted to your laboratory setup.
Heating Thermo Shaker MHR 23 is working on the basis of Smart Control:
Select the one suitable for you from more than 30 different exchangeable blocks for the use of micro test tubes, test tubes, centrifugal tubes, cuvettes or PCR-plates, microtiter or Deep-Well plates.
Accessories are not included and must be ordered separately.
The OHAUS orbital shaker with incubator for light applications is used for precise and reliable incubation and controlled shaking of samples. The device combines incubator and shaking functions in a compact housing, providing a space-saving solution for laboratories. Thanks to a stable orbital movement and user-friendly digital control, this shaker is ideal for achieving fast and reproducible results in a wide range of applications. Compared to other solutions on the market, the model scores particularly well with its robust die-cast aluminium construction, integrated temperature calibration and flexible range of accessories.
This device was designed for long-term use in laboratory environments and combines a high load capacity with modern control technology. A brushless DC motor minimises maintenance and noise, while the triple eccentric drive system ensures smooth orbital movement. The enormous versatility is demonstrated, among other things, by the flexible mounting of microplates or module blocks, which allows a wide variety of sample settings.
The temperature range extends from 5 °C above room temperature to 65 °C. Thanks to user-controlled calibration, users can precisely set particularly sensitive temperature profiles. A transparent or opaque lid design enables adaptation to the respective experiment - whether light-protected incubation or direct sample observation. The constant heat distribution ensures reliable results, especially in enzymatic reactions and when cultivating temperature-sensitive organisms.In order to maximise measurement accuracy and user-friendliness, the device has separate LED displays for temperature, speed and time. The latter can be preset between 1 second and up to 160 hours, which also covers longer-term incubations. Integrated overload protection, safe cable routing and a clearly labelled "Caution, hot!" indicator underline the high safety standard.- 3 mm orbital movement, driven by a triple eccentric system
- Available capacity of up to 3.6 kg or four microplates
- Digitally adjustable speed from 100 to 1200 rpm
- Temperature range from ambient +5 °C to 65 °C
- ±0.5 °C uniformity at 37 °C for consistent incubation conditions
- Timer function from 1 second to 160 hours
- Brushless DC motor for low vibration and durability
In addition to these key technical data, the splash-proof design also offers practical safety in everyday laboratory work. The compact dimensions make it easy to set up in confined spaces and the robust aluminium shell is durable enough for regular use.
The technical design of the shaker fulfils current safety and quality guidelines. With CE and TÜV approval, the manufacturer documents the guarantee of high standards in terms of safety, electromagnetic compatibility and performance. This makes the device suitable for professional use in modern laboratory and research facilities.
Application examples
The shaker covers a wide range of work steps in biotechnology, pharmaceutical and diagnostics laboratories. Typical applications include:
The device can also be customised for light-sensitive or particularly discrete protocols as it can be supplied with differently designed covers. The efficient temperature and shaking control is a decisive advantage for a wide range of samples, from enzyme assays to suspension cultures and hybridisations.
FAQs
The shaker has a user-defined temperature calibration function that allows users to adjust any deviations. This enables an even more precise setting for particularly sensitive applications.
What is the maximum load capacity?
The device can carry up to 3.6 kg of laboratory vessels or alternatively four microplates or deepwell plates. This means that several samples can be processed at the same time.
This design ensures constant orbital movement and uniform mixing of the solution, which increases the reproducibility and stability of the processes.
The brushless DC motor usually operates very quietly, making the device suitable for use in sensitive areas. It also requires minimal maintenance.
Yes, thanks to the timer of up to 160 hours, long-term use is also possible. The precise regulation of the temperature provides constantly stable conditions.
Conclusion
This shaker with integrated incubation function is a powerful, reliable solution for laboratories that require reproducible results and versatile application options. The robust design, flexible configuration and precise digital control make the device a sought-after companion for a wide range of processes in the fields of biotechnology, cell research and diagnostics. The combination of efficient temperature stability and safe orbital operation makes it ideal for sensitive reactions as well as routine analyses. With user-friendly operation, a wide range of accessories and comprehensive safety features, the model fulfils advanced laboratory requirements while offering an attractive price-performance ratio.
| External dimensions (W x D x H) (thermal shaker): | 279 x 432 x 197 mm279 x 432 x 270 mm |
| Speed range (thermal shaker): | 100 - 1200 rpm |
| Electrical supply: | 230 V, 50-60 Hz |
| Cooling function: | without |
| Output (thermal shaker): | 450 W |
| Orbit diameter: | 3 mm |
| Shaking movement: | orbital |
| Power connection: | 230 V, 50/60 Hz |
| Temperature max. (thermo shaker): | 65°C |
| Timer: | 1 s - 160 h |
| Suitable for: | PCR plates |
Hettich Benelux Heating Thermo Shaker MHR 13 (formerly "HLC by DITABIS")
The Hettich Benelux Heating Thermo Shaker MHR 13 and the other Hettich Benelux Cooling and Heating Thermo Shaker feature:
Stable construction: the robust housing as well technology are a guarantee reliability.
Highest accuracy: high temperature accuracy (+/- 0.1°C), quickest tempering times and even temperature distribution.
30 different exchangeable blocks for your applications.
Use up to 9 programs with 30 program steps in total, timer, interval shaking & short mix function as well as a broad range of shaking frequencies.
Touch Control Panel for different operation modes - perfectly adapted to your laboratory setup.
Heating Thermo Shaker MHR 13 is working on the basis of Smart Control:
Select the one suitable for you from more than 30 different exchangeable blocks for the use of micro test tubes, test tubes, centrifugal tubes, cuvettes or PCR-plates, microtiter or Deep-Well plates.
Optional can be ordered as accessories: Remote software, for controlling and monitoring via USB interface

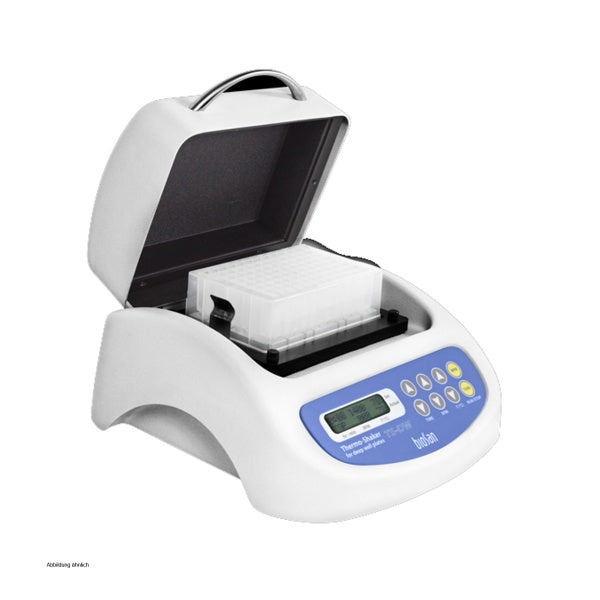

BioSan TS-DW Thermo-Shaker is designed for shaking and thermostating deep well plates. A multisystem principle, used in design of the Thermo-Shaker, allows operating it as 3 independent devices:
A distinctive feature of Biosan Plate Thermo-Shakers is the patented by the company Two-Side Microplates Heating, which allows to achieve full correspondence of the set and actual temperature in the plate wells.
Deep Well Plate Thermo-Shaker provides:
Application fields:
The plate module for deepwell plate is mountable, thus a custom plate module can be manufactured on request.
Illustrated module is used with 127.4 x 85.8 x 43.2 mm, U-shape bottom deep well plate.
Without block!

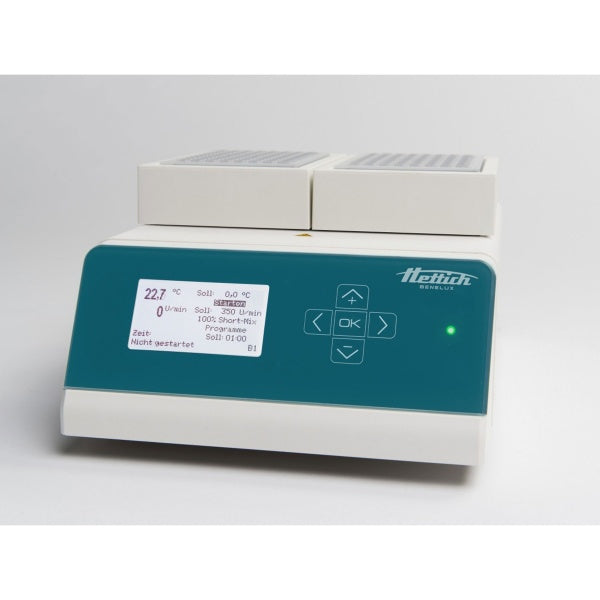

Hettich Benelux Heating Thermo Shaker MHL 23 (formerly "HLC by DITABIS")
The Hettich Benelux Heating Thermo Shaker MHL 23 and the other Hettich Benelux Cooling and Heating Thermo Shaker feature:
Stable construction: the robust housing as well technology are a guarantee reliability.
Highest accuracy: high temperature accuracy (+/- 0.1°C), quickest tempering times and even temperature distribution.
30 different exchangeable blocks for your applications.
Use up to 9 programs with 30 program steps in total, timer, interval shaking & short mix function as well as a broad range of shaking frequencies.
Touch Control Panel for different operation modes - perfectly adapted to your laboratory setup.
Heating Thermo Shaker MHL 23 is working on the basis of Smart Control:
Select the one suitable for you from more than 30 different exchangeable blocks for the use of micro test tubes, test tubes, centrifugal tubes, cuvettes or PCR-plates, microtiter or Deep-Well plates.
Optional can be ordered as accessories: Remote software, for controlling and monitoring via USB interface

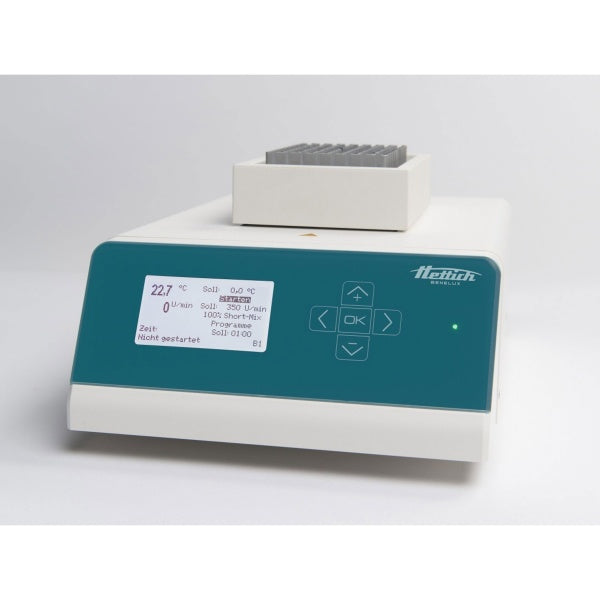

The Hettich Benelux Heating Thermo Shaker MHR 11 and the other HLC Cooling and Heating Thermo Shaker feature:
Stable construction: the robust housing as well technology are a guarantee reliability.
Highest accuracy: high temperature accuracy (+/- 0.1°C), quickest tempering times and even temperature distribution.
30 different exchangeable blocks for your applications.
Use up to 9 programs with 30 program steps in total, timer, interval shaking & short mix function as well as a broad range of shaking frequencies.
Touch Control Panel for different operation modes - perfectly adapted to your laboratory setup.
Heating Thermo Shaker MHR 11 is working on the basis of Easy Control:
Select the one suitable for you from more than 30 different exchangeable blocks for the use of micro test tubes, test tubes, centrifugal tubes, cuvettes or PCR-plates, microtiter or Deep-Well plates.
Accessories are not included and must be ordered separately.
This thermal shaker is used in particular when precise temperature control and efficient high-speed shaking are required in laboratory environments. Thanks to its extended temperature range of up to 17 °C below room temperature and up to 100 °C, it is ideal for sensitive DNA and RNA samples as well as robust cell cultures. The combination of first-class cooling and heat regulation, user-friendly control and reliable orbital shaking motion clearly sets this device apart from comparable solutions on the market and enables greater reproducibility in many applications.
Performance features and technical details
The flexible design and advanced electronics enable effective work under variable conditions and guarantee consistently good results. The compact Valox housing ensures a robust and well-insulated environment. The interchangeable thermoblocks, which can be precisely adapted to different sample formats, also score highly. Blocks for tubes of different sizes can be integrated in just a few simple steps.
Important key technological data at a glance:
- Temperature range: 17 °C below room temperature to 100 °C
- Speed range: 300 to 3000 rpm (orbital movement of 3 mm)
- Touchscreen control in six languages
- Direct temperature calibration via the touchscreen
- USB interface for data logging and transfer
- CE and TÜV certification
- Brushless DC motor for long-lasting, low-maintenance operation
The thermal shaker also has a temperature priority function that can be used to prioritise particularly precise heating or cooling. Users also benefit from the option to save up to five programmes, each with five steps. This means that a large number of standard protocols can be called up efficiently and without wasting time. An acoustic alarm function and the "Caution, hot top!" display increase safety during operation.
Depending on the model, the cooling function reaches temperatures well below room temperature within a few minutes. The heating capacity impresses with a heating speed of up to 5 °C per minute, which speeds up the processing of time-critical samples. This reliability plays a key role in research and development in particular, where sensitive molecules are subject to precise temperature control in hybridisation and protein studies, for example.
This model fulfils important safety and quality standards. These include CE and TÜV certifications, which guarantee the user a high level of reliability and safety. Thanks to the hygienic housing material and solid workmanship, the device remains operational for a long time, even under demanding laboratory conditions.
In practice, there are many possible applications, for example
- Carrying out hybridisations where precise temperature maintenance is essential
- Shaking and incubating cell cultures over longer periods of time, supported by the timer function
- Precise cooling, for example for enzyme preservation or RNA extraction, where low temperatures are critical
- Preparation of protein studies, for example testing different renaturation conditions at a defined temperature
Because of the high shaking speeds, short mixing experiments or pulse mixing for reaction-critical processes can also be carried out without any problems
Users can save up to five programmes with five steps each directly via the touchscreen. This allows frequently required sequences to be called up quickly and executed automatically.
Which sample formats can I use?
Thanks to interchangeable thermoblocks, different formats can be used, such as 1.5 ml or 2.0 ml tubes. Compatible blocks are available for other sizes.
Temperature curves and shaking protocols can be exported to a data carrier via the USB interface and then transferred to other systems.
The display can be customised using the integrated temperature calibration function. The alarm and priority function ensure that the set temperature is always reliably maintained.
Is continuous cooling possible for hours?
Yes, the thermoblock is designed to maintain temperatures over longer periods of time. A combination of a high-quality cooling system and intelligent electronics ensures that target temperatures remain stable.
Conclusion
The thermal shaker offers a powerful solution for laboratories that require precise temperature control, high-speed orbital shaking and reliable data acquisition. From DNA, RNA and protein analyses to cell culture studies, the sophisticated technology ensures consistent results and supports efficient workflows. The intuitive touchscreen operation, the ability to save individual programmes and the option of flexible adaptation to different sample requirements make the device a real all-rounder. With high safety standards and a durable design, this laboratory system is ideally equipped to master demanding applications in a future-proof manner.
| Number of blocks/plates: | 1 |
| External dimensions (W x D x H) (thermal shaker): | 262 x 269 x 137 mm |
| Display (thermal shaker): | 4.3'' LCD colour touchscreen |
| Speed range (thermal shaker): | 300 - 3000 rpm |
| Setting resolution: | ±0.5?°C between 20 and 45?°C |
| Electrical supply: | 230 V, 50-60 Hz |
| Heating speed max.: | 5 °C/min |
| Cooling function: | with |
| Output (thermal shaker): | 210 W |
| Orbit diameter: | 3 mm |
| Interface (thermal shaker): | USB |
| Shaking movement: | orbital |
| Power connection: | 230 V, 50/60 Hz |
| Temperature max. (thermo shaker): | 100°C |
| Timer: | 1 s - 99 h, 59 min1 min - 99 h, 59 min |
| Suitable for: | microplatestest tubes |
| Shipping weight: | 5,90 Kg |
| Product weight: | 4,90 Kg |
| Dimensions: | × × cm |

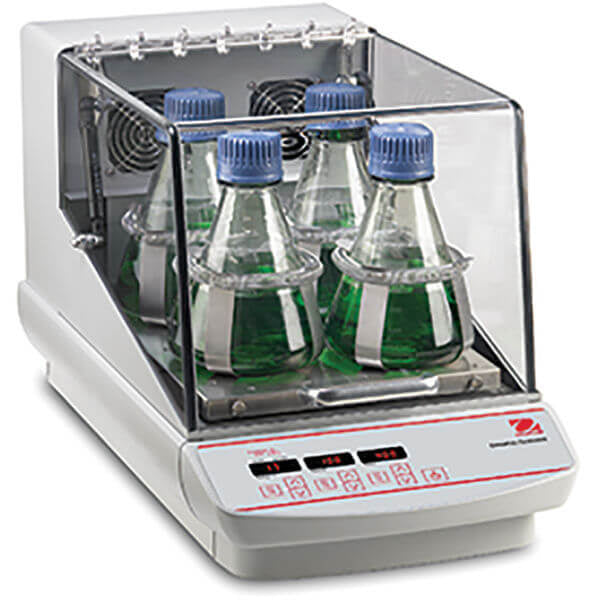

This incubation unit has been specially designed for demanding shaking and incubation processes in biotechnology, pharmaceutical and research laboratories. The OHAUS high-performance incubation orbital shaker impresses with its exceptional temperature uniformity and precise speed control. It is an excellent choice when it comes to reliably cultivating cell cultures, processing bacterial suspensions or carrying out extraction processes, while similar devices often do not offer the same combination of stability and flexibility.
Performance features and functions
This shaker series is available in different model variants, each tailored to different application scenarios. The devices enable a smooth orbital movement, the amplitude and speed of which vary depending on the model. Thanks to a robust design made of aluminium and Cycoloy and the specially developed Opti-Flow forced ventilation, a homogeneous temperature distribution in the interior is guaranteed. This allows various applications to be realised with consistent quality.
Essential product details at a glance:
- Speed range: 15 to 500 rpm with digital control
- Orbital movement: 19 mm or 25 mm (depending on model)
- Temperature range: Ambient +5 °C to 65 °C
- TÜV-certified for increased safety standards
- Capacity (e.g. ISHD16HDG): 16 kg at low speeds
- Communication: RS232 for data exchange
- Triple eccentric drive and brushless DC motor
Safe and precise temperature control is supported by a PID controller, allowing exact incubation conditions to be created. The temperature calibration function also enables fine adjustment if individual requirements or validation processes demand particular accuracy. An integrated protection function recognises load and temperature fluctuations so that the unit adjusts operation in a controlled manner to ensure stability and safety at the same time. In addition, the smart airflow prevents samples from being exposed to direct airflow, which further protects the integrity of sensitive substances.
The larger model variant, with tray dimensions of 457 × 457 mm and sufficient interior space, offers the option of placing several flasks or vessels in parallel. For example, two 6-litre Erlenmeyer flasks can be safely shaken at the same time without having to compromise on shaking speed or temperature stability. The Accu-Drive eccentric drive system plays its part in ensuring consistent shaking results across the entire speed range. Thanks to the digital control, both time and speed can be set precisely and reproduced later if required.Fields of application
Whether in research facilities, industrial quality laboratories or universities: These orbital shakers are versatile and offer maximum performance for a wide range of applications. Some typical examples of their practical use are:
- Cultivation of mammalian cells in cell culture flasks to investigate biological processes
- Cultivation of bacteria in Erlenmeyer flasks for resistance tests or fermentation studies
- Carrying out solubility studies to test the solubility of certain active ingredients in defined media
- Extraction procedures, for example when obtaining proteins or nucleic acids from biological samples
Resistance to long-lasting processes as well as reliable temperature and speed control enable reproducible results - regardless of whether microbiological, biochemical or pharmaceutical tests are involved.
A special Opti-Flow forced ventilation system channels the air in a ring around the samples instead of directly into them. This ensures constant heat and humidity throughout the interior.
What safety functions are integrated?
In addition to temperature calibration and load sensor, overload and overshoot protection prevent specified limit values from being exceeded. TÜV certification is also available.
Yes, thanks to different platform sizes and optional clamps, both small sample vessels and larger Erlenmeyer flasks can be securely fixed and shaken evenly.
Depending on the model, the incubation unit covers a temperature range from ambient temperature +5 °C to 65 °C. In addition, a uniformity of ±0.5 °C is guaranteed at 37 °C.
Conclusion
This versatile incubation solution offers laboratory professionals a reliable and consistent shaking motion paired with precise temperature control. The robust design, innovative safety features and efficient aeration system enable reproducible and controlled results over a wide range of speeds and temperatures. Thanks to the wide range of models and flexible customisation options, a broad spectrum of scientific and industrial applications is covered, from microbial fermentations to extraction and solubility studies. Anyone who values process stability and repeatability will find a powerful instrument that fulfils the highest requirements in demanding everyday laboratory work.

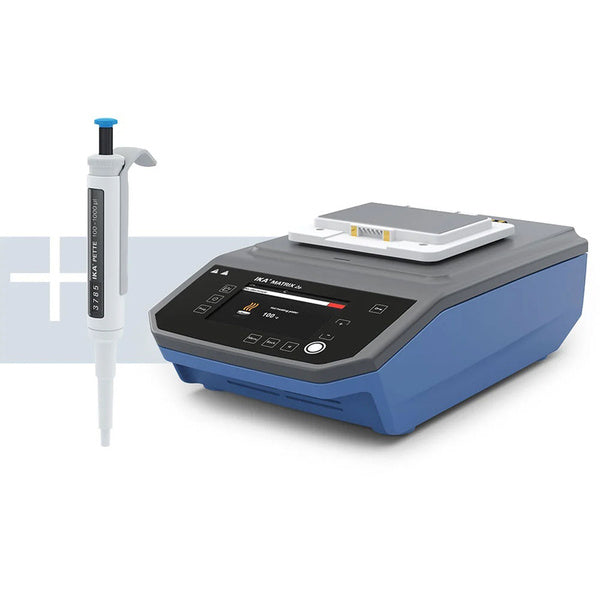

IKA Thermal Shaker MATRIX
With IKA Matrix there is now the new powerful product family of thermal shakers.
IKA Matrix Orbital mixes for variable applications. Whether blood samples, active pharmaceutical ingredients, DNA/ RNA samples or ELISA assays - in all laboratory applications, samples with the smallest volumes are mixed reliably and completely. Without cross-contamination and with an optimal mixing result.
In addition, IKA Matrix Orbital convinces with numerous user-friendly functions:

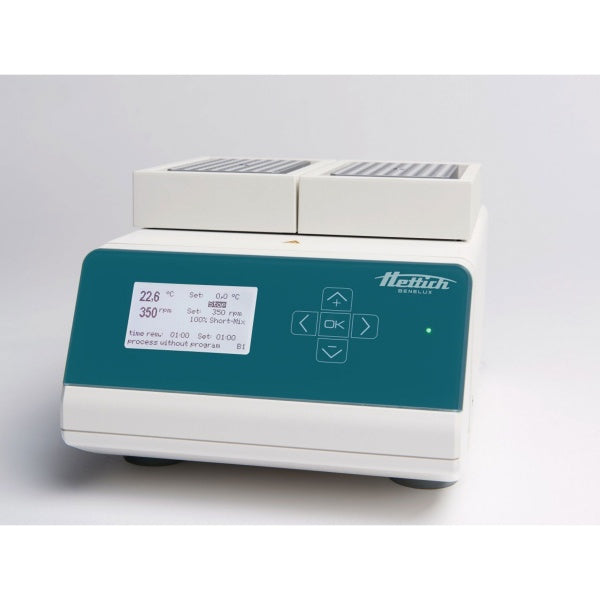

Hettich Benelux Cooling Thermo Shaker MKR 23 (formerly "HLC by DITABIS")
The Hettich Benelux Cooling Thermo Shaker MKR 23 and the other Hettich Benelux Cooling and Heating Thermo Shaker feature:
Stable construction: the robust housing as well technology are a guarantee reliability.
Highest accuracy: high temperature accuracy (+/- 0.1°C), quickest tempering times and even temperature distribution.
30 different exchangeable blocks for your applications.
Use up to 9 programs with 30 program steps in total, timer, interval shaking & short mix function as well as a broad range of shaking frequencies.
Touch Control Panel for different operation modes - perfectly adapted to your laboratory setup.
Cooling Thermo Shaker MKR 23 is working on the basis of Smart Control:
Select the one suitable for you from more than 30 different exchangeable blocks for the use of micro test tubes, test tubes, centrifugal tubes, cuvettes or PCR-plates, microtiter or Deep-Well plates.
Optional can be ordered as accessories: Remote software, for controlling and monitoring via USB interface

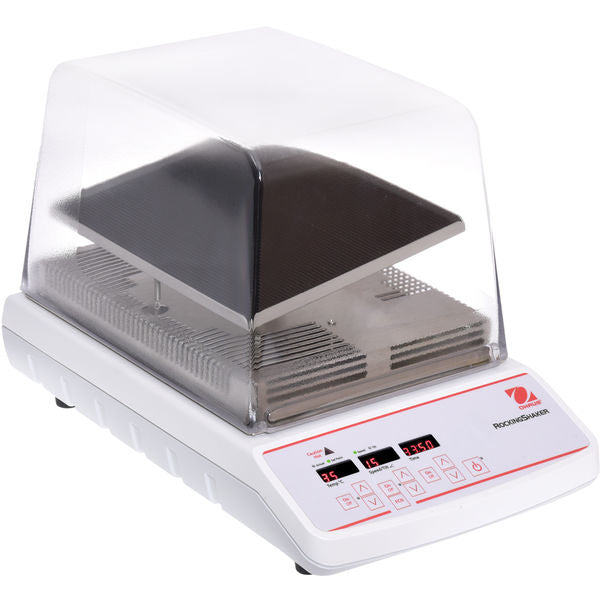

The OHAUS rocking and 3D shakers with incubator are specially designed for laboratories where precise temperature and motion control is required. Both shaker types offer controlled, uniform mixing of samples and are characterised by their small footprint in the incubator. They are therefore an excellent choice for users who require consistent and reproducible results for hybridisations, cell cultures or blotting techniques.
These shakers combine a robust die-cast aluminium construction with a transparent polycarbonate lid that allows the mixing process to be observed without affecting the temperature in the incubator. Both models have a user-friendly touchpad control that allows the speed, temperature and tilt angle to be adjusted during operation. This avoids unnecessary interruptions to operation and ensures continuous, gentle movement of your samples. The design also incorporates safety measures such as overload protection and audible warning signals to protect both operators and samples.
In order to effectively support work steps, the following key technical data should be emphasised:
- Movement and tilt angle: rocking (0-15°) or shaking (0-20°) for the respective laboratory application
- Capacity: 4.5 kg or 2.3 kg maximum payload depending on model
- Temperature range: Ambient +5 °C to 65 °C with excellent uniformity (±0.5 °C at 37 °C)
- Speed range: Choice of 1 rpm to 50 rpm or 1 rpm to 30 rpm - ideal for sensitive samples
- Pan construction: Aluminium with interchangeable inserts for different sample containers
- Timer: Adjustable from 1 second to 160 hours for flexible test sequences
- Safety certifications: CE and TÜV for safe operation in the laboratory
In addition, the slow speed ramp-up helps to avoid splashing. The gentle rocking or wave motion is particularly suitable for sensitive samples where foaming needs to be reduced or cell membranes need to be protected. Thanks to the robust stepper motor, operation remains reliable and consistent even over long periods of time, without disruptive vibrations or deviations.
- Cell culture: The controlled speed and adjustable angle of inclination enable gentle mixing of suspension cells in flasks and Erlenmeyer flasks.
- Hybridisations: The adjustable temperature and homogeneous agitation are ideal for effectively binding DNA or RNA probes to membranes.
- Blotting experiments: Clean, splash-free shaking leads to uniform washing steps for Western, Northern or Southern blots.
- Staining and destaining processes: For protein gels (e.g. SDS-PAGE), the appropriate settings ensure that the staining solution can penetrate the gel gently but continuously.
Other conceivable applications include the homogenisation of buffer solutions, the dissolution of reagent powders or the processing of agarose gels.
The digital control enables temperature adjustments in 1 °C increments and ensures constant values via integrated feedback.
Yes, an intuitive touchpad control allows you to adjust the speed and tilt angle without interrupting the shaking process.
The appliance features an integrated safety cut-out and a splash-proof design that effectively protects the electronics. An acoustic alarm also sounds in the event of critical deviations.
Which containers fit into the bowls?
The aluminium bowl is designed for different sizes. Incorrect fits can be compensated for with interchangeable holders or spacers, allowing laboratory bottles, Petri dishes and tubes to be placed securely.
Does the device require maintenance?
Except for a regular visual inspection and gentle cleaning, no extensive maintenance is required under normal use. The stepper motor technology is extremely durable and low-maintenance.
Conclusion
These shakers with incubator function offer excellent support for a wide range of laboratory processes thanks to their infinitely variable adjustment of tilt angle, speed and temperature. Their robust, splash-proof design and simple operation make them a reliable solution for sensitive methods such as hybridisation, cell cultures and blotting protocols. In addition, comprehensive safety functions and certified quality ensure that users and samples remain equally protected. Anyone looking for a flexible, reproducible and gentle way of processing samples in the laboratory will achieve reliable results with these shakers.
| External dimensions (W x D x H) (thermal shaker): | 279 x 432 x 267 mm |
| Display (thermal shaker): | LEDTouchpad |
| Speed range (thermal shaker): | 1 - 30 rpm1 - 50 rpm |
| Electrical supply: | 230 V, 50-60 Hz |
| Cooling function: | without |
| Output (thermal shaker): | 450 W |
| Shaking movement: | 3-Drocking |
| Power connection: | 230 V, 50/60 Hz |
| Temperature max. (thermo shaker): | 65°C |
| Temperature accuracy at +37°C : | ±0.5°C |
| Timer: | 1 s - 160 h |

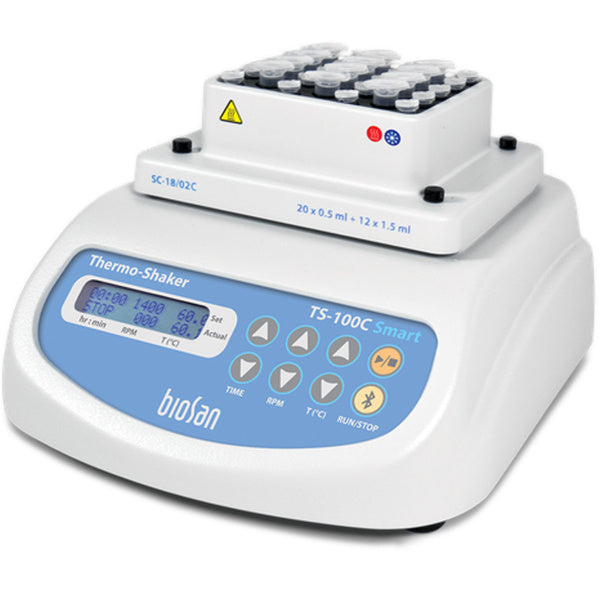

BioSan Thermoshaker TS-100C SmartThermoshaker with cooler for microtubes and PCR plates The
TS-100C Smart thermoshaker offers intensive mixing and temperature control for samples in microtubes or PCR plates. With the new model you can control the instrument in the following modes:
The TS-100C Smart features meet the highest user expectations in terms of many parameters:
Heating and mixing can be carried out simultaneously or independently.
Five heating and cooling blocks are available, including one block with plastic flap for the PCR plates. All blocks are interchangeable and can be easily installed on the thermoshaker.
Fields of application of the instrument:
Temperature Calibration
Function The temperature calibration function allows the user to calibrate the instrument to ±6% of the selected temperature to compensate for differences in thermal performance of tubes from different manufacturers.
TS-100C smart software functions
Note: Thermoblocks/attachments are not included in the scope of delivery! Please order these separately.
PHOENIX Instrument thermal shaker RS-TS 5 / 10

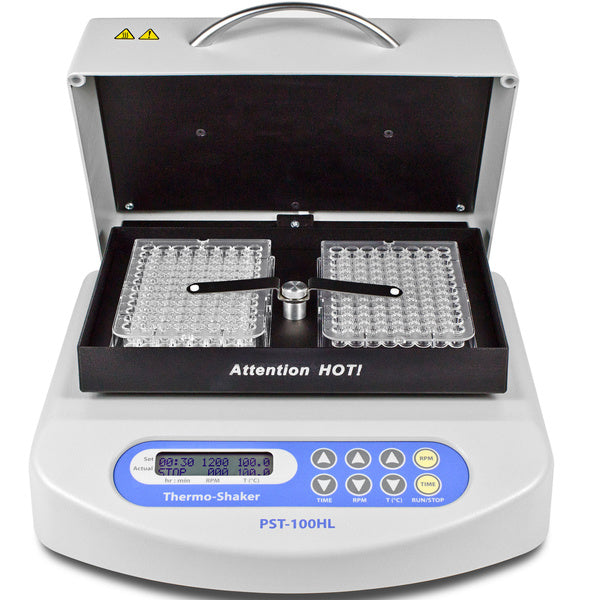

Thermo-Shaker PST-100HL is designed for shaking and thermostating two standard 96-well microplates.
A multisystem principle, used in design of the shaker-thermostat, allows operating it as 3 independent devices:
A distinctive feature of Biosan Plate Shaker-Thermostat is the patented by the company two-side heating of microtest plates, which allows achieving exact correspondence of the set and actual temperature in wells of the microtest plates.
The Shaker provides:
Application fields:

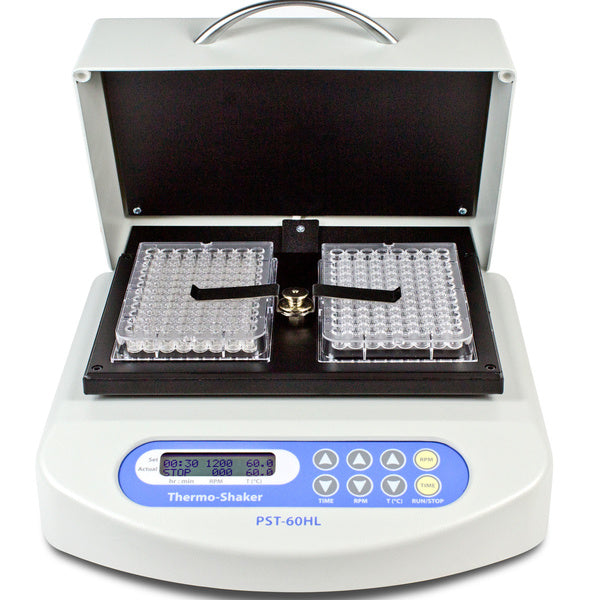

Thermo-Shaker PST-60HL is designed for shaking and thermostating two standard 96-well microplates.
A multisystem principle, used in design of the shaker-thermostat, allows operating it as 3 independent devices:
A distinctive feature of Biosan Plate Shaker-Thermostat is the patented by the company two-side heating of microtest plates, which allows achieving exact correspondence of the set and actual temperature in wells of the microtest plates.
The Shaker provides:
Application fields:
Upgraded model. Fast acceleration for shorter operation time and increased mixing efficiency.
Calibration function for flexibility of temperature control in different tubes.
New block - SC-24NC for 24 x 1,5 ml microtubes.

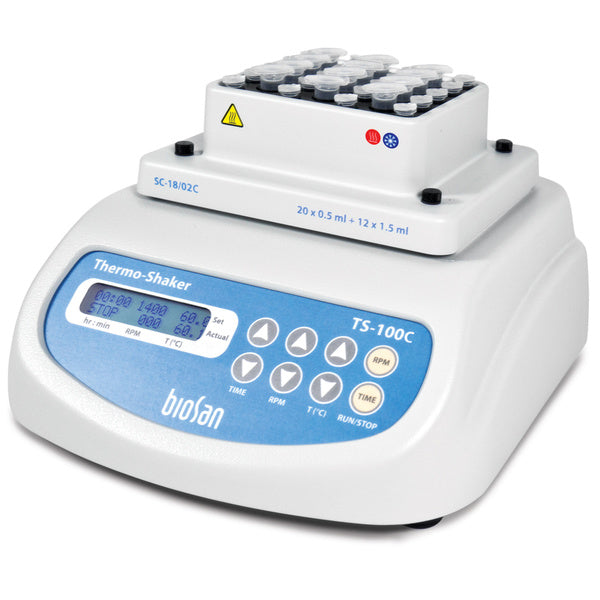

Thermo-shaker TS-100C provides mixing and temperature control of samples in microtest tubes or PCR plate. This model of thermo-shaker differs from TS-100 with a possibility of cooling samples down to +4°C. Features of TS-100C meet the highest expectations of users according to many parameters:
Functions of heating and mixing can be performed both simultaneously and independently.
There are six (6) heating and cooling blocks available, including a block with a plastic lid for the PCR-plates. All blocks are mutually interchangeable and can be easily installed on thermo-shaker.
The instrument is applicable in:
Temperature Calibration Function
With the help of the temperature calibration function the user can calibrate the unit approx. ±6% of the selected temperature to compensate differences in the thermal behaviour of tubes from different manufacturers.
Note: Thermoblocks/attachments are not included in the delivery! Please order them separately.

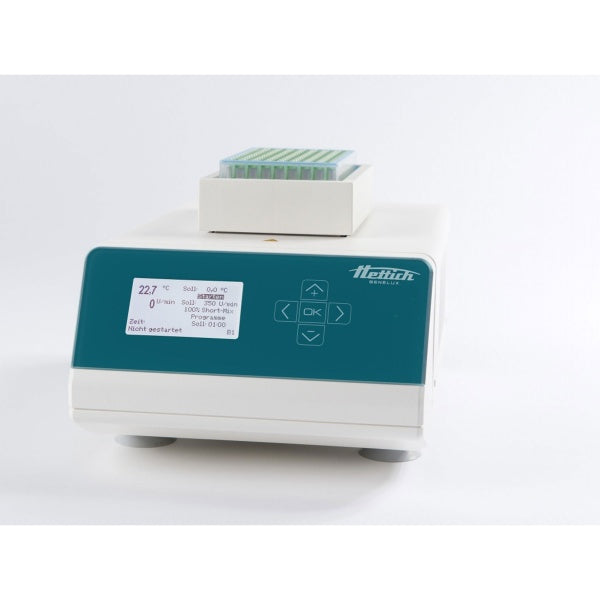

Hettich Benelux Cooling Thermo Shaker MKR 13 (formerly "HLC by DITABIS")
The Hettich Benelux Cooling Thermo Shaker MKR 13 and the other Hettich Benelux Cooling and Heating Thermo Shaker feature:
Stable construction: the robust housing as well technology are a guarantee reliability.
Highest accuracy: high temperature accuracy (+/- 0.1°C), quickest tempering times and even temperature distribution.
30 different exchangeable blocks for your applications.
Use up to 9 programs with 30 program steps in total, timer, interval shaking & short mix function as well as a broad range of shaking frequencies.
Touch Control Panel for different operation modes - perfectly adapted to your laboratory setup.
Cooling Thermo Shaker MKR 13 is working on the basis of Smart Control:
Select the one suitable for you from more than 30 different exchangeable blocks for the use of micro test tubes, test tubes, centrifugal tubes, cuvettes or PCR-plates, microtiter or Deep-Well plates.
Optional can be ordered as accessories: Remote software, for controlling and monitoring via USB interface

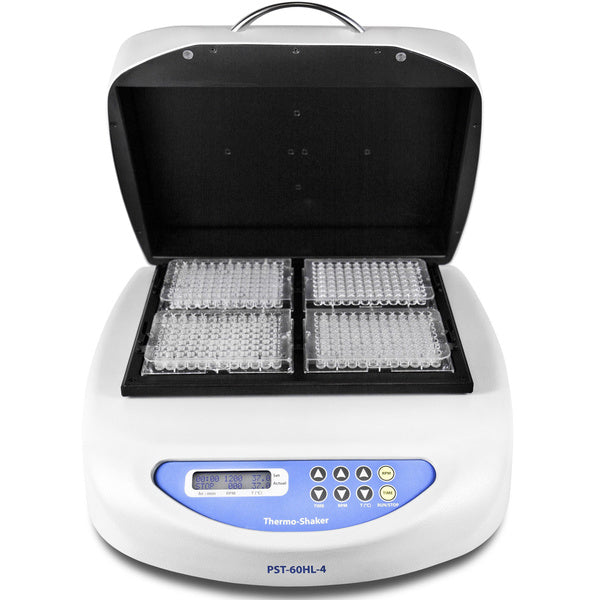

Thermo-Shaker PST-60HL-4 is designed for shaking and thermostating 4 standard 96-well microplates.
A multisystem principle, used in design of the shaker-thermostat, allows operating it as 3 independent devices:
A distinctive feature of Biosan Plate Shaker-Thermostat is the patented by the company two-side heating of microtest plates, which allows achieving exact correspondence of the set and actual temperature in wells of the microtest plates.
The Shaker provides:
Application fields:
Upgraded model. Fast acceleration for shorter operation time and increased mixing efficiency.
Calibration function for flexibility of temperature control in different tubes.
New block - SC-24N for 24 x 1,5 ml microtubes.

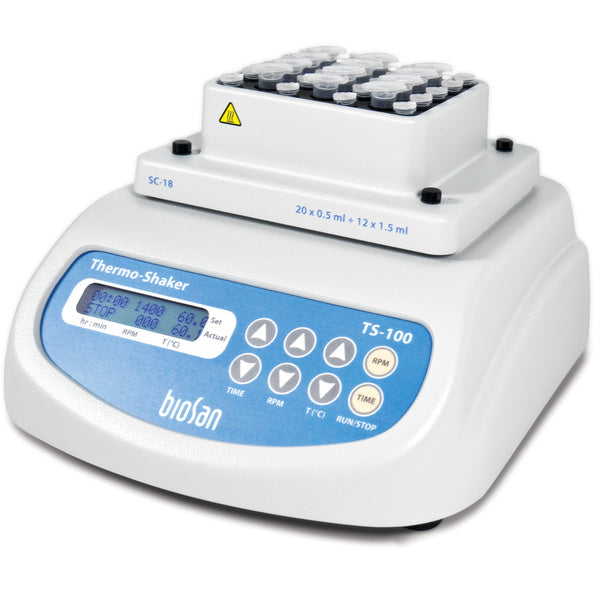

Thermo-Shaker TS-100 provides mixing and temperature control of samples in microtest tubes or PCR plate. Functions of heating and mixing can be performed both simultaneously and independently, i.e. the unit implements three devices in one:
The thermoshaker is used for DNA analysis sample preparation, for extraction of proteins, polysaccharides, lipids and other cellular components.
Heating source is a printed heating board (12 V). Mixing is provided by movement of orbital type.
The instrument is applicable in:
Temperature calibration function:
Using the temperature calibration function, the user can calibrate the device to ± 6% of the selected temperature, to compensate differences in the thermal behavior of containers of different manufacturers.
Note: Thermoblocks/attachments are not included in the delivery! Please order them separately.
