Microscopes

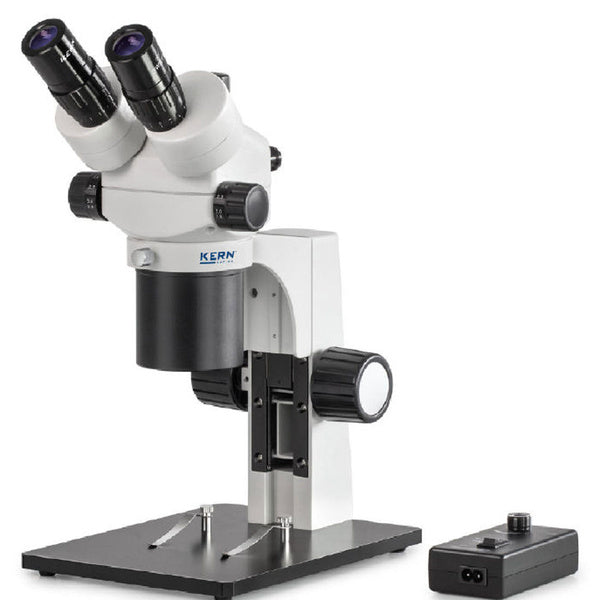

KERN Coaxial Microscope OZC 583
The coaxial with parallel optics for excellent contrast and depth of field

• The OZC-5 series has been specially developed to meet requirements for high contrast and depth of field. Especially for the LCD / LED electrical industry these units are indispensable.
• The coaxial 2W LED incident light illumination integrated in the lens ensures pinpoint depth of field, so that even low-lying sections (e.g. the bottom of a borehole) can be captured
• The parallel optics are the highest quality optical system and provide excellent images with the best contrast, colour and depth of field with fatigue-free operation. There is also very little need for refocusing at zoom magnification.
• The wide adjustable magnification range from 18x to 65x allows you to zoom in and out as you work.
• The models of the OZC-5 series are designed as trinocular version as standard and are thus prepared for the connection of a camera for documentation and quality reports
• The mechanical stand allows you to precisely adjust and focus your sample. The stand is particularly solid and therefore offers a high degree of stability and stability
• A wide range of eyepieces and a mechanical stage attachment are available as accessories (on request)
• A dust cover, eyecups and a multilingual operating manual are included in the scope of delivery.
• A C-mount adapter is required for the connection of a camera

Field of application
LCD/LED electronics, semiconductor technology

Applications/specimens
Specimens with focus on spatial impression (depth, thickness), zoom for variable magnification, e.g. LCD/LED electronics, circuit boards, ICs

Technical data

• Optical system: parallel optics
• Illumination dimmable
• Tube inclined 45
• Magnification ratio: 3.6:1
• Beam distribution 50:50
• Interpupillary distance: 52.0-76.0 mm
• Dioptric compensation on both sides
• Overall dimensions WxDxH: 305x180x405 mm
• Net weight approx. 11.33 kg

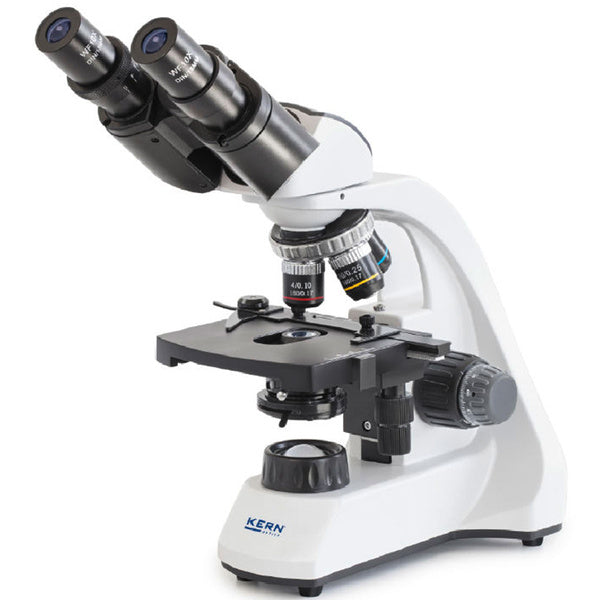

KERN Transmitted light microscope OBT-1
The modern transmitted light microscope for teaching in your classroom

• The OBT-1 series are high-quality school microscopes that stand out due to their clearly arranged controls, robustness and modern design
• The infinitely dimmable 1 W LED ensures optimum illumination of the specimens and a long service life. Even mobile use is no problem thanks to optional battery operation.
• The simple 0.65 condenser lens with adjustable aperture diaphragm of the OBT 101 ensures optimal light focusing and illumination of the sample. The models OBT 102 - OBT 106 are equipped with a height-adjustable and therefore focusable 1.25 Abbe condenser with aperture diaphragm, which provides an optimal light bundling
• For all models, the object is focused via a coarse and fine drive on both sides. A mechanical cross table (model OBT 103 - OBT 106) allows fast working and moving of the specimen.
• A large selection of different eyepieces and objectives is also available
• A dust cover and an operating manual are included in the scope of delivery

Field of application: Primary and secondary schools, education, hobby

applications/rehearsals: Translucent and thin, high-contrast, less demanding preparations (e.g. plant tissue, stained cells/parasites) Technical

data:

• Finite optics (DIN)
• OBT 101: 3-fold objective revolver
• OBT 102 - OBT 106: 4-fold objective revolver
• Tube 45° inclined/ 360° rotatable
• Unilateral dioptre compensation (for binocular models)
• Overall dimensions WxDxH: 195 x 147 x 325 mm
• Net weight approx. 2.2 kg

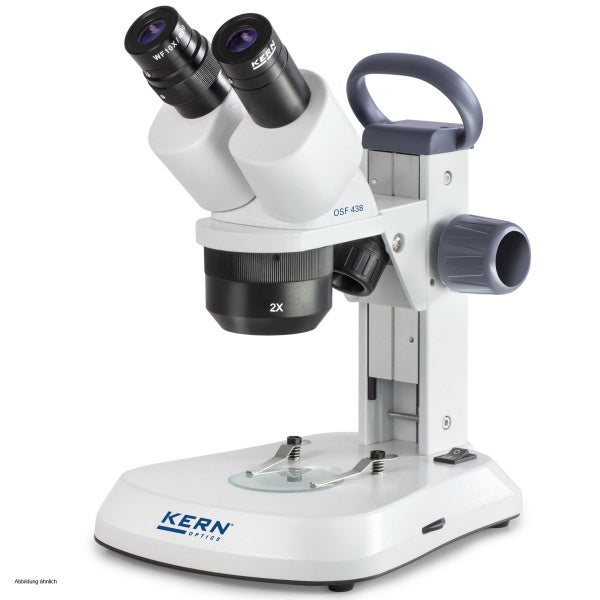

KERN OSF-4G Stereo microscope: The robust and practical product for schools, training centres, the workshop and laboratory

• The KERN OSF-4G is an extremely practical stereo microscope which is easy to use
• With its built-in handle, you can move this microscope safely and easily with one hand
• Due to its mechanical stand it is particularly stable
• As well as very good optical characteristics, its ergonomically-designed working surface means that it offers the highest level of convenience in this class
• These models are ideally suited for schools, training centres and training companies
• A powerful LED reflected and transmitted lighting unit ensures that you always have the necessary light
• The range of lens combinations and eyepieces will cover every possible requirement
• The eyepieces are fixed in the lens barrel, to stop them getting damages or lost

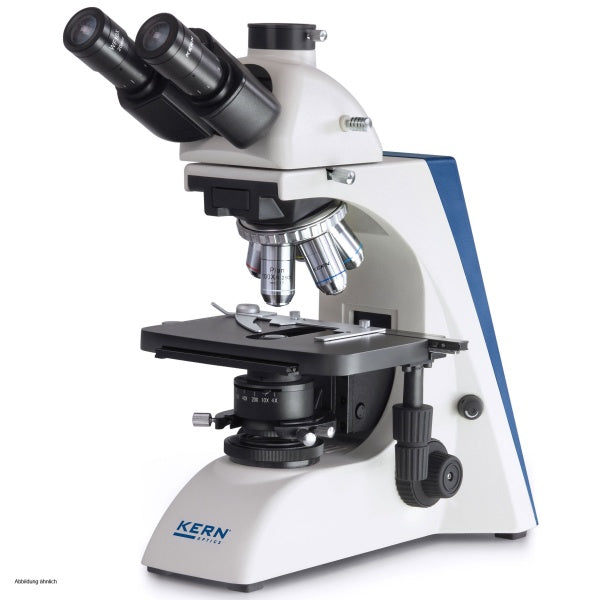

KERN OBN 132 Transmitted light microscope: The flexible removable product for experienced users

• The KERN OBN 132 is superb, stable laboratory microscope for all common routine applications, which produces excellent images
• As standard, these trinocular microscopes are fitted with wide-field eyepieces with large visual field , dioptre compensation on both sides and infinitely corrected planachromatic lenses
• The professional Köhler lighting is easy to adjust. It contains an adjustable field diaphragm as well as an Abbe condenser which you can centre or adjust heightwise and which has an adjustable aperture diaphragm. In this way, superb images are visible in both light and dark fields
• A revolving unit for up to 5 lenses and a large specimen stage are included with delivery as standard
• The following optional accessory items are available: Various eyepieces, lenses, a complete polarisation kit, a condenser with pivoting lens, various kits for phase-contrast microscopy as well as complete HBO and LED fluorescence kits etc.
• A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted precisely. This is emphasized by the functional and ergonomic design.

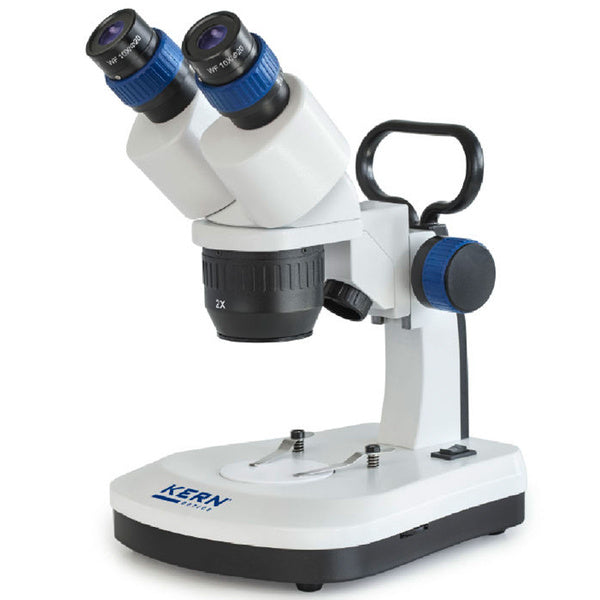

KERN stereo microscope OSE-42
Stereomicroscope in robust, ergonomic design - ideal for workshops, schools and education

• The OSE-42 has been specially designed for schools and workshops due to its integrated handle as well as its stable mechanical stand
• The LED incident and transmitted light illumination included as standard can be optionally added for optimal illumination of your specimen. Mobile use of the OSE 422 is also no problem thanks to rechargeable batteries.
• Despite the low price, it has very good optical properties that enable sharp images over a large field of view
• An interchangeable objective with predefined magnifications is available for fast and efficient work
• The eyepieces are fixed in the tube to protect them from loss or damage
• A special feature of this variable and at the same time robust microscope series is the stable and precisely adjustable mechanism of the microscope stand, which also impresses with its functionality and ergonomic design.
• A wide range of eyepieces as well as various additional external illumination units are available as accessories (on request)

Field of application
Education, in vitro fertilisation, detection of parasites, zoology, botany, tissue preparation, dissection, quality control

Applications/specimens
Preparations with focus on spatial impression, zoom with variable magnification (depth, thickness) e.g. insects, seeds, circuit boards, components

Technical data

• Optical system: Greenough optics
• Tube inclined 45
• Interpupillary distance: 55.0-75.0 mm
• Dioptric compensation on both sides
• Overall dimensions WxDxH: 200x180x300 mm
• Net weight approx. 2.123 kg

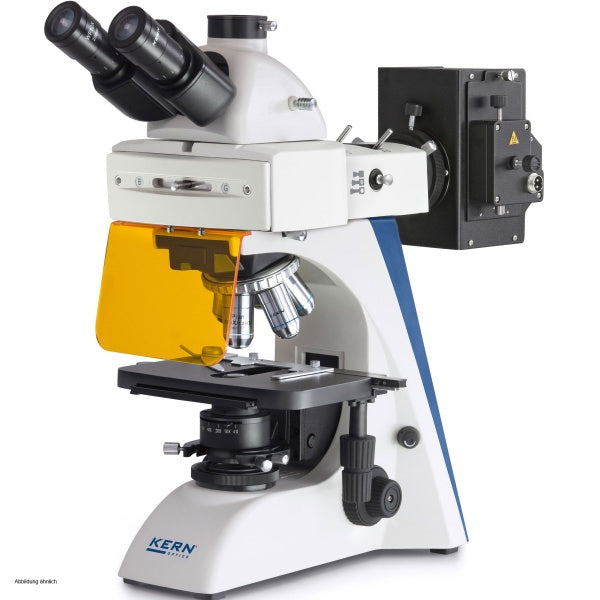

KERN OBN-14 Transmitted light microscope: The fluorescent product for the professional user

• The KERN OBN 147 and 148 are based on the standard KERN OBN 132 model
• It is a superb, stable laboratory microscope for all common routine applications in light and fluorescence microscopy which produces excellent images
• As standard, these trinocular microscopes are fitted with wide-field eyepieces with large visual field , dioptre compensation on both sides and infinitely corrected planachromatic lenses
• Depending on the model, there are either blue/green (OBN 147) or blue/green/UV/V (OBN 148) fluorescence filters, as well as a centring lens for the fluorescent lighting included with delivery
• The professional Köhler lighting is easy to adjust. It contains an adjustable field diaphragm as well as an Abbe condenser which you can centre or adjust heightwise and which has an adjustable aperture diaphragm. In this way, superb images are visible in both light and dark fields
• A revolving unit for up to 5 lenses and a large specimen stage are also included with delivery as standard
• The following optional accessory items are available: Various eyepieces, lenses, a complete polarisation kit, a condenser with pivoting lens as well as a kit for phase-contrast microscopy
• A central feature of this highly-adaptable, robust fluorescence microscope range is the stable mechanism which can be adjusted precisely. This is emphasized by the functional and ergonomic design

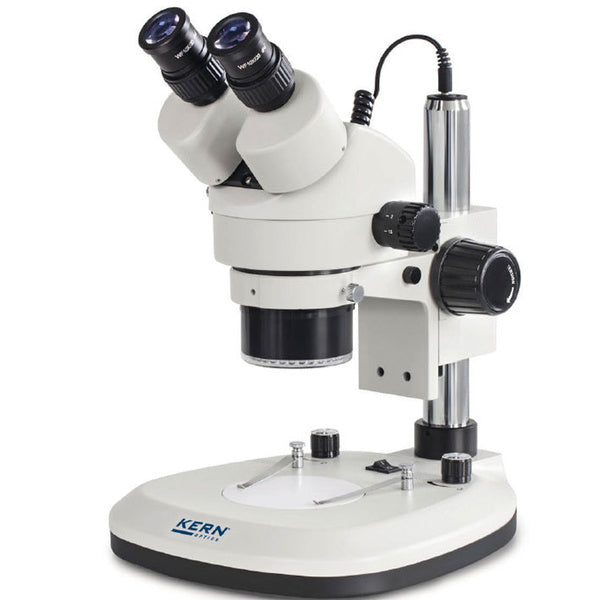

KERN Stereo Zoom Microscope OZL-46
The flexible and affordable all-rounder with zoom function for schools, training workshops, test centres and laboratories.

• The OZL-46 series belongs to the stereo zoom microscopes which convince by their quality, their simple handling, their flexibility as well as their stability and the favourable price.
• The LED incident and transmitted light illumination included as standard ensures optimal illumination of your sample
• A highlight of the OZL 465/OZL 466 is the powerful and continuously dimmable integrated LED ring illumination in the objective housing, which ensures uniform and shadow-free illumination. An LED transmitted light unit is also included.
• In addition to the good optical properties, these models offer the highest level of comfort in this class due to their large work surface - ideal for training companies, workshops as well as assembly and repair workplaces, e.g. in the electronics industry
• The zoom lens allows you to magnify continuously from 7x-45x
• The OZL-46 series is available as binocular or trinocular version
• The column stand gives you maximum flexibility and the freedom to remove the microscope head and integrate it into other modular systems, such as a universal stand.
• A wide range of eyepieces, external illumination units as well as attachment objectives are available as accessories (on request)
• A dust cover, eyecups, as well as a multilingual operating manual are included in the scope of delivery
• A C-mount adapter is required to connect a camera to the trinocular version.

Field of application
In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, dissection, quality control

Applications/specimens
Preparations with focus on spatial impression, zoom with variable magnification (depth, thickness) e.g. insects, seeds, circuit boards, components

Technical data

• Optical system: Greenough optics
• Illumination independently dimmable
• Tube tilted 45
• Magnification ratio: 6.4:1
• Beam distribution 50:50
• Interpupillary distance: 55.0-75.0 mm
• Dioptric compensation on both sides
• Overall dimensions WxDxH: 300x240x420 mm
• Net weight approx. 4.085 kg

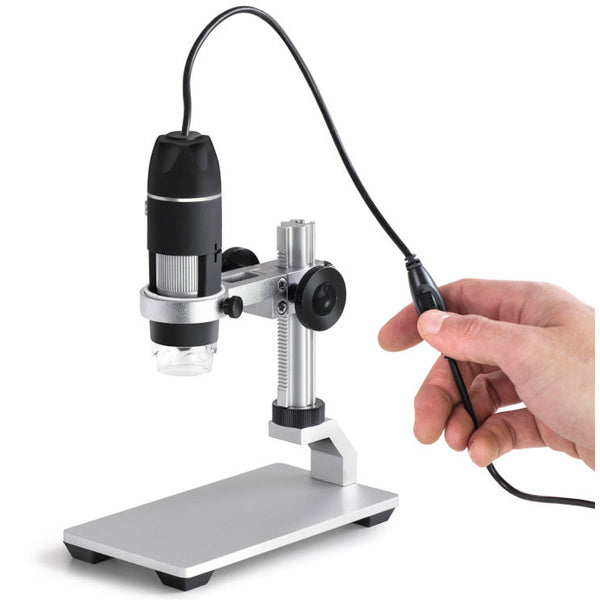

KERN Digital USB Microscope ODC 895
The digital USB microscope for quick examination or your hobby

• The USB handheld microscope is designed for quick and easy preliminary examination. Ideally suited for coins, plants, insects and skin samples, for all hobby researchers, children and students.
• With easy magnification adjustment, the USB microscope can be used to magnify all common specimens. The focus can be set to 10x and 200x magnification.
• The eight LEDs mounted in ringfrom provide strong and effective illumination of your specimen. The light setting is controlled via an adjustment wheel on the cable.
• In addition to the camera, a simplified version of our multilingual KERN software Microscope VIS is included in delivery.
• Cable length: 1.4 m
• Stand with focusing wheel
• Working area: 150x80 mm
• Focus range: 60 mm
• Overall dimensions WxDxH: 80x150x180 mm

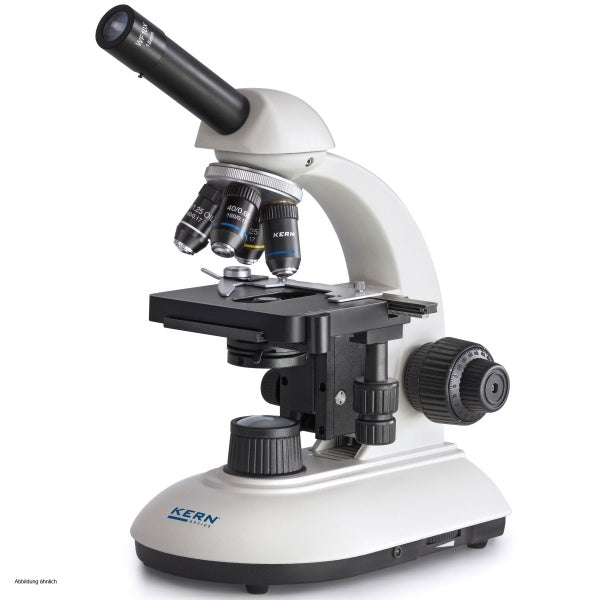

KERN OBE-1 Transmitted light microscope: The robust product for you to use in schools, for training or in the laboratory

• The OBE-1 is a robust, stable training microscope for all common routine applications which is easy to use
• With its dimmable, powerful 3 W LED lighting it produces superb images for its class
• As standard these microscopes are fitted with wide-field eyepieces, achromatic lenses, a revolving unit for up to lenses, a large specimen stage and an Abbe condenser
• You can choose between mono or binocular versions with dioptre compensation (only binocular models)
• A large selection of different eyepieces, lenses, a simple polarisation unit and a dark field kit is also available
• Height adjustment is carried out using a coarse and fine drive on both sides
• A rechargeable model (OBE 113) is also available, which has a long-life rechargeable battery
• A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted preciselyThis is emphasized by the functional and ergonomic design

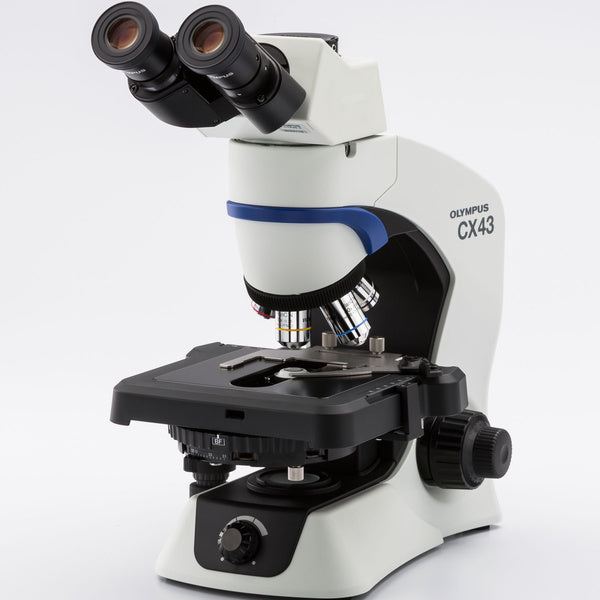

EVIDENT CX43 Set
Upright microscope stand for transmitted and reflected light observations.

Integrated LED illumination, low 5-position nosepiece, cross-stage (211 x 154 mm, travel range 76 x 52 mm) with right-sided, low-lying stage drive, stage lock and holder for a standard specimen.
Fixed Abbe condenser with numerical aperture 1.25, aperture diaphragm, 7-position carousel: HF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, and fluorescence shutter.
Coaxial coarse and fine drive, complete focus range 15 mm, fine drive 300 μm/rotation, reading accuracy 2.5 μm.
Adjustment wheel for coarse drive friction and mechanical focus stop.

A mains cable (035425 UYCP) is also required.
The scope of delivery includes a wide-range power supply unit (AC 100-240 V 50/60 Hz 0.4 A), an Allen key and operating instructions.


The set also includes

EVIDENT U-CBI30-2-2 Binocular tube
Binocular tube, for WHB10X or WHB10X-H eyepieces, viewing angle 30°, eye relief 48-75 mm, field of view 20, with left-sided dioptre adjustment

EVIDENT WHB10X-2 wide field eyepiece
Wide field eyepiece 10x for U-CBI30 and U-CTR30 tubes, field number 20

EVIDENT WHB10XH-2 Wide field eyepiece
Wide field eyepiece 10x for U-CBI30 and U-CTR30 tubes, focusable, field number 20

Note:
Additional accessory components can be ordered (see below).
In addition to the microscope set, we recommend at least the connection cable, immersion oil and the dust cover.The set does not include lenses. These can be selected from the accessories.

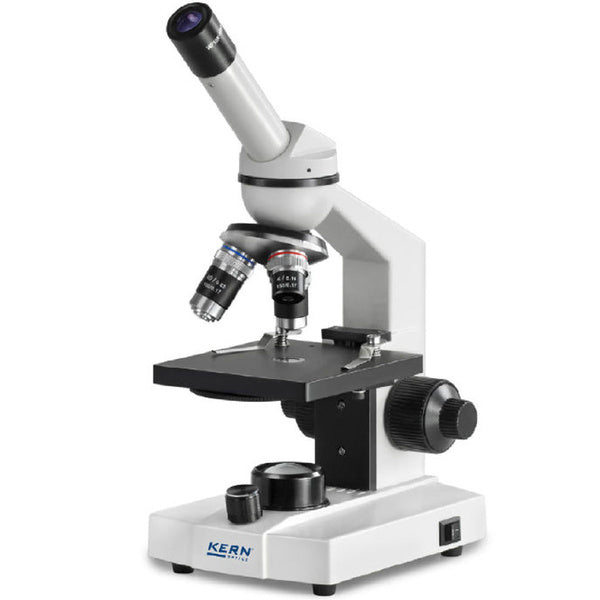

KERN Transmitted Light Microscope OBS-1
The school microscope - For the first steps in microscopy and biology lessons

• The OBS-1 series are solid and simple school microscopes, which are easy to handle due to their clearly arranged operating elements.
• The continuously dimmable 0.5 W LED ensures optimum illumination of the specimens and a long service life. Mobile use is also no problem thanks to the rechargeable batteries.
• The simple 0.65 condenser lens on the OBS 101 (condenser disk) and on the OBS 102 (fixed condenser) ensures optimal light bundling and illumination of the specimen. The models OBS 103, 104, 105 and 106 have a height-adjustable and thus focusable 1.25 Abbe condenser with aperture diaphragm, which ensures optimum light focusing.
• For all models, the object is focused via a coarse and fine drive on both sides. Fast working and moving of the specimen is achieved via a mechanical mechanical stage (only OBS 106).
• A wide range of different eyepieces and objectives is also available (on request)
• Also available in a set of 10 (on request)

Field of application
Primary and secondary school, education, hobby

Applications/samples
Translucent and thin, high-contrast, less demanding specimens (e.g. plant tissue, stained cells/parasites)

Technical data

• Finite optics (DIN)
• 3-position nosepiece: Model OBS 101
• 4-position nosepiece: Model OBS 104, OBS 106
• Tube inclined 45° (OBS 101) or 30° (OBS 104, OBS 106)/360° rotatable
• Dioptric compensation (both sides) (for binocular models)
• Overall dimensions WxDxH: 130x300x310 mm
• Net weight approx. 3.138 kg

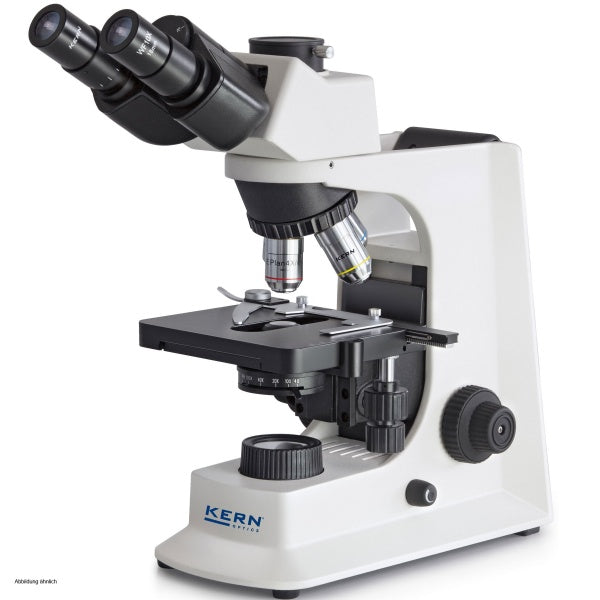

KERN OBF-1 Transmitted light miscroscope: The versatile product for the adaptable user in the laboratory or during training

• The KERN OBF models are excellent, stable laboratory microscopes for all common routine applications
• Through the simple Köhler lighting, the adjustable field diaphragm and a pre-centred and height-adjustable Abbe condenser with adjustable aperture diaphragm, these microscopes produce superb images in both the light and dark field
• As standard, these microscopes, depending on the model, are fitted with wide-field eyepieces, achromatic (OBF 121), planachromatic (OBF 122, OBF 123) or infinitely corrected E-Plan lenses
• These binocular microscopes are fitted with a dioptre compensation
• A trinocular head is available as an option, so that you can connect a camera
• A revolving unit for up to 4 lenses and a large specimen stage are included with delivery as standard
• The following optional accessory items are available: Various eyepieces, lenses, a complete polarisation kit, a phase-contrast unit as well as complete HBO and LED fluorescence kits etc.
• The light is provided by a 20 Watt (OBF 121, OBF 122) halogen lighting unit or by a 3 Watt (OBF 123) LED version as an alternative
• A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted precisely

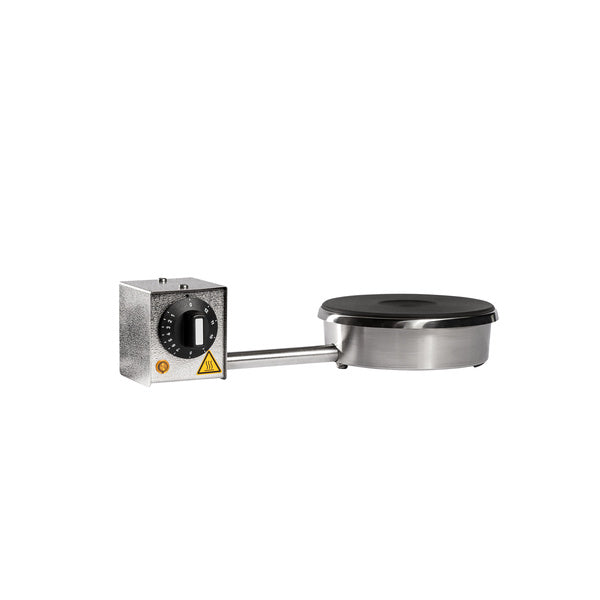

Gestigkeit Retort Rod Hotplates
