Thermconcept

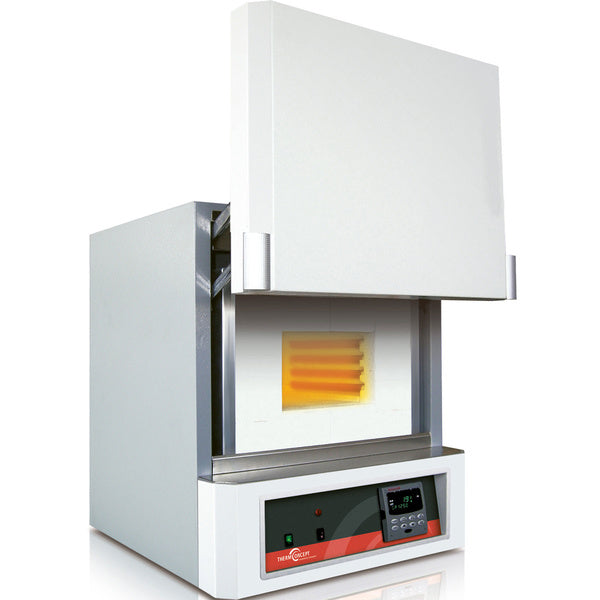

Thermconcept Laboratory Chamber Furnace KLS, 1300 °C

• Very good temperature uniformity in the furnace chamber
• Double-walled housing construction with rear ventilation, exceptionally low outer wall temperature
• Parallel upward-opening door, hot inside of door always facing away from operator
• Furnace insulation made of high-quality fibre materials with low thermal mass
• Door surround made of robust lightweight refractory bricks
• Abrasion-resistant lightweight refractory brick in the kiln floor
• Delivery includes ceramic base plate
• Heating elements mounted on ceramic support tubes and installed in front of the kiln wall, free heat radiation into the kiln chamber
• Powerful heating elements in both sides of the kiln, fast heating rates
• Switching via semi-conductor relay, particularly precise oven control, wear-free, noiseless
• Exhaust air opening with exhaust chimney on the rear wall of the kiln (from KLS 45/... in the kiln ceiling)

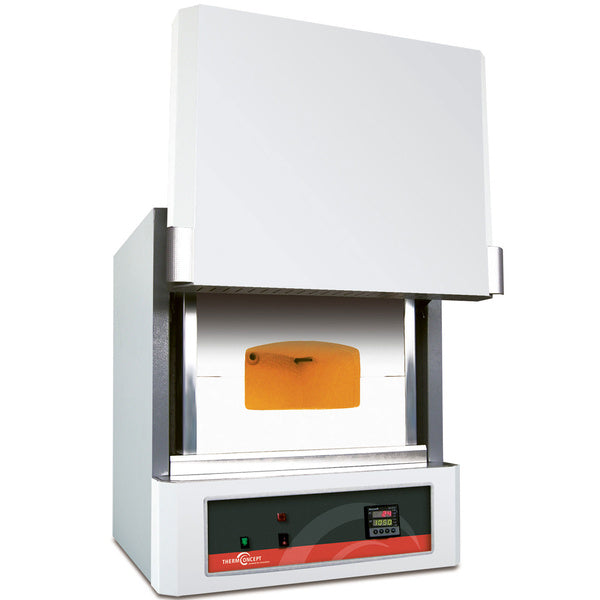

Thermconcept Laboratory Chamber Furnaces:

• Chamber furnaces with integrated ceramic muffle, high mechanical and chemical resistance
• Furnaces designed especially and recommended for ambitious laboratory applications with aggressive waste gases
• Suitable for assay of precious metals or ashing of organic substances
• Delivery including ceramic muffle
• Heating elements wound around outside the ceramic muffle, heating on all 4 sides for high temperature uniformity inside the chamber
• Heating elements protected against aggressive waste gases atmospheres
• Heating elements controlled by solid state relays for very precise temperature control, wear-free and noiseless
• Exhaust pipe in the rear wall
• KLS 07/11/M with double-walled housing and rear ventilation to ensure low outercasing temperatures, parallel-guided door moving up-wards with hot insulation surface to the rear, away from operator, insulation made of high grade ceramic fibre with low thermal mass, collar made of fire bricks to ensure high wear resistance against mechanical stress
• KLS 03/10/M and KLS 02/11/M with userfriendly swing door with multilayer insulation made of high grade fibre

Accessories:

• Adjustable temperature limiter to protect furnace and charge acc. EN 60519-2
• Further accessories available

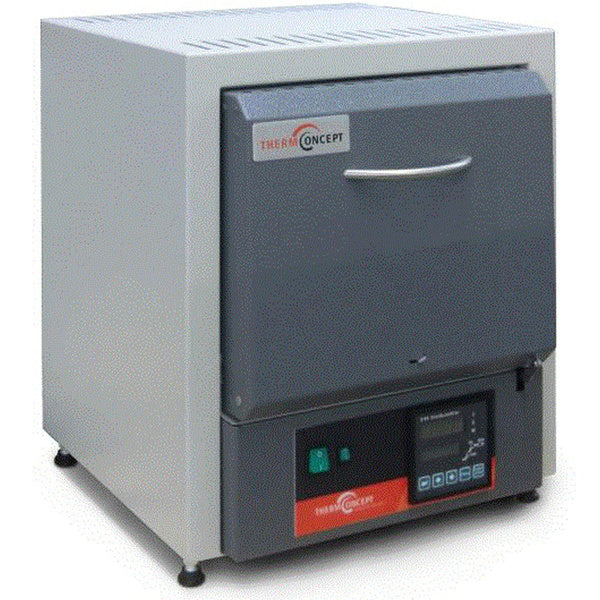

Thermconcept Muffle Furnace KL series
Muffle Furnaces KL 03/11 - KL 15/12

T max: 1100 °C und 1200 °C
Volume: 3, 5, 9 und 15 liter

Design:

• Strong, double-walled steel housing with coated surface, for corrosion protection, wear resistant and long service life
• Coated in RAL 7035 und RAL 7001
• Front frame made of stainless steel Photo shows similar furnace
• Adjustable feets

Door:

• Double-walled hinged door, with integrated retaining spring
• With handle, wide opening and easy to operate

Exhaust System:

• Air inlet port for fresh air, with manually adjustable flap
• Exhaust pipe in the rear wall, connection for vapour vents

Insulation:

• Double-walled casing with rear-ventilation to ensure low outer-casing temperatures
• Insulation made of high grade ceramic fibre with low thermal mass for fast heating cycles and low energy consumption

Heating:

• High quality heating wire, embedded in ceramic plates, therefore protected against fumes and mechanical damages, long service life

Temperatur Control:

• Program Controller Eurotherm 3208 with 1 program with up to 8 segments

Options:

• Program Controller Eurotherm 3508 and Eurotherm Nanodac
• Vapor vent, vapor vent LaboVent with fan and LaboKat with catalyzer
• Adjustable safety limiter to protect furnace and charge, accord. EN 60519-2
• Control Software Eurotherm iTools and RS 232, 485, Ethernet and USB-interface

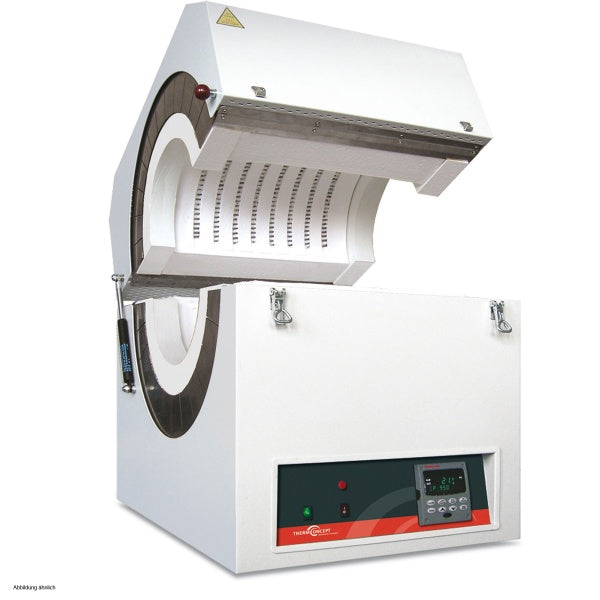

Thermconcept Split Tube Furnaces

• Tube diameter up to 300 mm
• Heated length from 200 mm up to 500 mm and individually expandable
• Split design allows to insert tubes with large flanges
• Due to flexible insulation plugs on both ends, the furnace can be easily adapted to different tube diameters
• Heating elements embedded in high grade vacuum-formed fibre insulation, for excellent temperature uniformity
• Powerful heating and fast heating cycles
• Accelerate cooling of furnace and tube by opening hinged casing
• Heating elements controlled by solid state relays for very precise temperature control, wear-free and noiseless
• Switchgear and control unit integrated in the furnace housing underneath the tube module for comfortable operation of the controller

Accessories:

• 3-zone design for high temperature uniformity
• With solid base frame also suitable for vertical operation
• Adjustable temperature limiter to protect furnace and charge acc. EN 60519-2

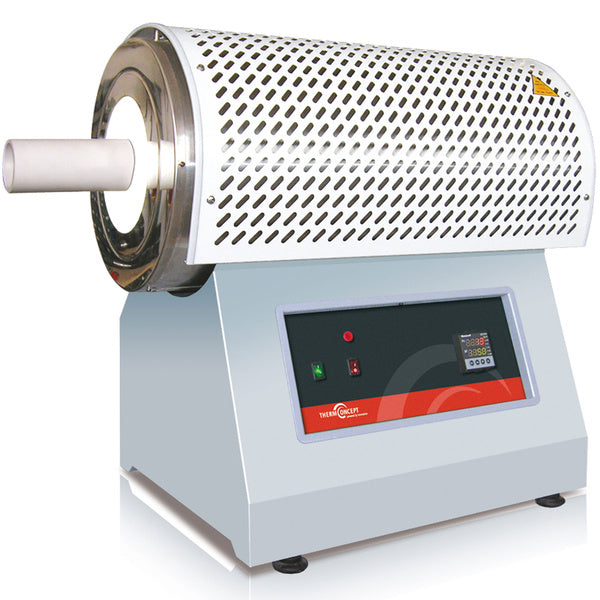

Thermconcept tube furnace ROS with 1-zone heating

• Inner tube diameter from 20 mm to 105 mm
• Heated lengths from 250 mm to 900 mm
• Designed for horizontal operation
• Integrated ceramic working tube with two fibre plugs included in delivery
• Integrated protective grid for low temperatures at the tube module
• Furnace insulation made of high-quality fibre materials with low thermal mass
• High-quality furnace housing, partly with stainless steel cladding
• Powerful heating, fast heating rates
• Switching via solid-state relays, particularly precise furnace control, wear-free, noiseless
• Switching and control system integrated in the housing, convenient operation of the controller, for vertical and universal furnaces in separate table-top housing

Thermconcept tube furnace ROS with 3-zone heating

• Tube inside diameters from 20 mm to 105 mm
• Heated lengths from 250 mm to 900 mm
• Designed for horizontal operation
• Integrated ceramic working tube with two fibre plugs included in delivery
• Integrated protective grid for low temperatures at the tube module
• Furnace insulation made of high-quality fibre materials with low thermal mass
• High-quality furnace housing, partly with stainless steel cladding
• Powerful heating, fast heating rates
• Switching via solid-state relays, particularly precise furnace control, wear-free, noiseless
• Switching and control system integrated in the housing, convenient operation of the controller, for vertical and universal furnaces in separate table-top housing
