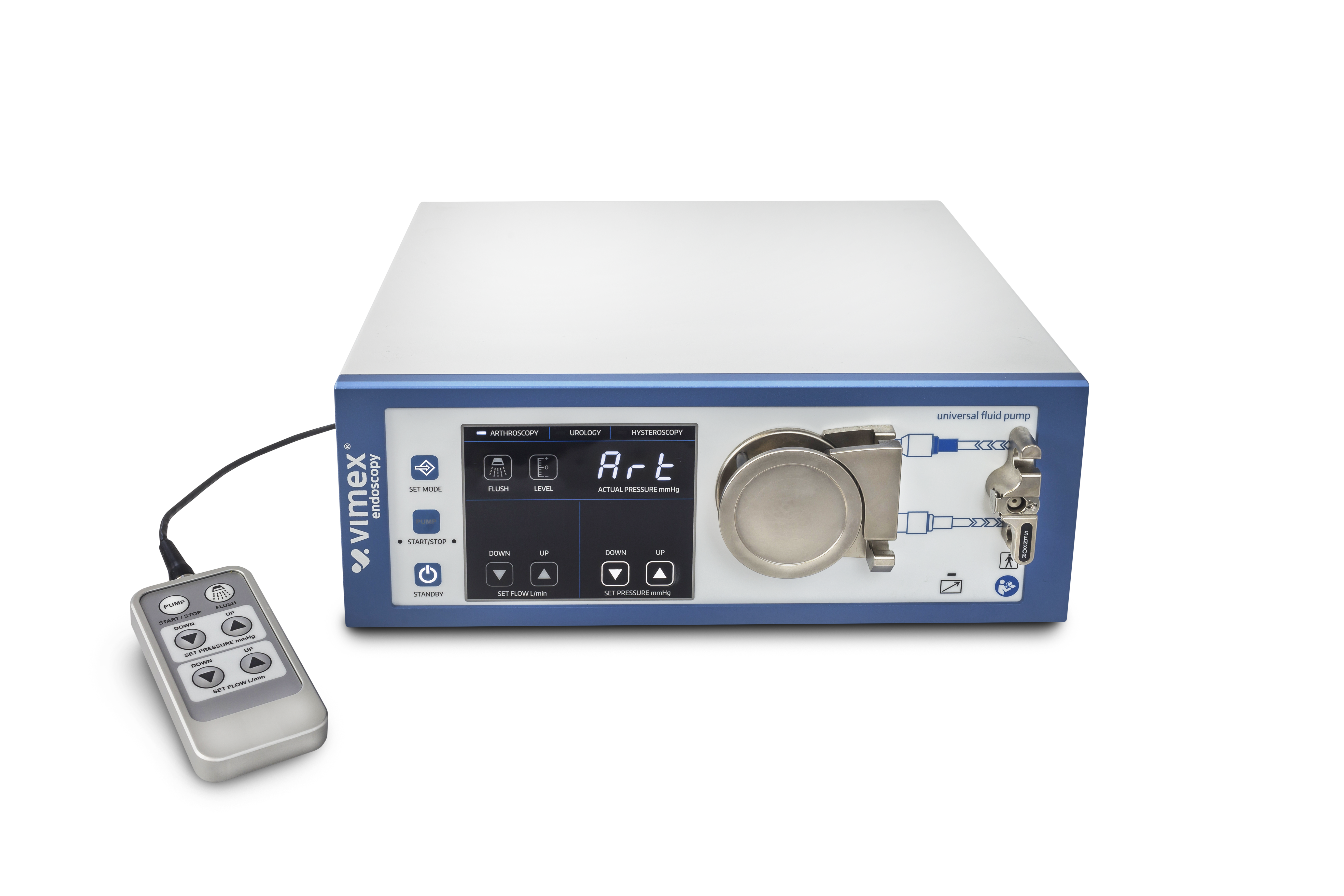

Vimex PV-5201 Fluid Pump
₦0.00
Arthroscopic Vimex
STEMA Full HD Endoscopy Camera System
Full HD endoscopy camera system supplied through Vimex, with a 1/3 inch CMOS sensor, USB image capture, image-processing functions and compatible camera-head choices.
The STEMA-branded camera shown by Vimex supports Full HD endoscopic imaging and an ergonomic camera head with illuminated function keys. The supplier describes a lockable endoscope connection and compatibility with zoom, fixed-focal-length and 90° angled Full HD camera heads.
Key features
Full HD imaging
The uploaded page specifies 1920 × 1080 resolution and a 1/3 inch CMOS sensor.
Image processing
Edge enhancement, automatic gain control and application-oriented operating settings are listed.
Additional video algorithms
The supplier lists selective colour enhancement, smoke reduction and removal of image-bundle grid patterns.
Head controls and connection
Illuminated function keys and a sliding-ring endoscope lock support operation and attachment.
Zoom specifications
The supplier quotes 3× digital and 2× optical zoom. Confirm the optical zoom capability of the selected camera head.
USB image capture
USB still-image capture is stated on the uploaded page. Confirm any video-recording module and its supplied licence or hardware separately.
Connection, image processing and head choices
Manufacturer illustrations show the sliding-ring connector, an example image-processing comparison and camera-head styles. The comparison is illustrative. Camera heads are configuration selections, not proof that three heads are supplied.
Supplier-listed specifications
| Manufacturer branding shown | STEMA; supplied through Vimex |
|---|---|
| Resolution | Full HD, 1920 × 1080 |
| Sensor description on uploaded page | 1/3 inch CMOS |
| Digital zoom | 3×, supplier specification |
| Optical zoom | 2× quoted by supplier; confirm applicability to the chosen camera head |
| Camera-head controls | Illuminated function keys |
| Endoscope connection | Lockable connection with sliding ring |
| Core image functions | Edge enhancement and automatic gain control |
| Additional image functions | Selective colour enhancement; smoke reduction; grid removal for image-bundle endoscopes |
| Compatible head styles listed | Full HD zoom; Full HD fixed focal length; Full HD 90° angled |
| Capture | USB image capture; exact recording capabilities and included module to be confirmed |
| Applications | Arthroscopy, gynaecology, laparoscopy and urology |
| Orderable model and connectors | Confirm exact control-unit/head references, outputs, power supply and supplied cables |
Configuration and supplied components
One camera system in the control-unit and camera-head configuration expressly listed in the quotation. Confirm coupler, endoscope connection, cables, capture options and documentation. Additional heads, endoscope, light source, light-guide cable, monitor, recorder and cart are separate unless itemised.
Handling and compatibility
Confirm camera-head type, endoscope coupling and monitor or recorder signal compatibility before ordering. Request the current model-specific instructions for camera-head care, cleaning and reprocessing. A still-image capture statement does not establish an included video-recording function.
Ordering information
Provide the product reference or range, quantity, delivery location and intended use. Specify the required model, configuration, accessories and consumables, existing equipment to be integrated, and any installation, commissioning, training or maintenance requirements. For configurable ranges, confirm the exact manufacturer references before ordering.
Delivery, spares and service
Contact Nass Ventures for pricing, availability, delivery arrangements, compatible spares and consumables, installation and after-sales support. The quotation will confirm the final supplied configuration, documentation, warranty terms and service arrangements.
Vimex Configurable Endoscopy Medical Cart
Configurable medical cart for endoscopy towers, with concealed cable routing, a central electrical switch and options for shelves, drawers, monitor arms and accessories.
The Vimex endoscopy cart range organises equipment in a mobile tower configuration. Select the cart height, shelf and drawer arrangement, monitor support and accessory holders for the equipment to be installed.
Key features
Configurable storage
Specify the required number of shelves and drawers rather than assuming the illustrated arrangement.
Monitor support choices
Rigid monitor supports and movable arms are available according to the selected cart configuration.
Cable routing and switching
The supplier describes concealed cables and one central electrical switch for connected devices.
Camera and accessory holders
Camera holders can be mounted at the side or below a shelf. Further holder options include cables, footswitches, bottles, hoses, IV poles and gas cylinders.
Monitor and camera holder options
The photographs illustrate an articulated monitor support and a camera holder. Confirm the holder type, mounting method and compatibility with the intended equipment.
Accessory mounting
A collection-container holder is illustrated. The container, holder and other accessories must be specified in the agreed cart configuration.
Configuration specifications
| Application | Endoscopy equipment tower for arthroscopy, gynaecology, laparoscopy or urology |
|---|---|
| Shelf arrangement | Configurable number and position; confirm required dimensions and load |
| Drawers | Number and arrangement to be specified |
| Cart height | Configurable; exact height to be confirmed |
| Monitor support | Rigid holder or movable arm; confirm VESA pattern, monitor size and load |
| Camera holder | Side-mounted or mounted beneath a shelf, according to configuration |
| Other accessory options | Infusion stand / IV pole, CO₂ cylinder holder, cable and hose holders, footswitch holder and bottle/container holders |
| Cable management | Concealed cable routing |
| Electrical arrangement | Central switch; confirm sockets, supply rating and permitted connected load |
| Dimensions and load capacity | Not specified in supplied material; confirm for the selected cart |
Configuration and supplied components
One cart built to the configuration listed in the quotation. Specify shelves, drawers, monitor support, camera holder and other required accessories. The main photograph shows a complete equipped endoscopy tower; monitor, cameras, pumps, light sources, shaver, footswitch and other medical equipment are separate unless expressly itemised.
Handling and compatibility
Provide equipment dimensions, weights and mounting requirements before selecting the cart. Confirm shelf loads, overall stability, monitor-arm compatibility and electrical distribution for the complete installation. Follow the supplied instructions for moving and positioning the loaded cart.
Ordering information
Provide the product reference or range, quantity, delivery location and intended use. Specify the required model, configuration, accessories and consumables, existing equipment to be integrated, and any installation, commissioning, training or maintenance requirements. For configurable ranges, confirm the exact manufacturer references before ordering.
Delivery, spares and service
Contact Nass Ventures for pricing, availability, delivery arrangements, compatible spares and consumables, installation and after-sales support. The quotation will confirm the final supplied configuration, documentation, warranty terms and service arrangements.
TEAC UR-4MD Full HD Medical Video Recorder
UR-4MD Full HD medical video recorder with a 500 GB internal drive, 3.5 inch LCD, simultaneous internal/USB recording and an optional DICOM gateway upgrade.
The TEAC UR-4MD records surgical video and still images with automatic signal and resolution detection. Internal storage and USB recording support documentation workflows, with network file transfer available through FTP or CIFS. DICOM/PACS integration requires the appropriate optional upgrade and configuration.
Key features
Full HD recording
Records video and still images at up to 1920 × 1080. Manufacturer FAQ lists 30 / 29.97 Hz recording for Full HD.
Internal and USB storage
A 500 GB internal hard drive is included. Simultaneous recording to internal and compatible external USB media is supported.
Built-in display
A 3.5 inch colour LCD supports live view, playback and navigation. The supplier states that this display is not for diagnosis.
Network file transfer
RJ-45 Ethernet supports FTP and CIFS background file transfer to a configured network destination.
Optional DICOM gateway
An optional upgrade provides DICOM still-image storage and Modality Worklist support. PACS connectivity is not included automatically.
Optional external controls
Remote control, footswitch, keyboard and barcode/card reader functions require the appropriate optional devices.
Recorder and interface illustrations
Manufacturer illustrations show the recorder, example interface screens and a sharing setup. Screens and external displays are illustrative. Check the options and network configuration included in the quoted unit.
Recording and storage specifications
| Model / manufacturer | UR-4MD / TEAC |
|---|---|
| Maximum Full HD recording | 1920 × 1080; manufacturer FAQ lists 30 / 29.97 Hz |
| Built-in LCD | 3.5 inch colour; live view, playback and navigation; not for diagnosis |
| Internal drive | 500 GB |
| External recording devices | Compatible USB flash drives and USB hard drives |
| Still-image format | JPEG; DICOM still-image support with the applicable DICOM configuration |
| Video format | MPEG-4 AVC/H.264, MOV file container |
| Recording media format | FAT32, manufacturer FAQ |
| Approximate Full HD recording times | 90 h at 12 Mbit/s; 60 h at 18 Mbit/s; 45 h at 24 Mbit/s, on the 500 GB drive |
| Network | RJ-45 10/100/1000 Ethernet; FTP/CIFS file transfer |
| DICOM/PACS | Optional gateway upgrade; Modality Worklist and DICOM still-image storage; confirm licence and integration |
Connections
| Video inputs | 1 × SDI (BNC); 1 × single-link DVI; 1 × S-Video; 1 × composite video (BNC) |
|---|---|
| SDI formats | 3G/HD-SDI 1080p / 1080i / 720p; SD-SDI 480i / 576i, manufacturer specification |
| DVI input/output formats | 640 × 480 to 1920 × 1200; input support does not mean recording at 1920 × 1200 |
| Video outputs | 1 × SDI; 1 × DVI; 1 × S-Video; 1 × composite; additional SDI Thru |
| Audio inputs | Embedded SDI audio; 2 stereo mini-jack inputs for line and microphone |
| Audio outputs | Embedded SDI audio; 1 stereo mini-jack line output |
| USB Type A | 3 × USB 2.0: two front recording-device connectors and one rear optional-accessory connector |
| USB Type B | 1 × USB 2.0 rear connector for access to the internal drive |
| External triggers | 3 stereo mini-jack connectors |
| HDMI | No native HDMI connector; confirm a compatible HDMI-to-DVI adapter if required. TEAC notes that HDMI audio is not supported |
Physical and electrical specifications
| Mains input | 100–240 V AC, 50/60 Hz |
|---|---|
| Dimensions, W × D × H | Approximately 210.5 × 235 × 88.5 mm, current TEAC specification |
| Net equipment weight | Approximately 2.6 kg; not a shipping weight |
| Operating temperature | 5–40 °C |
| Storage temperature | −20 to +60 °C |
| Operating humidity | 5–80%, non-condensing |
| Optional accessories | Remote control, footswitch, keyboard, barcode/card reader; confirm exact compatibility |
| Power-loss handling | Manufacturer describes fail-safe saving and shutdown; follow the operating instructions |
Configuration and supplied components
One UR-4MD recorder with power cord and owner’s manual as listed by TEAC. Confirm all signal cables, optional controls, storage media and the DICOM upgrade in the quotation. External monitors, tablets, network storage and PACS/HIS/RIS systems pictured in illustrations are separate.
Handling and compatibility
Confirm camera output, connector, resolution and frame rate before ordering. Check the required DICOM licence, PACS/worklist compatibility and network setup with the responsible IT team. The built-in LCD is for operation and review, not diagnosis. Follow the manufacturer instructions for closing recordings, removing media and maintaining reliable storage.
Ordering information
Provide the product reference or range, quantity, delivery location and intended use. Specify the required model, configuration, accessories and consumables, existing equipment to be integrated, and any installation, commissioning, training or maintenance requirements. For configurable ranges, confirm the exact manufacturer references before ordering.
Delivery, spares and service
Contact Nass Ventures for pricing, availability, delivery arrangements, compatible spares and consumables, installation and after-sales support. The quotation will confirm the final supplied configuration, documentation, warranty terms and service arrangements.
Vimex Endoscopy Instruments and Optics
Configurable endoscopy optics and instrument ranges for arthroscopy, laparoscopy, gynaecology and urology, with sheaths, obturators, forceps, cables and baskets.
Vimex supplies endoscopic optics and instruments across four surgical specialties. The range includes optics in different lengths and diameters, compatible light-guide cables, sheaths and obturators. Select the individual references and configuration for the intended procedure.
Key features
Arthroscopy range
Endoscopic optics, sheaths, obturators, punches, graspers, fibre-optic cables and baskets.
Laparoscopy range
Laparoscopic optics, forceps, fibre-optic cables and baskets.
Gynaecology range
Hysteroscopic optics, diagnostic and working sheaths, forceps, scissors, fibre-optic cables and baskets.
Urology range
Urological optics, diagnostic and working sheaths, forceps, scissors, fibre-optic cables and baskets.

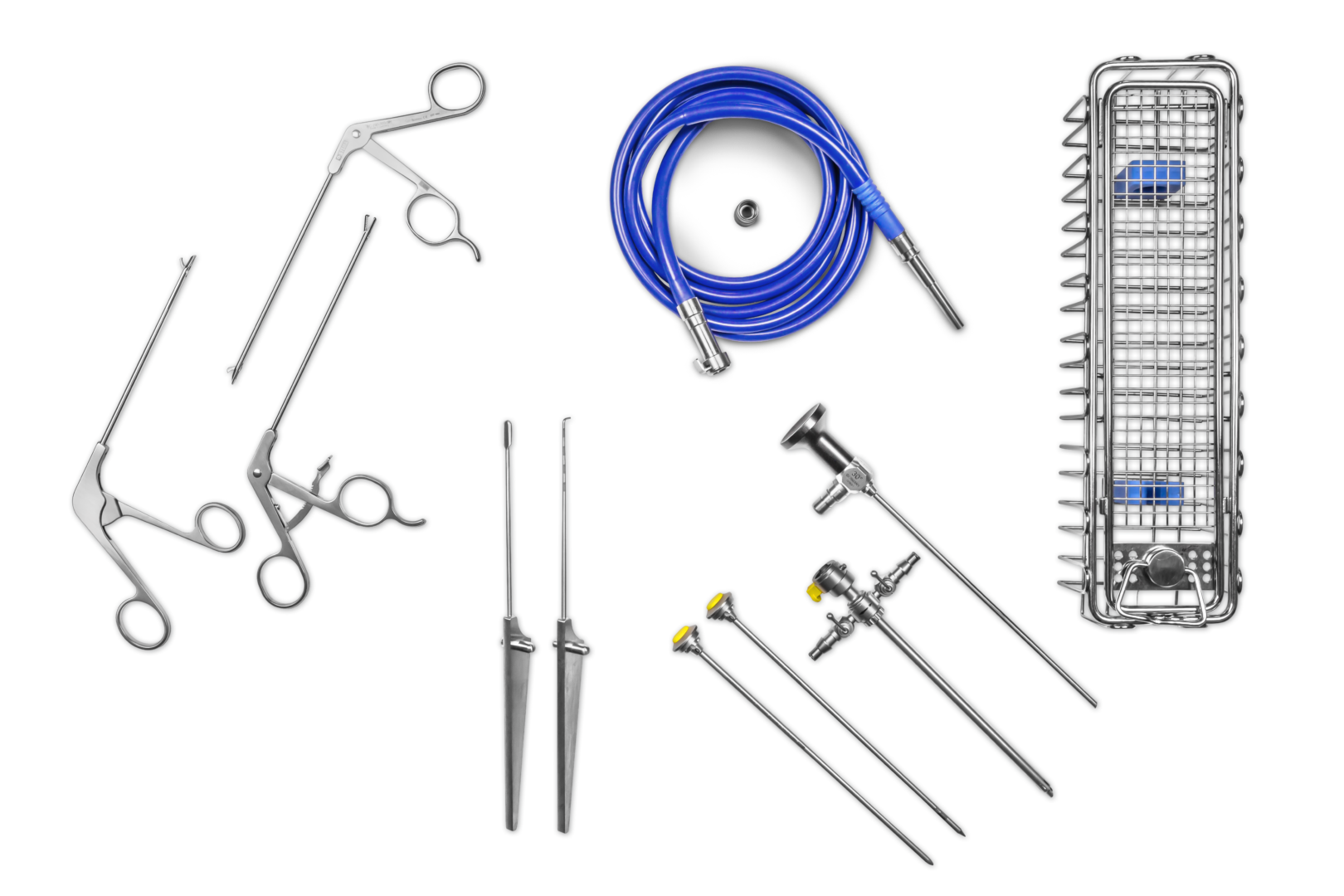

Instrument range illustrations
Photographs illustrate instrument assortments available through Vimex. They do not establish a standard kit, the exact number of pieces, or that every pictured instrument is included.
Configuration and compatibility
| Applications | Arthroscopy, laparoscopy, gynaecology and urology |
|---|---|
| Optics selection | Various lengths and diameters; confirm working length, viewing direction and field of view for each reference |
| Optics reprocessing | The supplier describes its offered optics as fully autoclavable; obtain the instructions for the selected optic |
| Sheaths and obturators | Select matched components for the chosen optic and procedure |
| Hand instruments | Forceps, scissors, punches and graspers as relevant to the specialty and selected reference |
| Light transmission | Compatible fibre-optic cables with matching endoscope and light-source connectors |
| Organisation accessories | Baskets and trays according to the selected configuration |
| Manufacturer selection | Vimex catalogue identifies STEMA optics; confirm the manufacturer and reference for each requested item |
| Dimensions and piece count | Defined by the individual references; no fixed kit is specified in the source |
Configuration and supplied components
The individual instruments and optics explicitly listed in the agreed quotation. No fixed instrument set or piece count is established by the supplied page. Specify each reference, size and quantity, together with compatible cables, sheaths, obturators, baskets and any additional accessories.
Handling and compatibility
For qualified healthcare professionals. Match optic diameter, working length, viewing direction, sheath and instrument compatibility to the intended procedure. Follow each item’s instructions for inspection, cleaning, sterilisation and maintenance. Do not apply a blanket reprocessing method to every accessory solely because the optics are described as autoclavable.
Ordering information
Provide the product reference or range, quantity, delivery location and intended use. Specify the required model, configuration, accessories and consumables, existing equipment to be integrated, and any installation, commissioning, training or maintenance requirements. For configurable ranges, confirm the exact manufacturer references before ordering.
Delivery, spares and service
Contact Nass Ventures for pricing, availability, delivery arrangements, compatible spares and consumables, installation and after-sales support. The quotation will confirm the final supplied configuration, documentation, warranty terms and service arrangements.
Sony Medical Endoscopy Monitor Range, 24–32 inch
Vimex-supplied medical endoscopy monitor range, described in the uploaded page as 24–32 inch Full HD displays. Confirm the exact Sony model and connection configuration.
Vimex presents medical monitors for arthroscopy, gynaecology, laparoscopy and urology. The supplied photograph and general catalogue identify Sony monitors, while the uploaded monitor page gives range-level features rather than an orderable model specification.
Key features
Medical endoscopy display range
The uploaded page describes 24–32 inch monitors for endoscopic surgical imaging.
LED-backlit LCD
The supplier lists an a-Si TFT active-matrix LCD with LED backlighting.
Image adjustment
Gamma, contrast and chroma adjustments are listed, together with picture-in-picture operation.
Integration choices
Confirm the monitor model, supported signal formats and VESA mounting arrangement for the existing endoscopy tower.
Supplier-listed range specifications
| Manufacturer represented | Sony, as shown in the supplied product photograph and Vimex catalogue |
|---|---|
| Screen size range | 24–32 inches, uploaded page; exact model required |
| Panel description | a-Si TFT active-matrix LCD with LED backlight |
| Resolution described on uploaded page | Full HD; confirm the native resolution of the selected model |
| Viewing angle quoted by supplier | 178° horizontal / 178° vertical; confirm for the selected monitor |
| Connections named on uploaded page | DVI, HD-SDI, RGB, S-Video and composite Video (BNC); exact ports and signal direction depend on model |
| Image adjustments | Gamma, contrast and chroma, supplier range description |
| Display mode | Picture-in-picture, supplier range description |
| Signal handling | Quick signal detection, supplier description |
| Mounting | VESA mounting solution; exact hole pattern and load requirements to be confirmed |
| 4K models | Mentioned separately in the general catalogue; not promised for every monitor on this page |
Configuration and supplied components
One monitor in an agreed model and screen size. Confirm the exact manufacturer part number, native resolution, inputs and outputs, mounting hardware, power supply, cables and any stand or arm in the quotation. The photograph is an illustration of the range.
Handling and compatibility
Specify the required video format, frame rate, resolution and connector type. Check camera and recorder compatibility, monitor mounting and the intended clinical use before ordering. Obtain the current model-specific specification and instructions; do not assume that every listed range feature is present on every model.
Ordering information
Provide the product reference or range, quantity, delivery location and intended use. Specify the required model, configuration, accessories and consumables, existing equipment to be integrated, and any installation, commissioning, training or maintenance requirements. For configurable ranges, confirm the exact manufacturer references before ordering.
Delivery, spares and service
Contact Nass Ventures for pricing, availability, delivery arrangements, compatible spares and consumables, installation and after-sales support. The quotation will confirm the final supplied configuration, documentation, warranty terms and service arrangements.
Vimex LV-400LED Endoscopy LED Light Source
LV-400LED endoscopy light source with 1–100% intensity control, a manufacturer-rated LED life of at least 50,000 hours and a standard K. Storz connection.
The LV-400LED provides adjustable illumination for compatible endoscopic systems. The current manufacturer brochure identifies console 400LED-20 with a daylight high-power LED emitter, 5700 K colour temperature and CRI 92.
Key features

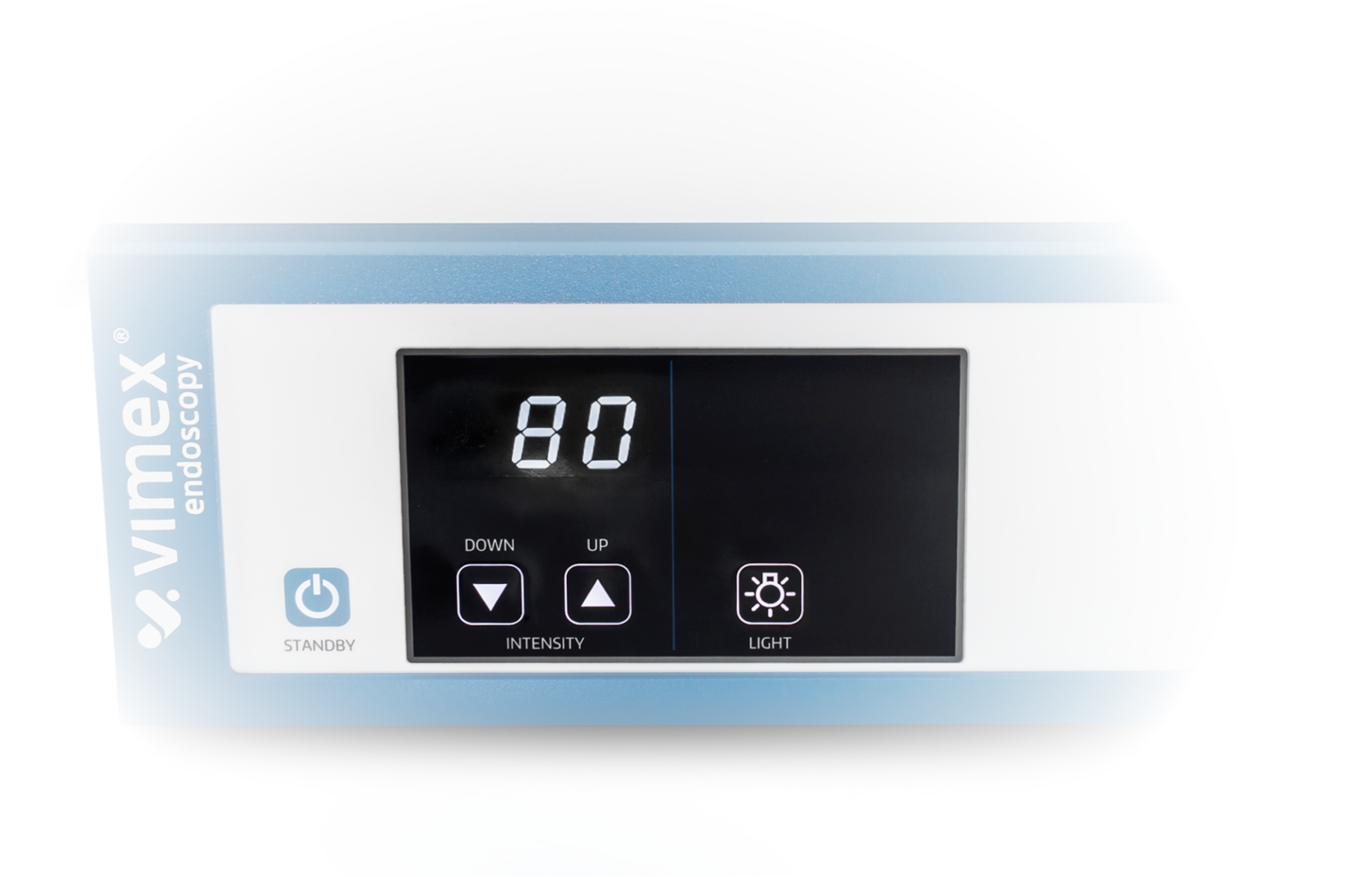

Electronic intensity adjustment
Adjust output from 1% to 100% in 1% steps.
Daylight specification
The version 2.0 brochure specifies 5700 K ±5% and colour rendering index CRI 92.
Emitter life
Manufacturer-rated minimum 50,000 hours; this is an emitter-life specification, not a warranty period.
Connection options
Standard K. Storz light-guide connection. Other connector types, including Wolf or Olympus arrangements, require the appropriate optional adapter and confirmation.
Setting memory
The supplier lists memory of recent settings.
Compatible light-guide cables
Autoclavable fibre-optic cables are available in different diameters and lengths, with connector selection matched to the light source and endoscope.
Controls and illumination
| Product model | LV-400LED |
|---|---|
| Console reference | 400LED-20 |
| Emitter | Daylight high-power LED |
| Colour temperature | 5700 K ±5%, current version 2.0 brochure |
| Colour rendering index | CRI 92, current version 2.0 brochure |
| Light-output comparison | Manufacturer describes output as comparable to a 180 W xenon lamp; this is not the electrical consumption |
| Intensity adjustment | Manual electronic adjustment, 1–100%, 1% steps |
| Manufacturer-rated emitter life | At least 50,000 hours |
Connections and light-guide cables
| Standard light-guide socket | K. Storz |
|---|---|
| Other connections | Optional, on request; confirm the exact adapter and endoscope combination |
| Cable diameter options in brochure | 1.4 / 1.6; 2.2 / 2.5; 3.2 / 3.5; 4.5 / 4.8 mm; confirm the selected cable specification |
| Cable length range in brochure | 1.8–5 m; confirm the available length and diameter combination |
| Cable construction | Fibre-optic bundle with two fixed connectors |
| Cable reprocessing | Manufacturer describes dedicated cables as fully autoclavable; follow the selected cable instructions |
Console technical specifications
| Mains input | 100–240 V AC, 50/60 Hz |
|---|---|
| Power consumption | 115 VA |
| Dimensions, D × W × H | 306 × 330 × 96 mm |
| Net console weight | 5.8 kg; not a shipping weight |
| Applied part classification | Type BF |
| Operating temperature | +10 to +40 °C |
| Storage and transport temperature | −20 to +45 °C |
| Maximum relative humidity | 70% during operation, storage and transport |
| Manufacturer-listed standards | EN 60601-1; EN 60601-1-2; IEC 60601-2-18, version 2.0 brochure |
Configuration and supplied components
One LV-400LED light-source console, reference 400LED-20. Confirm the supplied mains lead, light-guide cable, adapters and documentation in the quotation. Cables and non-standard adapters are accessory selections unless expressly included. The overview photograph illustrates a cable connection.
Handling and compatibility
Confirm the light-guide connector, cable diameter and length, and endoscope compatibility before ordering. Follow the instructions for connecting and handling illuminated cables. Reprocess only the components identified as reprocessable in their own instructions; cable autoclavability does not establish console autoclavability.
Ordering information
Provide the product reference or range, quantity, delivery location and intended use. Specify the required model, configuration, accessories and consumables, existing equipment to be integrated, and any installation, commissioning, training or maintenance requirements. For configurable ranges, confirm the exact manufacturer references before ordering.
Delivery, spares and service
Contact Nass Ventures for pricing, availability, delivery arrangements, compatible spares and consumables, installation and after-sales support. The quotation will confirm the final supplied configuration, documentation, warranty terms and service arrangements.
Vimex PV-5201 Fluid Pump
PV-5201 fluid-pump family for arthroscopy, urology and hysteroscopy, with three dedicated models and a universal model, LEVEL calibration and optional remote control.
The PV-5201 family delivers fluid to an operative field under controlled pressure. Choose a dedicated application model or the universal AUH model with arthroscopy, urology and hysteroscopy modes. The console provides a display, an intuitive menu and non-volatile memory for recent settings.
Key features
Four models
Universal AUH 5201-10; arthroscopy 5201-20; urology 5201-30; hysteroscopy 5201-40.
LEVEL calibration
The LEVEL function calibrates the measuring system for the setup described in the instructions for use.
FLUSH function
A dedicated function supports rinsing of the operative field. The arthroscopy specification lists up to 2.0 l/min for FLUSH.
Tubing installation signals
Acoustic and visual indications assist with correct tubing installation.
Console or remote control
The console controls the pump. Remote controller 5201-50 is optional.
Tubing choices
Use a compatible single-use tubing set, or the day-use pump part with a separate single-use patient part, according to the applicable instructions.
Control panel and optional remote
The manufacturer describes built-in sensors and a measuring system protected within the device. Specify remote controller 5201-50 if control away from the console is required; the remote shown in the overview photograph is optional.
Models and operating ranges
| Family reference | PV-5201 |
|---|---|
| Universal model | 5201-10; AUH, all three application modes |
| Arthroscopy model | 5201-20; 10–150 mmHg; 0.1–1.5 l/min; up to 2.0 l/min for FLUSH |
| Urology model | 5201-30; 10–150 mmHg; 0.1–1.0 l/min |
| Hysteroscopy model | 5201-40; 10–150 mmHg; 0.1–0.5 l/min |
| Universal model mode limits | Confirm the applicable mode settings in the supplied instructions for use |
Technical specifications
| Mains supply | 100–240 V AC, 50/60 Hz |
|---|---|
| Power consumption | 65 VA |
| Dimensions, D × W × H | 306 × 330 × 120 mm |
| Net pump weight | 7.6 kg; not a shipping weight |
| Protection classification | Class I; Type BF |
| Enclosure protection | IPX1 |
| Operating temperature | +10 to +40 °C |
| Operating humidity | ≤70% relative humidity |
| Storage and transport temperature | −20 to +45 °C |
| Storage and transport humidity | ≤90% relative humidity, non-condensing |
| Manufacturer-listed standards | EN 60601-1; EN 60601-1-2, brochure version 2.1 EN |
Compatible tubing options
| Single-use tubing set | SUTS; complete set changed after each procedure according to its instructions |
|---|---|
| Day-use arrangement | DUPP day-use pump part plus SUPP single-use patient part; follow the specified replacement schedule |
| Catalogue tubing references | PV-5201SUTS, PV-5201DUPP and PV-5201SUPP; confirm the required version and supplied pack quantity |
Available variants
| 5201-10 | Universal AUH — 5201-10 |
|---|---|
| 5201-20 | Arthroscopy — 5201-20 |
| 5201-30 | Urology — 5201-30 |
| 5201-40 | Hysteroscopy — 5201-40 |
Configuration and supplied components
One pump in the selected application model. Confirm the final package, compatible tubing and pack quantities. Remote controller 5201-50 and disposable or day-use tubing must be specified separately unless explicitly included in the quotation. Photographs show illustrative configurations.
Handling and compatibility
For qualified healthcare professionals. Select the correct procedure mode and compatible fluid pathway. Follow the device and tubing instructions for setup, LEVEL calibration, monitoring, replacement and disposal. Do not reuse parts labelled for single use. Operating pressure and flow must follow the clinical protocol and instructions for the selected application.
Ordering information
Provide the product reference or range, quantity, delivery location and intended use. Specify the required model, configuration, accessories and consumables, existing equipment to be integrated, and any installation, commissioning, training or maintenance requirements. For configurable ranges, confirm the exact manufacturer references before ordering.
Delivery, spares and service
Contact Nass Ventures for pricing, availability, delivery arrangements, compatible spares and consumables, installation and after-sales support. The quotation will confirm the final supplied configuration, documentation, warranty terms and service arrangements.

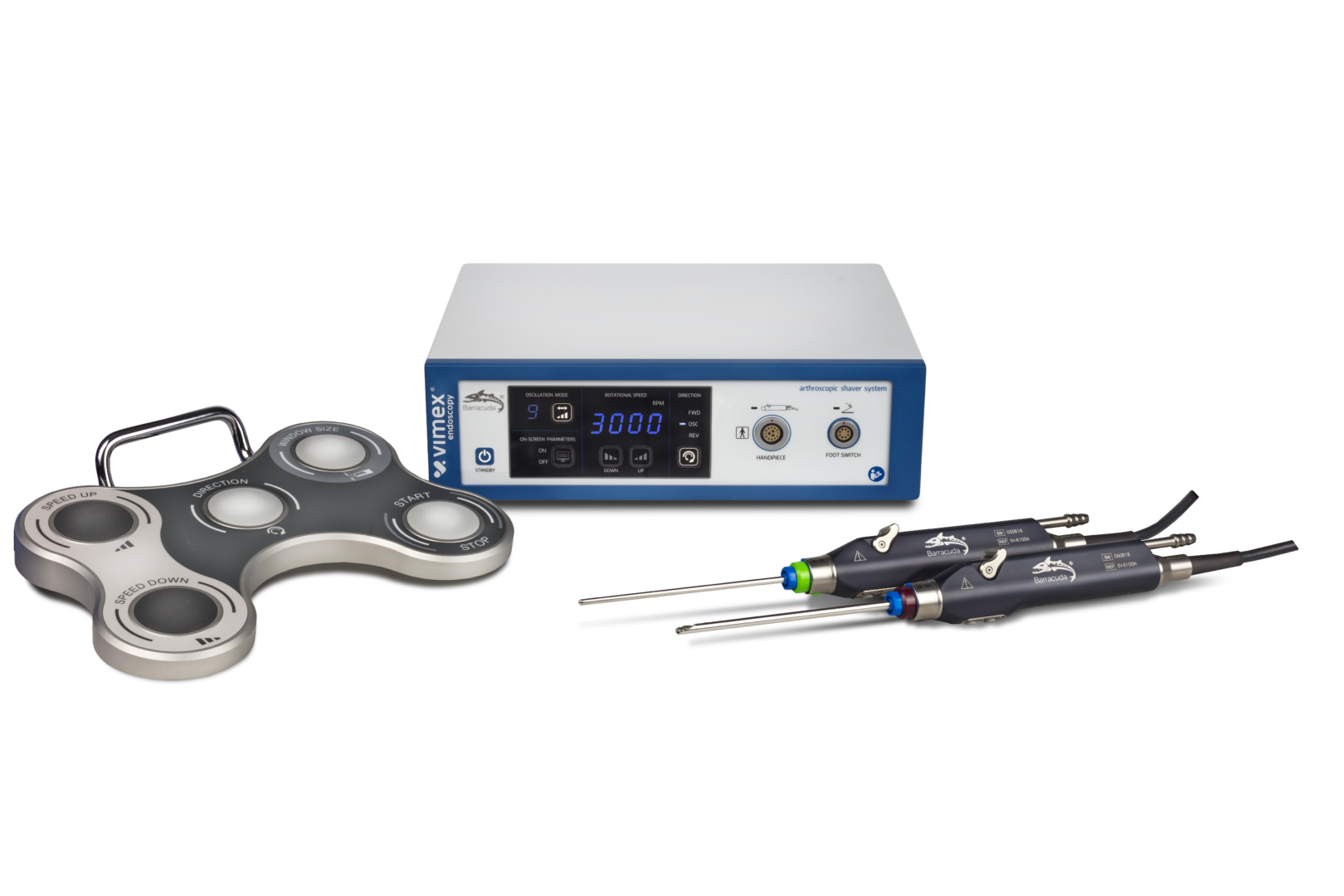

Vimex Barracuda® SV-8100 Arthroscopic Shaver System
Arthroscopic shaver system with handpiece or footswitch control, nine oscillation modes, automatic handpiece detection and an autoclavable handpiece.
The Barracuda SV-8100 provides powered shaving for arthroscopy using dedicated blades and burrs. The system combines a control unit, a compact handpiece design and a multifunctional footswitch, with operating functions available from the handpiece buttons or foot controls.
Key features
Three direction modes
Select forward rotation, reverse rotation or oscillation. Nine oscillation modes are available.
Variable speed
Forward and reverse operation from 500 to 10,000 rpm, with oscillation from 500 to 3,500 rpm. Manufacturer-stated tolerance is ±10%.
Handpiece controls
On/off, window calibration, direction selection and oscillation-mode changes can be controlled at the handpiece.
Automatic detection
The control unit automatically detects the connected handpiece.
Reprocessable handpiece
The handpiece is specified for steam sterilisation at 134 °C. Follow the current instructions for use for the complete validated reprocessing procedure.
Display and integration
The front-panel interface presents operating parameters. The manufacturer also lists on-screen display on a medical monitor; confirm the compatible monitor and connection arrangement.
Handpiece and cutting attachments
The 164 mm handpiece has an automatic Barracuda-type blade chuck and a 3.2 m cable. Dedicated single-use and reusable blade options are listed by the manufacturer. Confirm the cutting attachment, size and reuse status on the quotation and product label.
Control unit specifications
| System / article reference | SV-8100 |
|---|---|
| Control unit reference | 8100-10 |
| Mains input | 100–240 V AC, 50/60 Hz |
| Power consumption | 20–35 VA |
| Dimensions, D × W × H | 250 × 330 × 96 mm |
| Net control-unit weight | 4.8 kg; not a shipping weight |
| Electrical protection class | Class I |
| Operating temperature | +10 to +40 °C |
| Storage and transport temperature | −20 to +45 °C |
| Maximum relative humidity | 70% during operation, storage and transport |
| Manufacturer-listed electrical standards | EN 60601-1:2006+A1:2013; EN 60601-1-2:2015, as listed in brochure version 1.5 EN |
Handpiece specifications
| Handpiece reference | 8100-25 |
|---|---|
| Length | 164 mm |
| Net handpiece weight | 325 g; not a shipping weight |
| Blade chuck | Automatic / Barracuda type |
| Forward / reverse speed | 500–10,000 rpm, ±10% |
| Oscillation speed | 500–3,500 rpm, ±10% |
| Oscillation modes | 9 |
| Cable length | 3.2 m |
| Handpiece buttons | On/off; window calibration; direction change (FWD, OSC, REV); oscillation-mode change |
| Sterilisation method | Steam sterilisation at 134 °C; complete cycle and preparation according to the current instructions for use |
| Applied part classification | Type BF |
| Operating temperature | +10 to +40 °C |
| Storage and transport temperature | −20 to +45 °C |
| Maximum relative humidity | 100% during operation; 90% during storage and transport |
Footswitch specifications
| Footswitch reference | 8100-30 |
|---|---|
| Dimensions, D × W × H | 215 × 280 × 28 mm |
| Net footswitch weight | 2.45 kg; not a shipping weight |
| Cable length | 3.2 m |
| Enclosure protection | IPX8, manufacturer brochure specification; follow the instructions for use |
| Functions | Speed up; speed down; start/stop; window size; direction selection (FWD, OSC, REV) |
| Operating temperature | +10 to +40 °C |
| Storage and transport temperature | −20 to +45 °C |
| Maximum relative humidity | 100% during operation; 90% during storage and transport |
Compatible single-use blades and burrs
The manufacturer’s dedicated disposable blade and burr range includes the references below. These are accessory selections for the system. Confirm the required reference, quantities, packaging and availability with Nass Ventures.
| Full Radius blade | 3.5 mm: VFRB-35P; 4.5 mm: VFRB-45P; 5.5 mm: VFRB-55P |
|---|---|
| Fast Cut blade | 3.5 mm: VFCB-35P; 4.5 mm: VFCB-45P; 5.5 mm: VFCB-55P |
| Clean Cut blade | 3.5 mm: VCCB-35P; 4.5 mm: VCCB-45P; 5.5 mm: VCCB-55P |
| Round Burr | 4.5 mm: VRB-45P; 5.5 mm: VRB-55P |
| Oval Burr | 4.5 mm: VOB-45P; 5.5 mm: VOB-55P |
| Working length | 130 mm for the listed blades and burrs |
Configuration and supplied components
The manufacturer identifies control unit 8100-10, handpiece 8100-25 and footswitch 8100-30 as system components. Confirm the quantity of each component and all included cables, blades, burrs and accessories in the quotation. Product photographs show illustrative configurations and do not establish the supplied quantities.
Handling, reprocessing and compatibility
For use by qualified healthcare professionals in arthroscopy. Use dedicated compatible cutting attachments and follow the current device and accessory instructions for assembly, operation, cleaning, disinfection and sterilisation. The handpiece’s steam-sterilisation specification does not apply to the control unit. Do not reprocess items labelled for single use.
Confirm the electrical connection, intended cutting attachments and any medical-monitor integration before ordering. Request the current instructions for use and applicable device documentation for the supplied configuration.
Ordering information
Provide system reference SV-8100, quantity, delivery location and intended use. Specify the required control unit, number of handpieces, footswitch, blade and burr references, consumables and any existing equipment to be integrated. Include installation, commissioning, training and maintenance requirements where applicable.
Delivery, spares and service
Contact Nass Ventures for pricing, availability, delivery arrangements, compatible spares and consumables, installation and after-sales support. The quotation will confirm the supplied configuration, documentation, warranty terms and service arrangements.
