Rodwell Scientific Portaclave 15V

Description

The Alphavita MVS-83 is a vertical steam autoclave designed for laboratory and research use, suitable for sterilising liquids, solid instruments and laboratory glassware.

• Chamber volume: 75 L
• Sterilisation temperature range: 115 – 135 °C
• Melting mode temperature range: 60 – 115 °C
• Warming/holding mode temperature range: 45 – 60 °C
• Power: 4200 W
• Four operating modes: liquid sterilisation, solid/instrument sterilisation, melting mode and temperature holding mode
• One-button start using previously stored cycle parameters for fast, routine operation
• Altitude compensation: user can enter local altitude so the autoclave automatically calculates boiling point and working parameters
• Dual cooling fans (front and rear of the chamber) reduce cooling time
• Safety system prevents opening of the lid at high temperature and overpressure; secure locking mechanism
• Self-diagnostic system for rapid detection of errors and faults
• Supplied with 3 wire baskets as standard

Rodwell Portaclave portable stainless-steel autoclaves with VARIO automatic time and temperature control, offering preset and variable sterilisation cycles.

• Grade 316 stainless-steel chamber
• Capacities 15, 22 and 30 L
• VARIO controller with preset and user-defined cycles
• Variable temperature 100–121 °C and time 1–99 minutes
• Single-phase 230/110 V internal electric heater

Portaclave®™ Autoclaves

General Technical Specification

The VARIO is heated by a single internal element. This is available for use with 230V or 110V electrical supplies. Please indicate the required voltage when ordering. The temperature is controlled by the VARIO time and temperature control and PT100 probe. The VARIO 1528 is fitted with an automatic cut-out to prevent it boiling dry. Every autoclave is electrically tested in compliance with BS3456 Part 101 1987.

Key Features

• 15, 22 or 30 litres
• Manual or VARIO Digital Controller
• Robust space saving design
• Single phase “plug & play”
• Compact and fully portable
• No plumbing needed
• Minimal Maintenance
• Grade 316 stainless steel chamber
• Suitable for Culture Media

Vario Controller

• Variable Temperature: 100°c – 121°c
• Variable Time: 1 – 99 minutes
• Preset Cycles:
  • 30 mins at 115°c
  • 15 mins at 121°c
  • 30 mins at 121°c
  • 60 mins at 115°c




The VARIO time and temperature control features four preset and one variable cycle. The variable cycle is stored in permanent memory so that it can be instantly recalled for the next use. The control shows a countdown of sterilisation time and current temperature at all times. Operation is very simple. The cycle temperature and time are selected by pressing either one of the four preset cycle buttons or the variable cycle button. If the variable cycle is chosen the temperature and time are then set to the values required. The Start button is then pressed and the unit automatically runs through the sterilisation cycle unattended. At the end of sterilisation an audible sound is given to allow the user to drain off the water, if the drying vacuum cycle is required. The unit then cools until it reaches a safe temperature for the contents to be removed, at which point another audible sound is given.

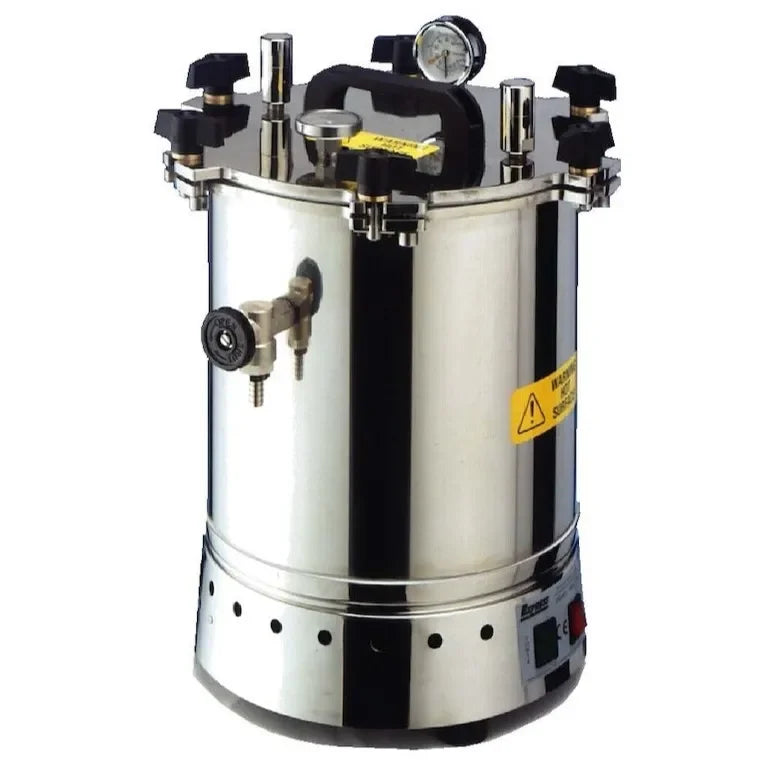

The VARIO is made from stainless steel with a polished exterior for easier cleaning. The lid is removable for full width access. Items to be sterilised can be placed in the inner liner provided with the machine. Alternately, Dressing Drums and Wire Mesh Baskets are available. The lid locking device is comprised of six wing nuts and six locking lugs. This ensures that the lid cannot be opened while the vessel is under pressure. After the sterilising period, a condensing vacuum is drawn to aid drying. This is particularly useful for dressings and drapes.

The VARIO is particularly suitable for destructive sterilisation. The operator is not restricted to a set sterilising period. This can be adjusted to suit the application.

The VARIO comes complete with:

• Inner Liner with Handles
• Easy to follow Users Manual
• Manufacturers Safety Test Certificate
• Manufacturers One Year Guarantee (this does not affect your statutory rights)

Certoclav EL vertical portable aluminium autoclaves are economical valve-controlled units for routine sterilisation tasks. They feature robust construction, two selectable temperature levels and simple operation.

• Aluminium pressure vessel (3103 alloy)
• Chamber volumes 12 or 18 L
• Two temperature ranges per version (115/121 °C or 125/140 °C)
• Precision thermometer and manometer with drag pointer
• Integrated heating plate and thermostat control

The economical end-to-end solution

For more than 60 years, the CertoClav EL has been our tried and tested economic autoclave end-to-end solution with valve control. A precision thermometer, a control valve, and a precision manometer with drag indicator provide precise processes and accurate results for all applications.

This model is available in two versions, each with two temperature levels. You can choose between 125/140 °C and 115/121 °C. These temperature settings are the controlled via the control valve on the lid. These valves are not interchangeable, because the thermostat of the device is harmonized and calibrated with the respective valve!

Important Features

• The original!
• robust construction
• 2 temperature levels
• simple operation
• high heating capacity
• venting by flow procedure
• precision thermometer
• precision manometer with drag pointer
• heating plate integrated into base
• thermostat controlled

Specifications and Accessories

The Astell Scientific Benchtop Autoclave Range are compact, self-contained steam sterilisers with chamber capacities of 33, 43 and 63 litres. They are designed for use in laboratories, dental, veterinary, medical, research and industrial settings where reliable benchtop sterilisation is required.

• Available in Classic (manual fill) and Ecofill (integral reservoir with water recirculation) versions
• 316 stainless-steel, electropolished chamber with base shelf
• Typical temperature range 100 °C to 138 °C (0.2–2.4 bar)
• Fully programmable 5.7" colour touchscreen controller with up to 50 cycles and USB data download
• No mains water supply or drain required – self-contained, plug-and-play installation
• Optimised for low water and power consumption
• Cooling lock, over-temperature protection and standard Astell safety features
• Timed / pulsed free steaming, holdwarm and delayed-start functions
• Validation port and pressure gauge as standard

Key Features

Here are notable features common across the range / in the specific variants:

Advantages:

• Relatively compact, benchtop footprint but substantial chamber size.
• No plumbing needed in most cases → easy installation.
• Good energy / water efficiency (especially the Ecofill and drying versions).
• Flexibility of cycles, data logging, safety and compliance.
• Drying options for wrapped/sterile packs.

Limitations:

• Classic / Ecofill models cannot effectively dry wrapped/pouched materials – need to use the Dry variant or external dryer.
• Not all variants are rated for handling Containment Level / Biosafety Level 3 (CL‑3 / BSL‑3) or complex waste unless optional filters / upgrades are added (Classic with CAT III filter etc). A
• Drying post‑sterilization may take additional time depending on load and wrapping.
• Higher cost for the drying / closed‑door drying versions.

Features

• 316 stainless steel electropolished chamber
• A choice of 33, 43 and 63 litre models
• Base shelf within the chamber
• Calibration and Validation available
• FDA 21 CFR part 11 software option available
• Cooling Lock
• Fast action door closure mechanism
• Five password levels to stop lower level users making changes
• Five pre-programmed cycles and up to 50 available
• Holdwarm / Delayed Start feature
• No mains water supply or drain necessary
• Optimised for low water and power consumption
• Over Temperature Protection
• Pressure Gauge
• Self contained design with no installation required - just fill it with water and plug it in and the machine is ready to be used
• Standard Astell safety features
• Temperature range of 100°C to 138°C (0.2 - 2.4 Bar)
• Timed/Pulsed Free Steaming
• Fully programmable 5.7" Colour Touch Screen controller
• USB interface for downloading controller data
• Validation Port

Prestige Medical T-Classic portable steam autoclaves designed as a cost-effective solution for sterilising solid loads, liquids and media in laboratories, clinics and teaching environments. Fully automatic with simple one-touch operation.

• Portable benchtop design
• Models for 9 L and 12 L chamber capacity
• Sterilising temperatures 121 °C or 126 °C (model dependent)
• External pressure and temperature gauges (gauged models)
• Integrated safety mechanisms to prevent opening under unsafe conditions

The T-Classic Lab line includes portable steam autoclaves designed as a cost-effective sterilization solution. Fully automatic with an easy one touch operation.

A professional, reliable, safe and affordable solution to sterilize solid loads, liquids and media, and eliminate the risk of cross infection through contaminated waste.

A controlled cycle profile ensures that, when used in schools, the media used by students in experiments will have real validity.

In a research setting, T-Classic Lab line offers a convenient and personalized solution to media sterilization and a flexible alternative to larger autoclaves and central sterilization centers.
