Astell Classic Fill Laboratory Sterilising Benchtop Autoclaves AMB430 43l

The Astell range of Laboratory Sterilising Autoclaves are ideal for cleaning, sterilising and drying a wide range of laboratory glassware, plastic receptacles, containers, petri dishes, un-wrapped instruments, media, and other items.

The pressure vessel design ensures the absolute minimum amount of water is used during a sterilization cycle, which not only means comparably low power consumption, but also very quick heating and cooling.

• 316 stainless steel electropolished chamber
• 43 litre capacity
• Base shelf within the chamber
• Cooling Lock
• Fast action door closure mechanism
• Five password levels to stop lower level users making changes
• Five pre-programmed cycles and up to 50 available
• Holdwarm / Delayed Start feature
• No mains water supply or drain necessary
• Optimised for low water and power consumption
• Over Temperature Protection
• Pressure Gauge
• Self contained design with no installation required - just fill it with water and plug it in and the machine is ready to be used
• Standard Astell safety features
• Temperature range of 100°C to 138°C (0.2 - 2.4 Bar)
• Timed/Pulsed Free Steaming
• Fully programmable 5.7" Colour Touch Screen controller
• USB interface for downloading controller data
• Validation Port

•  Standard single phase

It's suitable for sterilising exposed medical devices, conventional metal and glass packs, surgical gowns, dressing packs, cotton cloth, masks, etc. It's used by medical, health and scientific research units for sterilising medical devices and materials that may contact blood or body fluids in places like stomatology, ophthalmology, operating rooms, beauty institutions, pet hospitals, tattoo stores and community service stations.

• High security ensured by extensive safety devices
• 4″ touch-button TFT screen, intuitive and easy to operate
• Adopting a new type of steam generator, high-efficiency heat exchange provides saturated steam for rapid and efficient sterilisation
• Triple protection of temperature, pressure monitoring electronic lock, and mechanical safety device; automatically release pressure when overpressure and over-temperature
• Innovative vacuum forced cooling system and negative pressure blower drying system rapidly complete sterilisation, greatly shortening the sterilisation time and improve the drying effect
• Optional intelligent IoT
• Eight safety protections: over-temperature, over-pressure, leakage, over-current, anti-dry burning, door lock safety, sensor disconnection, door status protection
• Status of each component on the touch screen is intuitively displayed, and the program process is monitored and displayed in real time for clear visibility
• Occupies little space, is easy to install and can sterilise in a narrow space, the design is novel and won the German Industrial Design Award
• Adopting a highly efficient steam generator with high heat exchange efficiency and large gas production to meet the requirements of the steriliser for rapid temperature rise and rapid sterilisation

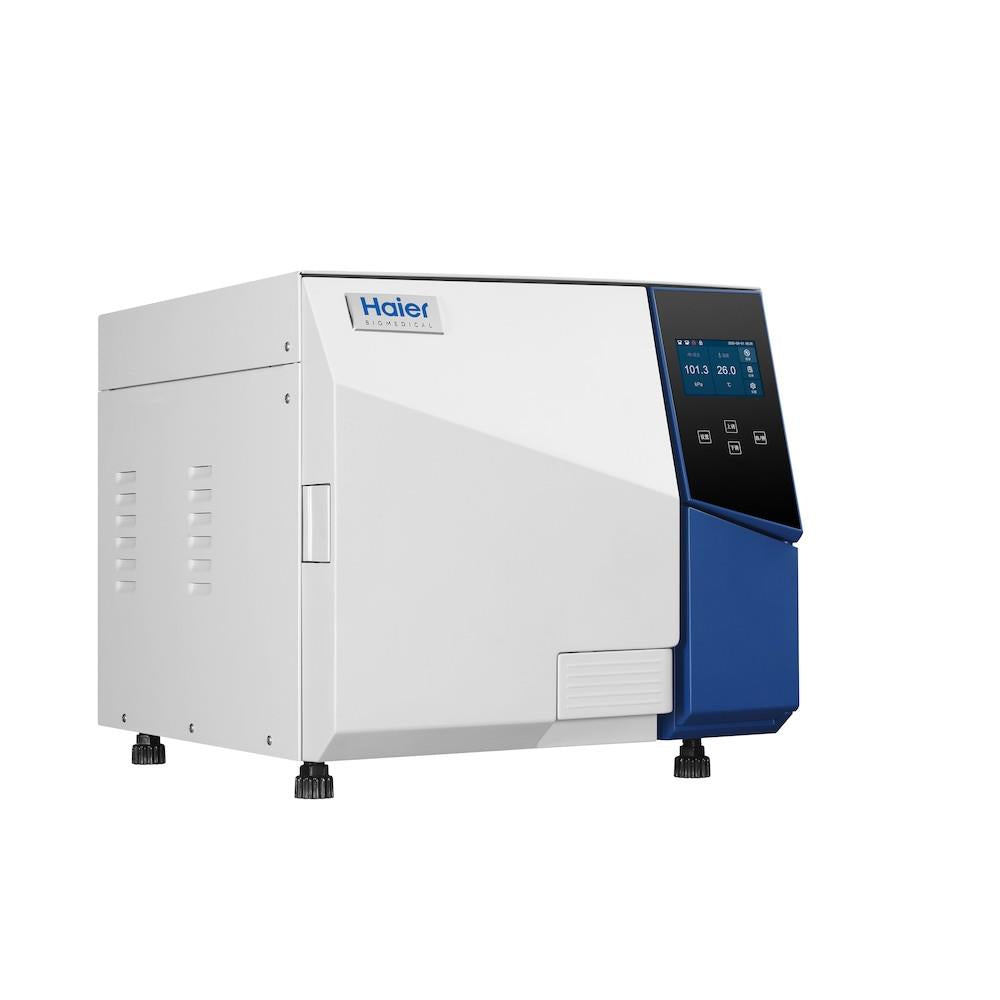

Horizontal automatic autoclave

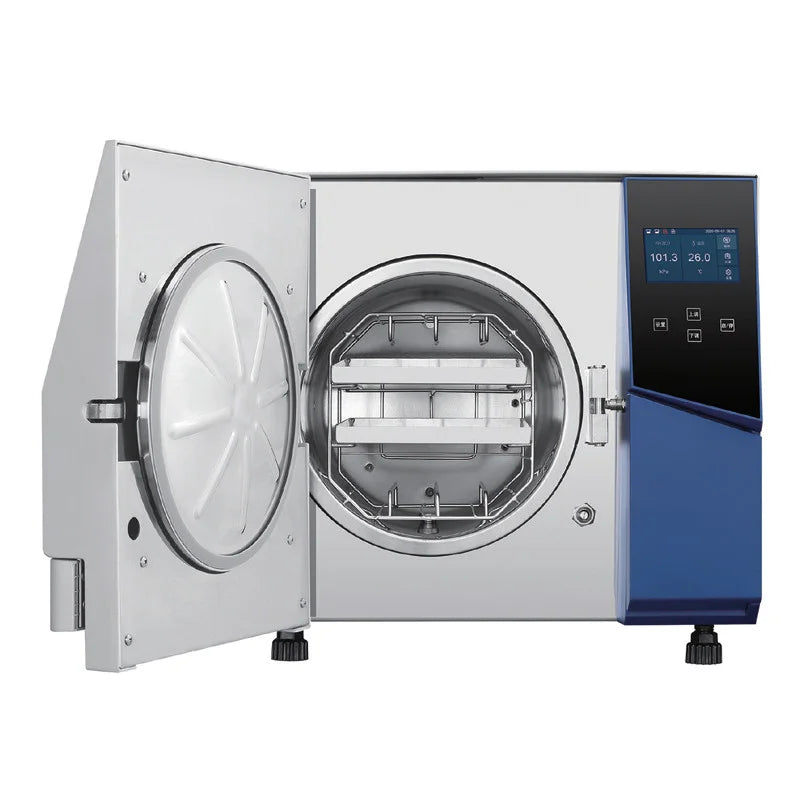

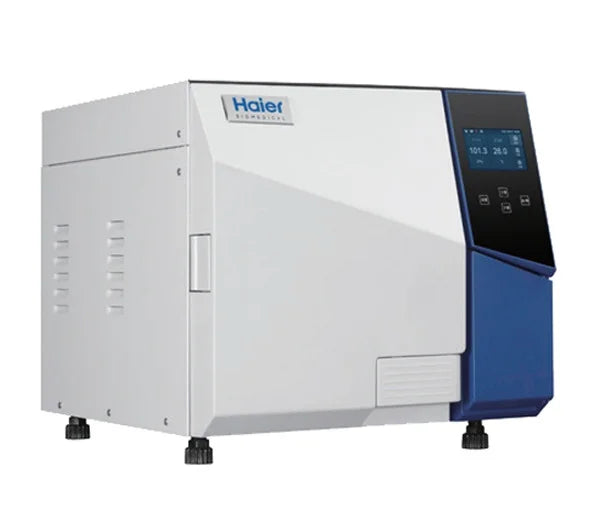

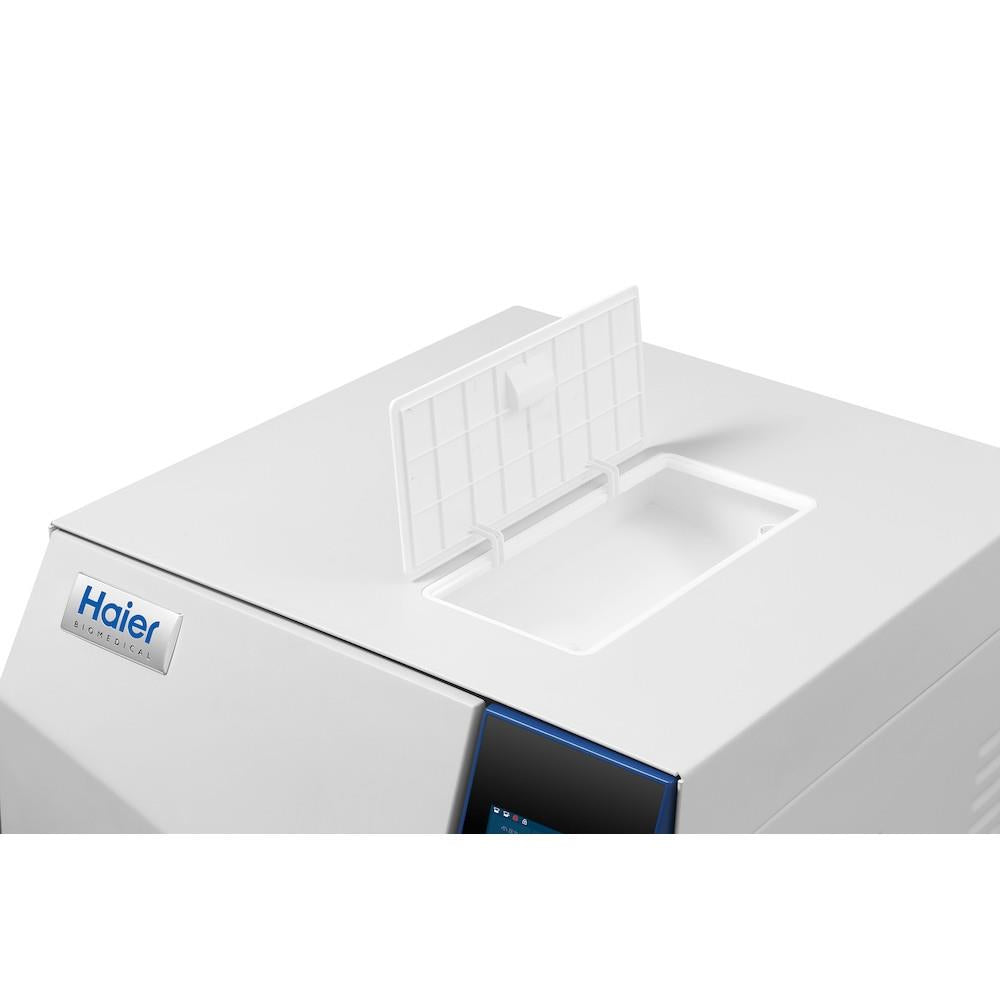

Tabletop, horizontal automatic autoclaves Haier Biomedical HRTM-18 are used for sterilization of instruments and materials.

Key benefits:

• The vacuum forced cooling system and pressure jet drying system ensure rapid sterilization, greatly reducing sterilization time and improving the drying effect.
• Highly efficient vacuum pump.
• High level of safety: automatic protection against overheating, overcurrent, voltage surges and current leakage, protection against operation with an empty water tank, sensor failure detection, protective safety lock on the door, full protection of the heat-insulated door.
• Convenient 4-inch touch LCD display.
• The autoclave operating parameters can be controlled via an application on a mobile phone (optional).
• Programmable operating modes.
• Highly efficient steam generator of the new generation.
• The cooking chamber is a one-piece 304 stainless steel construction with rounded corners for easy cleaning.
• The water storage tank is equipped with a water level indicator and alarms that trigger when the water level is low or high. The amount of water in the tank is sufficient for one sterilization.

Technical specifications:

• Model: HRTM-18
• Type: Horizontal programmable tabletop automatic autoclave
• Volume: 18 l
• Internal dimensions (Diameter x Height): 247 x 350 mm
• External dimensions (W x D x H): 490x600x455 mm
• Package dimensions (Diameter x Height): 555x675x510 mm
• Net/gross weight: 47/56 kg
• Sterilization chamber material: 304 stainless steel (option: 316 stainless steel)
• External surface material: Cold rolled steel with coating
• Power: 2.8 kW
• Power supply: 220-240V~50/60Hz
• Current consumption: 13.0 A
• Temperature fluctuation: 0~4℃
• Temperature uniformity: < 2±0.1℃
• Rated operating temperature: 150℃
• Temperature range, °C: 115-134℃
• Design pressure: 0.28 MPa
• Nominal working pressure: 0.22 MPa
• Dynamic Pulse Expiration Time: 0-9 (user settable)
• Sterilization time range: 0-999min
• Noise level: ≤65 dB(A)
• Temperature sensor: PT100
• Ambient temperature range: 5-40℃
• Water tank capacity: 2.6 L
• Shelf dimensions (WxD): 281x183 mm
• Number of shelves standard/maximum: 3/5 pcs.
• Printer: Option
• Controller: Automatic control, PID controller
• Display: 4-inch TFT screen
• USB interface: +
• Service life: 8 years
• Certificates: CE

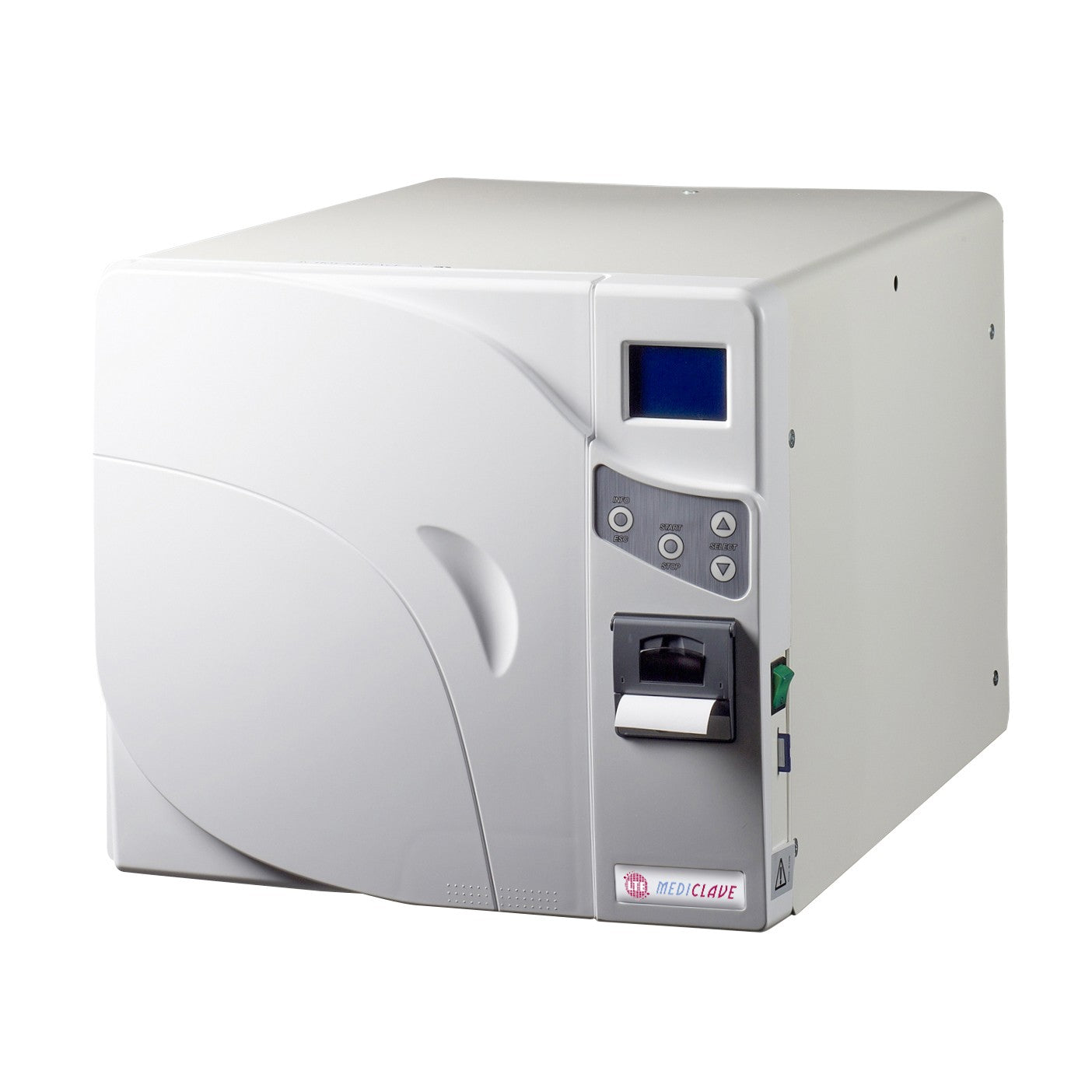

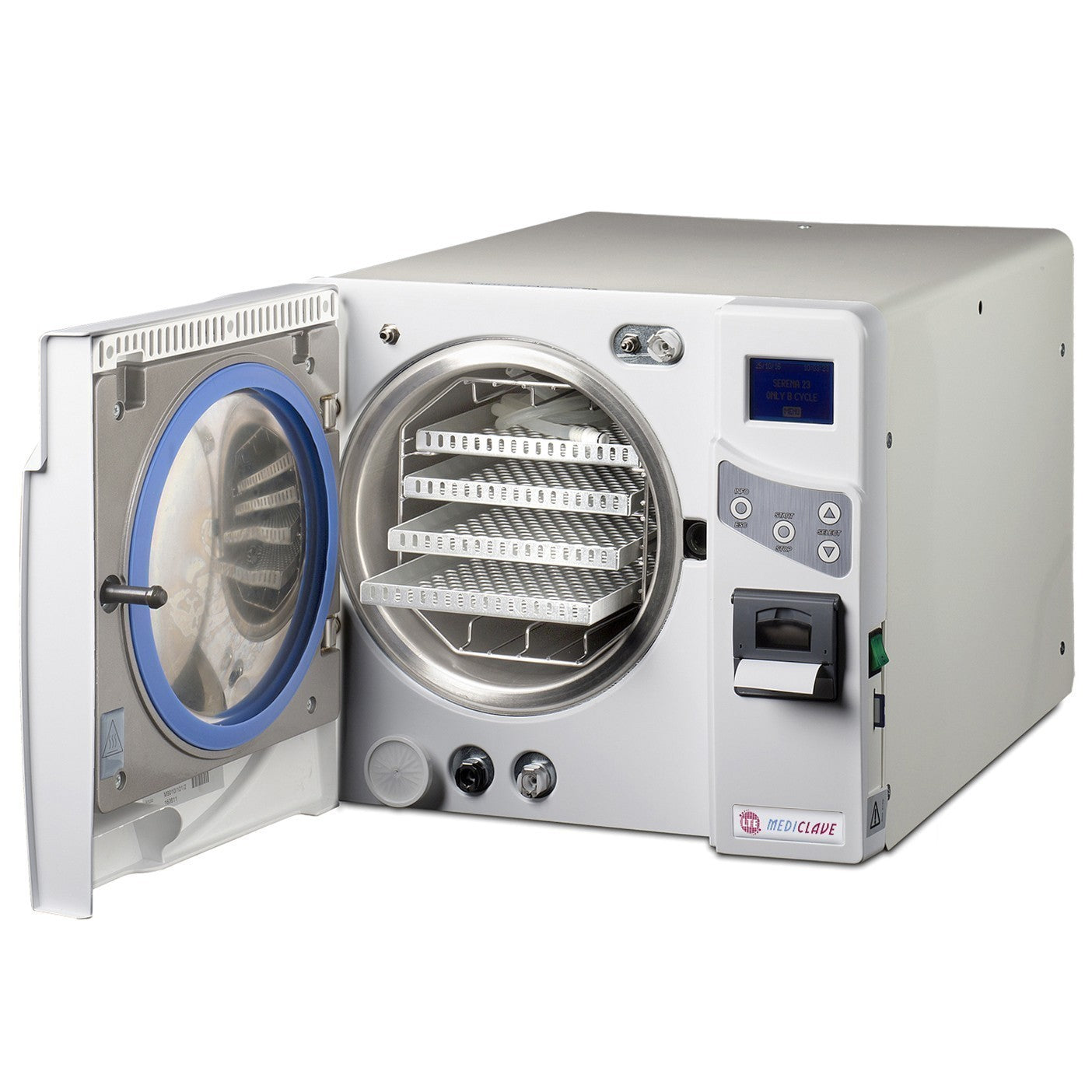

LTE Mediclave B-Class laboratory autoclave for sterilisation of instruments, media and labware. For detailed specifications (chamber volume, cycle options, temperatures and approvals), refer to the original manufacturer or Wolflabs datasheet.

The all new Mediclave is a versatile and comprehensively equipped small capacity sterilizer, specifically geared to the dental, chiropody, surgical, and veterinary markets.

The Mediclave medical autoclave is a Class B sterilizer that incorporates a number of features designed to optimise performance and reliability, available in 18 and 23 Litres capacities.

With its small footprint the Mediclave is ideal for Benchtop sterilisation and particularly for areas with limited space. Complete with a flexible control panel offering pre-set and user configurable cycles and fast processing times, the Mediclave offers an affordable solution for low to moderate levels of sterilisation.

Fully compliant with all current directives including:
• Medical Devices Directive 93/42/EC
• Small Steam Sterilizers Directive EN13060
• Pressure Vessel Directive 2014/68/UE
• CEI Directives EN 61326-1, EN 61010-1 and EN 61010-2-40.

Autoclave Capacities: 18 and 23 litres
Classes Available: B Class
Loading: Front
Temperatures: 121 – 134°C

	Steam is generated quickly, helping to reduce overall cycle times. There are no heaters in the bottom of the chamber ensuring that the chamber is clean and unencumbered at all times. This in turn helps to reduce the risk of cross-contamination
All Mediclave autoclaves are constructed with a one-piece cylindrical steel pressure vessel, made from high grade 304L stainless steel making these the strongest pressure vessel by providing equal pressure around the whole chamber.
	Our B Class Mediclaves are fitted with vacuum pumps to aid with air removal, ensuring that the steam can penetrate deep into the load and not be effected by air pockets. Vacuum also assists with the cooling phase by helping to dissipate heat from the load.
A range of pre-set and user configurable cycles are available onto each model. All cycle data, status and messages are clearly displayed on an LCD screen. An audible alarm will alert you to any cycle abnormality.
	Mediclave autoclaves are fitted with integral clean water and waste tanks. Each tank has sensors to alert you when empty or full. Both tanks have quick connections for easy filling and draining, and they can, if desired be permanently connected to a water supply and drain.

Get peace of mind with the T-Edge autoclave.

This space-saving, fully automatic tabletop autoclave gives you high speed Class B performance saving you time so you can assist your patients, while meeting current international standards and regulatory requirements to protect your staff and patients.

The T-Edge10|11 autoclaves will operate without interruption on a daily basis, offering efficiency and safety.

Additional information

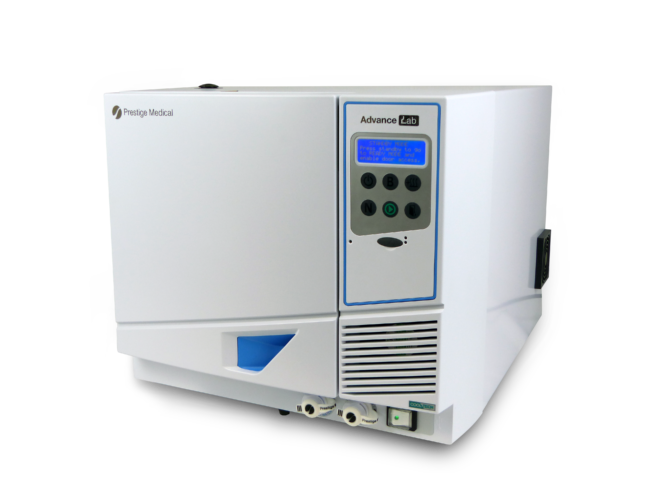

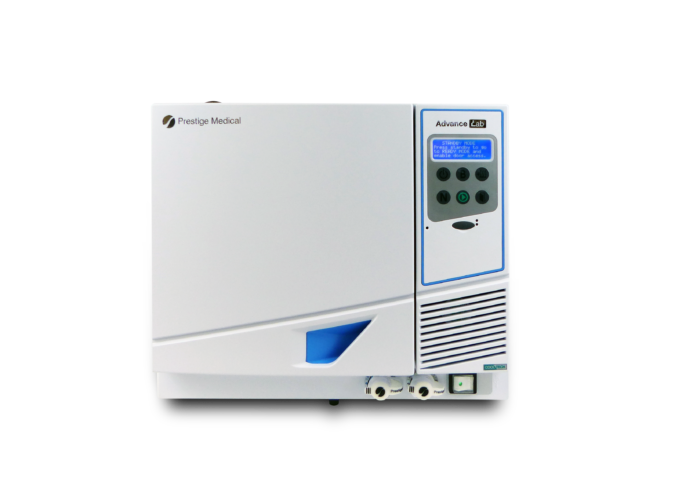

The Advance Lab has been specifically designed and developed for the laboratory market for the application of sterilising liquid media loads.

The Advance Lab is a 22 litre capacity autoclave designed specifically for the Laboratory market, and can be used to sterize liquid media loads as well as both standard apparatus or instruments.

The Advance Lab autoclave has been designed to be robust and easy to maintain with a unique low cost external media probe, which has been designed to be a consumable item allowing it to be easily replaced by the end user.

The visual status indicator is an illuminated strip integrated within the door assembly. This unique system enables the operator to visually see the sterilization cycle progress.

By utilising the specifically designed stainless steel media tray the Advance Lab can take a multitude of flask/media flask combination loads.

Media cycle: The Advance Lab has 4 pre-programmed media cycles for you to select depending on your sterilization requirements.

The average cycle time for a 2000ml liquid media load is 80 minutes. * Subject to start temperatures and media container types.

Instrument cycle: The Advance Lab has 7 pre-programmed instrument cycles for you to select depending on the instruments/apparatus you are sterilising.

Overview

• Remote media temperature probe
• Media warming function
• 22 litre chamber capacity / Small Footprint
• Unique FlexiRack tray and load management system
• High quality stainless steel media tray with cool touch silicone handle
• High performance cooling system for faster cycle times.
• Unique FlexiRack tray and load management system
• Clear, backlit LCD display with simple user friendly 6 push button control system
• Integrated data logger
• Remote water feed for direct connection to a suitable R.O system
• Remote waste water connection for direct drain applications
• New easy fit door seal system
• Protective mat for ease of tray storage

Specification

• Chamber Capacity: 22 Litres
• Max Instrument Length: 450mm
• Width: 480mm
• Height: 410mm
• Depth: 610mm
• Max Net Weight: 43.5kg
• Chamber Diameter: 250mm
• Chamber Length: 470mm (MAX)
• Operating Pressure: 2.05 Bar (Gauge)
• Voltage/ Wattage: 230V/ 2200W
• Frequency: 50Hz - 60Hz

T Top Class B Autoclave 22 Litre Capacity:

• 22 litre capacity unit that still fits onto a standard bench top! Which means that there can be greater instrument processing throughput and reduced downtime.
• 5 tray capacity capable of sterilizing up to 3.6kg of pouched load. The total cycle time inclusive of drying for a 2kg load is 42 minutes.
• Full WiFi connectivity to help with fault diagnosis and provide preventative maintenance through ‘T Connect’. Engineer has a live view of the autoclave, which can save time if there is an error code which can be cleared remotely. (further information below)

Description

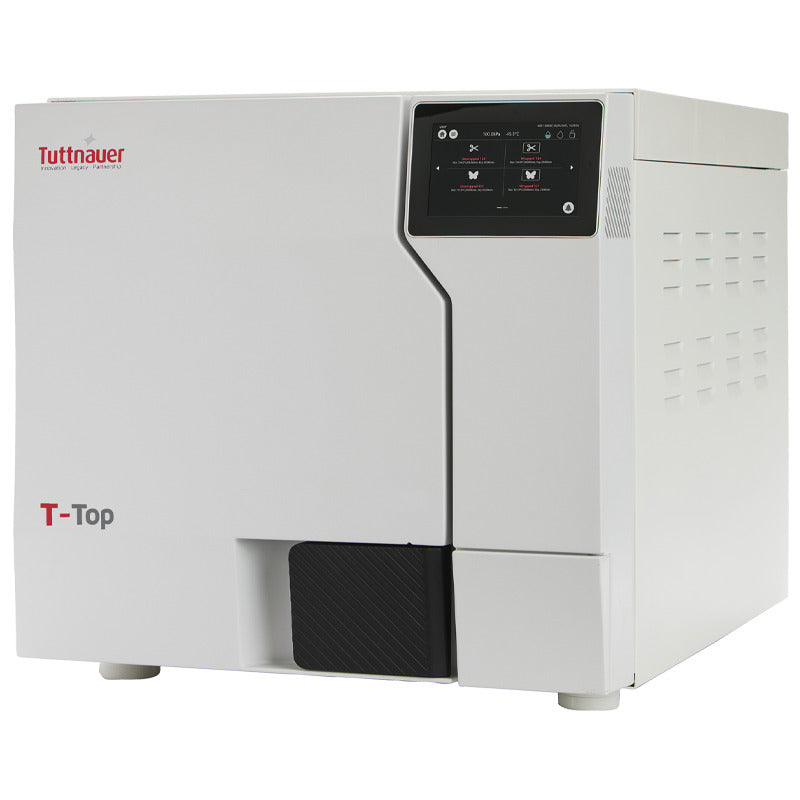

Tuttnauer T-Top Autoclave

T Top Class B Autoclave 22 Litre Capacity:

• 22 litre capacity unit that still fits onto a standard bench top! Which means that there can be greater instrument processing throughput and reduced downtime.
• 5 tray capacity capable of sterilizing up to 3.6kg of pouched load. The total cycle time inclusive of drying for a 2kg load is 42 minutes.
• Easy to use, touch screen interface for cycle selection, cycle status and data download.
• Full WiFi connectivity to help with fault diagnosis and provide preventative maintenance through ‘T Connect’. Engineer has a live view of the autoclave, which can save time if there is an error code which can be cleared remotely. (further information below)

Features

•  Built in memory (up to 500 cycles).
•  High-resolution touchscreen.
•  Connectivity to R.PC.R.
• The device is Wi-Fi compatible enabling remote tracking and monitoring
• via the T-Connect software
•  2 USB ports
• Chamber volume 22 liters (Stainless steel)
•  Working pressure 15 to 335 kpa / 2.17 to 48.5 psi.
•  Sterilization temp. range 121 ºC/249.8 ºF to 134 ºC/273.2 ºF (according to the sterilization program).
• Safety feature prevents premature opening of the door.

Graphic User Interface (GUI)

The control system is operated via a large color touchscreen, allowing the user to easily operate the autoclave, navigate through the menus, and select programs.
It is password protected to prevent unauthorized access. The system offers customizable access levels, with access controlled for the following functions:
Running test cycles, setting parameters, performing calibration, performing service and maintenance, selecting cycles, starting cycles, and controlling the door.
Further characteristics of the GUI include:

• Quick access to important information.
•  Built-in view of historical cycle data.
• Graphical display of temperature graphs.
•  Display of the following:
• Temperature in the chamber.
•  Door status.
• Sterilization time countdown.
• Autoclave status: Standby, Ready, Air Removal, Pre-Vacuum, Heating, Sterilization, Exhaust, Air Inlet, Cycle Ended

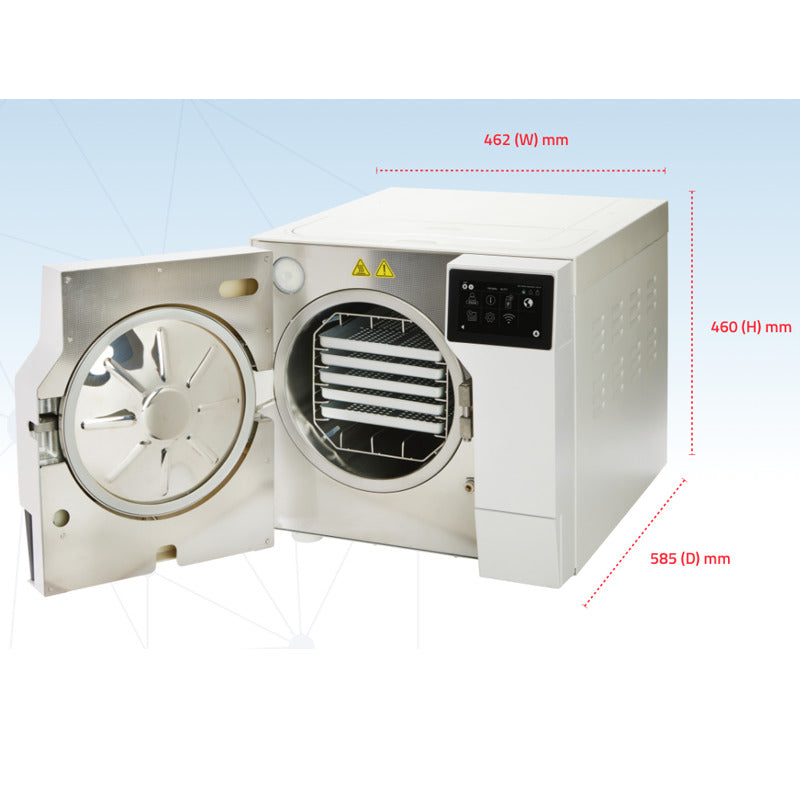

Technical Specifications

• Chamber Ø x D 249 Ø x 450 mm
• External dimensions WxHxD 462x460x585 mm
• Shipping WxHxD 620x540x735 mm
• Weight 45 Kg
• Chamber volume 22 litre
• Water tank volume 3.6 litre
• Waste water tank volume 3.75 litre

Loading Capacities

• Maximum Solid load T-Top 10″
• Unwrapped 6 kg
• Wrapped 3.6 kg
• Textile 1.5 kg

T-CONNECT

• Monitor the devices remotely and download device data
• Connectivity by PC, tablet and smartphone
• Remotely monitor cycle history, notifications, alerts, can be downloaded remotely or saved in the cloud
• Technicians and service centers can remotely analyze autoclaves, diagnose and resolve problems
• Suggestions on how to resolve the problem (video/instructions)
• Automatic replenishment of consumables, remote diagnostics
• Data is safe
• Easy to use
• View the T-Connect brochure here for more information

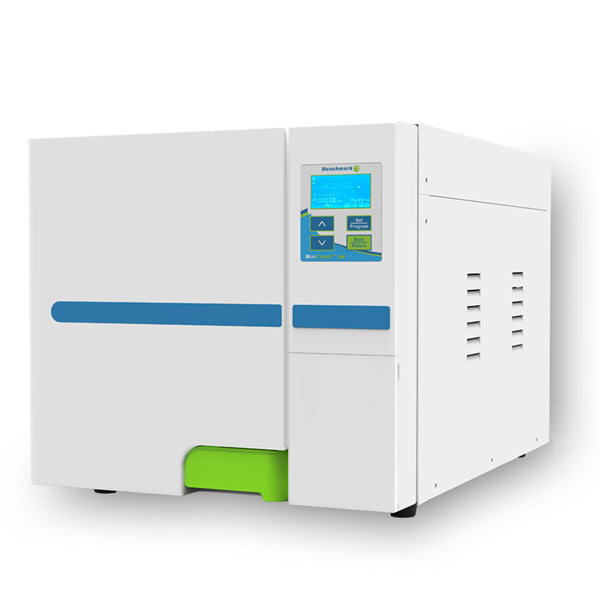

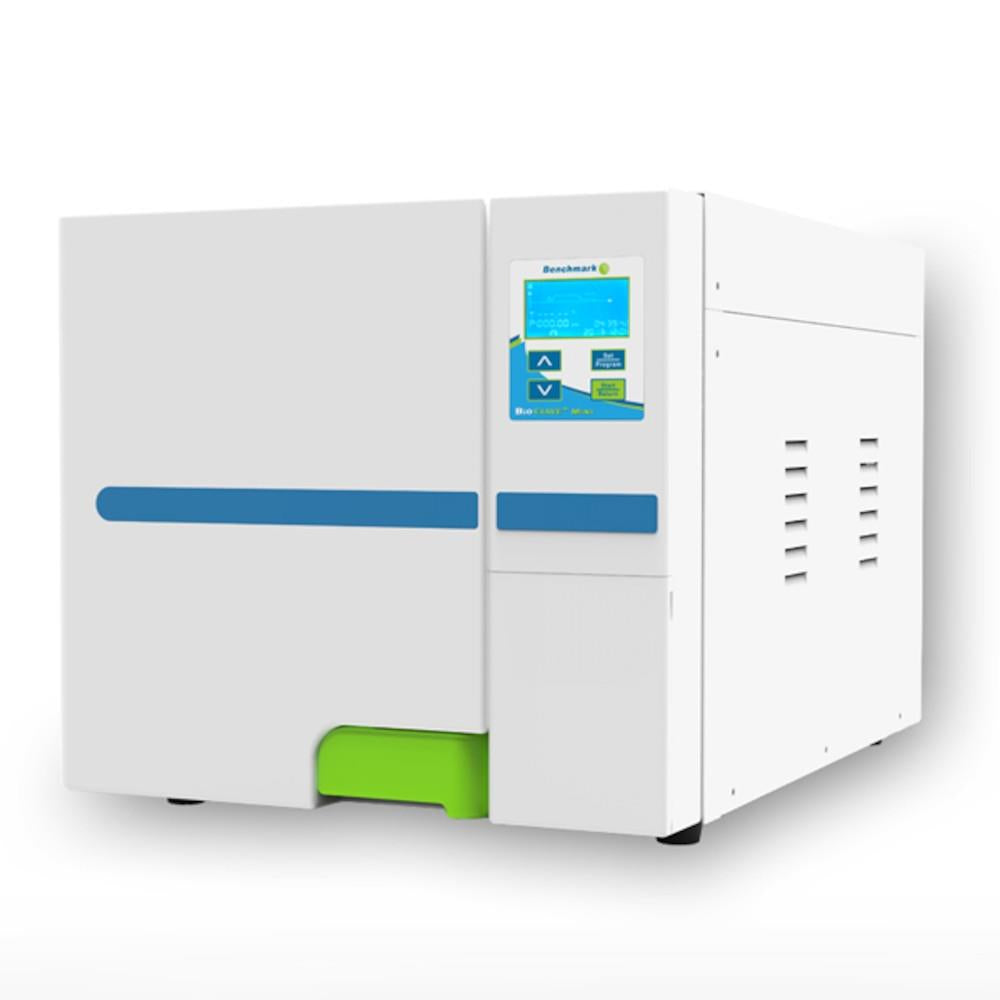

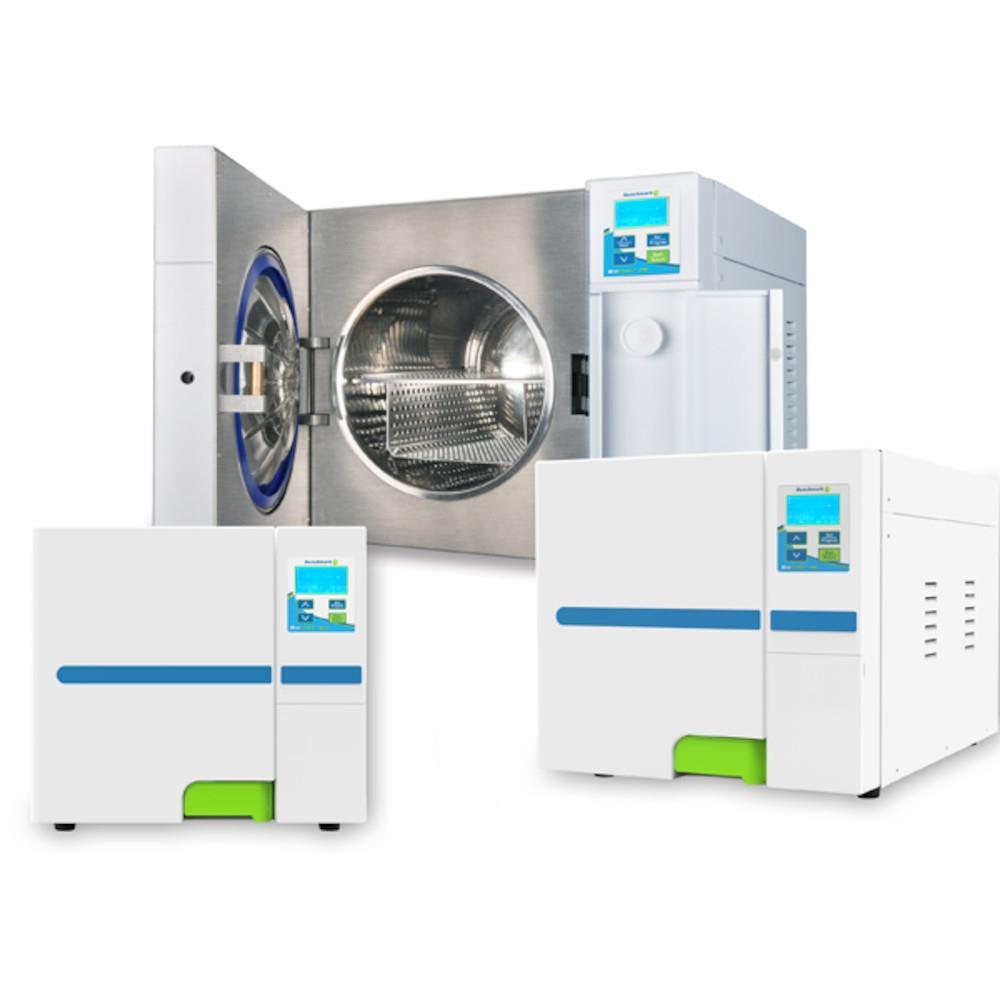

Despite the space-saving exterior dimensions of the BioClaves, the stainless steel chambers are surprisingly large, accommodating a variety of liquids, media, instruments, glassware, plasticware, and other common research laboratory items. Available in 8L, 18L, and 28L chamber volumes, these benchtop models include a mechanical and electrical safety interlock that prevents the door from being opened until the pressure has reached zero PSI. With a large digital LCD display and fully automatic operation, all segments of the cycle (fill, sterilise, exhaust, and dry) commence and run to completion by simply pressing the start button. An optional thermal mini-printer is also available for providing a record of sterilisation parameters and a USB drive can be used to record settings and transfer them to a PC.

The 8L BioClave Mini is preprogrammed to meet basic sterilisation needs. Temperature can be selected at either 121 or 134°C, and the sterilisation time is fully adjustable. The economical BioClave Mini is the ideal choice wherever benchtop sterilisation is required and space is limited. The BioClave 18L and 28L models offer pre-set cycle options (standard programs), for use with liquids, wrapped research instruments, or unwrapped instruments/plasticware. An additional option “Dry Only” is also available for additional drying time to be added to the end of a cycle. For special applications, requiring variations in cycle parameters, all settings are fully adjustable. The BioClave 28L features an increased chamber size with a diameter of 32cm. With this larger internal chamber, the BioClave 28 is capable of sterilising 1 and 2L flasks (and bottles). Despite the increased chamber size, the unit is still relatively compact, suitable for benchtop use.

• Designed specifically for the sterilisation of laboratory research tools
• Fully automatic operation - just press start
• Built in water tank - no external connection needed
• All models small enough for benchtop use

Prestige Medical Classic 2100 Standard – 9 litre. The most cost effective sterilisation solution with a wide choice of models and accessories that are guaranteed to meet your needs.
