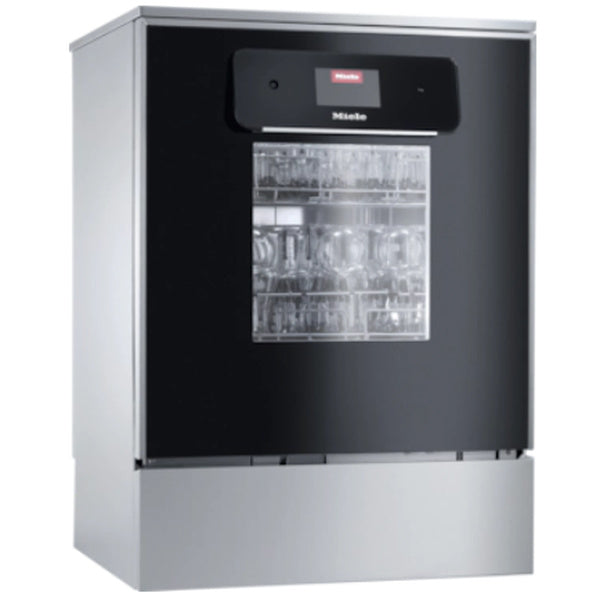

Miele PLW 8683 GD LD DS10 laboratory dishwasher
The Miele laboratory washer is characterised by its high performance and versatile suitability for demanding cleaning processes in the laboratory. Thanks to efficient and gentle wash programmes, it guarantees residue-free reprocessing even with large quantities of delicate glassware. Compared to other laboratory dishwashers, this appliance impresses with its flexible loading option, the integrated EcoDry function and the innovative EasyLoad system to increase both effectiveness and safety in daily use.
Highest cleaning performance and flexibility
In modern laboratories, versatile rinsing solutions are indispensable for efficiently and safely reprocessing a wide variety of laboratory glassware formats. This device offers capacities for up to 128 laboratory bottles per loading cycle or 98 pipettes, so that large sample volumes can be processed quickly even in busy laboratory environments. Thanks to the modular load carriers, loading can be optimised, while the EasyLoad system ensures the glassware is positioned correctly and quickly.
Another plus point is the powerful, variable-speed heating pump, which adjusts the rinsing pressure in different programme phases. On the one hand, this ensures thorough removal of stubborn soiling, while low pressure enables complete wetting of the wash ware. This saves water and energy without compromising on cleaning performance. Another remarkable feature is the AutoOpen function, which automatically opens the door at the end of the programme as soon as the temperature in the wash cabinet is lowered. This allows any residual moisture to escape and reduces the drying time.
Technical details at a glance
- Design: freestanding appliance, suitable for under-worktop installation
- Capacity: Up to 128 laboratory bottles or 98 pipettes per cycle
- Control: M Touch Flex with start time preselection and remaining time display
- Programmes: 19 predefined programmes plus 10 freely assignable programme slots
- Pump capacity: Qmax 500 l/minute for powerful cleaning
- Maximum rinse temperature: 93 °C for hygienic reprocessing
- Interfaces: WLAN ex works, Ethernet as an option
The robust workmanship with a wash cabinet made of high-quality stainless steel and carefully welded seams supports the longevity of the appliance. Integrated water softening effectively prevents limescale deposits. Cold, hot and demineralised water can also be fed in for optimum adaptation to a wide range of water supply requirements.
Certifications and standards
The appliance sets standards in terms of safety and quality: it complies with DIN EN 61010-1 and EN 61010-2-040 as well as the RoHS Directive 2011/65/EU. This ensures that all relevant standards for laboratory devices and their electrical safety are complied with. The IP protection class in accordance with EN 60529: IP21 makes it clear that the device is effectively protected against the ingress of foreign bodies and dripping water.
Concrete application examples
- Research laboratories: Residue-free cleaning of test tubes, vials and flasks is essential for reproducible results in chemical, biological and pharmaceutical research.
- Quality assurance in the food industry: laboratory glassware, pipettes and measuring instruments can be reprocessed simultaneously thanks to suitable programmes for standard soiling, oil residues and plastics.
- Medicine development: Sensitive materials such as glass or plastic benefit from the gentle yet thorough cleaning of various programmes.
- Universities and educational institutions: For internships and laboratory courses, the swift availability of spotless glassware is crucial in order to offer as many test series as possible.
FAQs
How can loading be optimised
?
The load carriers have a modular design. Additional modules and inserts make it easy to combine different laboratory glassware. The EasyLoad system also makes it easier to fit sensitive narrow-necked glassware.
Which water qualities can be used
Connections for cold, hot and demineralised water are available. An integrated water softener prevents limescale formation in cold and hot water, while demineralised demineralised water is suitable for particularly high-quality or sensitive wash items.
How is the drying process supported?
The EcoDry function opens the door automatically at the end of the programme. As the temperature in the interior is lowered, the residual moisture can escape quickly and the wash ware is dried reliably.
Which soiling is particularly easy to remove
Due to the variable-speed heating pump and the coordinated programmes, both light soiling from cell cultures and stubborn deposits from oils or grease can be thoroughly removed.
Is it possible to document the rinsing process?
Yes, the appliance comes with a WLAN module ex works for seamless documentation. There is also the option to connect to external process documentation software or network printers.
Conclusion
This laboratory washer combines professional cleaning performance with a well thought-out design and flexible adaptation to different applications. Whether in research laboratories, educational institutions or industrial companies: It impresses with its high capacity, ladder frame inserts for laboratory-specific glassware shapes and an extensive programme selection. Features such as the variable-speed heating pump and the EcoDry concept not only improve the cleaning result, but also offer economic benefits in terms of water and energy consumption. This provides an appliance that fulfils the high requirements of modern laboratory workstations in terms of reproducibility, safety and efficiency.
| Effective for: | glass |
| Filter: | multi-component filter system |
| Power (cleaning equipment): | 9,3 kW |
| Standards (cleaning equipment): | EN 60529: IP21EN 61010-1EN 61010-2-040RoHS Directive 2011/65/EUVDE mark (electrical safety) |
| Type Dust Extractors, Cleaning Devices: | Lab washercleaning and disinfecting machine |
| Shipping weight: | 89,00 Kg |
| Product weight: | 80,00 Kg |
| Dimensions: | × × cm |
