Colon Fiberscopy

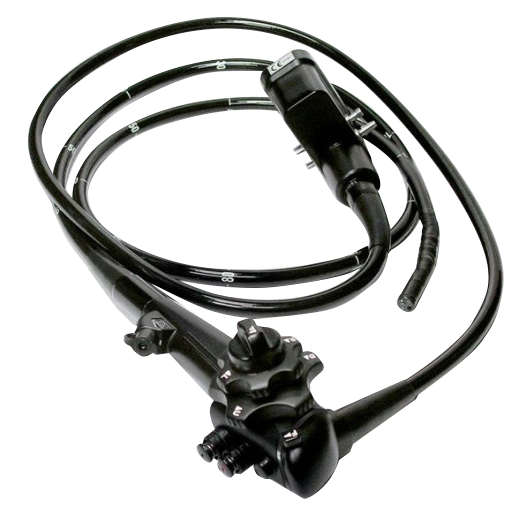

Pentax (HOYA) FC-38LV Colon Fiberscope
The Pentax (HOYA) FC-38LV is a fibre-optic colon fiberscope intended for flexible endoscopy and lower gastrointestinal examination workflows. It is positioned for routine colonoscopy and related diagnostic or therapeutic use where a long insertion tube, wide instrument channel and practical scope handling are required.
Key Features
- Fibre-optic colonoscope for lower gastrointestinal examinations and routine colonoscopy workflows.
- Long insertion tube design for extended diagnostic and procedural reach.
- Water and air supply channel supports flushing of the distal lens during procedures.
- Wide 3.8 mm instrument channel supports broader therapeutic possibilities.
- Distal bending capability supports navigation and observation through the colon.
- Ergonomic control handle designed for practical clinical handling.
Technical Specifications
| Field of view | 120 degrees |
|---|---|
| Depth of field | 3 - 100 mm |
| Diopter adjustment | +2D to -8D |
| Distal end bending | Up/down 180/180 degrees; right/left 160/160 degrees |
| Distal end diameter | 13.4 mm |
| Insertion tube diameter | 12.8 mm |
| Working channel diameter | 3.8 mm |
| Insertion tube working length | 1700 mm |
| Overall length | 2015 mm |
Standard Equipment
- FC-38LV colon fiberscope
- Biopsy forceps with window
- Cleaning brush
- Suction-cylinder cleaning brush
- Channel plug
- Suction valve
- Air/water valve
- Carrying/storage case
Ordering Information
Supply scope, accessories, compatibility requirements, processor/light-source requirements and clinical configuration should be confirmed before ordering. Nass Ventures can support quotation, procurement, export coordination, installation planning and after-sales support depending on the final package requested.
Overview
The SonoScape EC-650 Series is a colonoscope series for gastroenterology endoscopy. The manufacturer page presents the EC-650 series as Colonoscopes and highlights wide-view colonoscopy, improved handling and insertion-support technologies for lower gastrointestinal work.
Key Features
- Wide field of view: 170° field of view expands the observation range at intestinal bends and reduces visual blind spots.
- Slim outer diameter: slimmer outer design intended to reduce insertion difficulty and improve diagnosis and treatment efficiency.
- CAST technology: integrates multiple insertion technologies, including alterable tubing stiffness, receptive bending section and precise force transmission.
- Enhanced grip: lightweight, slim design with optimized control-button layout to reduce fatigue and discomfort from long-time endoscope operation.
- Effective instrument channel: designed for smoother instrument operation during diagnosis and treatment.
- Auxiliary water supply: water jet aligned with the instrument channel to improve flushing efficiency during endoscopic procedures.
Typical Applications
- Lower gastrointestinal diagnostic endoscopy
- Hospital and clinic colonoscopy services
- Endoscopy suite upgrades requiring SonoScape-compatible colonoscope configurations
Configuration Notes
Exact model options, processor compatibility, channel dimensions, insertion-tube specifications and accessory requirements should be confirmed before procurement.
Ordering Information
This product is supplied as a configurable medical endoscopy solution. Final quotation should confirm the exact scope model, compatible SonoScape processor/light source, trolley or monitor requirements, accessories, installation requirements, warranty terms and country-specific regulatory documentation.
Supply and Delivery
- Available for hospital, clinic and specialist gastroenterology procurement projects.
- Configuration, accessories, training and after-sales support can be quoted according to project requirements.
- For Africa and international supply, Nass Ventures can support sourcing, documentation, shipping coordination and commissioning planning.
Please confirm final clinical configuration and compatibility before ordering.
