Colposcope
Modern technologies make time-tested examination methods simpler and more efficient. Colposcopy allows for a much more effective examination of vaginal and cervical tissue than a standard gynecological examination. It allows for an assessment of the overall condition of the mucosa, the detection of malignant and benign tumors, and the collection of smears and biopsies. Colposcopy is recommended in a number of cases, including pregnancy, preventive medical examinations, and suspected cervical cancer. Colposcopy is a painless procedure that takes less than an hour.
A colposcope is a high-quality microscope placed in front of the vagina during examination. A distinction is made between binocular and video colposcopes. The latter are currently gaining popularity, as they offer specialists new capabilities compared to traditional binocular colposcopes. A video colposcope allows for comfortable viewing of images on a computer screen, simultaneous examination by several specialists, display of examination results to the patient, saving photo and video files for further processing, maintaining patient databases, and much more.
Until recently, video colposcopes were considered to provide inferior images compared to traditional colposcopes. However, advances in image transmission and processing technologies have erased this distinction. Modern video colposcopes produce images comparable in quality to high-end binoculars.
Excellent diagnostic capabilities

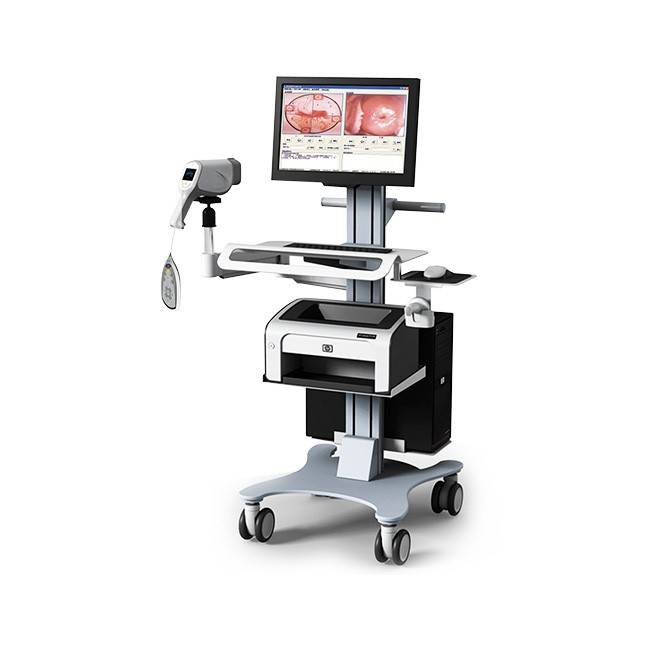

The Kernel KN-2200A new video colposcope, equipped with a modern Japanese Sony camera, produces high-quality images with natural color rendition and optical magnification up to 10x and digital magnification up to 264x. The KN-2200 A New uses white LEDs as a light source, providing illumination up to 1200 lux and a color temperature as close as possible to daylight, without overheating or drying out the work area. The focus can be adjusted automatically or manually.
Modern design and ergonomics
The modern and ergonomic design of the KN-2200A new colposcope deserves special mention. Kernel engineers meticulously designed the device's interface, ensuring its controls are easily accessible for any operation. Operation is via the control panel on the colposcope itself, a remote control, and a foot pedal.
The device's modern design is eye-catching and blends seamlessly into any interior. Also noteworthy is the stand for the colposcope, computer, monitor, and printer. The compact metal structure is equipped with wheels for easy and convenient movement.
Comprehensive software functionality
The software in English provides:
- receiving and storing images and videos;
- highlighting the required areas;
- the ability to enlarge images (including partial ones);
- image comparison;
- maintaining a patient database;
- printout of results.
The Kernel KN-2200 A new software also includes a built-in colposcopic atlas with over 170 photographs, allowing for the confident differentiation of various features and pathologies.
Key features & surgeon benefits
High-Resolution CCD Technology
- 1/4″ colorful digital CCD camera with 550 TV lines resolution
- True color reproduction for accurate tissue visualization
- Exceptional clarity for detecting subtle cervical abnormalities
Adjustable Super Cold LED Light
- Optimal brightness with minimal heat generation
- Fully adjustable illumination for diverse examination requirements
- Enhanced patient comfort during extended procedures
Multi-functional Trolley Design
- Height-adjustable swing arm with flexible positioning
- Stable, mobile platform for easy room-to-room movement
- Convenient foot switch for hands-free image capture
Integrated Data Management
- Comprehensive imaging and analysis software
- Automated test timing for acetic acid and iodine protocols
- Advanced report generation with standardized templates
Dual Focus System
- Fast auto-focus for rapid positioning
- Precise manual focus for detailed examination
- Optimal sharpness across entire working distance
Multilingual Support
- Software interface in English, Spanish, Chinese, Vietnamese, Russian
- Suitable for diverse international clinical settings
- Easy language switching for multicultural teams
Diagnostic Database
- 175 diagnostic reference pictures for clinical guidance
- Supports education, training, and quality assurance
- Facilitates differential diagnosis and peer consultation
Optional Features
- 2.5″ LCD screen for real-time image observation
- Wireless transmission for telemedicine and remote consultation
- Integrated scanner for medical record digitization
Technical specifications
| Indications | Cervical cancer screening, routine gynecological examination, acetic acid testing, Schiller’s iodine test, abnormality detection, patient documentation, medical education, research applications |
|---|---|
| Camera Type | 1/4″ High Resolution Colorful Digital CCD Camera |
| Resolution | 550 TV Lines |
| Working Distance | 200–400 mm |
| Light Source | Adjustable Super Cold LED with brightness control |
| Focus System | Fast auto-focus and manual focus control |
| White Balance | Auto-adjusted |
| Computer Processor | CPU ≥2.7 GHz |
| Memory (RAM) | ≥1 GB |
| Hard Disk Storage | ≥250 GB |
| LCD Display | 19″ LCD 1024×768 (standard); optional 2.5″ LCD screen |
| Printer | HP True Color Ink Jet Printer |
| Operating System | Windows XP / Windows 7 / Windows 8 compatible |
| Language Support | English, Spanish, Chinese, Vietnamese, Russian |
| Power Supply | AC 100–240 V, 50/60 Hz ±2% |
| Rated Power | ≤280 VA; Imaging system 20 VA |
| Operation Mode | Intermittent load, continuous operation |
| Safety Classification | Photographic Device Class II |
| Diagnostic Database | 175 reference pictures for diagnosis |
| Optional Features | Wireless transmission, integrated scanner for medical records |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Colposcope Head | 1/4″ CCD camera with 550 TV lines, 200–400 mm working distance | 1 |
| Multi-functional Trolley | Height-adjustable swing arm with locking mechanism | 1 |
| LED Light Source | Adjustable super cold LED with brightness control | 1 |
| Control Handle | Integrated control for focal length, zoom, red light filter, white balance, image freeze, brightness | 1 |
| Foot Switch | Hands-free image capture control | 1 |
| Computer System | CPU ≥2.7 GHz, RAM ≥1 GB, HDD ≥250 GB | 1 |
| LCD Monitor | 19″ LCD 1024×768 display | 1 |
| Printer | HP True Color Ink Jet Printer | 1 |
| Software Suite | Imaging, data management, analysis, report generation; multilingual interface | 1 |
| Diagnostic Reference Library | 175 reference images for clinical guidance | 1 |
| Video Output | Integrated video output function | 1 |
| Power Supply | AC 100–240 V, 50/60 Hz ±2% | 1 |

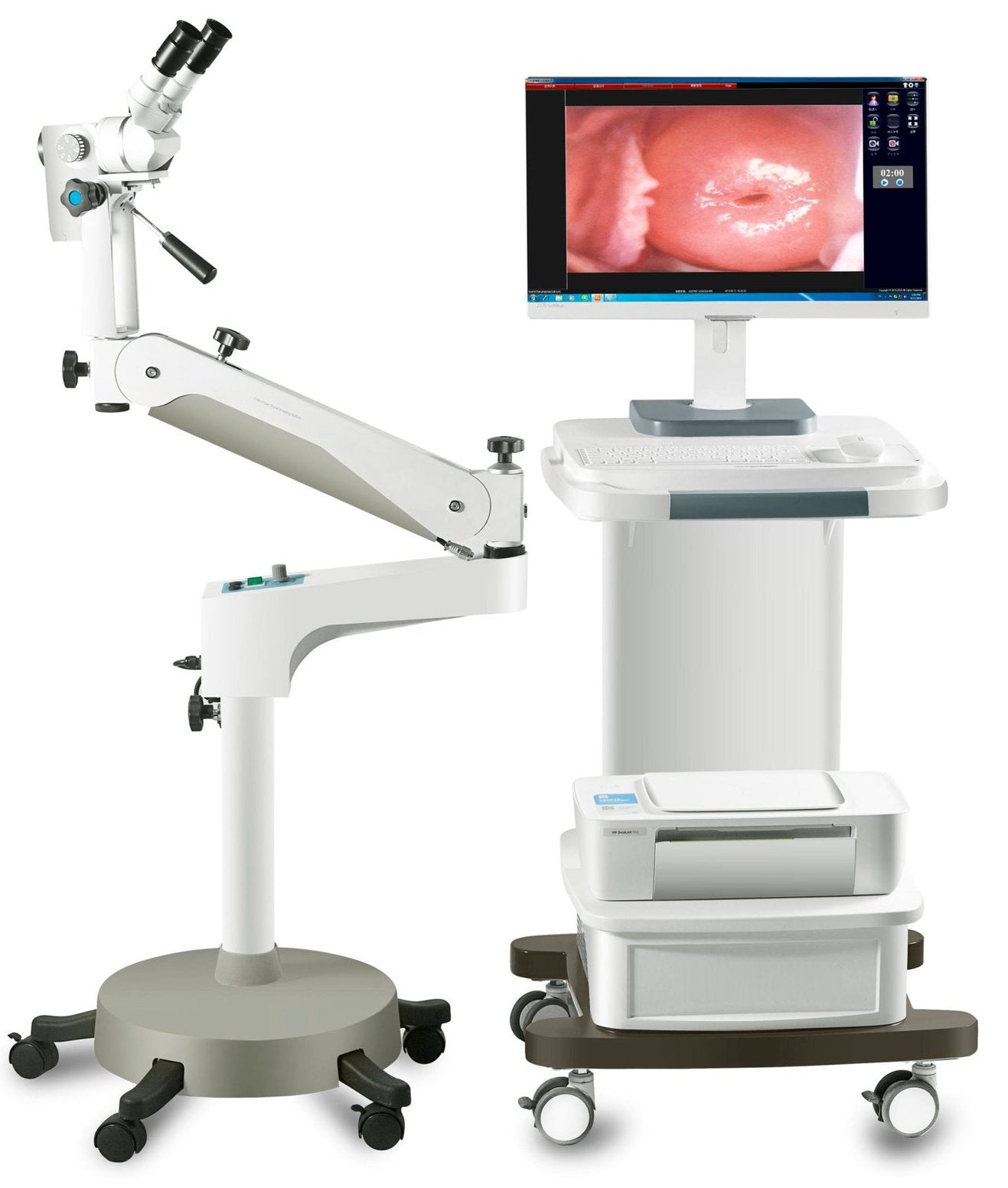

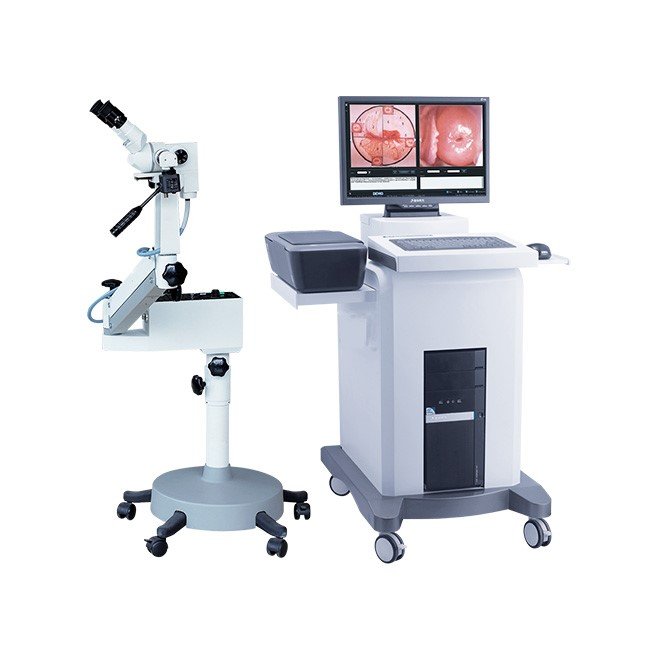

Digital Colposcope Video Machine KN-2200B
Advanced digital imaging system combining high-resolution optical and digital visualization for comprehensive cervical examination and early detection of precancerous lesions. Synchronous observation through optical scope and computer display with integrated measurement scales, multi-functional software, and complete data management capabilities.

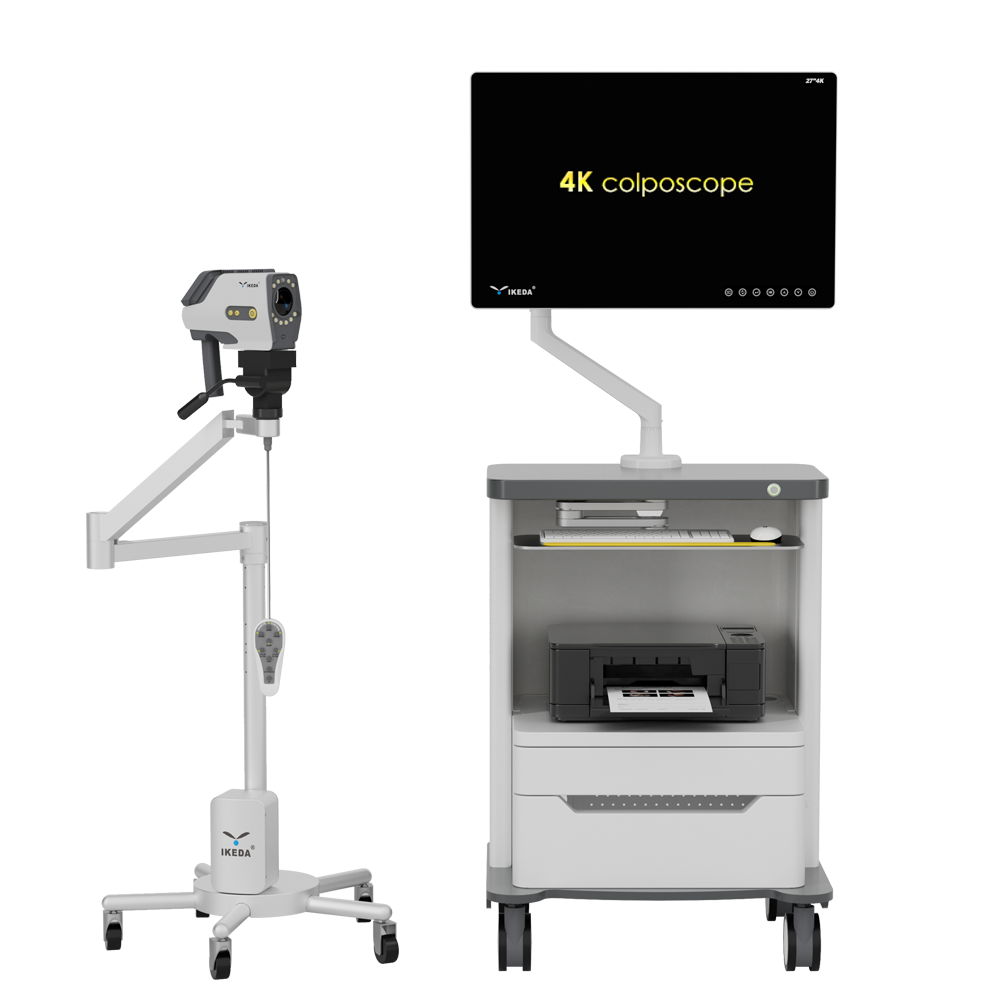

The IKEDA YKD-3020 4K digital video colposcope uses a SONY 4K CMOS sensor with over 8 million pixels and 3840×2160 resolution to deliver deep, lifelike images.
- 4K UHD imaging
- 360° horizontal & 120° vertical rotation
- Built‑in 3.5" screen
- White/green light options
