Best Seller
Cryogenic storage facilities

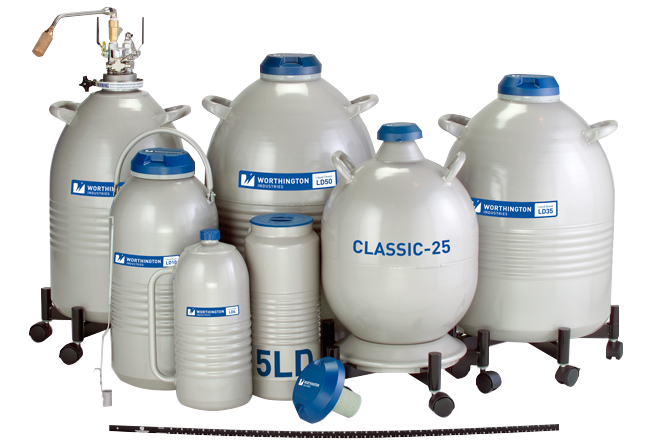

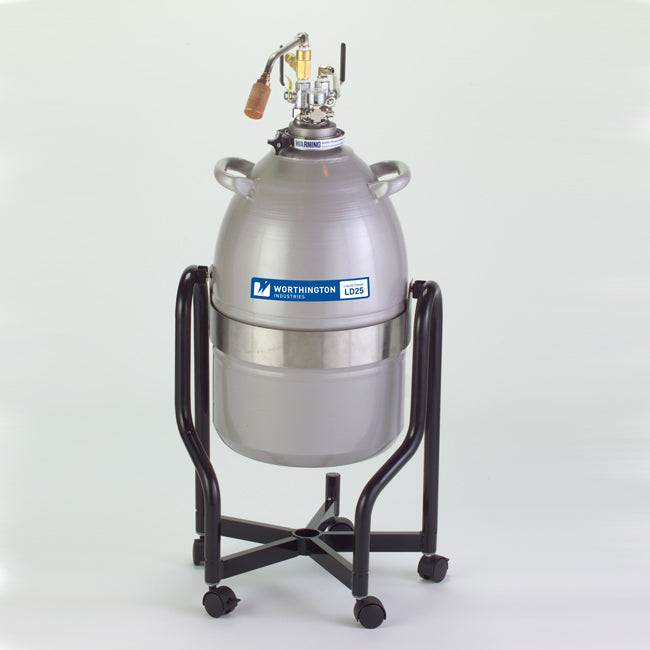

Taylor-Wharton LD and CX Liquid Nitrogen Dewar Storage Series is a liquid-nitrogen cryogenic storage range for IVF, cryobank, cell storage and laboratory sample preservation workflows.
Small-volume liquid nitrogen storage and Dewar range for laboratory, IVF and cryogenic handling applications, with LD and CX model choices and options such as filling/transfer devices, roller base, dipper, tipping stand or transport case depending on model.
Key features
- Variant family covering 9 model configurations across CX, LD series
- Compact liquid nitrogen Dewar and storage models from LD and CX series
- Model capacities from 4 L to 50 L, with larger neck diameters on selected CX units
- Accessory availability varies by model, including transfer device, roller base, tipping stand, dipper and transport case
Available configurations
| Series | Model | Capacity, L | Static holding time, days | Neck diameter, mm | Roller base |
|---|---|---|---|---|---|
| LD | LD4 | 4 | 10 | 30 | No |
| LD | LD5 | 5 | 6 | 142 | No |
| LD | LD10 | 10 | 45 | 51 | No |
| LD | LD25 | 25 | 109 | 64 | Yes |
| LD | Classic 25 | 25 | 119 | 51 | Yes |
| LD | LD35 | 35 | 152 | 64 | Yes |
| LD | LD50 | 50 | 122 | 64 | Yes |
| CX | CX 100 | 4,4 | 24 | 71 | No |
| CX | CX 500 | 6,4 | 14 | 216 | No |
Procurement and configuration notes
- Final configuration, rack/canister layout, alarm system, roller base and accessories should be confirmed against the end-user sample format and workflow.
- Liquid nitrogen handling, installation and user training should be planned in accordance with local safety procedures and facility requirements.
- Availability, lead time and exact manufacturer specification may vary by model and region. Please confirm before ordering.
Source product page: https://stormoff.ru/products/ld_and_cx_/

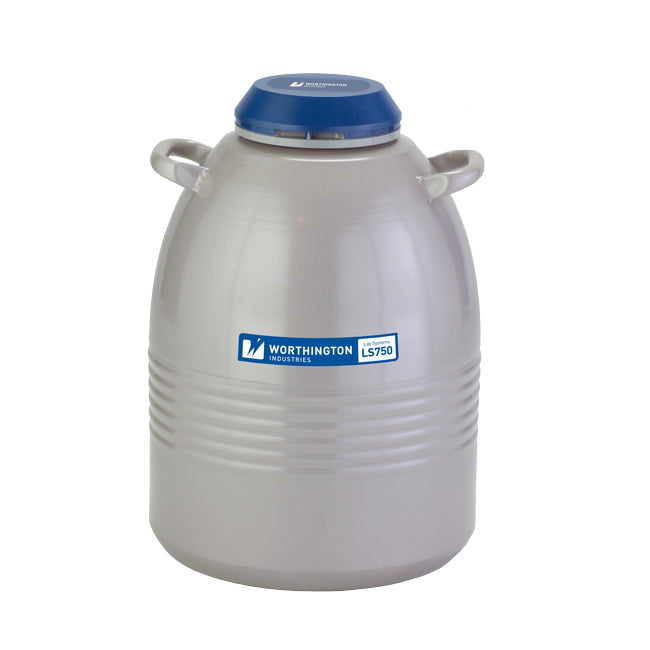

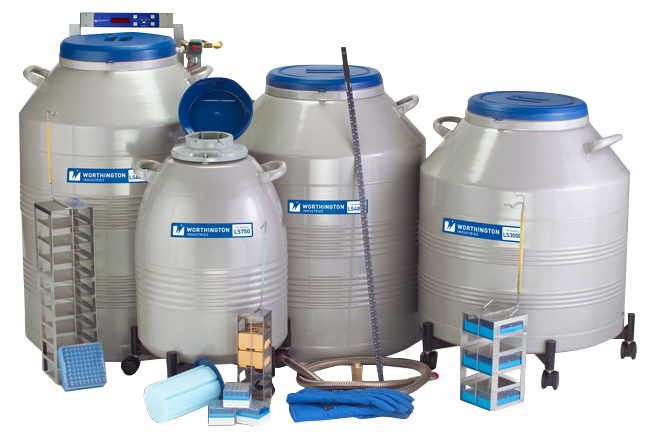

Taylor-Wharton LS and K Large-Capacity Liquid Nitrogen Cryogenic Storage Series is a liquid-nitrogen cryogenic storage range for IVF, cryobank, cell storage and laboratory sample preservation workflows.
Large-capacity cryogenic storage range for high volumes of cryovials, straws or blood-bag storage depending on configuration, using durable aluminium construction and vacuum-insulated liquid nitrogen storage.
Key features
- Variant family covering 9 model configurations across K, LS series
- High-capacity LS and K model options for cryobank and laboratory sample storage
- Rack and shelf configurations for large volumes of 2.0 ml cryovials on selected models
- Roller base and low liquid nitrogen alarm availability varies by configuration
Available configurations
| Series | Model | Capacity, L | Static holding time, days | Working holding time, days | Neck diameter, mm | Number of racks, pcs | Shelves per rack | 2.0 ml cryovials | Roller base |
|---|---|---|---|---|---|---|---|---|---|
| LS | LS 750 | 35 | 130 | 80 | 119 | 6 | 5 | 750 | Yes |
| LS | LS 3000 | 81 | 106 | 66 | 216 | 6 | 5 | 3000 | Yes |
| LS | LS 4800 | 130 | 153 | 96 | 216 | 6 | 8 | 4800 | Yes |
| LS | LS 6000 | 165 | 194 | 120 | 216 | 6 | 10 | 6000 | Yes |
| LS | LS 6000AT | 165 | 194 | 120 | 216 | 6 | 10 | 6000 | Yes |
| K | 3K | 48 | 19 | 12 | 356 | No | No | 3024 | Yes |
| K | 10K | 165 | 33 | No | 533 | 7 | 13 | 10400 | No |
| K | 24K | 365 | 52 | No | 787 | 17 | 13 | 24050 | No |
| K | 38K | 590 | 74 | No | 991 | 28 | 13 | 38350 | No |
Procurement and configuration notes
- Final configuration, rack/canister layout, alarm system, roller base and accessories should be confirmed against the end-user sample format and workflow.
- Liquid nitrogen handling, installation and user training should be planned in accordance with local safety procedures and facility requirements.
- Availability, lead time and exact manufacturer specification may vary by model and region. Please confirm before ordering.
Source product page: https://stormoff.ru/products/ls_/

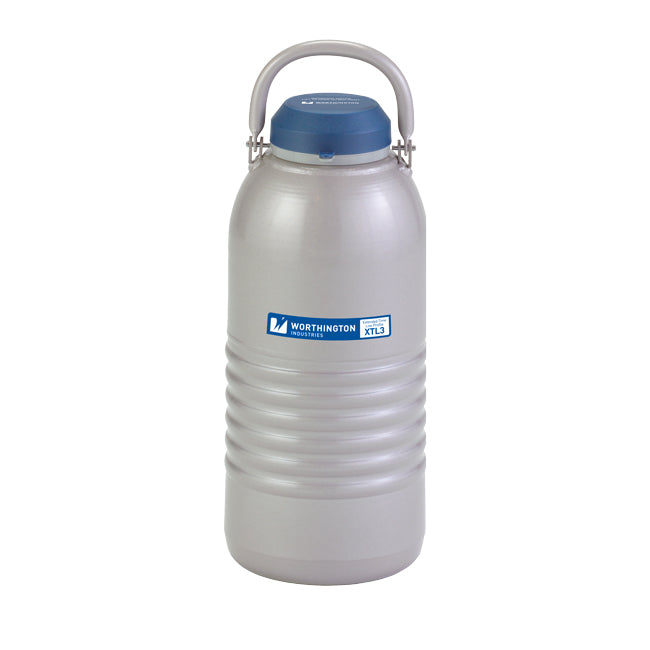

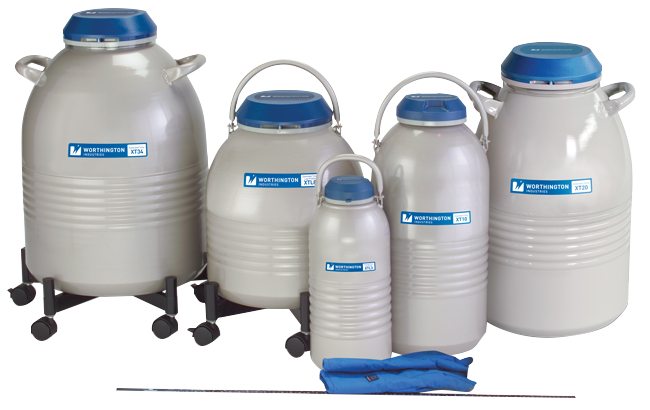

Taylor-Wharton XT and HC Liquid Nitrogen Cryogenic Storage Series is a liquid-nitrogen cryogenic storage range for IVF, cryobank, cell storage and laboratory sample preservation workflows.
Designed for safe long-term storage in liquid nitrogen, with robust aluminium construction and model options for static/working holding time, sample capacity and optional roller-base or low-level alarm configurations.
Key features
- Variant family covering 10 model configurations across HC, XT series
- Long-duration cryogenic storage for cryovials and straws depending on model
- XT and HC model families with capacities from compact units to higher-capacity canister systems
- Optional roller base and low liquid nitrogen level alarm on selected configurations
Available configurations
| Series | Model | Capacity, L | Static holding time, days | Working holding time, days | Neck diameter, mm | Number of canisters, pcs | 1.2/2.0 ml cryovials (6 per holder) | 0.5 ml straws (single layer) | Roller base |
|---|---|---|---|---|---|---|---|---|---|
| XT | 3 XTL | 3 | 27 | 17 | 51 | 6 | No | 750 | No |
| XT | 8 XTL | 8 | 80 | 50 | 51 | 6 | No | 750 | Yes |
| XT | 10 XT | 10 | 100 | 62 | 51 | 6 | 180 | 750 | No |
| XT | 20 XT | 20.7 | 230 | 140 | 51 | 6 | 180 | 750 | Yes |
| XT | 34 XT | 34 | 340 | 212 | 51 | 6 | 180 | 750 | Yes |
| HC | 12 HCL | 12 | 60 | 37 | 91 | 6 | No | 2940 | Yes |
| HC | 20 HC | 20 | 87 | 54 | 91 | 6 | 684 | 2940 | Yes |
| HC | 34 HC | 34 | 200 | 125 | 91 | 6 | 684 | 2940 | Yes |
| HC | 35 HC | 35 | 130 | 81 | 119 | 10 | 1020 | 4900 | Yes |
| HC | VHC 35 | 35 | 130 | 81 | 119 | 6(4) | 1260 | 4950 | Yes |
Procurement and configuration notes
- Final configuration, rack/canister layout, alarm system, roller base and accessories should be confirmed against the end-user sample format and workflow.
- Liquid nitrogen handling, installation and user training should be planned in accordance with local safety procedures and facility requirements.
- Availability, lead time and exact manufacturer specification may vary by model and region. Please confirm before ordering.
Source product page: https://stormoff.ru/products/xt_and_hc_/
