Pentax (HOYA) FG-24V Gastrofibroscope Kit with LH-150PC Light Source and OS-H5 Water Bottle
This kit is built around the Pentax FG-24V thin gastrofibroscope, supplied with the LH-150PC halogen light source and OS-H5 water bottle configuration. The product page presents it as a ready-to-use fibre-endoscopy solution for gastroscopy, with a thin insertion tube, therapeutic working channel and supporting illumination and water-supply components.
Key features
- Thin gastrofibroscope for examination of the oesophagus, stomach and proximal duodenum.
- Suitable for adult and paediatric diagnostic use depending on clinical protocol and operator judgement.
- Supports therapeutic and intraluminal procedures such as biopsy, polypectomy, coagulation, dilation, marking, lavage and laser-therapy workflows where clinically appropriate.
- Small insertion diameter with a 2.0 mm working channel to balance patient comfort and accessory use.
- Instrument channel is suitable for biopsy forceps even when the distal tip is fully angulated, according to the product page description.
- Offset instrument-channel arrangement supports local surface anaesthesia delivery by syringe while observing through the fibre scope.
- LH-150PC light source provides bright, even illumination and includes integrated air/water pump support for distal-lens cleaning.
- OS-H5 reusable water bottle supplies sterile water during procedures for lens cleaning.
Technical details from the product page
- FG-24V field of view: 105 degrees.
- Depth of field: 3 to 100 mm.
- Eyepiece dioptre adjustment: +2D to -8D.
- Bending range, up/down: 210 degrees / 120 degrees.
- Bending range, right/left: 120 degrees / 120 degrees.
- Distal-end diameter: 7.8 mm.
- Insertion-tube diameter: 7.9 mm.
- Working-channel diameter: 2.0 mm.
- Working length: 1050 mm.
- Total length: 1395 mm.
- LH-150PC lamp type: halogen, 150 W output.
- One lamp operating time listed as 50 hours.
- Manual brightness control by diaphragm.
- Air-pump pressure: 41 to 62 kPa at zero flow; standard air-flow range: 3.2 to 8.0 L/min at the water-bottle inlet.
- Water-bottle volume: 250 cm³; recommended filling up to two-thirds with sterile water.
- Forced-air cooling; acoustic sound pressure listed below 70 dB.
- Light-source dimensions: 135 x 165 x 270 mm; weight: 6 kg.
Configuration and included items
- Pentax FG-24V thin gastrofibroscope.
- Pentax LH-150PC halogen light source.
- Pentax OS-H5 reusable water bottle with cap and air/water tubing.
- Confirm light guide, scope adapters, cleaning accessories and reprocessing requirements before order.
Compatibility and configuration notes
The OS-H5 water bottle is described as compatible with LH-150PC and Pentax processor/light-source platforms including EPK-100p, EPK-1000, EPK-3000 Defina, EPK-i, EPK-i5000 and EPK-i7010. Final compatibility should be checked against the exact equipment installed in the department.
Ordering information
This item is supplied as a medical-equipment configuration and should be confirmed before order, including the required processor or light-source compatibility, scope model, monitor or cart requirements, cables, cleaning and reprocessing accessories, regional power requirements, user documentation, warranty, installation support and service options. Final configuration may vary depending on clinical use, department requirements and available manufacturer options.
Supply and delivery
- Suitable for hospital endoscopy departments, outpatient diagnostic rooms, ENT clinics or gastroenterology units depending on selected configuration.
- Installation, commissioning, user familiarisation and after-sales service can be arranged where required.
- Consumables, biopsy valves, cleaning brushes, water bottles, tubing sets and reprocessing accessories should be specified separately unless included in the confirmed package.
DISCONTINUED

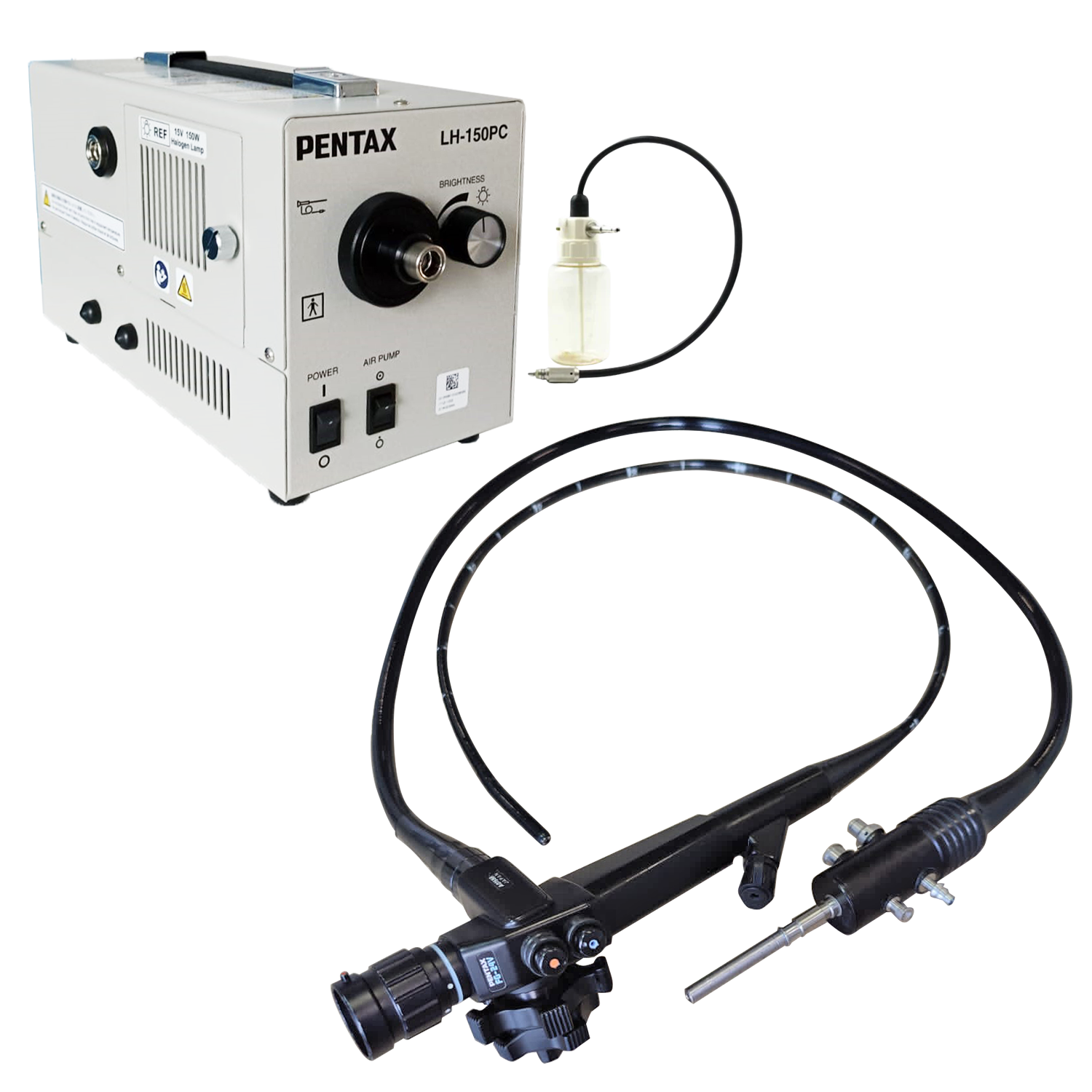

Pentax (HOYA) FG-24V Gastrofibroscope Kit with Light Source and Water Bottle
This Pentax / HOYA endoscopy kit is based on the FG-24V thin gastrofibroscope and includes a compatible light source and water bottle configuration as described by the uploaded source page. It is positioned for diagnostic and therapeutic upper gastrointestinal endoscopy workflows where a thin fibre gastroscope, illumination and water/air supply accessories are required.
Supplied Configuration
- Pentax / HOYA FG-24V thin gastrofibroscope.
- Pentax LH-150PC light source.
- Pentax OS-H5 reusable water bottle / water container.
Key Technical Specifications
- FG-24V field of view: 105°
- FG-24V depth of field: 3–100 mm
- FG-24V distal end diameter: 7.8 mm
- FG-24V insertion tube diameter: 7.9 mm
- FG-24V working channel diameter: 2.0 mm
- FG-24V insertion tube working length: 1050 mm
- LH-150PC lamp type: Halogen
- LH-150PC output power: 150 W
- Lamp service life: 50 hours per lamp
- Air supply pressure: 41–62 kPa at zero flow
- Standard air-flow delivery: 3.2–8.0 L/min at the water bottle inlet
- Water bottle volume: 250 cm³
- Light-source dimensions: 135 × 165 × 270 mm (W × H × D)
- Light-source weight: 6 kg
Typical Applications
- Routine upper gastrointestinal endoscopy and gastrofibroscopy workflows.
- Diagnostic inspection of the oesophagus, stomach and proximal duodenum, subject to clinical suitability and local protocols.
- Use with compatible Pentax / HOYA endoscopy light-source and accessory systems, depending on configuration.
Procurement and Configuration Notes
- Confirm processor, light-source, water-bottle and accessory compatibility before ordering.
- Final clinical suitability, cleaning/reprocessing requirements and supplied accessories should be confirmed against the intended department and local regulatory requirements.
- Specifications and supplied items may vary by configuration, availability and manufacturer revision. Please confirm before purchase.
DISCONTINUED
Pentax (HOYA) FG-29V Gastrofibroscope
The Pentax / HOYA FG-29V is a universal flexible gastrofibroscope for routine upper gastrointestinal endoscopy. The source page identifies a 9.8 mm distal end, 9.8 mm insertion tube, 2.8 mm working channel and 1050 mm insertion working length. Its 2.8 mm channel is suitable for full-size instruments, subject to accessory compatibility.
Key Technical Specifications
- Field of view: 100°
- Depth of field: 3–100 mm
- Dioptre adjustment: +2D to -8D
- Distal end angulation, up/down: 210° / 120°
- Distal end angulation, right/left: 120° / 120°
- Distal end diameter: 9.8 mm
- Insertion tube diameter: 9.8 mm
- Working channel diameter: 2.8 mm
- Insertion tube working length: 1050 mm
- Total length: 1395 mm
Typical Applications
- Routine upper gastrointestinal endoscopy and gastrofibroscopy workflows.
- Diagnostic inspection of the oesophagus, stomach and proximal duodenum, subject to clinical suitability and local protocols.
- Use with compatible Pentax / HOYA endoscopy light-source and accessory systems, depending on configuration.
Procurement and Configuration Notes
- Confirm processor, light-source, water-bottle and accessory compatibility before ordering.
- Final clinical suitability, cleaning/reprocessing requirements and supplied accessories should be confirmed against the intended department and local regulatory requirements.
- Specifications and supplied items may vary by configuration, availability and manufacturer revision. Please confirm before purchase.
DISCONTINUED

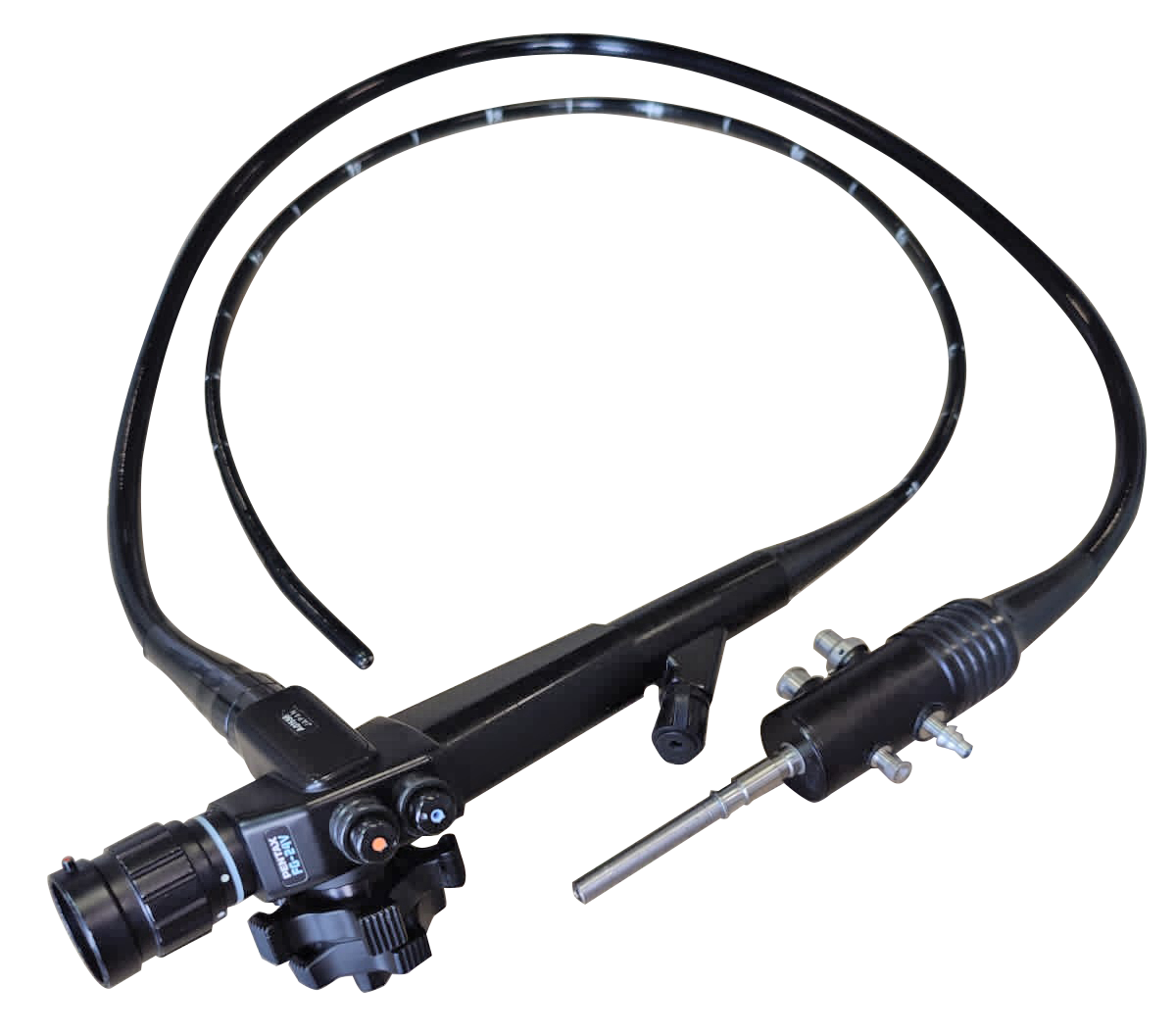

Pentax (HOYA) FG-24V Thin Gastrofibroscope
The Pentax / HOYA FG-24V is a thin flexible gastrofibroscope designed for upper gastrointestinal endoscopy where a smaller insertion diameter is useful. The source page lists a 7.8 mm distal end, 7.9 mm insertion tube, 2.0 mm working channel and 1050 mm insertion working length.
Key Technical Specifications
- Field of view: 105°
- Depth of field: 3–100 mm
- Dioptre adjustment: +2D to -8D
- Distal end angulation, up/down: 210° / 120°
- Distal end angulation, right/left: 120° / 120°
- Distal end diameter: 7.8 mm
- Insertion tube diameter: 7.9 mm
- Working channel diameter: 2.0 mm
- Insertion tube working length: 1050 mm
- Total length: 1395 mm
Typical Applications
- Routine upper gastrointestinal endoscopy and gastrofibroscopy workflows.
- Diagnostic inspection of the oesophagus, stomach and proximal duodenum, subject to clinical suitability and local protocols.
- Use with compatible Pentax / HOYA endoscopy light-source and accessory systems, depending on configuration.
Procurement and Configuration Notes
- Confirm processor, light-source, water-bottle and accessory compatibility before ordering.
- Final clinical suitability, cleaning/reprocessing requirements and supplied accessories should be confirmed against the intended department and local regulatory requirements.
- Specifications and supplied items may vary by configuration, availability and manufacturer revision. Please confirm before purchase.
