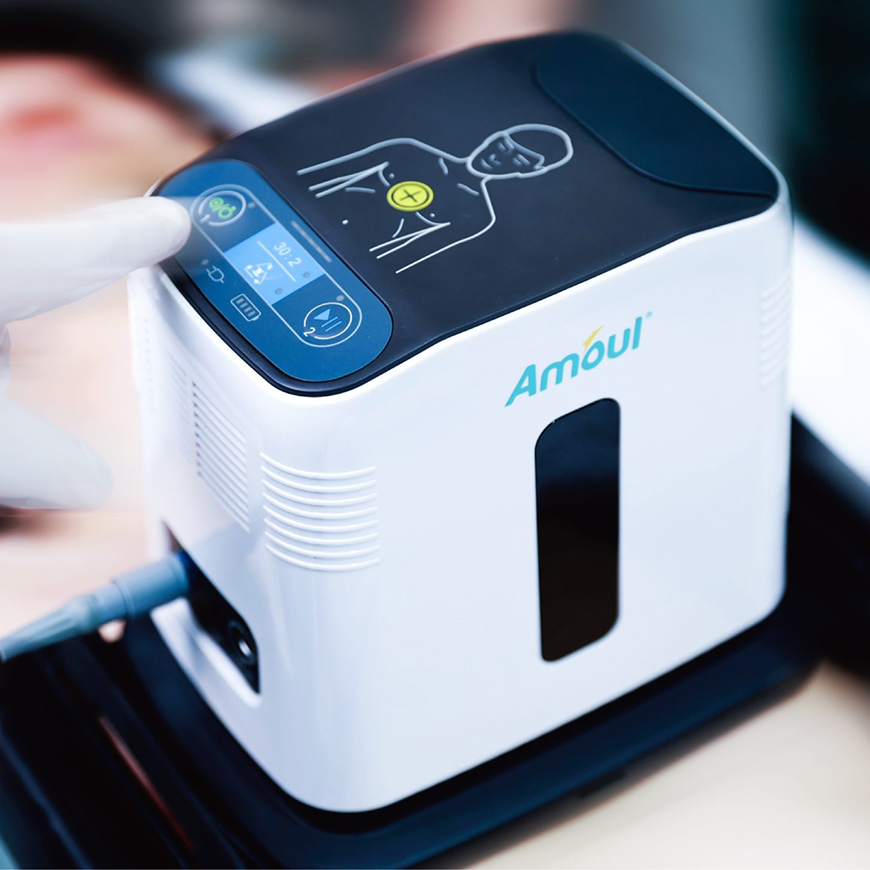

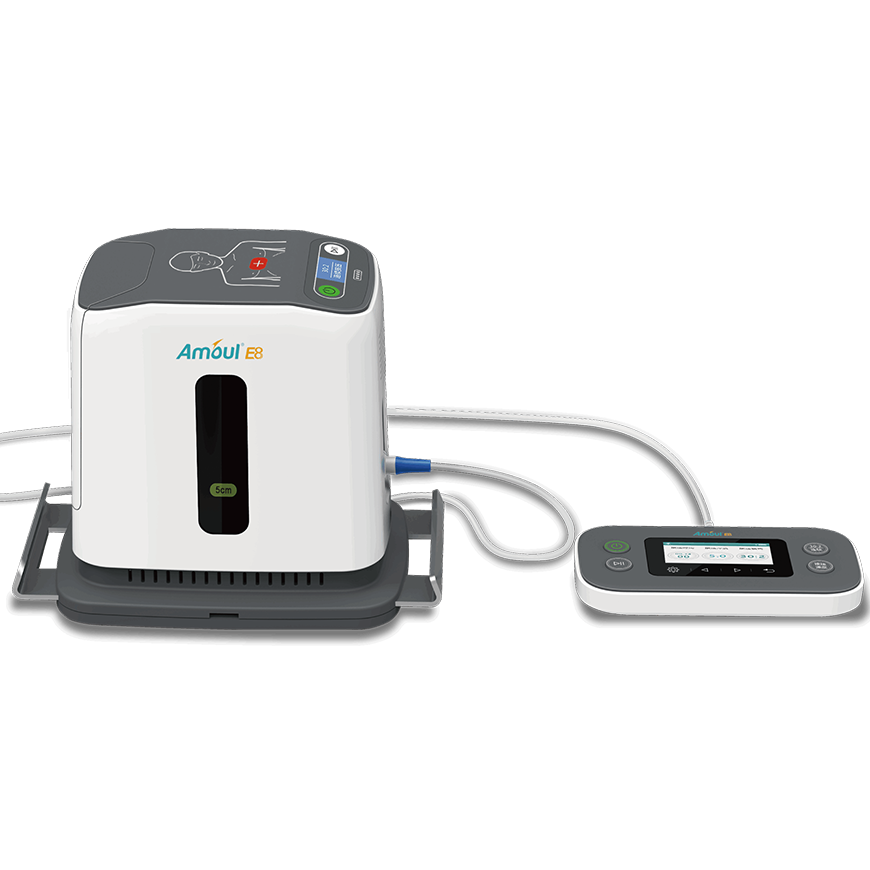

Cardiopulmonary Resuscitato...
₦18,740,100.00 -
LUCAS 3.1 Chest Compression...
₦25,587,900.00
Indirect-cardiac-massage

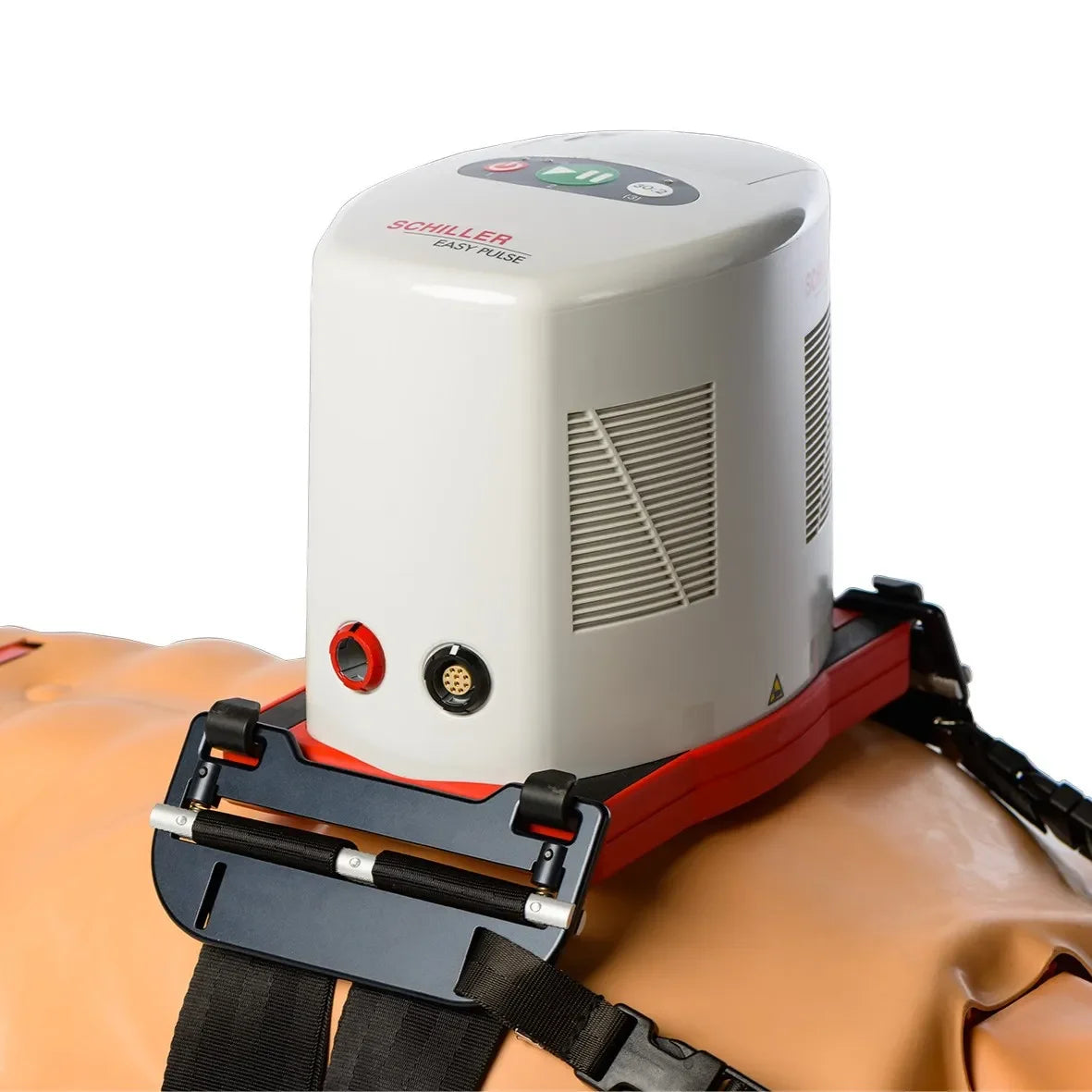

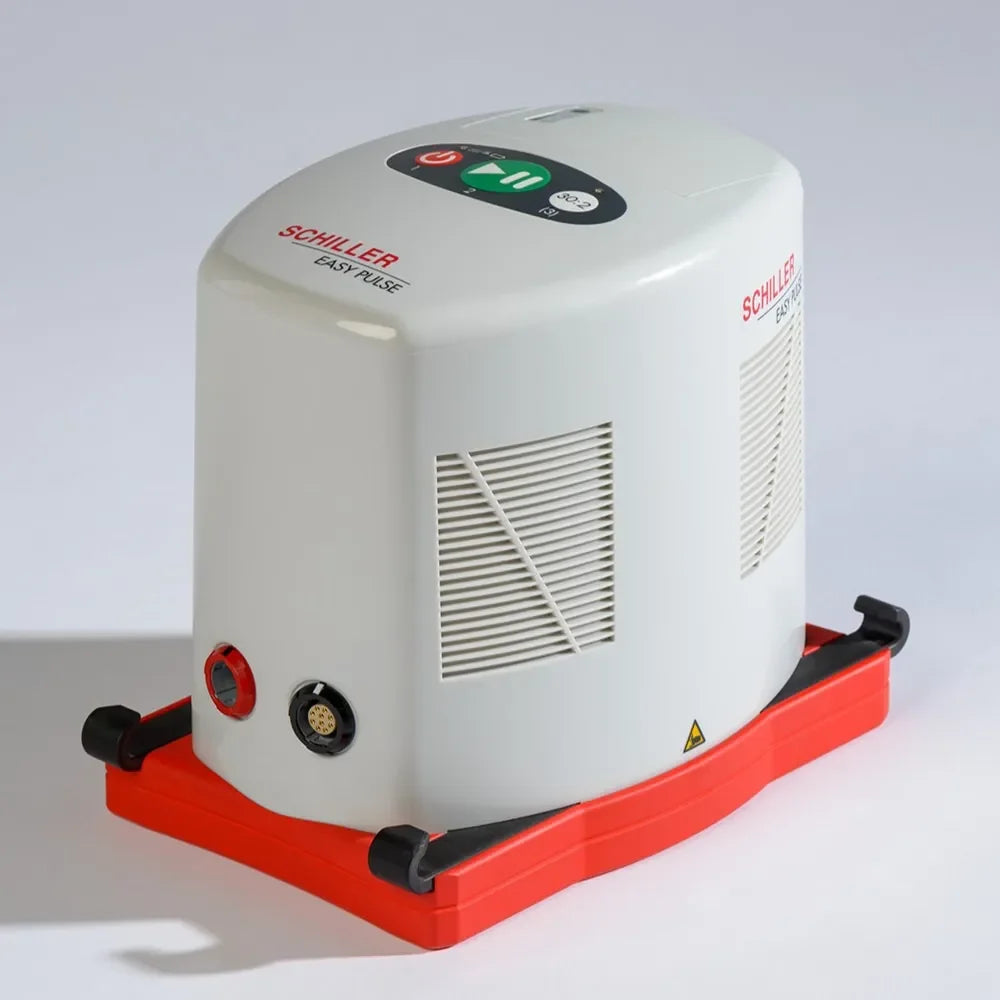

SCHILLER EASY PULSE Mechanical CPR Device
The SCHILLER EASY PULSE is a compact, portable mechanical CPR device designed to deliver automatic chest compressions at a consistent rate and depth during cardiac arrest resuscitation. By eliminating the challenges associated with prolonged manual chest compressions, EASY PULSE helps ensure high-quality CPR while allowing rescuers to focus on other critical interventions.
Directly attached to the patient’s upper body, the EASY PULSE can be used in virtually any environment, including confined spaces and during patient transport. Its lightweight design and autonomous operation make it particularly suitable for emergency medical services, air rescue operations and hospital resuscitation teams.
With its innovative combination of stamp and band technology, EASY PULSE delivers efficient 3D chest compression, helping maximise CPR effectiveness while remaining simple enough for operation by a single rescuer.
Key Features
• Portable, stand-alone mechanical CPR device
• Delivers automatic chest compressions at a consistent rate and depth
• Unique combination of stamp and band technology for 3D compression
• Designed to maximise compression efficiency
• Lightweight design weighing only 3.5 kg
• Easy positioning and operation by a single user
• Slider and buckle system enables rapid patient attachment
• Suitable for use during patient transport
• Supports uninterrupted chest compressions during movement
• Can be used in head-up position
• Continuous compression mode or 30:2 compression cycles
• Compression frequency of 100 compressions per minute
• Replaceable rechargeable Li-Ion battery system
• Battery charge level indicator
• Up to 45 minutes autonomous operation with one battery
• Supplied with two rechargeable batteries
• External DC power input
• Suitable for confined spaces and aircraft environments
• Ideal for EMS, hospital and air rescue applications
Product Overview
| Product | Details |
|---|---|
| Product Name | SCHILLER EASY PULSE |
| Product Type | Mechanical CPR device |
| Manufacturer | SCHILLER |
| Compression Method | Automatic chest compressions |
| Compression Technology | Stamp and band 3D compression system |
| Compression Frequency | 100 compressions per minute |
| Operating Modes | Continuous mode or 30:2 cycles |
| Weight | 3.5 kg |
| Battery Type | Rechargeable Li-Ion |
| Battery Runtime | Up to 45 minutes per battery |
| Power Options | Battery operation and external DC input |
| Clinical Environments | EMS, hospital, transport, air rescue |
| Special Applications | Aircraft and confined spaces |
Clinical Applications
| Application | Use |
|---|---|
| Cardiac Arrest Response | Provides automated chest compressions during resuscitation |
| EMS and Ambulance Services | Supports CPR in pre-hospital emergency care |
| Air Rescue Operations | Lightweight design suitable for helicopter and aircraft use |
| Hospital Resuscitation | Supports continuous CPR during emergency treatment |
| Patient Transport | Maintains uninterrupted compressions during movement |
| Critical Care Transfer | Suitable for transport between healthcare facilities |
| Confined Space Rescue | Compact design enables use in restricted environments |
Innovative 3D Compression Technology
The EASY PULSE combines a compression stamp with a surrounding band system to create a unique 3D compression mechanism. This innovative approach is designed to improve compression efficiency while maintaining consistent performance throughout the resuscitation process.
| Feature | Benefit |
|---|---|
| Stamp and Band Combination | Creates effective 3D chest compression |
| Consistent Compression Depth | Helps maintain CPR quality |
| Automatic Operation | Reduces rescuer fatigue |
| Continuous Performance | Supports prolonged resuscitation efforts |
| Efficient Compression Delivery | Designed to maximise CPR effectiveness |
Ease of Use
The EASY PULSE has been designed for rapid deployment and straightforward operation. Its intuitive slider and buckle system allows a single rescuer to position and secure the device quickly.
| Feature | Benefit |
|---|---|
| Single-Person Operation | Reduces staffing requirements during setup |
| Slider System | Enables quick positioning |
| Buckle Attachment | Fast and secure patient fixation |
| Simple Controls | Easy operation during emergencies |
| Portable Design | Convenient transport and deployment |
Battery and Power System
The EASY PULSE is equipped with a rechargeable battery system designed to support reliable operation during emergency situations.
| Power Feature | Details |
|---|---|
| Battery Type | Rechargeable Li-Ion |
| Batteries Included | Two batteries supplied |
| Runtime | Up to 45 minutes per battery |
| Charge Indicator | Displays battery charge status |
| External Power Input | DC input available |
| Charging Station | Included as standard |
Transport and Mobility
The compact size and lightweight construction of the EASY PULSE make it particularly suitable for transport scenarios where maintaining high-quality CPR is essential.
| Feature | Benefit |
|---|---|
| Weight of 3.5 kg | Easy to carry and deploy |
| Compact Design | Suitable for confined spaces |
| Transport Compatibility | Supports uninterrupted CPR during movement |
| Aircraft Suitable | Ideal for air rescue operations |
| Head-Up Position Capability | Supports specialised transport protocols |
Standard Package Contents
Each EASY PULSE unit includes:
| Included Item | Reference |
|---|---|
| EASY PULSE Device | MOQ 10 |
| Slider Complete | 2.100857 |
| Power Supply 48V/400W for EASY PULSE | 2.200124 |
| Power Supply 24V 6.25A for Charging Station | 2.200123 |
| Charging Station | 2.200190 |
| Rechargeable Li-Ion Battery (2 pcs) | 4.350049 |
| Transportation Bag | 2.156093 |
| Mains Cable | Included |
| Instruction Manual | Included |
Workflow Benefits
| Feature | Clinical Benefit |
|---|---|
| Automated Compressions | Helps maintain consistent CPR quality |
| Lightweight Construction | Improves portability and deployment speed |
| Single-User Setup | Simplifies operation during emergencies |
| Continuous Compression Mode | Supports uninterrupted resuscitation |
| Battery Operation | Enables use in remote and transport environments |
| Aircraft Compatibility | Expands operational flexibility |
| Compact Design | Suitable for confined rescue situations |
Why Choose the SCHILLER EASY PULSE?
The SCHILLER EASY PULSE provides an efficient and compact solution for mechanical CPR. Its innovative 3D compression technology, lightweight construction and simple operation make it an excellent choice for emergency responders, hospitals and air rescue teams.
By delivering automatic chest compressions at a consistent rate and depth, EASY PULSE helps maintain CPR quality during prolonged resuscitation efforts while reducing rescuer fatigue. Its portability, transport compatibility and suitability for confined spaces make it a versatile solution for a wide range of emergency care environments.
Suitable For
• Ambulance services
• EMS providers
• Air rescue services
• Helicopter emergency medical services (HEMS)
• Emergency departments
• Hospital resuscitation teams
• Critical care transport teams
• Fire and rescue services
• Military medical units
• Healthcare facilities requiring mechanical CPR support
Ordering Information
Available configurations may vary depending on accessories, batteries, charging equipment and local regulatory requirements.
Please contact Nass Ventures for pricing, availability, delivery, training and after-sales support.
Important: The SCHILLER EASY PULSE is a professional medical device intended for use by trained healthcare and emergency personnel. It should be operated according to the manufacturer’s instructions, local resuscitation guidelines and clinical judgement. Proper patient positioning and device application must be confirmed by the responsible medical team.

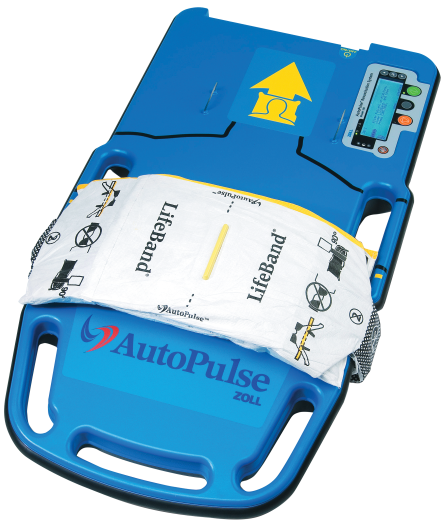

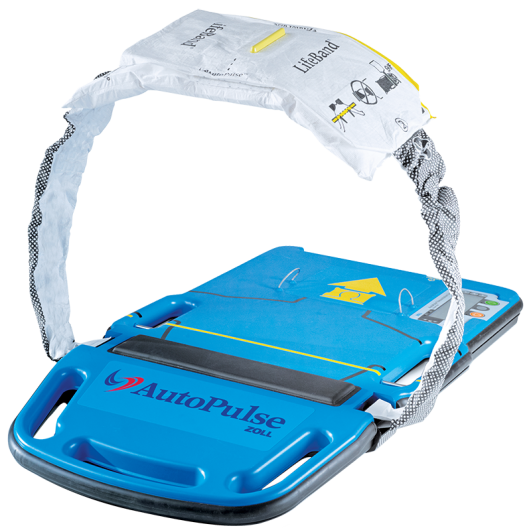

ZOLL AutoPulse NXT Resuscitation System
The ZOLL AutoPulse NXT Resuscitation System is an automated mechanical CPR device designed to deliver continuous, high-quality circumferential chest compressions during cardiac arrest. It supports emergency, hospital and critical care teams by helping maintain consistent compressions while clinicians focus on other lifesaving interventions.
With the push of a button, the AutoPulse NXT Band automatically adjusts to the patient’s chest and delivers patient-customised compressions. The system is designed for use from the emergency scene to transport, emergency departments and cath lab environments.
Its lightweight, low-profile design improves manoeuvrability in challenging clinical settings, while the radiolucent board allows patients to remain on the device during fluoroscopy and imaging procedures.
Key Features
• Automated mechanical CPR system
• Delivers circumferential chest compressions
• Patient-customised compression using AutoPulse NXT Band technology
• Automatically adjusts to the patient’s chest
• Supports continuous compressions during treatment and transport
• Suitable for EMS, fire, hospital and critical care use
• Accommodates chest circumference from 76 cm to 142 cm
• Supports patients weighing up to 181 kg
• Low-profile board design for improved manoeuvrability
• Radiolucent design suitable for fluoroscopy and cath lab environments
• Controls located on either side of the board for easier access
• Integrates with ZOLL R Series and X Series monitor/defibrillators when used with compatible OneStep electrodes
• X Series Advanced can recognise AutoPulse NXT mechanical compressions
• Supports CPR feedback and code data integration
• RescueNet CaseReview compatibility for post-event review and debriefing
• AutoPulse NXT transporter available for keeping system components organised and ready
• Quick Case Carry Sheet supports transport and rapid deployment
Product Overview
| Product | Details |
|---|---|
| Product Name | ZOLL AutoPulse NXT Resuscitation System |
| Product Type | Automated CPR / mechanical CPR system |
| Manufacturer | ZOLL |
| Main Use | Automated chest compressions during cardiac arrest |
| Compression Type | Circumferential patient-customised compressions |
| Patient Chest Circumference | 76 cm to 142 cm |
| Maximum Patient Weight | Up to 181 kg |
| Clinical Areas | EMS, fire, emergency care, hospital and cath lab |
| Imaging Compatibility | Radiolucent design for fluoroscopy support |
| Data Review | RescueNet CaseReview compatible |
| Monitor Integration | ZOLL R Series and X Series monitor/defibrillator integration when used with compatible electrodes |
Clinical Applications
| Application | Use |
|---|---|
| Cardiac Arrest Response | Provides automated compressions during resuscitation |
| EMS and Fire | Supports CPR during emergency response and transport |
| Emergency Department | Supports ongoing CPR during emergency care |
| Critical Care | Can support resuscitation workflows in hospital settings |
| Cath Lab | Radiolucent and low-profile design supports use during imaging and intervention |
| Patient Transport | Supports continuous CPR during movement between care areas |
| Code Review | Supports event data capture and post-case review through compatible ZOLL systems |
AutoPulse NXT Band Technology
The AutoPulse NXT Band is designed to automatically measure and adjust to the patient’s chest. It delivers circumferential compressions around the thoracic cavity rather than relying on a single compression point.
| Feature | Benefit |
|---|---|
| Automatic Chest Adjustment | Reduces manual setup and adjustment time |
| Patient-Customised Compressions | Adapts compressions to the patient’s chest size |
| Circumferential Compression | Compresses the chest around the thoracic cavity |
| Reduced Pause Requirement | Helps maintain uninterrupted compressions |
| Broad Patient Range | Supports patients with chest circumference from 76 cm to 142 cm |
Patient Range
| Patient Specification | Details |
|---|---|
| Chest Circumference Range | 76 cm to 142 cm |
| Chest Circumference Range in Inches | 30 to 56 inches |
| Maximum Patient Weight | 181 kg |
| Maximum Patient Weight in Imperial | 28 stone 8 pounds |
Design and Workflow Features
| Feature | Clinical Benefit |
|---|---|
| Low-Profile Board | Helps improve access and positioning in tight clinical spaces |
| Lighter-Weight Design | Supports easier handling and manoeuvrability |
| Controls on Both Sides | Allows providers to operate the system from either side |
| Radiolucent Design | Allows clearer imaging under fluoroscopy |
| Cath Lab Compatibility | Low-profile design allows the C-arm to remain close to the patient |
| Quick Case Carry Sheet | Supports resuscitation on the move and easier cleaning |
| AutoPulse NXT Transporter | Holds system components so teams can remain code-ready |
Integration with ZOLL Defibrillators and Data Systems
The AutoPulse NXT can integrate with compatible ZOLL monitor/defibrillators and post-event review systems. When used with compatible ZOLL CPR electrodes and monitors, AutoPulse NXT compressions can be recognised and included as part of the resuscitation data record.
| Integration | Details |
|---|---|
| X Series Advanced | Recognises AutoPulse NXT mechanical compressions |
| R Series / X Series | Supports integration when used with compatible OneStep electrodes |
| CPR Feedback | Helps display CPR-related information during resuscitation |
| RescueNet CaseReview | Supports post-event review and debriefing |
| Code Data Capture | Captures compressions, shocks and interventions for case review |
Cath Lab and Imaging Use
The AutoPulse NXT is designed with a radiolucent, low-profile board. This supports use during fluoroscopy and cath lab procedures, allowing unstable patients to remain on the device during imaging or intervention when clinically appropriate.
| Feature | Benefit |
|---|---|
| Radiolucent Board | Allows clearer visualisation during fluoroscopy |
| Low-Profile Design | Helps keep the C-arm close to the patient |
| Continuous Compressions | Supports CPR during imaging or cath lab treatment |
| Hospital Workflow | Suitable for emergency department and cath lab resuscitation pathways |
Why Choose the ZOLL AutoPulse NXT?
The ZOLL AutoPulse NXT is designed for teams that need reliable automated CPR during cardiac arrest. Its patient-customised circumferential compression technology, broad patient range, low-profile board and integration with ZOLL monitoring and data systems make it suitable for emergency response, hospital resuscitation and cath lab environments.
By helping deliver continuous mechanical compressions, the AutoPulse NXT allows clinicians to focus on airway management, defibrillation, medication administration, transport and other critical interventions during resuscitation.
Suitable For
• EMS and fire services
• Ambulance services
• Emergency departments
• Hospital resuscitation teams
• Cath labs
• Critical care units
• Cardiac arrest response teams
• Military and emergency medical services
• Patient transport teams
• Hospitals and specialist cardiac centres
Ordering Information
Available configurations may vary depending on accessories, transporter, carry sheet, batteries, charger, compatible monitor/defibrillator setup and data review requirements.
Please contact Nass Ventures for pricing, configuration advice, delivery, training and after-sales support.
Important: The AutoPulse NXT is intended for use by trained emergency and clinical personnel. Accessories, monitor integration, RescueNet CaseReview compatibility and transporter options may be configuration-dependent. Please confirm the required package before ordering.
Amoul E8 Cardiopulmonary Resuscitator
The Amoul E8 is a fully electric cardiopulmonary resuscitator designed to deliver mechanical external chest compressions for adult patients suffering from acute cardiac arrest. It is intended to support uninterrupted CPR before hospital admission, within the hospital, and during patient transport.
The E8 is designed to deliver precise 3D compression and includes an external controller monitor for simple, intuitive operation. The controller provides real-time feedback, visible compression depth information and adjustable compression parameters. Data can also be transferred and reviewed on a PC, supporting post-event review, training, quality improvement and clinical documentation workflows.
The E8 is suitable for use in pre-hospital care, emergency departments, intensive care units and transport situations where consistent chest compression support may be required.
Key Features
• Fully electric CPR device
• Designed for mechanical external chest compression
• Suitable for adult patients with acute cardiac arrest
• Precise 3D compression technology
• External controller monitor for simple operation
• Colour screen with real-time feedback
• Visible compression depth information
• Adjustable compression depth and frequency
• Data transfer and PC review support
• USB, Bluetooth and Wi-Fi connectivity for data access
• Mild start function to allow gradual compression start
• Suitable for pre-hospital and intra-hospital use
• Suitable for patient transport during CPR
• Can support extended care pathways such as ECPR transfer, hypothermia management and PCI transfer workflows
• E8 version includes a hand-held terminal
Product Overview
| Product | Details |
|---|---|
| Product Name | Amoul E8 |
| Product Type | Cardiopulmonary resuscitator / CPR system |
| Manufacturer | Ambulanc Shenzhen Tech. Co., Ltd. |
| Model | E8 |
| Main Use | Mechanical external chest compression |
| Intended Patient Group | Adult patients |
| Intended Condition | Acute cardiac arrest |
| Compression Type | 3D compression |
| Control Interface | External controller monitor |
| Data Access | USB, Bluetooth and Wi-Fi |
| Use Environments | Pre-hospital, emergency, ICU, in-hospital and transport |
| E8 / E7 Difference | E8 includes a hand-held terminal; E7 does not |
Intended Use
| Item | Confirmed Detail |
|---|---|
| Intended Use | External chest compression for adult patients suffering from acute cardiac arrest |
| Clinical Situation | Loss of autonomous respiration, pulse beat and consciousness |
| Use Condition | Can be used when external chest compression is helpful for the patient |
| Intended Environment | Before hospital admission, within the hospital and during patient transport |
| Intended Users | Qualified medical personnel trained in CPR system use |
Patient Population
| Patient Requirement | Detail |
|---|---|
| Patient Type | Adult patients |
| Chest Circumference | 70 cm to 150 cm |
| Weight Limitation | Not limited by patient weight, according to the safety/performance document |
| Too Small Patient | Device positioning may fail if the patient is too small |
| Too Large Patient | Device may not lock correctly if the patient is too large |
Applications
| Application Area | Use |
|---|---|
| Pre-Hospital Care | Supports CPR before admission to hospital |
| Emergency Department | Supports CPR workflow in emergency care |
| Intensive Care Unit | Suitable for ICU emergency resuscitation support |
| Patient Transport | Supports CPR during transfer |
| ECPR Pathway | Can support transfer while treating underlying causes during CPR |
| PCI Transfer | Can support ongoing CPR during transfer for coronary intervention pathway |
| Hypothermia Management | Can support extended CPR pathway where clinically required |
External Controller Monitor
| Feature | Benefit |
|---|---|
| Colour Screen | Provides clear operational display |
| Real-Time Feedback | Gives instant updates on CPR performance |
| Visible Compression Depth | Allows staff to monitor compression depth |
| Adjustable Depth | Allows compression depth to be adjusted |
| Adjustable Frequency | Allows compression rate/frequency to be adjusted |
| USB Connectivity | Supports device access and data management |
| Bluetooth / Wi-Fi | Supports wireless data access where configured |
| PC Review | Allows transferred data to be reviewed on a computer |
Compression and Safety Features
| Feature | Description |
|---|---|
| 3D Compression | Combines cardiac and thoracic pump compression principles |
| Mild Start | Provides a gradual start to compression |
| Electrically Controlled Compression | Device adjusts compression depth and mode electrically |
| External Controller | Provides operational control and monitoring |
| Fixing Straps | Used to secure the patient to the CPR system |
| Battery Operation | Device requires battery installed even when powered externally |
| Low Battery Handling | Battery can be replaced or external power connected when low battery occurs |
Data Management
| Function | Details |
|---|---|
| Data Transfer | Device data can be transferred |
| PC Review | Data can be reviewed on a computer |
| USB Access | Supported |
| Bluetooth / Wi-Fi Access | Supported where available/configured |
| Use Case | CPR review, documentation, training and quality improvement |
Important Clinical Notes
| Item | Note |
|---|---|
| Qualified Use Only | The device should only be operated by qualified medical personnel with appropriate training |
| Patient Supervision | The patient must not be left alone while the CPR system is in use |
| Positioning | Correct placement on the patient’s chest is essential |
| Manual CPR Backup | If the device cannot be placed safely and correctly, manual CPR should be performed immediately |
| MRI / Magnetic Environment | The device should not be used in a strong magnetic environment such as MRI |
| High-Pressure Chamber | The device should not be used in high-pressure chamber applications |
| Fire Risk | The device should not be used in oxygen-rich environments or with flammable anaesthetics/reagents |
| Contraindications Listed | Pregnancy, trauma or traumatic cardiac arrest |
| Clinical Responsibility | CPR use and patient treatment remain the responsibility of the clinical team |
Medical Device Classification and Standards
| Item | Detail |
|---|---|
| Medical Device Class | Class IIb according to Regulation 2017/745 |
| EMC Requirement | Meets IEC 60601-1-2 requirements |
| Airborne Equipment Environmental Testing | Meets RTCA DO-160G S20 and S21 |
| Helicopter Use | The safety/performance document states it can be used on helicopters |
Why Choose the Amoul E8?
The Amoul E8 is designed for emergency and critical care teams that require a fully electric mechanical CPR system for consistent external chest compressions during acute cardiac arrest care.
Its 3D compression technology, external controller monitor, real-time feedback, adjustable compression depth and frequency, and data review functions support structured resuscitation workflows. The E8 can be used across pre-hospital care, emergency departments, ICU settings and patient transport, helping clinical teams maintain CPR support during movement and extended emergency care pathways.
Suitable For
• Ambulance services
• Pre-hospital emergency teams
• Emergency departments
• Intensive care units
• Critical care transport teams
• Hospitals
• Resuscitation teams
• Air ambulance and helicopter transport environments, subject to local approval and configuration
• ECPR and PCI transfer pathways, where clinically appropriate
Ordering Information
Available configurations may vary depending on controller, hand-held terminal, connectivity setup, batteries, carrying case, straps, accessories and local regulatory requirements.
Please contact Nass Ventures for pricing, configuration advice, delivery, training and after-sales support.
Important: The Amoul E8 is a professional medical device for trained clinical users only. It should be used strictly according to the manufacturer’s instructions, local resuscitation protocols and clinical judgement. Patient suitability, contraindications, correct positioning and safe operation must be confirmed by the responsible medical team.
- High-Definition Color Touch Screen: Displays parameters and settings clearly.
- User-Friendly Operation: Features automatic positioning and one-key start for simplicity.
- Carbon Dioxide Module: Provides optional real-time CPR quality monitoring.
- Wireless Connectivity: Available as an optional feature for enhanced functionality
- Built-in Dual Battery Design: Ideal for extended rescue operations.
- Charging During Operation: Supports uninterrupted use by allowing charging while in use.
- Compatibility: Simultaneously operates with Amoul® ventilators for enhanced functionality.
- Electrically Controlled: Ensures precise operation
- Adjustable Compression Depth: Allows for customizable settings
- Suction Cup with Repetitive Negative Pressure: Effectively prevents chest cavity collapse
The LUCAS 3.1 Chest Compression System sets the standard for mechanical CPR devices.
Get better patient outcomes and make responder resources more efficient with the LUCAS Chest Compression System.
This LUCAS chest compression machine delivers high-quality compressions with fewer interruptions than manual CPR.
This enables rescuers to focus on treating the patient's underlying conditions without the fatigue of manual chest compressions or CPR.
Having a device that automatically delivers chest compressions, means a more efficient use of rescue staff time, as usually teams of two must cycle between rounds of CPR if done over longer periods.
The LUCAS 3.1 even allows for adjustable compression rates at the touch of a button, in compliance with the Resuscitation Council UK's guidelines of over 100 compressions per minute. Plus, a post-event report records all compression rates, depth, and duration for complete transparency.
Included with the LUCAS 3.1 device is the carry case, enabling rescue staff to transport the machine over rugged terrain easily.
Key Features
- Adjustable compression rates: 102, 111, or 120 compressions per minute
- Compression rate can be varied during operation
- Adjustable compression depth (between 45mm - 53mm)
- Compact and lightweight with included carry case
- Top window for battery checks
- Allows for greater freedom of chest space to maintain defibrillator pad access during operation
- WiFi and Bluetooth connectivity for post-event reporting
- Simple user interface for easy use
- 45-minute run time from a single battery - extended by the external power supply
- Fits 95% of patients
- Has no weight restrictions
- Stabilisation strap as standard to maintain device position
- Carry case charging access to recharge the device whilst in storage
- Disposable suction cup designed to improve chest expansion during operation
- Low profile back plate for easy patient placement
