IKA Universal MultiDrive Blender System

Write a review

₦9,293,400.00

Brand : IKA

Description : Laboratory Equipment

SKU : 25002638

Availability :

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

IKA MultiDrive is a universal mill and blender system for crushing, grinding and mixing hard, soft or fibrous samples. The same drive can be used with a range of interchangeable vessels for dry milling, wet blending and dispersing.

A high performance 1000 W motor with variable speed from 3000 to 20000 rpm delivers both coarse and fine grinding results. Interval mode, integrated cooling when used with suitable milling chambers, USB interface for documentation and a clear digital display make MultiDrive suitable for demanding laboratory and pilot-scale work.

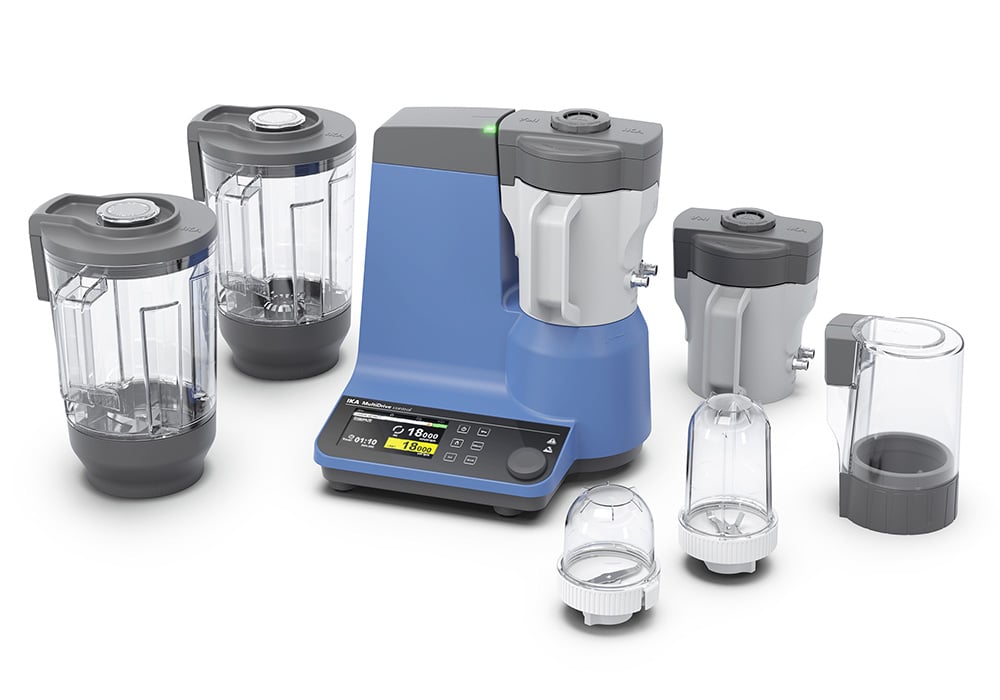

Drive units are available as basic and control versions, and as complete packages supplied with dedicated grinding or blending vessels for specific applications.

IKA introduces the world‘s first disposable grinding system for safe, instant and precise milling results. Its unique and compact design makes the unit space saving and ultra-portable. The disposable grinding chamber eliminates the possibility of cross-contamination and saves you cleaning costs and time. Convenient and safe to use while assuring high safety and reproducibility to cover a broad range of applications. The ability to cool the sample with dry ice expands applications tremendously. During development of the mill, particular emphasis was placed on user safety.

Technical Data

Model	IKA Multidrive Basic	IKA MultiDrive Control BT Package	IKA Multidrive Control MT Package

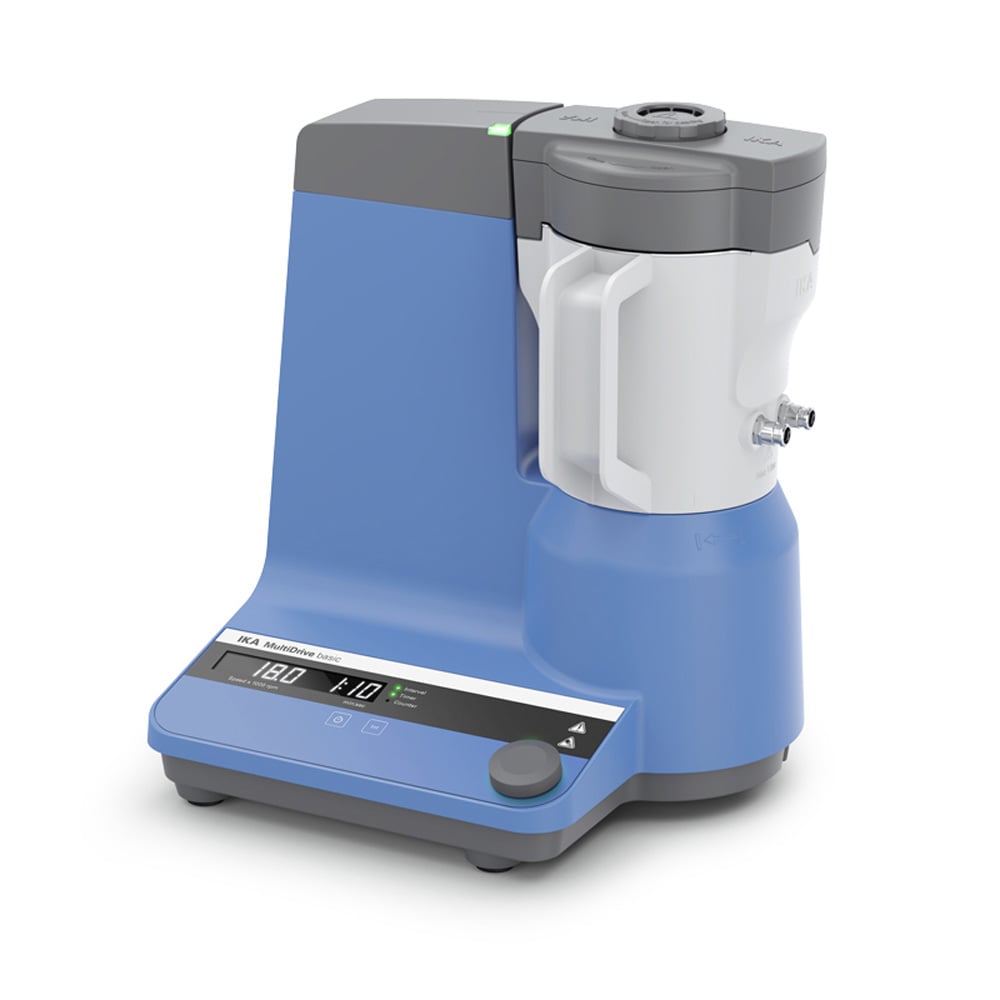

	Regardless of whether samples are hard, soft or fibrous – the IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available (vessels not included in delivery). With the MultiDrive basic it is possible to mix or grind. There is a USB interface available for easy actuation and documentation respectively. In combination with the milling chamber MI 250 MultiDrive basic replaces your M 20 mill. High performance Excellent crushing performance is guaranteed by a combination of variable rotational speeds, ranging from 3000 rpm to 20 000 rpm, and a 1000 Watt output. Interval operation The option of interval programming is simple to activate at the press of a button. Interval operation is an asset during the coarse crushing of hard samples or for extra thorough blending. Integrated cooling A cooling system is integrated in the milling cup, which allows indirect heat dissipation. Thus, coolant and sample remain separate. Variety of vessels (accessory) MultiDrive provides the right vessel for each grinding task. Vessels don't belong to the scope of delivery. Scope of delivery IKA MultiDrive basic Socket wrench Disassembly tool 1 Disassembly tool 2 Cleaning brush USB Cable - USB A to Micro-B, 2 m	Crushing without cross-contamination - this is possible with the MultiDrive control package including autoclavable disposable tubes BT 250 and the required TC 1 protective housing for dry samples. BT 250 is a disposable tube with a cross-shaped stainless steel beater and flow breakers. The plastic blending tube can be autoclaved. This effectively prevents cross-contamination even if it is used multiple times. An integrated RFID chip simultaneously stores and limits the lifespan of the blending tube. 5 spare seals are included in the scope of delivery. By replacing the seal, the service life of the blending tube can be extended. The disposable tube can only be operated with the TC 1 protective housing which is also included in the scope of delivery. MultiDrive universal crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available. There is a USB interface available for easy actuation and documentation respectively. High performance Excellent crushing performance is guaranteed by a combination of variable rotational speeds, ranging from 3000 rpm to 20 000 rpm, and a 1000 Watt output. Interval operation The option of interval programming is simple to activate at the press of a button. Interval operation is an asset during the coarse crushing of hard samples or for extra thorough blending. Integrated cooling A cooling system is integrated in the milling cup, which allows indirect heat dissipation. Thus, coolant and sample remain separate. TFT-display A clear TFT-display guarantees user-friendly operation. Temperature measurement MultiDrive control offers temperature measurement and vessel recognition using RFID. A temperature limit can be set for temperature-sensitive materials, or for specific planned reactions to protect against overheating. Weighing function The weighing function is also integrated into the user-friendly workflow of the IKA MultiDrive control. Weighing is performed before crushing using the same mixing cup, so that no transfer of contents is required. Scope of delivery IKA MultiDrive control MultiDrive TC 1 Protective housing MultiDrive BT 250.5 Blending tube, autoclavable	Crushing without cross-contamination - this is possible with the MultiDrive control package including autoclavable disposable tubes MT 150 and the required TC 1 protective housing for dry samples. MT 150 is a disposable tube with a typical stainless steel beater. The plastic milling tube can be autoclaved. This effectively prevents cross-contamination even if it is used multiple times. An integrated RFID chip simultaneously stores and limits the lifespan of the milling tube. 5 spare seals are included in the scope of delivery. By replacing the seal, the service life of the grinding chamber can be extended. The disposable tube can only be operated with the TC 1 protective housing which is also included in the scope of delivery. MultiDrive universal crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available. There is a USB interface available for easy actuation and documentation respectively. High performance Excellent crushing performance is guaranteed by a combination of variable rotational speeds, ranging from 3000 rpm to 20 000 rpm, and a 1000 Watt output. Interval operation The option of interval programming is simple to activate at the press of a button. Interval operation is an asset during the coarse crushing of hard samples or for extra thorough blending. Integrated cooling A cooling system is integrated in the milling cup, which allows indirect heat dissipation. Thus, coolant and sample remain separate. TFT-display A clear TFT-display guarantees user-friendly operation. Temperature measurement MultiDrive control offers temperature measurement and vessel recognition using RFID. A temperature limit can be set for temperature-sensitive materials, or for specific planned reactions to protect against overheating. Weighing function The weighing function is also integrated into the user-friendly workflow of the IKA MultiDrive control. Weighing is performed before crushing using the same mixing cup, so that no transfer of contents is required. Scope of delivery IKA MultiDrive control MultiDrive TC 1 Protective housing MultiDrive MT 150.5 Milling tube, autoclavable
Process type	batch	batch	batch
Operating principle	cutting/impact/blending/dispersing	cutting/impact/blending/dispersing	cutting/impact/blending/dispersing
Motor rating input	1000 W	1000 W	1000 W
Motor rating output	800 W	800 W	800 W
Speed min.	3000 rpm	3000 rpm	3000 rpm
Speed max.	20000 rpm	20000 rpm	20000 rpm
Speed deviation	±5 %	±5 %	±5 %
Power-ON time	5 min	5 min	5 min
Power-OFF time	10 min	10 min	10 min
Motor principle	Brushless DC	Brushless DC	Brushless DC
Display	7 segment LED	TFT	TFT
RFID reader/writer unit		yes	yes
Temperature display		yes	yes
Temperature measurement resolution		0.1 K	0.1 K
Accuracy of temperature measurement		±1 K	±1 K
Temperature limit min.		-50 °C	-50 °C
Temperature limit max.		120 °C	120 °C
Monitoring maintain time		yes	yes
Weighing function		yes	yes
Weighing range		5 - 4000 g	5 - 4000 g
Weighing resolution		1 g	1 g
Load capacity weighing function max.		4 kg	4 kg
Weighing accuracy		±(0.3%+2) g	±(0.3%+2) g
Vessels detection	yes	yes	yes
Ramp programming		yes	yes
Width	300 mm	300 mm	300 mm
Depth	250 mm	250 mm	250 mm
Height	350 mm	350 mm	350 mm
Weight	8.5 kg	8.5 kg	8.5 kg
Permissible ambient temperature min.	5 °C	5 °C	5 °C
Permissible ambient temperature max.	40 °C	40 °C	40 °C
Permissible relative humidity		80 %	80 %
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 31	IP 31	IP 31
USB interface	yes	yes	yes
Bluetooth interface		yes	yes
Voltage	230 / 220 - 240 / 100 - 120 / 100 V	220 - 240 / 100 - 120 / 100 - 115 V	220 - 240 / 100 - 120 / 100 - 115 V
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
Power input	1000 W	1000 W	1000 W

Technical Data

Model	IKA MultiDrive Control	IKA MultiDrive Basic M20 Successor Package

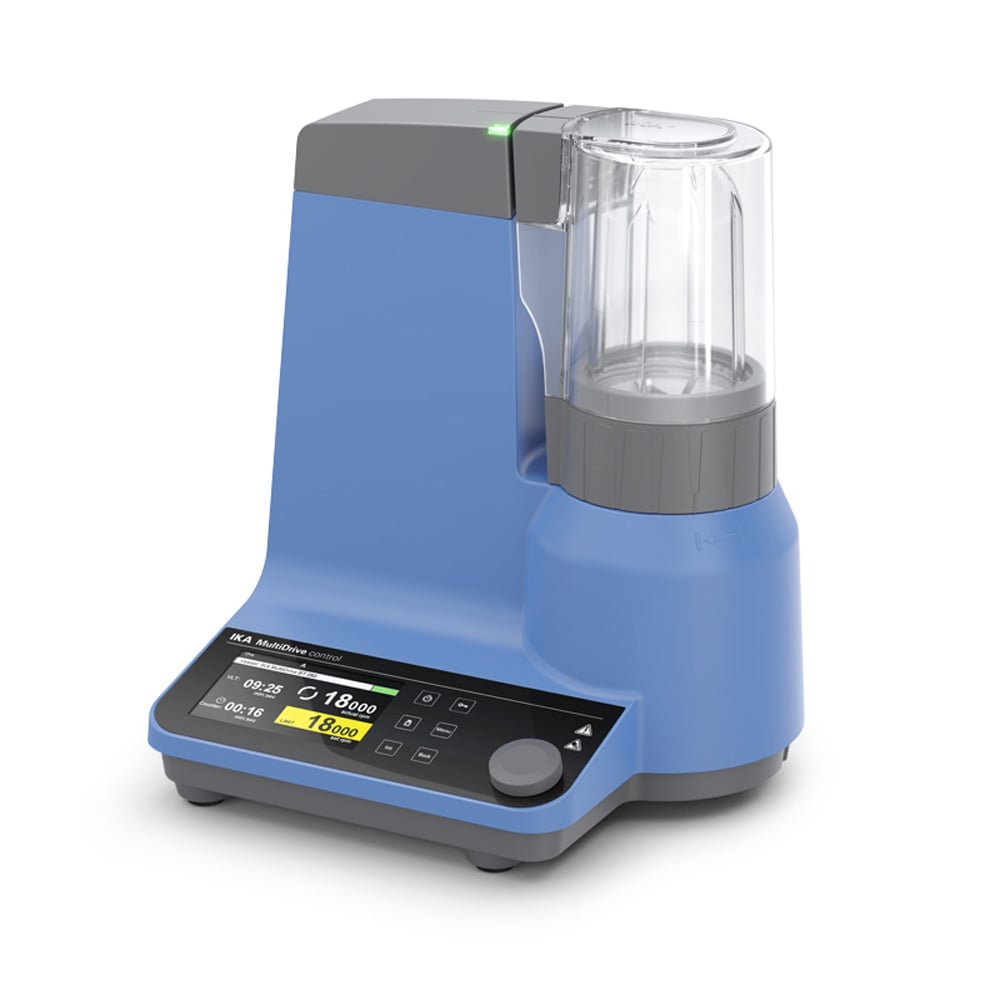

	Regardless of whether samples are hard, soft or fibrous – the IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available. MultiDrive control mixes, grinds and is also fitted with a dispersion vessel and a disposable tube. There is a USB interface available for easy actuation and documentation respectively. High performance Excellent crushing performance is guaranteed by a combination of variable rotational speeds, ranging from 3000 rpm to 20 000 rpm, and a 1000 Watt output. Interval operation The option of interval programming is simple to activate at the press of a button. Interval operation is an asset during the coarse crushing of hard samples or for extra thorough blending. Integrated cooling A cooling system is integrated in the milling cup, which allows indirect heat dissipation. Thus, coolant and sample remain separate. TFT-display A clear TFT-display guarantees user-friendly operation. Temperature measurement MultiDrive control offers temperature measurement and vessel recognition using RFID. A temperature limit can be set for temperature-sensitive materials, or for specific planned reactions to protect against overheating. Weighing function The weighing function is also integrated into the user-friendly workflow of the IKA MultiDrive control. Weighing is performed before crushing using the same mixing cup, so that no transfer of contents is required. Variety of vessels (accessory) MultiDrive provides the right vessel for each grinding task. Vessels don't belong to the scope of delivery. Scope of delivery IKA MultiDrive control Socket wrench Disassembly tool 1 Disassembly tool 2 Cleaning brush USB Cable - USB A to Micro-B, 2 m	Regardless of whether samples are hard, soft or fibrous – IKA MultiDrive basic performs a wide range of crushing tasks. In combination with the milling chamber MI 250-S MultiDrive basic is perfectly suitable for dry grinding of hard and brittle substances. High performance: 1000 Watt output and variable rotational speeds ranging from 3000 rpm to 20 000 rpm guarantee excellent crushing results. Interval operation: Is an asset during the coarse crushing of hard samples or for extra thorough blending. Integrated cooling: A cooling system is integrated in the milling cup, which allows indirect heat dissipation. In addition, dry ice can be used for cooling. The package includes the MultiDrive basic universal mill and a MI 250-S milling chamber 250 ml with standard beater made of stainless steel. It is the perfect successor of the M 20 batch mill. Scope of delivery IKA MultiDrive basic MultiDrive MI 250 – S
Process type	batch	batch
Operating principle	cutting/impact/blending/dispersing	cutting/impact/blending/dispersing
Motor rating input	1000 W	1000 W
Motor rating output	800 W	800 W
Speed min.	3000 rpm	3000 rpm
Speed max.	20000 rpm	20000 rpm
Speed deviation	±5 %	±5 %
Power-ON time	5 min	5 min
Power-OFF time	10 min	10 min
Motor principle	Brushless DC	Brushless DC
Display	TFT	7 segment LED
RFID reader/writer unit	yes
Temperature display	yes
Temperature measurement resolution	0.1 K
Accuracy of temperature measurement	±1 K
Temperature limit min.	-50 °C
Temperature limit max.	120 °C
Monitoring maintain time	yes
Weighing function	yes
Weighing range	5 - 4000 g
Weighing resolution	1 g
Load capacity weighing function max.	4 kg
Weighing accuracy	±(0.3%+2) g
Vessels detection	yes	yes
Ramp programming	yes
Width	300 mm	300 mm
Depth	250 mm	250 mm
Height	350 mm	350 mm
Weight	8.5 kg	8.5 kg
Permissible ambient temperature min.	5 °C	5 °C
Permissible ambient temperature max.	40 °C	40 °C
Permissible relative humidity		80 %
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 31	IP 31
USB interface	yes	yes
Bluetooth interface	yes
Voltage	220 - 240 / 100 - 120 / 100 - 115 V	230 / 220 - 240 / 100 - 120 / 100 V
Frequency	50/60 Hz	50/60 Hz
Power input	1000 W	1000 W
