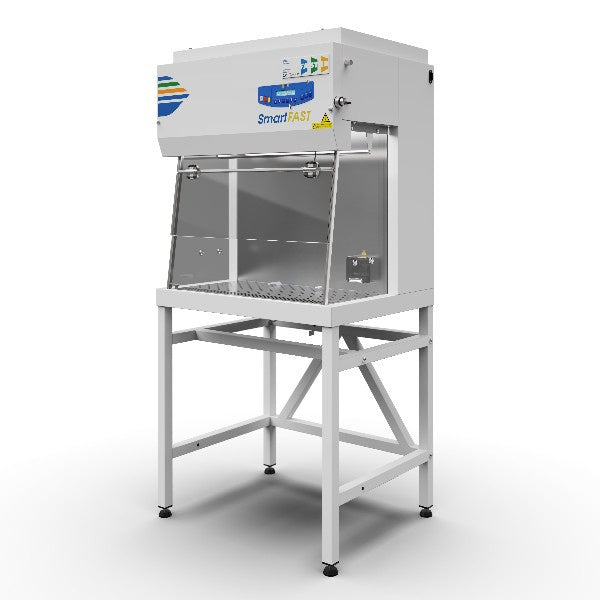

FASTER laminar flow workbench SmartFAST
The FASTER SmartFAST laminar flow workbench is a compact, vertical laminar flow solution that has been specially designed for highly sensitive working environments. It impresses with its ISO Class 3 certification and the option of working in positive or negative pressure. This ensures excellent protection against contamination and is ideal for laboratories, research facilities and production sites where cleanroom conditions are essential. Thanks to its space-saving design and ease of transport, it fits into almost any spatial environment and offers a durable and reliable solution compared to many competitor products.
Detailed features and benefits
The workbench ensures a clean, particle-free air flow as it has a vertical laminar flow (0.4 m/s) in accordance with DIN EN ISO 14644-1. In addition, the highly stable stainless steel construction and the hinged front glass ensure safe and convenient handling. The device is easy to clean and allows samples or instruments to be changed quickly without introducing unnecessary particles. The PLC control in the interior and an integrated socket as standard round off the ease of use.
Important key data in compact form:
- Appliance dimensions (W x H x D): 830 x 910 x 652 mm
- Usable area (W x H x D): 730 x 600 x 378 mm
- Weight: 85 kg
- Noise level: <60 dB(A)
- Power consumption: 178 W
- Light intensity: 565 lux
- Working aperture: 200 mm
- Power supply: 1Ph+E - 230 V 50 Hz
Other details worth mentioning are an optional aluminium front cover and an automatic flow regulator. With an internal fuse protection of 4 A and protection class / IP 1 / 20, the device is reliably protected. The work area also offers good ergonomics with a working height of 800 mm (seated workstation) and can be placed on a base frame with a total height of 1720 mm if required. Thanks to its modularity, the equipment can be easily adapted to the respective application scenario.
A key quality feature of this solution is its robust yet flexible design. The choice of positive or negative pressure settings makes the device ideal for different work steps. While positive pressure mode allows a constant exchange of air to the outside, negative pressure mode prevents particles or contaminants from escaping from the interior. This increases protection not only for the product, but also for the environment.Certifications and standards
This workbench complies with ISO class 3 in accordance with DIN EN ISO 14644-1, which means it fully fulfils the strict guidelines for cleanroom applications. Users benefit from a controlled working environment in which particle contamination is greatly reduced. This means that even demanding laboratory and production requirements can be met.
Application examples
- Microbiological laboratories: For the analysis and handling of samples where freedom from contamination is essential
- Pharmaceutical development: Product filling and packaging under aseptic conditions.
- Electronics manufacturing: Protection of sensitive components from airborne particles during assembly or quality assurance.
- Research facilities: Preparation and performance of experiments where sterile filtered air is mandatory.
FAQs
How often should the filter be changed?
Replacing the HEPA filter depends on the duration of use and service life. Laboratories generally carry out regular particle measurements and usually change the filter once a year or as soon as the air flow no longer reaches the target values.
Can I operate other electrical devices indoors?
One socket is provided in the interior as standard. Additional sockets can be integrated for additional devices, provided they are installed and fused correctly.
Which cleaning agents and disinfectants are suitable?
Common, alcohol-free disinfectants that evaporate without leaving any residue and do not attack the stainless steel are recommended. Suitable disinfectants include quaternary ammonium compounds or hydrogen peroxide solutions. Corrosive chemicals should be avoided.
Is regular maintenance necessary?
Yes, professional maintenance protects against functional failures and guarantees cleanroom conditions. This includes checking the air flow, filters and electronic components.
Conclusion
The solution presented here is characterised by its compact design, certified cleanroom quality and flexible setting options for a wide range of applications. Thanks to the integrated options such as a hinged front screen, robust stainless steel work area and optional accessories, it can be customised to meet individual requirements. Users benefit from efficient and durable equipment that reliably fulfils the high cleanliness requirements in the laboratory and manufacturing sector.
| Areas of application: | GeneticsLaboratoriesFine chemicalsAnalytical chemistryBiotechnologyHaematologyPharmaceutical industryCell culture |
| Width: | 830 mm |
| Device type: | Product protection |
| Height: | 910 mm |
| Safety class: | class I |
| Depth: | 652 mm |
| Shipping weight: | 85,00 Kg |
| Product weight: | 85,00 Kg |
| Dimensions: | × × cm |
