Best Seller
-
Grant Instruments Controlle...
₦48,896,600.00
controlled-rate freezer

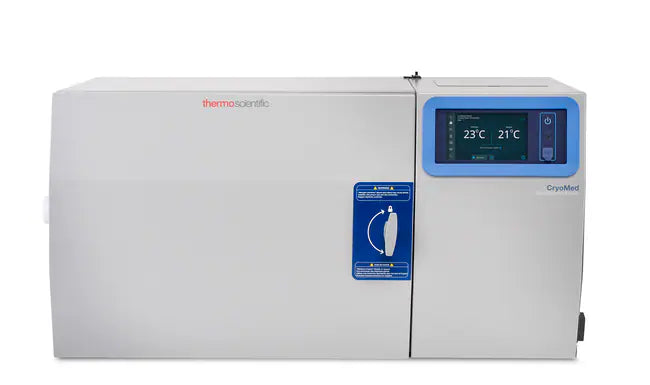

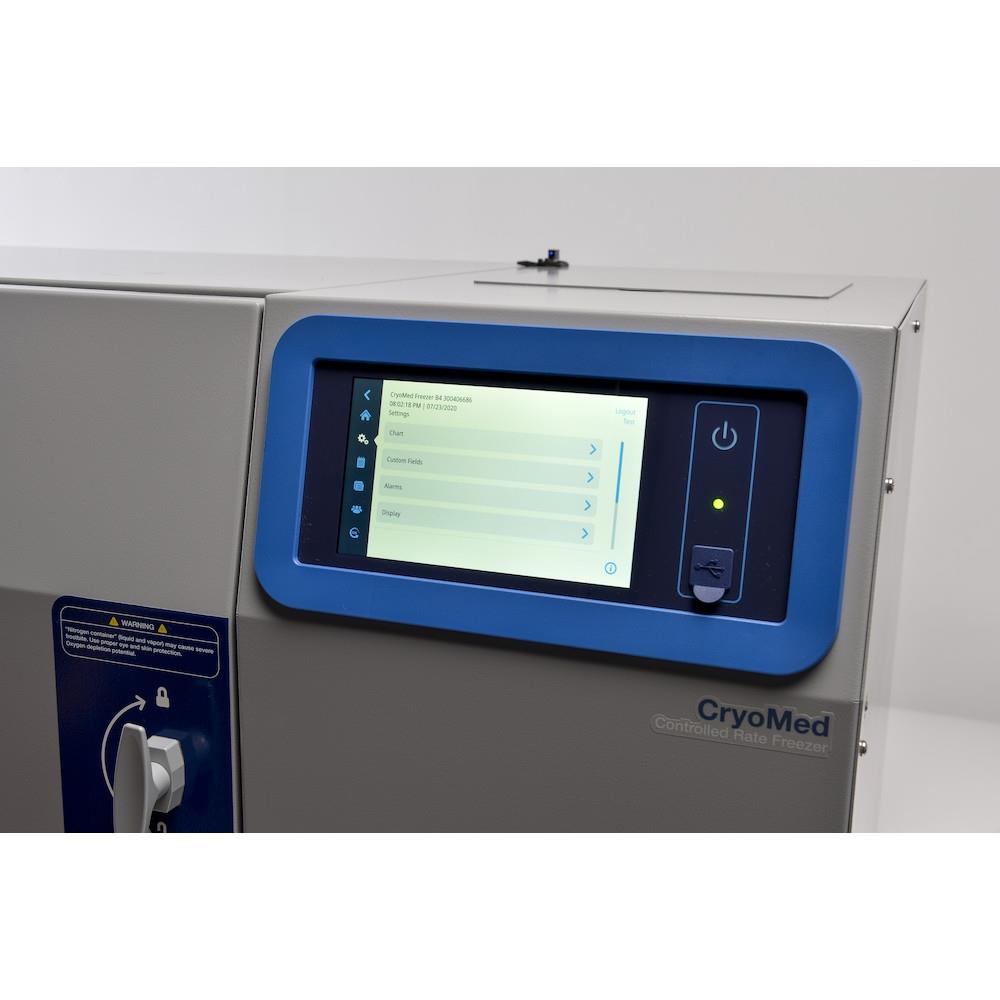

Thermo Scientific CryoMed Controlled-Rate Freezer – 17 L, 34 L and 48 L
The Thermo Scientific CryoMed Controlled-Rate Freezer is a general-purpose controlled-rate freezer platform available in 17 L, 34 L and 48 L capacities, with model options supplied with printer or without printer. It is intended for controlled cryopreservation workflows in research, cell and gene therapy, vaccine production, biobanking and GMP-aligned sample preparation environments.
Overview
CryoMed controlled-rate freezers are designed around reliability, sample protection and data traceability. The system supports precise, repeatable freezing results, customizable freeze profiles and controlled cooling performance to help reduce the risk of intracellular ice formation during cryopreservation protocols.
Available Shopify Variants
- 17 L – General Purpose with Printer
- 17 L – General Purpose without Printer
- 34 L – General Purpose with Printer
- 34 L – General Purpose without Printer
- 48 L – General Purpose with Printer
- 48 L – General Purpose without Printer
Key Features
- Controlled-rate freezing platform available in 17 L, 34 L and 48 L capacities.
- Choice of general-purpose configuration with printer or without printer.
- 220–230 V, 50/60 Hz electrical requirement across listed variants.
- Designed for precise, repeatable freezing results and controlled cryopreservation workflows.
- Touchscreen user interface for set-up, run operation and review.
- Six pre-set freezing profiles and capacity for up to 14 user-defined custom freeze profiles.
- Integrated run logging and USB PDF export to support traceability.
- Three user access levels, “run last” repeat function and PC interface software for remote operation and profile creation.
- Real-time chamber and sample temperature monitoring using Type T thermocouples.
- Standard alarms for thermocouple failure, heater malfunction, temperature tracking, high/low temperature limits, power failure and run completion.
- Remote alarm contacts and optional thermal printer depending on configuration.
- Temperature control and uniformity achieved via air-handling and liquid nitrogen injection ring system.
- Type 304 stainless steel construction with powder-coated exterior finish.
Specification Highlights
- Capacity options: 17 L, 34 L and 48 L.
- Selected 34 L specification: 1.2 cu. ft. / 34 L capacity.
- Selected 34 L temperature range: -180°C to +50°C.
- Selected 34 L exterior dimensions: 24.3 x 43.3 x 21.7 in. / 61 x 109.9 x 55.1 cm.
- Selected 34 L interior dimensions: 13 x 13 x 12 in. / 33 x 33 x 30.5 cm.
- Cabinet material: stainless steel.
- Exterior finish: powder-coated steel.
- Display: touchscreen user interface.
- Data output: USB data export.
- Sample loading: front-loading.
- Certification: CE.
Applications
- Cell and gene therapy sample preparation.
- Vaccine production and research workflows.
- Biobanking and long-term cryopreservation preparation.
- Research laboratories requiring controlled-rate freezing and reproducible freeze profiles.
- GMP-aligned environments requiring data traceability, configurable protocols and documented run records.
Procurement and Configuration Notes
Please confirm the required capacity, printer option, voltage/frequency, local compliance requirements, validation documentation, LN2 supply compatibility, accessories, installation support and after-sales service before ordering. Specifications and warranty terms may vary by region and final supplier configuration.

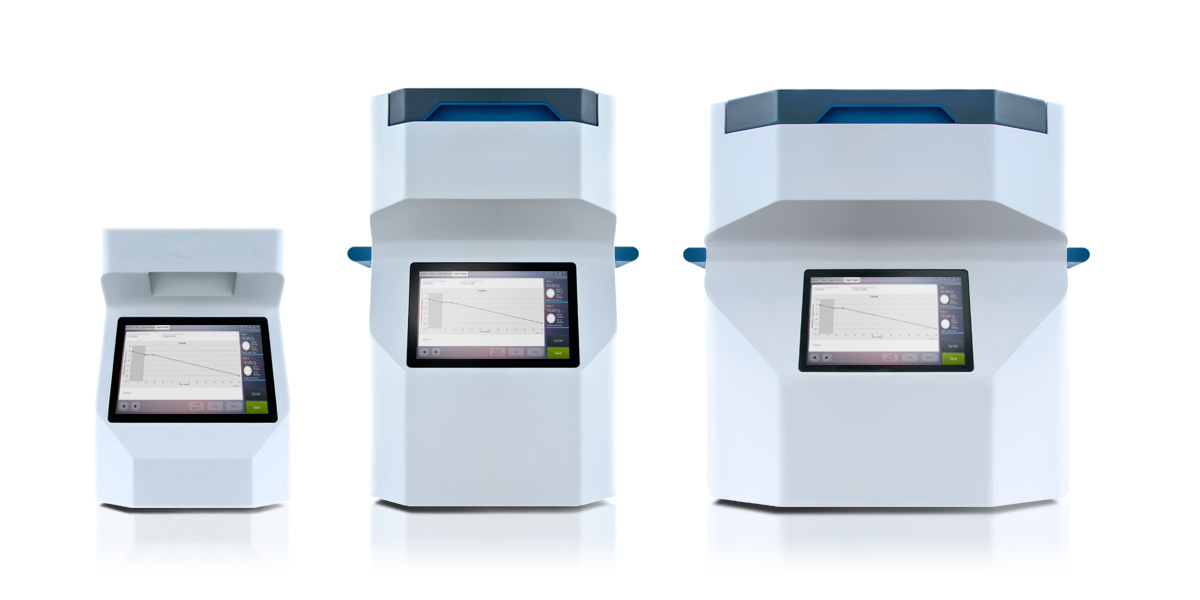

Cytiva VIA Freeze Controlled-Rate Freezers
The Cytiva VIA Freeze Controlled-Rate Freezers are liquid nitrogen-free controlled-rate freezers designed for GMP-compliant cryopreservation workflows using customizable freezing profiles, electronic control systems and conduction cooling.
Overview
The VIA Freeze range is designed to support controlled cooling, repeatable sample handling and digital process documentation across cell therapy and bioprocessing applications. The product family includes VIA Freeze Uno, VIA Freeze Duo and VIA Freeze Quad variants, allowing laboratories to scale throughput while maintaining comparable workflow logic between models.
Key Features
- Liquid nitrogen-free controlled-rate freezer range.
- Customizable freezing profiles for therapy-specific processes.
- Electronic control systems and conduction cooling method for consistent heat removal.
- Designed to support GMP-compliant cryopreservation workflows.
- Controls designed to support 21 CFR Part 11-oriented requirements, depending on implementation.
- Options for 24 to 192 cryogenic vials, cryobags up to 250 mL and straws.
- Supports integration with Chronicle software for digital batch record workflows.
- Networked units can help standardize profile delivery between instruments.
- Cleanroom-compatible workflow concept by eliminating liquid nitrogen infrastructure at the freezer.
- Available variants include VIA Freeze Uno, VIA Freeze Duo and VIA Freeze Quad.
Technical Specification Highlights
| Brand | Cytiva |
| Product group | VIA Freeze controlled-rate freezers |
| Product group ID | P-09721 |
| Variants | VIA Freeze Uno, VIA Freeze Duo, VIA Freeze Quad |
| Variant SKUs | VF_30001, VFD_30006, VFQ_30010 |
| Cooling method | Conduction cooling |
| Liquid nitrogen-free | Yes |
| Sample format options | 24-192 cryogenic vials, cryobags up to 250 mL, and straws |
| Software integration | Chronicle software support for digital batch record workflows |
| Use environment | Cell therapy, bioprocessing and GMP-oriented cryopreservation workflows |
Applications
- Cell therapy cryopreservation.
- Bioprocessing and GMP-oriented manufacturing workflows.
- Controlled freezing of cryogenic vials, cryobags and straws.
- Laboratories moving away from direct liquid nitrogen freezer infrastructure.
- Electronic batch-record and manufacturing automation workflows.
Procurement and Configuration Notes
Please confirm the selected VIA Freeze variant, adapter, container format, vial/bag/straw capacity, Chronicle software requirements, cleanroom compatibility, validation package, power requirements and regional support before ordering. Capacities and workflow details depend on chosen model and adapter configuration.

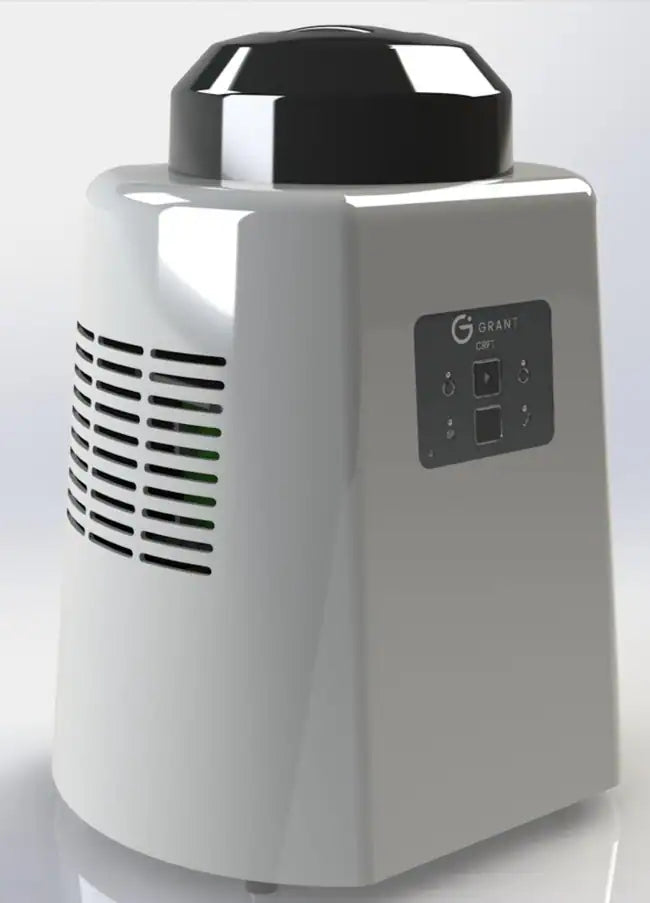

Grant Instruments Controlled Rate Freeze Thaw CRFT with Peli Case
The Grant Instruments Controlled Rate Freeze Thaw (CRFT) is a benchtop cryopreservation freezer/thawer supplied with a rigid black Peli case. It is designed to provide controlled freezing and thawing without liquid nitrogen, alcohol or conventional cryogens.
Overview
The CRFT is intended for research and clinical laboratory sample workflows requiring reproducible cooling rates and sample temperature control. Interchangeable heads are ordered separately, allowing the system to be adapted to vials, straws, PCR plates and other supported formats depending on selected head configuration.
Key Features
- Controlled-rate freezer and thawer for cryopreservation workflows.
- Liquid nitrogen, alcohol and cryogen-free operation; no topping up required.
- Accurate and reproducible control of cooling rates and sample temperatures.
- Supports controlled and customisable freezing and thawing profiles.
- Supports linear and non-linear freezing profiles.
- Interchangeable heads provide flexibility; heads are ordered separately.
- Free software allows users to design, track, export and report temperature profiles.
- Samples can be nucleated or seeded in situ.
- Low running-cost design powered by a 24 V supply.
- Temperature range from -100°C to 30°C.
Technical Specification Highlights
| Brand | Grant Instruments |
| Model | CRFT |
| Product code | 17900411 |
| Supplier number | CRFT UK PACK |
| Type | Cryogenic freezer/thawer |
| Configuration | Benchtop |
| Temperature range | -100°C to 30°C |
| For use with | Vials, straws and PCR plates |
| Certifications / compliance | CE |
| Cabinet material | Plastic |
| Chamber material | Aluminum |
| Exterior dimensions | 571 x 569 x 540 mm |
| Interior dimensions | 507 x 510 x 498 mm |
| Connectivity | USB and supplied software |
| Access security | Password-protected software |
| Backup systems | UPS optional extra |
| Voltage | 100/240 V |
| Frequency | 50/60 Hz |
| Wattage | 170 W |
| Vial capacity | Up to 55 |
| Refrigerant | Helium |
| Weight | 8.9 kg |
| Warranty | 2 years |
Applications
- Transgenic embryology research.
- Stem cell research and cryopreservation.
- Clinical and research samples including lymphocytes and tissue cell lines in conventional cryovials.
- Mammalian cell workflows including cardiomyocytes, adipose, liver and muscle cells.
- Cord-blood-derived stem cells, adherent cells and stem cells in microplates.
- Veterinary IVF and system integration applications, depending on configuration.
Procurement and Configuration Notes
Please confirm interchangeable head compatibility, sample format, throughput, software requirements, validation documentation, plug type, UPS option, calibration/service requirements and local regulatory needs before ordering. Interchangeable heads must be ordered separately unless included in a supplier package.

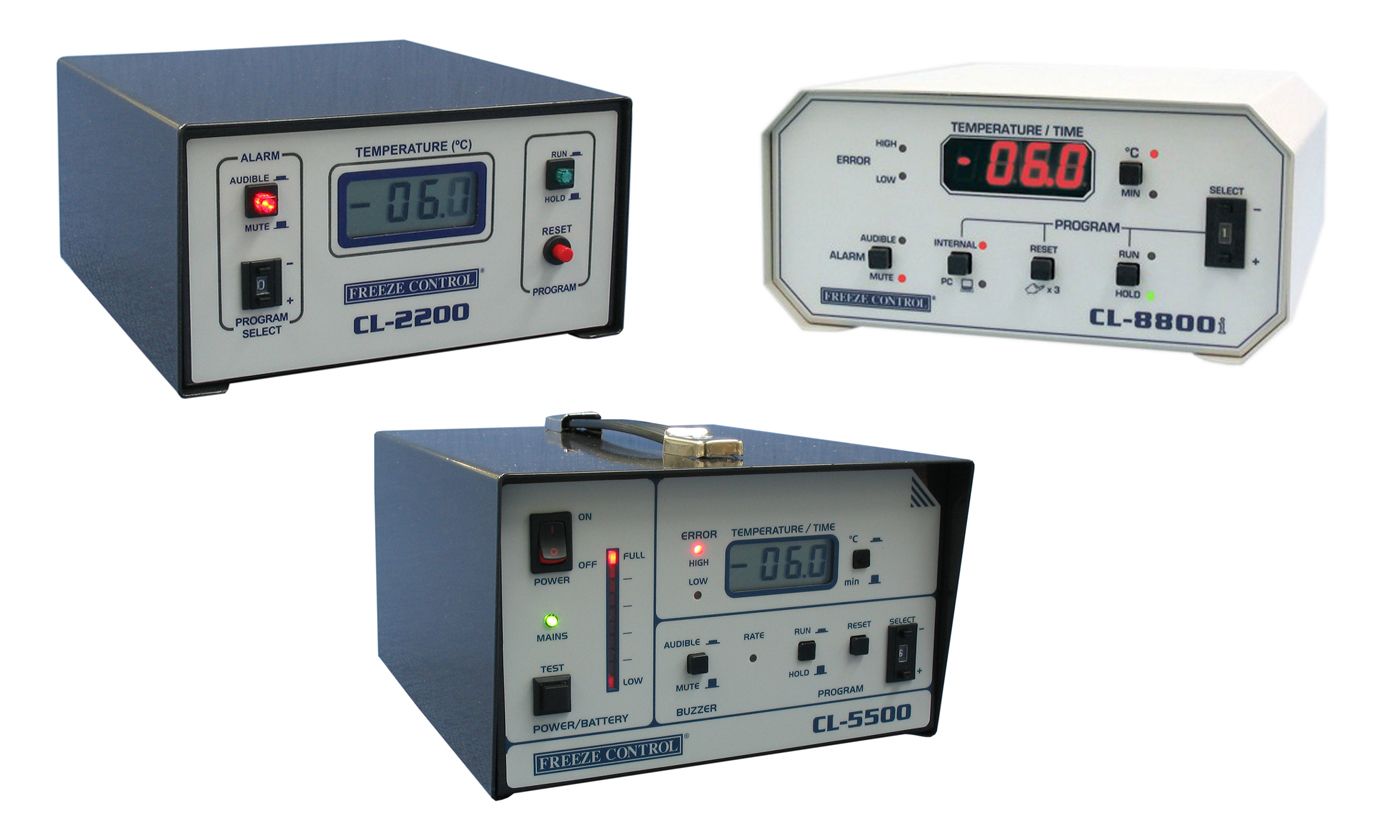

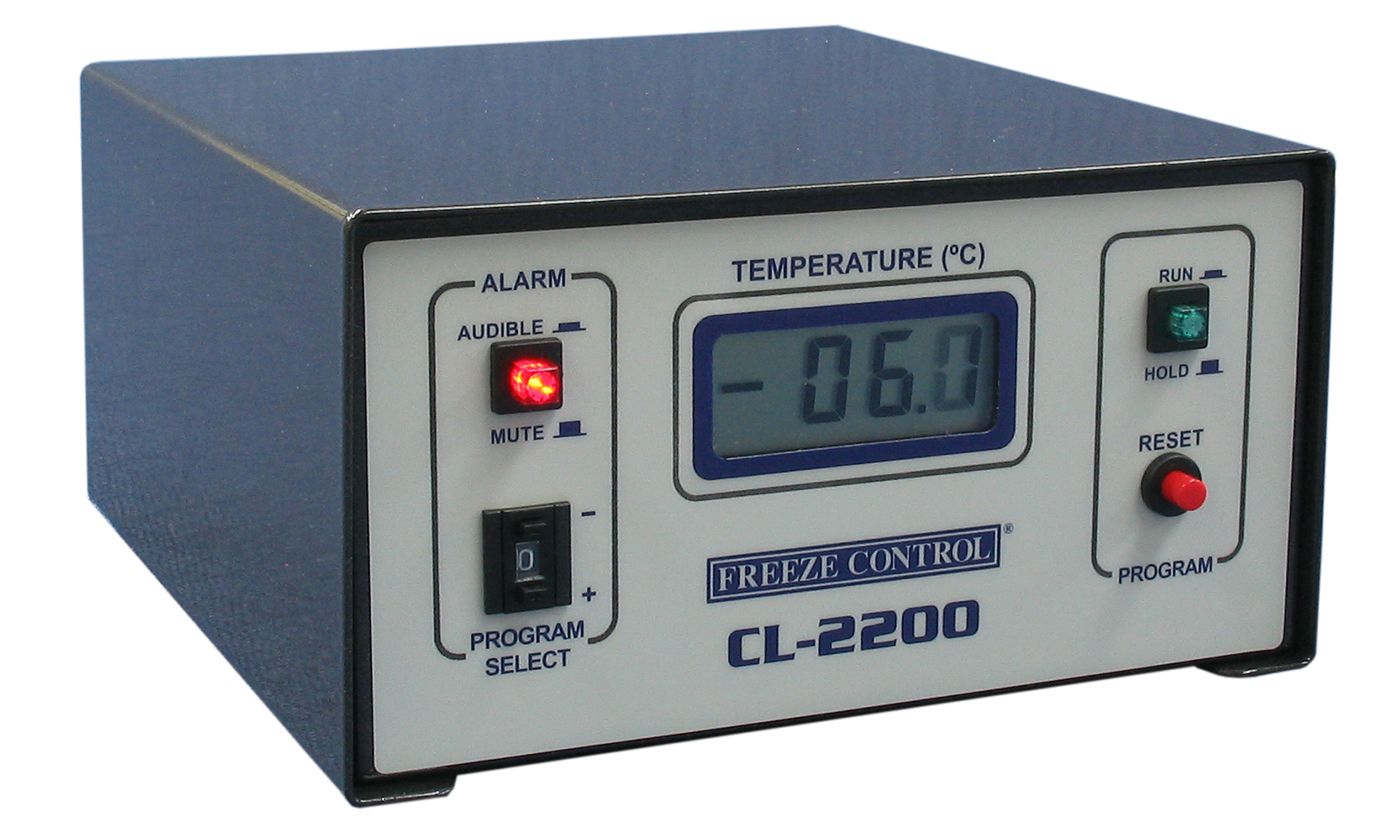

Minitube Freeze Control Embryo Freezing Device
The Minitube Freeze Control Embryo Freezing Device is an embryo freezing system designed for practitioners working with controlled embryo cryopreservation workflows. The system uses liquid nitrogen as the cooling medium and heat control to regulate temperature during programmed freezing.
Overview
Freeze Control systems consist of a cryobath, controller and carrying case. The uploaded source page describes a CL 2200 configuration with eight pre-installed freezing programs, a 1.5 L cryobath and external power supply, with additional Freeze Control variants available depending on configuration.
Key Features
- Embryo freezing system for practitioner-led cryopreservation workflows.
- Uses liquid nitrogen as cooling medium with heat control for temperature regulation.
- System configuration includes cryobath, controller and carrying case.
- CL 2200 configuration includes eight pre-installed freezing programs.
- 1.5 L cryobath listed for the CL 2200 configuration.
- Capacity for 23 x 0.5 mL straws or 46 x 0.25 mL straws.
- Can be operated with battery; battery not included according to the source page.
- Control range from +20°C to -43°C.
- Includes carrying case and power cable.
- Available variants include CL 2200, CL 5500 and CL 8800i, depending on supplier configuration.
Technical Specification Highlights
| Brand | Minitube |
| Model / Series | Freeze Control |
| Product type | Embryo freezing device |
| Cooling medium | Liquid nitrogen |
| Temperature regulation | Heat control |
| Listed controller configuration | CL 2200 |
| Pre-installed programs | 8 |
| Cryobath capacity | 1.5 L |
| Straw capacity | 23 x 0.5 mL or 46 x 0.25 mL straws |
| Control range | +20°C to -43°C |
| Battery operation | Possible; battery not included |
| Included items | Carrying case and power cable |
Applications
- Embryo cryopreservation workflows.
- Veterinary and reproductive laboratory procedures.
- Bovine, equine and other assisted reproduction settings depending on protocol.
- Practitioner-controlled freezing of straws and embryos.
- Field or clinic use where a portable carrying-case configuration is required.
Procurement and Configuration Notes
Please confirm selected controller model, program requirements, straw format, liquid nitrogen supply, power supply, battery requirements, calibration, accessories, consumables and regional service support before ordering. Final supplied configuration may vary by selected variant.

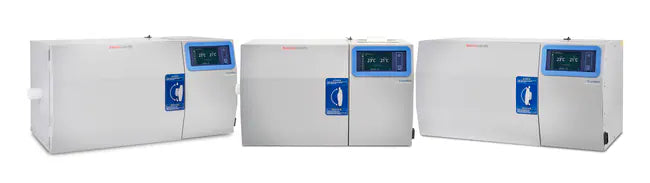

Thermo Scientific CryoMed with OPC UA Controlled-Rate Freezer – 48 L
The Thermo Scientific CryoMed with OPC UA Controlled-Rate Freezer is a 48 L controlled-rate freezing system designed for controlled sample preparation, cryopreservation workflows and GMP-oriented production environments where repeatable freezing profiles, electronic traceability and secure data handling are required.
Overview
CryoMed with OPC UA supports controlled-rate freezing with a touchscreen interface, USB data export, OPC UA ethernet communication and configurable freezing profiles. The system is intended for laboratories working with cell and gene therapy, vaccine production, clinical samples and research samples that require controlled, documented temperature reduction rather than uncontrolled freezer placement.
Key Features
- 48 L controlled-rate freezer configuration without printer.
- Designed to provide precise, repeatable freezing results that help protect samples from intracellular freezing.
- OPC UA ethernet communication for data integration and traceability.
- Touchscreen interface for set-up, operation and run review.
- Six pre-set freezing profiles plus capacity for up to 14 user-defined custom freeze profiles.
- USB export of PDF run logs for documentation workflows.
- Three levels of user accessibility and run-event logging to support controlled laboratory operation.
- Temperature control and uniformity supported by air handling and liquid nitrogen injection ring system.
- Front-loading sample access and stainless-steel cabinet construction.
- Compatible with VHP cleaning techniques, depending on local procedure and configuration.
Technical Specification Highlights
| Brand | Thermo Scientific |
| Model / Series | CryoMed with OPC UA |
| Supplier number | TSCM48SV |
| Product code | 17555865 |
| Type | Controlled-rate freezer without printer |
| Capacity | 48 L |
| Temperature range | -180°C to +50°C |
| Display | Touchscreen user interface |
| Sample loading | Front-loading |
| Exterior dimensions | 24.3 x 49.3 x 21.7 in. / 61 x 125.2 x 55.1 cm |
| Interior dimensions | 13 x 19 x 12 in. / 33 x 48.3 x 30.5 cm |
| Data outputs | USB and OPC UA Ethernet |
| On-board data logging | Yes |
| PC programmability | PC interface software supported |
| Connectivity | Thermo Fisher Connect compatible |
| Electrical requirements | 220-230 V, 50-60 Hz |
| Vial capacity | <1185 |
| Weight | 191 lb |
| Certifications / compliance | CE |
Applications
- Cell and gene therapy sample preparation.
- Vaccine development and production support workflows.
- Controlled cryopreservation of clinical and research samples.
- GMP-oriented production environments requiring electronic traceability.
- Laboratories requiring configurable freezing profiles and documented run logs.
Procurement and Configuration Notes
Please confirm final voltage, plug type, printer option, sample format, accessories, service plan, IQ/OQ/PQ requirements, software integration, validation expectations and local regulatory requirements before ordering. Availability and exact configuration may vary by supplier and region.
