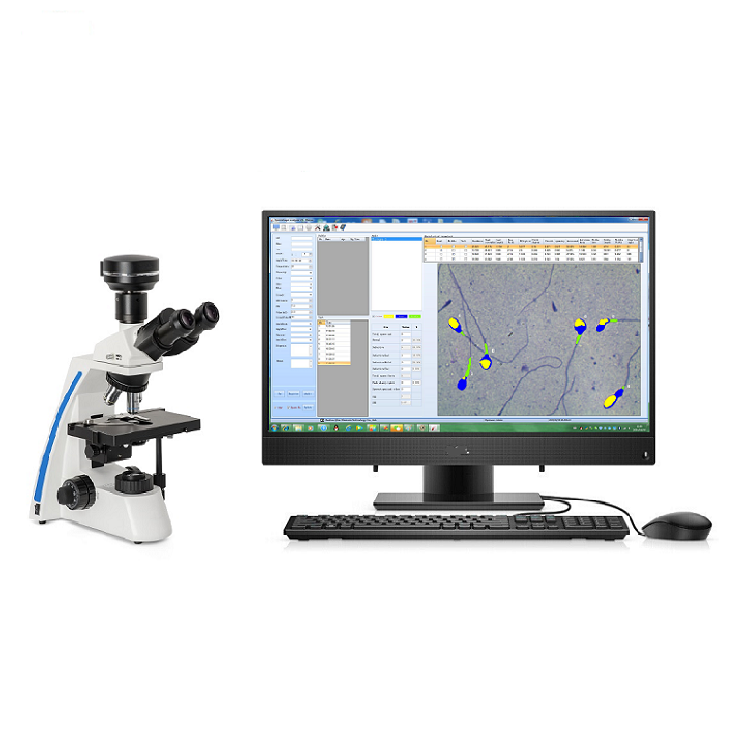

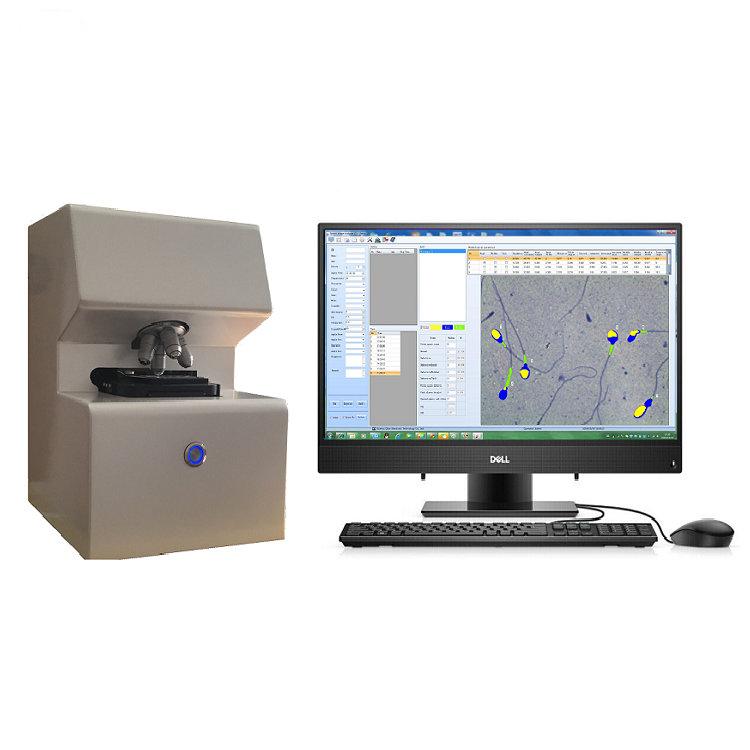

Medshine M126 Semi-Automatic Sperm Analyzer
The Medshine M126 Semi-Automatic Sperm Analyzer is an intelligent semen-analysis system for modern reproductive medicine. It combines computer image processing with artificial intelligence technology for sperm identification, sperm-motion tracking and quantitative analysis of sperm dynamic and static characteristics.
Key Features
- WHO 5th software referenced by the manufacturer source page.
- Simple guided operation for routine laboratory users.
- Automatic sperm identification and motion tracking with trajectory display.
- Analyses more than 30 sperm parameters including density, motility, movement trajectory, movement map and total sperm count.
- Supports morphology analysis, TZI and SDI calculations, report customization, playback/audit functions and LIS/HIS/network sharing depending on configuration.
Specification Highlights
- Model: M126; brand: Medshine.
- Maximum tested sperm count: 1000.
- Test speed range: 0 to 180 um/s.
- Frame number of picture: 0 to 75.
- Particle diameter resolution: 0 to 150 um/s as listed by the source page.
- Analysis time: 1 to 5 seconds or longer.
- Collected image groups: 1 to 25 groups.
- Microscope objective lens options listed: 10x, 20x, 40x and 100x.
- Standard configuration listed: main unit, all-in-one PC, microscope, camera and English analyzer software.
- Certificate/warranty shown by source: CE, ISO; 18 months.
Clinical and Laboratory Applications
- Clinical semen testing and male fertility assessment support.
- Hospital laboratories, fertility clinics, andrology laboratories and reproductive medicine centres.
- Laboratories requiring sperm motility, morphology and semen-analysis reporting functions.
Procurement and Configuration Notes
- Please confirm final microscope type, camera, software version, PC specification, language, consumables and LIS/HIS integration before ordering.
- The source page lists CE and ISO, but certificate copies and market-specific regulatory status should be verified before procurement.
- Clinical use should be supported by validated SOPs and trained laboratory personnel.
Mira Lab
Mira Lab Spermolyzer CASA Sperm Analyzer

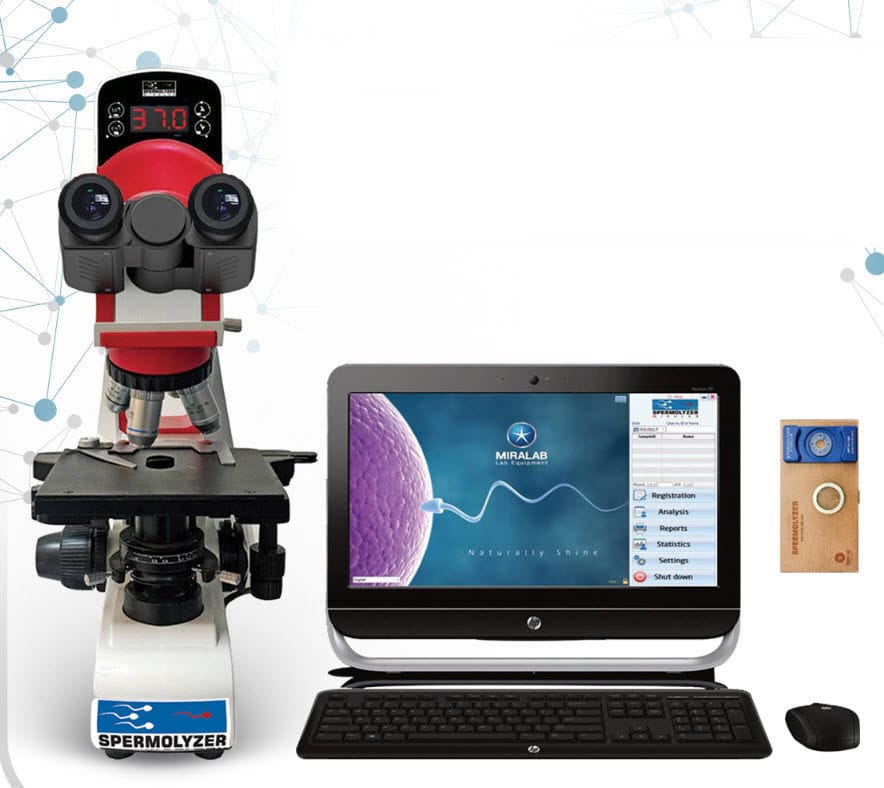

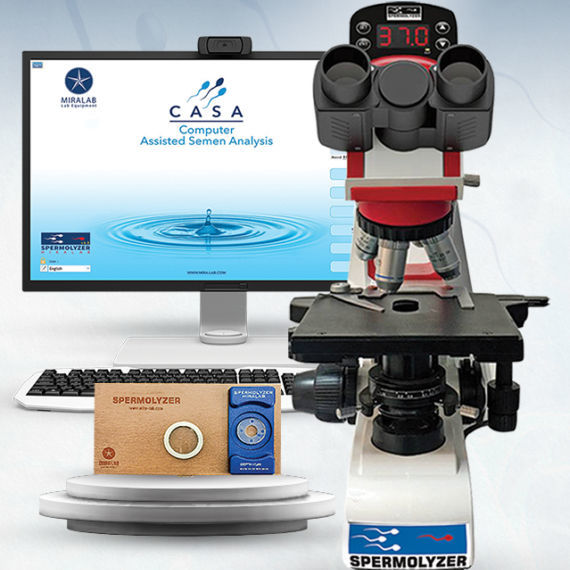

Mira Lab Spermolyzer CASA Sperm Analyzer
Spermolyzer is a Computer Assisted Semen Analysis (CASA) system from Mira Lab for clinical assessment of sperm motility, morphology, vitality, DNA fragmentation, acrosome reaction and leukocytes. It is intended for andrology, fertility and reproductive medicine laboratories that require standardized digital semen analysis and reporting.
Key Features
- CASA platform using machine vision and image-processing techniques for semen analysis.
- Supports clinical assessment of sperm motility, morphology and vitality.
- Supports DNA fragmentation, acrosome reaction testing and leukocyte-related workflows depending on configuration and accessories.
- MedicalExpo listing includes a linked 10-page Spermolyzer catalogue.
- Designed for fertility clinics, andrology laboratories and reproductive medicine programs.
Specification Highlights
- System type: Computer Assisted Semen Analysis (CASA).
- Assessment areas listed by source: motility, morphology, vitality, DNA fragmentation, acrosome reaction test and leukocytes.
- Guideline reference shown by source: WHO 6th Edition (2021).
- Linked catalogue: Spermolyzer, 10 pages, English.
- Manufacturer/distributor reference: Mira Lab.
Clinical and Laboratory Applications
- Routine semen analysis in fertility and andrology laboratories.
- IVF/ART laboratory support where CASA reporting is required.
- Research and quality-control workflows requiring digital image-based sperm assessment.
Procurement and Configuration Notes
- Please confirm software modules, microscope/camera package, report templates, consumables and validation requirements before ordering.
- Some testing areas may require dedicated stains, slides, reagents or workflow modules.
- Clinical interpretation should follow laboratory SOPs and local reproductive medicine guidelines.
INTIN INC.
INTIN OVIEW Sperm Analyzer
INTIN OVIEW Sperm Analyzer
The INTIN OVIEW sperm analyzer is a compact sperm testing solution intended to help users and clinics review sperm density and motility information before further professional fertility assessment. The uploaded product page positions OVIEW as a sperm analyzer with real-time product media and a manufacturer link for additional configuration information.
Key Features
- Compact sperm analyzer for preliminary semen quality review.
- Supports assessment of sperm density and motility as part of male fertility screening workflows.
- Designed to support user privacy while helping identify whether further clinical fertility evaluation may be required.
- Manufacturer product media is available through MedicalExpo and the INTIN product page.
- Suitable for distributors supplying andrology, reproductive health and fertility-screening equipment, depending on local regulatory requirements.
Specification Highlights
- Brand/model identifier OVIEW by INTIN INC.
- Product category: sperm analyzer / semen quality assessment device.
- Media: product image and product video available from the listing.
- Manufacturer website reference: INTIN OVIEW product page.
- Exact supplied accessories, consumables, app requirements and regional regulatory status should be confirmed before ordering.
Clinical and Laboratory Applications
- Male fertility awareness and semen quality screening.
- Andrology clinics, fertility clinics and reproductive health programs where appropriate.
- Private preliminary testing before referral to specialist laboratory assessment, depending on local clinical pathway.
Procurement and Configuration Notes
- This product should not be presented as a replacement for a full laboratory semen analysis unless confirmed by the manufacturer and local regulations.
- Please confirm intended market, language support, compatible consumables and after-sales requirements before quotation.
- Clinical interpretation should be provided by qualified healthcare or laboratory professionals.
Hamilton Thorne
Hamilton Thorne IVOS II Sperm Analyzer

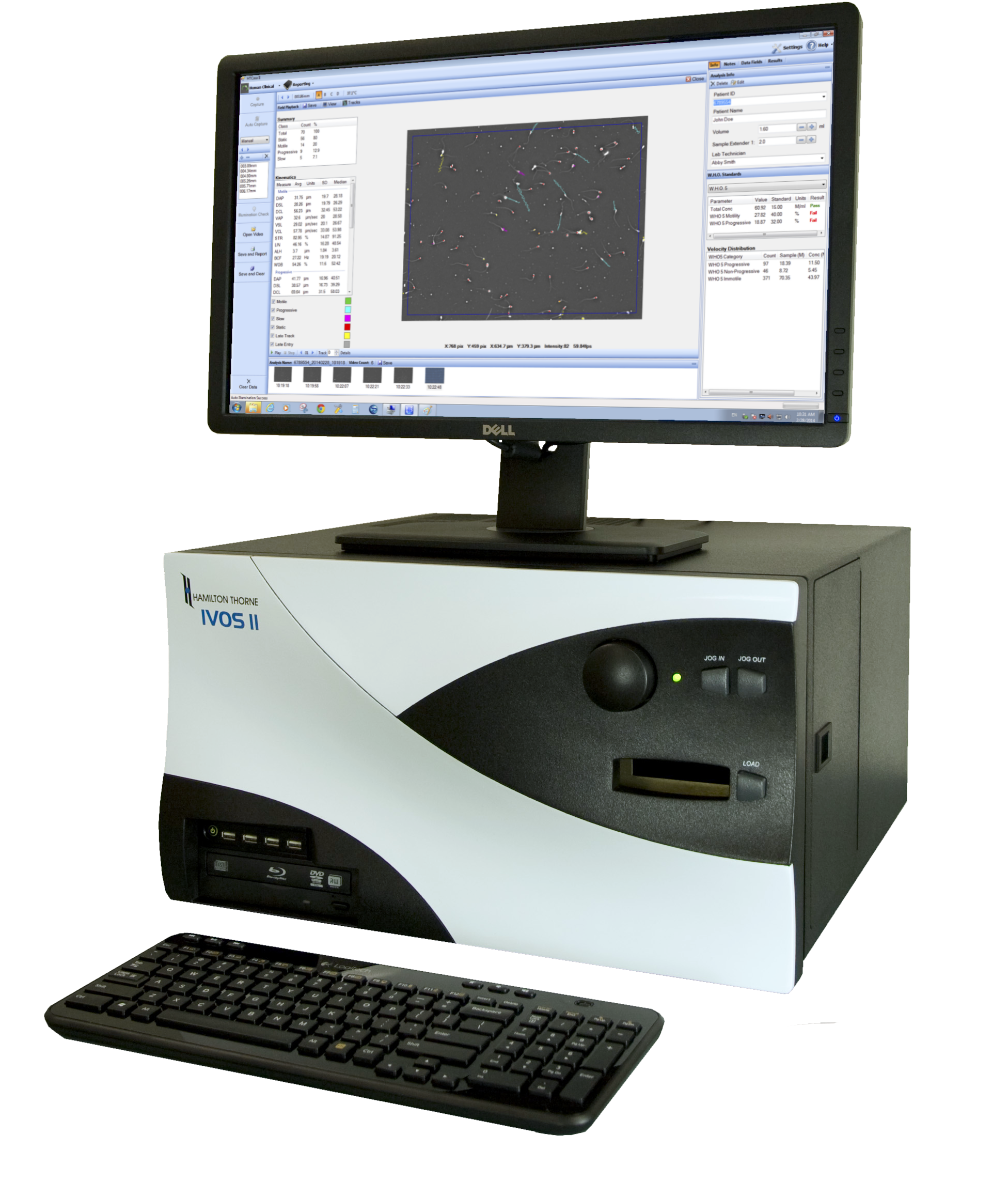

Hamilton Thorne IVOS II Sperm Analyzer
The Hamilton Thorne IVOS II is a high-performance automated sperm analyzer and CASA platform for human clinical, IVF, research and animal laboratory applications. It provides objective and repeatable semen analysis for sperm count, concentration, motility categories and advanced workflow options such as morphology, DNA fragmentation and fluorescence-based modules depending on configuration.
Key Features
- Computer Assisted Sperm Analysis (CASA) system for objective semen quality assessment.
- Supports analysis of sperm count, concentration, static, slow, motile and progressive motility categories.
- Windows-based HT CASA software designed for intuitive operation and repeatable reporting.

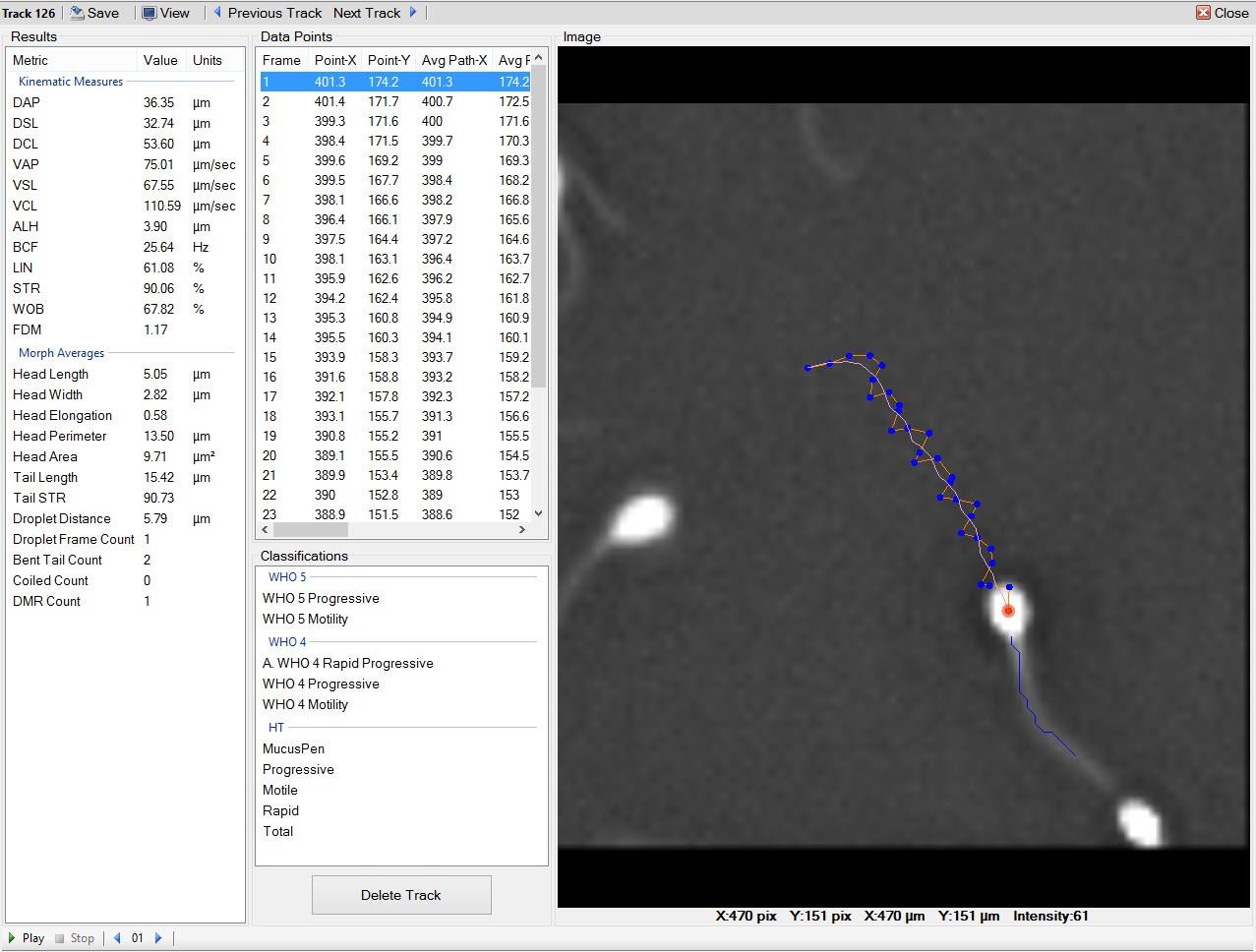

- Color-coded motility tracks and illumination tools help identify sperm head and tail during analysis.
- Optional modules may support sperm morphology, DNA fragmentation, IDENT fluorescence and VIADENT viability workflows depending on configuration.
Specification Highlights
- Clinical motility objective: 10x negative phase; morphology objective: 100x brightfield; DNA fragmentation objective: 20x brightfield, depending on configuration.
- Illumination: negative phase contrast for motility and brightfield for morphology/DNA fragmentation workflows.
- Motility analysis slide options include 20 micron depth slides and Makler chambers.
- HT CASA software supports WHO 4, 5 or 6 parameter-based analysis depending on selected software configuration.
- Animal/research software modules and breeder-specific software are available for non-human applications.
Clinical and Laboratory Applications
- Clinical andrology and IVF semen assessment.
- Human fertility laboratories requiring standardized CASA reporting.
- Animal breeding, veterinary, toxicology and reproductive research applications depending on software module.
Procurement and Configuration Notes
- Please confirm intended application, software module, objectives, camera, computer, service plan and consumables before ordering.
- Optional morphology, DNA fragmentation, fluorescence and animal modules should be specified at quotation stage.
- Clinical interpretation should be performed by trained laboratory professionals using validated protocols.
Labotronics
Labotronics LB-10HSA Human Semen Anal...

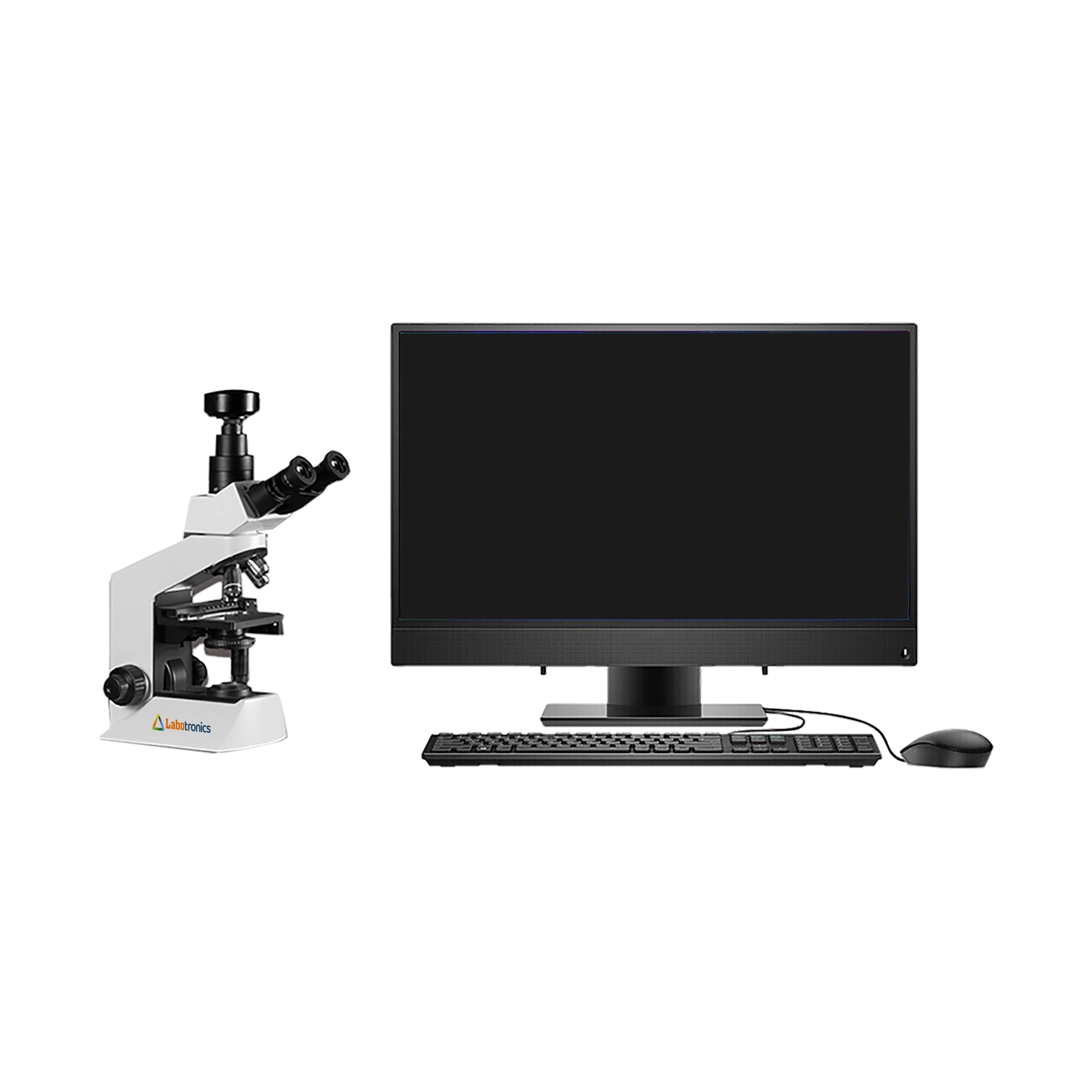

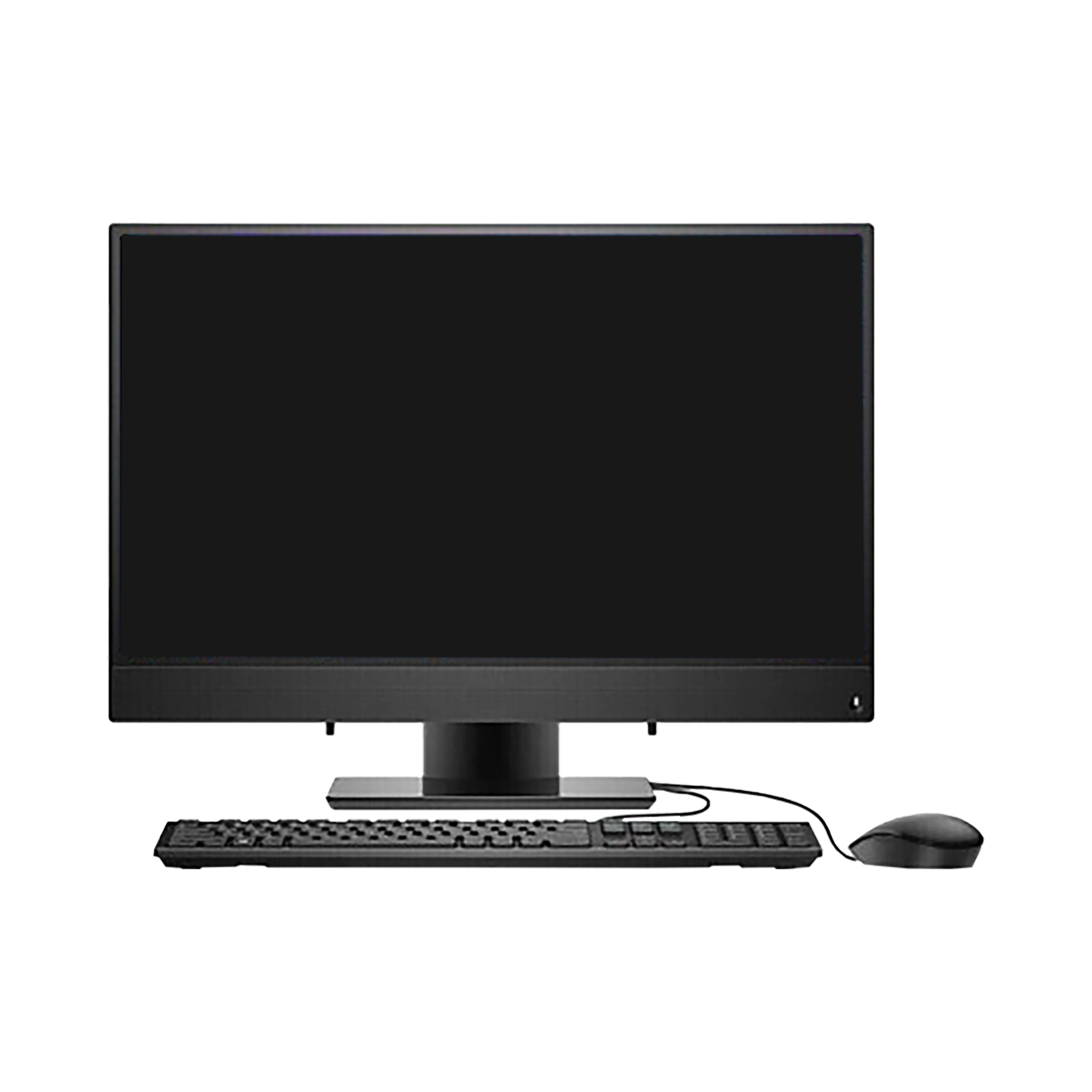

Labotronics LB-10HSA Human Semen Analyzer
The Labotronics LB-10HSA is an automated human semen analyzer for fertility clinics, hospitals and research laboratories that require repeatable assessment of sperm motility, concentration and morphology. It combines microscopy, camera capture, sperm analysis software and motion-tracking algorithms to support quantitative semen analysis.
Key Features
- Automated sperm analysis for motility, concentration and morphology assessment.
- High-speed analysis with rapid data processing and automated report generation.
- Multi-frame analysis captures up to 75 frames per analysis for detailed visualization of sperm movement.
- User-friendly software supports routine laboratory semen testing workflows.
- Supplied system may include PC, camera, binocular microscope, analysis software, counting slide and manual depending on configuration.
Specification Highlights
- Sample Collection Capacity: 1 to 2000 or more
- Measuring Speed Range: 0 to 200 µm/s
- Captured Frames: 0 to 75
- Resolution: 0 to 10 µm
- Acquisition Time: 1 to 5 sec or more (depending on computer memory)
- Number of Image Acquisition Groups: 100
- Microscope Dimension (H × W × L): 400 × 180 × 140 mm
- PC Dimension (H × W × L): 380 × 100 × 360 mm
- Packaging Dimension: 690 × 490 × 510 mm
- Net Weight: 20kg
Clinical and Laboratory Applications
- Male fertility testing and semen quality evaluation.
- Fertility clinics, hospital laboratories, and reproductive medicine centres.
- Research laboratories requiring quantitative sperm activity and morphology assessment.
Procurement and Configuration Notes
- Please confirm microscope, camera, PC specification, software version and supplied accessories before ordering.
- Consumables and sperm-counting slides should be ordered according to laboratory workload.
- Clinical use should follow validated laboratory procedures and local quality-control requirements.
Bonraybio
Bonraybio LensHooke X1 PRO Automatic ...

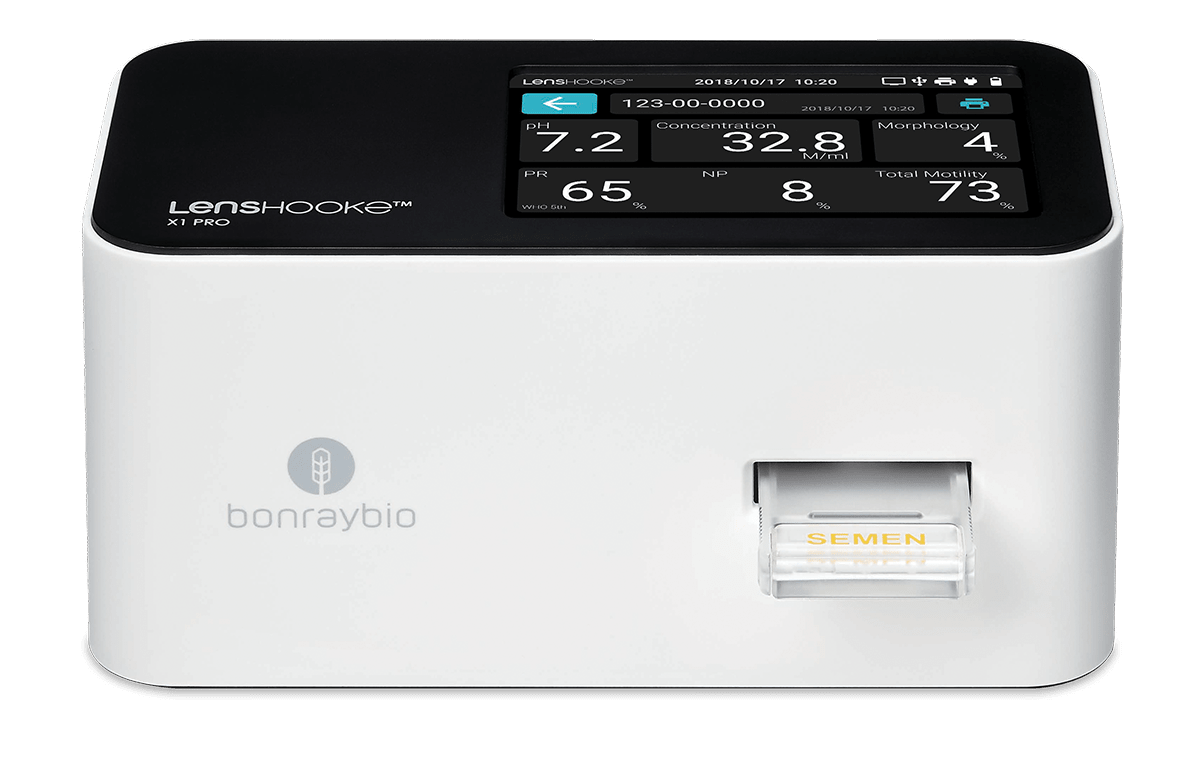

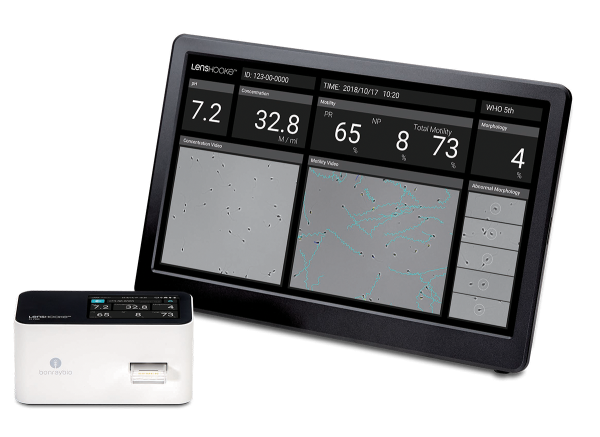

Bonraybio LensHooke X1 PRO Automatic Sperm Quality Analyzer
The LensHooke X1 PRO is a compact automatic sperm quality analyzer for objective semen assessment in andrology, fertility and ART laboratory workflows. The system supports rapid sperm quality testing with real-time dynamic imaging and CASA-style reporting, helping laboratories reduce dependence on fully manual microscopy.
Key Features
- Automatic semen quality analysis with results typically available in 2 to 5 minutes.
- Measures key semen quality parameters including sperm concentration, total motility, progressive motility and additional CASA parameters.
- 3.5-inch touchscreen interface in a compact benchtop format.
- Real-time dynamic image display for review and explanation of results.
- Designed for use with dedicated LensHooke test cassettes and quality-control beads, depending on configuration.
Specification Highlights
- Display: 3.5-inch touchscreen.
- Dimensions: approximately 140 x 70 x 70 mm.
- Device memory: up to 30 studies including data and images.
- Study time: approximately 2 to 5 minutes.
- Motility measurement range: less than 1% to 100%.
- Supports CASA parameters including MSC, PMSC, VAP, VSL, VCL, LIN, STR, WOB, ALH and BCF.
Clinical and Laboratory Applications
- Male fertility evaluation and semen quality assessment.
- Andrology laboratories, fertility clinics and ART/IVF centres.
- Post-vasectomy checks, donor screening workflows and sperm banking support, depending on local clinical protocols.
Procurement and Configuration Notes
- Please confirm supplied accessories, cassettes, QC materials and software options before ordering.
- Clinical interpretation should be performed by trained personnel according to local laboratory and fertility guidelines.
- Availability, regulatory status and configuration may vary by country.
