binder

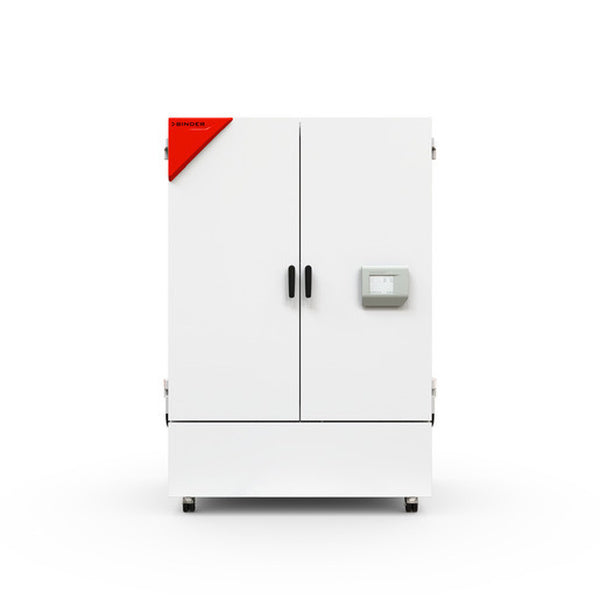

BINDER KBF 1060 constant climate chamber

The high-performance constant climate chamber stands for precise and reliable stability tests in the pharmaceutical industry, biotechnology and research laboratories. Thanks to state-of-the-art inverter cooling technology, users achieve a consistently homogeneous temperature and humidity distribution. Its large interior with a volume of 1070 litres makes it easier to work with a large number of samples without compromising on energy consumption. Compared to similar appliances on the market, this cabinet offers superior performance thanks to its certified temperature accuracy and robust design.

Precise climate simulation for the highest stability tests

This climate chamber is specially designed to ensure constant conditions even during demanding ICH stability tests. Particularly noteworthy is the improved compressor technology, which, in conjunction with the sophisticated APT.line preheating chamber, creates consistent homogeneity throughout the entire interior. This means that the chamber fulfils key requirements for long-term and stress tests without temperature or humidity fluctuations having a negative effect. The flexible water supply, which allows the operation to be easily adapted to different installation locations, is a decisive factor here. Optional LED light modules even turn the interior into a growth room for plant-related studies.

Thanks to capacitive humidification and a sensor that quickly detects changes, the cabinet reacts promptly to changes in climate conditions and reaches its target values in a short space of time. A stable door heater is also integrated to prevent condensation. The stainless steel interior in combination with metal oxide-coated inner doors protects against corrosion and facilitates cleaning processes. This ensures hygiene and durability at all times.

Important performance features (extract)

- Temperature range: 0 °C to +70 °C (with humidity: 10 °C to 70 °C)
- Humidity range: 10 % r.h. to 80 % r.h.
- Max. Heat compensation at 40 °C: 640 W
- Energy-efficient cooling thanks to inverter compressor and R-600a refrigerant
- Temperature deviation over time at 25 and 40 °C: ±0.1 K
- Intuitive touchscreen controller with extensive programming
- Internal data logger and various interfaces (Ethernet, USB)

In addition, the spatial temperature deviations are only in the range of ±0.2 to 0.3 K under demanding measurement conditions. This ensures reproducible results even with large test set-ups. The internal construction with double inner doors and high-quality HIT sandwich technology reliably shields the sample material from external interference. At the same time, power consumption is reduced by up to 40% in some operating modes compared to comparable predecessor models.

Certifications and standards

This climate test chamber fulfils the standards commonly used in pharmaceutical and biotechnological research, including DIN 12880 for temperature selector monitors class 3.3, which triggers a visual and audible alarm as soon as specified limit values are exceeded. Manufacturer-independent documentation tools can be used via the existing interfaces to ensure the seamless recording of all measurement data. Readout via USB takes place in an open format, which enables fast further processing.

Application examples

- Long-term stability tests in accordance with ICH standards for pharmaceutical products and active ingredients.
- Accelerated stability tests for various pharmaceutical formulations such as tablets and injection solutions.
- Cultivation of microorganisms or plants when a constant climate including humidity control is required.
- Quality assurance processes in the food industry where temperature fluctuations could affect spoilage.
- Storage of reference standards for research and laboratories that require a constant environment.

FAQs

How can the temperature and humidity be precisely controlled?

Control is via a capacitive humidity sensor and APT.line preheating technology. Even with fluctuating room temperatures, the intelligent inverter compressor always guarantees the desired climate stability.

What are the benefits of the door heater?

The integrated door heater prevents condensation from forming on the glass, which ensures a constant view of what is happening inside and unchanged humidity distribution.

How can large sample quantities be placed safely

?

Thanks to the robust stainless steel shelves, each shelf can hold up to 40 kg. The maximum total load is 100 kg, which means that even heavy samples can be stored safely.

What data recording options are available

An internal data logger stores the measured values. The data can be read out and further processed in an open format via a USB interface. Ethernet connections are also available to realise online monitoring.

Is the cabinet mobile?

The robust double swivel castor design makes the device mobile and easy to move, especially in larger laboratory areas. There are brakes at the front to ensure a secure stand.

Can the cabinet also be used to grow plants?

Yes, optional LED light modules enable lighting that is suitable for plant-specific cultivation and research.

How are deviations signalled in the device?

A signalling triangle with conspicuous lighting indicates the current status. A visual and audible alarm also sounds if the limit value is exceeded.

Conclusion

The KBF 1060 is an excellent choice for pharmaceutical stability tests and quality-sensitive applications. With its excellent temperature and humidity homogeneity, energy-efficient inverter cooling and generous internal volume, demanding laboratory tasks can be realised reliably and economically. The intuitive controls, fast recovery times and outstanding safety functions round off the overall package. Anyone requiring constant, precise and energy-efficient climate simulation will find a future-proof solution that fulfils the highest requirements. The BINDER KBF 1060 constant climate chamber therefore stands for state-of-the-art testing technology that laboratory professionals in research and industry can rely on comprehensively.

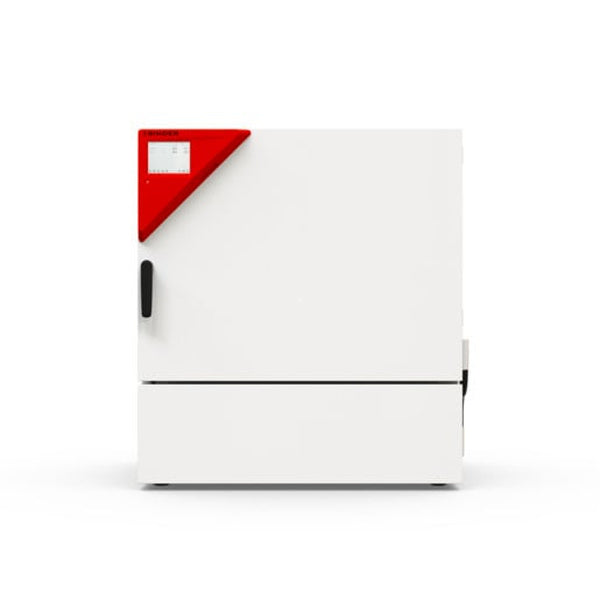

BINDER KBF 130 constant climate chamber

The BINDER KBF 130 is a high-precision climate chamber for applications where constant temperature and humidity values are essential. Particularly in the pharmaceutical industry, in research laboratories and in quality control departments, the device provides a reliable basis for long-term tests, accelerated tests and stress tests as part of ICH stability tests. Compared to similar products on the market, it is particularly impressive thanks to its even climate distribution, energy-efficient cooling and high reliability in continuous operation.

Performance features and areas of application

Thanks to its APT.line preheating chamber technology, an extremely homogeneous temperature distribution is achieved, which remains constant even when the interior is fully loaded. This is a decisive advantage for pharmaceutical and biotechnological laboratories, where the quality and reproducibility of stability tests are essential. The cabinet has a robust design and includes a stainless steel interior, which ensures easy cleaning and a long service life.

In addition, the cabinet is equipped with capacitive humidity control and fast-response vapour humidification. This enables measurements of critical humidity values with high precision, while safety is also guaranteed thanks to visual and acoustic alarms (temperature selector monitor class 3.3 in accordance with DIN 12880). The modern inverter cooling technology ensures low energy consumption, while the climate-neutral refrigerant R-600a reduces the environmental impact.

The appliance is used in a wide variety of laboratory environments. In addition to the pharmaceutical industry, the scientific community also benefits from the precise temperature and humidity control. It is also suitable for food tests in quality control.

Technical data at a glance

- Temperature range: 0 °C to +70 °C, with humidity: 10 °C to 70 °C
- Humidity range: 10 % r.h. to 80 % r.h.

- Temperature deviation over time from 0.1 ± K (depending on setting value)
- Energy-efficient inverter refrigeration unit with R-600a refrigerant
- Interior volume: 127 litres
- Door heating to prevent condensation
- Data logger with USB readout and Ethernet interface

The fan speed can be individually adjusted to meet specific requirements. The stackable design also supports space-saving integration into existing laboratory facilities. Thanks to the ergonomic touchscreen controller, both time segment and real-time programming are possible. The internal measured value memory documents all events transparently and tamper-proof, which is essential for validated processes in the pharmaceutical industry in particular.

The robust outer casing is based on HIT sandwich technology, which provides additional stability and good insulation at the same time. Combined with the inner panelling made of durable stainless steel, maintenance requirements are low. Two slide-in grids enable flexible loading, and up to six slide-in grids can be placed if required. The sturdy grid inserts are essential, especially for samples that are stored on different levels. Each shelf can be loaded with a maximum of 25 kg, providing sufficient capacity for extensive stability tests.Certifications and standards

The cabinet is equipped in accordance with the requirements of DIN 12880. This standard defines the safety and performance requirements for heating and drying ovens. The integrated class 3.3 temperature monitoring system monitors key parameters and promptly triggers visual and acoustic signals in the event of deviations. In many sectors, especially in the pharmaceutical industry, ICH guidelines must also be complied with: Thanks to its high temperature and humidity homogeneity, the device optimally supports these standards and ensures stable and reproducible conditions, as required in GMP-compliant laboratories.

Application examples

1. Long-term stability tests of active pharmaceutical ingredients: Particularly for tablets, capsules or liquid preparations whose shelf life and efficacy must be ensured.
2. Accelerated tests for cosmetic products: To simulate temperature and humidity fluctuations over long periods of time in order to evaluate shelf life.
3. Stress tests in the food industry: For example, when testing baked goods or dairy products for their microbiological stability.
4. Research laboratories: Use for analysing materials at constant humidity, for example to investigate hygroscopic behaviour of plastics or metals under certain conditions.

FAQs

How is humidity controlled indoors

The appliance uses capacitive humidity measurement combined with rapid vapour humidification. This ensures that the set humidity level is reached and maintained within a very short time.

Do you need a direct water connection?

There are various water supply options available. You can either connect to the in-house water network or use an optionally available water storage tank.

How much maintenance is required

Due to the stainless steel construction and robust design, the maintenance requirements are low. The interior is easy to clean and important components are easily accessible.

What safety functions are integrated

A class 3.3 temperature selector switch in accordance with DIN 12880, a visual and audible alarm function and door heating to prevent condensation are key safety features.

Can several programmes be saved?

Yes, several temperature and humidity programmes can be saved via the intuitive touchscreen controller and called up as required.

Conclusion

This constant climate chamber impresses in laboratories and development departments with its reliable performance and high precision in temperature and humidity tests. With its modern inverter cooling technology, efficient use of energy and robust stainless steel construction, it sets standards in terms of reliability and durability. Users benefit from a wide range of programming options and intelligent monitoring, which enables seamless documentation. The device is an excellent solution for demanding stability and stress tests and fulfils all current standards and industry-specific requirements.

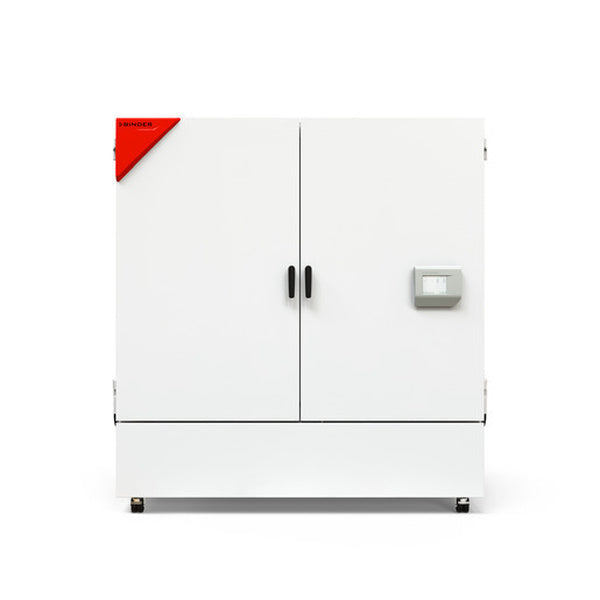

BINDER KBF 1600 constant climate chamber

The BINDER KBF 1600 constant climate chamber is specially designed to ensure constant temperature and humidity conditions for demanding stability tests. The pharmaceutical industry and research facilities in particular benefit from its high reliability, as it fulfils critical ICH requirements and can be used for a wide range of long-term tests. Its precise control technology and energy-saving inverter cooling technology make it both efficient and economical, so that this device has established itself as an extremely powerful and durable solution compared to competing products.

Powerful climate simulation for reliable results

This climate chamber impresses with its uniform temperature and humidity distribution throughout the entire interior. The tried-and-tested APT.line preheating chamber technology ensures homogeneous air circulation, which is particularly important in pharmaceutical quality assurance. Thanks to the capacitive humidity sensor and the fast-reacting steam humidification system, humidity control is extremely precise. In addition, the modern inverter chiller significantly reduces energy consumption and increases operational reliability.

The most important technical data at a glance: - Temperature range: 0 °C to +70 °C (with humidity: 10...70 °C)
- Humidity range: 10...80 % r.H.
- High-quality insulation for low energy consumption
- Inverter cooling technology with R-600a as climate-neutral refrigerant
- Measured values can be read out via internal data logger (USB-Ethernet interfaces)
- Robust double swivel castors with brakes for safe transport
- Touchscreen controller with real-time programming and ergonomic control panel

The appliance has a spacious stainless steel interior with a volume of 1610 litres. The integrated door heater and double-walled housing prevent condensation. The high load capacity of up to 100 kg total load and the two standard shelves make handling heavy samples or appliances effortless. In addition to the powerful cooling system, the rapid recovery time after door openings is also an advantage, as the set conditions are restored within a short time.

The optional light modules are particularly noteworthy. If, for example, ICH photostability tests are required or a plant growth cabinet is needed, the device can be flexibly customised with suitable LED lighting units. This allows the model to cover various research areas without the need to purchase additional specialised units. The intuitive BINDER Multi Management Software APT-COM Basic Edition also makes it easier for users to monitor and document measured values.

Certifications and standards

The construction is designed in accordance with DIN 12880. This standard defines high safety and quality requirements for heating ovens and climate chambers. In addition, the appliance is designed in such a way that essential ICH guidelines regarding temperature and humidity can always be met. This creates the basis for valid data in the development or testing of pharmaceutical products.

Application examples

- Stability testing in the pharmaceutical industry (e.g. for medicines and active ingredients)
- Accelerated shelf life tests in the cosmetics industry (creams, lotions)
- Long-term storage of samples in biotechnology
- Climate simulations in research projects, for example with plant seeds or bacterial cultures
- Material testing in industrial laboratories under constant humidity and temperature conditions

FAQs

How can the device be cleaned

?

The stainless steel interior allows easy decontamination with suitable cleaning agents. Make sure to switch off and cool down the appliance beforehand to avoid damage.

What maintenance intervals are recommended

Seals, sensors and the water supply should be checked at regular intervals. The intervals vary depending on the intensity of use, but can generally be semi-annual or annual.

Is the appliance suitable for continuous operation?

Yes. Thanks to the robust compressor technology and precise control, constant continuous operation for long-term tests is unproblematic. The device's self-check supports reliable operation and indicates potential deviations at an early stage.

Does the model support documentation in accordance with GMP specifications?

The integrated data recording via USB export and the BINDER Multi Management Software APT-COM Basic Edition offer extensive documentation options. This allows GMP requirements to be met efficiently, provided that the laboratory's own validation processes are observed.

Conclusion

The device fulfils the highest requirements for stability tests and climate simulations by providing temperature and humidity reliably and reproducibly. With its energy-efficient inverter cooling technology, robust design and compliance with standards, this constant climate chamber is a future-proof solution for research and development departments in industry and laboratories. Anyone who requires uninterrupted, precise climate management and at the same time values energy efficiency will find a reliable partner in this design.

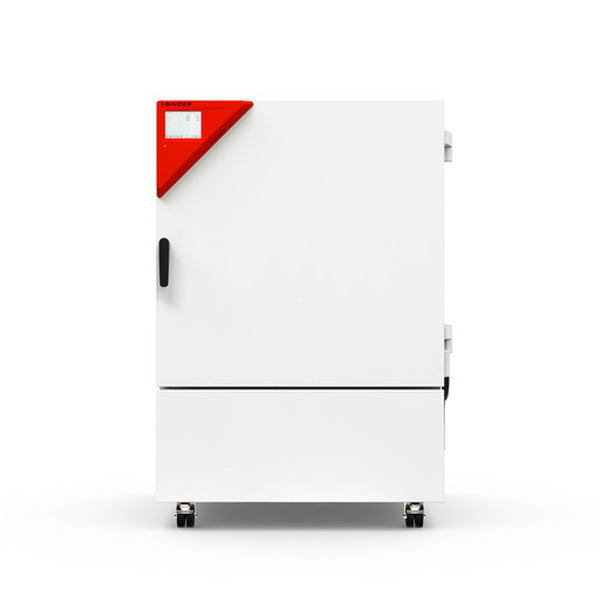

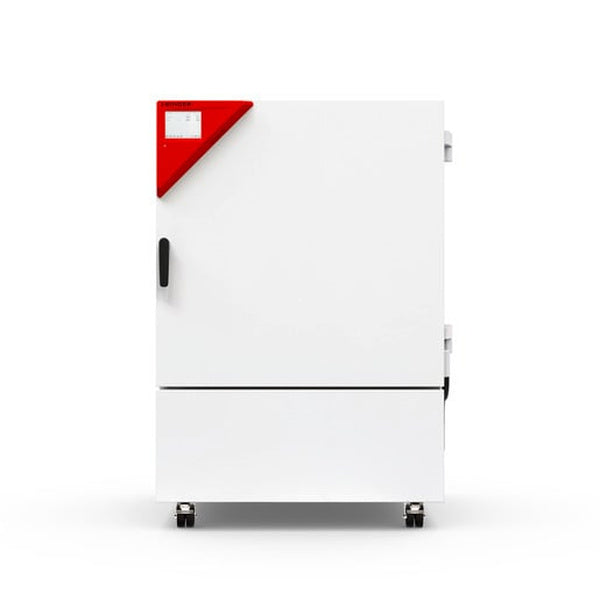

BINDER KBF 260 constant climate chamber

The BINDER KBF 260 constant climate chamber is a high-performance climate chamber designed for reliable temperature and humidity conditions in laboratory and production environments. It is particularly impressive in the pharmaceutical industry for stability tests, enabling users to fulfil all relevant ICH guidelines precisely and in a time-saving manner. This cabinet stands for the highest quality with comparatively low energy consumption and is therefore ideal for demanding continuous loads and critical long-term tests.

Performance characteristics and special features

Thanks to its wide operating temperature range of 0 °C to +70 °C and humidity range between 10 % RH and 80 % RH, this climate chamber is a reliable solution for demanding applications. The integrated inverter cooling technology with environmentally friendly refrigerant R-600a enables a stable climate with reduced energy consumption. The enclosure also utilises the tried-and-tested APT.line preheating chamber technology, which results in particularly homogeneous temperature distribution throughout the entire interior.

The robust construction with powder-coated outer housing and stainless steel interior is designed for a long service life. An advanced door heater prevents condensation from forming on the door, while the ergonomic touch display enables intuitive programming and convenient data analysis via USB. Humidity-sensitive applications also benefit from the capacitive humidity sensor and responsive vapour humidification.

The cabinet offers a flexible water supply, a signal triangle with a clearly visible status display and the option of reading out important parameters via Ethernet. Variable shelves and a total load capacity of up to 90 kg allow samples and products to be positioned in a variety of ways. With optional light modules, the device can also be expanded for photostability tests (compliant with ICH Q1B) and even for plant growth.

Important technical data at a glance

- Temperature range: 0 °C to +70 °C
- Humidity range: 10 % r.h. to 80 % r.h.

- Interior volume: 262 litres and up to 9 shelves (2 as standard)
- Inverter refrigeration unit with R-600a and energy-saving operation
- Door heating to prevent condensation and capacitive humidity sensor
- Touchscreen controller with programmable time periods and real-time recording
- Class 3.3 temperature selector switch (DIN 12880) for optimum safety

The numerous other details, such as a temperature time deviation of just ±0.1 K or the reproducible interior climate control, emphasise the high technical standard. This model therefore proves to be an excellent solution for laboratory environments where measurement accuracy and reliability are paramount.

Certifications and standards

For stability tests and accelerated ageing processes in the pharmaceutical industry or in the cosmetics sector, compliance with special guidelines is a must. The specially designed climate chamber fulfils important ICH standards so that users can easily comply with all specifications for long-term, stress test and photostability tests. In addition, the temperature control meets the requirements of DIN 12880, which ensures reliable and precise compliance with the desired temperature profile.

Application examples

1. Long-term testing of active pharmaceutical ingredients under standardised climatic conditions to ensure product stability in accordance with ICH guidelines.
2. Accelerated ageing tests for care products or cosmetics under defined temperature extremes.
3. Research and development tests on plant seeds in laboratories that require photostability and controlled humidity
4. Testing food samples and their shelf life and determining storage conditions that minimise spoilage or loss of quality.

The precise humidity and temperature control also allows substances such as proteins, enzymes or vaccines to be analysed under reproducible conditions. This opens up a wide range of possible applications in research, quality control and industrial production.

FAQs

How does the climate chamber react when the door is opened?

Thanks to APT.line preheating chamber technology and capacitive humidity control, the appliance only has short recovery times: At 25 °C and 60 % r.h., the recovery time after opening the door for 30 seconds is around one minute.

Is the appliance suitable for long-term measurements?

Yes, the oven is specially designed for long-term tests in the pharmaceutical and biotechnological sector. The solid construction and reliable compressor technology enable fail-safe operation over long periods of time.

What logging options are available

The integrated data logger saves temperature and humidity values. These can be conveniently exported via USB or Ethernet and analysed using the corresponding BINDER software.

Can the humidity range be set independently of the temperature?

Precise setting and control is possible within the specified range (10...80 % r.h. at 10...70 °C). A capacitive humidity sensor ensures accurate values, even when conditions change quickly.

Can the climate chamber be used for photostability tests?

Yes, with the optionally available light modules, the device can be used for photostability tests in accordance with ICH Q1B. In addition, a special LED light module for plant growth is also available.

Conclusion

This constant climate chamber impresses with its high measurement accuracy, short recovery times and durable workmanship. The wide temperature range and finely controllable relative humidity make it ideal for complex stability and quality controls. From compliance with central ICH guidelines to extended application possibilities in the field of photostability, the system offers many options to fulfil a wide range of laboratory requirements. The design also ensures energy-saving continuous operation, so that long-term analyses can be planned and carried out without hesitation. If you need the greatest possible reliability and flexibility for temperature and humidity controls, this model is an excellent choice.

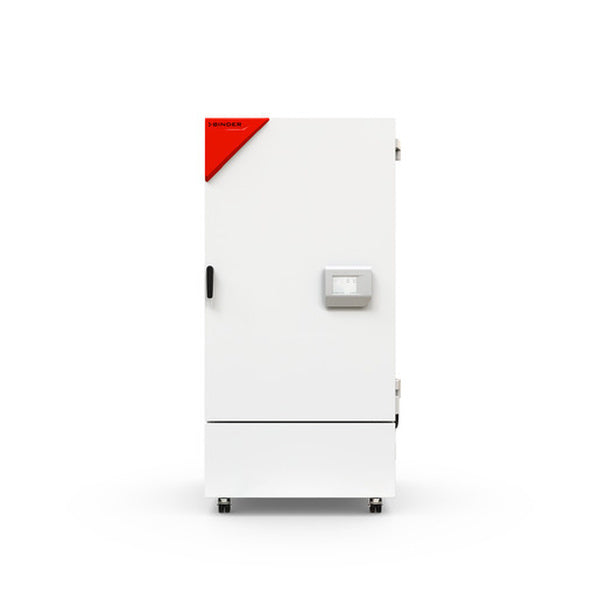

BINDER KBF 470 constant climate chamber

The BINDER KBF 470 constant climate chamber offers high-performance temperature and humidity control for laboratories that require reliable stability tests in accordance with ICH specifications. This model impresses with its high climate homogeneity, robust design and state-of-the-art control technology. In contrast to many comparable solutions, it utilises sophisticated inverter cooling technology, which enables energy savings of up to 40 % to be achieved compared to predecessor devices. Users in the pharmaceutical, chemical and food industries appreciate the uniform temperature curve and precise climate simulation, which makes it particularly safe to carry out long-term and stress tests.

Reliable climate simulation for demanding applications

This appliance is designed for long-term use in development and quality assurance laboratories and enables very uniform temperature control in the interior thanks to its APT.line preheating chamber technology. The integrated steam humidification also ensures precise humidity control regardless of the temperature. Capacitive humidity measurement ensures fast response times, while the low-consumption refrigerant R-600a contributes to environmentally friendly performance. Flexibly adjustable fan speeds and the robust stainless steel construction of the interior ensure that users can successfully handle a wide range of samples of varying sensitivity.

The most important key technical data is summarised below:

- Temperature range: 0 °C to +70 °C
- Humidity range: 10 % r.h. to 80 % r.h.

- Temperature deviation over time at 25 °C and 60 % r.h.: ±0.1 K
- Humidity deviation over time at 25 °C and 60 % r.h.: ±1.5 % r.h.
- Energy-efficient inverter cooling with R-600a
- Internal data logger with USB interface
- Load capacity per rack: 40 kg (maximum total load 90 kg)

In addition, the double swivel castors, front parking brakes and door heating ensure easy handling and minimised condensation. The ergonomic touchscreen control panel offers a variety of programming functions for time periods and real-time sequences. Thanks to the signal triangle with status display, users always have an overview of appliance operation throughout the entire test time.

The stainless steel interior and the inner doors made of metal oxide-coated safety glass also make cleaning easier. An optional lighting unit transforms this climate chamber into a powerful photostability test chamber, which makes it particularly interesting for ICH conformity tests in the pharmaceutical industry. Special plant growth experiments can also be realised with LED light modules.Certifications and standards

Compliance with common industry standards is crucial when it comes to reliable climate testing. The device fulfils DIN 12880 class 3.3 for the temperature selector monitor and enables stability-compliant environments for a wide range of test scenarios. As many laboratories have strict GMP requirements, the model is designed to support comprehensive documentation and validation concepts if required. In addition, the associated BINDER Multi Management Software APT-COM Basic Edition can be used to seamlessly record, archive and directly analyse measured values.

Concrete application examples

- Pharmaceutical stability tests: long-term storage of medicines, vaccines and active ingredients to test their efficacy and shelf life
- Quality assurance of foodstuffs: Determination of storage stability and minimum shelf lives under climatic conditions that correspond to realistic transport and storage environments.
- Chemical research and material testing: testing adhesives, coatings and plastics in variable humidity and temperature ranges.
- Plant growth experiments: Simulation of climatic conditions for botanical experiments or germination tests, in particular using the optional LED light modules.

FAQs

How is the humidity precisely controlled

?

The device uses a capacitive humidity sensor and rapid vapour humidification. This allows it to react to changes in humidity within a very short time and maintain constant conditions.

How is the data analysed?

All measured values are recorded in the internal data logger and can be conveniently read out via USB. The BINDER Multi Management Software ensures seamless documentation and evaluation.

Can light modules be retrofitted?

Yes, it is possible to install special light or LED modules to carry out photostability tests or plant growth studies.

What safety functions are available

There is a temperature selection monitor in accordance with DIN 12880, visual and audible alarms and integrated self-diagnostics. This increases operational safety for reliable test results.

Conclusion

This model impresses with its perfectly harmonised interplay of temperature control, humidity management and ergonomic operation. Thanks to its robust design, interchangeable shelves and optional lighting technology, the appliance is a future-proof solution that covers a wide range of climate and stability tests. Furthermore, the energy-saving inverter cooling technology guarantees efficient continuous operation. This makes the system particularly suitable for laboratory environments in which constant and reproducible test conditions are essential in order to strictly fulfil regulatory requirements and obtain precise results.

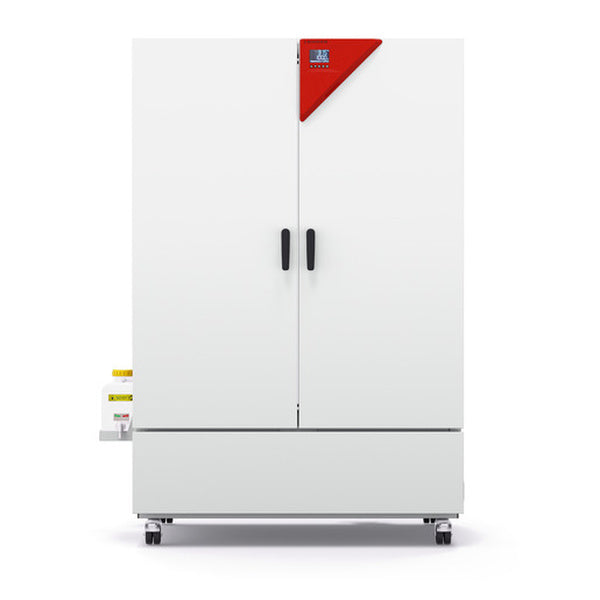

BINDER KBF 720 constant climate chamber

The BINDER KBF 720 constant climate chamber is specially designed to ensure consistent and reproducible climate conditions. Particularly in the pharmaceutical industry, it enables safe long-term tests, accelerated stability tests and stress tests for sensitive samples, while its energy-efficient operation and robust design set it apart from similar devices.

Features & functions

Thanks to its innovative design and high-precision control, this constant climate chamber offers ideal solutions for complex stability tasks. State-of-the-art inverter cooling system technology ensures constant and homogeneous temperature distribution, leading to reliable results even when the interior is fully loaded. The integrated touchscreen operating concept makes programming intuitive and enables complete documentation of measurement and process data. The efficient compressor technology, which reduces energy consumption by up to 40% compared to previous models, should also be emphasised.

Important technical key points at a glance: - Temperature range: 0 °C to +70 °C - Humidity range: 10 % r.h. to 80 % r.h. - Durable APT.line preheating chamber technology - Time segment and real-time programming via touchscreen controller
- Internal data logger with USB readout
- Robust stainless steel interior construction
- Double swivel castors for easy transport

In addition to these key features, the cabinet has a door heater to effectively reduce condensation and a capacitive humidity sensor with responsive vapour humidification. The integrated feed-through opening also allows external sensors to be connected. The interior is equipped with two slide-in grids, each of which has a load capacity of 40 kg, while the entire interior can be loaded with a maximum of 100 kg. Nominal voltages of 220-240 V or 120 V (depending on model) and a mains frequency of 50-60 Hz enable flexible use in various laboratory environments.

Safety is particularly important: the appliance is manufactured in accordance with DIN 12880 (temperature selector monitor class 3.3) and has visual and audible alarm management. Thanks to its inner doors made of metal oxide-coated safety glass, the door opening process can be controlled and the recovery time after opening is minimised. Optional light modules are available for those who want to carry out additional photostability tests or plant growth studies.

Certifications and standards

The cabinet complies with all relevant ICH guidelines (International Council for Harmonisation) for stability tests in pharmaceutical quality testing. In addition, the design complies with DIN 12880, which ensures compliance with standards and a high level of operational safety. By using the climate-neutral refrigerant R-600a, the appliance also fulfils current environmental requirements.

Application examples

- Carrying out stability studies on active ingredients in pharmaceutical laboratories
- Biotechnological research for the long-term storage of samples
- Ensuring constant test conditions for quality control of food and cosmetic products
- Climate-resistant testing of medical products under controlled humidity

FAQs

How is humidity controlled

A capacitive sensor system monitors and regulates the humidity, while the integrated steam humidification ensures fast and precise adjustment.

How does the appliance handle temperature fluctuations after the door is opened?

The climate control system recovers within a very short time after the door is opened. At 25 °C and 60 % r.h., for example, it only takes around 1 minute to return to the previously set level.

Which data connections are available

The constant climate chamber has Ethernet and USB interfaces that can be used to conveniently read out measured values via a PC or integrate them into existing laboratory networks.

Can photostability tests be carried out?

Yes, thanks to optional light modules, the device can be expanded for ICH-compliant photostability tests and plant growth experiments.

Is continuous documentation guaranteed

An internal data logger stores all measured values in open format so that they can be retrieved and archived at any time via USB.

Conclusion

This device offers a sophisticated combination of precision, durability and flexibility required for demanding stability tests and climatic analyses. Thanks to its inverter refrigeration unit, energy-efficient design and intuitive operation, the chamber sets standards in its segment. At the same time, numerous protection and monitoring functions ensure smooth and safe continuous operation that meets the highest requirements in specialised laboratory and production environments.

BINDER KBF PRO 1060-230V constant climate chamber

This climate chamber fulfils demanding requirements for temperature and humidity stability in a wide range of industries. Whether for pharmaceutical, cosmetics, electronics or materials research - the appliance offers a reliable environment for meaningful test results thanks to its wide temperature range of -20 °C to +100 °C and controlled humidity between 10 % RH and 98 % RH. Compared to similar devices on the market, it impresses with its particularly energy-saving operation and robust internal stainless steel construction, which is designed for long-term and trouble-free use under demanding conditions.

Powerful technology for consistent results

Thanks to modern inverter cooling technology, the desired temperature range can be achieved extremely precisely and quickly. The internal APT.line preheating chamber technology ensures even temperature distribution so that samples are exposed to identical climatic conditions in every position of the interior. Integrated, fast-reacting vapour humidification enables reliable humidity control. Even if the doors are opened frequently, the temperature and humidity return to the set values in a short time.

The appliance is equipped with a touchscreen controller that allows time interval and real-time programmes to be managed conveniently via an ergonomically adjustable control terminal. A data logger built into the climate chamber saves measured values in open format so that they can be easily read out and further processed via USB. An additional plus is the signal triangle with bright status display, which allows the operating status to be recognised immediately.

Important key technical data

- Temperature range: -20 °C to +100 °C
- Humidity control: 10 % r.h. to 98 % r.h.

- Internal volume: 1070 litres
- Energy consumption at 25 °C-60 % r.h.: 400 Wh-h
- Nominal voltage: 208-240 V; 50-60 Hz
- Interior equipment: Two slide-in grids (expandable up to 16) with telescopic rails
- Sound pressure level: 50 dB(A) at 25 °C-60 % r.h.
- Compact design: 1285 mm width × 1951 mm height × 1175 mm depth

In addition, the appliance has robustly designed double swivel castors with brakes so that it can be moved safely and flexibly. The external door heater prevents condensation to reliably protect tests and samples from moisture damage. With the climate-neutral refrigerant R-290, Binder emphasises the sustainable and contemporary character of the cabinet.

Certifications and standards

The climate chamber complies with DIN 12880 class 3.3 and therefore fulfils high requirements for temperature accuracy and safety. Thanks to its reliable design, the appliance is established as a standardised solution in many industries. A visual and audible alarm on the temperature selector monitor ensures that an immediate response is possible in the event of a fault.

Application examples

- Long-term stability tests in the pharmaceutical industry and biotechnology: ideal for testing the behaviour of active ingredients under different climatic conditions and determining their shelf life
- Quality control of plastics or electronic components: Targeted tests at variable temperature and humidity ensure product reliability.
- Packaging validation in the food and cosmetics industry: testing packaging resistance, e.g. in hot and humid environments around 85 °C and 85 % RH.
- Plant growth tests and seed germination: with optional LED light modules, the cabinet can be converted into a growth chamber for plant samples

FAQs

How can humidity be optimally controlled

?

A capacitive sensor system monitors the humidity in the interior. Thanks to rapid vapour humidification, regulation is particularly precise and responds reliably to short-term changes.

What sample quantities fit in the interior?

The 1070 litre interior can accommodate larger test setups or extensive sample inventories. In addition, up to 16 grid levels can be installed, with a load limit of 40 kg per rack.

What maintenance work is required on a regular basis?

In addition to cleaning the stainless steel interior and checking the water supply, it is advisable to calibrate the sensors and control elements at regular intervals. This ensures that the measurement accuracy remains reliable.

Is the device suitable for long-term tests at high temperatures?

Yes, the oven was specifically designed for continuous operation and high loads. Thanks to stable compressor technology and integrated door heating, it can withstand even longer phases at +85 °C and 85 % r.h.

Can sensitive samples also be stored?

The stainless steel inner chamber ensures a corrosion-free environment, so that even sensitive samples - such as active pharmaceutical ingredients, cosmetic or food samples - can be stored safely.

Conclusion

The climate chamber from Binder offers precise temperature and humidity control for a wide range of industries. Its robust design, energy-efficient cooling and intuitive touchscreen control make daily work easier and ensure consistent, reproducible test results. With its flexible application - from plant tests to highly sensitive stability studies - the BINDER KBF PRO 1060-230V constant climate chamber is a future-proof choice for laboratories, industry and research. Thanks to its proven technology, solid workmanship and flexible expandability, the unit is ideally prepared for demanding testing and development tasks. The BINDER KBF PRO 1060-230V constant climate chamber guarantees maximum operational reliability with significantly reduced energy consumption, making it an economical and technically high-quality solution for constant climate testing.

BINDER KBF PRO 130-230V constant climate chamber

This versatile climate chamber is specially designed to ensure precise temperature and humidity conditions in demanding testing and development environments. It enables reliable and reproducible test sequences and is perfect for comprehensive material testing in areas such as pharmaceuticals, chemicals or the plastics industry. Thanks to state-of-the-art inverter cooling technology, it is also extremely energy-efficient and ensures significantly reduced power consumption compared to previous models. Anyone who places the highest demands on long-term stability and precise temperature and humidity control will find this an ideal solution compared to other, less robust devices on the market.

Reliable climate simulation for precise tests

The cabinet covers a temperature range from -20 °C to +100 °C and is particularly suitable for environmental simulations in which extreme conditions such as cold, heat or high humidity need to be simulated. The integrated APT.line preheating chamber technology ensures uniform temperature distribution so that samples are exposed to the same conditions throughout the interior. In addition, the capacitive humidity control provides precise measurements in the range of 10 to 98 % relative humidity, offering maximum flexibility to cover a wide range of testing requirements.

The robust construction with stainless steel inner chamber and metal oxide-coated safety glass doors is designed for continuous operation. An integrated capacitive humidity sensor reacts to changes at lightning speed and keeps the climate stable. The perfect combination of low energy consumption, climate-neutral refrigerant R-290 and a specially developed door heater reduces the risk of condensation, which protects the samples from moisture damage and at the same time extends the service life of the cabinet. In addition, an ergonomic touchscreen controller and real-time programming enable clear operation both in the laboratory and in production environments.

- Temperature range: -20 °C to +100 °C
- Humidity range: 10-98 % r.h.

- Time segment and real-time programming via touchscreen
- Climate-neutral refrigerant R-290 for sustainable operation
- Adjustable fan speed for targeted air flow
- Multiple temperature protection (DIN 12880, class 3.3)
- Stainless steel inner tank for easy cleaning

The built-in USB interface and comprehensive data acquisition in open format allow all measured values to be read out and analysed. The user interface is also intuitive: Parameters such as moisture content or temperature curve can be adjusted with just a few clicks. The combination of intelligent control and powerful steam humidification makes the chamber a state-of-the-art test chamber for thermal stress tests, weathering tests, humidity analyses and other environmental simulations.

Certifications and standards

The device has a temperature selector monitor in accordance with DIN 12880, class 3.3, which permanently monitors critical parameters. Visual and acoustic alarm messages ensure seamless safety in continuous operation. Specific requirements are met by the robust design and precise climate control, which complies with current standards and supports consistent quality assurance in any laboratory environment.

Application examples

- Long-term stability tests in the pharmaceutical industry for active ingredients and tablets.
- Testing electronic components for functional reliability under extreme temperature and humidity conditions.
- Ageing tests on plastics, adhesives and paints to detect any changes or material fatigue at an early stage.
- Moisture control of foodstuffs to verify shelf life and hygiene requirements

FAQs

How can the humidity be optimally controlled?

The integrated capacitive sensor measures the humidity in real time and regulates it with high precision using vapour humidification. This ensures reliable test conditions at different humidity levels.

Can this cabinet also be used for heavy samples?

Yes. It has robust slide-in grids with a maximum load per grid of 25 kg and a total load capacity of up to 50 kg. This means it can handle larger or heavier samples with ease.

What happens after a short door opening

The integrated control electronics restore the previously set climate and temperature values within a few minutes. Recovery times of just 1 to 3 minutes ensure reliable test results without damaging samples.

What maintenance measures are required

In addition to regular cleaning of the stainless steel interior, the door and cable entry should be checked for leaks. It is also advisable to check the sensor status and seals at regular intervals.

Conclusion

This climate chamber impresses with its versatility and innovative, fail-safe technology that guarantees precise temperature and humidity control. From fine adjustment of the air flow to flexible data acquisition, it provides all the functions required for demanding climate tests. With its durable stainless steel interior, efficient inverter cooling system and precise humidity sensor, it is a reliable device for a wide range of industries where accuracy and stability are top priorities.

BINDER KBF PRO 1600-230V constant climate chamber

The BINDER KBF PRO 1600-230V constant climate chamber has been specially designed for demanding applications in materials testing, research and development. Its extended temperature and humidity range, combined with energy-efficient refrigeration technology, enables reliable and precise climate simulations. Compared to similar devices, this model is particularly attractive as it quickly compensates for temperature fluctuations and remains stable even under adverse conditions. Thanks to its robust compressor technology and inner chamber made of high-quality stainless steel, it is a future-proof solution for laboratories, quality assurance and other demanding industries.

Powerful features and technology

This constant climate chamber model from Binder impresses with its modern features and flexible range of applications. Thanks to the comprehensive temperature range of -20 °C to +100 °C, samples can be stored stably under extreme conditions. In addition to the wide range for temperature control, the appliance also offers a humidity range from 10% RH to 98% RH, realised by capacitive humidity control and fast-reacting steam humidification.

The proven APT.line preheating chamber technology ensures particularly even temperature distribution. Together with the climate-neutral refrigerant R-290 in the inverter refrigeration unit, this results in energy-efficient operation that pays off both ecologically and economically. For ergonomic handling, two stainless steel slide-in grilles have been integrated, which are easily accessible thanks to telescopic rails. The interior doors made of metal oxide-coated safety glass also minimise heat loss when opening.

Important key technical data at a glance: - Temperature range: -20 °C to +100 °C
- Humidity range: 10 % to 98 % r.h.
- Interior volume: 1610 litres
- Max. heat load: 1,000 W
- Sound pressure level: 52 dB(A)
- Energy consumption: 490 to 825 Wh-h (depending on operating mode)
- USB and Ethernet interfaces
- Door design: 2 outer doors, 2 inner doors

In addition, the device is equipped with a precise touchscreen controller that allows time segment and real-time programming. This enables precise control for complex climate profiles. The class 3.3 temperature selector monitor in accordance with DIN 12880 provides additional safety and reports any deviations with a visual and acoustic signal. The status can also be quickly recognised with a self-explanatory signal light on the housing.

The integrated HIT housing technology provides optimum insulation and helps to further reduce energy consumption. The appliance is easy to position thanks to double castors with brakes. The quick change between different programmes and the rapid restoration of set values after opening the door (between 1 and 5 minutes, depending on conditions) make this constant climate chamber a real all-rounder for laboratory and industrial operations.Certifications and standards

The interior is tested in accordance with DIN 12880. The design also complies with other common safety guidelines and quality standards in order to reliably fulfil work regulations in laboratories, research institutes or production. Users can be sure that all measurements, test procedures and long-term tests comply with the applicable standards.

Application examples

1. Material testing in the automotive industry: For ageing testing of plastics, metals or composite materials under controlled climate and temperature conditions.
2. Pharmaceutical stability tests: Storage of medicines at defined temperature and humidity values to test effectiveness and shelf life.
3. Food industry: simulation of cold chains and humidity conditions to test food quality, flavour and microbiology
4. Plant growth and greenhouse research: The optional LED light modules can be used to specifically control germination and growth conditions, for example to test the resistance of different varieties under changing environmental conditions.

FAQs

How easy is it to control the device

The device has an intuitive touchscreen controller. It can be used to make flexible temperature and humidity settings and create time programmes. Measurement data can also be read out and analysed via USB.

In which industries is the device primarily used?

Typical areas of application are in research laboratories, testing and quality assurance departments in the pharmaceutical, food and automotive industries as well as in universities and institutes.

How is the humidity controlled?

A capacitive humidity sensor precisely controls the steam humidification, allowing fluctuations to be reliably compensated for. This ensures that the desired humidity value remains constant and reproducible.

Can the appliance be moved easily?

Thanks to the robust double swivel castors with brakes, the appliance is mobile. It can be easily moved for maintenance work or to adapt the room utilisation concept - if required, it can simply be securely locked in place again.

Conclusion

This climate chamber impresses with its high flexibility, reliable long-term operation and energy efficiency. The precisely controllable temperature and humidity control in a large interior volume predestines the appliance for demanding endurance tests, stability tests and quality controls. The sophisticated inverter cooling technology and the HIT housing design minimise energy consumption, while safety functions such as the temperature selection monitor in accordance with DIN 12880 ensure maximum reliability. The model thus occupies a top position among constant climate chambers and at the same time ensures maximum user-friendliness thanks to its intelligent, user-orientated features.

BINDER KBF PRO 260-230V constant climate chamber

The BINDER KBF PRO 260-230V constant climate chamber is specially designed to ensure consistent temperature and humidity conditions in laboratory and production environments. Thanks to its modern inverter cooling technology and proven APT.line preheating chamber technology, it offers a particularly energy-efficient solution for demanding long-term tests and material testing. Users in the pharmaceutical, food production or materials research sectors benefit from a versatile device that enables precise climate simulations and delivers reliable results over the long term. Compared to conventional climate chambers, the model impresses with lower energy consumption, precise control and a robust design that minimises maintenance and downtime.

Versatile performance features for high demands

This device is designed to cover a wide range of applications in research and production. This is made possible by the wide temperature range of -20 °C to +100 °C and the humidity range of 10 % RH to 98 % RH. The sophisticated compressor technology is particularly fail-safe and, in combination with the stainless steel inner chamber, ensures a long service life. In addition, control accuracy and homogeneity in the interior are significantly supported by the APT.line preheating chamber technology. The integrated door heating prevents condensation and thus ensures a clear view of the interior. In addition, the fast-reacting steam humidification in combination with a capacitive humidity sensor enables precise humidity control.

The integrated touchscreen programme controller allows intuitive operation, with which all settings such as temperature, humidity and time sequences can be easily adjusted. The signal triangle status display makes it easy to recognise the current operating status, while slide-in racks with telescopic rails make it much easier to access samples. The appliance is therefore not only powerful, but also extremely user-friendly. The climate neutrality of the refrigerant used (R-290) also takes account of increasing environmental awareness. This climate chamber has several connection options for locations that require a flexible water supply. Optionally available LED light modules also extend the range of applications to include ICH photostability tests or special cultivations in the area of plant growth.- Temperature range: -20 °C to +100 °C
- Humidity range: 10 % to 98 % r.h.

- Energy-efficient inverter cooling technology with R-290
- APT.line preheating chamber for homogeneous climate distribution
- Stainless steel interior with telescopic rails
- Intuitive touchscreen controller and internal data logger
- Door heating and responsive steam humidification

Aside from these basic specifications, there are other details to emphasise. For example, the spatial temperature deviation at 25 °C and 60 % r.h. is only ±0.2 K, while the temporal temperature deviation over the entire test run is only ±0.1 K. This means that even the smallest temperature changes are recorded precisely and possible fluctuations are minimised. For the stability of humidity values, the device delivers a time deviation of just ±1 % RH. If the door is opened suddenly, the system ensures rapid recovery within just one to three minutes, so that the test conditions are quickly restored.

Certifications and standards

The model fulfils the requirements of temperature selector monitor class 3.3 (DIN 12880) and therefore complies with recognised safety standards. Users can therefore be sure that important laboratory standards are met in everyday use. The metal oxide-coated inner door and robust outer panelling with HIT sandwich technology not only contribute to durability, but also ensure that samples are protected under the right conditions.

Application examples

- Pharmaceutical stability tests: active ingredient tests in the temperature range from -20 °C to +100 °C and under controlled humidity conditions
. - Materials research under long-term climatic stress: Testing plastics, textile fibres, metals or composites for long-term resistance.
- Food industry: Simulate cooling and storage conditions with variable humidity to test shelf life and product quality.
- Botanical research: The optional LED light modules can be used to precisely simulate plant growth conditions, e.g. for germination tests or cultivation at increased humidity.

FAQs

How exactly can the humidity be controlled

?

Humidity is controlled by capacitive measurement and controllable vapour humidification, which allows very precise settings between 10 and 98 % RH.

Do you need a fixed water connection for steam humidification?

The appliance allows flexible water supply options. Either a fixed water connection or an external tank can be used so that different site conditions can be taken into account.

How quickly does the appliance return to the set conditions after the door is opened?

The modern inverter cooling technology and the sophisticated air routing system ensure that the temperature and humidity values are restored within one to three minutes. This minimises interruptions during critical test procedures.

Is data monitoring possible without being permanently on site?

Yes, the internal data logger can save measured values in open format on a USB stick. In addition, data can be processed in real time via the Ethernet interface and analysed using the APT-COM Basic Edition multi-management software.

Conclusion

This climate chamber is recommended for demanding applications that require a high degree of reliability and precise control of temperature and humidity. The energy-saving inverter system, robust steel construction and versatile expansion options make the appliance an excellent choice for laboratories, research and production. In particular, users who carry out long-term material tests or stability tests benefit from the high level of process reliability, the precise control options and the rapid restoration of the programmed climate conditions.

BINDER KBF PRO 470-230V constant climate chamber

Introduction

The BINDER KBF PRO 470-230V constant climate chamber was specially developed for demanding tests, stability tests and professional material analyses. With its wide temperature range of -20 °C to +100 °C and a relative humidity of 10% to 98%, the appliance fulfils a wide range of laboratory and production requirements. Compared to similar climate chambers, it is characterised in particular by its innovative cooling technology, robust design and flexible expansion options, which enable precise and reliable long-term testing.

Performance features and technology

Thanks to energy-efficient inverter cooling technology and proven compressor technology, the cabinet offers outstanding temperature consistency, while the integrated capacitive humidity sensor precisely controls the humidity. The APT.line preheating chamber technology ensures that temperature fluctuations are minimised in all areas of the interior and samples are evenly conditioned. Some key features at a glance:

• Temperature range: -20 °C to +100 °C
• Humidity range: 10 % r.h. to 98 % r.h.
• Temperature deviation over time: ±0.1 K at 25 °C and 60 % RH
• Humidity deviation over time: ±1 % r.h.
• Maximum heat compensation: 800 W at 40 °C
• Energy consumption: 245 Wh-h (25 °C, 60 % r.h.) to 455 Wh-h (85 °C, 85 % r.h.)
• Interior made of stainless steel with telescopic rails

In addition, the climate-neutral refrigerant R-290 minimises the ecological footprint. An internal data logger is available for optimum data acquisition, the measured values of which can be conveniently read out via USB or Ethernet. The touchscreen programme controller with intuitive menu navigation allows parameters to be set quickly. A metal oxide-coated glass door prevents unnecessary temperature or humidity losses and provides a safe visual inspection. In addition to these features, the appliance has a TÜV-certified alarm function together with the class 3.3 temperature selector monitor in accordance with DIN 12880, which warns users of deviations in real time.

Ergonomics and safety

A particularly robust outer construction with HIT sandwich technology gives the cabinet stability. The double swivel castors, with brakes at the front, make it easy to move the cabinet. The built-in door heater prevents condensation on the outer door and ensures that the appliance works reliably even at low temperatures inside. In addition, the ergonomically adjustable operating area ensures convenient handling in everyday laboratory work.

Expansion options

Whether photostability tests in accordance with ICH guidelines or plant growth: the cabinet can be adapted to changing requirements with optional light modules. Thanks to its flexible water supply, the device can be installed almost anywhere. The standard slide-in grids (up to 16 possible) are stable and enable maximum utilisation of the 472 litre interior. Up to 40 kg can be loaded per grid, while the total load is designed for 90 kg.

Examples of use

1. Long-term stability tests of pharmaceuticals and active ingredients to check quality and shelf life under defined temperature and humidity conditions.
2. Material tests of plastics, paints and colours in the automotive sector, where both extremely low and high temperatures are required
3. Optimised germination, cultivation and growth of plant samples in research using optional LED light modules.
4. Test runs for electronic components that are tested for temperature sensitivity and moisture resistance.

FAQ

How exactly does the enclosure maintain temperature and humidity?

A specially customised system with APT.line preheating chamber and capacitive sensor continuously regulates the humidity. In addition, fans distribute temperature and humidity evenly in the interior, which means that very small spatial and temporal deviations can be realised.

What role does the inverter compressor play?

The inverter compressor continuously adjusts its output to the respective operating conditions. This reduces energy consumption and noise emissions, while the cooling capacity always remains constant.

Can the appliance be programmed for different climatic profiles?

Yes, thanks to the integrated touchscreen programme controller, various temperature and humidity profiles can be set and saved as programmes. This is suitable for complex test sequences and different climate profiles.

Is external documentation possible?

Yes, all relevant measurement data can be exported, documented and analysed directly via interfaces such as Ethernet and USB. This means that the testing process can be seamlessly traced.

Which tests are covered by DIN 12880

DIN 12880 defines strict requirements for the temperature accuracy and control accuracy of heating ovens. Compliance with this standard guarantees reliable temperature control, which is essential for quality tests in particular.

Conclusion

This oven enables precise long-term testing and flexible application options in research and industry. Modern inverter cooling technology, climate-neutral refrigerants and a robust design allow for safe and long-lasting use - even with constantly changing requirements. The combination of high temperature stability, reliable humidity control, extensive accessories and ergonomic operation makes the BINDER KBF PRO 470-230V constant climate chamber the ideal solution for a wide range of climate simulations and stability tasks in the laboratory and production environment.

BINDER KBF PRO 720-230V constant climate chamber

The BINDER KBF PRO 720-230V constant climate chamber has been specially developed to create reliable, reproducible and energy-efficient climate conditions for demanding applications in research, development and quality assurance. With a flexible temperature and humidity range and state-of-the-art technology, the chamber offers a high degree of precision and user-friendliness. The appliance is particularly impressive for durability tests, stress tests or material tests thanks to its efficient cooling performance, optimised energy use and robust design. Compared to conventional constant climate chambers on the market, it enables significantly lower energy consumption and very short recovery times after door openings thanks to inverter cooling technology and a capacitive humidity sensor.

Versatile application options for stable test conditions

This climate chamber is designed to meet a wide range of industry standards and offers precise control of temperature and humidity. Users in areas such as pharmaceuticals, food technology, biotechnology, materials science and electronics benefit from its consistent performance. The device is particularly suitable for carrying out stability tests where temperature and relative humidity need to be precisely regulated. Even extreme test conditions such as temperatures down to -20 °C for deep freeze applications or up to +100 °C for heat resistance are reliably and precisely realised in combination with humidity values from 10 % to 98 % RH.

The device can also be used for ICH photostability tests or for plant growth thanks to the optional equipment with light modules. In addition to classic storage tests in the pharmaceutical industry, for example, studies on plants or light-sensitive materials can also be realised. The closed system with stainless steel inner chamber and door heating to prevent condensation increases reliability in long-term applications.

Performance features and technical highlights

- Temperature range: -20 °C to +100 °C
- Humidity range: 10 % r.h. to 98 % r.h.

- APT.line preheating chamber technology for homogeneous temperature distribution
- Inverter cooling unit with climate-neutral refrigerant R-290
- Capacitive humidity sensor with fast steam humidification
- Two stainless steel slide-in grids on telescopic rails, up to 16 grids optional
- Time segment and real-time programming via touchscreen controller

In addition, the robust double swivel castors and the ergonomically adjustable operating terminal ensure that the cabinet can be moved and operated with ease. The integrated signalling triangle with illuminated display provides information about the device status at a glance. An internal data logger and the associated data interfaces (Ethernet, USB) enable measured values to be saved and read out in open format. This ensures complete documentation, which is particularly essential in GMP-compliant environments or during audits.

The 727 litre interior offers sufficient capacity for multiple test batches, while the configurable fan speed allows flexible adaptation to different test requirements. Equipped with two inner doors made of metal oxide-coated safety glass, the test area can be visually inspected at any time without compromising the test climate too much. With a maximum load per rack of 40 kg and a total load capacity of up to 100 kg, the appliance can also support larger or heavier test samples.

The cabinet has been tested in accordance with DIN 12880 and is equipped with a class 3.3 temperature selector monitor, which provides a visual and audible alarm in the event of deviations. The design for reliable, fail-safe continuous operation is based on tried-and-tested compressor technology and the highly stable HIT sandwich technology in the enclosure construction. The use of modern inverter cooling achieves energy savings of up to 40% compared to previous models without compromising performance.

Concrete application examples

1. Pharmaceutical stability studies: testing drugs and active ingredients under defined temperature and humidity conditions.
2. Quality assurance in the food industry: storage stability testing of products such as meat and dairy products with regard to shelf life, consistency and flavour.
3. Material tests in plastics and electronics production: Testing components for durability and resistance to heat, cold and moisture.
4. Research on plant seeds: Investigation of germination behaviour under special climate and light conditions.

Frequently asked questions (FAQ)

What is the best way to regulate humidity?

The cabinet is equipped with a capacitive humidity sensor and fast-reacting vapour humidification. This allows the relative humidity to be precisely adjusted to ensure the consistency and stability of the samples.

What happens if the door is open for a longer period of time

Short door openings usually equalise quickly. According to technical specifications, the recovery times are only around 1 minute at 25 °C-60 % r.h. or 5 minutes at 40 °C-75 % r.h. However, leaving the door open for longer can affect the test conditions and should be avoided in critical test processes.

Are photostability tests possible?

Yes, the device can be optionally equipped with special light modules. This means it can be used for ICH photostability tests or other light-dependent analyses.

Which standards are met

The design complies with DIN 12880 and the integrated safety functions, such as the class 3.3 temperature selector switch, guarantee reliable protection of the test objects.

Can the cabinet be adapted to different locations?

Thanks to its energy-efficient design and flexible water supply options, the appliance can be integrated into almost any laboratory or production site. The front double swivel castors make it easy to move.

Conclusion

This climate chamber combines state-of-the-art technology with a high level of practicality and offers a wide range of temperature and humidity conditions. The precise control, fast recovery times and outstanding energy efficiency make it the ideal solution for demanding stability, quality and research tests. It enables reliable testing at temperatures from -20 °C to +100 °C and relative humidities from 10 % to 98 % r.h. With optional light modules, the system can also be used for photostability tests or special growth tests. Thanks to its sophisticated design, powerful cooling technology and extensive safety functions, this device is suitable for a wide range of industries and test objectives where process reliability and reproducibility are top priorities.

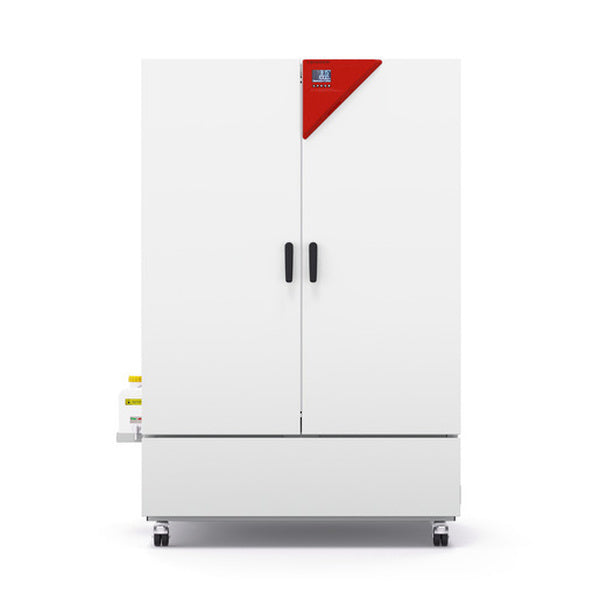

BINDER KBF-S ECO 1020 constant climate chamber

The KBF-S ECO 1020 is a state-of-the-art solution for precise climate simulation and offers particularly reliable operation thanks to Peltier technology with patented heat dissipation. Thanks to its optimised energy consumption, this climate chamber is an ideal choice in research laboratories and industrial areas when it comes to keeping temperature and humidity stable. Compared to conventional devices, it also impresses with efficient Peltier elements, which ensure a low noise level while significantly reducing operating costs.

Reliable climate control for stability tests

This model enables constant framework conditions in accordance with the ICH Q1A guideline, even at high utilisation rates. This makes it ideal for stability tests in the pharmaceutical, chemical and cosmetics industries. The combination of APT.line preheating chamber technology and independent water supply in the canister ensures reliable temperature control and humidification processes. Thanks to the intuitive operation via an LCD display, temperature and humidity can be precisely set and monitored.

An additional plus is the integrated data logger, whose measured values can be read out in open format via USB. This facilitates documentation and auditing in accordance with GMP standards and other guidelines, as all relevant data is traceable. The robust stainless steel inner chamber also ensures a long service life and easy cleaning.Outstanding features at a glance

- Temperature range: 0 °C to +70 °C (max. 24 °C below ambient temperature)
- Humidity range: 10 % r.h. to 80 % r.h.
- Peltier technology with patented heat dissipation
- APT.line preheating chamber for homogeneous climate distribution
- Independent water supply via canister
- LCD display for temperature, humidity, alarms and additional information
- Interface: Ethernet for networked laboratories

The device also impresses with its temporal and spatial accuracy: at 25 °C and 60 % RH, the temperature deviation is around ±0.1 K, meaning that sensitive samples and substances are exposed to constant conditions. Another feature is the rapid recovery time of just five minutes after briefly opening the door at 25 °C and 60 % RH. Thanks to a maximum load of 150 kg and an interior size of 973 × 1250 × 836 mm (W × H × D), there is plenty of space for different sample containers and storage containers. The capacity can be flexibly adjusted thanks to the option of using additional shelves.

Certifications and standards

The device is developed strictly in accordance with the requirements of the ICH Q1A guideline and is optimally designed for stability tests. It also fulfils all industry standards relating to electrical safety and design, ensuring safe integration into existing test environments. Users benefit from a high level of process reliability, particularly for validated applications in the pharmaceutical and biotechnology sectors.

Concrete application examples

- Pharmaceutical stability tests for solid and semi-solid dosage forms such as tablets or creams
- Testing of temperature and moisture-sensitive cosmetic products, e.g. lotions or emulsions
- Conditioning of chemicals under constant humidity and temperature to investigate shelf life and reaction behaviour
- Long-term storage of samples, reagents or biological materials in research, development and control laboratories

FAQs

How loud is the operation

?

The device operates at a low noise level of around 49 dB(A) and is therefore very suitable for typical laboratory environments.

How often does the water supply system need to be filled?

Water consumption depends heavily on the running time and selected humidity setpoint. In general, the canister system ensures rapid refilling and a reliable water supply.

How time-consuming is the maintenance?

The robust design and the full stainless steel inner tank reduce maintenance requirements and enable quick cleaning. Regular checks of the Peltier system and the filter system are usually sufficient for long-lasting performance.

Can sensitive substances such as proteins or vaccines be stored?

Yes, thanks to exact compliance with temperature and humidity values, sensitive substances such as proteins, vaccines or diagnostics can also be stored and tested.

What loading capacity is recommended

The interior space and load capacity are generously dimensioned. A maximum of 15 shelves offer flexibility, with a load of up to 45 kg possible per shelf.

Conclusion

The appliance impresses with its wide range of functions, reliable climate stability and simple operation. With its powerful Peltier technology, large interior and detailed humidity and temperature control, it is ideal for demanding test and storage applications in research and development, quality control or production. Laboratory and industrial users receive a fail-safe system that is designed for efficiency, precision and durability and can be integrated perfectly into existing processes.

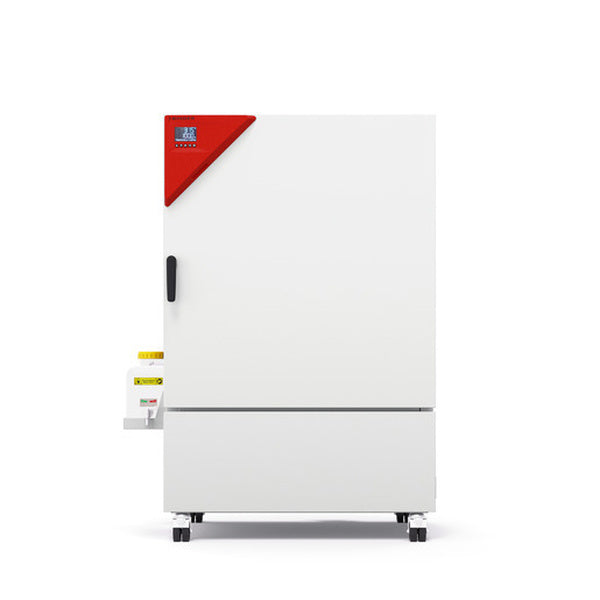

BINDER KBF-S ECO 240 constant climate chamber

The BINDER constant climate chamber offers a reliable solution for precise temperature and humidity control in laboratories, research facilities and the pharmaceutical industry. Thanks to Peltier technology with patented heat dissipation, this device is particularly energy-efficient and quiet, which sets it apart from comparable products on the market. It guarantees constant ambient conditions and exact reproducibility of test results, particularly for long-term stability tests in accordance with the ICH Q1A guideline. Users benefit from high operational reliability and a wide range of customisation options to reliably test and store different samples or materials.

Powerful solution for constant climate conditions

This constant climate chamber precisely controls temperature and relative humidity to ensure reproducible conditions for a wide range of laboratory applications. Its advanced Peltier technology has several advantages: heat dissipation is efficient, energy consumption is particularly low and the operating noise level is very low at 46 dB(A). The APT.line preheating chamber technology also prevents disruptive temperature fluctuations and ensures homogeneous heat distribution in the interior.

Important technical data at a glance:
- Temperature range: 0 to +70 °C (maximum 28 °C below the current ambient temperature)
- Humidity range: 10 to 80 % r.h.
- Interior volume: 247 litres
- Nominal power: 0.8 kW
- Sound pressure level: 46 dB(A)
- Recovery time after opening the door for 30 seconds at 25 °C and 60 % r.h.: 5 minutes
- Maximum energy efficiency thanks to optimised Peltier technology
- Up to nine slide-in grids (two already included) for flexible equipping

The inner chamber is made entirely of stainless steel, enabling quick and thorough cleaning. An integrated data logger stores all measured values, which can be easily read out via USB. Ethernet interfaces are also available so that the devices can be integrated into digital monitoring systems. A wide range of accessories and configurations can be added for customisation to various laboratory environments.

Certifications and standards

In addition to precise temperature and humidity control, compliance with relevant guidelines is also essential for stability tests in the pharmaceutical industry. This model is suitable for standard-compliant testing in accordance with the ICH Q1A guideline and therefore fulfils key requirements for quality and reproducibility. Thanks to its robust design and high operational reliability, it is a reliable partner in the laboratory.

Application examples

- Long-term stability tests for pharmaceutical products and cosmetics: Samples of tablets, ointments or lotions can be stored under defined conditions and analysed for their shelf life.
- Climate simulations in research: For experiments that require different environmental conditions, the cabinet provides constant temperature and humidity curves.
- Quality assurance in industrial processes: Materials such as plastics or packaging can be tested for ageing resistance.
- Microbiological tests: Certain microorganisms require constant humidity and temperature conditions in order to analyse growth or reaction behaviour.

Users in regulated areas of the pharmaceutical industry, biochemistry and environmental research in particular benefit from reproducible measured values and precisely documented test results.

FAQs

How easy is maintenance?

Maintenance is straightforward thanks to the clear design and the use of stainless steel in the interior. Regular checks of the water supply and the sensor system are usually sufficient to ensure optimum performance in the long term.

Can the humidity be kept constant in the long term?

Yes, the integrated humidity control is extremely stable. In conjunction with the reliable water supply system, the desired relative humidity is maintained precisely and over long periods of time.

Is the device suitable for sensitive samples?

Due to the low deviation (±0.1 K in certain temperature ranges) and the fast recovery time after door openings, even very sensitive samples, such as pharmaceutical formulations or microbiological cultures, can be stored or analysed safely and stably.

What is the load limit?

The interior can hold up to 100 kg total load. Individual shelves can be loaded with a maximum of 30 kg. This means that larger test series or several sample batches can be processed simultaneously.

Conclusion

This constant climate chamber impresses with its sophisticated Peltier technology, standard-compliant testing options in accordance with ICH Q1A guidelines and low-noise operation. High energy efficiency and the robust stainless steel construction make it the ideal partner for stability tests, long-term climatic simulations and demanding laboratory applications. Thanks to flexible configuration options and an extensive range of accessories, the device can be adapted precisely to specific laboratory requirements and offers both reliability and maximum safety in every application.

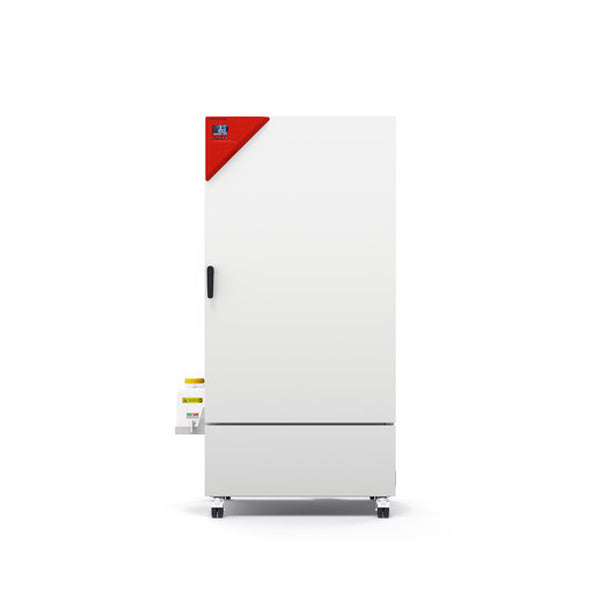

BINDER KBF-S ECO 400 constant climate chamber

The KBF-S ECO 400 is a state-of-the-art constant climate chamber for demanding stability and climate tests in laboratories and research facilities. Thanks to the innovative Peltier technology with patented heat dissipation, it is extremely energy-efficient and produces a low noise level. Compared to other solutions on the market, this model is characterised by standard-compliant adherence to strict ICH Q1A guidelines, high reliability and sophisticated APT.line preheating chamber technology. Anyone looking for a flexible and extensively customisable climate chamber will find an optimal solution here, which is recommended for its wide temperature range, precise humidity control and outstanding performance data.

Performance characteristics and special features

This climate chamber has been specially designed for carrying out precise and long-lasting tests. Particularly noteworthy is the Peltier technology, which achieves a very respectable energy consumption of just 60 Wh-h (at 25 °C and 60 % RH) or 70 Wh-h (at 40 °C and 75 % RH). The resulting high cost-effectiveness relieves the budget and reduces the ecological footprint at the same time. Further advantages include:

- Temperature range from 0 °C to +70 °C (max. 26 °C below ambient temperature)
- Humidity range from 10 % r.h. to 80 % r.h.
- High uniformity thanks to APT.line preheating chamber technology
- LCD display for temperature, humidity, additional information and alarms
- Integrated data logger with export function via USB
- Peltier modules with patented heat dissipation for quiet operation

The stainless steel interior (400 litre volume) is extremely robust and corrosion-resistant, which is particularly advantageous in demanding laboratory environments. In addition, two sturdy slide-in grids are already included in the scope of delivery and can be extended to up to 15 shelves if required. This allows the device to be adapted to different test or storage requirements, with a maximum total load of 120 kg.

Compatibility with external control and monitoring systems is simplified by the Ethernet interface and the option to supply water via canisters. This increases flexibility in everyday laboratory work and prevents unnecessary downtime due to a complex water supply infrastructure.

Certifications and standards

For precise and validated tests, the device fulfils the guidelines and standards required in many industries. In particular, pharmaceutical stability tests are subject to the ICH Q1A guideline, compliance with which is ensured with this cabinet. The model also complies with current safety and quality standards and is CE labelled. The solid construction and self-test mode ensure smooth, fail-safe operation.

Typical areas of application

In laboratories in the pharmaceutical industry, climate chambers like this one are often used for stability tests on active ingredients and end products. In addition to pharmaceutical samples, cosmetics or chemical products can also be stored in constant climate conditions over longer periods of time in order to test their shelf life and effectiveness. Further examples:

1. Long-term testing of pharmaceutical products in accordance with the ICH Q1A guideline
2. Stability tests for cosmetic products based on emulsions or sensitive active ingredients
3. Quality controls in chemistry laboratories for polymer products or adhesives
4. Material tests in research facilities, for example for coatings or plastics

Thanks to the wide temperature and humidity range, these versatile climate chambers are also suitable for comparative tests of different formulations, durability studies and process optimisation in industrial production.

FAQs

How do I ensure a continuous water supply?

The device has an independent water tank that is supplied via a canister. An alarm and monitoring system signals when the water supply needs to be topped up. This ensures a constant moisture content without the need for complex low-pressure or fixed water connections.

What advantages does Peltier technology offer with this climate chamber?

Peltier elements are very energy-efficient and cause little operating noise. In addition, their patented heat dissipation guarantees a fast response time for both cooling and heating, enabling a constant temperature to be maintained throughout the interior.

How does the data logger work?

An internal data logger is integrated into the device, which records temperature and humidity data. These can be read out in an open format via the USB interface so that raw data can be imported directly into common evaluation programmes and processed further.

What maximum load can the device handle?

The standard equipment includes two stainless steel shelves, each with a load capacity of up to 30 kg. The total capacity of 120 kg ensures that even large-volume test samples or multiple sample batches can be analysed in parallel.

How quickly does the temperature and humidity return when the door is opened?

At 25 °C and 60 % RH, the recovery time after opening for 30 seconds is around six minutes. At 40 °C and 75 % RH, the appliance needs around 15 minutes to reach the set values again.

Conclusion

This climate chamber impresses with its low operating costs, high flexibility and consistently precise measurements. With its quiet running behaviour, robust interior and the ability to easily document test data, the KBF-S ECO 400 is designed in every respect for demanding stability studies and long-term investigations. Anyone who needs customisable yet reliable technology will benefit from the powerful performance and user-friendly operation. This makes daily laboratory work more effective and delivers valid test results for a wide range of industry requirements.

BINDER KBF-S ECO 720 constant climate chamber

The KBF-S ECO 720 is a high-performance climate chamber that offers maximum precision with stable temperature and humidity conditions. It was specially developed to optimise laboratory processes such as stability tests, shelf life tests or quality controls in industries such as pharmaceuticals, biotechnology and food. Thanks to its advanced Peltier technology, it combines energy efficiency with reliability and therefore fulfils the high demands of professional users.

Varied areas of application and benefits

This climate chamber is particularly efficient compared to conventional systems because it significantly reduces energy consumption and ensures a standard-compliant test environment in accordance with ICH Q1A. The following aspects make the model particularly attractive for demanding laboratory and research environments:

- Low energy requirements thanks to Peltier technology
- High operational reliability for uninterrupted long-term tests
- Minimal noise development for a pleasant working atmosphere
- High temperature and humidity accuracy even when fully loaded
- Simple operation via LCD display and internal data logger with freely readable values
- Independent water supply via canister for continuous operation
- Sturdy construction with stainless steel inner tank

The USB interface for data evaluation and the clever, hygienic design ensure convenient handling. In addition, the device can be customised to specific requirements using various accessories.

Technical features and specialities

The climate chamber offers outstanding performance data in terms of temperature and humidity. A temperature range of 0 °C to +70 °C can be realised (maximum 24 °C below the ambient temperature). In humidity mode, the application range extends from 10 % to 80 % relative humidity. The precise control is based on APT.line preheating chamber technology, which ensures uniform heat and humidity distribution in every corner of the interior.

Important key figures at a glance:
- Temperature range with humidity: 5...70 °C
- High measuring accuracy: ±0.1 to ±0.3 K deviation at 25 °C-60 % r.h. or 40 °C-75 % r.h.
- Recovery time after opening the door for 30 seconds (at 25 °C and 60 % RH): 7 minutes
- Storage capacity: 700 litre interior volume, 2 standard drawers (max. 15 drawers possible)
- Maximum load per drawer: 45 kg, total load: 150 kg

The outer doors are double-walled and close perfectly to prevent temperature fluctuations or moisture loss. A sound pressure level of just 48 dB(A) also ensures a quiet laboratory environment. All components are robustly manufactured and fulfil current safety and quality standards (e.g. CE marking), making the cabinet ideal for demanding applications.

Concrete application examples

1. Stability tests in the pharmaceutical industry: active ingredients and end products must be stored under constant conditions and regularly checked to ensure their shelf life and efficacy in accordance with ICH Q1A specifications.
2. Quality assurance in the food industry: Sensitive products such as dairy products or sensitive bacterial cultures are reliably analysed for their long-term stability.
3. Material testing in the research sector: mechanical properties of plastic and metal samples can be precisely observed under specific climatic conditions.
4. Durability analyses in the cosmetics industry: creams, lotions and other moisture-sensitive formulations benefit from precise moisture and temperature profiles

Frequently asked questions

How quickly does the appliance reach the desired temperature?

The patented heat dissipation and efficient Peltier technology ensure short heating and cooling times. The temperature stabilises at the programmed value after just a few minutes.

What maintenance work is required

A regular visual inspection of seals and any cleaning of the interior with suitable cleaning agents are usually sufficient to ensure trouble-free operation. The water supply via canisters must also be checked regularly.

Can external sensors be connected?

Additional sensors or probes can be inserted via the integrated Ethernet interface and the feed-through plug (Ø 30 mm). This allows users to integrate their own measuring instruments.

Is the device suitable for long-term measurements?

Yes. Thanks to its internal data logger and reliable cooling system, it is ideally designed for 24-7 operation. Long series of measurements or test cycles are therefore covered particularly reliably.

Summary

This constant climate chamber scores with an exceptional combination of precise humidity and temperature control, economical energy consumption and innovative Peltier technology. A robust stainless steel interior, flexible slide-in grilles and optimised airflow ensure consistently high performance, while comprehensive safety is synonymous with fail-safe operation. This makes the appliance an ideal solution for a wide range of industries where reproducible climate conditions are of crucial importance.

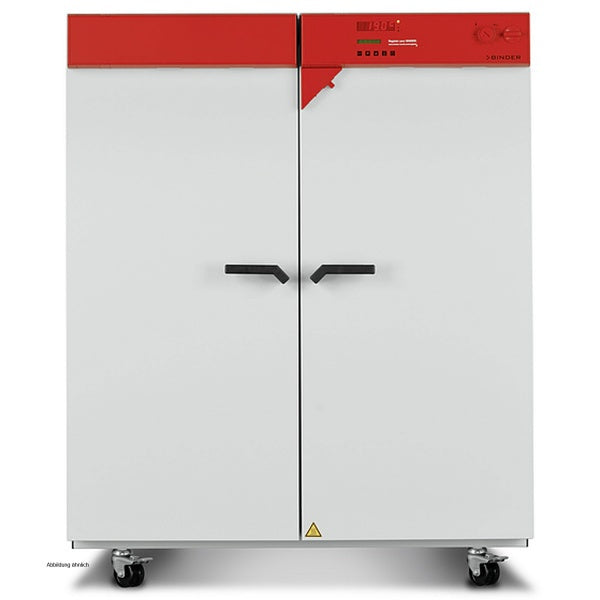

BINDER Material test chamber FP 720 with mechanical convection

A BINDER material test chamber with mechanical convection of the FP series provides reliably short drying times and particularly fast heating - even for chambers under full loads.

• Electronically controlled APT.line^TM preheating chamber assuring temperature accuracy and reproducible results
• Temperature range from 5 °C above ambient temperature to 300 °C
• MP controller with 2 programs with 10 sections each, or alternatively 1 program with 20 sections
• The time of an individual program step can be set to max. 99.59 hours or 999.59 hours. This adjustment applies to all program sections
  • Integrated weekly program timer with real-time function
• Adjustable ramp function via program editor
• Digital temperature setting with an accuracy of one degree
• Adjustable fan speed
• Adjustable ventilation by means of front ventilation flap slide and rear exhaust Ø 50 mm
• Elapsed time indicator
• Independent adjustable temperature safety device class 2 (DIN 12880), with visual temperature alarm
• RS 422 interface for use with APT-COM^TM DataControlSystem communication software or switch over to printer output with RS 232 - RS 422 interface converter
• Units up to 115 liters are stackable
• 2 chrome-plated racks included
• BINDER test confirmation

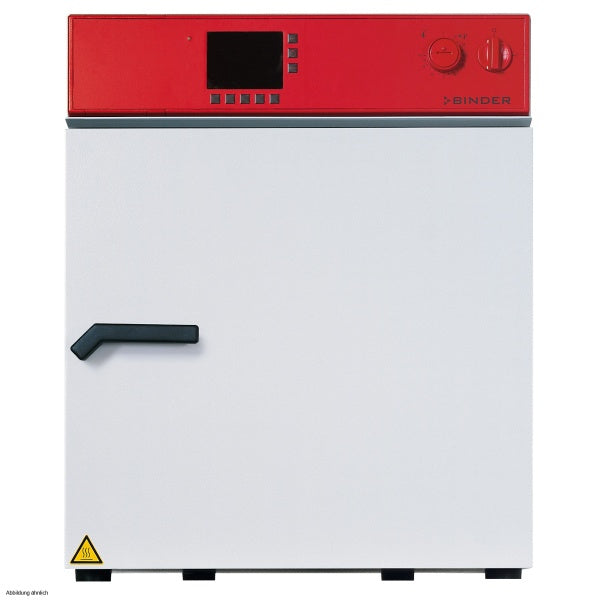

BINDER Material test chamber M 53 with individual programming

With a maximum temperature of 300 °C and comprehensive programming options, the M series from BINDER is ideally suited for material and aging testing. The high-performance fan ensures fast heating.

• Electronically controlled APT.line^TM preheating chamber assuring temperature accuracy and reproducible results
• Temperature range from 5 °C above ambient temperature to 300 °C
• MCS controller with 25 storable programs of 100 sections each for a maximum of 500 program segments
• User-friendly LCD screen
  • Easy-to-read menu guide
  • Integrated electronic chart recorder
  • Variety of options for the graphic display of process parameters
  • Real-time clock
• Adjustable ramp function via program editor
• Program-controlled ventilation flap
• High air-exchange rate through high-performance fan
• Adjustable fan speed
• Exhaust duct Ø 50 mm
• Temperature safety device class 2 (DIN 12880) with visual alarm
• Printer and communication interface RS 422 for use with optional GMP-GLP and FDA guideline 21 CFR Part 11 compliant APT-COM^TM DataControlSystem software
• Units up to 115 liters are stackable
• 2 chrome-plated racks included
• BINDER test confirmation
