The AutoMATE™ 96 from Accuris Instruments is a fully automated, high throughput liquid handling workstation that improves productivity when filling microplates. Capable of dispensing up to 96 channels simultaneously, the AutoMATE 96 significantly reduces the processing time and errors associated with manual pipetting.
The included tablet features an intuitive app for programming and operation. Unlike many 96-well pipetting stations, the AutoMATE 96 is “hands-free”, with motorized tip loading-ejection and a four position, automated, sliding platform that precisely aligns the tips with the appropriate microplate-reservoir. Once programmed, the instrument can run protocols to completion without any manual positioning or adjustment.
Three interchangeable heads allow for a pipetting range from 1.0µL to 1000µL. The AutoMATE 96 is compact enough to fit onto a standard lab bench or into a biosafety cabinet.
Accuris AutoMATE 96-Channel Pipetting Station Pipette Heads and Accessories
Available for the AutoMATE 96-Channel Pipetting Station are three different pipette heads for various volumes, along with consumables for daily operation.
The AutoMATE™ 96 from Accuris Instruments is a fully automated, high throughput liquid handling workstation that improves productivity when filling microplates. Capable of dispensing up to 96 channels simultaneously, the AutoMATE 96 significantly reduces the processing time and errors associated with manual pipetting.
The included tablet features an intuitive app for programming and operation. Unlike many 96-well pipetting stations, the AutoMATE 96 is “hands-free”, with motorized tip loading-ejection and a four position, automated, sliding platform that precisely aligns the tips with the appropriate microplate-reservoir. Once programmed, the instrument can run protocols to completion without any manual positioning or adjustment.

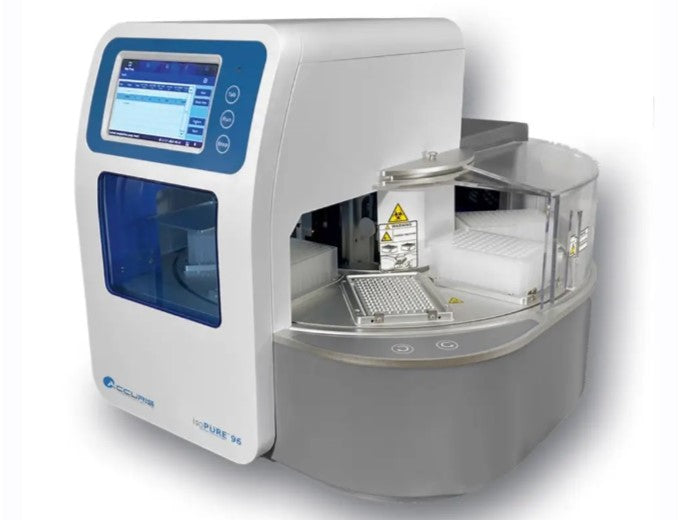

The IsoPure™ 96 from Accuris Instruments is a high throughput, automated system that improves the efficiency and reproducibility of magnetic bead-based purification protocols. Capable of processing up to 96 samples at one time, the instrument is easy to set up and program. Mixing, magnetic bead transfer, washing, and elution steps are performed automatically. The purification process can be completed within 10 to 60 minutes depending on the type of reagent kit used and complexity of the program.
Accuris IsoPure 96 Automated Purification System Accessories and Consumables
Available for the Accuris IsoPure 96 are various accessories and consumables, which could be found in the list below.
SKU #
Description
AP1096-DWP
96 deep well plates for IsoPure™, cs 50
AP1096-TC
Tip Comb for IsoPure™ 96, cs 50
AP1096-ELP
96 well elution plates for IsoPure™, cs 100
The IsoPure™ 96 from Accuris Instruments is a high throughput, automated system that improves the efficiency and reproducibility of magnetic bead-based purification protocols. Capable of processing up to 96 samples at one time, the instrument is easy to set up and program. Mixing, magnetic bead transfer, washing, and elution steps are performed automatically. The purification process can be completed within 10 to 60 minutes depending on the type of reagent kit used and complexity of the program.
Purchase Accuris IsoPure™ 96 Automated Purification System Accessories and Consumables Through PSTG Supplies Here!
Compatible with all popular magnetic bead kits
Touch screen panel for on-board programming and operation

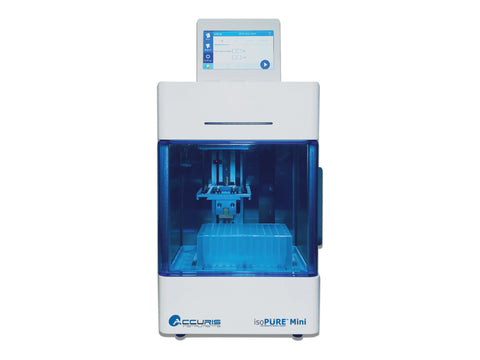

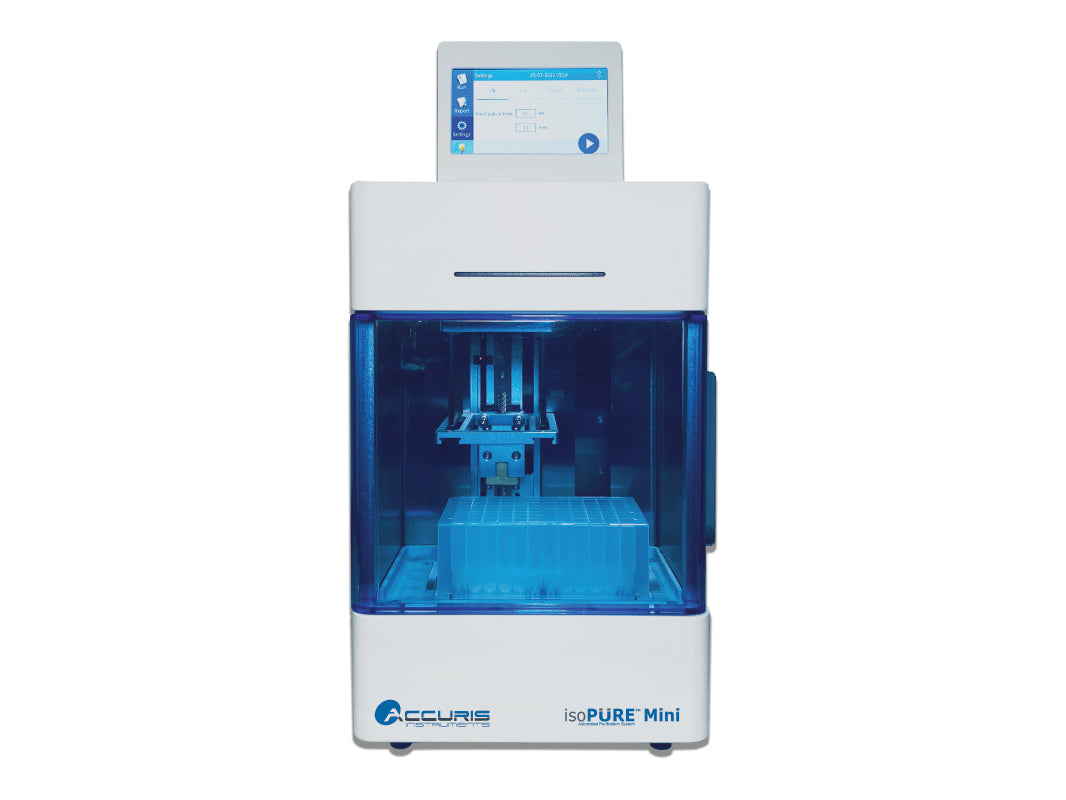

Accuris IsoPure Mini Automated Purification System
Fast, reliable and reproducible results
Compatible with all popular magnetic bead kits
Compact (8 x 10 inch footprint)
Process up to 16 samples
Programable with PC software or Android App
Sample volume 50µl – 1000µl
Magnetic bead-based purification has become the preferred method for isolating DNA, RNA, and other target molecules from a variety of biological sample types. The quality and quantity of the extracted molecules can be significantly higher than other methods, such as spin columns, while the cost per sample can be lower. The IsoPure™ Mini from Accuris Instruments is a compact, automated purification system that improves efficiency and reproducibility using the magnetic bead-based method. Capable of processing up to 16 samples at one time, the instrument is easy to set up, program, and operate. Mixing, magnetic bead transfer, washing, and elution steps are performed automatically, saving valuable hands-on time. The purification process can be completed within 10 to 60 minutes depending on the type of reagent kit used and the complexity of the program.
Programming via Android™ App or PC Software
Creating a protocol is simple using the IsoPure app or PC software, both are included on a USB flash drive with each instrument. Mixing speed, sample temperature, and magnetization parameters can be all be programmed. When using the IsoPure app on an Android device, the saved protocols can be transferred to the instrument via Bluetooth connection or by using the included barcode scanner. The PC software can be used for programming and transferring by USB flash drive or barcode scanner. Free, lifetime App updates are available so users can access newly available features as they are introduced.
QR Code Scanning System
A handheld scanner is included with each IsoPure™ Mini, adding a convenient and fast method for loading a protocol onto the instrument. After creating or opening a protocol on a companion Android device or a connected PC, an option is available for displaying a QR code. Simply scan the QR code to instantly transfer the protocol. QR codes are also available in kit instruction manuals for instant loading of optimized programs.
Protocol Optimization
Accuris Instruments has partnered with leading magnetic bead kit manufacturers to develop and optimize protocols for specific applications. To request scripts for specific kits, or for assistance in optimization, please contact the IsoPure™ Technical Support Team at info@accuris-usa.com.
Sample Temperature Control
Heating sample mixtures during the lysis and elution steps can significantly improve results. Heating strips on the sample platform can be precisely set to any temperature between ambient +5°C to 120°C. Both deep well plates and 6-well reagent vessels fit into the contoured heating strips for efficient heat transfer. Two cooling fans maintain ambient temperature inside the housing and temperature of the heating strips.
Connection Ports
The IsoPure™ Mini can store up to 100 protocol files in internal memory. These can be transferred between instruments or to a computer for storage or sharing. Simply insert the included flash drive to export the selected files. Internal protocol management can be done via the instrument touch screen, or by using the included mouse.
UV Sterilization
An ultraviolet sterilization lamp (UVC) inside the processing chamber provides effective elimination of most bacterial, viral and stray genomic DNA contaminants. This additional safeguard reduces the possibility of contamination and downstream amplification of unwanted targets.
Touch-Screen Control Panel
The control panel on top of the IsoPure™ Mini allows for quick selection of stored protocols and instrument control. To execute a protocol, select it from the file list, insert a prepared sample plate (or 6-well reagent vessel) and tip combs, and press the start button. Run parameters and operating status are displayed during sample processing.
IsoPure™ Consumables
Accuris offers magnetic tip combs, deep well plates, and 6-well sample strips designed to fit the IsoPure™ Mini. Produced using virgin polypropylene and packaged in a sterile environment, these consumables are guaranteed to be contaminant-free. The 8-place magnetic tip combs lock into position inside the instruments processing chamber. There are 2 options for sample vessels: 96 deep-well plates or 6-well sample strips. For processing up to 16 samples, deep well plates are used. When only 8 or fewer samples need to be processed, the 6-well sample strips are ideal, and these are loaded onto the included aluminum rack. These sample strips reduce waste and lower consumable costs when only a few samples need to be processed.
Accuris IsoPure Mini Automated Purification System Accessories
Accuris offers magnetic tip combs, deep well plates, and 6-well sample strips designed to fit the IsoPure™ Mini. Produced using virgin polypropylene and packaged in a sterile environment, these consumables are guaranteed to be contaminant-free. The 8-place magnetic tip combs lock into position inside the instruments processing chamber. There are 2 options for sample vessels: 96 deep-well plates or 6-well sample strips. For processing up to 16 samples, deep well plates are used. When only 8 or fewer samples need to be processed, the 6-well sample strips are ideal, and these are loaded onto the included aluminum rack. These sample strips reduce waste and lower consumable costs when only a few samples need to be processed.

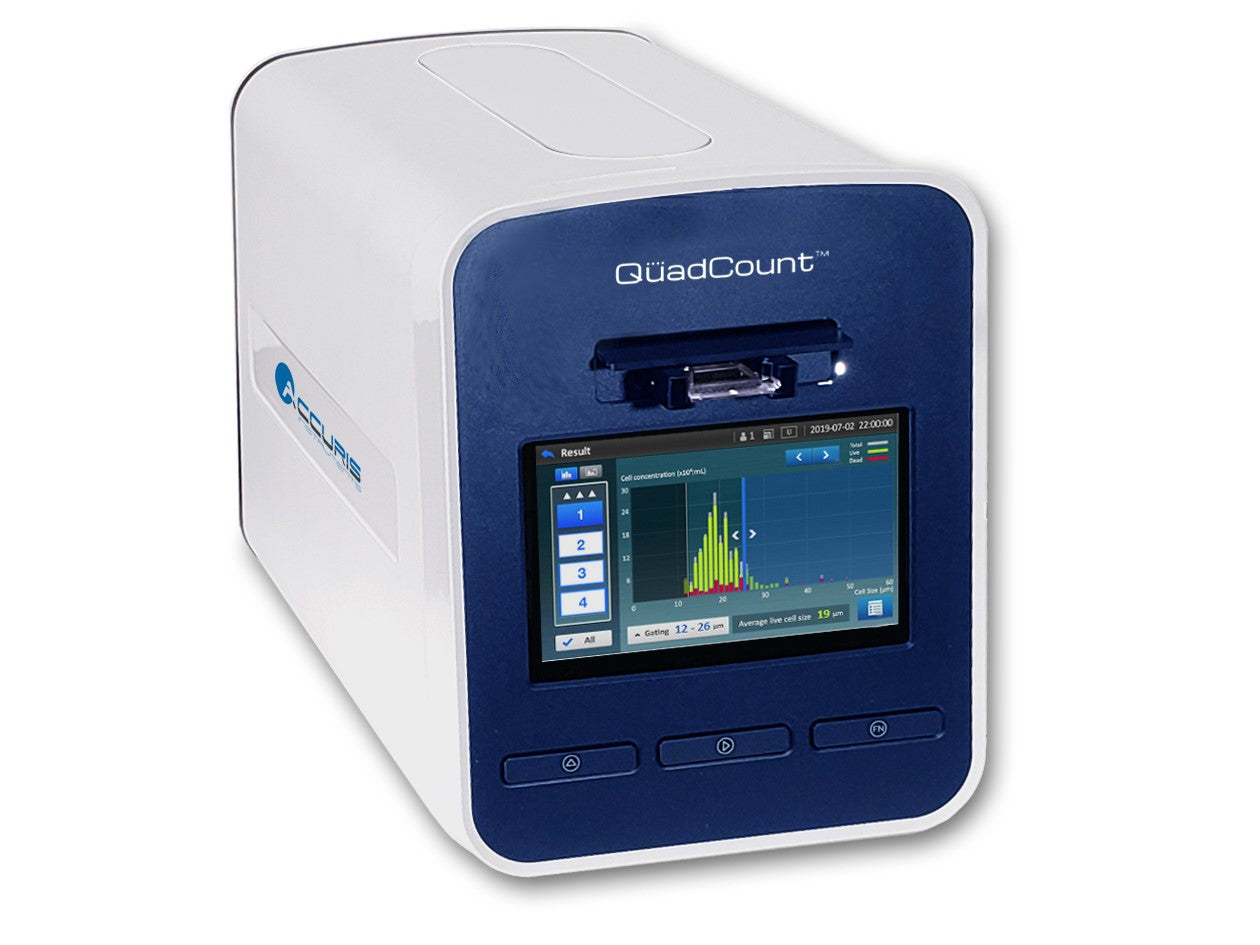

The Accuris QuadCount™ improves on the simple technique of brightfield microscopy by utilizing an LED light source to automate cell counting. With count speeds at fast as 20 seconds per sample, the Accuris QuadCount provides many advantages over the tedious and time consuming manual hemocytometry method. The advanced software eliminates human bias in dead-live determinations, reduces counting errors, saves time, and improves efficiency.

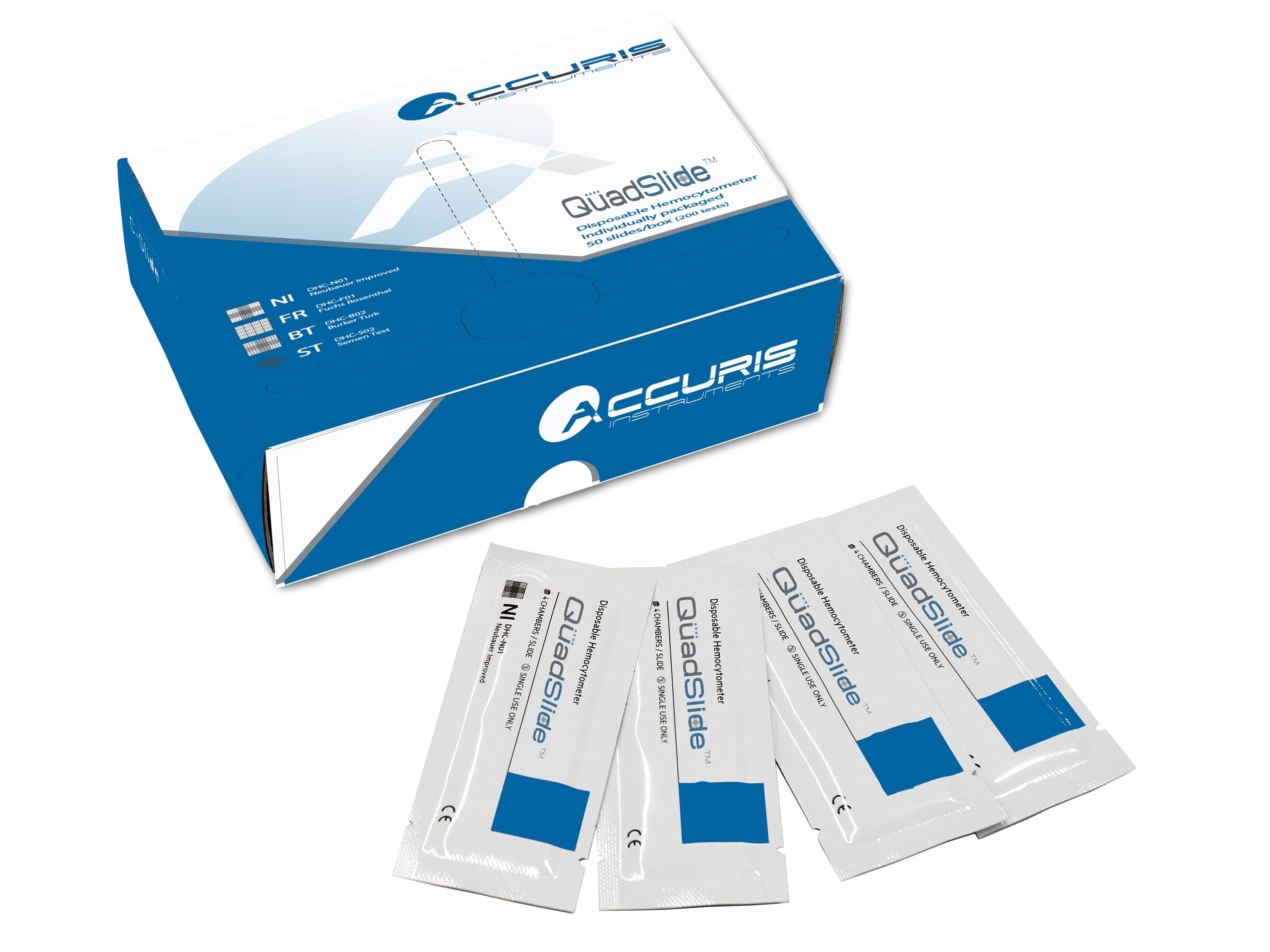

Accuris QuadSlides for QuadCount™ Automated Cell Counter
The Accuris QuadCount™ improves on the simple technique of brightfield microscopy by utilizing an LED light source to automate cell counting. With count speeds at fast as 20 seconds per sample, the Accuris QuadCount provides many advantages over the tedious and time consuming manual hemocytometry method. The advanced software eliminates human bias in dead-live determinations, reduces counting errors, saves time, and improves efficiency.

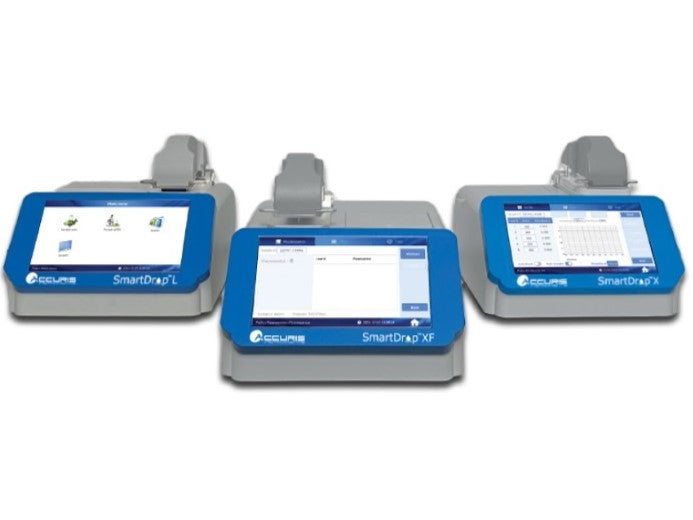

Used for Microvolume Analysis of DNA, RNA, and Proteins
Quick and accurate results from a sample droplet
Touch screen control panel, no PC or software required
Built-in printer and cuvette port for OD600 readings
XF model includes fluorometer for sensitive DNA quantification

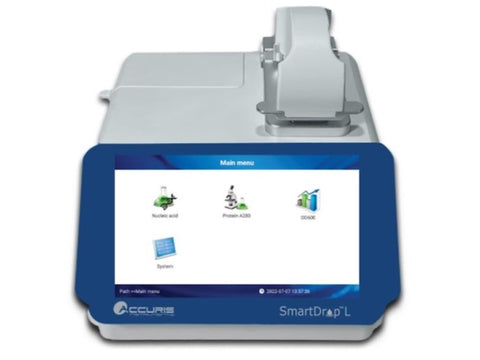

SmartDrop L
Ideal for basic DNA-RNA-protein quantification and purity
Affordable LED and silicon detector technology
Fixed 0.5mm path length, detect up to 2500ng-µl of dsDNA
SmartDrop L is the affordable choice for laboratories needing to determine nucleic acid and protein concentrations and purity of samples. The LED light source and silicon photocell sensor provide readings at 260 and 280nm. Samples from 1.0 to 2.0µl are loaded directly on the pedestal. Results are provided in about 5 seconds. The software automatically calculates and displays 260-280 ratios.
SmartDrop X
Full-spectrum absorbance scans from 200 to 800nm
Quickly calculates and displays 260-280 and 260-230 ratios
Long-life Xenon lamp with precision monochromator
Auto-ranging path lengths of 0.2mm and 1.0mm
Detect up to 4,500 ng-µl of dsDNA without dilution
A full spectrum UV-Vis spectrophotometer, SmartDrop X requires 0.5 to 2.0µl of sample. In addition to nucleic acid and protein calculations, the software has preset programs for BCA, Bradford and Lowry assays. A full spectrum analysis can be performed in about 6 seconds, aiding in the identification of unknowns. Up to 5 specific points on the spectrum can be selected for colorimetric readings output. The long life Xenon lamp source requires no warmup and is paired with a highly sensitive CCD detector. To provide the most accurate results, the SmartDrop X utilizes 2 path lengths.
SmartDrop XF – Spectrophotometer + Fluorometer
Full-spectrum absorbance scanning and calculations of 260-280 and 260-230 ratios
Long-life Xenon lamp with precision monochromator
Auto-ranging path lengths of 0.05mm, 0.2mm and 1.0mm
Detect up to 15,000ng-µl of dsDNA without dilution
Integrated fluorometer for sensitive quantitation of low concentration nucleic acids
This top-of-the-line spectrophotometer can perform not only UV-Vis readings in the range of 200-800nm but also fluorescence readings. Like the SmartDrop X, the SmartDrop XF features predefined programs for nucleic acids, proteins, and various colorimetric assays. The patented, motorized system gently stretches the sample column and allows for three different path lengths, providing accurate readings of samples from 0.5 to 2.0µl without dilution. The integrated fluorometer yields more accurate, sensitive and selective quantitation of nucleic acids. The blue light channel (460nm) is useful for detection of dyes such as PicoGreen and RiboGreen as well as GFP and fluorescein. UV, green and red channel models are available upon request.

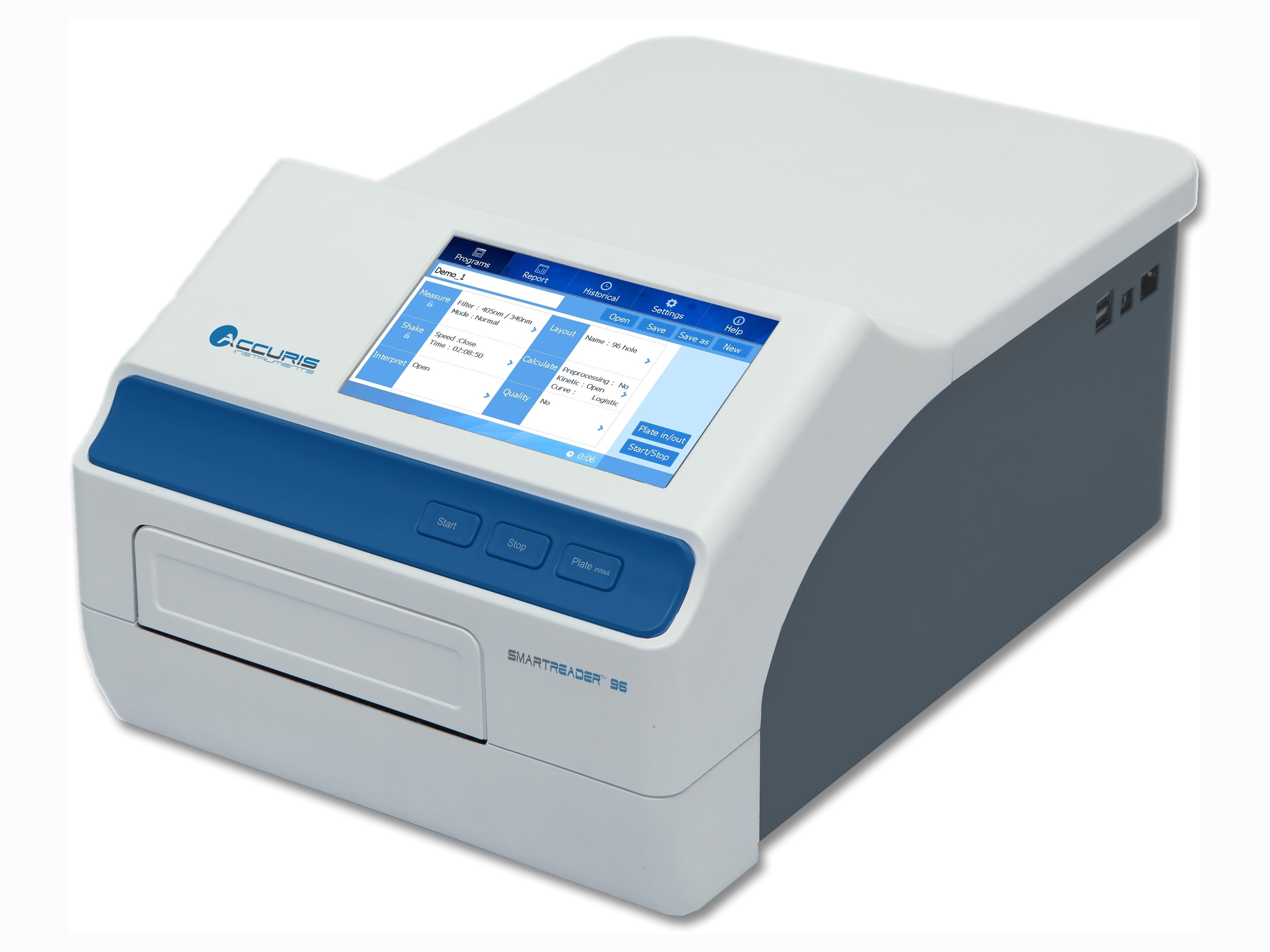

The Accuris SmartReader 96, models MR9600 and MR9600-T (Temp Control Incubation) are welcome additions to any lab that is routinely measuring concentration or absorbance in 96 well plates. The 7 inch touch screen, intuitive software and graphical interface make these instruments easy to use as a standalone reader (a separate computer and additional software is not required, but the software for PC is optional).
Intuitive, 7 inch color touch screen control panel
Filter based system with wavelength range from 340 to 750nm
Operates as a stand alone system, with USB flash drive drive for data transfer
Absorbance range: 0.0 to 4.000 Abs
8 channel vertical optical path, with zero dispersion
Integrated, multi-speed plate shaker
MR9600-T features temperature controlled plate incubation
Specifications
MR9600: Microplate Reader w- 115V Power Supply
MR9600-E: Microplate Reader w- 230V Power Supply
MR9600-T: Microplate Reader w- Temperature Controlled Incubation and 115V Power Supply
MR9600-T-E: Microplate Reader w- Temperature Controlled Incubation and 230V Power Supply
Control and Display
7-inch touch screen (800 x 480 pixels)
Light Source
Quartz-halogen lamp 6V-10W
Wavelength range
340-750nm (405, 450, 492, and 630 nm filters included. Others offered and optional)
Half-Bandwidth of filters
3~9nm
Readout Range
0~4.000 Abs
Linearity (405nm)
0~2.000 Abs <+1%
0~4.000 Abs <+2%
Precision
CV= 0.2% (0-3) Abs<-p
CV= 01.0% (3-4) Abs<-p
Test Speed
<6 sec. for 96 well plate
Incubator (MR9600-T)
Temp control from ambient +5°C to 50°C
Shaking
3 modes: slow (3.5Hz), medium (4.7Hz), fast (7.0Hz)
User Interface
Integrated software, touch screen control
Storage
200 programs, 100,000 test records
Ports
USB ports for PC, printer, mouse and flash drive
Dimensions
11.6 x 17 x 8.75 inches
Weight
22 Lbs.
Warranty
2 years.
PSTG supplies is an authorized distributor of Accuris products and accessories.
Specifications
Absorbance range
0.0 to 4.000 Abs
MR9600
Microplate Reader w- 115V Power Supply
MR9600-E
Microplate Reader w- 230V Power Supply
MR9600-T
Microplate Reader w- Temperature Controlled Incubation and 115V Power Supply
MR9600-T-E
Microplate Reader w- Temperature Controlled Incubation and 230V Power Supply
The Accuris SmartReader 96, models MR9600 and MR9600-T (Temp Control Incubation) come equipped with filters to read 96-well microplates at 405, 450, 492, and 630nm wavelengths. However, other accessories are available to fit your needs!

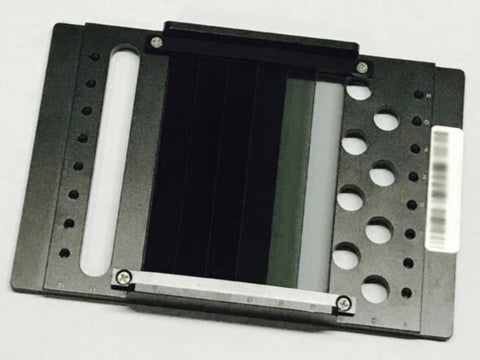

Available Accessories
Calibration plate for MR9600

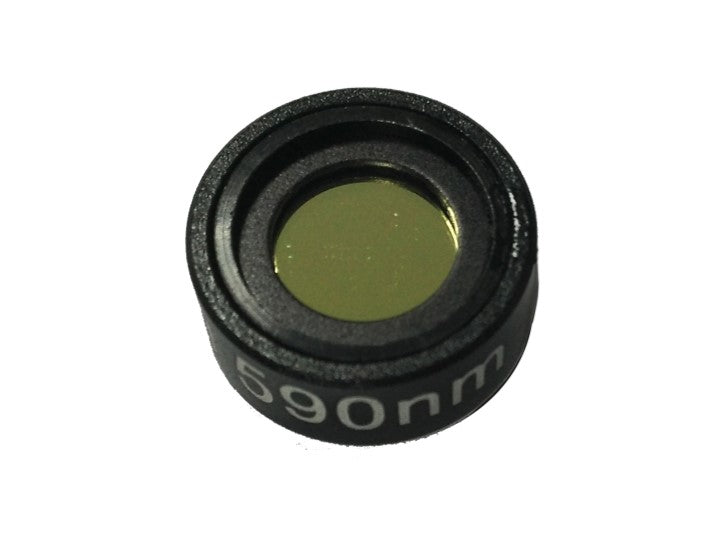

26 different filters at various wavelengths (340-750nm)
Popular Wavelengths for Assays
490nm (MTS Assay)
562nm (BCA Protein Assay)
595nm (Bradford Protein Assay)
PSTG supplies is an authorized distributor of Accuris products and accessories.
The Accuris SmartSeal™ Automated Plate Sealer (MS1000)provides fast, reproducible sealing of microplates. Unlike manual plate sealing, the SmartSeal ensures uniform sealing of all wells and consistency from one plate to the next.
Fast, reproducible sealing of well plates
Adjustable time, temperature and pressure for optimized sealing
User friendly controls, load plate and press run to seal
Accepts a wide range of plate types and heights, including deep well storage plates, assay plates, pcr plates, etc.
The Accuris SmartSeal™ Automated Plate Sealer provides fast, reproducible sealing of microplates. Unlike manual plate sealing, the SmartSeal ensures uniform sealing of all wells and consistency from one plate to the next.
With digital control over all parameters (time, temperature and pressure) the SmartSeal is capable of accepting a wide range of plate types and heights. An aluminum block adapter is included (for assay and PCR plates) increasing the compatibility of the instrument to allow for sealing nearly any plate up to 48mm tall.
With sealing times as low as 5 seconds, the SmartSeal is a time saving solution for labs and production facilities requiring high quality and consistent plate sealing.
Compatible with:
Deep well (storage) plates up to 48mm tall
Assay plates
PCR Plates (skirterd, semi-skirted and non-skirted)
Available for the SmartSeal Automated Plate Sealer are various foil and clear seals for your plate-sealing needs!
Ordering Information
SKU #
Description
MS1000
SmartSeal Semi-Automated Microplate Sealer, 115V
MS1000-E
SmartSeal Semi-Automated Microplate Sealer, 230V
MS1000-F1
Foil seals, peelable for PP plates, 100-pk
MS1000-F2
Foil Seals, strong bonding for cold storage (-200 to 110°C) and DMSO, for PP plates, 100-pk
MS1000-PCR1
Optically clear sealing film for qPCR, PEELABLE for most plate types, PP, PC, PE, etc., 100-pk
MS1000-PCR2
Optically clear sealing film for qPCR, STRONG BOND for PP plates, 100-pk
MS1000-PCE3
Optically clear sealing film for qPCR, PIERCEABLE for most plate types, PP, PC, PE, etc., 100-pk
The Accuris SmartSeal™ Automated Plate Sealer (MS1000) provides fast, reproducible sealing of microplates. Unlike manual plate sealing, the SmartSeal ensures uniform sealing of all wells and consistency from one plate to the next.
Fast, reproducible sealing of well plates
Adjustable time, temperature and pressure for optimized sealing
User friendly controls, load plate and press run to seal
Accepts a wide range of plate types and heights, including deep well storage plates, assay plates, pcr plates, etc.
