Cole-Parmer
Cole-Parmer WB-300 series digital water baths are robust, easy-to-use units for general laboratory heating applications. They feature stainless steel tanks, intuitive controls, and clear digital temperature display.
Three sizes are available, with low-level water sensor, over-temperature protection and supplied polycarbonate lids to minimise heat loss and evaporation.
Choice of sizes: 6, 15, or 24 Litres
- Digital display and selection of temperature
- Low-level water sensor
- Integral drain
- Supplied with robust polycarbonate lid

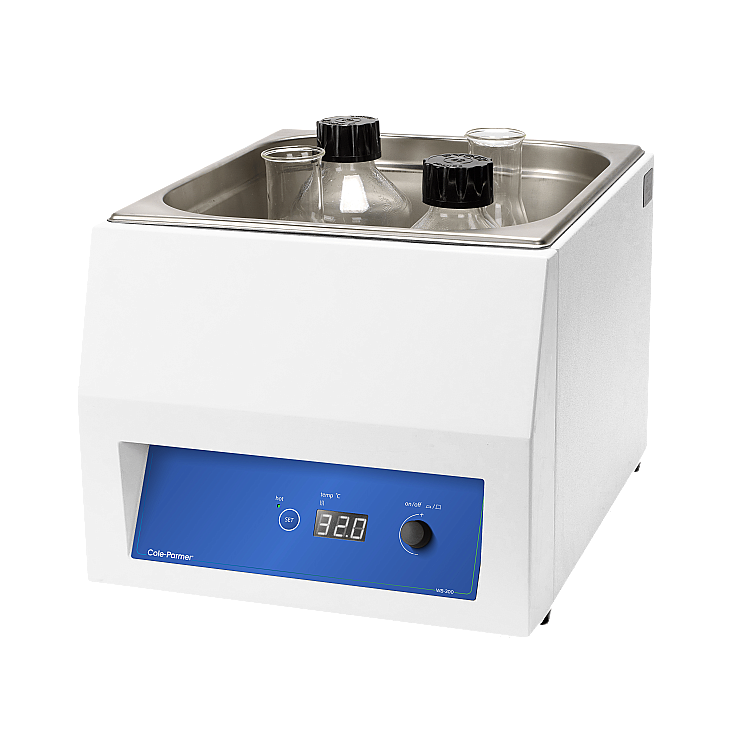

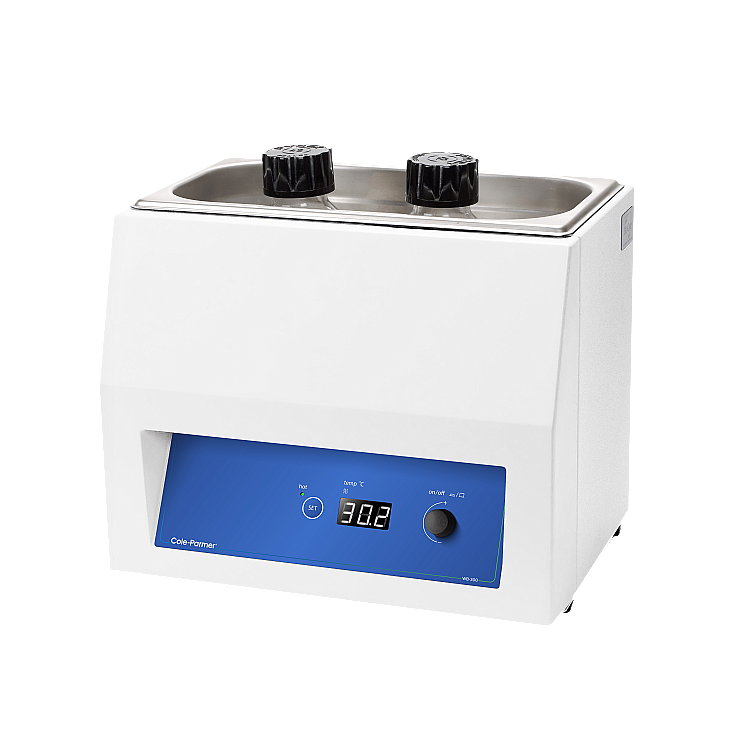

Cole-Parmer® Digital Water Baths WB-300-6, WB-300-15, WB-300-24
Three robust and reliable water baths, each with an easy-to-clean stainless steel tank and sturdy metal outer casing. Digital water baths with easy-to-use temperature control and clear-to-read LED water temperature. Incorporated over temperature protection system that tracks the set temperature and controls the heater in the event of a fault. The heater is mounted underneath
the tank to allow easy cleaning. Includes low-level water sensor which cuts power to prevent the bath from boiling dry. Incorporated drain for easy emptying of the bath. Bath covers are included as standard with each bath to help reduce heat losses and evaporation. The covers are manufactured from robust polycarbonate allowing full visibility of the bath contents.
Technical Specifications
|
Specification |
WB-300-6 |
WB-300-15 |
WB-300-24 |
|
Capacity |
6L |
15L |
24L |
|
Temperature range |
25°C to 99.9°C |
25°C to 99.9°C |
25°C to 99.9°C |
|
Temperature stability |
+/- 0.5C |
+/- 0.5C |
+/- 0.5C |
|
Internal dimensions (w x d x h),mm |
300 x 150 x 200 |
300 x 325 x 200 |
300 x 500 x 200 |
|
Overall dimensions (w x d x h), mm |
335 x 230 x 280 |
335 x 408 x 280 |
335 x 584 x 280 |
|
Net Weight, kg |
6.5kg |
9.0kg |
12.8kg |
|
Heater Power |
350W |
750W |
1400W |
|
Electricity supply |
230V, 50Hz, |
230V, 50Hz, |
230V, 50Hz, |
|
IP Rating |
31 |
31 |
31 |
The Cole-Parmer WBS-300 series shaking water baths are versatile units that can be configured as linear or orbital shakers, or used as static water baths, simply by changing the platform. They provide reliable temperature control and smooth agitation in a robust stainless steel design.
- Reservoir capacity: 24 L stainless steel tank with integral drain for easy cleaning
- Analog controls with digital temperature display for straightforward operation
- Shaking speed adjustable from 20 to 130 rpm
- Stroke length/orbit size: approximately 20 mm
- Interchangeable platforms for reciprocating shaking, orbital shaking or non-shaking applications
- Stainless steel shaking platforms with high-tension springs accommodate a range of flask and bottle sizes
- Safety features include over-temperature and low-liquid level cut-offs
These baths are suited to general sample incubation, solubility testing, bacterial culture, extractions and other applications where controlled heating and gentle agitation are required.
- Analog controls and digital temperature display simplify the operation
- Overtemperature and low-level cutoffs improve safety
- Shaking speed: 20 to 130 pm
- Stroke length/orbit size: 3/4" (20 mm)
Set speed and temperature using analog dials. Use the LED display to set and view the current temperature. A polycarbonate cover (12152-99) or stainless steel cover is required to reach temperatures above 90°C—order separately. A stainless steel tank with an integral drain makes cleaning and maintenance fast and efficient.
The choice of platform produces a reciprocating shaking, orbital shaking, or non-shaking system. Order 12152-90, 12152-91, or 12152-92 platform separately.
