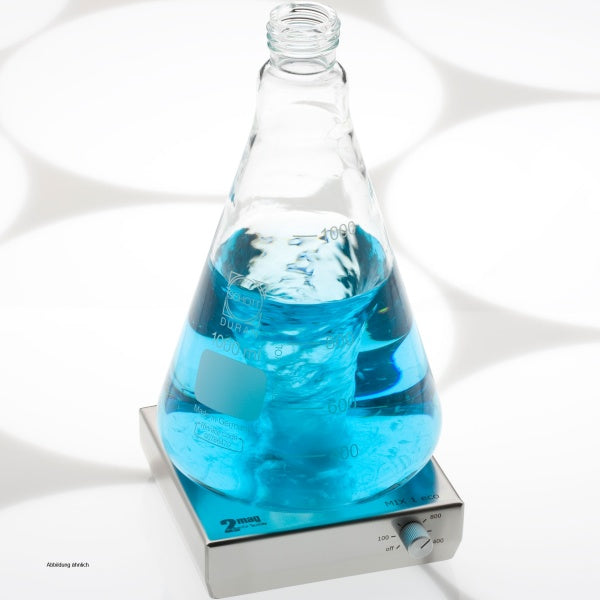

2mag Magnetic stirrer MIX 1 eco SINGLE POINT STIRRER

Designed for chemical, biotechnical and medical applications of all kinds.

Ultra flat, wear-free magnetic stirrer with 1 stirring position, up to 3,000 ml stirring volume, also suitable for the operation with aggressive media.

Price-optimized magnetic stirrer, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for mixing of solutions, speed range from 120 up to 1,400 rpm, jerk-free stirring even at low speeds.

SoftStart for reliable catching/centring and safe accelerating of the stirring bar, fully encapsulated stainless steel housing, extremely robust construction.

3 years warranty on material and manufacturing, developed and made in Germany.

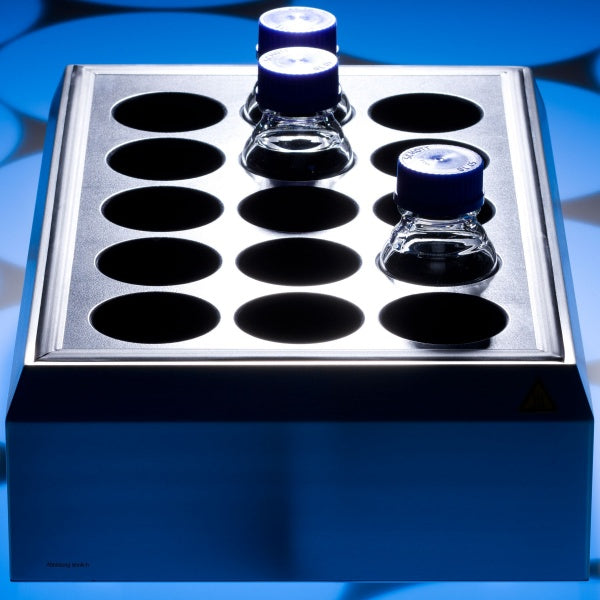

2mag STIRRING DRYBATH 15-250 MULTIPLE STIRRING HEATING BLOCKS

For viscosity measurements, combinatorial chemistry, biological applications, testing the solution behavior of synthetic materials, quality control in food, chemical and waste water technology, simple and easy system integration.

Stirring-heating block combination with 15 stirring positions, 15 bore holes, ø 71.5 mm, depth 78 mm, distance 84 mm, suitable for 250 ml lab-flasks (e.g. Schott) and for 400 ml beaker glasses.

Stirring - Maintenance-free and wear-free by inductive 2mag-Magnetic Drive concept, extremely wide speed range of 100 to 2,000 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 4-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer, clear digital display for settings of stirrer speed, stirrer power and temperature of the integrated heater, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar.

Heating - Massive heating block made of resistant aluminium alloy, PTFE-coated for increased chemical resistance and easier cleaning, lowest possible temperature gradient inside the stirring vessels, integrated electrical heater, maximum heating temperature +200 °C, PowerDetect for automatic compensation of physically determined loss in stirring power which can come up to 40% at high temperatures, specially made insulated stainless steel frame for energy- and time saving heating process, additionally for a homogenous temperature distribution and protection against accidental contact, independent over-temperature protection inside the plate.

Separate control unit heatMIXcontrol for operation of magnetic stirrer and integrated heater, for long-term protection of the electronics against aggressive liquids and gases as well as thermal influences, independent and adjustable over-temperature limiter for the additional protection of the heating controller against technical defects or unintended operation errors, stainless steel housing, compact and space-saving, connection for external Pt100 sensor, RS232 interface.

Heidolph RZR 1 mechanical stirrer for simple mixing tasks
For media up to 40,000 mPa s and volumes up to 20 liters.

• The model is suitable for torque up to 100 Ncm at a power of 18 W.
• Slim design fits nicely into your research environment.
• A manual scale for speed adjustments from 35 - 2,200 rpm.
• A 2-gear stage design allows for high torque at various speeds and provides excellent mixing in short times.

These mechanical stirrers are ideal for standard stirring tasks. They are designed to mix and disperse media that require non-reproducible results of high-viscosity applications under high speeds.

• A through-shaft design allows for easy adjustment of the impeller position most convenient for you.
• A 2-gear stage design guarantees the highest power over the entire speed range.
• The speed is adjustable over a large scale form 40 - 2,000 rpm.
• An optional shaft guard prevents any accidents involving contact with the impeller shaft running at high speeds.
• Shipment includes a 10-mm chuck as standard.
