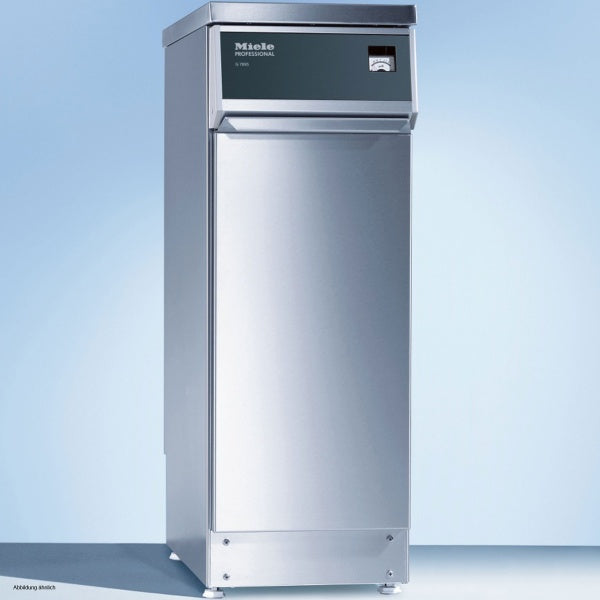

Miele Aqua Purificator G 7895/1

• Housing unit for E 310 / E 318
• In the execution G 7895/1 for the devices of the type series G 78 (oblique aperture)
• Housing unit for two water demineralization cartridges E 310 / E 318 (not included) with conductivity meter.
• Generally recommended quality for rinsing < 15 µS/cm

design:

• Frontloaders
• oblique aperture
• standalone unit
• built-under
• Siding stainless steel (AE model)
• Siding white (AW model)

Electrical connection:

• Electric / Power supply
• AC 230 V 50 Hz

Water connection:

• (2 pressure hoses 1.2 m long with 3/4" thread)
• 1x cold water, 2.5 - 10 bar flow pressure to the cartridge
• 1x connector of cartridge for machine
• (Approximately 1 bar pressure drop per cartridge)

External dimensions: H 850 (820), W 300, D 600 mm

Miele PLW 8683 CD GD DC5 CM laboratory dishwasher

The Miele PLW 8683 CD GD DC5 CM laboratory dishwasher offers a comprehensive solution for professional laboratory environments where the highest standards of hygiene, process stability and flexibility are required. Thanks to its powerful combination of modular load carriers, integrated hot unit and optional drying methods, this laboratory washer is particularly suitable for the reliable and reproducible cleaning of glassware, pipettes, vials and other laboratory utensils. Compared to similar appliances, it offers a sophisticated control system, smart networking options and short programme run times - ideal when speed and efficiency are required in a demanding everyday laboratory routine.

Powerful cleaning and sophisticated technology

The state-of-the-art equipment makes it possible to gently reprocess a wide variety of laboratory glassware. Both the integrated rinsing pressure and spray arm monitoring systems play a key role here: they immediately detect blocking or faulty rotational movements of the spray arms as well as irregularities in the rinsing pressure, thus ensuring consistently high cleaning quality. The entire system is designed for maximum flexibility and has up to 20 standard and freely programmable cleaning sequences.

Important features at a glance: - Capacity: For 128 laboratory bottles or 98 pipettes per batch.
- Power supply: 3N AC 400V 50Hz or alternatively AC 230V 50Hz.
- Extremely powerful circulation: 500 l/min. Circulation pump for efficient rinsing runs.
- Fast processes: Shortest programme runtime of just 20 minutes.
- High ease of use: M Touch Flex colour display for intuitive programme selection.
- WiFi ex works: Secure option for process documentation and network printer connection.
- High-quality material: Stainless steel wash cabinet, welded without gaps.

In addition to cleaning, the integrated HEPA filter (class H14) ensures effective particle separation from the drying air. Narrow-necked laboratory glassware (e.g. reagent bottles) in particular benefit from the optional hot unit, as hollow instruments are dried much better. The patented EasyLoad system provides users with greater safety when positioning different glassware shapes and sizes without having to manually adjust the holders each time.

Certifications and standards

This laboratory washer fulfils important guidelines and standards that are required in modern laboratories. It complies with the requirements of EN 61010-1 and EN 61010-2-040 as well as the RoHS Directive 2011/65/EU. It also has the VDE mark for electrical safety and an IP protection rating of IP 21, which underpins its reliable compliance with high safety standards.

Practical application examples

1. Cleaning cell culture bottles: When cell culture media such as agar or more complex organic residues need to be removed, the intensive and organica programmes ensure first-class rinsing results.
2. Reprocessing laboratory glassware for analytical chemistry: Conductivity monitoring ensures a thorough rinsing process so that even sensitive analysis methods (e.g. HPLC) are not affected by residues.
3. Pipette cleaning: With the help of the flexible loading carriers and a special pipette programme, up to 98 pipettes are cleaned in a time-saving and validatable manner.
4. Removal of oil residues in technical laboratories: The matching rinsing programme - Oil - enables powerful and gentle cleaning.

FAQs

How does the DryPlus drying programme work?

DryPlus drying channels heated air into the wash cabinet via an integrated drying unit. A HEPA filter in class H14 reliably removes particles so that hollow instruments and narrow-necked vessels in particular dry without leaving any residue.

Which substances can be safely removed

The programmes are designed for different types of contamination, from inorganic particles, agar residues and oil deposits to organic impurities. The efficient rinsing pressure monitoring ensures reproducible results.

How flexible are the load carriers?

Thanks to the EasyLoad system, inserts and holding racks can be customised in a variety of ways. In this way, narrow-necked tubes, test tubes or vials can be positioned correctly in just a few simple steps.

What role does conductivity monitoring play?

This monitoring ensures that detergent and neutralising agent residues are reliably rinsed out. This ensures that the rinsing process achieves the required purity, which is essential for applications such as analytical chemistry or quality control.

Can additional dosing pumps be integrated?

Yes, several dosing options are provided. In addition to two integrated pumps for detergents and neutralising agents, further pumps can be added to dose disinfectants or special chemicals, for example.

Conclusion

This model impresses with its flexible configuration options, reliable monitoring systems and certified safety. The intelligent M Touch Flex control system and the factory-integrated WiFi module facilitate process control and documentation. In addition, DryPlus drying in combination with a powerful HEPA filter ensures effective drying of narrow glassware. This laboratory washer is a comprehensive and safe all-in-one solution for those who rely on accurate, validatable cleaning results and time savings in the laboratory.

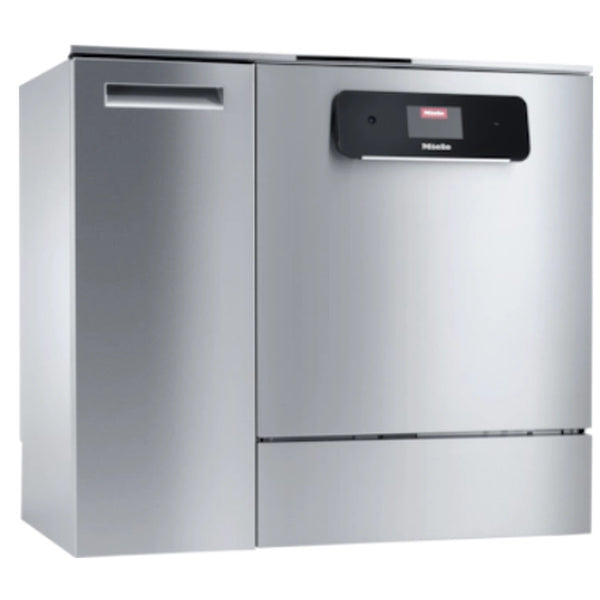

Miele PLW 8683 CD OIL DC5 CM laboratory dishwasher

The Miele PLW 8683 CD OIL DC5 CM laboratory washer is ideal for professional application scenarios in laboratory environments, particularly for the reliable and efficient reprocessing of laboratory glassware such as bottles, pipettes or test tubes. Thanks to highly developed technology, precise liquid dosing and robust oil and grease-resistant seals, this model offers optimum cleaning results and a long service life. Compared to other systems available on the market, it impresses with its flexible loading concept, the powerful DryPlus hot unit and modern touch display control. Anyone with high requirements in terms of process validation, repeatability and hygiene will find a solution that adapts effortlessly to different laboratory applications.

Powerful and flexible technology

To cover a wide range of cleaning requirements, up to 20 programmes are available, which can be supplemented by 10 additional free programme slots if required. The integrated dosing technology allows the use of different detergents and neutralising agents as well as individual adjustment of the dosing quantities. This allows various types of contamination - from organic residues to oil and grease - to be safely removed without damaging sensitive laboratory glassware.

- Maximum pump capacity of up to 500 l/min (circulation pump)
- Rinsing pressure and spray arm monitoring for early detection of blockages
- Conductivity monitoring for precise process control
- AutoClose function for automatic door closing
- Integrated water softener for consistently high cleaning performance
- Cosy wash cabinet lighting for convenient monitoring of the wash items
- Various programmes such as intensive, organics, pipettes and oil applications

The most important features developed especially for laboratories include the EasyLoad system for easier loading and the directly connectable load carriers. This allows, for example, 128 laboratory bottles or 98 pipettes to be processed per wash batch. The DryPlus hot-air drying system with upstream HEPA class H14 filter ensures fast and completely residue-free drying, which is particularly beneficial for hollow instruments or narrow-necked bottles.

User-orientated design and convenience

The wash cabinet has a usable volume of 145 litres and supports two wash levels, allowing large quantities of glassware to be processed in a single pass. The load carriers can be extended on a modular basis, making them extremely versatile for use in various laboratory areas - whether medical, chemical or microbiological.

A particular advantage is the full-touch colour display (M Touch Flex), which enables intuitive menu navigation. In addition to German, there is a wide range of other language versions to choose from. The remaining time display and an acoustic signal at the end of the programme help to optimally schedule the washing process and make sensible use of waiting times. In addition, the appliance can be networked via Wi-Fi and optionally connected to an Ethernet network for seamless documentation of process data or convenient import of software updates.

Typical areas of application and examples

1. Microbiological laboratory: Cleaning Petri dishes, volumetric flasks and test tubes with harsh organic residues.
2. Pharmaceutical laboratory: Preparation of sensitive vials and ampoules that require compliant cleaning processes and must dry residue-free.
3. Chemical laboratory: Removal of oils, greases and reactive substances using appropriate programmes and integrated dosing technology.
4. Medical/clinical laboratory: Cleaning of laboratory bottles, pipettes and plastic parts with short throughput times in order to carry out subsequent analyses efficiently.

Common cleaning agents such as alkaline cleaners, acidic or neutral rinsing additives and disinfectants can be used without damaging the sensitive surfaces.

Certifications and standards

The device has been tested as particularly reliable for legally compliant and standard-compliant reprocessing. The most important certifications include:

- VDE mark for electrical safety
- RoHS Directive 2011/65/EU for compliance with low concentrations of harmful substances
- EN 61010-1 and EN 61010-2-040, relevant safety standards for laboratory equipment
- IP 21 protection class according to EN 60529

This means it fulfils the legal requirements and provides safety in everyday laboratory work

FAQs

How often should the HEPA filter be changed?

The integrated class H14 HEPA filter is designed for a service life of 200 operating hours. However, it is advisable to check the filter status regularly if the appliance is heavily utilised.

Which cleaning agents are suitable

Common liquid laboratory cleaners, neutralising agents and disinfectant solutions can be used. The precise dosing pump and dosing volume control ensure optimum adaptation to the respective substance.

Is it possible to convert to other voltage variants?

The appliance can be operated with 3N AC 400 V 50 Hz as standard or alternatively with AC 230 V 50 Hz on request. Any necessary changes should only be made by trained specialists.

How can maintenance costs be minimised?

The service-friendly design with easily accessible components and the AutoClose system minimise the need for maintenance work. The touch display can also be used to call up useful maintenance instructions (e.g. how-to sequences).

Conclusion

This laboratory warewashing solution from Miele is characterised by high performance, customisable cleaning programmes and a user-friendly design. Thanks to extensive features, comprehensive test standards and innovative functions such as DryPlus, liquid dosing and a gap-free welded wash cabinet, it is a reliable partner in demanding laboratory processes. The generous loading capacity and the easy-to-understand M Touch Flex display make everyday work easier, as various autoclaving steps or manual re-cleaning are often unnecessary. With extensive options for documentation and connectivity, the appliance offers a well thought-out, future-proof solution for laboratories that strive for the highest standards of hygiene and efficiency.

Miele PLW 8683 OIL LD DS10 laboratory dishwasher

The Miele PLW 8683 OIL LD DS10 laboratory washer impresses with its powerful yet resource-saving cleaning of laboratory glassware, pipettes and other sensitive items in professional laboratory environments. Thanks to the integrated WiFi communication module, the compact design and the practical dispensing solution, this system is ideal for many applications. Thanks to special oil and grease-resistant seals, even heavily soiled utensils are reliably reprocessed without leaving any residue. Compared to similar appliances, this model offers flexible and fast loading as well as advanced drying support with reduced energy consumption.

Performance features and ease of use

The appliance is designed for maximum user-friendliness to optimise workflows in the laboratory. With the M Touch Flex colour display, programs can be easily selected and controlled at the touch of a finger. The integrated AutoOpen function opens the door automatically as soon as the temperature in the wash cabinet falls below 70 °C at the end of the programme. This effectively removes residual moisture, which shortens the overall drying time.

A special feature is the variable-speed heating pump, which adapts to the cleaning process as required. High rinsing pressure supports the removal of stubborn residues, while reduced rinsing pressure in the next programme step enables even wetting of the items to be cleaned. Added to this is the EasyLoad system, which enables fast loading without time-consuming height adjustment of the holding positions. This allows the appliance to be loaded quickly and safely, which noticeably speeds up work processes.

Technical data at a glance

- Capacity: Up to 128 laboratory bottles or 98 pipettes per batch
- Programme variety: 19 pre-programmed cleaning sequences, 10 individually assignable
- Control unit: M Touch Flex with touch display and remaining time display
- Rinse pump: flow rate up to 500 l/min, shortest programme runtime 20 minutes
- Heat energy: rinse temperature up to 93 °C, electrical heat output 8.5 kW at 3N AC 400V
- External dimensions (W×D×H): 598 × 598 × 835 mm (net)
- Water connections: Cold, warm and fully demineralised water (DI), integrated water softener

From the factory, the system is equipped with a robust stainless steel housing and has a multi-stage filter system for effective particle retention. As key components such as the heating elements are located outside the wash cabinet, users also benefit from a reduced tendency to calcification and a gap-free design for hygienic cleanliness. The narrow, under-counter design also makes it easier to install in laboratory suites with limited space.

Relevant certifications and standards

For safety and quality assurance, the device fulfils EN 61010-1 and EN 61010-2-040 as well as the RoHS Directive 2011/65/EU. It also has the VDE seal for electrical safety, while the IP protection class IP 21 guarantees protection against dripping water. The device therefore complies with high European standards and offers consistently reliable performance in everyday laboratory use.

Concrete application examples

1. Cleaning heavily soiled laboratory bottles with oil or grease residues: Thanks to the robust special seals and the adapted "Oil" programme, even dried residues are reliably removed.
2. Process analysis in pharmaceutical laboratories: The variable-speed pump ensures optimum rinsing pressure management to safely rinse out a wide variety of substance residues - from polymer dispersions to organic solvents.
3. Historical material research: The controlled low pressure enables gentle, residue-free cleaning of delicate glassware with sensitive surfaces.
4. Universal laboratory routine: In addition to Dunn or narrow-neck bottles, vials, test tubes and pipettes can also be reliably cleaned in large quantities using a modular carrier system.

FAQs

How can I prevent sensitive glassware from being damaged?

Use the flexible basket modules together with the EasyLoad system. Holding positions are placed on nozzle tips so that secure fixation is guaranteed without putting too much pressure on sensitive surfaces.

What role does the integrated WiFi communication module play?

The device can be integrated directly into digital laboratory contexts. This allows process data to be documented or software updates for the cleaning runs to be installed without the need for additional hardware.

Is it possible to retrofit additional dosing modules for special cleaning agents?

Yes, an interface for external dosing modules is available for the use of certain detergents. This means that the lab washer can be adapted to new cleaning requirements at any time.

How high is the energy efficiency in daily operation?

The combination of a variable-speed heating pump, adapted wash programmes and the EcoDry system ensures that water and energy consumption are optimised. This has a positive effect on operating costs, especially in laboratory operation with several wash cycles per day.

Conclusion

The appliance combines powerful and economical cleaning technology with convenient operation. Thanks to modular loading systems, various connection options and the automatic drying concept, a high level of process reliability is guaranteed in every laboratory. There are a variety of programmes for different types of soiling and materials, which can be selected quickly using the touch-based control system. Its robust, tried-and-tested seals and standard-compliant safety ensure reliable long-term operation - ideal for professional use in laboratory environments.

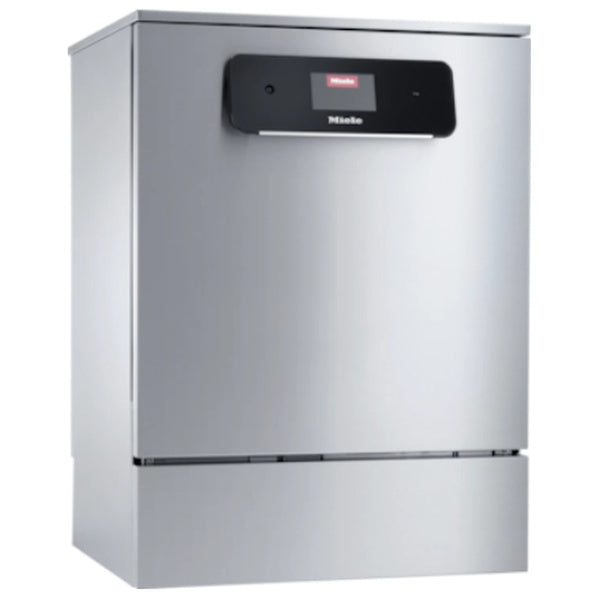

Miele PLW 8683 OIL PD DC5 LAN SST laboratory dishwasher

The Miele PLW 8683 OIL PD DC5 LAN SST laboratory dishwasher impresses with a sophisticated combination of innovative cleaning technology and high capacity, specially designed for demanding applications in laboratory environments. With its modular loading system, oil and grease-resistant seals and efficient powder dosing, the appliance sets standards in the field of professional glass and instrument reprocessing. Thanks to its powerful circulation pump, versatile dosing options and practical features, it scores highly against other washer-disinfectors on the market, making it ideal for intensive, continuous use.

Versatile equipment and performance features

The laboratory dishwasher has a space-saving, slimline design and can be easily installed underneath. Thanks to a special ExpertLine design in stainless steel and the black panel area, the appliance blends harmoniously into numerous laboratory set-ups. The AutoClose automatic function also makes it easier to close and lock the door, providing additional convenience.

An overview of the key technical highlights:
- Two-stage washing levels for different glassware
- Variable-speed heating pump for an economical water supply that is adapted to the washing process
- Short programme run time (from 20 minutes) for time-saving cleaning cycles
- Additional programmes such as Extra short, Intensive, Pipettes and Organica
- 19 permanently stored programmes and 10 freely programmable sequences
- Miele Move Connect for seamless process documentation (optional)
- EcoDry function with automatic door opening at the end of the programme

For operators working with large quantities, the appliance offers an impressive capacity: up to 128 laboratory bottles or 98 pipettes can be cleaned in one cycle. The washer is also suitable for up to 196 test tubes and vials. The comprehensive dispensing equipment includes a dispenser for neutralising agents and a powder dispensing compartment in the door. A convenient suction lance also allows easy storage of cleaning chemicals in standard 10 to 20 litre canisters.

Reliable compliance with standards and robust design

This professional cleaning solution complies with important standards and directives such as EN 61010-1, EN 61010-2-040 and the RoHS Directive 2011/65/EU. It also fulfils the requirements for IP21 protection against foreign bodies and moisture. For users, this means maximum safety and maximum reliability in everyday laboratory work.

The oil and grease-resistant seals, which prevent the ingress of aggressive substances and ensure long-term operation under demanding conditions, are particularly noteworthy. The gap-free laser-welded stainless steel housing not only ensures excellent hygiene, but also allows easy cleaning of the interior. Thanks to the variety of programmes - with special processes for inorganic, organic or oily substances - the device can be used flexibly for various test series and investigations.

Concrete application examples

1. Cleaning heavily soiled laboratory bottles in research facilities: The high cleaning performance with customisable rinsing pressure removes stubborn residues from samples such as agar, oil or organic substances.
2. Pipette reprocessing in pharmaceutical production: A dedicated pipette programme ensures particularly thorough and gentle rinsing of the narrow interiors.
3. Lab soiling in chemical departments: Programmes such as Intensive or Organica ensure that even substances with a high protein content are completely removed.
4. Cleaning processes in medical laboratories: Thanks to reliable rinse disinfection at up to 93 °C, the appliance offers the best conditions for complying with hygiene regulations.

Frequently asked questions

How does the EasyLoad system work?

With EasyLoad, holders and nozzles can be mounted on the glassware to be cleaned without height adjustment. Placing the wash items is significantly simplified and saves valuable preparation time.

What are the benefits of the EcoDry function?

At the end of the programme, the door opens automatically as soon as the interior has cooled down. Excess residual moisture can escape safely and the dishes dry faster.

Is it possible to programme your own cleaning cycles?

Yes, in addition to 19 predefined programmes, the appliance offers ten freely assignable programme slots that can be adapted to individual requirements.

Can the dishwasher be connected to a network?

The appliance is equipped with Ethernet/WiFi interfaces ex works so that a network connection for documentation software or process monitoring can be easily implemented.

What types of substances is the washer designed for?

Thanks to special programmes, oil and grease-resistant seals and speed control of the circulation pump, both inorganic and organic sample residues can be cleaned. Even stubborn traces of oil can be thoroughly removed.

Conclusion

This powerful laboratory washer impresses with its well thought-out loading concept and a large selection of programmes. Flexible usability, robust materials and integrated convenience functions guarantee consistent and safe cleaning of a wide range of glassware and instruments. With its oil and grease-resistant seals, extensive connections and high wash performance, the appliance forms a reliable basis for efficient work processes in demanding laboratory environments.

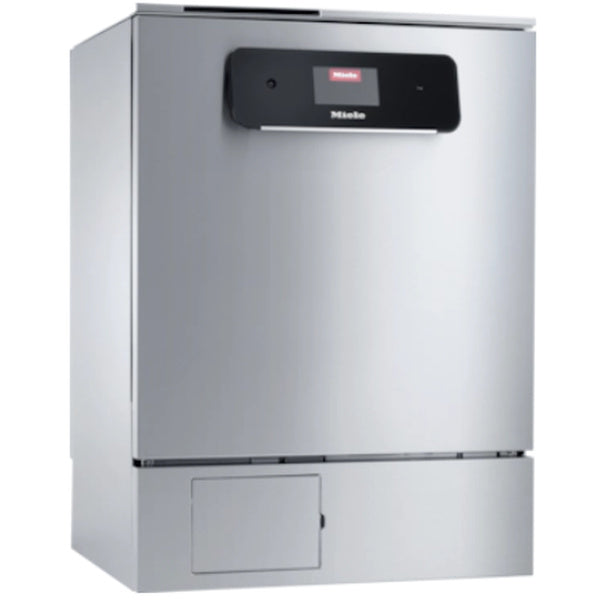

Miele laboratory washer PLW 8693 FAD DC5 CM MON LAN SST

This laboratory washer offers a powerful cleaning solution especially for laboratories that want to reprocess both glassware and complex hollow instruments safely and effectively. The combination of variable dosing, integrated drying and extensive monitoring functions characterises this device. With a user-friendly full-touch colour display and flexible loading systems, it sets new standards in terms of efficiency and reliability. Compared to similar appliances, it scores points with its high level of automation, large capacity and precise liquid dosing system, which ensures reproducible results.

Efficient cleaning and flexible loading

The integrated rinsing technology in this device allows up to 128 laboratory bottles or 98 pipettes to be cleaned per cycle. Thanks to the modular loading system and the EasyLoad system, even narrow-necked glass tubes, vials or large instruments can be placed quickly and without complicated adjustment. There is no need to adjust the height of the holders, which not only simplifies the entire process, but also increases the safety of sensitive laboratory glassware.

Important technical key data at a glance: - Maximum rinsing temperature of 93 °C for thorough thermal disinfection
- Shortened programme run time of just 20 minutes for certain cleaning cycles
- Wash cabinet usable volume of 145 litres for large quantities in one cycle
- DryPlus hot air drying with class H13 HEPA filter (filtration efficiency 99.95 %)
- Ethernet/WiFi module for seamless process documentation and monitoring
- Programme range with at least 20 cleaning variants, including Organica, pipettes and Hygiene 93/10

In addition to the points mentioned above, the appliance has a rinsing pressure monitor and a spray arm monitor that immediately recognises and reports any blockages or pressure deviations. The integrated conductivity monitor provides additional safety for sensitive cleaning processes, as it makes a significant contribution to precisely maintaining cleanliness standards. This is complemented by the dosing volume control, which ensures the exact supply of liquid detergent.

In addition to the extensive standard programmes, which are suitable for inorganic and organic residues, special cycles are also available for heavily contaminated materials, e.g. oils or agar. The cleaning conditions remain programmable so that customised processes can be set up as required. With a variable-speed heating pump and a multi-component filter system, stubborn contaminants are successfully removed from every batch without compromising the integrity of the wash ware.

Certifications and standards

The VDE mark, which emphasises electrical safety, offers increased operational safety. Based on the EN 61010-1 and EN 61010-2-040 directives, this laboratory dishwasher is approved in accordance with the strictest standards for laboratory and industrial applications. In addition, the model has been tested in accordance with the RoHS Directive 2011/65/EU and has an IP21 protection rating in accordance with EN 60529. This combination fulfils all the important standards required in modern laboratory environments.

Typical application examples

- Cleaning narrow-necked laboratory bottles with acidic or alkaline contents
- Rinsing pipettes and vials used in microbiological and chemical analyses
- Sterile preparation of sensitive glassware, e.g. test tubes in serology and virology
- Removal of protein-based residues and culture residues (e.g. agar) in food chemistry laboratories

Thanks to its performance and flexibility, the washer is suitable for both smaller laboratories that prioritise short throughput times and larger facilities with high wash volumes. The various programmes (e.g. intensive or universal) allow precise adjustment to the respective substances.

FAQs

How does the integrated dosing pump support the cleaning processes?

It ensures the precise and reproducible addition of cleaning agents. This enables consistent results and optimises the consumption of chemicals at the same time.

What is the benefit of conductivity monitoring?

It continuously measures the conductivity in the rinsing medium. If the values rise, this can indicate detergent residues. This allows countermeasures to be taken at an early stage and ensures optimum cleanliness.

How does the EasyLoad system work?

Thanks to the combination of intelligently positioned nozzles and retaining grids, there is no need for manual adjustment when placing the wash ware. Even narrow-necked containers are held securely in place and receive optimum spraying.

Can the appliance also be integrated into digital systems?

Yes, an integrated Ethernet or WLAN interface allows connection to laboratory software. This means that cleaning processes can be seamlessly logged. Additional options such as the integration of external dosing modules are also available.

Conclusion

This appliance impresses with reliable cleaning results in large quantities, a well thought-out programme selection and first-class drying. Users benefit from easy-to-understand operating steps, extensive monitoring functions and a robust construction designed for long operating hours. For laboratories looking for safe and validatable reprocessing of a wide range of glassware and sensitive instruments, this solution offers maximum efficiency and ease of use.

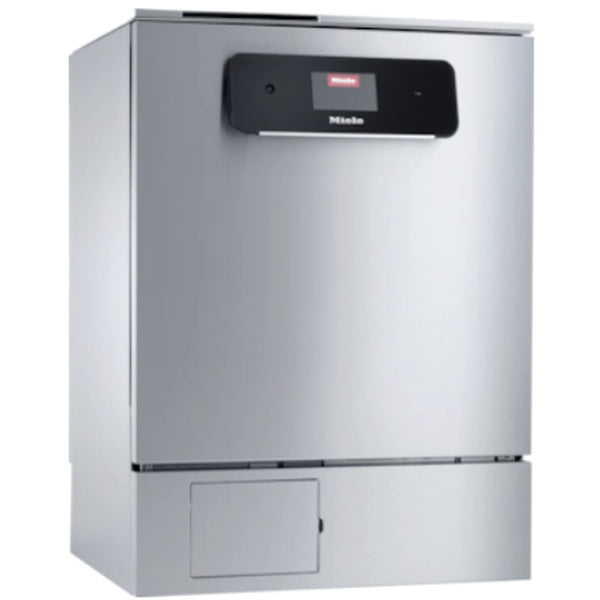

Miele PLW 8693 FAD OIL DC5 LAN SST laboratory dishwasher

The Miele laboratory washer is specially designed for demanding laboratory applications and, thanks to its combination of powerful cleaning, flexible loading and advanced drying technologies, offers optimum conditions for the efficient and safe reprocessing of laboratory glassware. This model sets standards, particularly in laboratory environments where fast, reproducible and validatable cleaning is essential. Thanks to its modular design, it is suitable for different requirement profiles and boasts a variety of programmes that are tailored to a wide range of soiling. The combination of modern control technology and durable construction clearly sets it apart from alternatives on the market.

Performance features and technologies

This dishwasher is based on a well thought-out overall concept that gives users maximum flexibility. In addition to a variety of cleaning programmes, the appliance impresses with its precise dosing, high capacity and efficient drying technology. On the one hand, this is thanks to the EasyLoad system, which supports the fast and correct loading of laboratory vessels. Secondly, the DryPlus hot-air drying system with integrated HEPA filter (class H13) ensures low-germ results, which are essential for sensitive applications.

Important technical data at a glance: - Maximum load: 128 laboratory bottles or 98 pipettes per batch
- Shortest programme run time: 20 minutes
- Useful wash cabinet volume: 145 litres
- Variable-speed heating pump for customisable rinsing pressure
- M Touch Flex control unit with 20 standard and 10 free programmes
- Integrated DryPlus hot air drying with HEPA filter H13
- Miele Move Connect (optional) for networked working

The built-in variable-speed heating pump regulates the pressure within the programme steps. This allows stubborn residues to be removed at high pressure, while low pressure ensures even wetting of sensitive sample vessels. In addition to this mechanism, the integrated dosing system supports the reliable supply of liquid detergents. For demanding applications where oil or grease resistance is an issue, the model offers special seals to protect the rinsing chamber components.

Certifications and standards

The appliance has been tested in accordance with the relevant safety standards and complies with EN 61010-1 and EN 61010-2-040, among others. The VDE mark and compliance with the RoHS directive are also guaranteed. This underpins the high product quality and reliability, which are particularly important in sensitive laboratory environments.

Application examples

1. University laboratories: Thanks to the flexible loading, large quantities of laboratory bottles, test tubes or pipettes can be cleaned simultaneously.
2. Research facilities: Special programmes such as "Anorganica" and "Organica" help to remove a wide variety of residues, e.g. from agar or organic substances.
3. Chemical industry: Thanks to the oil and grease-resistant seals and the special oil programme, even lubricants or oils that are difficult to remove can be thoroughly rinsed off.
4. Pharmaceutical laboratories: HEPA-filtered hot air drying and high-quality materials ensure particularly hygienic results for sensitive glassware, such as vials or narrow-necked containers.

FAQs

How does the device adapt to different tasks?

The programmability and 20 standard programmes offer a wide selection for different applications. In addition, customised programmes can be defined to precisely meet specific cleaning requirements.

What are the benefits of DryPlus drying?

DryPlus uses high-quality hot air that is channelled through a HEPA filter (class H13). This significantly reduces both liquid residues and microbial contamination.

Which water connections are required

The model supports connection to cold, hot and demineralised water. This allows resource-saving integration in different laboratory environments.

Is the installation complicated?

The design is easy to service. Thanks to AutoClose and direct connection of the load carriers, the laboratory dishwasher is a convenient solution for many laboratories. An integrated drain pump also facilitates water drainage.

Can other materials besides glass also be cleaned?

The appliance is equipped with programmes that are particularly suitable for plastics and heat-sensitive laboratory materials. Accordingly, various utensils can be washed gently but thoroughly.

Conclusion

To summarise, this laboratory washer impresses with high performance, flexible loading concepts and an advanced control system that enables precise adaptation to a wide range of cleaning tasks. The sophisticated EasyLoad system speeds up handling and minimises the risk of errors during loading. Efficient hot air drying with HEPA filter ensures low-germ post-treatment, which is essential for laboratory processes with high quality requirements. At the same time, the variable-speed heating pump allows an optimum balance between rinsing pressure and resource conservation. Certifications such as EN 61010-1 underpin the safety and quality of the design. If you are looking for a powerful, reliable and flexible solution for demanding rinsing processes in the laboratory environment, this appliance is an excellent choice.

Miele PLW 8693 OIL DS10 laboratory dishwasher

Introduction

The Miele PLW 8693 OIL DS10 laboratory dishwasher is designed as a powerful, flexible and particularly robust appliance to efficiently handle even the most demanding cleaning tasks in the laboratory. Thanks to its reliable oil and grease-resistant seals and the integrated hot unit for final cleaning at high temperatures, this model has an impressively long service life. Compared to many similar systems on the market, this machine scores points with its large loading capacity, innovative cleaning technologies and ease of use.

Efficiency and flexibility in everyday laboratory work

This appliance is designed for maximum efficiency and can process exceptional quantities of wash ware per load. With its spacious washing chamber (145 litres usable volume) and the ability to hold up to 128 laboratory bottles or alternatively 98 pipettes, it covers a wide range of laboratory requirements. The variable-speed heating pump in particular helps to optimise the rinsing pressure to reliably remove even stubborn soiling. At the same time, the significantly reduced pressure in more sensitive programme sections protects sensitive vessels and saves resources.

The integrated liquid dosing system facilitates the precise addition of detergents, while the fully-fledged DryPlus drying system reliably removes residual moisture from hollow glass and plastic items. A class H13 HEPA filter also removes particles from the drying air. In combination with oil and grease-resistant seals, this is the key to a cleaning solution that is always hygienic and gentle on materials.

Important technical features in brief

- Design: freestanding appliance, undercounter, narrow
- Washing chamber volume: 145 litres for up to 128 laboratory bottles
- Variable-speed heating pump for customisable rinsing pressure
- DryPlus hot unit: Hot air with HEPA filter H13
- Number of programmes: 20 predefined programmes (10 more freely adjustable)
- Integrated cold, hot and demineralised water connection
- Rinsing pressure monitoring for consistently reliable cleaning
- Oil and grease-resistant special seals

In addition, user guidance via the M Touch Flex full-touch colour display reduces the amount of training required and enables intuitive, quick selection of suitable programmes. Thanks to AutoClose, the door is automatically locked as soon as it is gently pushed. Additional convenience functions, such as the acoustic signal at the end of the programme or the integrated wash cabinet lighting, ensure uncomplicated handling in everyday use.

Certifications and standards

To provide users with the necessary safety, the appliance fulfils several important quality and safety requirements. Among other things, it is certified in accordance with EN 61010-1 and EN 61010-2-040 and bears the VDE mark for electrical safety. With protection class IP21 and RoHS conformity in accordance with Directive 2011/65/EU, it is ideally equipped for professional use in a wide variety of laboratory environments.

Application examples

1. Cleaning glass vessels contaminated with oil and grease: Thanks to its special seals and robust material design, the machine is ideal for laboratory areas in which test tubes, flasks or narrow-necked bottles with oily or greasy substances frequently need to be cleaned.
2. Sterilisation and drying of various laboratory bottles and vials: The integrated drying system ensures dry, particle-free instruments, which is required in microbiological analysis laboratories, for example.
3. Pipette cleaning: Significantly speeds up the demanding internal cleaning of pipettes, as the device can hold up to 98 per batch and offers a special programme ("Pipettes").
4. Automated routine programme applications for inorganic or organic residues: With clearly defined processes, for example in the intensive or agar programme, various contaminants can be removed without leaving any residue.

FAQs

How often should the HEPA filter be changed?

The HEPA filter of class H13 usually lasts up to 200 operating hours in drying mode. After this time, a timely replacement is recommended for safer particle filtration.

Are there special programmes for sensitive plastics?

Yes, the appliance also has the "Plastics" programme, which enables sensitive handling of temperature-sensitive wash ware. The rinsing pressure is moderately regulated and the temperature is adjusted for this purpose.

Can the appliance also be monitored via the network?

Yes, a WLAN interface is integrated. An optional Ethernet connection can be provided for process documentation and monitoring. This supports the seamless traceability of all cleaning processes.

How can the wash items be loaded in the most space-saving way possible?

The EasyLoad system allows glassware to be positioned particularly quickly and safely. There is no need to adjust the height, as the nozzles and holding racks are optimally coordinated.

Conclusion

This laboratory warewashing system meets a wide range of professionalised requirements in industrial and scientific applications. It impresses with a comprehensive range of features for different cleaning tasks, combined with an impressive flow rate and proven Miele quality. In addition to the precise dosing of detergents and the variable control of the rinsing pressure, the integrated DryPlus hot-air drying system offers maximum hygiene and speed during the drying process. This makes the appliance a reliable solution for demanding laboratory environments that rely on efficiency, safety and resilience.

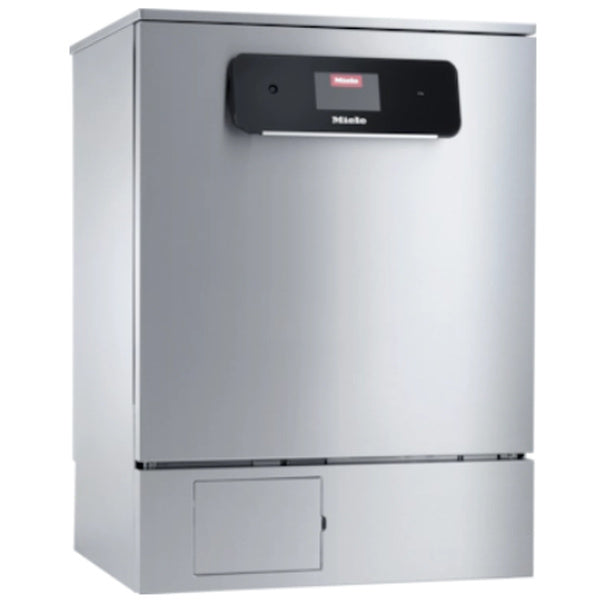

Miele laboratory washer PLW 8693 Safety DS10 MON

The lab washer presented here is particularly suitable for fire and rescue services that need to hygienically reprocess respiratory masks, regulators and other items of equipment in their daily work. Thanks to its powerful circulation pump and intelligent drying function, the appliance offers a particularly high standard of efficiency and safety compared to similar solutions on the market. This laboratory washer is a superior choice, especially when it comes to the sensitive reprocessing of masks, SCBA carriers or other components of personal protective equipment (PPE).

Performance features and technical advantages

The robust stainless steel construction and sophisticated rinsing system make this model a versatile tool. A special speed control ensures a variable rinsing pressure - high enough to remove stubborn soiling, but at the same time gentle on delicate respiratory protection components. The integrated hot-air drying system (DryPlus) guarantees residue-free drying of all components. In addition, the device can be networked via WiFi to realise centrally controlled monitoring and documentation processes.

Important technical data in brief:
- Design: freestanding appliance, suitable for undercounter installation (ExpertLine)
- Wash cabinet capacity: 145 litres (2 washing levels)
- Maximum rinsing temperature: up to 93 °C
- Capacity per batch: 6 respiratory masks and up to 12 regulators
- Cold rinsing, hot water rinsing and deionised water rinsing possible (3 connections)
- Variable-speed heating pump (Qmax 500 l/min.)
- Integrated drying unit with HEPA filter H13 (99.95 % filtration efficiency)
- Automatic door lock (AutoClose)

The variable rinsing and drying process is particularly advantageous for complex items of equipment, such as those used in the field of respiratory protection. The optional integrated dosing pump for canisters enables flexible handling of different cleaning agents and disinfectants. The device can also be connected to external dosing modules.

One of the key functions is seamless monitoring: a multi-component filter system as well as rinsing pressure and spray arm monitoring record the process parameters in real time. In the event of blockages or pressure drops, a message is issued immediately so that users know at all times whether the programme is running correctly. The monitoring package also ensures reliable process documentation.

Certifications and standards

In terms of safety and quality, the device complies with current standards in the laboratory and safety sector. The VDE mark, EN 61010-1, EN 61010-2-040 and the RoHS Directive 2011/65/EU are the relevant standards and are crucial for use in professional areas. With an IP 21 protection rating in accordance with EN 60529, the device is suitable for typical laboratory and fire service environments.

Concrete application examples

- Reprocessing of respiratory masks and regulators: Thanks to a special programme, all masks and regulators can be efficiently cleaned and disinfected.
- Disinfection of compressed air breathing apparatus carriers: The robust design and large rinsing chamber also enable thorough cleaning of large-volume racks.
- Cleaning sensitive PPE components: Lower rinsing pressure during certain programme phases protects sensitive seals and valves.
- Drying of hose components: DryPlus technology reliably removes moisture from angled areas so that hoses are immediately ready for use again.

FAQs

How does the device ensure residue-free drying?

The integrated DryPlus drying unit works with a separate fan and a class H13 HEPA filter. As a result, the drying air is filtered and fed cleanly into the wash cabinet, minimising residue and contamination.

Is it possible to create an individual programme?

Yes, the control system (M Touch Flex) allows you to create your own cleaning parameters. There are several free programme slots available in order to be able to react precisely to different levels of soiling in particular.

Which detergents are suitable for this laboratory dishwasher?

In principle, various liquid detergents and disinfectants can be used. An integrated dosing pump ensures the correct quantities are used, although care should be taken to ensure compatibility with materials such as rubber and plastics.

How are error messages displayed

Real-time monitoring of spray arms and rinsing pressure is integrated. If pressure losses or blockages occur, an error message appears on the display. In addition, acoustic signals can warn the technical staff.

Conclusion

This model impresses with its gentle yet powerful cleaning and sophisticated drying processes for different PPE components. In addition to a variable rinsing and drying performance, real-time monitoring ensures elementary process parameters so that error messages can be recognised immediately. Whether for fire brigades, rescue services or laboratory applications - the lab washer offers reliable cleanliness and sterility in the shortest possible time. Its robust materials, extensive programme options and standard-compliant safety standards make this appliance an ideal solution for demanding users who want to rely on hygiene, efficiency and process reliability in equal measure. The Miele PLW 8693 Safety DS10 MON laboratory washer is a modern technology that can be flexibly integrated into existing processes and is indispensable for flawless reprocessing.

Miele laboratory washer PLW 8604

This compact and powerful cleaning solution is particularly suitable for laboratories that require reliable yet simple reprocessing of laboratory glassware. Equipped with a demineralised water connection, this appliance ensures particularly thorough final cleaning with demineralised water. Compared to similar alternatives, it scores points with its convenient touch display, modular loading system and networkability.

Performance features at a glance

This laboratory warewashing system is aimed at professional users in research, pharmacy and quality assurance who want to wash their glassware efficiently and safely. The most important features are:

- Space for up to 64 narrow-necked tubes per batch
- Flexible EasyLoad system for different types of bottles and jars
- M Touch Basic touch display for convenient operation
- High-quality stainless steel wash cabinet and powerful circulation pump (Qmax 500 l/min.)
- Short programme running times from 28 minutes
- Factory-integrated WiFi module for easy networking
- Dual water connection (cold water and demineralised water)

The appliance is also highly customisable: the modular loading and accessory concept allows different types of laboratory glassware - from test tubes and vials to larger laboratory bottles - to be cleaned simultaneously. Further inserts can be added to the upper basket to accommodate additional glassware. The integrated powder dosing unit in the door enables the precise addition of cleaning agents, while the built-in water softener optimises the process and ensures consistent rinsing quality.

The M Touch Basic control unit offers a clear text display, programmable functions as well as a remaining time display and programme sequence display. Six pre-installed programmes cover typical requirements - including cure programmes from 28 minutes, medium and long wash cycles, separate rinsing with cold or demineralised water - while four additional programme slots can be configured individually. The reliable waterproof system protects against water damage and guarantees maximum operational safety over the entire duration of use.

The appliance also boasts a robust design: a floor-standing appliance, suitable for under-counter installation and a slimline design, it fits flexibly into existing laboratory environments. With a net width of 598 mm and a usable height of 520 mm, there is sufficient space for demanding laboratory glassware. The appliance has also been tested for 15,000 operating hours and is therefore ideally equipped for long-term use.

Application examples

- Analytical laboratories: Efficient cleaning of test tubes, flasks or narrow-necked bottles, for example for pH measurements or HPLC samples
. - Pharmaceutical industry: Thorough decontamination of vials used for sample preparation and sterile filling.
- Biotechnology: Preparation of cell culture bottles and media bottles for reproducible test results.
- Quality assurance in food industry laboratories: Cleaning of laboratory bottles in which ingredients such as proteins or lipids are analysed.

Certifications and standards

The device fulfils relevant safety and quality standards in the laboratory environment. Among other things, it bears the VDE mark for electrical safety, is protected to IP 21 and complies with important European standards such as EN 61010-1 and EN 61010-2-040. It also complies with the RoHS Directive 2011/65/EU, which indicates environmentally friendly use and conformity during production.

Frequently asked questions (FAQs)

How are process chemicals dosed?

- The integrated dosing option in the door facilitates the precise addition of detergents in powder form, while additional external dosing modules can be connected as an option.

Can the appliance rinse larger bottles safely?

- Yes, thanks to the EasyLoad system, laboratory bottles or flasks with narrow necks of up to 64 pieces per batch can also be cleaned efficiently.

How does networking via the integrated WiFi module work?

- The factory-installed WiFi communication module allows integration into compatible process documentation software; a network printer can also be used as an option.

What maintenance steps are required on a regular basis?

- As a rule, we recommend checking the filter unit and the salt container in the door. A visual inspection of seals and rinsing nozzles is also advisable in order to reliably achieve high levels of cleanliness.

Conclusion

This laboratory-specific cleaning system impresses with its high efficiency, consistent user-friendliness and comprehensive equipment. Thanks to modular loading options and variable wash programmes, it covers a wide range of laboratory activities. With networkable technology, a convenient touch display and robust design, it takes the strain off staff in everyday laboratory work and ensures the best cleaning results over many years of operation.

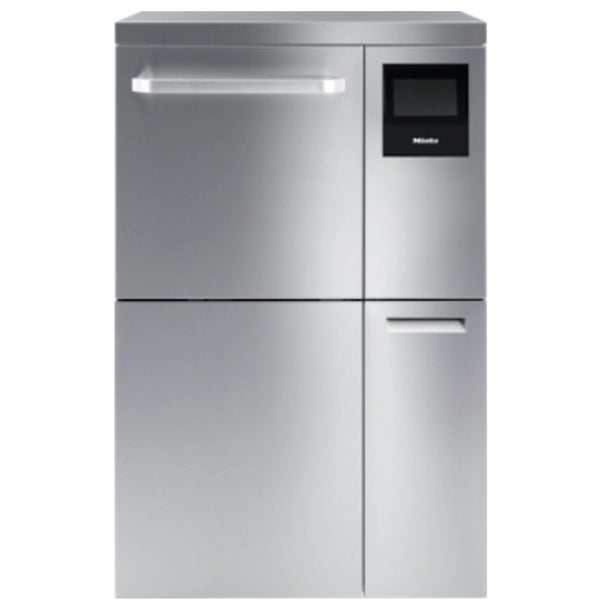

Miele laboratory washer PLW 8636 LAB

The Miele laboratory washer offers powerful yet gentle cleaning for a wide range of laboratory glassware, pipettes and vials. With its modular loading system and integrated hot air drying, it is particularly suitable for narrow-necked laboratory glassware and enables fast, efficient processing. Compared to other devices, this model impresses with its flexible programming, robust design and ability to reliably remove stubborn soiling.

High-quality cleaning and drying solution for laboratories

Thanks to a circulation pump with up to 600 l/min and variable speed, both sensitive and heavily soiled workpieces can be cleaned at optimum pressure. The lower pressure setting enables full-surface wetting, while the high pressure removes stubborn soiling including oil residues. An oil and grease-resistant door seal increases durability in demanding laboratory environments.

The integrated HEPA filter (class H14) ensures that the DryPlus hot air technology dries the interior to the highest level of hygiene. Thanks to the high separation efficiency of 99.995 %, hardly any particle emissions are produced during drying. This is particularly relevant in laboratories that work with sensitive samples or demanding production materials.

Numerous automatic programmes enable time-efficient and safe reprocessing of narrow-necked jars, laboratory bottles and other glass containers. Additional inorganic, organic and intensified wash programmes are also available to optimally remove specific residues such as agar, oil or various chemical substances. The freely programmable PLC control system also opens up further options for customisation.Important key data at a glance

- Storage capacity: up to 128 narrow-necked tubes, 98 pipettes or 196 test tubes per batch
- Maximum of 2 rinsing levels with direct load carrier pressure coupling
- Short programme run times from 62 minutes
- Rinsing temperature up to 93 °C, ideal combination of hygiene and gentle cleaning
- Robust stainless steel housing with service-friendly design
- 24 pre-installed programmes + 50 freely programmable slots
- Integrated water softener with waterproof system for reliable safety

The remaining technical data further emphasises the appliance's performance. For example, the wash cabinet has a usable volume of 146 litres; optional accessories such as additional dosing pumps or a recycling tank allow individual adaptation to different sector requirements. An Ethernet interface is also available for process documentation software.

The great advantage of the stainless steel components used is their durability and hygiene: the gap-free welded wash cabinet enables thorough cleaning without any hard-to-reach areas. Heating elements outside the wash cabinet prevent deposits and make maintenance easier. The temperature-stable seals, combined with special programmes, ensure reliable cleanliness for various laboratory substances.

Certifications and standards

The appliance is fully CE-compliant and fulfils other important directives such as the Machinery Directive 2006/42/EC and the RoHS Directive 2011/65/EU. A Kiwa certificate ensures water safety. The IP protection class in accordance with EN 60529 (IP 21) is also guaranteed and confirms suitability for humid working environments. A VDE mark also confirms electrical safety.

Application examples

- Pharmaceutical laboratories: Cleaning of vials with organic residues and subsequent low-germ drying
- Chemical research facilities: Removal of stubborn substances from test tubes and flasks
- Biotechnological applications: Cleaning pipettes and narrow-necked bottles for cell or microbiology experiments
- Quality control in industrial laboratories: removal of oils and fats during material tests

FAQs

How can the device be adapted to different wash items?

Thanks to the freely programmable control, users can vary the speed and therefore the rinsing pressure. Temperature settings, run times and detergent quantities can be precisely adjusted by selecting from numerous programmes.

Which load carriers are best suited

The modular load carriers with EasyLoad system allow the wash ware to be placed quickly and safely. Nozzles and holding racks can be adjusted in a few simple steps, allowing pipettes and bottles to be cleaned in combination.

How high is the temperature for rinsing?

It can be up to 93 °C. This effectively inactivates classic bacteria and germs while at the same time protecting sensitive laboratory glassware.

Can the drying system minimise particle emissions?

Yes, the integrated class H14 HEPA filter keeps the drying air practically particle-free. This makes the appliance particularly suitable for sterilisation-related processes.

Conclusion

All in all, this laboratory washer combines high-quality materials, sophisticated technology and flexible programming to ensure efficient and reliable cleaning. Whether for narrow-necked laboratory bottles, pipettes or other sensitive glassware, the appliance offers a wide range of applications and optimum drying performance. The robust design, a powerful circulation pump and extensive programmes provide laboratory professionals with fast, documentable and economical process handling. Certifications such as the CE or VDE mark also prove that the appliance fulfils important quality and safety standards. This makes the laboratory washer a valuable component in demanding laboratory environments where cleanliness and safety are top priorities.

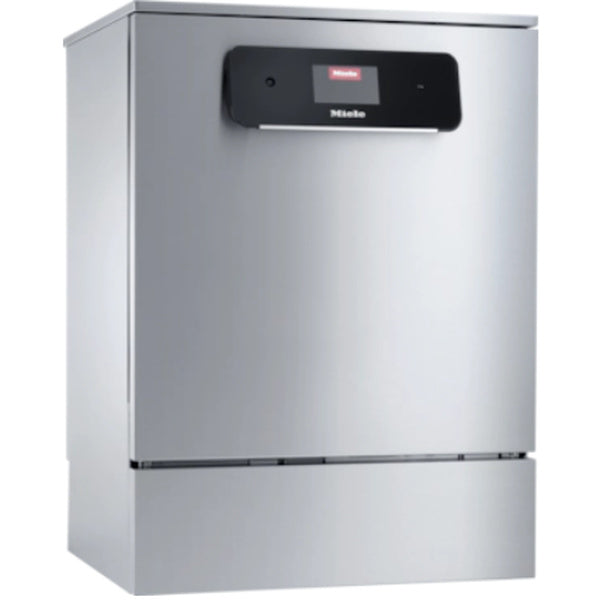

Miele PLW 8683 ADP LD DS10 laboratory dishwasher

The Miele laboratory dishwasher is a powerful and reliable solution for demanding reprocessing processes in scientific laboratories and industrial environments. Thanks to its flexible load carriers, effective drying support and user-friendly controls, the appliance stands out in a direct comparison with similar systems and enables economical, time-saving and standard-compliant reprocessing of different wash ware.

Highest efficiency and ease of use for every laboratory glassware

This appliance is specially designed for a wide range of laboratory cleaning requirements. With a pump capacity of up to 500 litres per minute and variable speed, the system ensures optimum rinsing pressure. Stubborn contamination can be removed just as effectively as light soiling, as the rinsing programme automatically adjusts the pressure. The integrated EcoDry function automatically opens the door at the end of the programme as soon as the temperature in the wash cabinet falls below 70 °C. This allows residual moisture to escape efficiently, which ensures fast drying and reduced energy consumption, especially for delicate laboratory glassware.

The M Touch Flex colour display also offers easy-to-understand and intuitive operation. Relevant settings and programme information are clearly displayed here, reducing the time and effort required for each wash cycle. A WiFi communication module ex works also makes it possible to integrate the appliance into existing networks and seamlessly document the relevant process data. More than 19 standard programmes and numerous free programme slots offer a high degree of flexibility in everyday use.

Overview of important technical data

- 2 rinsing levels for up to 128 laboratory bottles and 98 pipettes per batch
- Pump capacity: Qmax of 500 l/min, shortest programme runtime 20 min
- Powerful electrical connection (3N AC 400 V or AC 230 V)
- Variable-speed heating pump for optimum rinsing pressure
- 19 preset programmes and 10 freely programmable
- Water connections for hot, cold and demineralised water with integrated pump
- EcoDry function, AutoOpen door and integrated steam condenser

In addition, the salt-free welded wash cabinet made of high-quality stainless steel ensures a long service life. The integrated wash cabinet lighting facilitates loading and inspection directly inside. The EasyLoad system also improves the loading of a wide variety of glass and plastic items: thanks to intelligent retaining clips and nozzles, the height and position can be adjusted quickly and easily, significantly reducing the risk of breakage.

Standards and certifications

The device has been developed and tested in accordance with important standards and directives. Among other things, it fulfils EN 61010-1 and EN 61010-2-040 - essential specifications for electrical laboratory equipment in terms of safety and performance. The RoHS Directive 2011/65/EU is complied with, which ensures the restriction of hazardous substances in electrical and electronic equipment. It also has a VDE mark (electrical safety) and the IP protection class according to EN 60529: IP21. The device therefore guarantees a high level of reliability, safety and durability.

Concrete application possibilities

- Cleaning narrow-neck and wide-neck bottles with stubborn residues
- Reprocessing of pipettes, vials and test tubes that need to be rinsed without residue
- Ideal for research laboratories in which widely varying samples (e.g. organic or inorganic substances) are analysed
- Perfect for industrial quality control laboratories where process reliability and documentation are top priorities

Frequently asked questions

How long does a standard programme take?

Depending on the degree of soiling and the programme selected, the appliance generally requires between 20 and 60 minutes. The shortest programme is only 20 minutes thanks to the high pump capacity.

Is external documentation possible?

Yes, data can be transferred to process documentation systems or network printers via the integrated WiFi communication module or optional Ethernet modules.

Can chemical solutions from the industrial sector be used?

The device is designed for common cleaning and neutralisation agents used in laboratories. However, specific chemicals should be tested for compatibility in advance.

How can drying be even faster?

The EcoDry system efficiently removes most of the moisture. In addition, the loading compartment can be ventilated directly after the door is opened to further accelerate drying.

Conclusion

This laboratory warewashing system offers high wash performance, short process times and a flexible loading structure for a wide range of wash items without compromising on quality and safety. Standardised processes, intuitive controls and productive additional functions are the core elements that guarantee consistently reliable cleaning results in the laboratory. Thanks to programme-controlled pressure, a large load capacity and intelligent features such as EcoDry, the washer is ideally equipped for demanding use cases in the laboratory environment.

Miele PLW 8683 CD ADP DC5 CM laboratory dishwasher

The Miele laboratory washer was specially developed for professional laboratory applications and enables fast, thorough and safe cleaning and disinfection of various laboratory glassware and utensils. This system particularly comes into its own when reprocessing container-intensive samples, bottles, test tubes or pipettes. Users benefit from high loading flexibility, efficient drying thanks to DryPlus and reliable control via M Touch Flex. This laboratory washer impresses with quick adaptation to a wide range of laboratory requirements and high capacities in daily operation.

Performance features and technologies

In order to meet the diverse requirements of laboratory environments, the appliance is equipped with modern and highly functional components. The centrepiece is the intelligent combination of a powerful circulation pump, programmable controller and integrated hot air drying. This ensures flawless, validated reprocessing, even if hollow or narrow-lumen laboratory glassware is to be cleaned. Some of the most important technical points are summarised below:

- Flexibly loadable rinsing chamber (2 rinsing levels) for up to 128 laboratory bottles or 98 pipettes per batch
- Increased efficiency thanks to rinsing pressure and spray arm monitoring at full load
- Integrated DryPlus drying unit with class H14 HEPA filter for reliable particle separation
- M Touch Flex - full-touch colour display for intuitive programme selection and customisable wash parameters
- Can be networked ex works via WLAN for secure documentation and integration into the laboratory network
- Variety of programmes with 20 standard and 10 freely programmable programmes, including short, intensive and hygiene cycles
- Fast rinsing cycles from 20 minutes for time-critical applications

In addition to these core features, a stainless steel rinsing chamber, programmable dosing pumps for detergents and neutralising agents and a comprehensive safety concept (waterproof system, conductivity monitoring) are among the key benefits for laboratory operators.

The robust design, tested to 15,000 operating hours, underpins a long service life in demanding everyday laboratory work. Thanks to the convenient load carriers and the EasyLoad system, users also save time when loading by placing labware precisely and securely on the nozzles. This allows not only narrow-necked tubes and vials with various adapters to be cleaned, but also pipettes to be efficiently reprocessed in combination with other laboratory glassware.

Certifications and standards

The device fulfils common approvals, ensuring safety and quality in the laboratory at all times. The VDE mark confirms its electrical safety, and the IP protection class IP 21 protects the electronics against the ingress of dripping water. In addition, the laboratory washer is compliant with EN 61010-1 and EN 61010-2-040, so that both basic and application-specific safety requirements are covered. It also fulfils the RoHS Directive 2011/65/EU, which stands for the environmentally conscious use of components and reduces harmful ingredients.

Concrete application examples

- Cleaning large quantities of test tubes in chemical laboratories, for example when used with inorganic solutions
- Reprocessing pipettes and narrow-bore laboratory bottles in microbiological research institutes, especially when working with agar or organica residues
- Validated disinfection of glassware for phytolaboratories, where the laboratory washer must ensure constant cleanliness
- Removal of oil and grease contamination in process laboratories in the pharmaceutical industry to achieve reproducible results

FAQs

How are the cleaned laboratory glassware dried

?

The appliance has an integrated hot air drying system (DryPlus). A class H14 HEPA filter reliably separates particles so that even narrow openings are completely dry and clean.

What capacities are available for certain glass shapes?

Typically, up to 128 laboratory bottles can be cleaned per batch. For test tubes and vials, this is 196 pieces, while 98 pipettes can be accommodated in a separate load carrier at the same time.

Can I customise the programmes individually?

Yes. 10 freely configurable slots are available in addition to 20 standard programmes. This means that rinsing parameters such as temperature, rinsing times or drying times can be customised precisely to your laboratory glassware and contamination types.

How is process documentation ensured in everyday laboratory work?

The device can be connected at the factory via WLAN. If required, optional interfaces and Ethernet functions can be added so that all critical process data can be documented.

Conclusion

This model offers a robust, efficient and easy-to-operate solution for cleaning laboratory glassware and utensils in demanding working environments. With high-performance components, a durable design and comprehensive safety functions, it fulfils the high standards of modern laboratories. Fast programmes, customised dosing systems and sophisticated drying technology ensure consistently high cleaning quality. At the same time, the flexible load carriers and the EasyLoad system increase productivity by saving time during preparation and loading. The integrated network capability and various certifications make the overall package complete and future-proof for a wide range of laboratory applications.

Miele PLW 8683 CD DC5 CM laboratory dishwasher

With its high capacity and powerful performance, this appliance is the ideal solution for all laboratory environments that prioritise efficient cleaning, reliable drying and the best possible process documentation. Specially tailored to the demanding requirements of laboratories, this laboratory washer is characterised by its robust design, variable application options and user-friendly operation. Anyone who regularly wants to thoroughly and reliably reprocess laboratory glassware, pipettes or other sensitive instruments will find an optimum combination of flexibility and quality that clearly sets it apart from comparable products.

Innovative cleaning and drying technology

The EasyLoad system makes it particularly easy to cover the surface of each batch. Narrow-necked tubes, test tubes and vials can be placed on the nozzles effortlessly without having to adjust the height of the holders. For reliable decontamination, the system monitors both the rinsing pressure and the spray arms to ensure a safe process, even if load blockages or a drop in rinsing pressure should occur. Following the cleaning cycle, DryPlus technology ensures efficient hot blowing: air is passed through a class H14 HEPA filter to safely separate even the finest particles.

The integrated conductivity monitoring system ensures that chemical residues are reliably detected in the wash ware. The appliance also supports seamless documentation thanks to a WiFi communication module integrated ex works, which connects to corresponding software solutions. This means that process data can be called up quickly and all steps can be easily traced. Thanks to M Touch Flex and the full-touch colour display, the appliance can be conveniently operated at the touch of a finger, with up to 20 pre-installed programmes and various special wash programmes such as intensive, organics or pipettes to choose from. This efficiently covers different cleaning processes.

Technical highlights

- Two wash levels with variable loading for a maximum of 128 laboratory bottles or alternatively 98 pipettes
- Extra short wash cycles from 20 minutes with a maximum rinse temperature of 93 °C
- Powerful circulation pump with up to 500 l/min. delivery rate
- Integrated drying unit that ensures rapid drying thanks to the 0.3 kW fan and 2.2 kW heating coil
- Automatic safety systems such as rinsing pressure and spray arm monitoring and waterproof system
- Programmable controls including remaining time display, programme sequence display and freely definable programme slots
- High-quality stainless steel exterior panelling with a gap-free welded wash cabinet (laser technology)

In addition, the appliance has dosing pumps for detergents and neutralising agents, which can be expanded at any time. At the same time, a wide range of process chemicals can be stored in canisters, which are inserted using convenient suction lances. Thanks to speed control in the heating system and a temperature of up to 93 °C, cleaning can be perfectly adapted to the respective requirements. The specified service life for the HEPA filter is 200 hours, which ensures maximum cleanliness even with intensive use.

Certifications and standards

Safety and compliance in the laboratory are essential, which is why this device complies with current safety standards. For example, it complies with directives EN 61010-1 and EN 61010-2-040 and fulfils the RoHS Directive 2011/65/EU as well as the requirements for IP protection classes in accordance with EN 60529, specifically IP 21. The quality of workmanship and electrical safety are confirmed by the VDE mark.

Application examples

- Cleaning large-volume laboratory bottles with narrow openings that require a high degree of spray force for reprocessing
- Reprocessing pipettes, as up to 98 pipettes can be cleaned and dried in one batch to save space
- Intensive programmes for highly adhesive substances such as agar or oily residues
- Decontamination of sensitive plastic items that are safely treated thanks to the variable temperature control

This means that glass types such as Petri dishes, volumetric flasks and volumetric flasks can be processed quickly and reliably. The versatile programme variety is particularly impressive for laboratories with a wide range of requirements.FAQs

How is reliable documentation of the cleaning processes guaranteed?

The integrated WiFi module enables a direct, secure connection to process documentation software so that all parameters are reliably recorded and saved.

What happens if the spray arms block during the rinsing process?

Integrated spray arm monitoring immediately recognises blocked or missing spray arm rotation and can adjust the cycle accordingly to ensure optimum cleaning performance.

Is the appliance also suitable for delicate glassware?

Yes, thanks to the EasyLoad system, delicate wash items can be gently secured and optimally cleaned from all sides.

What drying options are available

DryPlus technology ensures hot air is blown through an H14 HEPA filter, so that even hollow items with a narrow rim are dried quickly and with a minimum of germs.

Conclusion

The Miele PLW 8683 CD DC5 CM laboratory washer is an excellent choice for anyone requiring a professional laboratory cleaning system for a wide range of wash items. The appliance impresses with powerful pumps, intelligent monitoring systems and reliable drying via DryPlus. It offers short programme running times, is easy to programme and convenient to operate. Thanks to comprehensive compliance with standards and networked documentation, safety and transparency are always guaranteed, which supports smooth laboratory operations in the long term.

Miele PLW 8683 CD U GD DC5 CM LAN laboratory dishwasher

The Miele PLW 8683 CD U GD DC5 CM LAN laboratory washer is a powerful and versatile solution for professional laboratory applications where maximum cleanliness and process reliability are top priorities. The appliance simplifies the cleaning of a wide range of laboratory glassware such as narrow-neck bottles, pipettes, test tubes or vials. With its extensive range of functions and stability for up to 15,000 operating hours, this laboratory washer is ideal for laboratories in areas such as biology, chemistry, pharmacy or food analysis that rely on reproducible and efficient cleaning on a daily basis. A clear advantage over comparable models is the combination of large load capacity, innovative monitoring systems and the powerful DryPlus drying system.

Performance features and design

The lab washer ensures efficient and controlled cleaning thanks to its high throughput and modern sensors. At the same time, its intuitive touch operation makes it easy to adapt to different areas of use. Important features at a glance:

- Large loading capacity: up to 128 laboratory bottles or 98 pipettes per batch.
- M Touch Flex: Clear full-touch colour display for intuitive programme selection and management.
- DryPlus drying: HEPA-H14-filtered hot air ensures residue-free drying of hollow instruments and narrow-bore laboratory glassware.
- Process monitoring: Integrated rinsing pressure and spray arm monitoring for immediate detection of blockages.
- Conductivity monitoring: Ensures reliable removal of cleaning agents and residues.
- Ethernet/WiFi interface: Enables seamless documentation and connection to network printers or compatible process software.
- EasyLoad system: Facilitates space-saving positioning of wash items thanks to automatic adjustment between the holding grid and nozzle.

Dosing pumps for liquid detergents and neutralising agents are already integrated to increase process reliability. For particularly demanding applications, additional dosing pumps can also be installed to precisely control different chemicals.

The robust construction is made of high-quality stainless steel (internally 1.4301/304). A powerful filter system together with the variable-speed heating pump ensures consistently high cleaning quality. The glass door allows visual inspection during the programme cycle.

Certifications and standards

The appliance has been tested for electrical safety and laboratory requirements in accordance with EN 61010-1 and EN 61010-2-040. It also fulfils the RoHS Directive 2011/65/EU. The IP21 protection rating and the VDE mark provide additional protection against dust and moisture. The integrated HEPA filter of class H14 (in accordance with DIN EN 1822) achieves a filtration efficiency of 99.995%, which maintains the highest level of cleanliness, especially in sensitive laboratory areas.

Concrete application examples

In daily practice, the rinser can be used in a variety of ways:
- Microbiological laboratory: Petri dishes, test tubes with culture media and pipettes can be effectively cleaned and then gently dried.
- Chemical laboratory: The powerful intensive programme is suitable for removing stubborn substances such as oils or organic residues. Glassware of different sizes can also be stacked effortlessly.
- Pharmaceutical research: The conductivity-monitored rinsing phase always ensures residue-free surfaces, which is essential for strict hygiene requirements.
- Food analysis: Narrow-necked bottles or vials are positioned in a sophisticated system so that all internal surfaces are thoroughly rinsed and sanitised using dry hot air.

FAQs

How quickly is a cleaning cycle completed?

Thanks to the shortest programme of just 20 minutes, cleaning can be significantly accelerated - depending on the degree of soiling.

Which cleaning agents are suitable

The appliance can be operated with standard liquid neutralising and cleaning agents. The integrated dosing volume control precisely monitors the required quantities of chemicals.

Is external documentation possible

Yes, the appliance can be connected to process documentation software or a network printer via the existing Ethernet and WiFi interface. This ensures that all washing processes are seamlessly logged.

Do you need additional filters for the drying system?

A HEPA H14 filter is already integrated and easily accessible so that it can be changed quickly if necessary without having to dismantle the entire structure.

Can multiple cleaning programmes be customised?

Up to 20 programmes are available via the M Touch Flex display. In addition, 10 of your own programmes can be freely configured, allowing individual processes to be implemented at any time.

Conclusion

This laboratory washer sets standards in terms of flexibility, process control and user-friendliness. The extensive scope of delivery and the option to integrate additional dosing pumps or Miele Move Connect make the appliance a future-proof investment for laboratories with high quality standards. Last but not least, the DryPlus drying system ensures complete drying of complex vessels, while monitoring functions and documentation options guarantee optimum protection for staff, samples and instruments. The washer combines efficient cleaning processes, reliable safety technology and modern user-friendliness in a single system.

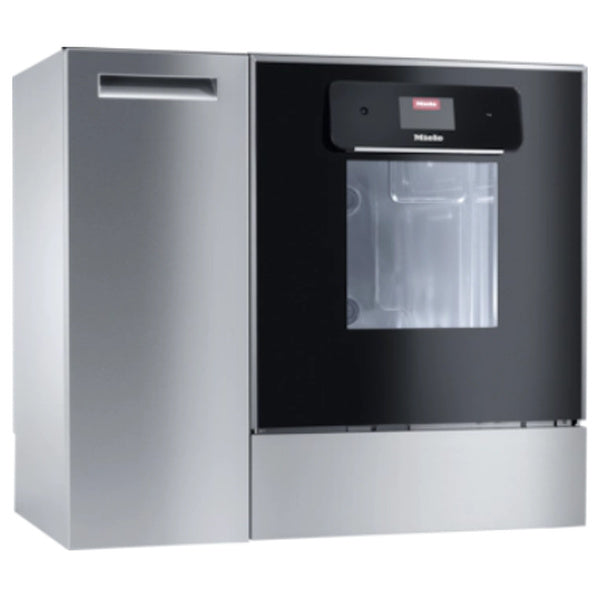

Miele PLW 8683 CD U GD OIL CM LAN laboratory dishwasher

This laboratory washer impresses with its high capacity, advanced drying system and oil and grease-resistant seals. It is ideal for laboratories where a wide range of glassware - from narrow-necked glassware to pipettes - needs to be cleaned thoroughly and safely. Compared to similar devices on the market, it offers a particularly efficient combination of rinsing pressure and spray arm monitoring as well as integrated conductivity control, which ensures consistent cleaning quality.

Reliable cleaning and drying solutions

The laboratory washer has been specially developed to cover a wide range of requirements in research, quality control and routine analyses. Its spacious wash cabinet makes it a flexible and time-saving all-rounder. Thanks to the extensive selection of short, standard and special programmes (e.g. for inorganic and organic residues), application-optimised reprocessing is possible. The integrated DryPlus hot air drying system with upstream HEPA class H14 filter also ensures low-germ and residue-free results. One of the most important features is the oil programme mode, which, together with the oil and grease-resistant door seals, ensures reliable cleaning of oily residues.

To maximise ease of use, the appliance features the M Touch Flex operating concept. This full-touch colour display enables intuitive control. The machine also offers various safety features: The rinsing pressure monitor recognises sluggish pump performance, while the spray arm monitor immediately reports blocked spray arms. These functions ensure a consistently high cleaning quality.

Important technical data at a glance

- Floor-standing appliance, suitable for under-counter installation, with glass door for direct visual inspection
- Usable volume in the wash cabinet: 145 litres
- Capacity/batch: up to 128 laboratory bottles or 98 pipettes in one cycle
- Rinsing pressure and spray arm monitoring, conductivity monitoring, DryPlus drying
- Qmax of the circulation pump (l/min): 500
- Shortest programme run time: 20 minutes
- Integrated water softener (max. water hardness 10.7 mmol/l)
- Drying fan 0.3 kW with HEPA filter class H14

Further details such as the connection options (3N AC 400V or AC 230V) and a programmable control unit with 20 standard and 10 freely assignable programmes are also relevant. An Ethernet or WLAN module is integrated ex works for easy integration of process documentation, network printers and other services. Particularly noteworthy is the tested operating time of 15,000 hours, which ensures a long service life.

Certifications and standards

The device fulfils the requirements of EN 61010-1 and EN 61010-2-040 and bears the VDE mark for electrical safety. The RoHS Directive 2011/65/EU is taken into account, while the IP protection class IP 21 protects the device from dripping water. In addition, the gap-free welded stainless steel sink compartment emphasises durability and hygiene.

Typical application examples

1. Cleaning narrow-neck and wide-neck bottles in microbiological laboratories to prepare sterile culture media.
2. Preparation of oil-wetted devices for industrial material analyses; the oil- and grease-resistant seals benefit here in particular.
3. Efficient and gentle cleaning of pipettes and sensitive plastics in research facilities and university laboratories.
4. Robust enough for chemical synthesis laboratories to completely reprocess containers with aggressive substances or organic residues (e.g. residues of acetonitrile or phenol)

FAQs

How does the oil programme option work

?

The machine has a specially customised cleaning process that uses oil and grease-resistant sealing rings and a higher rinsing pressure profile. This reliably removes even stubborn oily residues.

What are the advantages of the EasyLoad system?

EasyLoad makes it much easier to pick up glassware as the holders adapt intelligently. This means that fewer adjustments have to be made to individual nozzles or holding racks, which saves time during each loading process.

Can the device be connected to external process documentation?

Yes, thanks to the integrated WLAN/Ethernet communication module, the system offers the option of sending all relevant process data to compatible documentation software or a network printer.

What role does conductivity monitoring play?

Continuous conductivity measurement ensures that no residues of detergent or substances remain inside the wash cabinet. This is particularly important in laboratories where absolute cleanliness of the glassware is required.

How does rinsing pressure and spray arm monitoring support process reliability?

Correctly set rinsing pressure is crucial for thorough cleaning. If the pressure is too low or a spray arm blockage is detected, the system sounds an alarm. This allows the cleaning result to be reliably monitored.

Conclusion

Thanks to its modular loading system, extensive range of programmes and fully integrated safety functions, this lab washer is a future-proof investment for demanding laboratory environments. The combination of fast and gentle cleaning, powerful drying and durable components fulfils all the requirements for professional use. Last but not least, the integrated automation and documentation options are impressive, significantly reducing the workload and potential for errors in the laboratory.

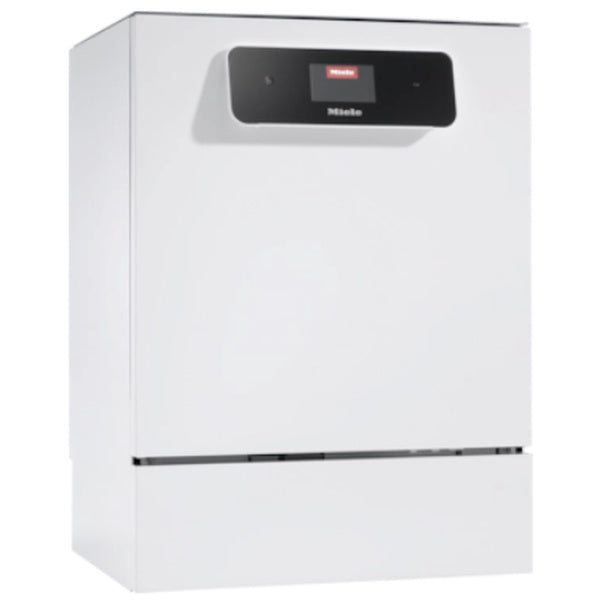

Miele PLW 8683 LD DC5 LAN laboratory dishwasher

This modern laboratory dishwasher is specially designed for the efficient reprocessing of sensitive laboratory utensils and offers sophisticated functions in a compact format. Developed primarily for laboratory bottles, pipettes, test tubes and other equipment, it is ideal for research laboratories, medical facilities and industrial quality controls where fast, reliable and reproducible cleaning is crucial. Compared to many competitor devices, the model scores with high flexibility, optimised cleaning performance and resource-saving operation, which provides decisive advantages in demanding laboratory situations.

Properties and advantages

The solution presented here is characterised by a powerful, variable-speed heating pump that enables a maximum circulation flow of up to 500 l/min. This removes stubborn residues and evenly wets sensitive wash ware. The integrated M Touch Flex control unit also allows precise selection and adjustment of the wash programmes. Users benefit from a transparent display of the programme sequence and programming options for individual requirements. The robust filter concept in the wash cabinet reliably protects the technology from soiling, which increases the longevity of the appliance.

When handling large quantities of laboratory glassware, the EasyLoad system ensures particularly fast and safe positioning of wash items on the nozzles. Adjustments to different bottle sizes or laboratory glassware types are virtually eliminated, as the holding grid and nozzles are perfectly matched. The optional injector loading also helps to clean pipettes and other laboratory components from the inside. The capacity is considerable: up to 128 laboratory bottles or alternatively 98 pipettes with additional laboratory glassware can be cleaned per batch. Extensive standard programmes (e.g. extra short, standard, universal and intensive) allow the cleaning process to be optimally adapted to the respective wash ware. If required, 10 free programme slots are available for individual processes so that the appliance can be used specifically in every laboratory.A particular highlight is the EcoDry system, which automatically opens the door at the end of the programme as soon as the temperature in the wash cabinet falls below 70 °C. This allows residual moisture to escape and the drying process is significantly faster. Thanks to the factory-fitted interfaces (Ethernet/WiFi), users can easily integrate the appliance into existing documentation systems or use Miele MOVE. This digital solution is used for seamless monitoring of the dishwashing process and contributes to transparent quality control.Technical key points

- Capacity: Maximum 128 laboratory bottles or 196 test tubes
- Wash cabinet volume: 145 l with optimum utilisation of the two wash levels
- Shortest programme run time: 20 minutes for urgent cleaning
- Variable-speed heating pump for flexible pressure settings
- Control: M Touch Flex with up to 19 programmes (10 freely selectable)
- EcoDry function for accelerated drying
- Certified in accordance with EN 61010-1 and EN 61010-2-040

In addition, several equipment features support work in the laboratory: For example, the appliance has an integrated dosing pump for liquid detergent and neutralising agent, which ensures optimum results in the rinsing programme. An optical customer service interface, how-to sequences and wash cabinet lighting make handling and maintenance easier and enable safe working even in poor lighting conditions. The gap-free welded interior design made of stainless steel (1.4301/304) meets the highest hygiene standards, while the integrated water protection system (waterproof system) protects the laboratory from water damage.

Concrete application examples

- Preparation of narrow-neck bottles and laboratory bottles with stubborn media such as culture solutions or buffer substances
- Cleaning pipettes for analysing biological samples in microbiology or biotechnology
- Rinsing test tubes, vials and petri dishes for pharmaceutical laboratories to safely remove contamination
- Sterile final cleaning of heat-stable components at temperatures up to 93 °C

FAQs

How can the device be integrated into existing laboratory networks?

Thanks to the Ethernet and WLAN interface, the washer can be immediately integrated into computerised documentation and quality management systems.

What maintenance steps are necessary?

The multi-component filter system should be checked regularly and cleaned if necessary. The dosing pumps and seals should also be inspected and replaced if necessary.

Can the cleaning of different media be mixed?

The modular load carriers and individually customisable rinsing parameters allow a wide variety of laboratory glassware to be cleaned in one batch. However, attention should always be paid to chemical compatibility.

Is the device suitable for sensitive plastics?

Special programmes with reduced temperatures and adapted pressure are available for this purpose, so that even sensitive materials can be cleaned safely.

Conclusion

This appliance meets all modern laboratory requirements with its high capacity, flexible programmes and innovative drying support. Maximum efficiency and safety are guaranteed by the variable-speed pressure system, the high-quality stainless steel components and the integrated dosing system. The laboratory washer can handle even demanding cleaning tasks for large quantities of laboratory glassware in the shortest possible time. Anyone looking for a reliable, resource-saving and extensively certified solution for their laboratory will make a future-proof choice with the second use of the name - Miele laboratory washer PLW 8683 LD DC5 LAN.

Miele laboratory washer PLW 8683 LD DS10

The Miele PLW 8683 LD DS10 laboratory washer is specially designed for demanding cleaning processes in laboratory environments and guarantees maximum efficiency and reproducibility in the reprocessing of laboratory glassware. Thanks to its optimised loading systems and a powerful circulation pump, it offers significant advantages over conventional systems on the market. The fast and thorough cleaning of a wide variety of containers saves time and resources, which is particularly important in professional laboratories with high throughputs and tight schedules.

Performance features and benefits

This appliance combines flexible loading, reliable drying support and advanced networking capabilities. The integrated M Touch Flex touch display enables intuitive control and programme selection, while the variable-speed heating pump adjusts the rinsing pressure precisely to the degree of soiling. This ensures optimum results with every cleaning cycle. The most important technical data and functions include:

- Space for up to 128 laboratory bottles or 98 pipettes per batch
- Circulation pump with a flow rate of up to 500 litres per minute
- Triple water connection for cold, warm and demineralised water
- Short programme run times from 20 minutes
- Capacity of 19 standard programmes and 10 freely programmable programmes
- Factory-integrated WiFi module for process documentation
- EcoDry technology for automatic door opening and accelerated drying

The wash cabinet has a usable volume of 145 litres and is made of robust stainless steel (1.4301/304). Finally, outstanding features such as double spray pressure, a high degree of automation and optimised energy efficiency make this laboratory washer a long-term and economical investment.

The EasyLoad loading system significantly simplifies handling as it dispenses with variable height adjustment and adapts to different glassware sizes thanks to the combination of holding grids and nozzles. The appliance can also be customised precisely to specific requirements thanks to modular accessories such as flexible load carriers and inserts. This allows, for example, the simultaneous cleaning of 196 test tubes and other laboratory glassware, which offers considerable savings potential, especially in research laboratories with high capacity utilisation.

Another unique selling point is the fully automatic EcoDry drying support. Towards the end of the programme, the door opens as soon as the temperature in the wash cabinet has cooled to below 70 °C. This speeds up the drying of glassware and reduces energy consumption, as the residual moisture can escape quickly. In conjunction with surface drying using demineralised water rinsing, the appliance achieves virtually residue-free cleaning.

Functions such as AutoClose, rinsing pressure monitoring and extensive documentation options ensure optimum operational safety and simple operation. Numerous programmes are pre-installed (e.g. Intensive, Inorganica, Agar) to speed up routine processes. Programming for customised applications is also possible. Using the external Ethernet interface or the integrated WLAN module, the device can be securely integrated into process chains so that data is reliably available for validation or batch documentation, for example.

Certifications and standards

The laboratory washer fulfils important standards and guidelines that are required in professional laboratories. Particularly worth mentioning are:
- VDE mark (electrical safety)
- IP 21 for protection against water ingress
- EN 61010-1 and EN 61010-2-040 for device safety in the laboratory
- RoHS Directive 2011/65/EU for environmentally friendly device construction

This ensures a high safety standard that protects the integrity of the prepared laboratory equipment and the safety of personnel

Concrete application examples

1. Cleaning large quantities of narrow-neck bottles with heavily dried sample residues
2. Strict reprocessing of test tubes that have come into contact with organic substances such as ethanol, acetone or agar
3. Efficient rinsing of pipettes via pipette programme and connected load carrier
4. Removal of stubborn oil and grease contamination from containers in chemical laboratories

In everyday practice, the device is recommended for all areas in which different laboratory glassware needs to be cleaned simultaneously - for example in microbiological, pharmaceutical or chemical laboratories as well as research facilities with high throughput.

FAQs

How does the system ensure reliable drying?

On completion of the wash programme, the AutoOpen function opens the door at a sufficiently low temperature. The residual moisture escapes, the wash ware dries faster and is therefore immediately ready for use again.

Which water connections are required

The model has connections for cold, hot and demineralised water. An integrated water softener provides additional support if only hard cold or hot water is available.

Is it complicated to control the dishwasher?

Thanks to the M Touch Flex colour display, all programmes can be selected at the touch of a finger. Predefined and freely programmable sequences make cleaning tasks that occur particularly frequently easier.

Which safety features are integrated?

VDE mark, IP 21 and compliance with international standards such as EN 61010-1 and the RoHS directive guarantee a high standard of safety. In addition, AutoClose, water protection systems and flushing pressure monitoring provide protection during operation.

Can the appliance be integrated into existing monitoring systems?

Yes, it supports standard process documentation software and has various communication modules, including WLAN. This means that batch and process data can be tracked seamlessly.

Conclusion

This laboratory washer impresses with its high capacity, wide range of wash programmes and precise pressure control, which reliably removes soiling from every batch. In addition, the flexible EasyLoad system and automatic drying support ensure fast and resource-saving processing. Thanks to its extensive certifications and compliance with standards, the appliance is ideal for all professional laboratory environments where time, efficiency and quality are decisive factors.

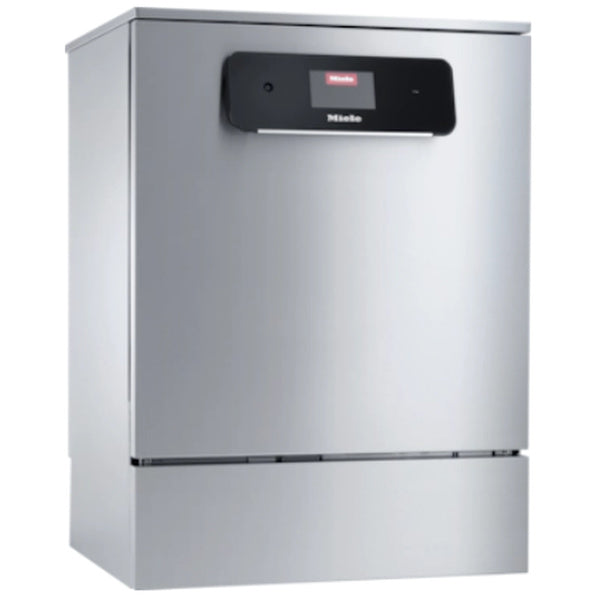

Miele PLW 8683 OIL LD DC5 LAN SST laboratory dishwasher

This laboratory dishwasher, specially designed for laboratories, enables high-precision cleaning processes for a wide range of laboratory utensils. Thanks to its robust design and integrated oil and grease-resistant seals, it is a reliable solution for users who want to optimise their daily cleaning routine. Compared to other models on the market, this appliance impresses with its innovative programmes, convenient operation via touch display and flexible loading systems. Especially in laboratory environments where oil and grease deposits frequently occur, this appliance plays an outstanding role thanks to its robust seals and efficient wash programmes.

Precise cleaning processes for laboratory supplies

The appliance offers numerous programmes for different applications, such as universal, intensive, pipette or agar programmes. The specific speed control of the heating pump adjusts the rinsing pressure precisely to the labware to be cleaned in order to both remove stubborn deposits and treat the surfaces gently. In addition, the integrated EcoDry system ensures a shorter drying phase: by automatically opening the door at the end of the programme, residual moisture effectively escapes so that the wash ware dries faster and more gently.

The robust workmanship is reflected, among other things, in a gap-free welded wash cabinet and the use of high-quality materials. A stainless steel housing prevents corrosion and makes the laboratory dishwasher particularly durable, even when used intensively. The equipment with an Ethernet/WiFi module ensures seamless process documentation, which is increasingly important for laboratories with high documentation requirements (e.g. in accordance with GLP).

Important technical data at a glance

- Maximum of 128 laboratory bottles per batch or 98 pipettes
- Programme variety with a total of 19 preset cleaning sequences, a further 10 freely programmable
- Variable-speed heating pump (Qmax up to 500 l/min) for optimum rinsing results
- Temperature range up to 93 °C in the rinse cycle
- Shortest programme run time: 20 minutes
- EcoDry function for faster drying and energy savings
- Construction: suitable for under-worktop installation with a narrow design (598 mm wide)

In addition, the appliance has numerous features that increase ease of use. With the M Touch Flex colour display, all programmes are clearly available in text form, allowing users to select the desired cleaning cycles at the touch of a finger. An integrated water softener and the option to connect to demineralised water offer you clean and residue-free results even with sensitive sample containers.

Certifications and standards

Proof of compliance with common safety and quality standards is essential for laboratories. This model fulfils important standards, including EN 61010-1 and EN 61010-2-040, which are often required in laboratory environments. It also bears the VDE mark for electrical safety and complies with the RoHS Directive 2011/65/EU. With an IP protection rating of IP 21, robust sealing against solid foreign bodies and condensation is guaranteed.

Concrete application examples

- Removal of oily residues: Thanks to the oil and grease-resistant seals, the device is ideal for chemical laboratories where organic solvents and oils are frequently used.
- Cleaning large bottles: With a capacity of up to 128 laboratory bottles per batch, even extensive stocks can be cleaned efficiently.
- Preparation of pipettes and test tubes: Up to 98 pipettes as well as 196 test tubes can be cleaned within one programme. The customisable holding systems ensure a secure and tight fit.
- Intensive disinfection: Special programmes such as "Hygiene 93/10" enable defined thermal disinfection to be achieved, ideal for microbiological laboratories that have to work under sterile conditions.

FAQs

How does the EasyLoad system work?

EasyLoad allows for quick and easy placement of wash items on the nozzles. The holders automatically adjust to the size of the glass without the need for manual height adjustment.

What does the variable-speed heating pump do?

The pump regulates the rinsing pressure depending on the programme cycle. This allows stubborn soiling to be removed at high pressure, while low pressure optimally cleans sensitive surfaces and hard-to-reach areas.

How does the appliance support documentation requirements?

The integrated network capability (Ethernet/WiFi) enables direct connection to process documentation software. This allows relevant data such as programme run times, temperatures or detergent quantities to be recorded and archived.

What are the benefits of the EcoDry feature?

After the end of the programme, the door opens as soon as the temperature drops below 70 °C. This allows warm air to escape and condensation to dry more quickly, reducing the overall running time and saving energy.

Is the wash ware immediately ready for use at the end of the programme?

In most cases, yes, especially if you use the EcoDry function. Thanks to automatic door opening and quick drying, the cleaned items can be used again very quickly.

Can the dishwasher be extended with external dosing systems?

Yes, two dosing pumps for liquid detergents and neutralising agents are already integrated. External dosing modules can also be combined, for example to connect larger canisters or other media.

Which substances is it particularly suitable for?

The device is suitable for numerous laboratory chemicals, including inorganic and organic residues, highly adhesive protein residues or oil-based media.

Conclusion

This model combines powerful cleaning functions, precise programme control and a high degree of flexibility. It also offers short rinsing times and a wide range of options for safely reprocessing a wide variety of laboratory glassware or pipettes. The oil and grease-resistant seals are also ideal for heavily contaminated objects. Together with the variable heating pump and the integrated EcoDry system, the appliance offers an ideal combination of efficiency, safety and user-friendliness for demanding laboratory environments. Anyone who values reliable and at the same time resource-saving support during rinsing will find a well thought-out solution here.

Optimised product description for Miele laboratory washer PLW 8683 PD DC5 LAN

Miele PLW 8683 PD DC5 LAN laboratory washer: High-performance solution for efficient laboratory glassware reprocessing

The Miele PLW 8683 PD DC5 LAN laboratory washer is a first-class choice for laboratories that prioritise cost efficiency and effectiveness. Ideal for cleaning up to 128 laboratory bottles per batch, the washer impresses with the flexible use of modular load carriers and the EasyLoad system. These enable faster and safer loading, which allows perfect adaptation to different wash items without time-consuming height adjustments.

Professional cleaning technology and features

The laboratory dishwasher is equipped with an AD water connection and offers reliable powder dosing and the EcoDry function. The AutoOpen automatic door opening mechanism ensures faster drying thanks to controlled residual moisture release. All programmes can be used intuitively with the M Touch Flex full-touch colour display control.

Networking and documentation

The integrated Ethernet/WiFi communication module facilitates seamless documentation and allows connections to process documentation software or network printers. The Miele MOVE portal opens up additional possibilities, but is not available in all countries.

Resource efficiency thanks to variable-speed heating pump

Diverse programmes and an optimally coordinated rinsing pressure ensure that energy and water are used in a resource-saving manner. The laboratory dishwasher also offers a wide range of programmes, including extra-short, intensive and hygiene programmes (93°C), which are tailored to different requirements.

Technical data:

• Washing capacities:
  • Laboratory bottles: 128
  • Pipettes: 98
• Electrical specifications:
  • Connection: 3N AC 400V 50HZ
  • Total power: 9.3 kW
• Dimensions:
  • Outer dimensions (HxWxD): 835 x 598 x 598 mm
• Weight:
  • Net weight: 74 kg
• Safety:
  • IP protection class IP 21
  • Equipped with VDE mark for electrical safety

Conclusion

The Miele PLW 8683 PD DC5 LAN laboratory dishwasher is an excellent choice for laboratories that place the highest demands on cleaning, efficiency and networking. With its advanced technology and versatility, it sets standards in laboratory cleaning and helps to optimise your work processes. Further information can be found on the Miele manufacturer page.

Maximise your productivity and ensure the longevity of your laboratory glassware with this high-quality laboratory washer. Invest in quality and innovation and experience the difference.
