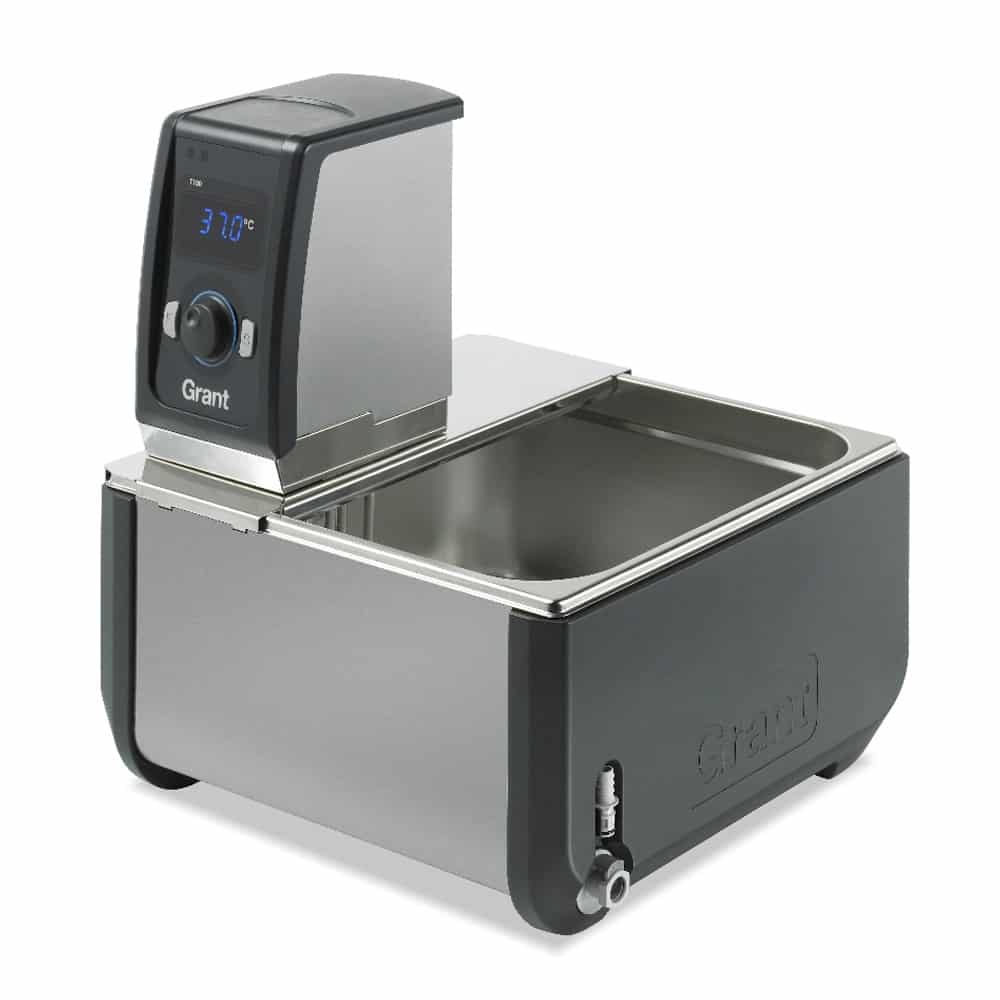

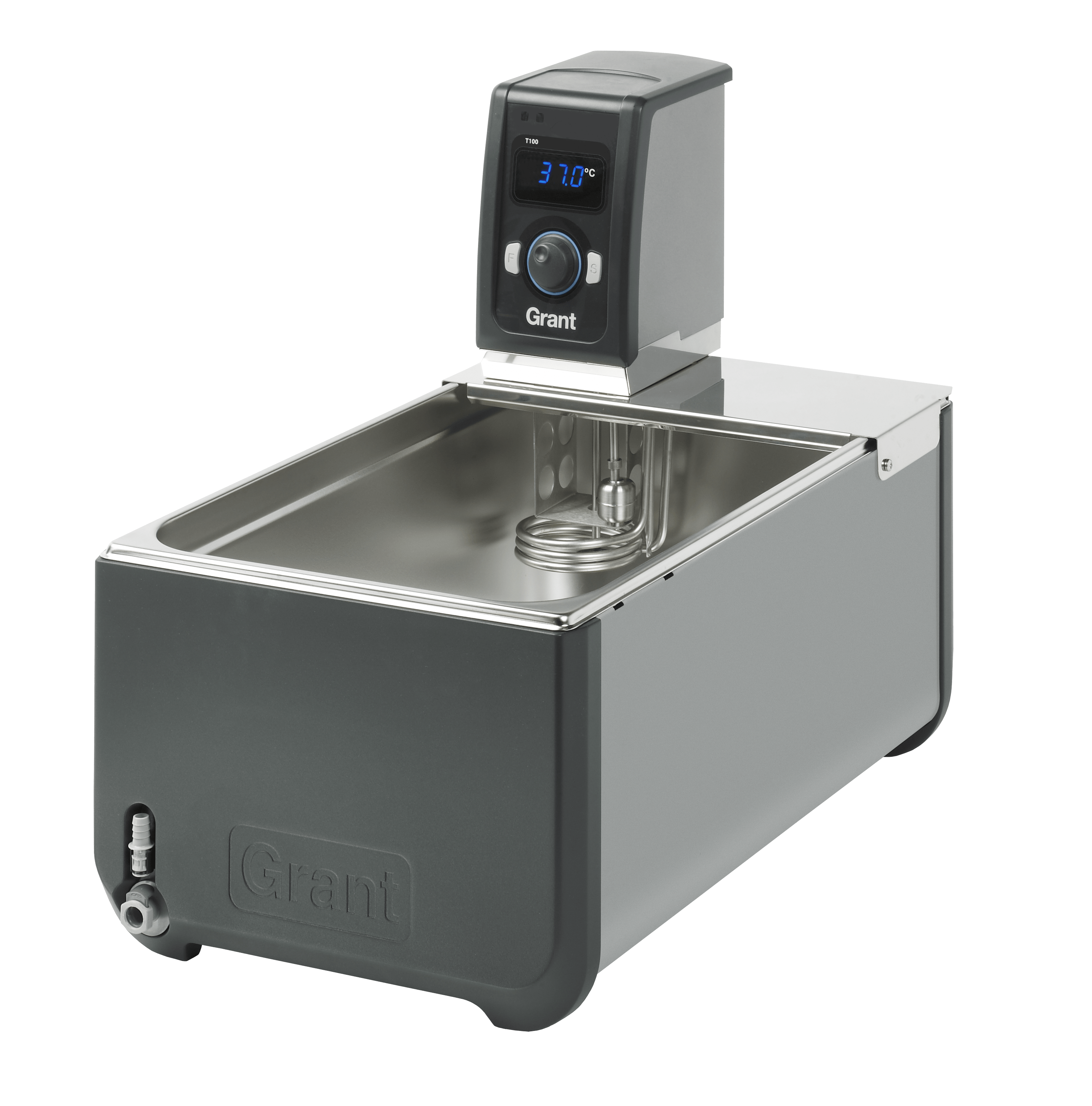

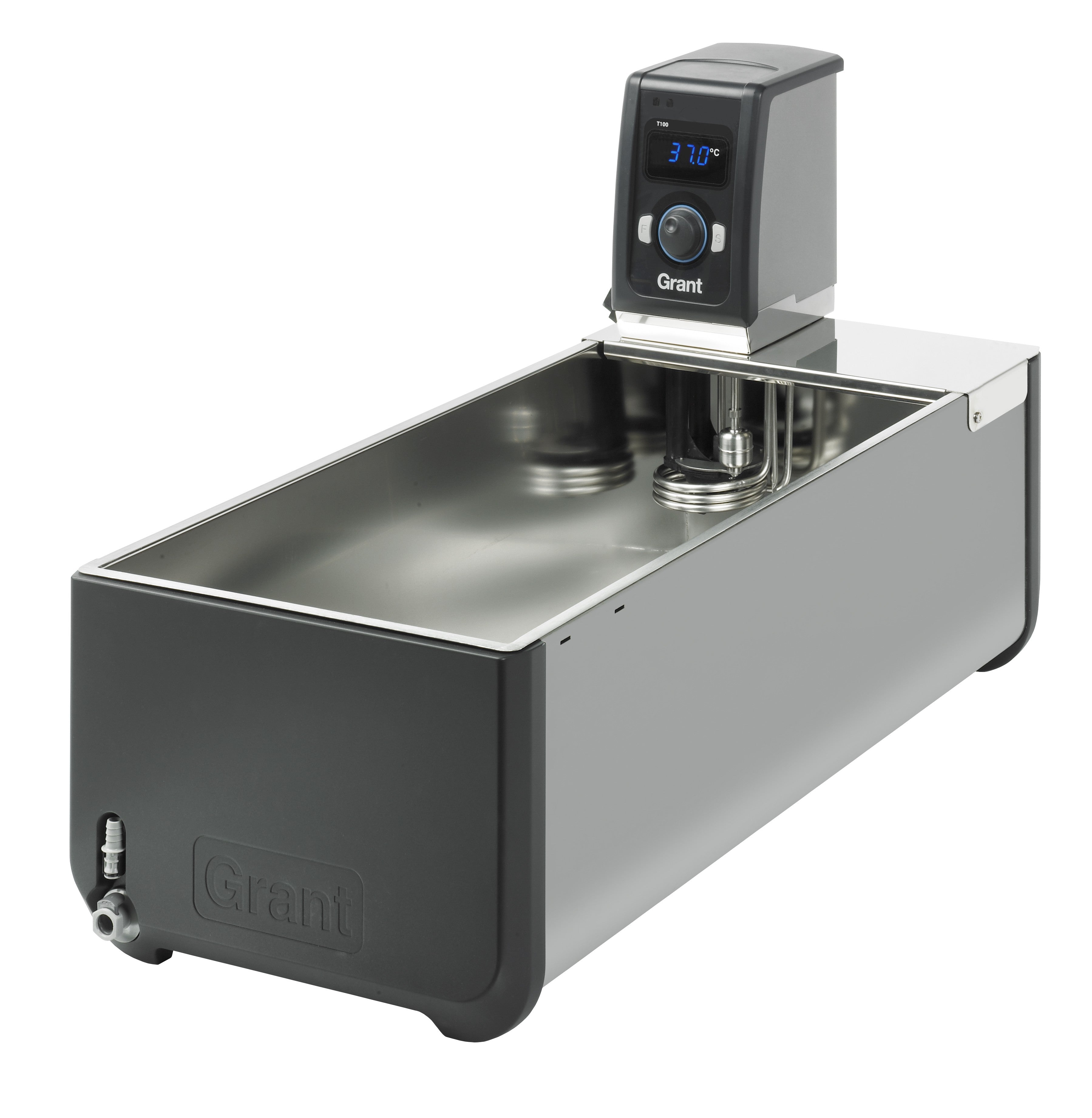

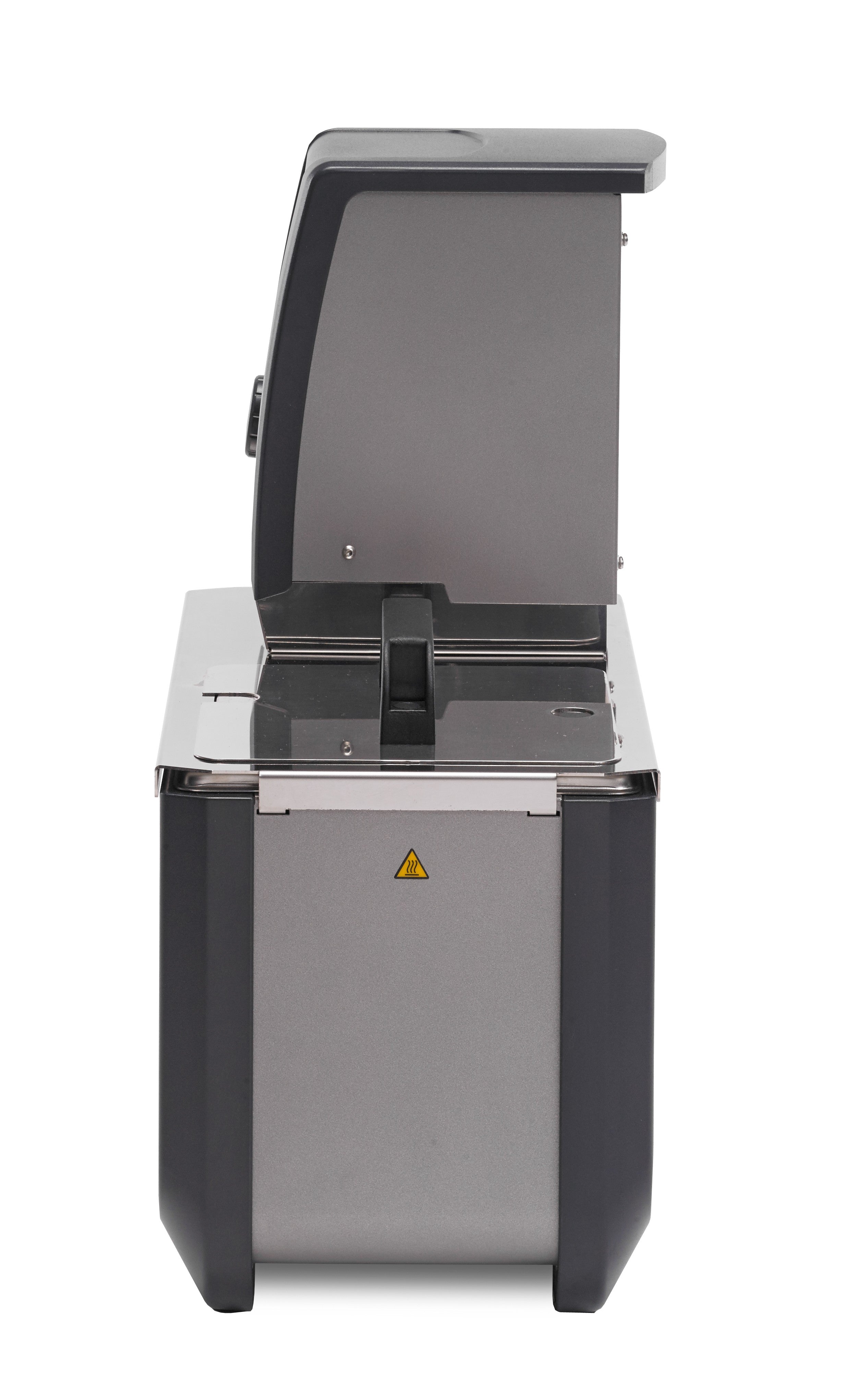

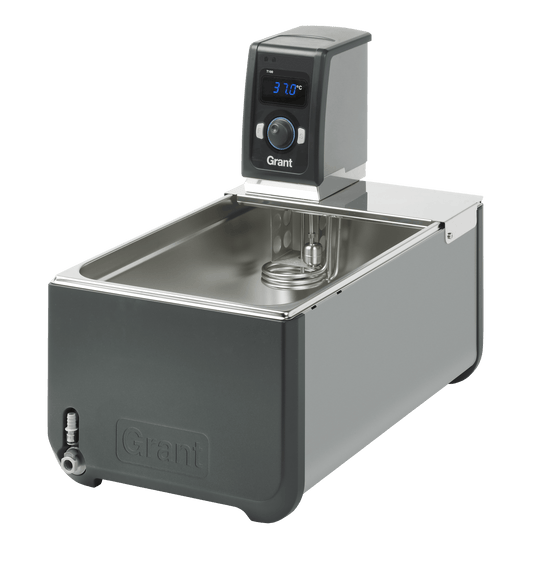

Grant Instruments Optima T100 heated circulating baths provide accurate, general-purpose temperature control for a wide range of laboratory and educational applications. The T100 heating circulator can be combined with stainless steel tanks from 5 to 38 litres to deliver stable, uniform water circulation.
- Cooling/heating range 0°C to 100°C
- Temperature stability ±0.05°C and uniformity ±0.1°C
- Three programmable temperature presets with simple digital control
- Low liquid level protection and fixed over-temperature cut-out for safety
- Clear, bright 4-digit LED display and visual alarm
Typical applications
- Clinical, microbiology and pathology laboratories for media tempering, thawing and incubating samples
- Teaching laboratories and universities for practical demonstrations and sample preparation
Key specifications (circulator head)
- Dimensions (H x D x W): 333 x 172 x 120 mm
- Setting resolution: 0.1°C
- Heater power: 1290 W (230 V)
- Electrical power: 1400 W (230 V, 50–60 Hz)
- Weight: 2.1 kg
The T100 heating circulator can be used in combination with any Grant stainless steel or plastic tank or with a T-CLAMP for independent use of virtually any vertical-sided tank.
- Cooling/heating range 0°C to 100°C
- Stability ±0.05ºC / Uniformity ±0.1ºC
- Tank options 5L to 38L
- 3 programmable temperature presets
- Low liquid protection and fixed over temperature cut-out
- Visual alarm – alerts you when your attention is required
- Clear, bright 4-digit LED display
Applications
- Clinical, Microbiology, and Pathology labs – media tempering, thawing, and incubating samples
- Teaching labs, higher education/universities – practical demonstration/experimentation, sample preparation
Specifications
| Dimensions (h x d x w) | 333 x 172 x 120mm |
| Stability (DIN 12876) @70ºC | 0.05±ºC |
| Uniformity (DIN 12876) @70ºC | 0.1±ºC |
| Setting resolution | 0.1ºC |
| Display | 4 digit LED |
| Timer function | – |
| No. of temperature presets | 3 |
| Re-calibration points | 2 |
| Socket for external probe (TXPEP, TXSEP) | – |
| Communications interface | – |
| Programmable | – |
| Relays | – |
| Safety – over temperature | Fixed |
| Fluid level – float | • |
| Language options | – |
| Alarms (can be configured to switch a relay) | – |
| Heater power – 230V | 1290W |
| Heater power – 120V | 1440W |
| Electrical power – 230V | 1400 (50-60Hz) |
| Electrical power – 120V | 1500 (50-60Hz) |
| Height above tank rim | 200mm |
| Depth below tank rim | 135mm |
| Maximum pressure (water) | – |
| Maximum flow (water) | – |
| Pump connector 6mm bore | – |
| Pump connector 9mm bore | – |
| Weight | 2.1kg |
