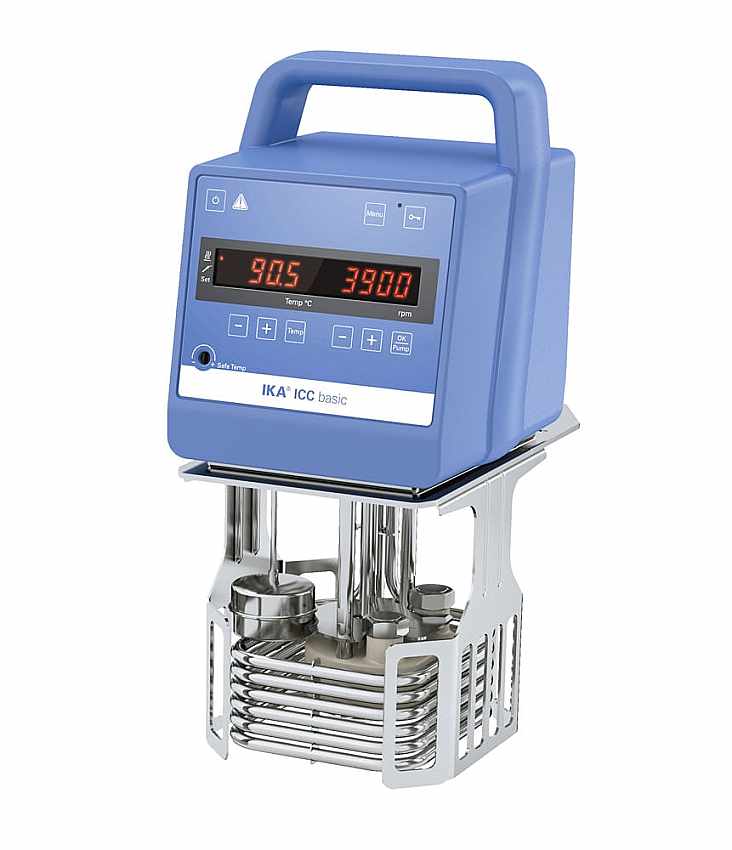

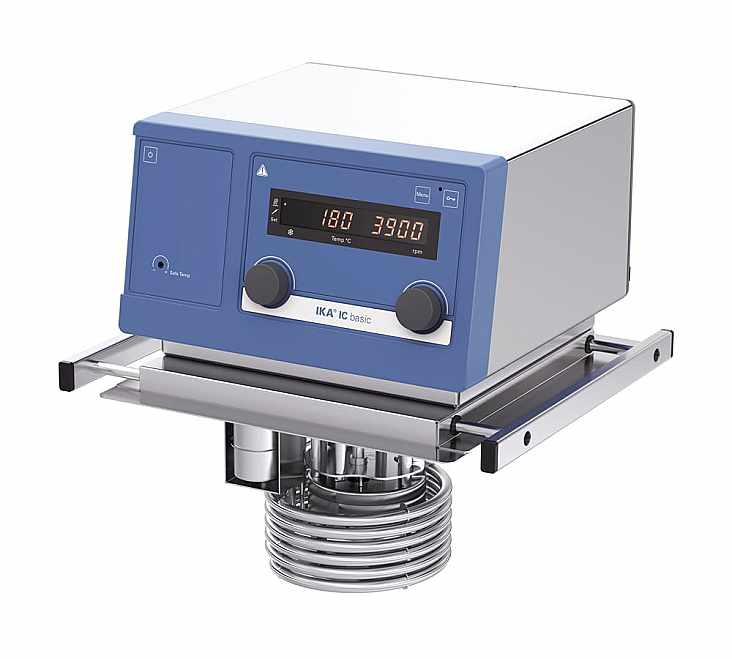

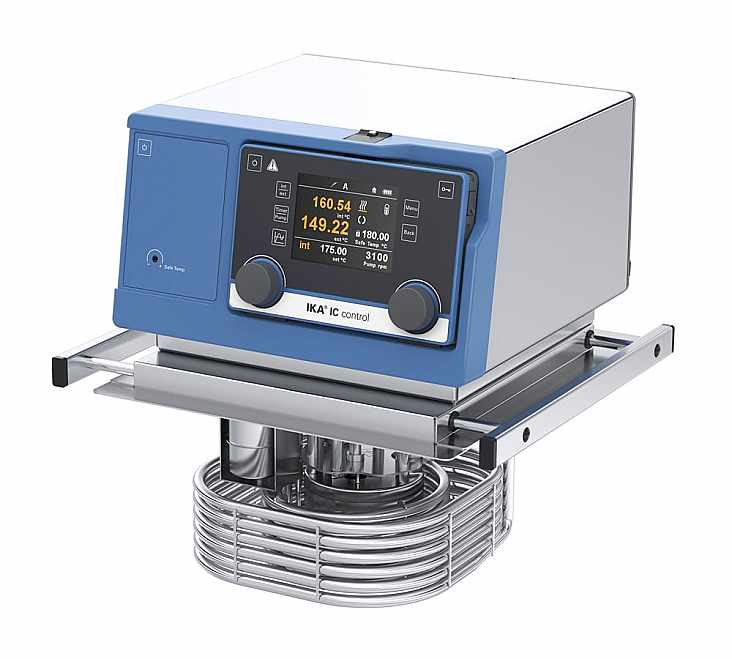

IKA Immersion and Bridge Circulators

The SBB Aqua Plus boiling baths are robust, reliable and provide continuous 100ºC operation. The range consists of four models to suit a range of applications and any budget.

• Adjustable energy regulator provides steady boiling
• Constant level device maintains liquid level
• Robust and reliable design to withstand everyday wear and tear
• Simple, intuitive controls – quick and easy to set temperature
• Choice of sizes to suit individual applications
• Non-drip polycarbonate lid included as standard



Applications

• Clinical, microbiology and pathology labs – media preparation
• University research/teaching – tissue culture preparation, warming tissue culture media
• Industrial laboratories – equipment sanitisation, sample preparation for immunoassays
• Science education in schools/universities – practical science demonstration and experimentation



Specifications

This range of boiling baths has been enhanced to include drain tap and clear lift off lid. Designed for applications that require continuous boiling. This bath also has the flexibility where the control can be regulated from a gentle simmer to a vigorous boil.

Comprising of a stainless steel tank housed in a durable paint finished outer case. Painted surfaces feature a tough anti-bacterial finish with good chemical resistance. Complete with a removable stainless steel perforated false base.

The digital bath is fitted with a sheathed immersion element. With the heater directly immersed in water it provides rapid boiling. A standard feature is a constant level device, which maintains a fixed level of liquid thereby eliminating the need to regularly top up the bath.

Technical Specifications

Controls

Digital, LED display showing actual or set, resolution 1°C

Heating/Reducing Energy Use

The bath can control the amount of boiling from a gentle simmer to a vigorous boil. It is recommended that to achieve optimum performance the bath should be covered with a lid or layer of polypropylene spheres. Covering the bath with a lid also reduces energy consumption and running costs.

2 year warranty as standard and we also offer free advice and support for our baths.

Stainless steel round boiling baths. 1026ER regulates from a gentle simmer to a vigorous boil, whereas the 1026E continuously boils. Both fitted with a sheathed immersion heater and constant water level device, with resettable thermal cut out for low water level condition. Supplied with a set of rings to vary the aperture diameter accommodating different sizes of vessels such as evaporating dishes, glassware and round bottom flasks heated by steam.

The steam produced provides an effective source of heat for samples:

• That may be otherwise thermally damaged by a naked flame.
• Used for applications to distil/concentrate liquids, melt agar and other solids.
• Metallurgical analysis, protein analysis and bacteriological examinations.

Technical Specifications

Concentric Rings By removing concentric rings, the hole sizes can be varied to accommodate different sizes of vessels. Center ring - removed, aperture 30mm diameter hole  Ring 1 - removed, aperture 42mm diameter hole Ring 2 - removed, aperture 58mm diameter hole Ring 3 - removed, aperture 78mm hole Ring 4 - removed, aperture 103mm hole Ring 5 - removed, aperture 128mm hole Ring 6 - removed, aperture 153mm hole

Features and Benefits

Clifton sonicating water baths are designed with high power piezoelectric transducers ensuring maximum ultrasonic power throughout working area	Easy to clean tank
Supplied with comprehensive operating instructions and two year warranty.	Concealed heater and temperature sensors.
Each bath is uniquely identified with its own serial number recorded on our product database. Electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.	A 304 spec stainless steel tank gives good resistance to many substances and a clean appearance throughout its working life.

Heating Information

1026ER
This model regulates water from gentle simmer to vigorous boil. Always place the boiling bath on a heat proof surface. Heater indication lamp.

1026E
The bath provides constant boiling water for gentle heating of samples by steam. Always place the boiling bath on a heat proof surface. Power on indicator.

Rectangular multi place boiling baths for laboratory use with aluminium or stainless steel tanks and concentric ring lids for flexible vessel access.

• E models provide constant boiling at 100°C for gentle heating by steam.
• ER models include an energy regulator so you can adjust from gentle simmer to vigorous boil.
• Integral constant level device helps maintain stable water level during operation.
• Supplied with operating instructions and a two year warranty.

The Julabo calibration baths are precision temperature baths designed for calibration of sensors, measuring instruments and thermometers. Available in several models, they provide stable, uniform temperature control ideal for calibration tasks, QA/QC, and laboratory reference work.

Each bath features a stainless steel bath tank, reliable heating/cooling system (depending on model), and precise temperature regulation suitable for calibration applications. Models differ by bath volume and performance to suit different calibration needs.

The JULABO calibration baths are perfectly suitable for applications in calibration laboratories and conform to the requirements specified by DIN ISO 9001. The instruments provide highest temperature stability to ±0.005 °C and temperature uniformity better than ±0.01 °C.

The series include models with cooling units for working temperature ranges from -30 to +200 °C as well as calibration baths for temperature ranges from +50 to +300 °C. Reference temperature measurements can be carried out with an additional precision reference sensor. This saves additional costs of a digital thermometer.


Specifications

JULABO calibration baths are ideal for high precision calibration of sensors, measuring instruments, thermometers, etc. The instruments are certified for application in DKD laboratories and according to the requirements specified by DIN EN ISO 9001:2000.

The calibration baths in this category feature an integrated refrigeration unit and are suitable for calibration applications to -30 °C. The bath cover with openings and Viton® sleeves is already included in delivery for all models.
