Workstation for gynaecology

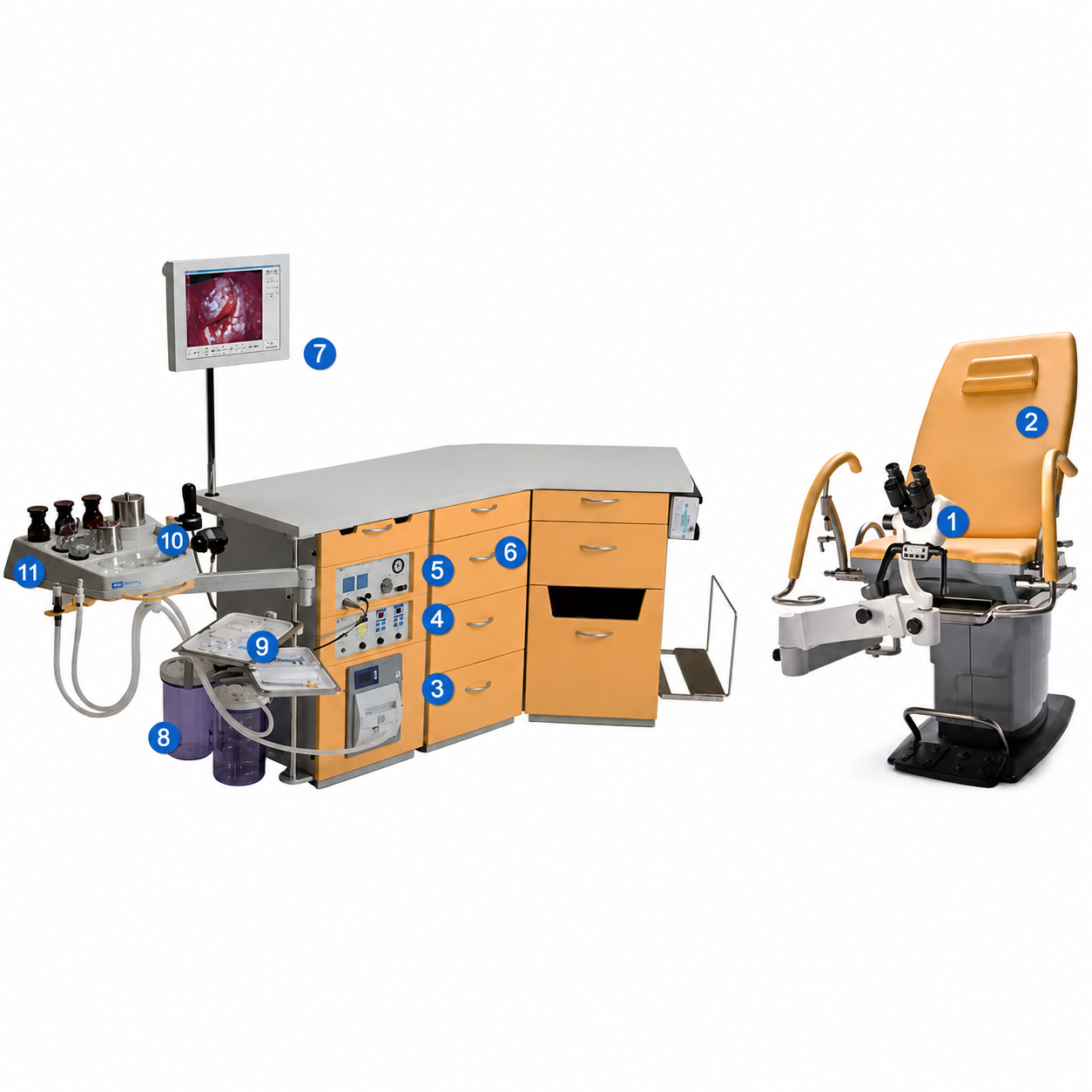

ATMOS S 41 Gyne Gynaecological Workstation
The ATMOS S 41 Gyne is a modular gynaecological workstation designed to create a more organised, ergonomic and efficient clinical environment for physicians. Developed around ATMOS’s unique workstation concept, the S 41 Gyne centralises the essential diagnostic, visualisation, suction, surgical and instrument management functions required for modern gynaecological practice.
By integrating multiple devices into one compact workstation, the ATMOS S 41 Gyne helps improve clinical workflow, reduce unnecessary movement between rooms and support a more streamlined “see and treat” approach. Diagnostic and therapeutic procedures can be performed directly at one workstation, making it suitable for private gynaecology clinics, outpatient departments, hospitals, women’s health centres and specialist procedure rooms.
Product Overview
| Product | Details |
|---|---|
| Model | ATMOS S 41 Gyne |
| Product Type | Modular gynaecological workstation |
| Main Use | Diagnosis, treatment, visualisation, documentation and instrument management |
| Clinical Area | Gynaecology, women’s health, outpatient procedures and hospital use |
| Design | Compact, ergonomic and modular workstation concept |
| Configuration | Individually configurable with optional modules |
| Mobility | Mobile basic module available |
| Workstation Concept | Centralises diagnostic and therapeutic devices in one workspace |
Key Benefits
• Optimised workflow for gynaecological diagnosis and treatment
• Compact design for efficient use of clinical space
• Ergonomic layout to support comfortable working conditions
• Modular configuration to match individual clinical requirements
• Flexible retrofitting options for future upgrades
• Mobile basic module option for improved flexibility
• Supports a “see and treat” clinical approach
• Helps reduce the need for separate equipment in another room
• Suitable for outpatient clinics, hospitals and specialist gynaecology departments
• Designed to integrate visualisation, suction, radiofrequency surgery, smoke evacuation and instrument management
Clinical Applications
| Application | Use |
|---|---|
| Colposcopy | Visual examination of the cervix, vagina and vulva |
| Biopsy | Tissue sampling during diagnostic procedures |
| Electrosurgical Conization | Treatment of cervical lesions using electrosurgical technology |
| Conization of Large Lesions | Removal of larger abnormal cervical tissue areas |
| Diagnostic Hysteroscopy | Visual assessment of the uterine cavity |
| Removal of Polyps | Outpatient or procedural removal of uterine or cervical polyps |
| Curettage | Uterine tissue removal or sampling procedure |
| Termination of Pregnancy | Procedure support where clinically appropriate and legally permitted |
| Ultrasound Examination | Can support ultrasound examinations, including abdominal ultrasound when used with a chair that moves into a horizontal position |
Integrated Technology Options
The ATMOS S 41 Gyne can be configured with a wide range of diagnostic and therapeutic technologies depending on the clinical requirements of the practice or hospital department.
| Technology / Module | Purpose |
|---|---|
| Analogue Visualisation | Supports visual examination and display |
| Digital Imaging Documentation | Enables image capture, documentation and archiving workflow |
| LED Illumination | Provides bright and efficient examination lighting |
| Colposcope Integration | Supports cervical and gynaecological visual examination |
| Hysteroscopy Support | Helps integrate hysteroscopy workflow within the workstation |
| Radiofrequency Surgery | Supports electrosurgical procedures such as conization |
| Smoke Evacuation | Removes surgical smoke during electrosurgical procedures |
| Suction Device | Supports secretion suction and curettage-related suction requirements |
| Instrument Deposit | Provides organised placement of instruments during procedures |
| Heated Drawers | Keeps instruments or materials warmed where required |
| Wet Instrument Storage | Supports safe temporary storage of used instruments |
| Monitor / Visualisation Support | Allows integration of screens for imaging and documentation |
Workstation Configuration
| Configuration Feature | Details |
|---|---|
| Basic Module | Available as a mobile workstation base |
| Tower Configuration | Can be configured in different tower arrangements |
| Double-Tower Workstation | Available for expanded storage and module integration |
| Modular Setup | Allows individual selection of modules based on clinical workflow |
| Retrofitting | Additional modules and options can be added later |
| Countertop | Standard countertop available per tower |
| Drawer System | Multiple drawer options available, including heated and unheated drawers |
| Instrument Management | Supports organised storage and access to instruments |
| Function Support | Can support additional trays, swivel units and accessories |
Technical and Storage Details
| Specification | Details |
|---|---|
| Double-Tower Dimensions | Approx. 490 × 972 × 780 mm, D × W × H |
| Small Drawer Internal Dimensions | Approx. 372 × 289 × 37.5 mm, D × W × H |
| Standard Unheated Drawer Internal Dimensions | Approx. 372 × 289 × H mm, D × W × H |
| Heated Drawer Internal Dimensions | Approx. 380 × 300 × H mm, D × W × H |
| Heated Drawer Temperature | Approx. 37°C |
| Drawer Front Plate Options | Different drawer heights available depending on configuration |
| Mobility Option | Available for double-tower workstation |
| Colour Options | Available in selected standard colours depending on configuration |
Workflow Advantages
| Workflow Need | How ATMOS S 41 Gyne Supports It |
|---|---|
| Faster Patient Flow | Keeps key devices and instruments within one workstation area |
| Less Room-to-Room Movement | Allows many diagnostic and treatment procedures to be performed in one location |
| Improved Organisation | Modular drawers, trays and instrument deposits support cleaner workflow |
| Better Ergonomics | Workstation layout helps position equipment close to the physician |
| Future Flexibility | Modular design allows upgrades and retrofitting as clinical needs change |
| Procedure Support | Can integrate suction, visualisation, lighting, smoke evacuation and electrosurgery |
| Hospital Suitability | Can be used in outpatient departments, treatment rooms and hospital gynaecology units |
ATMOS S 41 Gyne Highlights
• Optimised clinical workflow
• Compact workstation design
• Ergonomic working environment
• Modular concept for individual configuration
• Flexible retrofitting with additional options
• Mobile basic module available
• Integration of diagnostic and therapeutic equipment
• Supports visualisation and documentation
• Supports radiofrequency surgery and smoke evacuation
• Supports suction for secretion and curettage applications
• Optional heated drawers and instrument management solutions
• Suitable for both clinic and hospital environments
Why Choose the ATMOS S 41 Gyne?
The ATMOS S 41 Gyne is ideal for healthcare providers who want to improve efficiency, reduce clutter and centralise gynaecological examination and treatment functions in one professional workstation. Instead of separating colposcopy, suction, electrosurgery, visualisation, documentation and instrument handling across different areas, the S 41 Gyne brings these functions together in a compact and ergonomic system.
Its modular design allows the workstation to be tailored to the needs of the clinic. A smaller setup can be selected for routine outpatient gynaecology, while more advanced configurations can include additional storage, visualisation, documentation, LED lighting, smoke evacuation, suction and radiofrequency surgery modules.
The ATMOS S 41 Gyne is particularly suitable for clinics and hospitals that want a complete, organised and future-ready gynaecological workstation.
Suitable For
• Gynaecology clinics
• Women’s health centres
• Fertility and IVF clinics
• Hospital outpatient departments
• Colposcopy clinics
• Procedure rooms
• Day surgery units
• Specialist diagnostic centres
• Private medical practices
Ordering Information
Available configurations may vary depending on the selected modules, workstation layout and clinical requirements. Please contact Nass Ventures for pricing, configuration advice, delivery, installation and after-sales support.
Important: Some features and modules may be optional and configuration-dependent. Please confirm the required clinical applications, workstation layout, suction requirements, visualisation options, electrosurgical needs and storage configuration before ordering.

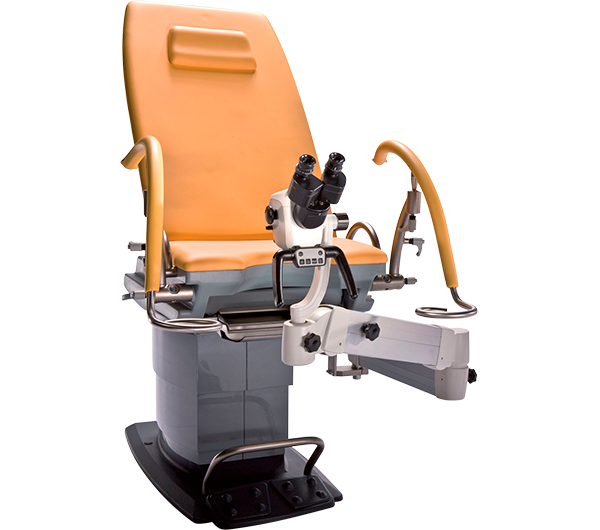

ATMOS Chair 41 Gyne is a premium electromechanical gynaecological examination chair designed to function as an examination chair, treatment couch and colposcope-holder workspace in one compact unit.
Key features:
- Premium gynaecological chair and examination couch configuration
- Electromechanical height adjustment from 570 to 900 mm
- Trendelenburg position up to 25°
- Examination seat tilt up to 10°
- Low patient entry position at 540 mm
- Three programmable working positions with automatic return to home position
- Integrated paper-roll holder in the backrest
- Removable foot switch
- Removable seat and backrest cushions
- Integrated electrical socket
- Power supply: 230 V, 50/60 Hz, 3 A
- Protection class I
- Maximum chair load: 200 kg
Applications:
- Gynaecological consultation and examination
- Colposcopy support
- Minor outpatient procedures
- Treatment room and clinic workflow optimisation
- Modular gynaecology workstation setups
Ordering Information:
Please contact Nass Ventures for quotation, availability, compatible accessories, installation requirements and delivery options.
