A.KRÜSS Optronic Density Meter DS7800 SET 5
In close cooperation with industry and science, we have de veloped digital density meters with U-tube oscillators that best meet the requirements in terms of accuracy, speed, required sample volume and ease of integration into the manufacturing process. They have stood the test for many years in numerous companies for quality control in the laboratory as well as at the production line.
Our DS7000 density meters are available in two versions -DS7700 and DS7800. Their only difference lies in the measuring accuracy; all other characteristics are identical. The devices are very robust, compact and yet precise and suitable for nearly all liquids, emulsions, pastes etc. thanks to the chemical-resistant parts made of borosilicate glass and PTFE that are in contact with the sample.
The samples are supplied manually via syringe, semi-automatically via peristaltic pump or fully automatically via autosampler. Highly viscous samples are usually supplied with a syringe; low-viscous to slightly viscous samples can also be supplied with a peristaltic pump or an autosampler. We provide suitable density meter sets for any working method and any type of sample that include all the required accessories from tube sets to nozzles and adaptors to splash guards for the manual supply of aggressive substances.
Once the measurement has started, the measuring chamber and the sample will be maintained at the right temperature and the display will quickly show the measured values on the selected scales. Whether it is the density, the relative density, Brix, the concentration of alcohol or sulphuric acid or other user-configured scales - the possibilities are almost unlimited.
The user can also choose between two measurement methods: the measurement with a manual measurement time input and an optimised measurement time thanks to automatic stability recognition. Our devices will always require a sample volume of less than 1 ml. The U-tube oscillator is cleaned by rinsing it with the appropriate medium supplied with a syringe or peristaltic pump. Just one keystroke is needed to have the drying unit eliminate all liquid residues. The drying unit DS7060 with its 3/2-way valve allows for a fully automatic drying.
Our density meters feature a self-explanatory, well-arranged user interface, which makes it easy even for non-expert personnel to operate the device. A state-of-the-art TFT display ensures a clear, bright rep resentation of all the information. The integrated touch-screen tops off the convenient user experience.
Advantages:
- Suitable sets for all applications
- Intuitive operation via touch-screen display
- Optional user administration with two authorisations
- Easy, menu-driven adjustment
- Freely assignable shortcut keys
- Any number of freely configurable methods
- Predefined scales (density, relative density, Brix, concentration of alcohol and sulphuric acid)
- Any number of freely definable scales with conversions based on tables or formulas
- Requires only a small sample volume
- Measurements of highly viscous or very problematic samples
- Sample supply via syringe, peristaltic pump or autosampler
- Efficient Peltier temperature control
- Manual measurement time input or optimised measurement time thanks to automatic stability recognition
- Multiple measurements with averaging
- Compact, robust cast aluminium housing
- Chemical-resistant materials
- Interfaces for the convenient transfer of measured values
- Extensive connections for peripheral equipment
- Compliance with GMP/GLP, 21 CFR Part 11 etc.
FLEXIBLE DATA EXPORT
- Print-out on serial ASCII printer
- Print-out on network printer in PDF or GS format
- Print-out as PDF on USB flash drive or to network share
- Export in HTML or CSV format on USB flash drive or to network share
- Can be connected to a keyboard, mouse, barcode scanner or external PC in order to use the KrüssLab software
- Easy integration into existing networks (DHCP Client) or a LIMS
COMPLETE DOCUMENTATION OF MEASURED VALUES
- Complete recording of all measured data as well as system and method settings in a tamper-proof data storage
- Documentation of all measured values of the last 999 measurements with consecutive numbering
INTELLIGENT USER ADMINISTRATION
- Can be activated or deactivated depending on the requirements
- Two authorisation levels
- Optional setup of user profiles
- Customised settings for different users or work groups
COMPLIANCE WITH GLOBAL STANDARDS
- GMP/GLP
- 21 CFR Part 11
- Pharmacopoeias (USP, BP, JP, Ph. Eur.)
- FDA, ISO, HACCP, OIML, ASTM, ICUMSA, NIST
INTUITIVE OPERATION
- State-of-the-art touch-screen display
- Secondary scale for displaying a second measured value
- Freely assignable shortcut keys for the most important functions
- Easy, menu-driven adjustment
- A selection of six languages (de, en, es, fr, it, pt)
FAST, RELIABLE MEASUREMENT
- Drying unit with regenerable silica gel for a highprecision adjustment
- Efficient Peltier temperature control
- Measurement with manual measurement time input or optimised measurement time thanks to automatic stability recognition
- Preview of measured values updated every second
DENSITY METER SOLUTIONS FOR ANY NEED
- DS7800 with an accuracy of ±0.0001 g/cm³
- Set 1 for manual sample supply
- Set 2 for manual sample supply, also of aggressive samples
- Set 3 for semi-automatic sample supply
- Set 4 for fully automatic sample supply
- Set 5 for fully automatic sample supply, also of aggressive samples

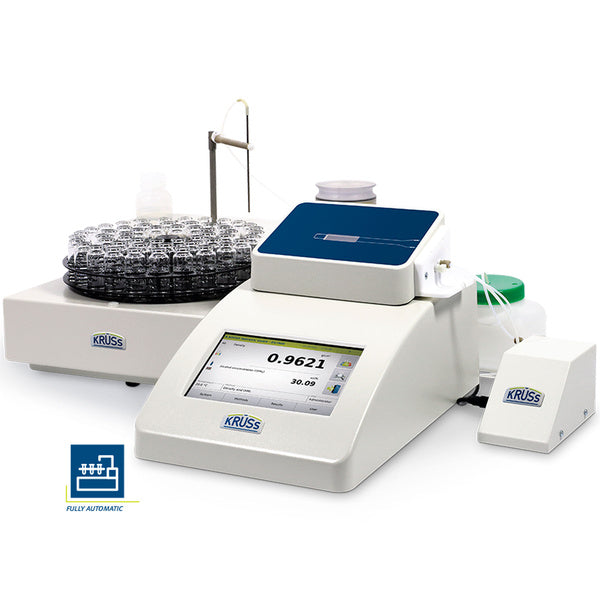

Density Meter DS7800 SET 5 for fully-automatic sample supply, consisting of:
- DS7800 Density meter with glass U-tube oscillator, accuracy ±0.0001 g/cm³
- DS7060 Drying unit with 3/2-way valve
- DS7070 Peristaltic pump
- AS80 or AS90 Autosampler for 18 or 36 samples, including: sample plate 18x 50 ml (42 mm x 43 mm) or 36x 35 ml (28 mm x 65 mm) set polypropylene vials (50 ml) or glass vials (35 ml); other vials on request PTFE connecting tube or Autosampler for 53 or 89 samples, including: sample plate 53x 16 ml (22 mm x 55 mm) or 89x 6 ml (16 mm x 55 mm) set polypropylene vials (16 or 6 ml); other vials on request PTFE connecting tube
- DS7004 PTFE tube set for use with drying unit DS7060, consisting of: suction tube (280 mm); drain tube (400 mm); connecting tube (340 mm); waste tube (280 mm); PEEK hollow screw, flanged and mounted, 6 pieces
- DS7071 Tube set for peristaltic pump DS7070, consisting of: TPE pump tube (105 mm), 5 pieces; PTFE tube connection UNF, 2 pieces
- DS7023 Adaptor Luer/UNFa for the sample supply with syringe via UNF nozzle
- DS7006 UNF nozzle, 2 pieces
- DS7009 Luer syringe, 2 ml, 10 pieces
- DS7010 Luer syringe, 10 ml, 10 pieces
- DS7019 PE waste container with lid, 600 ml
DS7800 SET 5 for fully-automatic sample supply:
- Sample supply possible via Syringe, peristaltic pump, Autosampler
- Recommended for high sample volume, low-viscous to slightly viscous samples and aggressive samples
- Advantages: Tube sets suitable for any kind of sample, fully-automatic sample supply and cleaning, fully-automatic drying (no interchange of tubes required)
- Drying unit DS7060 with 3/2-way valve
- Persistaltic pump: DS7070
- Autosampler: AS80 or AS90, each with 1 of 2 types of sample plates and suitable polypropylene or glass vials
- Tube sets for sample supply and discharges DS7004 large PTFE tube set
