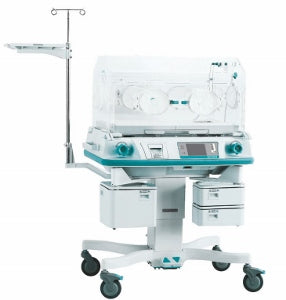

DIXION BabyGuard I-1120 Infant Incubator
Share
Overview
Infant incubator BabyGuard 1-1120 for intensive care is air-temp, skin-temp, air humidity and oxygen concentration servo-controlled by a micro-computer. Its graphic display represents all trends, which allows the doctor to make ‘at-a-glance’ assessment of the environment inside the incubator. The infant incubator is equipped with a special air circulation system inside the apparatus which minimizes the flow in the hood environment. The automatic curtain reduces the heat loss. The double-walled hood conserves the heat for 2 hours.
Applications
• Neonatology departments
• NICU and newborn intensive care areas
• Maternity and paediatric clinical settings
Key Features
• Air temperature and skin temperature servo-control
• Air humidity servo-control
• Oxygen concentration servo-control (optional)
• Double-walled hood
• Basic stand on wheels and with brakes
• Built-in weigh scales (optional)
• 3 drawers for belongings and shelves for additional equipment
• IV stand
• Side windows of the chamber are equipped with transparent leaves and flexible sleeves.
• Front access window with iris diaphragm
• Smooth bassinet adjustment
• X-ray film cassette
• Electronic control
• Film control keyboard
• Large LCD display reflects real skin and air temperature, set air temperature, heating, graphic trends (up to 48 hours)
• 9-alarm option
• RS-232 interface for distance control
• Vertical height adjustment stand
Technical Specifications
Air temperature control range: 25 – 37 °C (temperature override mode to 37 – 39 °C)
Skin temperature control range: 34 – 37 °C (temperature override mode to 37 – 38 °C)
Temperature rise time: 40 min
Humidity control range: 0 – 90 %
Water container capacity: 1.2 l
1 container hour of service: up to 12 hours
Oxygen concentration measuring range: 0 – 99 %
Oxygen concentration control range: 20 – 60 %
Inclination of the bassinet: ± 8°
Air movement rate (inside the hood): < 0.2 m/s
Noise level (inside the hood): ≤ 45 dB
Alarms: Power failure Airflow failure Air temperature sensor failure Skin temperature sensor failure Temperature sensor deviation High temperature sensor failure High or low skin temperature High or low humidity level High or low oxygen concentration level
Power supply: 220 – 230 V, 50 – 60 Hz
Dimension: 1110mm×710mm×888mm (Main body) 1029mm×697mm×826mm (Cabinet)
Gross Weight: 70kg (Main Body) 80kg (Cabinet)
Ordering Information
• Please confirm the required model, quantity, delivery location and clinical department before ordering.
• Confirm accessories, optional configurations, installation requirements and local regulatory requirements before purchase.
• For hospital projects, Nass Ventures can support sourcing, procurement and equipment planning depending on the final configuration.
