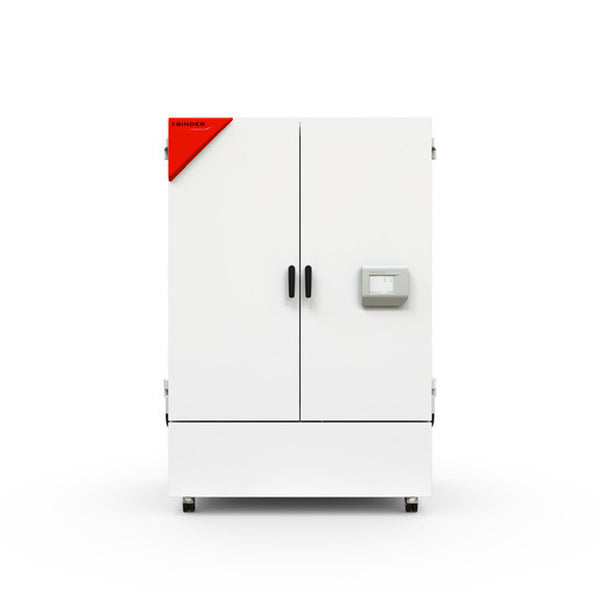

BINDER cooling incubator KB PRO 720-230V
The versatile cooling and incubation applications in laboratories place high demands on precision, stability and reliability. This is precisely where the BINDER KB PRO 720-230V cooling incubator comes in. With its wide temperature range of -20 °C to +100 °C, it is not only suitable for classic incubation processes, but also for demanding long-term investigations in research and development. The robust design, intelligent temperature controller and efficient cooling technology ensure that it is repeatedly chosen as the preferred solution over comparable models.
Innovative temperature and cooling technology
The incubator works with an advanced inverter refrigeration unit that ensures homogeneous temperature distribution across the entire interior volume. The APT.line preheating chamber technology ensures precise and fast temperature control so that a short recovery time of around four minutes at 37 °C is achieved even if the door is opened frequently. In addition, the climate-neutral refrigerant R-290 is used, which reduces the environmental impact and at the same time enables energy-efficient cooling.
- Temperature range from -20 °C to +100 °C
- Time deviation only ±0.1 K at 37 °C
- Climate-neutral refrigerant R-290 for environmentally friendly operation
- Optimised heat distribution thanks to APT.line preheating chamber technology
- Short recovery times when doors are opened for stable continuous operation
- Stainless steel inner chamber for easy cleaning and durability
- Energy-efficient inverter cooling technology
The housing with HIT sandwich technology contributes to stability. At the same time, robust double castors (with brakes at the front) keep the appliance mobile and make everyday laboratory work easier if appliances need to be repositioned. Thanks to a door heater, condensation is effectively prevented, which is essential at low temperatures.
Operator convenience and important equipment features
A central operating element is the intuitive touchscreen panel, which can be used to set and programme all the main parameters, while ergonomic installation provides a clear view of important values and facilitates intervention during operation. An illuminated signal triangle indicates the current status at all times so that operating states can be recognised at a glance.
Important technical details are as follows:
- Nominal voltage: 208-240 V, 50-60 Hz
- Nominal power: 1.7 kW
- Interior volume: 727 litres
- Max. Load per drawer: 40 kg
- Sound pressure level: 50 dB(A) at 25 °C
- Energy consumption at 37 °C: 330 Wh-h
In addition, great importance was attached to high-quality and flexible interior fittings. Two slide-in grids in telescopic rails are included as standard, and up to 16 slide-in racks can be used. A metal oxide-coated safety glass in the interior doors protects the contents from environmental influences while keeping everything in view.
Certifications and standards
The cooling incubator fulfils temperature selector class 3.3 in accordance with DIN 12880, which is an essential basis for safe use in many laboratories. A visual and audible alarm reacts immediately to deviations, which is essential when making critical sample decisions.
Concrete application scenarios
- Microbiological laboratory tests: Ideal for sustainable germ and cell cultures that need to grow or be incubated at constant low temperatures.
- Long-term stability tests: Sensitive samples in pharmaceutical research require precisely stable conditions. Fine adjustment of the temperature ensures a reproducible environment.
- Photostability tests: The light stability of active ingredients or cosmetics can be analysed directly using optional ICH light modules.
- Plant growth: The optional LED lighting and CO2 fumigation allow plants to be cultivated under controlled conditions - for example when analysing seed quality or breeding lines.
Frequently asked questions
How often should regular maintenance take place?
Most laboratories carry out maintenance once a year to ensure long-term precision and reliability.
Is it possible to retrofit a CO2 module?
Yes, an optional CO2 gassing module is available, which can be designed for different CO2 concentrations and is also suitable for cell culture projects.
How do you recommend cleaning the interior?
The robust stainless steel inner chamber can be easily wiped out with mild disinfectant solutions. If necessary, the slide-in grid with telescopic rails can be removed and cleaned separately.
Can the temperature be finely controlled for sensitive samples?
With the comprehensive touchscreen programme controller and time segment or real-time programming, very precise temperature settings and ramp runs can be achieved.
Conclusion
This cooling and incubator oven fulfils all the essential requirements of modern research laboratories and production facilities that need reliable and reproducible temperature conditions. It is characterised by high temperature accuracy, short recovery times, flexible options for light and CO2 requirements and simple operation. The incubator therefore offers a durable and future-proof solution for demanding applications in pharmaceutical, biological and industrial environments.
| Load max.: | 51 - 100 kg |
| Width outside (incubators,...): | 1285 mm |
| Width inside (incubators,...): | 1011 mm |
| Maximum temperature (heat): | + 100 °C |
| Height outside (incubators,...): | 1951 mm |
| Height inside (incubators,...): | 1250 mm |
| Incubator model: | incubatorcooling incubator |
| Interior volume: | 701 - 800 l |
| Maximum power: | 1,7 kW |
| Cabinet type: | incubatorCooled incubatorgrowth chamber |
| Safety standard: | DIN 12880 |
| Depth outside (incubators,...): | 900 mm |
| Depth inside (incubators,...): | 575 mm |
| Lowest temperature (cooling): | - 20 °C |
| Shipping weight: | 296,00 Kg |
| Product weight: | 296,00 Kg |
| Dimensions: | × × cm |
