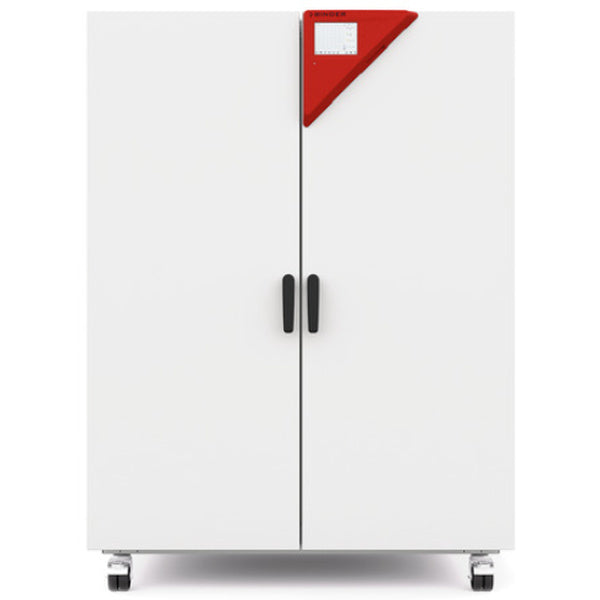

BINDER M 720-400V drying and heating oven

BINDER drying and heating oven M 720-400V

This innovative drying and heating oven is designed for precise temperature control and reliable performance. In the field of industrial material testing and ageing tests, the unit sets standards by offering users maximum temperature accuracy and a powerful air flow rate. Compared to conventional heating ovens, it scores particularly highly with its APT.line? technology and intuitive touchscreen controller, which enables efficient and versatile programming.

Performance profile and special features

Thanks to its extended functions, this heating oven is ideally suited to the high demands of research and development, test laboratories and production monitoring. With a maximum temperature of up to 300 °C, the system allows a wide range of different tests and inspections that require a constant temperature. The combination of high-precision control and increased air circulation ensures uniform conditions in the interior.

- Temperature range: +14 °C above ambient temperature up to 300 °C
- Powerful fan with adjustable speed for rapid heating
- APT.line? technology for high temperature accuracy
- Intuitive touchscreen controller with real-time and time segment programmes
- USB interface for reading out all measured values in open format
- Robust design with a maximum total load of 315 kg
- Certification in accordance with DIN 12880 (temperature selector limiter class 2 and temperature selector monitor class 3.1)

The APT.line? technology ensures that the air is evenly distributed in the interior and thus exact temperatures are also present in the peripheral areas. This leads to reproducible results even in demanding applications. Another advantage is the integrated failsafe function, which monitors operation at all times via an additional Pt-100 sensor. The built-in data logger saves the measured values, making it easy to carry out extensive analyses.

The Ethernet interface enables seamless integration into almost any laboratory network environment. This facilitates the automatic recording of temperature curves and remote monitoring. The housing design with a width of 1160 mm, a height of 1590 mm and a depth of 816 mm ensures a generous interior volume of 735 litres with a space-saving footprint. Opening and loading-unloading is also made easy with two external doors.

Certificates and standards

Valid standards and certifications are essential for many laboratory and production processes. This model works with a class 2 temperature selector limiter and a class 3.1 temperature selector monitor in accordance with DIN 12880, ensuring that the safety of users and samples takes centre stage, even at very high temperatures.

Examples of use

1. Ageing tests for plastics: For investigating long-term stability at high temperatures.
2. Drying of sensitive components: Particularly suitable for sensitive electronic components, as the temperature deviation is very low.
3. Curing of adhesives and coatings: The programmable temperature ramp ensures reproducible results.
4. Material testing in metal processing: Perfect for heat treatments and simulation of high-temperature influences.

These examples illustrate the wide range of applications for the oven in the field of industrial research and development. Whether curing heat-resistant epoxy resins or expelling residual moisture - with a temperature deviation over time of just ±0.6 K at 150 °C and a high air exchange rate of up to 40 times per hour at 100 °C, the appliance works particularly reliably.

FAQs

What is the maximum load per rack?

The maximum load capacity per shelf is 45 kg. The entire system can hold up to 315 kg.

Can the device record and export data?

Yes, the internal data logger allows measured values to be recorded and read out via the USB port in open format, which enables easy post-processing.

Are the doors thermally insulated?

The housing, including the doors, is efficiently insulated so that the operating temperature is kept constant and energy losses are minimised. This enables economical operation even at high temperatures.

Which standards does the system cover?

The appliance has a temperature selection limiter and temperature selection monitor in accordance with DIN 12880. This standard guarantees maximum operational safety and ensures compliance with strict quality standards.

Is a network connection possible?

The device can be integrated into a laboratory network via the Ethernet interface, which supports functions such as remote monitoring and automatic data acquisition.

Conclusion

Thanks to its high precision, robust design and wide range of programming options, this oven is ideal for demanding testing and drying tasks. Even at high temperatures, the interior climate remains stable, guaranteeing reliable and reproducible results. The DIN-12880 conformity and the integrated safety functions significantly increase operational safety. Anyone looking for a powerful and flexible drying and heating oven will find this model to be an excellent solution for the laboratory or industrial production.
