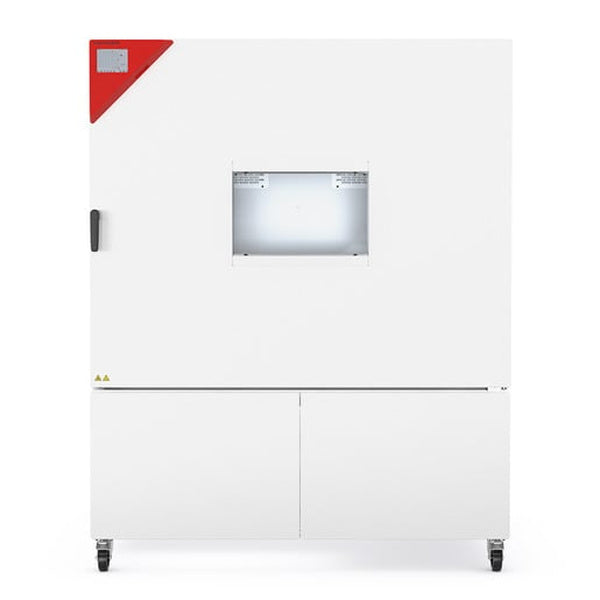

BINDER MK 1020 mobile climate chamber
Introduction
The BINDER MK 1020 dynamic climate chamber is specially designed for precise and rapid temperature changes in order to carry out demanding tests in various industrial sectors. With its large internal volume of 991 litres and a temperature-stable range of -40 °C to +180 °C, this unit offers greater flexibility, optimised performance values and high reliability compared to similar solutions on the market. Users benefit from intuitive controls, excellent temperature characteristics and a long service life, making the oven a key testing and inspection tool in laboratories, development departments and quality control centres.
Detailed properties and special features
This climate chamber enables an even temperature distribution throughout the entire interior thanks to the patented APT.line preheating chamber technology. At the same time, the compression-cooled cabinet can be brought down to an impressive -40 °C or heated up to +180 °C, with sophisticated control functions and precise sensor technology ensuring reproducible temperature profiles. The integrated ramp function also allows flexibly programmable temperature profiles, meaning that the climate chamber offers ideal conditions for cyclical stress tests.
Thanks to the touchscreen controller supplied, users can create and save detailed programmes with time interval and real-time control. The extensive range of features includes:
- Intuitive operating concept with touchscreen and real-time clock
- Programmable condensation protection to effectively protect samples
- Integrated data logger for export via USB
- Heated viewing window with LED interior lighting
- Ethernet interface for convenient communication
- Sturdy stainless steel inner housing and energy-efficient refrigerant R-452A
- Castors (two with parking brake) for easy mobility
Further important performance features can be found in the technical data: The average heating rate (IEC 60068-3-5) is around 5.5 K/min, while the average cooling rate is achieved at 5.0 K/min. Users must allow approximately 120 minutes for cooling from 180 °C to -40 °C. With a maximum total load of 200 kg and 40 kg per rack, this model is robust enough for extensive test series. In addition, up to 11 racks can be integrated so that several samples can be tested in parallel under identical conditions.
The sophisticated design features include a large heated viewing window that allows direct observation of the test specimens. In combination with the LED interior light, checks can also be carried out during operation. The standard fault diagnosis system with visual and acoustic alarm provides immediate feedback in the event of deviations from the temperature setpoint or other faults in order to protect test setups and samples. The device therefore increases process reliability and ensures consistent results.
Certifications and standards
The oven is equipped with a temperature selector limiter in accordance with class 2 (DIN 12880), which also ensures safe working conditions. A solid yet energy-efficient design ensures that all relevant EU standards and occupational safety guidelines are met. The integrated safety features make this mobile climate chamber suitable for professional use in laboratories, research centres and industrial facilities.
Application examples
- Electronic tests: PCBs and electronic components can be tested under various thermal loads to check solder joints, components and overall designs.
- Material testing: Plastics, metals or composite materials can be tested for their heat resistance and stability. This is particularly relevant in automotive and aircraft construction.
- Pharmaceutical research: For testing the stability of active ingredients and medicines across different temperature ranges.
- Food technology: shelf life testing and quality assurance for sensitive products in changing temperature environments
FAQ
How accurate is the temperature control?
The controller works very precisely, with a temporal deviation of between 0.1 and 0.5 K and a spatial deviation of between 0.1 and 1.8 K (depending on the setpoint).
What is the ramp function useful for?
The integrated ramp function allows the programmed control of certain temperatures over defined time intervals, so that complex test sequences and cyclical tests can be carried out automatically.
Is data documentation possible?
Yes, the chamber has an internal data logger and enables simple analysis via USB. In addition, the BINDER Multi Management Software (APT-COM Basic Edition) can be used for comprehensive documentation.
Can samples be monitored during operation?
Thanks to the large heated viewing window and LED interior lighting, samples can be tested even under extreme conditions without having to open the door.
What power supply is required
Variants with 400 V (3~/N/PE, 50 Hz) or 480 V (3~, 60 Hz) are available. The rated power is 11.5 kW in each case, with an appliance fuse rating of 32 A.
Conclusion
This oven combines high precision, reliable cooling and heating technology and flexible programme control in a robust stainless steel housing. In addition to the patented APT.line preheating chamber, which ensures a constant temperature, the heated viewing window, clear touchscreen operation and powerful compressor are impressive features. With its large internal volume, wide temperature range and extensive safety functions, test quality is increased while downtimes can be minimised. This makes the model an ideal solution for a wide range of temperature cycling and climate testing in industries such as the automotive industry, medical technology, food technology and pharmaceutical research.
| Load max.: | 151 - 200 kg |
| Width outside (incubators,...): | 1580 mm |
| Width inside (incubators,...): | 1200 mm |
| Maximum temperature (heat): | + 180 °C |
| Height outside (incubators,...): | 2005 mm |
| Height inside (incubators,...): | 1020 mm |
| Interior volume: | 901 - 1000 l |
| Maximum power: | 11,5 kW |
| Cabinet type: | climate chamberdynamic climate chamber |
| Safety standard: | DIN 12880 |
| Depth outside (incubators,...): | 1480 mm |
| Depth inside (incubators,...): | 810 mm |
| Lowest temperature (cooling): | - 40 °C |
| Shipping weight: | 621,00 Kg |
| Product weight: | 621,00 Kg |
| Dimensions: | × × cm |
