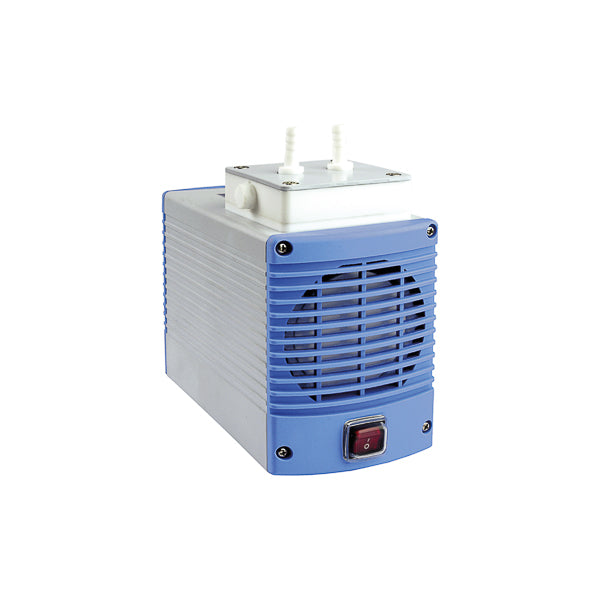

Labbox LBX R Chemically Resistant Vacuum Pump
Oil-free, chemically resistant laboratory vacuum pumps with PTFE wetted parts, 18 l/min flow and a choice of R10 or R20 models.
The LBX R series provides oil-free vacuum for compatible laboratory filtration, solid-phase extraction and gel-related workflows. PTFE wetted parts provide chemical resistance, subject to compatibility with the actual gases, vapours and process.
Key features
PTFE wetted parts
All wetted parts are specified as PTFE for chemical resistance.
Oil-free operation
No lubricating oil is required; carry out the routine checks and maintenance specified in the manual.
Two vacuum levels
R10 and R20 share an 18 l/min atmospheric flow rating but provide different vacuum levels and power ratings.
Thermal protection
Overheating protection is incorporated. The manufacturer lists a 50 dB noise level and 1450 rpm motor speed.
Technical specifications
| Brand / range | LBX instruments |
|---|---|
| Flow rate at atmospheric pressure | 18 l/min, both models |
| Wetted parts | PTFE |
| Lubricating oil | Not required |
| Mains supply | 220 V / 50 Hz; confirm unit rating and plug |
| Motor speed | 1450 rpm |
| Noise level | 50 dB, manufacturer specification; test conditions not stated |
| Thermal protection | Included |
| R10 maximum vacuum | 99 mbar absolute / 685 mmHg relative, catalogue specification; confirm required performance |
| R10 maximum power | 60 W |
| R10 dimensions, L × W × H | 200 × 110 × 210 mm |
| R20 maximum vacuum | 10 mbar absolute / 752 mmHg relative, catalogue specification; confirm required performance |
| R20 maximum power | 90 W |
| R20 dimensions, L × W × H | 260 × 150 × 180 mm |
| Hose connection | Ø8 mm, both models |
| Rotary evaporator application | R20 only, subject to system and solvent compatibility |
| Pack quantity | 1 pump |
| Warranty | Confirm the term applicable to the supplied model in the quotation |
Available variants
| Reference | Variant |
|---|---|
| VACU-R10-001 | R10 — 99 mbar; 18 l/min; 99 mbar absolute; 60 W; 200 × 110 × 210 mm |
| VACU-R20-001 | R20 — 10 mbar; 18 l/min; 10 mbar absolute; 90 W; 260 × 150 × 180 mm |
Supply and accessories
One pump in the selected model. A vacuum trap is recommended and is essential when using a filtration manifold. Trap, vacuum regulator, tubing and connected laboratory equipment are separate unless included in the quotation. The main photograph shows R10.
Handling and compatibility
Confirm chemical compatibility, required vacuum and system connections before ordering. The manuals prohibit use with flammable gases or toxic materials. Prevent liquid carry-over and follow the instructions for ventilation, operation and maintenance.
Ordering information
Provide the product reference, selected variant, quantity, delivery location and intended use. Include the required pack size or configuration, existing equipment, accessories and consumables, and any installation, training or maintenance requirements relevant to your order.
Delivery, spares and service
Contact Nass Ventures to confirm availability, delivery arrangements, compatible spares and service requirements. The quotation will define the final supplied configuration and documentation.
