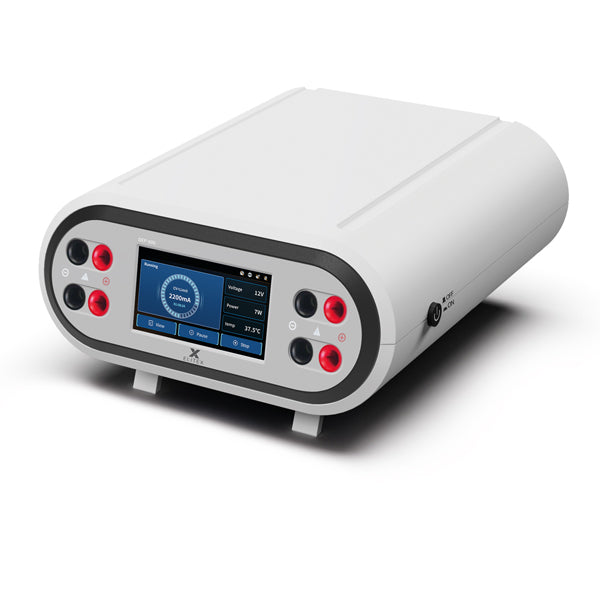

Labbox VOLT E600 Electrophoresis Power Supply
Electrophoresis and blotting power supply with a 4.3-inch touchscreen, constant voltage, current or power modes, and outputs up to 600 V, 600 mA and 360 W.
The VOLT E600 supplies controlled electrical output for compatible gel electrophoresis and transfer systems. Four pairs of output sockets support simultaneous connection of up to four systems within the power supply’s combined output limits.
Key features
Three control modes
Select constant voltage, constant current or constant power. Automatic mode adjustment operates according to the set parameters.

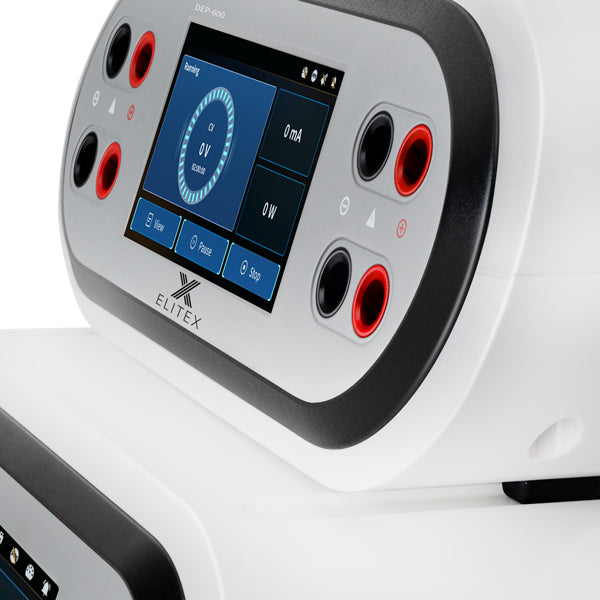

Touchscreen programming
A 4.3-inch colour touchscreen supports monitoring and programming, with storage for 20 programmes of up to 20 steps each.
Protection functions
Short-circuit and no-load protection are incorporated. Power-failure recovery can be enabled in settings; it is not always active.

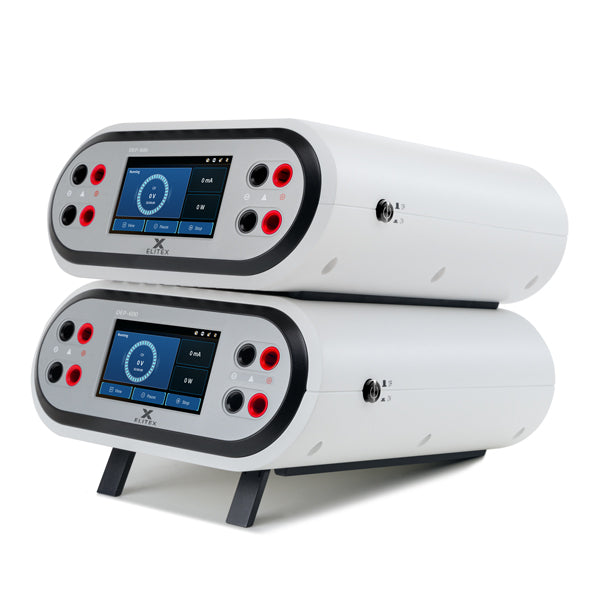

Bench arrangement
A stackable enclosure with adjustable feet supports laboratory bench organisation. Additional units shown in a stacking image are separate.
Technical specifications
| Model / range | VOLT E600 |
|---|---|
| Supplier reference / MPN | ELFP-60L-001 |
| Output voltage | 0–600 V |
| Output current | 0–600 mA |
| Output power | 0–360 W |
| Output connections | 4 pairs; up to 4 connected systems within the combined output ratings |
| Operating modes | Constant voltage, current or power |
| Setting resolution | 1 V; 1 mA; 1 W |
| Display | 4.3-inch colour LCD touchscreen |
| Programme storage | 20 programmes; up to 20 steps per programme |
| Timer range | 1 minute to 99 h 59 min |
| Protection functions | Short-circuit and no-load protection |
| Power-failure recovery | Configurable; disabled by default in the manufacturer manual |
| Mains input, manual specification | 100–120 V or 200–240 V; 50/60 Hz. Confirm regional unit rating and power cord before ordering |
| Dimensions, L × W × H | 310 × 260 × 115 mm |
| Net equipment weight | 1.96 kg; not a shipping weight |
| Operating temperature | 0–40 °C |
| Operating humidity | ≤95% relative humidity |
| Manufacturer warranty | 24 months under normal use and service; manufacturer exclusions apply |
Supply and accessories
One VOLT E600 power supply, one power cord and one certificate of conformity, as listed in the manufacturer manual. Confirm the required regional mains rating and plug. Electrophoresis tanks, transfer systems, connection leads and additional power supplies are separate unless specified in the quotation.
Operation and compatibility
Select connected equipment that is compatible with the output range and connector arrangement. Consider the combined voltage, current and power requirements when connecting multiple systems. Follow the manufacturer’s installation and operating instructions, maintain ventilation clearance and keep buffers away from the power supply.
Ordering information
Provide the model or reference ELFP-60L-001, quantity, delivery location and intended application. Include the required gel format, sample capacity, existing equipment and any accessories, consumables, installation, training or maintenance requirements relevant to your order.
Delivery, spares and service
Contact Nass Ventures to confirm availability, delivery arrangements, compatible spares and service requirements. The quotation will define the final supplied configuration.
