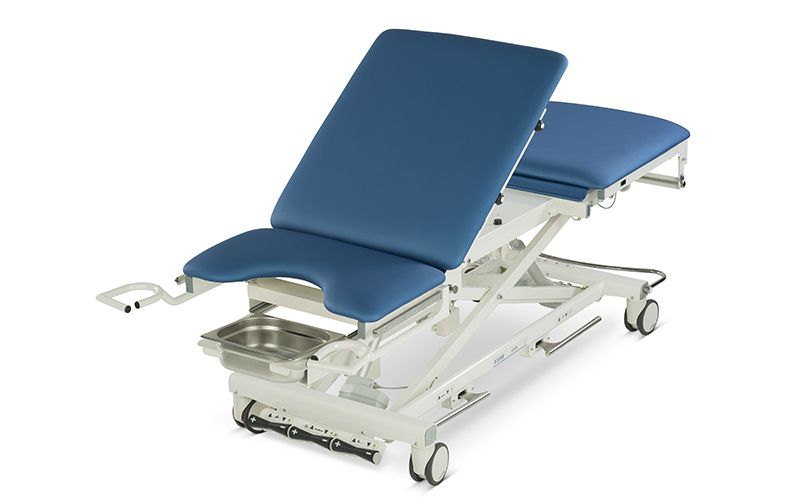

Lojer 4050X Gynaecological Examination Table
The Lojer 4050X is a hygienic, easy-to-use and highly versatile gynaecological examination table designed for women’s health clinics, hospitals, outpatient departments, procedure rooms and general examination settings. Built for comfort, safety and efficient clinical workflow, the 4050X is especially suitable for gynaecological examinations but can also be used for minor procedures and general medical examinations.

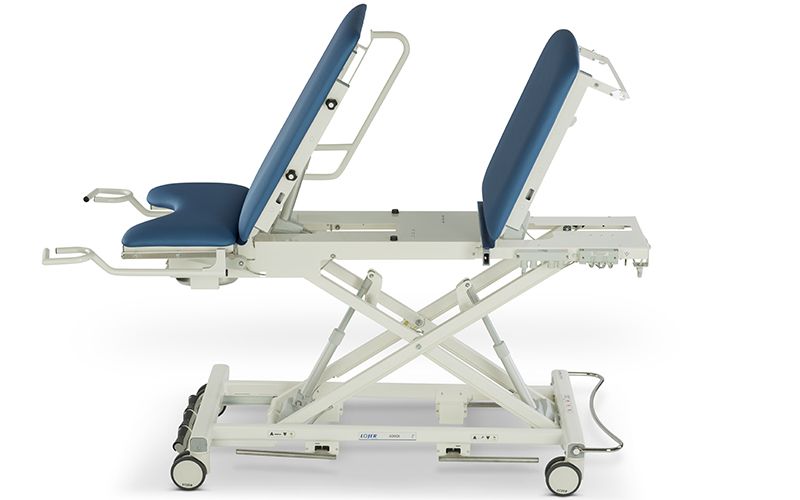

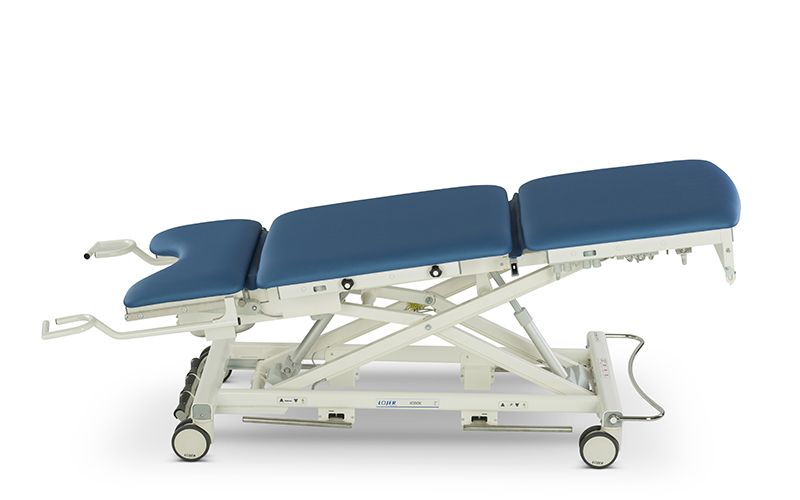

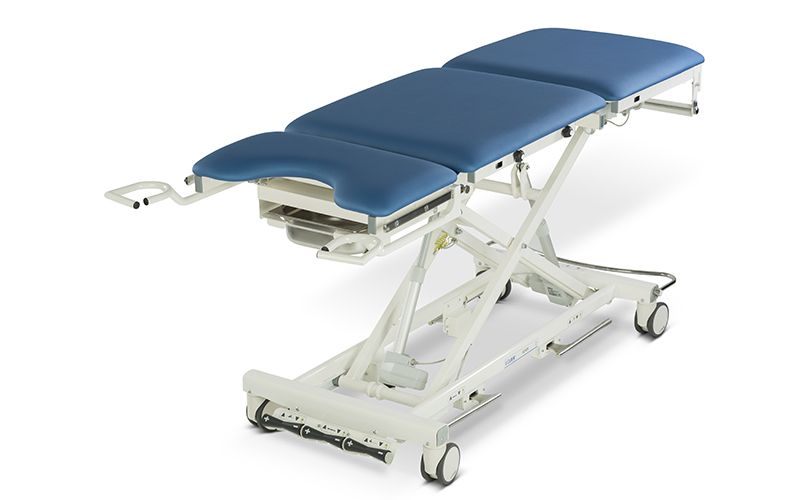

The table features a three-piece patient surface with separate seat, middle and back section adjustments. Its hands-free adjustment capability helps healthcare professionals work more hygienically and efficiently, especially during gynaecological examinations and minor procedures. The 4050X is available in two models: the more advanced 4050X F and the simplified 4050X M.
Product Overview
| Product | Details |
|---|---|
| Model | Lojer 4050X |
| Product Type | Gynaecological examination table |
| Available Models | 4050X F and 4050X M |
| Main Use | Gynaecological examinations, minor procedures and general examinations |
| Patient Surface | Three-piece tabletop with seat, middle and back sections |
| Control Options | Hand control, integrated foot control and optional hands-free foot control |
| Safe Working Load | 210 kg |
| Country of Manufacture | Finland |
| Warranty | 2 years |
| CE Marking | Yes |
Key Features
• Designed especially for gynaecological examinations
• Also suitable for minor procedures and general examinations
• Hygienic hands-free adjustment for improved clinical workflow
• Three-piece tabletop with separate seat, middle and back sections
• Electric height adjustment from 49 cm to 97 cm
• Electric back section adjustment from 0° to 73°
• Adjustable heel supports as standard

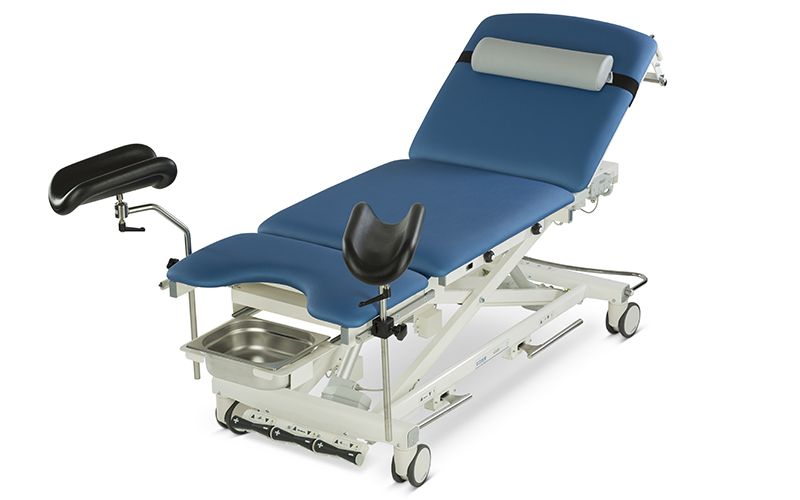

• Gynaecological bowl included as standard
• Accessory rails in the seat section
• Paper roll stand and cutter included
• Locking castors for secure positioning
• Auto-lifting safety feature in emergency situations
• Several upholstery material and colour options available
• Optional battery power and Trendelenburg / anti-Trendelenburg function
Clinical Applications
| Application | Suitable Use |
|---|---|
| Gynaecological Examinations | Routine women’s health examinations and pelvic assessments |
| Minor Procedures | Suitable for minor outpatient procedures |
| General Examinations | Can be used as a versatile examination couch |
| Sampling | Compatible with arm support for sampling |
| Procedures Requiring Leg Support | Compatible with heel supports and optional calf supports |
| Hospital Use | Suitable for outpatient departments, treatment rooms and clinical examination areas |
| Private Clinics | Suitable for gynaecology clinics, GP clinics and specialist women’s health centres |
Technical Specifications
| Specification | 4050X F | 4050X M |
|---|---|---|
| Total Width | 75 cm | 75 cm |
| Patient Surface Width | 70 cm | 70 cm |
| Total Length | 200 cm | 200 cm |
| Total Weight | 120 kg | 120 kg |
| Height Adjustment | 49–97 cm | 49–97 cm |
| Back Section Length | 70 cm | 70 cm |
| Back Section Adjustment | 0–73°, electrical | 0–73°, electrical |
| Middle Section Length | 82 cm | 82 cm |
| Middle Section Adjustment | 0–73°, electrical | 0–73°, gas spring |
| Seat Section Length | 44 cm | 44 cm |
| Seat Section Adjustment | 0–25°, electrical | Non-adjustable |
| Trendelenburg / Anti-Trendelenburg | Optional 20° / -10° | Optional 20° / -10° |
| Castors | Ø125 mm locking castors | Ø125 mm locking castors |
| Safe Working Load | 210 kg | 210 kg |
| Electric System | 24V | 24V |
| CE Marking | Yes | Yes |
| Warranty | 2 years | 2 years |
| Country of Manufacture | Finland | Finland |
Model Comparison
| Feature | 4050X F | 4050X M |
|---|---|---|
| Best For | More advanced gynaecology and procedure workflows | Standard gynaecology and general examination use |
| Hand Control | Hand control with memory slot | Hand control with safety lock |
| Foot Control | Integrated gynaecological foot control for height, seat and middle section adjustment | Not included as standard |
| Seat Adjustment | Electric 0–25° | Non-adjustable |
| Middle Section Adjustment | Electric | Gas spring |
| Simultaneous Section Movement | Yes | Not specified |
| Safety Lock | Via foot control or hand control | Via hand control |
| Heel Supports | Standard | Standard |
| Gynaecological Bowl | Standard | Standard |
| Paper Roll Stand and Cutter | Standard | Standard |
| Auto-Lifting Safety Feature | Standard | Standard |
Standard Features
| Standard Feature | Description |
|---|---|
| Three-Piece Tabletop | Seat, middle and back sections for flexible positioning |
| Electric Height Adjustment | Smooth height adjustment from 49 cm to 97 cm |
| Adjustable Heel Supports | Stepless adjustment without levers |
| Gynaecological Bowl | Easy to move out of the way when not needed |
| Accessory Rails | Located in the seat section for compatible accessories |
| Paper Roll Stand and Cutter | Supports hygienic paper roll use between patients |
| Locking Castors | Ø125 mm castors for stability and mobility |
| Auto-Lifting Safety Feature | Table rises automatically in emergency situations if something is caught in the mechanism |
| Upholstery Options | Several material and colour options available on request |
Options
| Option | Purpose |
|---|---|
| Trendelenburg and Anti-Trendelenburg with Battery | Enables 20° / -10° positioning when configured |
| Central Locking Castors Ø125 mm or Ø150 mm | Provides easier locking and movement control |
| Conductive Twin Castors Ø150 mm | Suitable for clinical environments requiring conductive castors |
| Two-Piece Hands-Free Foot Control | Allows hands-free adjustment of height and back section |
| Foot Pedal | For height and back section adjustment |
| Battery Power | Enables use without continuous mains power connection |
Accessories
| Accessory | Use |
|---|---|

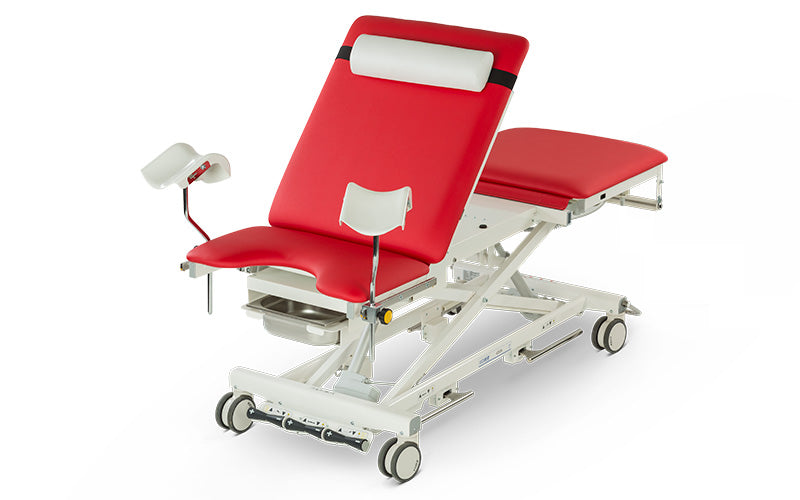

| Pair of White Plastic Calf Supports | Suitable for minor procedures, includes rapid clamps and fastening straps |

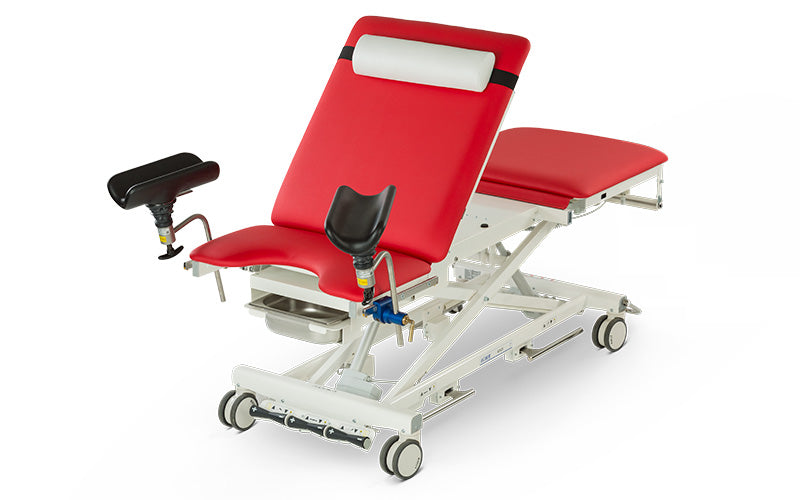

| Pair of Black Moulded Cushion Calf Supports | Suitable for longer procedures, includes rotation clamps and fastening straps |
| IV Pole | Available as straight or bent version |
| IV Stand Adapter | Allows IV stand fitting in four possible positions |
| Accessory Rail | For mounting compatible accessories |
| Brass Accessory Rail | Alternative accessory rail option |
| Rapid Clamp Ø20 mm | For securing compatible accessories |
| Side Rail | Additional support and accessory mounting |
| Anaesthesia Frame | For procedure and anaesthesia support |
| Push Handles | Helps move and position the table |

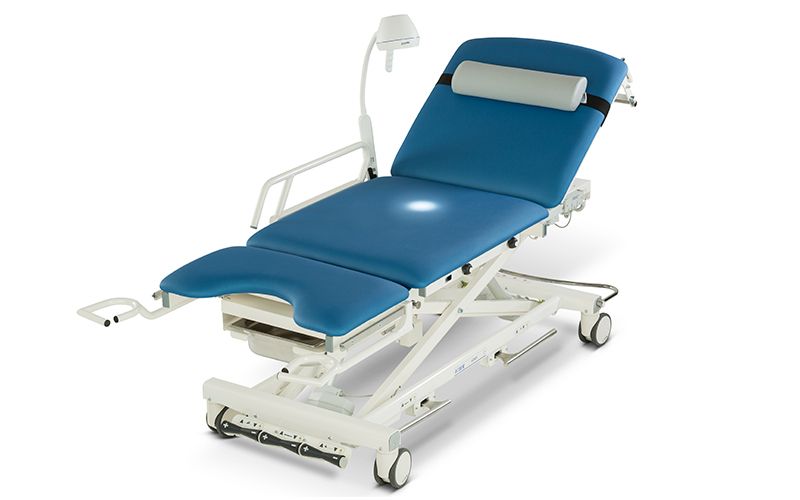

| Examination Lamp | Can be attached to the accessory rail or frame |
| Neck Cushion | Improves patient comfort |

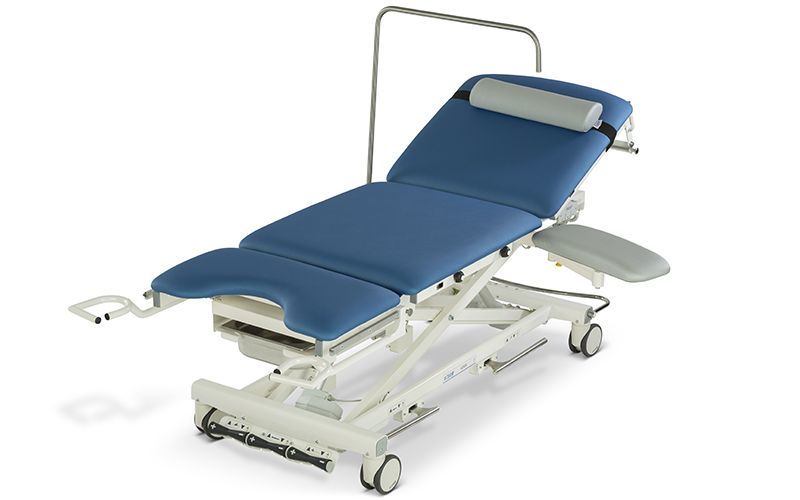

| Arm Support for Sampling | Supports blood sampling and other clinical tasks |
Safety and Hygiene Benefits
| Benefit | How It Helps |
|---|---|
| Hands-Free Adjustment | Reduces manual contact and supports better hygiene |
| Foot-Controlled Positioning | Allows clinicians to adjust the table while maintaining procedural workflow |
| Auto-Lifting Safety Feature | Helps protect patients and staff if obstruction is detected |
| Lock Function | Helps prevent accidental movement during use |
| Paper Roll Stand and Cutter | Supports quick and hygienic patient turnover |
| Adjustable Supports | Improves patient positioning and clinician access |
| Easy Mobility | Castors support repositioning within the clinical room |
Why Choose the Lojer 4050X?
The Lojer 4050X is designed for healthcare providers who need a flexible, comfortable and hygienic examination table for gynaecology and multi-purpose clinical use. Its hands-free adjustment options allow clinicians to work more efficiently while maintaining a cleaner examination environment.
The 4050X F offers the most extensive configuration, with electric seat adjustment, electric middle section adjustment, memory hand control and integrated gynaecological foot control. The 4050X M provides a simpler alternative while still offering essential features such as adjustable heel supports, a gynaecological bowl, locking castors, hand control and safety functions.
Suitable For
• Gynaecology clinics
• Women’s health centres
• Hospitals
• Outpatient departments
• General examination rooms
• Minor procedure rooms
• Private medical practices
• Fertility and reproductive health clinics
• Day surgery units
Ordering Information
Available configurations may vary depending on model, upholstery choice, accessories and optional functions. Please contact Nass Ventures for pricing, delivery, configuration advice, installation and after-sales support.
Important: Some features, accessories and positioning functions are optional or model-dependent. Please confirm whether you require the 4050X F or 4050X M model before ordering.
