Mindray HyBase 8500 Electro-Hydraulic Operating Table

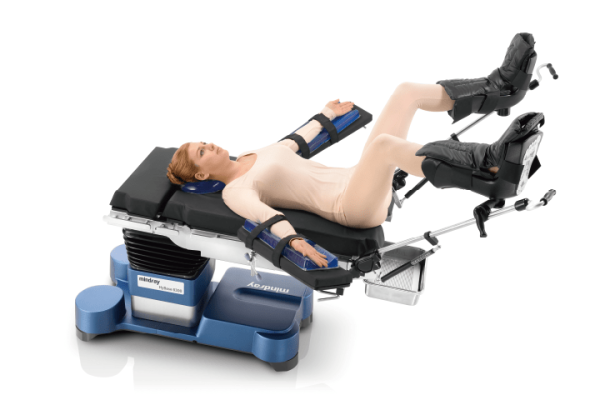

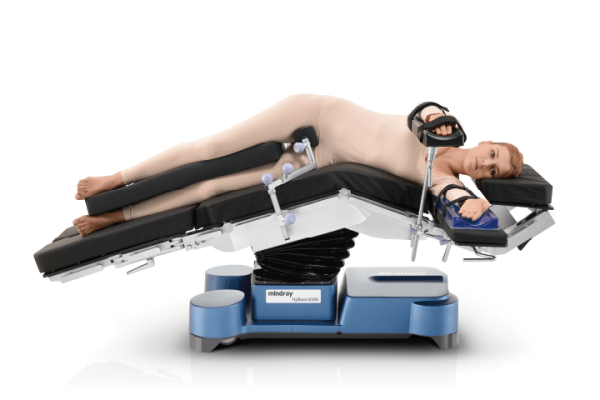

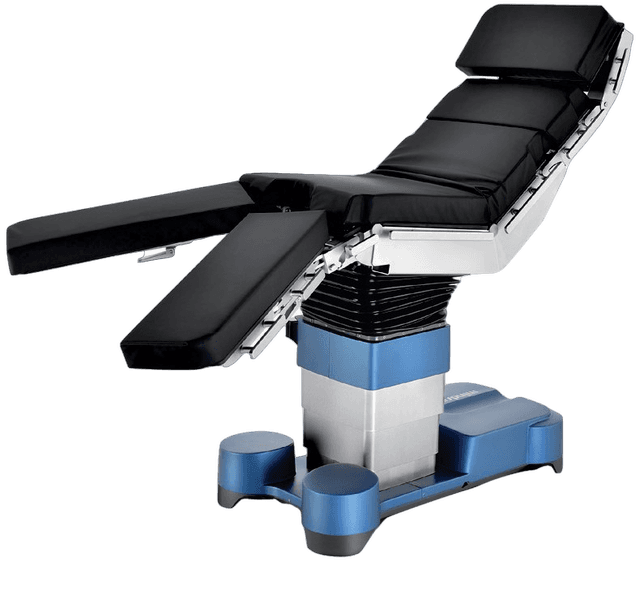

The Mindray HyBase 8500 is a high-performance electro-hydraulic operating table designed for complex surgical procedures where stability, imaging access, patient safety, and flexible positioning are essential. It is suitable for advanced operating theatres, specialist surgical departments, and hospitals requiring a versatile table for multi-specialty use.

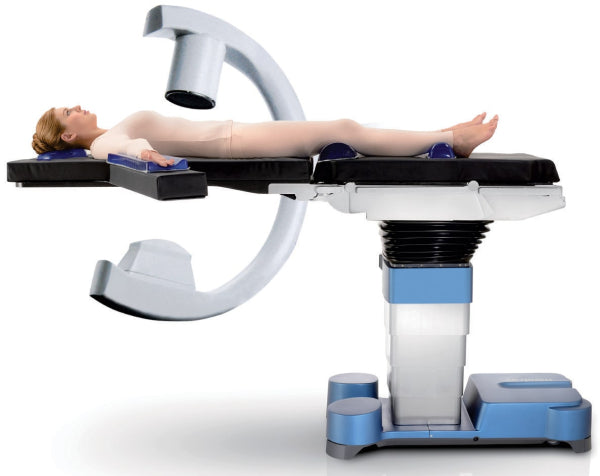

Built with a modular 6-section tabletop and a longitudinal slide of up to 480 mm, the HyBase 8500 allows excellent access for C-arm imaging without the need to reposition the patient. This makes it particularly useful for procedures requiring intraoperative imaging, including cardiovascular surgery, orthopaedics, trauma, spinal procedures, and other image-guided surgical applications.

The table is designed with a high load capacity of up to 460 kg, providing a strong and stable platform for a wide range of patients, including bariatric cases. According to Mindray’s product information, the HyBase 8300/8500 series supports a 480 mm longitudinal slide, modular tabletop configuration, anti-collision protection, waterproof seamless mattress design, and a low table position of 575 mm for neurosurgical procedures.

Key Features

Electro-hydraulic operating table for smooth and controlled positioning

6-section modular tabletop design for multi-specialty surgical use

Longitudinal tabletop slide up to 480 mm for improved C-arm access

Radiolucent tabletop suitable for intraoperative imaging

Maximum load capacity up to 460 kg for high safety and stability

Supports up to 250 kg in normal operating positions

Maximum load up to 190 kg in extended position

Low table height down to 575 mm, suitable for neurosurgery

One-touch position adjustment for faster surgical setup

More than 10 table positions to reduce preparation time

2.4-inch colour LCD hand control display

Display indication for table position, brake system, and battery level

Wireless infrared remote control for convenient operation

Backlit control panel for use when theatre lights are dimmed

Anti-collision and damage-prevention system for table sections

Multi-layer waterproof anti-decubitus mattress with ultrasonic seam sealing

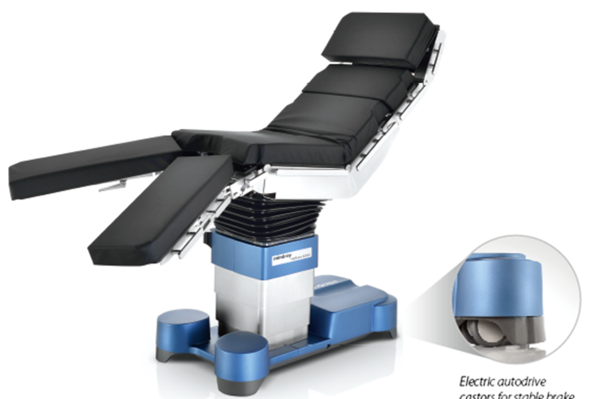

Raise/lower wheel system for easy table movement and secure locking

Wide range of accessories available, including gel mattresses and specialty positioning supports

Technical Specifications

Brand: Mindray
Model: HyBase 8500
Product Type: Electro-hydraulic operating table
Tabletop Structure: 6-section modular tabletop
Height Adjustment Range: 700–1200 mm
Lowest Neurosurgical Position: 575 mm without padding
Trendelenburg / Reverse Trendelenburg: ±46°
Lateral Tilt: ±36°
Back Section Adjustment: +90° / -45°
Longitudinal Slide: Up to 480 mm
Maximum Load Capacity: Up to 460 kg
Maximum Load in Normal Position: 250 kg
Maximum Load in Extended Position: 190 kg
Battery Capacity: Approximately 50–80 operations
Control System: Wireless infrared remote control with colour LCD display
Mattress: Multi-layer waterproof anti-decubitus mattress with seamless ultrasonic bonding
Drive System: Electro-hydraulic

Clinical Applications

The Mindray HyBase 8500 can be used across a wide range of surgical specialties, including:

Neurosurgery

Spinal surgery

Cardiovascular surgery

Orthopaedics

Traumatology

Bariatric surgery

General surgery

Urology

Gynaecology

Proctology

Laparoscopic surgery

Image-guided surgery

Interventional procedures requiring C-arm access

Benefits for Hospitals and Surgical Teams

The HyBase 8500 is designed to improve operating room efficiency by reducing the time required for patient positioning and surgical table reconfiguration. Its one-touch positioning functions, wide adjustment range, and modular tabletop help theatre teams prepare more quickly for different procedures.

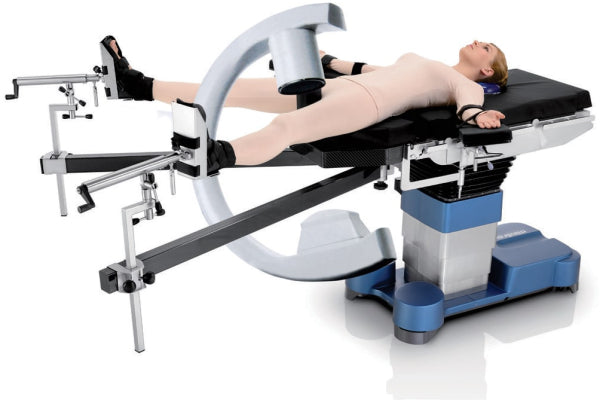

The 480 mm longitudinal slide gives surgical teams and imaging staff better access during C-arm procedures, helping to reduce patient movement and improve workflow during image-guided surgery. The radiolucent tabletop also supports clearer imaging during relevant procedures.

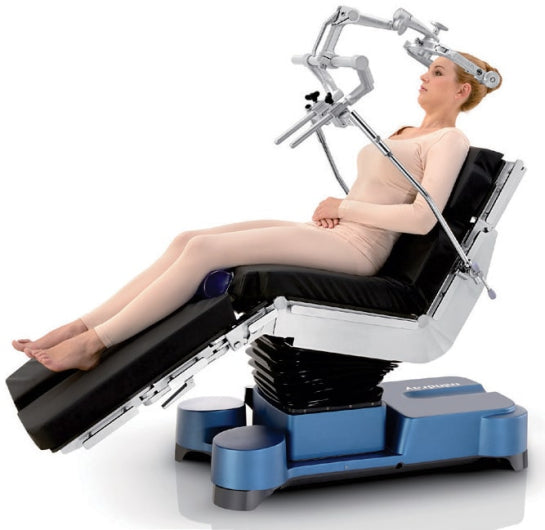

For neurosurgery, the table can be lowered to 575 mm above the operating room floor, helping surgeons achieve a comfortable working height. For bariatric and high-risk procedures, the table’s high load capacity provides additional safety and stability.

The anti-collision system helps prevent accidental contact between moving table sections, while the waterproof anti-decubitus mattress supports patient comfort and infection-control requirements. The wireless remote control and colour display also make operation simple and clear for theatre staff.

Ordering Information

This product is available for quotation and supply based on the required specification, quantity, condition, configuration, accessories, and delivery location. Final pricing may vary depending on availability, selected accessories, installation requirements, and any additional service or training requirements.

To request a quotation, please provide:

Product name or model
Required quantity
Delivery location
Intended use or department
Required configuration or accessories
