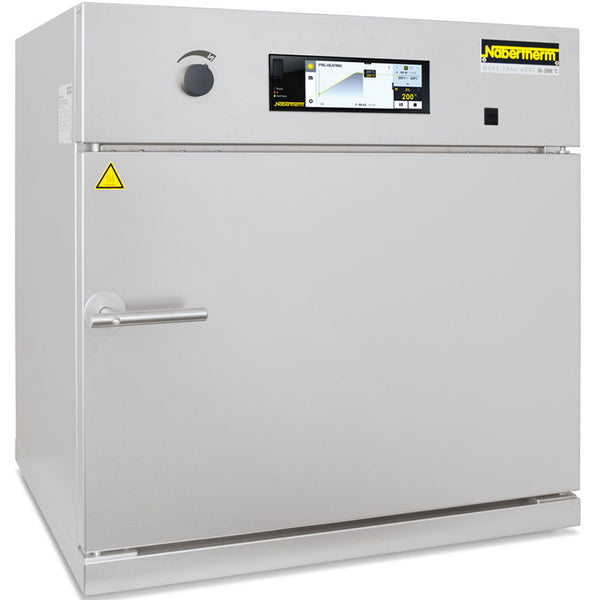

Nabertherm Drying Oven TR 60 - TR 1050
With their maximum working temperature of up to 300 °C and forced air circulation, the drying ovens achieve excellent temperature uniformity, which clearly sets them apart from many competitive models. They can be used for a wide range of tasks such as drying, sterilising or hot storage. Short delivery times are ensured by generous stocking of standard models.
- Tmax 300 °C
- Temperature operating range: + 5 °C above room temperature up to 300 °C
- TR 60 - TR 240 drying ovens designed as table-top models
- TR 450 - TR 1050 drying ovens designed as floor-standing models
- Horizontal, forced air circulation results in a temperature uniformity of better than +/- 5 °C
- Chamber made of stainless steel, material 1.4301 (DIN), rust-resistant and easy to clean
- Large handle for opening and closing the door
- Charging on several levels through grids (number of grids, see table)
- Large, wide-opening swing door, hinged on the right with quick-release catch for models TR 60 - TR 450
- Double-leaf swing door with quick-release fasteners for TR 1050
- TR 1050 equipped with transport castors
- Infinitely adjustable exhaust air in the rear wall with front operation
- PID microprocessor control with self-diagnosis system
- Low-noise operation of the heater with solid-state relay
- Intended use within the scope of the operating instructions
- NTLog Basic for Nabertherm controller: recording of process data with USB stick
Additional equipment
- Over-temperature limit controller with adjustable cut-off temperature for thermal protection class 2 acc. to EN 60519-2 as over-temperature protection for the dryer and the fabric
- Infinitely adjustable speed control of the air circulation fan
- Viewing window for monitoring the load
- Additional grids with insert strips
- Side feed-through
- Stainless steel drip tray to protect the oven interior
- Door hinge on the left
- Reinforced base plate
- Safety technology according to EN 1539 for batches containing solvents (TR .. LS) up to model TR 240 LS, achievable temperature uniformity +/- 8 °C
- Transport rollers for model TR 450
- Numerous possibilities for adaptation to customer-specific requirements
- Extension options for quality requirements according to AMS 2750 E or FDA
- Process control and documentation via VCD software package for monitoring, documentation and control
