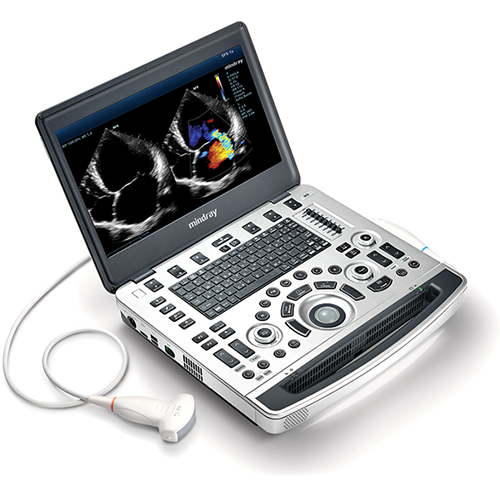

Mindray M9 Portable Ultrasound Scanner

The Mindray M9 is a premium portable ultrasound system designed to deliver high-quality imaging, advanced diagnostic tools, and excellent workflow efficiency in a compact format. Built on Mindray’s next-generation mQuadro ultrasound platform, the M9 provides enhanced signal processing, improved echo detection, greater penetration, and high-resolution imaging across a wide range of clinical applications.

Its advanced transducer technology and intelligent imaging features make it suitable for demanding environments, including hospitals, clinics, emergency departments, operating theatres, and mobile diagnostic services.

Advanced Imaging Platform

The M9 uses Mindray’s powerful mQuadro platform, which improves signal transmission and reception for greater image sensitivity and accuracy. This helps clinicians achieve clearer images, better tissue differentiation, and more reliable diagnostic confidence, even in technically difficult examinations.

Single-Crystal Transducer Technology

Mindray’s advanced 3T transducer technology is used across compatible M9 probes to improve imaging performance. With single-crystal elements, the system delivers:

• Improved penetration
• Better spatial resolution
• Enhanced colour performance
• Clearer imaging in difficult or deep anatomical areas

This is especially useful when scanning challenging patients or hard-to-access regions.

Natural Touch Elastography

The M9 features Natural Touch Elastography, based on Mindray’s patented technology. This helps assess tissue stiffness with greater consistency and reduces dependence on operator technique.

Key benefits:

• Effective detection of tissue stiffness and lesions
• Consistent and reproducible results
• Improved confidence in complex clinical examinations

UWN+ Ultra-Wideband Nonlinear Imaging

Mindray’s UWN+ technology expands the capabilities of contrast-enhanced ultrasound imaging. It enables the system to detect both secondary harmonics and nonlinear fundamental signals, producing clearer and more sensitive contrast images.

Key benefits:

• Higher sensitivity to contrast signals
• Improved image quality during contrast examinations
• Lower contrast agent consumption
• Longer effective contrast imaging time
• Reduced need for short measurement intervals

Phase Shift Harmonic Imaging

Phase Shift Harmonic Imaging helps improve contrast resolution by isolating harmonic signals. This produces sharper images with improved spatial resolution and reduced image noise.

Tissue Harmonic Imaging

Tissue Harmonic Imaging uses harmonic signals generated within tissue boundaries to improve image clarity. It enhances contrast resolution and is especially beneficial when imaging difficult anatomical areas or deeper structures.

Tissue-Specific Imaging

Tissue-Specific Imaging automatically optimises imaging parameters according to the tissue type being examined. The M9 provides dedicated settings for:

• General tissue
• Muscle
• Fluid
• Adipose tissue

This helps deliver more consistent image quality across different patient types and examination areas.

iBeam™ Spatial Compounding

iBeam™ uses multiple scanning angles to create a single enhanced image. This improves contrast resolution and provides clearer visualisation of anatomical structures.

iClear™ Image Optimisation

iClear™ improves image quality through automatic structure recognition and noise reduction.

Key benefits:

• Sharper tissue edges and contours
• Smoother, more uniform tissue display
• Reduced speckle and graininess in low-echo areas
• Improved overall image clarity

Echo-Enhanced Beamforming

The M9 uses Echo-Enhanced Beamforming to capture traditionally unused echoes from adjacent beams. These are combined to form a thinner, stronger imaging beam, improving resolution and penetration.

Key benefits:

• Better out-of-focus resolution
• Deeper imaging penetration
• Improved image sharpness
• Enhanced diagnostic confidence

Multi-Beam Formation

Multi-beam formation increases signal processing speed and enables higher frame rates. This improves temporal resolution, making it especially useful for real-time imaging and dynamic studies.

Advanced Microflow Visualisation

The M9 provides advanced microflow visualisation to support the assessment of small vessel perfusion. By combining multiple image frames, the system improves visibility of low-velocity blood flow and helps evaluate vascularity around pathological areas.

iScape™ Panoramic Imaging

iScape™ provides an extended panoramic view of anatomical structures. With a speed indicator and forward/reverse scanning function, it supports easier, more consistent panoramic imaging.

ExFOV Extended Field of View

ExFOV expands the field of view on compatible convex and linear probes. This gives clinicians a broader anatomical display and more complete diagnostic information.

Trapezoidal Imaging

Trapezoidal imaging increases the viewing area when using linear transducers. This allows wider visualisation of anatomical structures and supports more complete diagnostic assessment.

B-Steer™ and iNeedle™

B-Steer™ / iNeedle™ improves needle visualisation during biopsy and interventional procedures. It allows beam steering to enhance visibility of:

• Needle tips
• Nerve fibres
• Small vessels
• Deep biopsy targets

This makes the M9 highly suitable for ultrasound-guided procedures.

Smart Workflow Tools

The Mindray M9 includes a range of intelligent workflow technologies designed to improve efficiency and reduce examination time.

iTouch™
Provides instant automatic optimisation in B-mode, Colour Doppler, and PW Doppler with one key press.

iZoom™
Allows quick full-screen image display at the touch of a button.

iWorks™
Supports standardised examination protocols and user-configurable workflows, helping reduce scanning time and improve consistency.

Auto IMT
Automatically measures intima-media thickness of the anterior and posterior carotid artery walls, supporting vascular assessment.

Raw Data Processing
Allows extensive post-processing of saved images, including parameter adjustment, measurements, annotations, and comments after the scan.

iStation™
Mindray’s patient information management system enables efficient integration, review, archiving, and retrieval of patient data.

Ergonomic and Portable Design

The Mindray M9 combines advanced imaging power with a lightweight and practical portable design. It is built for clinical environments where mobility, durability, and ease of use are essential.

Design features include:

• Slim magnesium alloy body
• 15.6-inch slim HD LED monitor
• Built-in battery with up to 90 minutes of scanning time
• High-capacity SSD storage for secure patient data management
• Silent operation
• Automatic brightness adjustment
• Eco-friendly construction
• Safe materials certified for restricted harmful substances

Dedicated Transport Trolley

For departments requiring mobile use, the M9 can be mounted on a dedicated transport trolley. The trolley is designed for quick movement between clinical areas while providing additional power and stability.

Trolley features include:

• User-adjustable design
• Built-in locking system
• Fast and easy operation
• Cart-mounted battery providing approximately 3.5 hours of scanning time
• Practical support for bedside, emergency, and mobile scanning environments

Ideal Clinical Applications

The Mindray M9 is suitable for a wide range of diagnostic and interventional applications, including:

• General imaging
• Abdominal imaging
• Vascular studies
• Cardiology support
• Obstetrics and gynaecology
• Musculoskeletal imaging
• Emergency and critical care
• Anaesthesia and pain management
• Small parts imaging
• Ultrasound-guided biopsy and needle procedures

Summary

The Mindray M9 Portable Ultrasound Scanner combines high-performance imaging, intelligent workflow tools, advanced transducer technology, and excellent portability. With features such as Natural Touch Elastography, UWN+ contrast imaging, iNeedle™, iClear™, iBeam™, iScape™, and advanced microflow visualisation, the M9 provides clinicians with a powerful and flexible ultrasound solution for demanding clinical environments.
