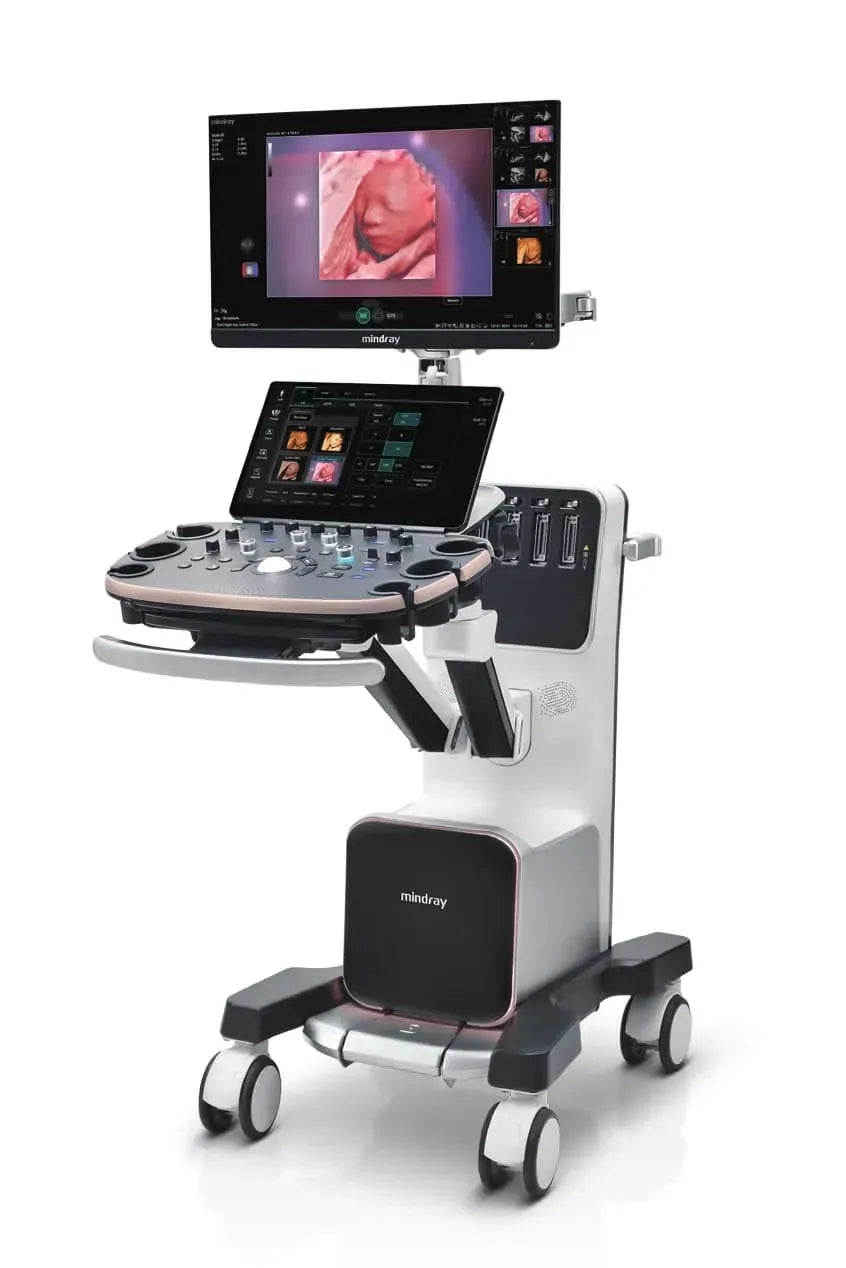

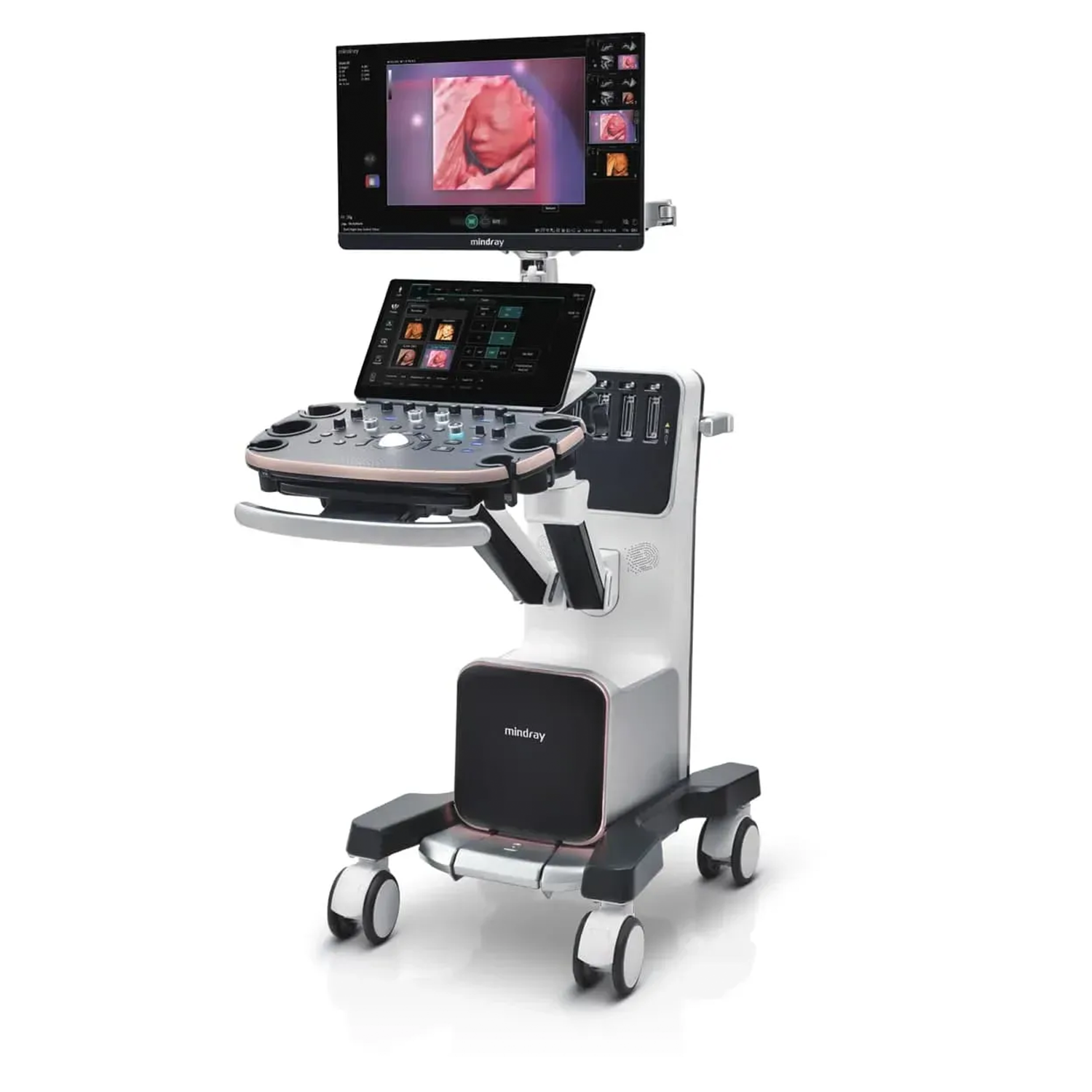

Mindray Nuewa I9 Diagnostic Ultrasound System
The Mindray Nuewa I9 is an advanced diagnostic ultrasound system designed for women’s healthcare, obstetrics, gynaecology, reproductive medicine, post-partum assessment and neonatal imaging. Powered by Mindray’s ZST+ platform, the Nuewa I9 delivers high image quality, intelligent workflow automation and advanced 3D/4D imaging capability for confident clinical decision-making.
Built with a modern ergonomic design, the Nuewa I9 features a 23.8-inch bezel-less full-screen display, a 15.6-inch full-HD touchscreen and an intelligent iConsole control panel with customisable E-ink keys. Its smart automation tools support the entire examination process, from clinical scenario identification and image optimisation to plane acquisition, quantification and workflow automation.
The system is particularly suited for hospitals, maternity units, IVF centres, women’s health clinics, specialist ultrasound departments and neonatal screening services that require premium imaging performance, intelligent automation and excellent scanning comfort.
Key Features
• Premium diagnostic ultrasound system for women’s healthcare and neonatal imaging
• Powered by Mindray ZST+ ultrasound platform
• Advanced 3D/4D imaging for obstetric and gynaecological applications
• Smart Scene 3D for scenario-based automated workflow
• 23.8-inch bezel-less full-screen display
• 15.6-inch full-HD touchscreen with gesture operation

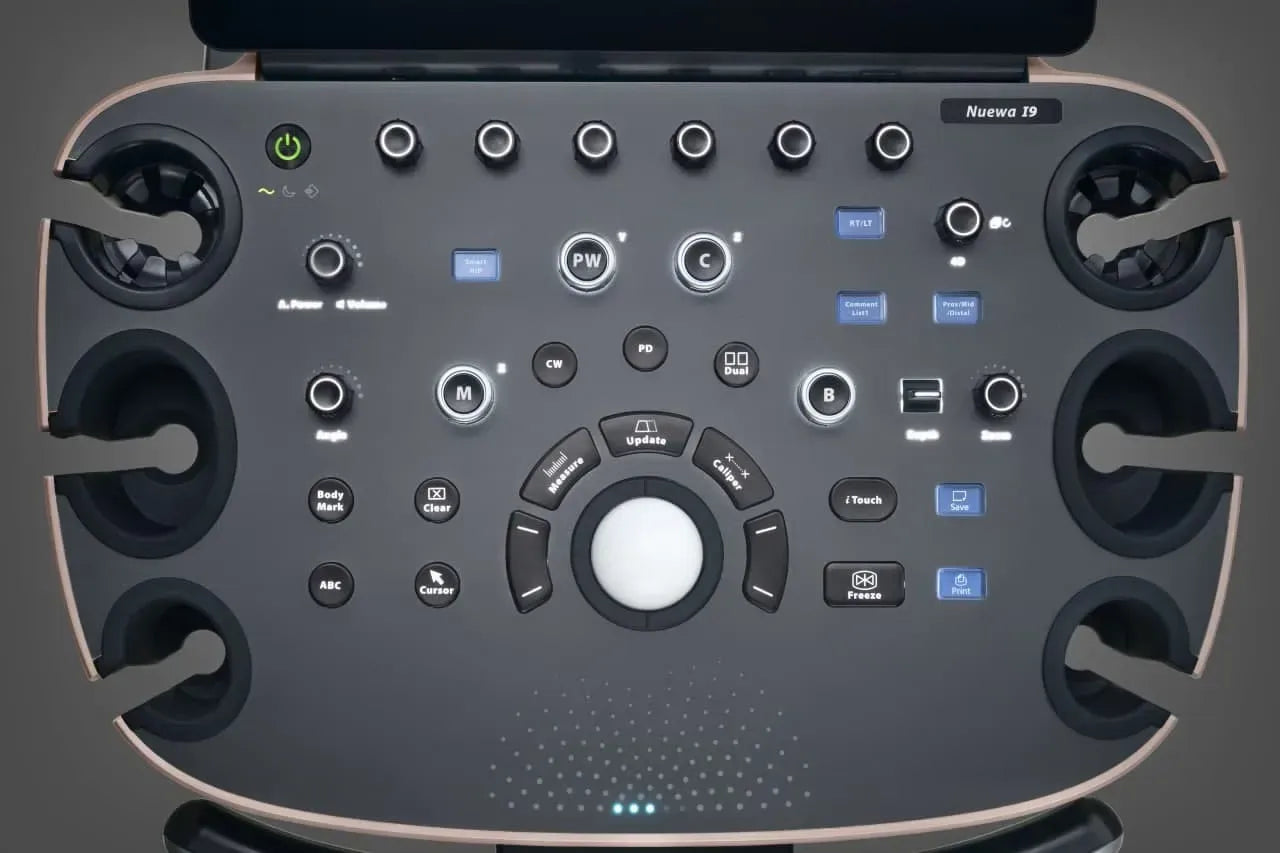

• Intelligent iConsole control panel with customisable E-ink keys
• Full-space floating control panel for flexible ergonomic adjustment
• Dual-screen simultaneous display for clinicians and patients
• Foldable mobile design for easier transport between departments
• 55 cm body width for easier access through doors and clinical spaces
• Up to 4 hours continuous scanning without power cables
• Super-silent 26 dB design for a quieter examination environment
• Elevated probe sockets with light indicators for easier probe changes
• Advanced applications for obstetrics, gynaecology, IVF, post-partum and neonatal care
Product Overview
| Product | Details |
|---|---|
| Model | Mindray Nuewa I9 |
| System Type | Diagnostic ultrasound system |
| Main Focus | Women’s healthcare, obstetrics, gynaecology, reproductive health and neonatal imaging |
| Imaging Platform | Mindray ZST+ platform |
| Display | 23.8-inch bezel-less full-screen display |
| Touchscreen | 15.6-inch full-HD touchscreen |
| Control Panel | Intelligent iConsole with customisable E-ink keys |
| Mobility | Foldable trolley-based mobile design |
| Body Width | 55 cm |
| Battery Scanning | Up to 4 hours continuous ultrasound scanning |
| Noise Level | 26 dB super-silent design |
| Main Applications | OB/GYN, IVF, post-partum, neonatal and advanced 3D/4D imaging |
Clinical Applications
| Clinical Area | Suitable Use |
|---|---|
| Obstetrics | Fetal imaging, fetal face, fetal brain, fetal spine, fetal heart and early OB assessment |
| Gynaecology | Uterus, endometrium, ovaries, pelvic assessment and uterine pathology |
| Reproductive Health | IVF assessment, follicle study, endometrial receptivity and fallopian tube patency |
| Post-Partum Care | Pelvic floor assessment and post-partum pelvic evaluation |
| Neonatal Imaging | Developmental dysplasia of the hip screening and neonatal assessment |
| 3D/4D Imaging | Realistic fetal imaging, volume rendering and advanced anatomical visualisation |
| Vascular Assessment | Uterine artery Doppler and blood flow evaluation |
| Elastography | Uterine myoma and tissue stiffness assessment |
| CEUS | Contrast-enhanced ultrasound assessment of uterine masses |
Advanced Smart Technologies
| Technology | Function |
|---|---|
| ZST+ Platform | Enhances spatial resolution, temporal resolution and tissue uniformity using channel data-based processing |
| Smart Scene 3D | Scenario-oriented volume scan technology for automated workflow |
| iLive with Hyaline | Provides realistic 3D/4D volume rendering for surface and internal structures |
| Smart Planes CNS | Automatically detects important fetal CNS planes and measurements |
| Smart ICV | Automatic fetal brain segmentation and intra-cranial volume measurement |
| Smart-V Trace | Endometrial receptivity analysis with vascular footprint and blood flow assessment |
| 4D HyCoSy | Fallopian tube patency assessment for infertility diagnosis |
| Smart FLC | Automatic follicle detection and volume calculation for IVF examinations |
| Smart Pelvic | Automated pelvic floor assessment for post-partum and pelvic floor evaluation |
| Smart Hip | Automated neonatal DDH screening with hip structure detection and Graf classification support |
Smart Scene 3D Workflow
Smart Scene 3D provides an intelligent full-stack workflow for women’s and neonatal healthcare. It supports the examination process from the start by identifying clinical scenarios and assisting with image optimisation, volume rendering, plane acquisition, measurement and analysis.
| Workflow Stage | Description |
|---|---|
| Automatic Scenario Identification | Recognises clinical scenarios and organ-specific requirements |
| Automatic Imaging Optimisation | Adjusts imaging settings to support improved image quality |
| Auto ROI Adjustment | Helps optimise the region of interest |
| Auto Volume Rendering | Automatically renders volume images for 3D/4D applications |
| Auto Plane Acquisition | Supports automatic acquisition of key diagnostic planes |
| Automatic Quantification | Provides automated measurement and analysis |
| Automatic Workflow | Helps improve examination efficiency and reduce user dependency |
3D/4D Scenario Modes
| Scenario Mode | Clinical Purpose |
|---|---|
| Routine | Regular 3D/4D volume imaging for routine practice |
| iLive | More realistic fetal and anatomical rendering |
| Bone | Specialised bone visualisation |
| Tissue | Soft tissue-focused 3D/4D imaging |
| Follicle | Multiple follicle effects for reproductive assessment |
Reproductive Health Features
| Feature | Benefit |
|---|---|
| Smart-V Trace | Supports endometrial receptivity and vascular assessment |
| 4D HyCoSy | Assesses fallopian tube patency and uterine/endometrial abnormalities |
| Smart FLC | Automatically detects follicles and calculates follicle volume from 3D ovarian images |
| Follicle 3D | Supports IVF and reproductive health examinations |
| CEUS of Uterine Mass | Helps assess uterine mass vascularity when contrast ultrasound is used |
Obstetric Features
| Feature | Benefit |
|---|---|
| iLive with Hyaline | Provides realistic fetal surface and internal structure rendering |
| Smart Planes CNS | Supports fetal central nervous system study with automatic plane detection |
| Smart ICV | Provides automatic fetal brain segmentation and intra-cranial volume evaluation |
| Fetal Face 3D | Realistic fetal facial imaging |
| Fetal Spine 3D | 3D fetal spine visualisation |
| Fetal Heart Imaging | Supports fetal cardiac assessment |
| Early OB Imaging | Supports early pregnancy visualisation |
Post-Partum and Neonatal Features
| Feature | Benefit |
|---|---|
| Smart Pelvic | Simplifies pelvic floor assessment and automatically provides related measurements |
| Auto Planes Acquisition | Helps acquire multiple pelvic floor planes efficiently |
| Smart Hip | Supports neonatal DDH screening through automatic hip structure detection |
| Graf Classification Support | Assists hip screening by measuring α and β angles |
Ergonomic and Workflow Design
| Design Feature | Benefit |
|---|---|
| 23.8-inch Bezel-less Display | Large image viewing area for improved visualisation |
| 15.6-inch Full-HD Touchscreen | Intuitive touchscreen operation with gesture support |
| iConsole Control Panel | Exam-specific intelligent layout with customisable E-ink keys |
| Full-Space Floating Control Panel | Broad adjustment range for improved scanning comfort |
| Dual Screen Display | Allows simultaneous display for both clinician and patient |
| Foldable Design | Easier transport for mobile service and room-to-room use |
| 55 cm Body Width | Easier movement through doors and departments |
| Cable-Free Bedside Exams | Supports up to 4 hours continuous scanning without power cables |
| Elevated Probe Sockets | Enables probe changes without bending |
| Probe Activation Indicators | Light indicators show active probe status |
| 26 dB Super-Silent Design | Quiet operation suitable for patient comfort |
Why Choose the Mindray Nuewa I9?
The Mindray Nuewa I9 is designed for clinical environments where advanced women’s healthcare imaging, intelligent automation and efficient workflow are essential. Its ZST+ platform supports high image quality, while Smart Scene 3D and other automated tools reduce user dependency and improve examination efficiency.
For obstetric imaging, the system offers realistic 3D/4D visualisation, fetal CNS assessment, fetal brain volume evaluation and advanced fetal anatomical imaging. For reproductive medicine, it supports follicle study, endometrial receptivity analysis and fallopian tube patency assessment. For post-partum and neonatal care, the system provides automated pelvic floor assessment and smart DDH screening.
This makes the Nuewa I9 a strong choice for maternity hospitals, IVF centres, women’s health clinics, specialist diagnostic centres and advanced ultrasound departments.
Ordering Information
Available configurations may vary depending on probes, software options and clinical requirements. Please contact Nass Ventures for pricing, probe selection, delivery, installation, training and after-sales support.
Important: Some features may be optional or configuration-dependent. Please confirm the required clinical package, probes and software options before ordering.
