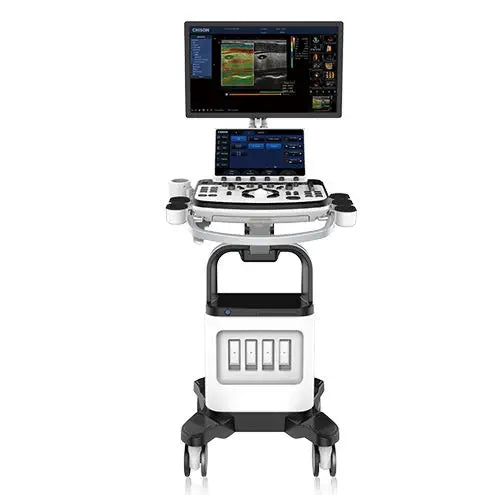

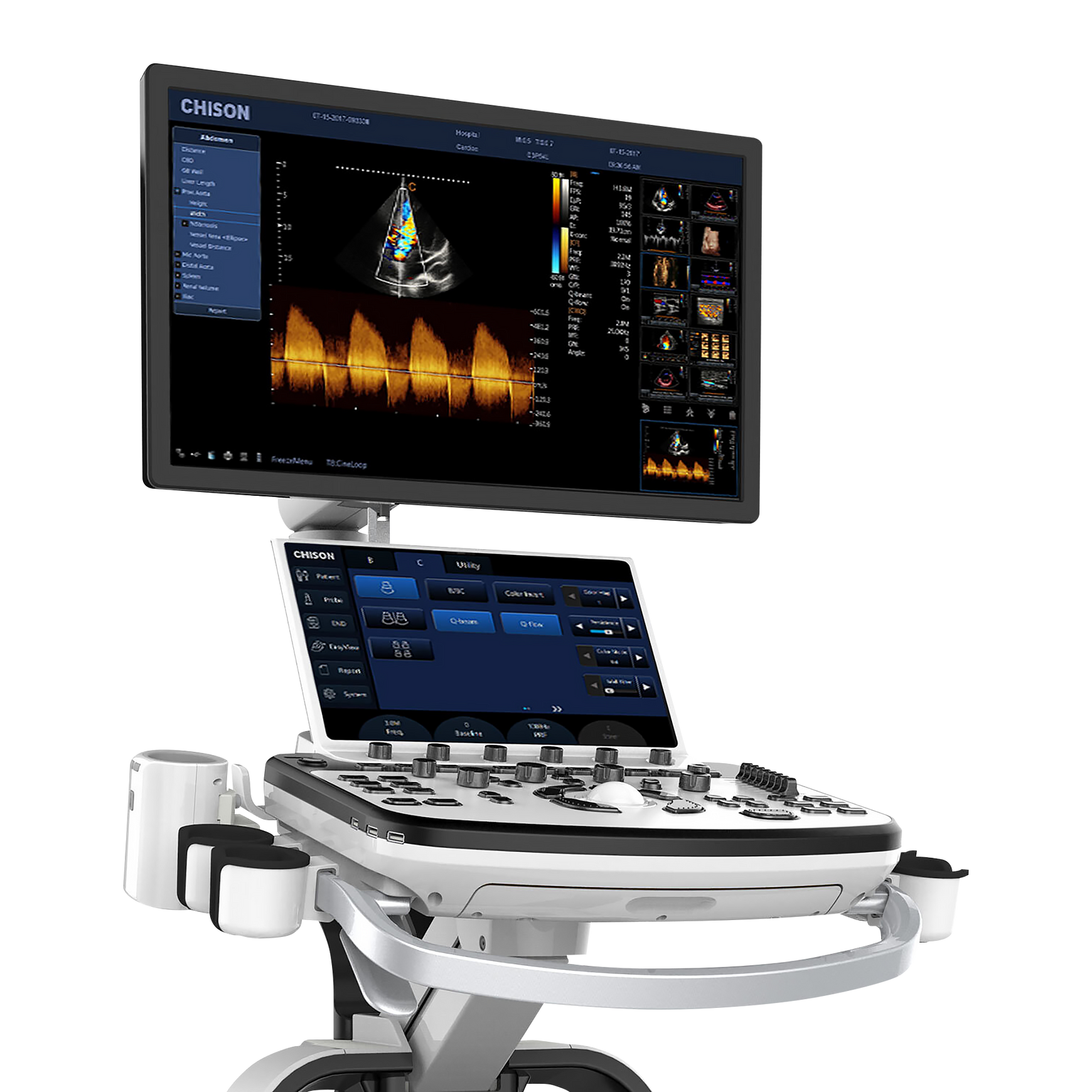

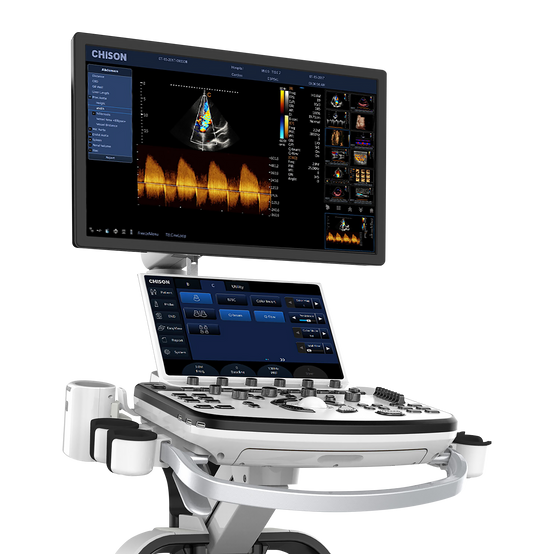

CHISON XBit 80 Colour Doppler Ultrasound System
The CHISON XBit 80 is a high-performance trolley-based colour Doppler ultrasound system designed for hospitals, diagnostic centres, maternity units, specialist clinics and multi-department medical facilities. It combines advanced imaging technology, a large high-resolution display, intuitive touchscreen control and wide probe compatibility to support a broad range of clinical examinations.
The system is suitable for abdominal, obstetric, gynaecological, urology, cardiac, vascular, paediatric, small parts and musculoskeletal imaging. With multiple Doppler modes, intelligent image optimisation tools and comprehensive measurement packages, the XBit 80 provides clinicians with a powerful and flexible diagnostic ultrasound platform for both routine and specialist scanning.
Key Features
• Premium trolley-based colour Doppler ultrasound system
• Large 23.8-inch high-resolution LED monitor
• 13.3-inch touchscreen with customisable layout
• Four active transducer ports for efficient probe switching
• Height-adjustable and rotatable control panel for improved user comfort
• Advanced imaging modes including B Mode, M Mode, Colour Doppler, Power Doppler, PW Doppler, CW Doppler, Triplex and Quadplex
• Fusion Harmonic Imaging for improved image clarity
• Speckle Reduction Algorithm to reduce noise and improve tissue definition
• Multiple Compound Imaging for enhanced contrast and border resolution
• Q-image intelligent image optimisation
• X-contrast, Q-beam and Q-flow imaging technologies
• Automatic PW trace and real-time measurement
• Comprehensive measurement packages for general imaging, OB/GYN and cardiac applications
• 500GB integrated storage for patient images and examination data
• DVD-R/W drive and 8 USB ports
• Optional advanced functions including 4D, elastography, stress echo, DICOM, WiFi, Bluetooth, SonoAI OB and SonoContrast
Clinical Applications
| Application Area | Suitable Use |
|---|---|
| Abdominal Imaging | General abdominal examinations, liver, gallbladder, renal and related assessments |
| Obstetrics | Fetal imaging, fetal biometry and routine pregnancy scanning |
| Gynaecology | Pelvic, uterine, ovarian and transvaginal examinations |
| Urology | Kidney, bladder, prostate and urinary tract assessment |
| Cardiac | Adult and paediatric cardiac imaging |
| Vascular | Blood flow assessment using colour and spectral Doppler modes |
| Small Parts | Breast, thyroid, scrotum and superficial structures |
| Musculoskeletal | Conventional and superficial MSK examinations |
| Paediatrics | General paediatric ultrasound applications |
Imaging Modes
| Imaging Mode | Description |
|---|---|
| B Mode | Standard 2D greyscale imaging |
| B/M Mode | Combined 2D and motion mode imaging |
| M Mode | Motion assessment for cardiac and other dynamic structures |
| CFM Mode | Colour Flow Mode for visualising blood flow |
| PD / DPD Mode | Power Doppler and Directional Power Doppler |
| PW Mode | Pulse Wave Doppler for spectral flow analysis |
| CW Mode | Continuous Wave Doppler for high-velocity flow assessment |
| Duplex / Triplex | Combined greyscale, colour and Doppler imaging |
| Quadplex | B + Colour + Doppler + auto trace |
| TDI | Tissue Doppler Imaging |
| Colour M Mode | Colour Doppler combined with M Mode |
| Curved Panoramic | Extended field-of-view imaging |
| Trapezoidal Imaging | Wider imaging field with compatible linear probes |
| Elastography | Tissue stiffness assessment, available as an option |
| Stress Echo | Cardiac stress echo function, available as an option |
| 4D / Virtual HD | Advanced obstetric and volume imaging options |
Technical Specifications
| Specification | Details |
|---|---|
| Model | CHISON XBit 80 |
| System Type | Trolley-based colour Doppler ultrasound system |
| Main Unit Dimensions | Approx. 764 mm × 630 mm × 1440 mm |
| Main Unit Weight | Approx. 75 kg, excluding probes |
| Main Display | 23.8-inch high-resolution colour LED monitor |
| Display Resolution | 1920 × 1080 |
| Touchscreen | 13.3-inch touchscreen with customisable layout and real-time image display |
| Control Panel | Height adjustable by 15 cm and rotatable 100° left and right |
| Transducer Ports | 4 active transducer ports |
| Storage | 500GB integrated storage |
| USB Ports | 8 USB ports |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | 600 VA |
| Battery | Optional |
| Connectivity | Ethernet, USB, optional DICOM, DVI, VGA, video output, S-Video, audio output and printer support |
| Operating Temperature | 10°C to 40°C |
| Operating Humidity | 30% to 75%, non-condensing |
Supported Probe Types
| Probe Type | Typical Application |
|---|---|
| Convex Probe | Abdominal, obstetric and general imaging |
| Linear Probe | Vascular, small parts, breast, thyroid and MSK imaging |
| Transvaginal Probe | Gynaecology and early obstetric imaging |
| Phased Array Probe | Cardiac imaging |
| Volume Probe | 3D and 4D obstetric imaging |
| Micro-Convex Probe | Paediatric and specialist abdominal applications |
| TEE Probe | Transoesophageal cardiac imaging |
| Pencil Probe | Doppler flow assessment |
| Bi-Plane Probe | Specialist urology and procedural applications |
Standard Configuration
| Included Feature | Details |
|---|---|
| Monitor | 23.8-inch LED monitor |
| Touchscreen | 13.3-inch touchscreen |
| Transducer Ports | 4 active ports |
| Storage | 500GB integrated storage |
| Media Drive | DVD-R/W drive |
| USB | 8 USB ports |
| Keyboard | Alphanumeric keyboard |
| TGC Controls | 8 TGC slides |
| Control Keys | Interactive backlit keys |
| Audio | Integrated speaker with adjustable volume |
| Standard Imaging | B, 2B, 4B, B/M, CFM, PW, Power Doppler and Directional Power Doppler |
| Doppler Workflow | Instant Triplex, Duplex and Quadplex imaging |
| Image Enhancement | Fusion Harmonic Imaging, Multiple Compound Imaging and Speckle Reduction Algorithm |
| Optimisation Tools | AIO, Q-image, X-contrast, Q-beam and Q-flow |
| Measurements | General, OB/GYN and cardiac measurement packages |
Optional Software and Advanced Functions
| Optional Function | Use |
|---|---|
| 4D Module | Advanced volume and obstetric imaging |
| Virtual HD / Depth View | Enhanced volume image display |
| HD 3D | Advanced 3D imaging |
| Elastography | Tissue stiffness assessment |
| Shear Wave Elastography | Quantitative tissue stiffness analysis |
| Stress Echo | Cardiac stress echo assessment |
| Auto EF | Automated cardiac ejection fraction measurement |
| Strain / Strain Rate | Cardiac and tissue deformation assessment |
| SonoAI OB | Automated OB measurements |
| SonoContrast | Contrast-enhanced ultrasound imaging |
| SonoNeedle | Needle visualisation support |
| SonoFollicle | Follicle assessment workflow |
| DICOM 3.0 | Network image storage, worklist and reporting support |
| WiFi / Bluetooth | Wireless connectivity options |
| Biopsy Kits | Available for selected convex, linear, transvaginal and micro-convex probes |
Measurement and Calculation Packages
| Package | Measurements Supported |
|---|---|
| General | Distance, area, volume, ratio, angle and strain ratio |
| OB/GYN | Fetal biometry, uterine, ovarian, follicle and fetal Doppler measurements |
| Cardiac | Auto EF, Simpson, Teichholz, valve, LV mass, TAPSE, TDI and cardiac Doppler measurements |
| Vascular | Carotid, peripheral vessel, IMT and volume flow measurements |
| Urology | Prostate, bladder, kidney and urinary assessment measurements |
| Small Parts | Breast, thyroid, scrotum and superficial structure measurements |
| Paediatrics | Paediatric hip and general paediatric measurements |
| Abdomen | Liver, gallbladder, spleen, renal and abdominal vessel measurements |
| TCD | Transcranial Doppler vessel measurements |
Image Storage and Export
| Function | Details |
|---|---|
| Internal Storage | 500GB integrated storage |
| Still Image Export | BMP, JPG, DCM, PNG and TIFF |
| Cine Loop Export | AVI |
| Exam Review | Patient and study review supported |
| Exam Management | Delete, export, backup, recover and continue selected exams |
| DICOM Support | Optional DICOM verify, print, store, worklist, structured report, MPPS and query/retrieve |
Why Choose the CHISON XBit 80?
The CHISON XBit 80 is ideal for healthcare facilities that need a powerful, versatile and reliable ultrasound system for multiple departments. Its combination of high-quality imaging, wide probe compatibility, advanced Doppler functions and intelligent workflow tools makes it suitable for both routine diagnostic work and more specialised clinical applications.
From OB/GYN and abdominal imaging to vascular, cardiac, urology and small parts examinations, the XBit 80 provides the performance and flexibility required in modern clinical environments.
Ordering Information
Available configurations may vary depending on probes, software options and clinical requirements. Please contact Nass Ventures for current pricing, delivery options, probe selection, installation support and training.
Important: Some functions listed above are optional and may require additional software, probes or hardware configuration. Please confirm the required package before ordering.
