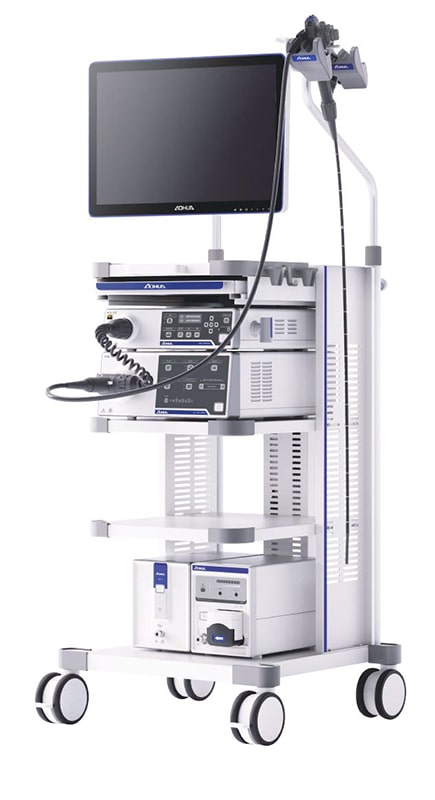

Aohua AQ-110 Full HD Video Endoscopy System
Versatile Full HD Video Endoscopy Platform for Diagnostic and Therapeutic Procedures
The Aohua AQ-110 is a versatile Full HD video endoscopy system available in a variety of configurations. It supports a wide selection of compatible endoscopes and provides enhanced Full HD imaging for gastrointestinal and other flexible endoscopic applications.
The AQ-110 can be configured with different endoscope types and light sources, allowing healthcare facilities to select a system configuration appropriate to their clinical requirements.
Compatible devices include gastroscopes, colonoscopes, bronchoscopes and laryngoscopes, providing a broad range of applications from routine diagnostic examinations to therapeutic procedures.
Full HD Image Quality
The AQ-110 uses a Full HD CMOS sensor to provide high-quality endoscopic images.
The imaging system is designed to deliver clear and sharp contrast at tissue boundaries, supporting detailed visualisation during endoscopic examinations.
Multiple Light Source Options
The AQ-110 platform supports both LED and xenon light-source configurations, allowing the system to be adapted to different clinical and operational requirements.
These light-source options are designed to provide the brightness and colour rendering required for true-colour clinical images during both routine and more complex procedures.
LED Light Source
LED illumination option for compatible AQ-110 system configurations.
Xenon Light Source
Xenon illumination option for applications requiring a compatible xenon-based light-source configuration.
Optical Chromoendoscopy
The AQ-110 incorporates CBI – Compound Band Imaging optical chromoendoscopy.
CBI provides increased contrast between mucosal tissue and blood vessels, supporting visual assessment of suspected lesions and mucosal abnormalities.
Universal Application
Suitable for Therapeutic Procedures
Large working and irrigation channels support the use of compatible endoscopic instruments during therapeutic procedures.
Selected colonoscope models feature a 3.7 mm working channel, allowing the use of a wide variety of compatible endoscopic accessories.
Wide Range of Compatibility
In addition to diagnostic and therapeutic gastrointestinal endoscopes, the AQ-110 is compatible with bronchoscopes and laryngoscopes.
This allows the platform to support several flexible endoscopy applications within one system family.
System Features
| Feature | Function |
|---|---|
| White Balance | Ensures correct colour-temperature balance |
| Enhanced Hemoglobin (HbE) | Highlights mucosal capillary morphology |
| Image Enhancement | Structure / Edge / Colour |
| IRIS | Peak / Average |
| Storage | USB |
| Freeze & Playback | Captures the live image and allows playback |
| Digital Zoom | 1× / 1.2× / 1.5× / 2× |
| Optical Chromoendoscopy | CBI – Compound Band Imaging mode |
| Image Enhancement Adjustment | Manual |
Compatible Video Gastroscopes
| Model | Working Length | Total Length | Distal End Ø | Insertion Tube Ø | Instrument Channel Ø | Depth of Field | Field of View |
|---|---|---|---|---|---|---|---|
| VGT-Q30 | 1050 mm | 1350 mm | 9.6 mm | 9.6 mm | 2.8 mm | 3–100 mm | 140° |
| VGT-Q30J | 1050 mm | 1350 mm | 9.0 mm | 9.0 mm | 2.8 mm | 3–100 mm | 140° |
Gastroscope bending range: Up 210°, Down 90°, Left 100°, Right 100°.
Compatible Video Colonoscopes
| Model | Working Length | Total Length | Distal End Ø | Insertion Tube Ø | Instrument Channel Ø | Depth of Field | Field of View |
|---|---|---|---|---|---|---|---|
| VCC-Q30I | 1330 mm | 1600 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 140° |
| VCC-Q30L | 1650 mm | 1950 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 140° |
| VCC-Q30JI* | 1300 mm | 1600 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 140° |
| VCC-Q30JL* | 1650 mm | 1600 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 140° |
Colonoscope bending range: Up 180°, Down 180°, Left 160°, Right 160°.
*VCC-Q30JI and VCC-Q30JL: these endoscopes are equipped with an additional channel for washing.
Note: the supplied specification lists the VCC-Q30JL working length as 1650 mm and total length as 1600 mm. This has been reproduced exactly from the supplied material and should be verified with the manufacturer before final publication.
Compatible Video Bronchoscopes
| Model | Working Length | Total Length | Distal End Ø | Insertion Tube Ø | Instrument Channel Ø | Depth of Field | Field of View |
|---|---|---|---|---|---|---|---|
| VBC-Q30* | 600 mm | 900 mm | 4.9 mm | 4.9 mm | 2.0 mm | 2–50 mm | 120° |
| VBC-1T30* | 600 mm | 900 mm | 5.8 mm | 5.7 mm | 2.0 mm | 2–50 mm | 120° |
Bronchoscope bending range: 160° / 130° / – / –.
* These models are equipped with an additional channel for washing.
Compatible Video Laryngoscopes
| Model | Working Length | Total Length | Distal End Ø | Insertion Tube Ø | Instrument Channel Ø | Depth of Field | Field of View |
|---|---|---|---|---|---|---|---|
| VRL-Q30 | 450 mm | – | 4.9 mm | 4.9 mm | 2.0 mm | 2–50 mm | 120° |
| VRL-1T30 | 450 mm | – | 5.8 mm | 4.9 mm | 2.0 mm | 2–50 mm | 120° |
Laryngoscope bending range: 160° / 130° / – / –.
Product Information
| Manufacturer | Aohua Endoscopy Co. |
| Product | AQ-110 Video Endoscopic System |
| Product Category | Endoscopic Video System |
| Species Code | 271790 |
Flexible Configuration for Multiple Endoscopy Applications
The Aohua AQ-110 combines Full HD CMOS imaging, CBI optical chromoendoscopy, image enhancement and a broad range of compatible flexible endoscopes in a configurable video endoscopy platform.
Contact Nass Ventures for system configuration, compatible scope selection, accessories, pricing, installation requirements and technical support.
