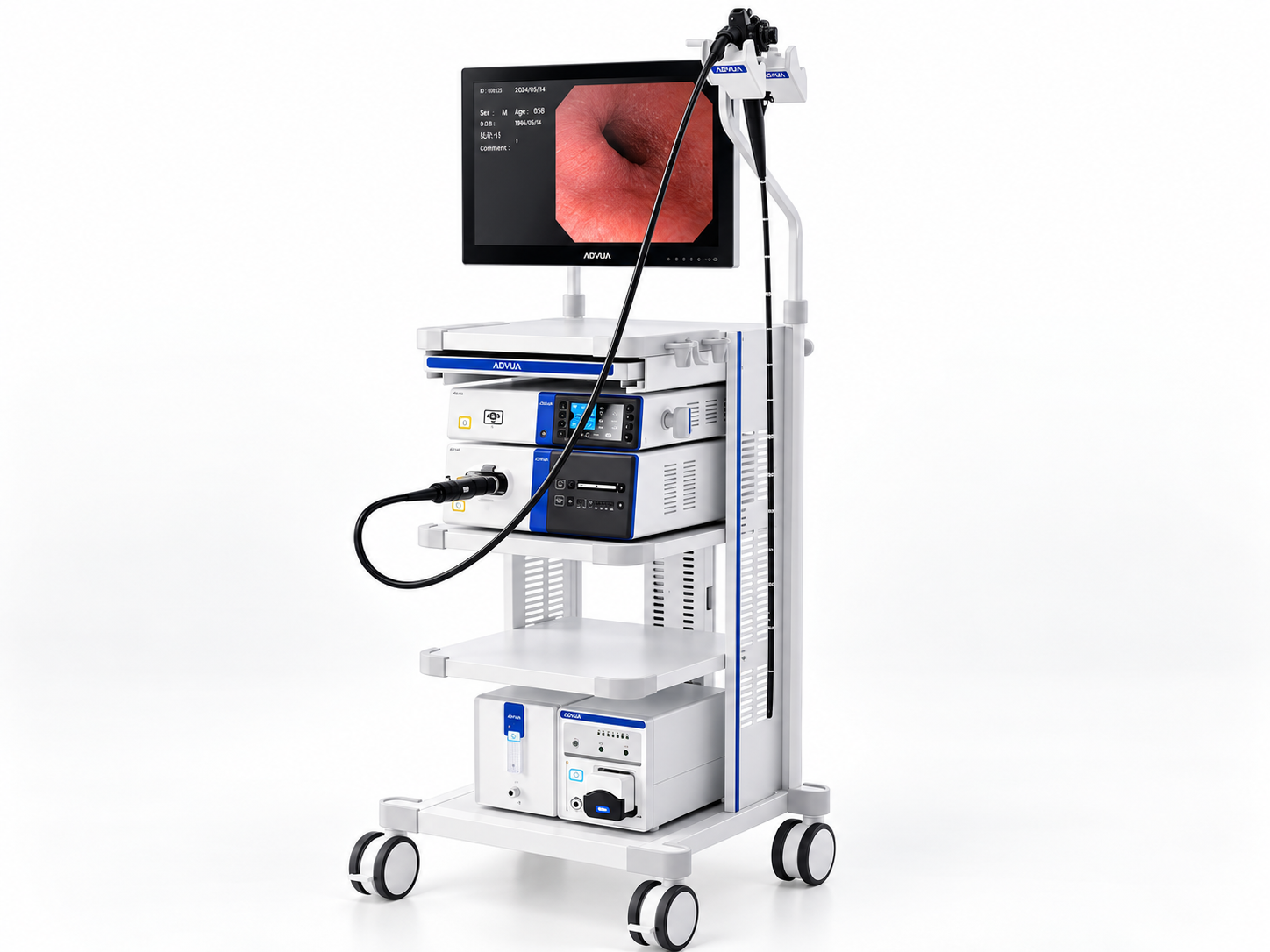

Aohua AQ-200 Full HD Video Endoscopy System
Full HD Flexible Endoscopy with Advanced Optical Chromoendoscopy
The AQ-200 Full HD Video Endoscopy System is designed to provide detailed and high-quality visualisation for gastrointestinal endoscopy.
Compatible endoscopes are equipped with a 2-megapixel CMOS image sensor and provide Full HD resolution, producing detailed and crystal-clear images during diagnostic and therapeutic procedures.
The system combines Full HD imaging with optical chromoendoscopy, high-speed laser data transmission, wireless power technology, dual-display capability, image enhancement and ergonomic endoscope design.
Expert-Level Full HD Visualisation
The compatible video endoscopes incorporate a 2-megapixel CMOS matrix and provide Full HD resolution for detailed gastrointestinal imaging.
Full HD image quality supports clear observation of mucosal structures, vascular patterns and other clinically relevant anatomical detail.
Three Modes of Optical Chromoendoscopy
Color-Enhanced Imaging (CBI) technology is designed to optimise the balance between illumination, vascular colour contrast and mucosal structural detail.
The system provides three CBI optical chromoendoscopy modes to support enhanced observation of vascular and mucosal patterns and assist with identification of suspicious lesions.
CBI Normal
Optical chromoendoscopy mode for enhanced visualisation of mucosal and vascular detail.
CBI Indigo
Additional colour-enhanced viewing mode for detailed endoscopic assessment.
CBI Aqua
Alternative optical enhancement mode for additional visual differentiation.
Exclusive Innovations
Laser Data Transmission
High-speed laser signal transmission of up to 8 Gbps supports real-time image synchronisation and improved interference protection during complex procedures.
Wireless Power Supply
The wireless power system eliminates conventional metal electrical contacts, helping provide a stable connection and supporting a hermetically sealed endoscope design.
Dual Display Mode
Dual display mode allows both white-light imaging and optical chromoendoscopy imaging to be shown on a single screen.
This allows clinicians to directly compare conventional white-light images with CBI-enhanced images without repeatedly switching between illumination modes.
Ease of Use
Excellent Manoeuvrability
A redesigned ergonomic handle and four programmable buttons are intended to reduce operator fatigue and provide convenient access to frequently used functions.
Adjustable Colonoscope Stiffness
Colonoscope rigidity can be adjusted using the adjustment ring, allowing stiffness to be adapted according to different segments of the colon.
Waterproof Construction
The endoscope system incorporates waterproof construction designed to reduce the risk of water-related damage.
One-Touch Connection
The one-touch connection system is designed to simplify endoscope connection and reduce the time required when changing endoscopes between procedures.
System Features
| Feature | Specification |
|---|---|
| Light Source | 300 W Xenon / 3 LEDs |
| Image Enhancement | Structure / Edge / Colour |
| Brightness Adjustment | Automatic / Manual |
| IRIS | Peak / Average / Auto |
| Data Storage | USB |
| Digital Zoom | 1× / 1.2× / 1.5× / 2× |
| Optical Chromoendoscopy | CBI Normal / CBI Indigo / CBI Aqua |
| Dual Display Mode | 2 Images |
Compatible Full HD Video Gastroscopes
| Model | Working Length | Total Length | Distal End Ø | Insertion Tube Ø | Instrument Channel Ø | Depth of Field | Field of View |
|---|---|---|---|---|---|---|---|
| FHD-GT200 | 1050 mm | 1350 mm | 9.8 mm | 9.8 mm | 2.8 mm | 3–100 mm | 145° |
| FHD-GT200J | 1050 mm | 1350 mm | 9.0 mm | 10.5 mm | 10.5 mm* | 3–100 mm | 145° |
*The supplied specification material lists the FHD-GT200J instrument channel diameter as 10.5 mm. Confirm this specification with the manufacturer before final publication.
Gastroscope bending range: Up 210°, Down 90°, Left 100°, Right 100°.
Compatible Full HD Video Colonoscopes
| Model | Working Length | Total Length | Distal End Ø | Insertion Tube Ø | Instrument Channel Ø | Depth of Field | Field of View |
|---|---|---|---|---|---|---|---|
| FHD-CL200I | 1300 mm | 1600 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 145° |
| FHD-CL200L | 1650 mm | 1950 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 145° |
| FHD-CL200JI | 1300 mm | 1600 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 145° |
| FHD-CL200JL | 1650 mm | 1950 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 145° |
Colonoscope bending range: Up 180°, Down 180°, Left 160°, Right 160°.
FHD-CL200JI and FHD-CL200JL: these models are equipped with an additional channel for washing.
Advanced Full HD Flexible Endoscopy
Combining Full HD CMOS imaging, three-mode CBI optical chromoendoscopy, laser data transmission, wireless power, dual display, image enhancement and a comprehensive range of compatible gastroscopes and colonoscopes, the AQ-200 provides a flexible platform for modern gastrointestinal endoscopy.
Contact Nass Ventures for system configuration, compatible endoscope selection, accessories, installation requirements, pricing and technical support.
