COMEN B10 3-in-1 Trinity Incubator
Share

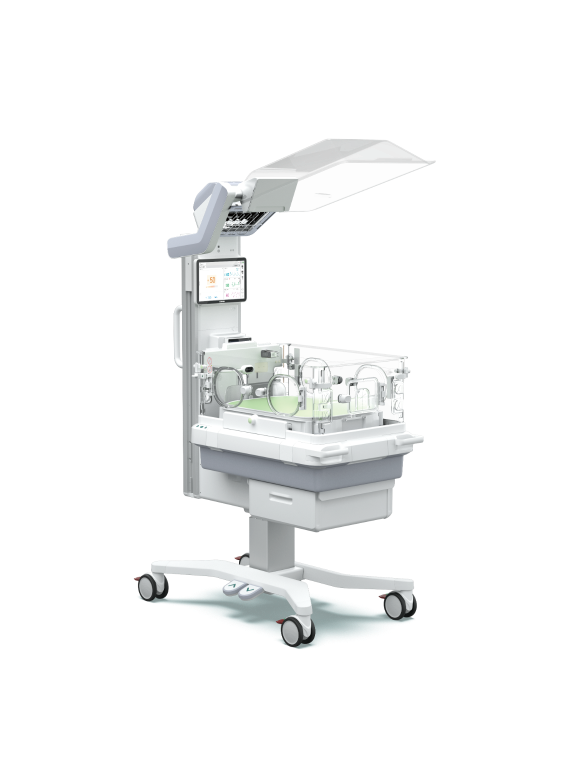

COMEN B10 3-in-1 Trinity Incubator is a neonatal care device designed to create a stable and protective microenvironment for preterm and newborn infants. It supports incubator care, radiant warmer workflows and intra-hospital transport support, helping neonatal teams manage temperature stability, access, monitoring and family-centred care.
Product Overview
Preterm infants in the NICU face risks including heat loss, excessive noise and light exposure, infection risk, limited parental contact, complex medical conditions and possible delays in nursing care. The B10 is designed to reduce these risks by supporting a stable, protective and responsive neonatal-care environment.
Key Features

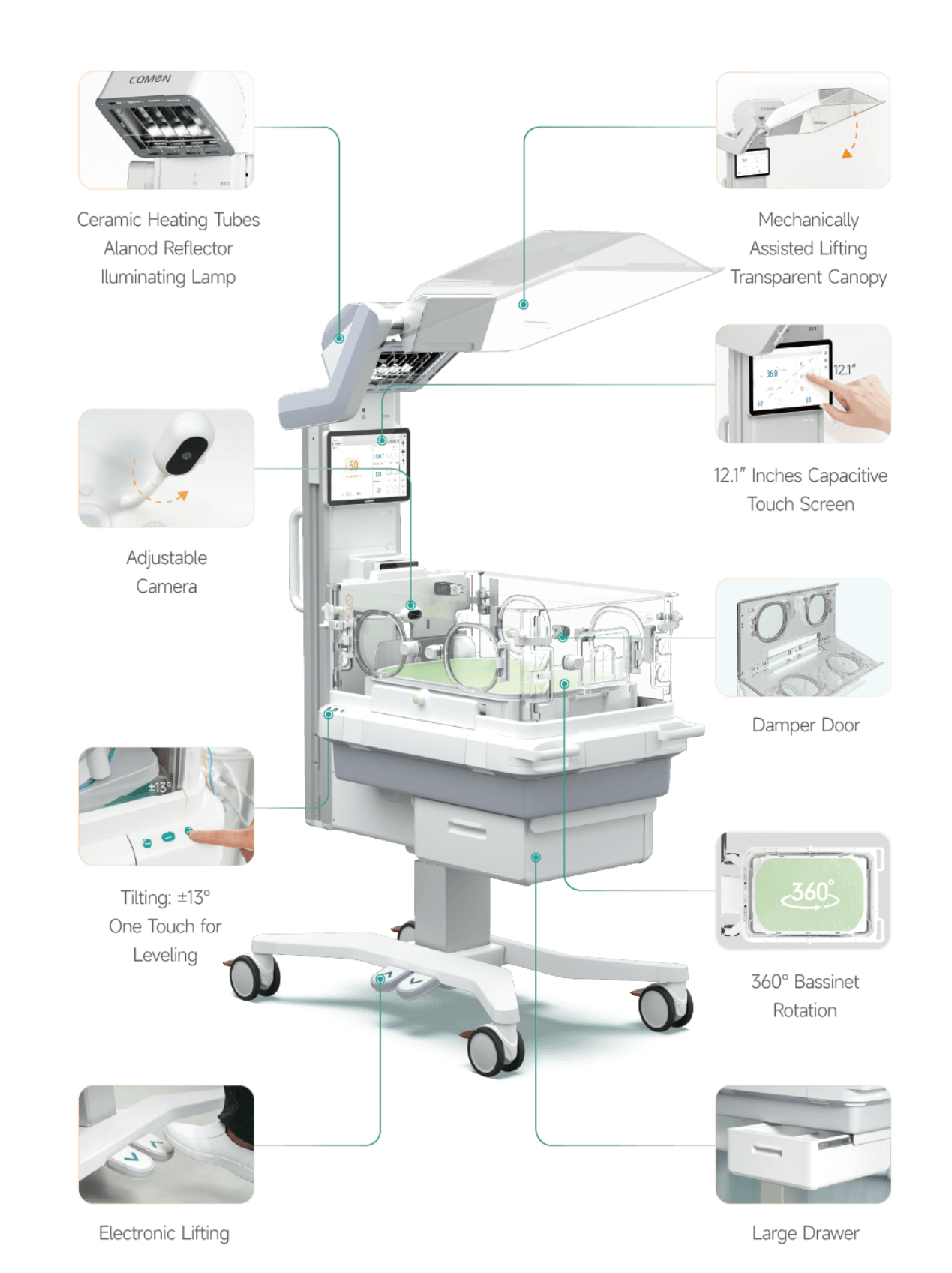

- 3-in-1 neonatal care platform for incubator, warmer and transport-related workflows
- Designed to provide a stable and protective microenvironment for preterm infants
- One-click tilting and 360° rotation for easier positioning and access
- Three-step disassembly to support faster cleaning workflows
- One-click temperature setting to support thermal stability
- Multi-parameter monitoring to provide real-time data for clinical decisions
- Rapid warmth startup and real-time servo temperature control
- Multi-temperature sensor monitoring for responsive temperature adjustment
- High-efficiency, long-lasting humidification performance
- Internal noise management to support restful sleep
- Audio player for music or parent’s voice
- Mood light to support gentle ambience for breastfeeding and bonding

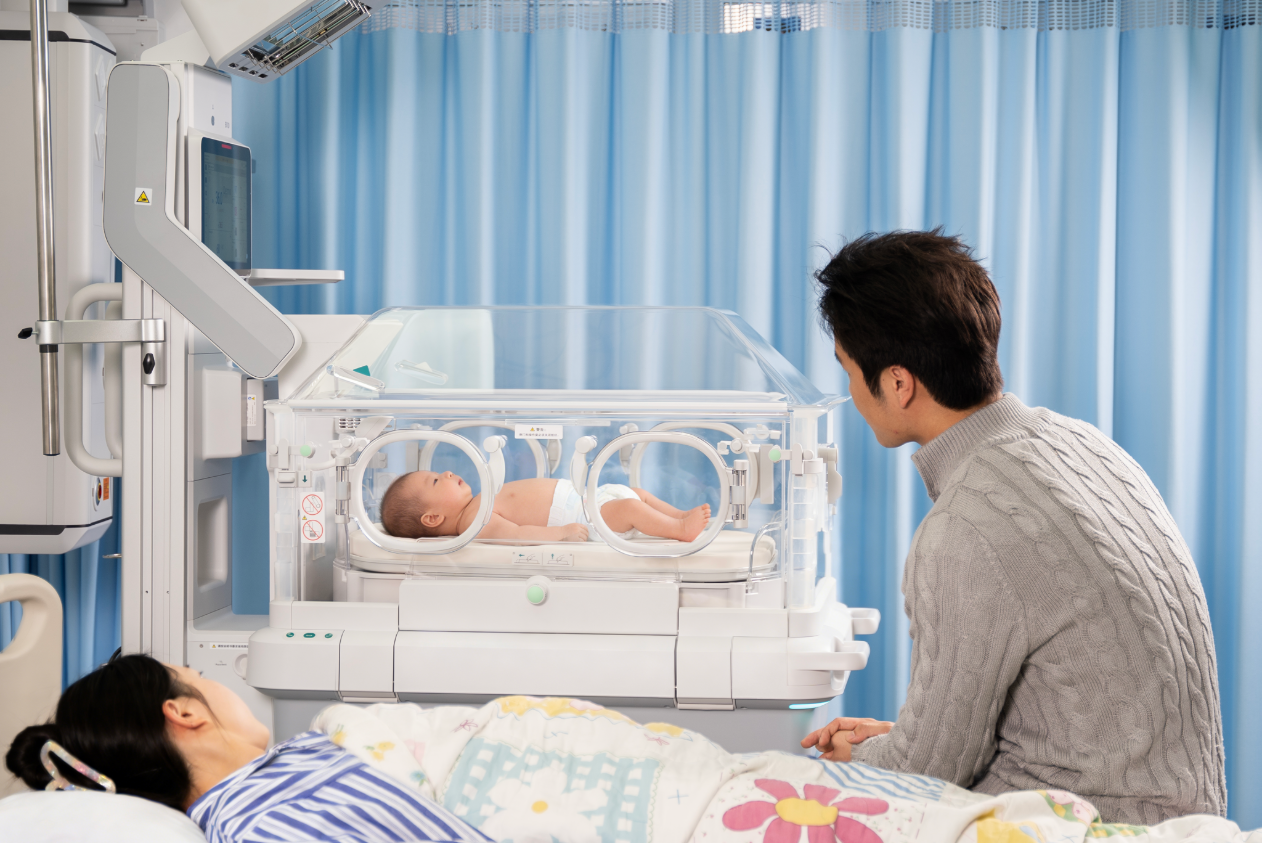

- Koala mode to support skin-to-skin contact and family-centred care
- Integrated multi-controlled mode for controlled temperature management
- Mechanically assisted lift-up canopy for fast transition from incubator mode to radiant warmer mode
Clinical Applications
- NICU neonatal care
- Preterm infant thermoregulation support
- Routine nursing care and monitoring
- Delivery-room immediate newborn care where radiant-warmer use is required
- Intra-hospital newborn transfer from delivery room to NICU
- Emergency-response neonatal care
- Family-centred care and parent-infant interaction
Workflow Benefits
- Supports efficient access to the infant during daily care
- Designed to assist clinicians with stable thermal control and humidity management
- Supports rapid emergency access through canopy lift-up design
- Helps create a more comfortable neonatal environment by managing heat, humidity, sound and light

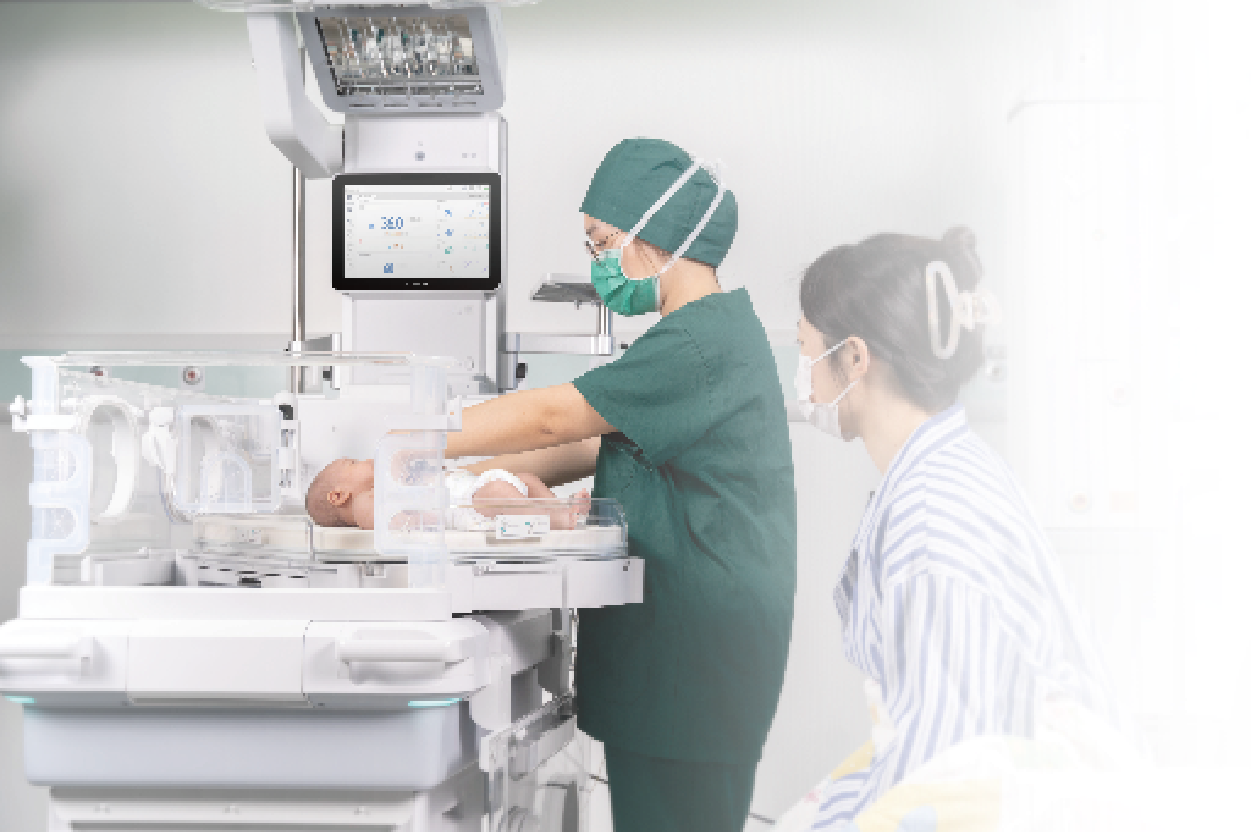

- Supports bonding activities such as breastfeeding and skin-to-skin care where clinically appropriate
Ordering Information
Please contact Nass Ventures to confirm the required configuration, accessories, voltage, clinical suitability, installation needs, training, warranty, delivery and final quotation before ordering.
Important: This neonatal incubator should be selected, configured and used by trained healthcare professionals in appropriate neonatal-care environments and in line with local clinical protocols.
Shipment
Benefit from reliable delivery options
Every day, we ship our laboratory equipment throughout Nigeria and internationally. We work with trusted and experienced logistics and courier partners to ensure safe and timely delivery. Shipping costs and delivery times depend on the items ordered and the recipient’s location. Alternatively, you may arrange to collect your order in person by appointment. Below is an overview of our shipping options and policies.
Shipping within Nigeria
All goods are insured as standard up to a value of ₦ equivalent of €25,000. Shipping costs are calculated based on the weight, dimensions, value of the shipment, and delivery destination within Nigeria. For detailed shipping information, please contact us directly—we will be happy to assist.
International shipping
For accurate international shipping costs, we require details of the specific product(s) you wish to order.
Please contact us by telephone or email for a tailored quotation.
Freight forwarding, sea or air freight
For large, heavy, or specialized equipment, we provide personalised quotations for road freight, sea freight, or air freight. Taking current logistics conditions into account, we aim to offer the best possible price-to-performance ratio.
Incoterms 2020
All shipments are handled in accordance with Incoterms® 2020 (ICC). Please contact us to confirm and agree on your preferred delivery terms.
Self-collection
If required, you may collect your goods in person by prior appointment. Please note that pricing and availability may vary between Nigeria and other countries.
Standard deliveries
Standard shipments within Nigeria are handled by reputable courier and logistics providers. Upon request, we can also arrange alternative carriers to meet specific delivery requirements.
Insurance
All deliveries are insured up to a maximum value of ₦ equivalent of €25,000. If the value of your goods exceeds this amount, we will contact you to arrange additional insurance coverage.
Delivery time
Delivery times depend on product availability and order volume. High-demand items may be subject to delays beyond our control. If you require urgent delivery, please inform us in advance, and we will do our best to accommodate your request.
Q: Saves time
A: This reason might be the most obvious, but it’s a clear benefit of an FAQ page. Not only does the FAQ page save customers time, but it also saves employees time as well. Having an FAQ page ensures customers don’t have to sit on the phone for hours waiting for simple answers, and employees don’t have to individually answer all questions.
Q: Earns trust
A: Information is available at the click of a button, but as we all know, information is not always true. Because of this, customers are more skeptical than ever before. They hunt for products by sifting through reviews, looking at the product on multiple websites, and doing price checking across the internet.
Q: Provides new insights
A: It’s difficult to get into the head of a shopper. Some buy on impulse, and others buy after thorough research. By tracking the clicks on your FAQ page, you can gather insights about your product or service that you didn’t know before. You can then inform your product team of these insights. From there, the product team can make changes to improve the product or experience.
Q: Drives internal page views
A: If you want your FAQ to be extremely thorough, which it should be, you can link to resources within your FAQ for your customers to find out more information. Whether you link to a blog that goes into more detail or a product page, this content helps the shoppers get the full story before making a purchase.
A: Prevents negative reviews
A: When looking through negative reviews, there’s almost always one thing in common: the problem could’ve been avoided.
Related Products
Overview
The DIXION BabyGuard I-1120-2 Transformer is a three-in-one neonatal care system integrating incubation, first aid and monitoring functions for NICU use.
Product Notes
Fast switching and seamless care
Fast switching between infant incubator and radiant warmer modes by one click, providing a closed incubation environment for newborns, while also can be transformed into an open emergency space.
Applications
• Neonatology departments
• NICU and newborn intensive care areas
• Maternity and paediatric clinical settings
• Radiant warmer / open-care use
• Neonatal monitoring workflows depending on configuration
Technical Specifications
Control: 10.4 inch TFT color LCD touch screen
Electric tilting system: +
Temperature servo control: air mode, baby mode, kangaroo mode
Bassinet angle display function: +
Humidity control: +
Panel damping system: opt
Oxygen concentration control: +
Weighing system: opt
Skin temperature sensor: +
Video recording: opt
>37°C: +
Observation lamp: opt
Vertical height adjustment stand: +
Ambient temperature and humidity monitoring: opt
Hands-free alarm silence: +
Temperature overshoot in air control mode: No greater than 1.0 °
Temperature servo control mode: Pre-warm mode, Manual mode, Baby mode
Warmer module: +
APGAR, CPR: +
SpO2 monitoring: Hemoglobin monitoring
ECG monitoring: opt
CO2 monitoring: opt
Ordering Information
• Please confirm the required model, quantity, delivery location and clinical department before ordering.
• Confirm accessories, optional configurations, installation requirements and local regulatory requirements before purchase.
• For hospital projects, Nass Ventures can support sourcing, procurement and equipment planning depending on the final configuration.
Overview
The DIXION BabyGuard I-1120 Transformer combines closed infant incubator mode, open radiant warmer mode and neonatal monitoring functions for hospital neonatal care.
Applications
• Neonatology departments
• NICU and newborn intensive care areas
• Maternity and paediatric clinical settings
• Radiant warmer / open-care use
• Neonatal monitoring workflows depending on configuration
Technical Specifications
Mode of control: Air mode and Baby mode controlled by micro-computer
Air temperature control range: 20°C-37°C(override mode 37°C-39°C)
Baby temperature control range: 34°C-37°C(override mode 37°C-38°C)
Accuracy of skin temperature sensor: within ± 0.2°C
The temperature fluctuation between incubator temperature and average incubator temperature (under stable temperature condition): ≤0.5°C
Temperature uniformity: ≤0.8°C(mattress is on the horizontal position) ≤1.0°C(mattress is on the maximum tilt position)
Inclination of the bassinet: ± 12° (stepless adjustable)
Noise inside hood (stable working condition): ≤50dB(A)
Relative Humidity Level: Humidity display range Humidity control range Accuracy of humidity display Accuracy of humidity control: 0%RH~100%RH 0%RH~90%RH ± 5%RH ± 5%R
Oxygen Level: Indication range of oxygen concentration Control range of oxygen concentration Indication accuracy of oxygen concentration Control accuracy of oxygen concentration: 0%~100% 20%~60% ± 2% (The set value is below 25%) ± 3% (The set value is above 25%) ±4% 02
Control Mode: Pre-warm mode, manual mode and baby mode are controlled by micro-computer
Baby mode temperature control range: 34°C-38°C
Control accuracy ( The fluctuation range between Skin temperature and Set temperature): ≤0.5°C
Temperature uniformity of mattress: ≤2°C
SPO2 Display range: 1- 100%
SPO2 Display resolution: 1%
SPO2 Alarm setting range: Upper limit:50 ~100% Lower limit: 45-95%
PR Display range: 25-240 bpm
PR Display resolution: 1bpm
PR Alarm Setting range: Upper limit: 80 – 240 bpm Lower limit: 35-180 bpm
PI Display range: 0.02-20.0%
PI Display Resolution: 0.01%
Ordering Information
• Please confirm the required model, quantity, delivery location and clinical department before ordering.
• Confirm accessories, optional configurations, installation requirements and local regulatory requirements before purchase.
• For hospital projects, Nass Ventures can support sourcing, procurement and equipment planning depending on the final configuration.
Overview
The DIXION BabyGuard I-1125 is a transport infant incubator designed for intensive care and neonatal transportation, including use in neonatology departments and ambulances depending on configuration.
Product Notes
Infant Incubator Babyguard I-1125 (Transport) with computer controlled air-temp/skin-temp
system is equipped with built-in battery, that allows using it in neonatology department as well
Applications
• Neonatology departments
• NICU and newborn intensive care areas
• Maternity and paediatric clinical settings
• Ambulance or in-hospital neonatal transport depending on configuration
Key Features
• Mode of control: Air mode and Baby mode controlled by micro-computer
• AC/DC power alternatively
• Multiple failure alarm indication
• Passive air humidification in the chamber
• Double-walled hood (acrylic-glass) with side door(so that the bassinet can be pulled out from it)
• The height of the unit is adjustable
• Oxygen supply system
• Observation lamp
• Set temp/Air temp/Baby temp/battery capacity
• can be displayed separately
• >37°C temperature set function (optional)
• Main Body (Hood, Controller, Bassinet, Internal battery,Observation lamp)
• Oxygen Cylinders
• Skin temperature sensor
• I.V. Pole
• Mattress
• Adjustable stand
• 37°C override temperature mode
Ordering Information
• Please confirm the required model, quantity, delivery location and clinical department before ordering.
• Confirm accessories, optional configurations, installation requirements and local regulatory requirements before purchase.
• For hospital projects, Nass Ventures can support sourcing, procurement and equipment planning depending on the final configuration.
Overview
Infant incubator BabyGuard 1-1120 for intensive care is air-temp, skin-temp, air humidity and oxygen concentration servo-controlled by a micro-computer. Its graphic display represents all trends, which allows the doctor to make ‘at-a-glance’ assessment of the environment inside the incubator. The infant incubator is equipped with a special air circulation system inside the apparatus which minimizes the flow in the hood environment. The automatic curtain reduces the heat loss. The double-walled hood conserves the heat for 2 hours.
Applications
• Neonatology departments
• NICU and newborn intensive care areas
• Maternity and paediatric clinical settings
Key Features
• Air temperature and skin temperature servo-control
• Air humidity servo-control
• Oxygen concentration servo-control (optional)
• Double-walled hood
• Basic stand on wheels and with brakes
• Built-in weigh scales (optional)
• 3 drawers for belongings and shelves for additional equipment
• IV stand
• Side windows of the chamber are equipped with transparent leaves and flexible sleeves.
• Front access window with iris diaphragm
• Smooth bassinet adjustment
• X-ray film cassette
• Electronic control
• Film control keyboard
• Large LCD display reflects real skin and air temperature, set air temperature, heating, graphic trends (up to 48 hours)
• 9-alarm option
• RS-232 interface for distance control
• Vertical height adjustment stand
Technical Specifications
Air temperature control range: 25 – 37 °C (temperature override mode to 37 – 39 °C)
Skin temperature control range: 34 – 37 °C (temperature override mode to 37 – 38 °C)
Temperature rise time: 40 min
Humidity control range: 0 – 90 %
Water container capacity: 1.2 l
1 container hour of service: up to 12 hours
Oxygen concentration measuring range: 0 – 99 %
Oxygen concentration control range: 20 – 60 %
Inclination of the bassinet: ± 8°
Air movement rate (inside the hood): < 0.2 m/s
Noise level (inside the hood): ≤ 45 dB
Alarms: Power failure Airflow failure Air temperature sensor failure Skin temperature sensor failure Temperature sensor deviation High temperature sensor failure High or low skin temperature High or low humidity level High or low oxygen concentration level
Power supply: 220 – 230 V, 50 – 60 Hz
Dimension: 1110mm×710mm×888mm (Main body) 1029mm×697mm×826mm (Cabinet)
Gross Weight: 70kg (Main Body) 80kg (Cabinet)
Ordering Information
• Please confirm the required model, quantity, delivery location and clinical department before ordering.
• Confirm accessories, optional configurations, installation requirements and local regulatory requirements before purchase.
• For hospital projects, Nass Ventures can support sourcing, procurement and equipment planning depending on the final configuration.
Overview
Infant incubator BabyGuard I-1107 for intensive care is air-temp, skin-temp, air humidity and oxygen concentration (optional) servo-controlled by a micro-computer and equipped with a special air circulation system inside the apparatus which minimizes the flow in the hood environment. The automatic curtain reduces the heat loss. The double-walled hood conserves the heat for 2 hours.
Applications
• Neonatology departments
• NICU and newborn intensive care areas
• Maternity and paediatric clinical settings
Key Features
• Air temperature and skin temperature servo-control
• Air humidity servo-control
• Oxygen concentration display system
• Double-walled hood
• Basic stand on wheels and with brakes
• Weigh scales (optional)
• 3 drawers
• Side windows of the chamber are equipped with transparent leaves and flexible sleeves.
• Front access window with iris diaphragm
• Smooth couch adjustment
• Film control keyboard
• LED indicators reflect real temperature of skin and air, set temperature of air, heating
• 9-alarm option
• RS-232 interface for distance control
Technical Specifications
Air temperature control range: 25 – 37 °C (temperature override mode to 37 – 39 °C)
Skin temperature control range: 34 – 37 °C (temperature override mode to 37 – 38 °C)
Temperature rise time: 30 min
Humidity control range: 0 – 90 %
Indicator range of oxygen concentration: 0 – 99 %
Inclination of the bassinet: ± 12°
Airflow rate within hood environment: < 0,3 m/s
Noise level (inside the hood): ≤ 45 dB
Alarms: Power failure Airflow failure Air temperature sensor failure Skin temperature sensor failure Temperature sensor deviation High temperature sensor failure High or low skin temperature High or low humidity level High or low oxygen concentration level
Power supply: 220 – 230 V, 50 – 60 Hz
Dimension: 1085mm×640mm×915mm (Main body) 1125mm×665mm×730mm (Cabinet)
Gross weight: 68kg 60kg (Cabinet)
Ordering Information
• Please confirm the required model, quantity, delivery location and clinical department before ordering.
• Confirm accessories, optional configurations, installation requirements and local regulatory requirements before purchase.
• For hospital projects, Nass Ventures can support sourcing, procurement and equipment planning depending on the final configuration.
Overview
The DIXION BabyGuard I-1103 is an infant incubator for neonatal intensive care. It provides air-temperature and skin-temperature servo control by micro-computer and uses an internal air-circulation system designed to minimise airflow inside the hood environment. The automatic curtain helps reduce heat loss, while the double-walled hood helps conserve heat.
Applications
• Neonatal intensive care
• Infant warming and incubation
• Hospital neonatology departments
• Paediatric and maternity clinical settings
Key Features
• Air mode and Baby mode controlled by micro-computer
• Passive air humidification in the chamber
• Double-walled hood
• Basic stand on wheels with brakes
• Optional weighing scales
• Three drawers
• Side chamber windows with transparent flexible sleeves
• Front access window with iris diaphragm
• Smooth bassinet adjustment
• Film touchpad control
• LED indicators for real skin temperature, real air temperature, set air temperature and heating status
• 7-alarm system
• RS-232 interface for distance control
Technical Specifications
Temperature servo-control: Included
Air temperature control range: 25–37°C, override mode 37–39°C
Skin temperature control range: 34–37°C, override mode 37–38°C
Temperature rise time: 30 minutes
Bassinet inclination: ±12°
Airflow rate within hood environment: <0.3 m/sec
Noise level inside hood: ≤45 dB
Alarms: Power failure, airflow failure, air temperature sensor failure, skin temperature sensor failure, temperature sensor deviation, high temperature sensor failure and over-temperature alarm
Power supply: 220–230 V, 50–60 Hz
Main body dimensions: 1085 × 640 × 910 mm
Cabinet dimensions: 1125 × 665 × 725 mm
Gross weight: 63 kg main body; 68 kg cabinet
Ordering Information
• Please confirm the required model, quantity, delivery location and clinical department before ordering.
• Confirm accessories, cabinet/stand requirements, optional weighing scale, installation requirements and local regulatory requirements before purchase.
• For hospital projects, Nass Ventures can support sourcing, procurement and equipment planning depending on the final configuration.
Overview
The Kartsana TG-1000 is a transport stretcher trolley designed for paediatric services and incubator transport applications. It is intended to support safe, controlled hospital movement where infant incubator compatibility and height adjustment are required.
Applications
• Paediatric patient transport
• Emergency transport
• Infant incubator transport
• Hospital and clinical transfer areas
Key Features
• Designed for use with infant incubators; please confirm incubator model compatibility before ordering
• Height-adjustable stretcher trolley for clinical transport applications
• Hydraulic and electric operation depending on configuration
• Hydraulic system unlocking button in case of fault
• Safety system designed to help avoid collapse
• Two locking wheels plus two wheels with brakes
• Single-pedal wheel unlocking for operator control
• Improved control panel for more intuitive operation
• Emergency lights for increased safety
• Two batteries to support operating autonomy
Technical Specifications
• Maximum load: 300 kg (661.39 lb)
• Length: 1,972 mm (78 in)
• Width: 574 mm (23 in)
• Height adjustment range: 350–1,300 mm (13.8–51.2 in)
• Wheel diameter: 160 mm (6.3 in)
• Patient type: paediatric
• Number of sections: 1-section
• Applications: transport, emergency, infant incubator use
Ordering Information
• Please confirm the required model, quantity, delivery location and clinical department before ordering.
• Confirm incubator compatibility, accessories, configuration, batteries, installation requirements and local regulatory requirements before purchase.
• For hospital projects, Nass Ventures can support sourcing, procurement and equipment planning depending on the final configuration.
