Leisegang 1E LED Binocular Gynaecological Colposcope
Share

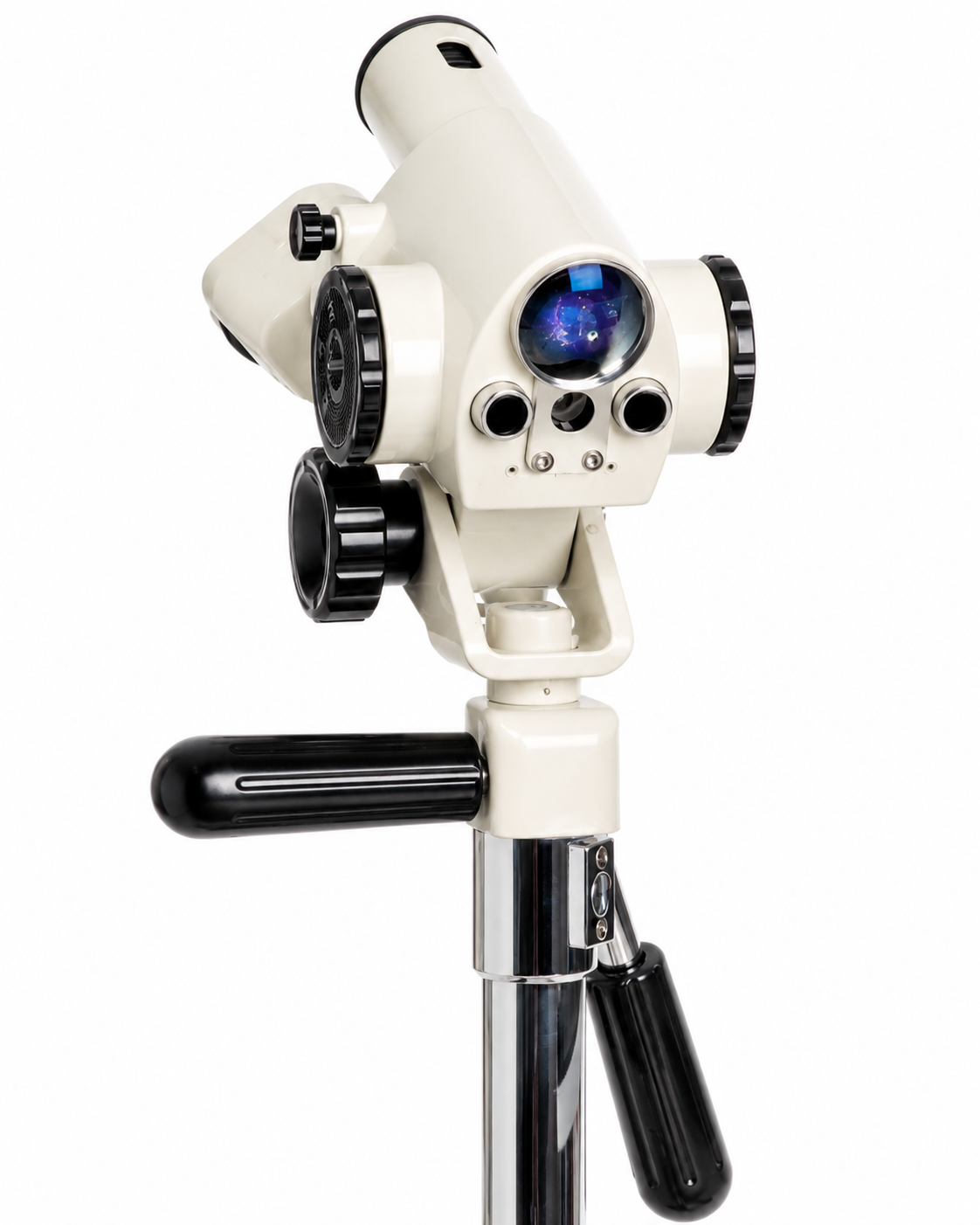

Leisegang 1E LED Binocular Colposcope
The Leisegang 1E LED is a professional binocular colposcope designed for routine gynaecological examination and colposcopy. It provides clear optical visualisation with fixed 15x magnification, a 300 mm working distance and bright adjustable LED illumination, making it suitable for hospitals, gynaecology clinics, women’s health centres and colposcopy departments.
The integrated green filter helps improve the visualisation of blood vessels and vascular patterns during cervical, vaginal and vulval examination. Its ergonomic adjustment system allows fine control of focus and height, helping clinicians achieve a comfortable working position during examinations.
Key Features
• Professional binocular gynaecological colposcope
• Fixed 15x magnification for routine colposcopy
• 300 mm working distance
• Bright white LED illumination
• Adjustable illumination intensity
• Pivotable green filter for blood vessel visualisation
• Convergent optical beam path
• Dioptric correction from +7 to -7 diopters
• Fine focus and height adjustment
• Horizontal fine adjustment of 40 mm
• Vertical fine adjustment of 80 mm
• Suitable for cervical, vaginal and vulval examination
• Designed for daily use in gynaecology clinics and hospitals
Product Overview
| Product | Details |
|---|---|
| Product Name | Leisegang 1E LED |
| Product Type | Binocular gynaecological colposcope |
| Clinical Use | Colposcopy and gynaecological examination |
| Magnification | Fixed 15x |
| Working Distance | 300 mm |
| Beam Path | Convergent |
| Illumination | White LED |
| Illumination Intensity | 45,000–52,000 lux |
| Colour Temperature | 5,700–6,000 K |
| Power Consumption | 10 W |
| Green Filter | Pivotable |
| Dioptric Correction | +7 to -7 diopters |
| Field of View Diameter | 23 mm |
| Light Field Diameter | 58 mm |
Clinical Applications
| Application | Use |
|---|---|
| Colposcopy | Detailed visual examination of the cervix, vagina and vulva |
| Cervical Assessment | Supports inspection of cervical tissue and visible abnormalities |
| Blood Vessel Visualisation | Green filter helps highlight vascular patterns |
| Gynaecological Examination | Suitable for routine women’s health examinations |
| Cervical Screening Follow-Up | Supports further assessment after abnormal screening results |
| Biopsy Guidance | Can assist visualisation during targeted tissue sampling |
| Hospital Use | Suitable for outpatient and gynaecology departments |
| Private Practice | Suitable for specialist women’s health clinics |
Optical and Illumination Features
| Feature | Benefit |
|---|---|
| 15x Fixed Magnification | Provides a clear routine examination view |
| 300 mm Working Distance | Gives practical space between clinician, patient and instrument |
| Convergent Beam Path | Supports comfortable binocular viewing |
| White LED Illumination | Provides bright and consistent examination lighting |
| Adjustable Brightness | Allows illumination to be matched to the examination |
| Green Filter | Improves visualisation of blood vessels and vascular structures |
| Dioptric Correction | Allows adjustment for users with different eyesight requirements |
| Fine Adjustment Controls | Helps achieve accurate focus and positioning |
Ergonomics and Workflow
The Leisegang 1E LED is designed for efficient daily clinical use. The fine adjustment controls allow the clinician to adjust focus and height during examination, while the 300 mm working distance provides a comfortable practical space for colposcopic assessment.
The bright LED light source, adjustable brightness and pivotable green filter help support clear visualisation of tissue structures and blood vessels during examination.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Leisegang 1E LED |
| Optical System | Binocular colposcope |
| Magnification | 15x fixed |
| Working Distance | 300 mm |
| Beam Path | Convergent |
| Illumination | White LEDs |
| Illumination Strength | 45,000–52,000 lux |
| Colour Temperature | 5,700–6,000 K |
| Power Consumption | 10 W |
| Field of View Diameter | 23 mm |
| Light Field Diameter | 58 mm |
| Dioptric Correction | +7 to -7 diopters |
| Green Filter | Pivotable |
| Horizontal Fine Adjustment | 40 mm |
| Vertical Fine Adjustment | 80 mm |
Why Choose the Leisegang 1E LED?
The Leisegang 1E LED is a practical and reliable colposcope for routine gynaecological examination. Its fixed 15x magnification, bright LED illumination, green filter and ergonomic adjustment controls make it suitable for clinics and hospitals requiring a dependable colposcopy solution for everyday use.
Suitable For
• Gynaecology clinics
• Colposcopy clinics
• Women’s health centres
• Hospitals
• Outpatient departments
• Cervical screening follow-up clinics
• Private medical practices
• Specialist diagnostic centres
Ordering Information
Available configurations may vary depending on stand type, accessories and clinical requirements. Please contact Nass Ventures for pricing, delivery, installation support and after-sales service.
Important: Final configuration, accessories and mounting options should be confirmed before ordering.
