MedPribor Prima K Binocular Video Colposcope
Share
Prima K
Binocular colposcope with video system
A premium Russian binocular colposcope with German Schott optics. It is used to examine and diagnose pathologies of the cervix, vagina, external female genitalia, and the lower third of the cervical canal.
MedPribor Prima K Binocular Video Colposcope
The MedPribor Prima K is a premium optical binocular colposcope designed for professional gynaecological examination and diagnostic visualisation. It is used for the examination of the cervix, vagina, external female genitalia and the lower third of the cervical canal.
Built with high-quality German Schott optical glass, ultra-bright LED illumination and a modular configuration system, the Prima K provides clear, detailed and reliable visualisation for colposcopy clinics, gynaecology departments, women’s health centres and specialist diagnostic rooms.
The system can be configured with different binocular tubes, eyepieces, focal lengths, stands and video options, allowing clinicians to adapt the colposcope to their preferred working style and clinical requirements.
Key Features
• Premium binocular optical colposcope
• Suitable for examination of the cervix, vagina, vulva and lower cervical canal
• German Schott optical glass for high-quality image clarity
• Apochromatic optical system with five-step magnification
• Ultra-bright LED illumination up to 75,000 lux
• Long-life LED lamp with service life over 60,000 hours
• MaxLite coating for high light transmission and reduced glare
• Built-in green filter for improved visualisation of blood vessels and epithelial structures
• Modular configuration with choice of tubes, eyepieces and focal lengths
• Optional Full HD video system
• Optional camera adapter or smartphone adapter
• Compatible with monitors, laptops and other visualisation devices
• Can be adapted for laser systems from different manufacturers

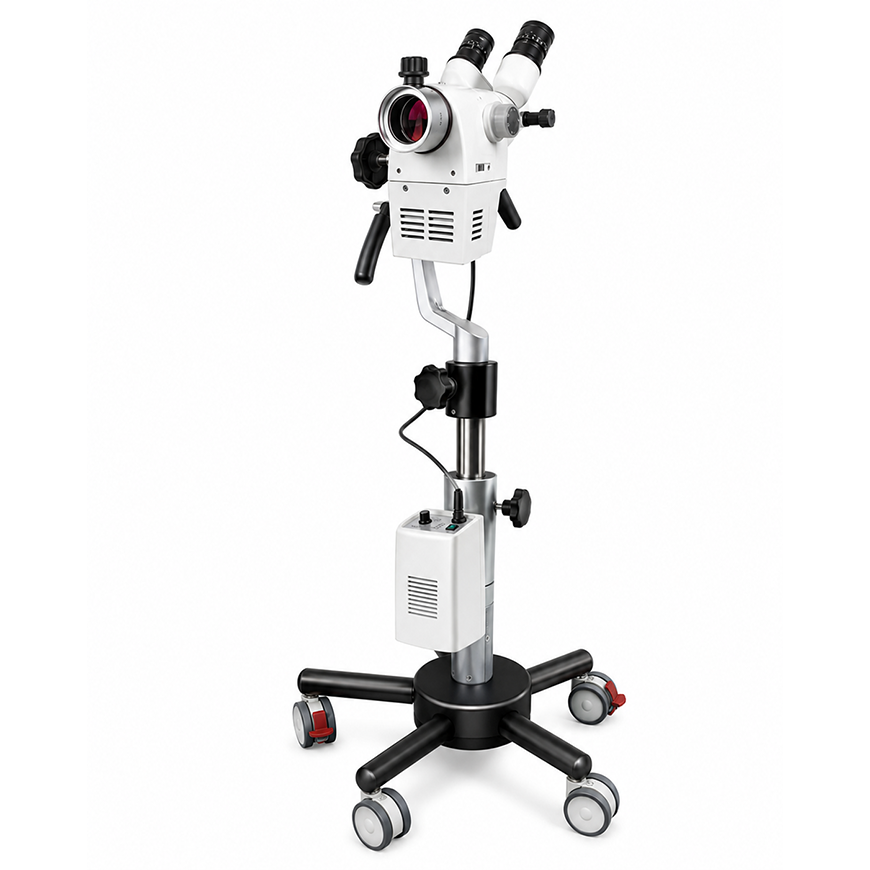

• Available with straight or cantilever stand
• Adjustable optical head height from 830 mm to 1340 mm
• Five-beam mobile base with locking wheels
• Compatible with most gynaecological examination chairs
Product Overview
| Product | Details |
|---|---|
| Product Name | MedPribor Prima K |
| Manufacturer | MedPribor |
| Country | Russia |
| Type Code | 260240 |
| Product Type | Optical binocular colposcope |
| Video System | Optional |
| Clinical Use | Colposcopy and gynaecological examination |
| Main Applications | Cervical, vaginal, vulval and lower cervical canal examination |
| Optical System | Apochromatic optical system |
| Optical Glass | German Schott glass |
| Illumination | LED, 75,000 lux |
| Filter | Built-in green filter |
| Stand Options | Straight or cantilever stand |
| Base | Five-beam mobile base with locking wheels |
Modular Configuration
The Prima K colposcope can be customised according to the needs of the specialist. The modular system allows different optical, video and mounting options to be selected for the required clinical workflow.
| Configurable Component | Options |
|---|---|
| Binocular Tube | 45° or 90° |
| Wide-Angle Eyepieces | 10x / Fn 18 mm or 12.5x / Fn 18 mm |
| Lens Focal Length | 250 mm or 300 mm |
| Video System | Digital Full HD camera option |
| Camera Connection | Camera adapter option |
| Smartphone Connection | Smartphone adapter option |
| Display Devices | Monitor, laptop or other visualisation device |
| Laser Compatibility | Can be adapted for laser systems from different manufacturers |
| Stand Type | Straight stand or cantilever stand |
Optical Performance
The Prima K uses an apochromatic optical system with five-stage magnification. This allows clinicians to move from a wider examination view to detailed tissue inspection. Convenient control knobs are positioned on the left and right sides of the optical head for easy adjustment during examination.
| Optical Feature | Details |
|---|---|
| Optical System | Apochromatic |
| Magnification System | 5-step magnification |
| Magnification Steps | 0.4 / 0.6 / 1.0 / 1.6 / 2.5 |
| Eyepiece Options | 10x / Fn 18 mm or 12.5x / Fn 18 mm |
| Focal Length Options | 250 mm or 300 mm |
| Interpupillary Distance | 50 mm to 75 mm |
| Diopter Adjustment | ±7 |
| Binocular Tube | 45° or 90° |
| Built-In Filter | Green filter |
Illumination System
The Prima K is equipped with a built-in LED illuminator with brightness up to 75,000 lux. The MaxLite coating supports high light transmission and helps reduce glare, giving clinicians a clear view of tissue structures during examination.
The integrated green filter improves the visualisation of blood vessels, pathological subepithelial vessels and epithelial structures during colposcopic assessment.
| Illumination Feature | Details |
|---|---|
| Light Source | LED lamp |
| Illumination Intensity | 75,000 lux |
| LED Lifespan | Over 60,000 hours |
| Coating | MaxLite coating |
| Filter | Green filter |
| Main Benefit | Bright, clear and glare-reduced examination image |

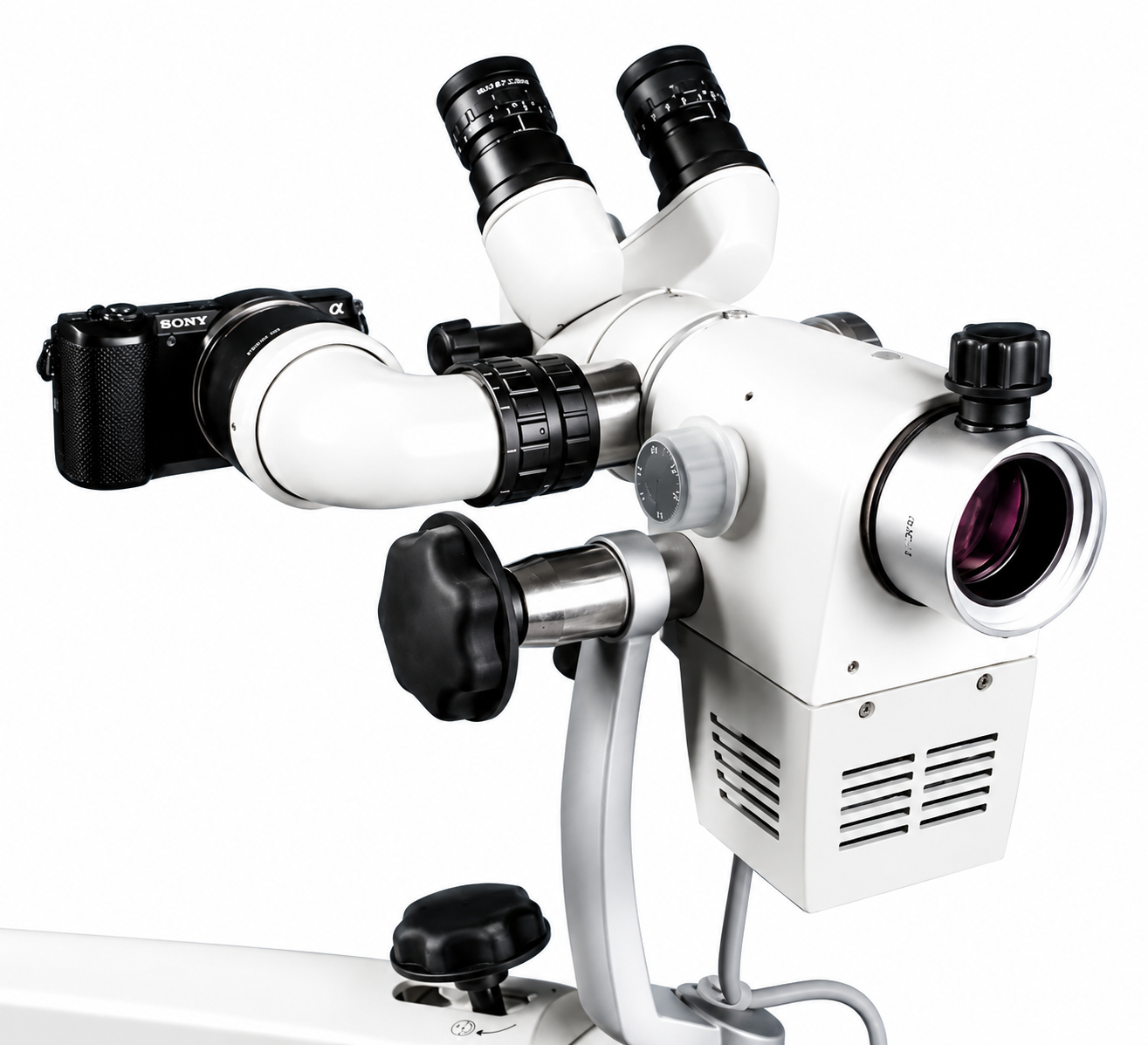

Video and Documentation Options
The Prima K can be supplied with optional video and documentation features, making it suitable for clinical records, teaching, consultation and patient communication.
| Video Option | Function |
|---|---|
| Full HD Camera System | Supports high-resolution image and video capture |
| Camera Adapter | Allows connection to compatible camera systems |
| Smartphone Adapter | Supports smartphone-based image capture |
| Monitor Connection | Allows image display on an external monitor |
| Laptop Connection | Supports digital viewing and documentation |
| Remote Image Capture | Image fixation using hand-held key fob or foot pedal |
| Software | Optional software support available |
Ergonomics and Workflow
The Prima K is designed to support comfortable and efficient clinical use. It can be mounted on either a straight stand or a cantilever stand, allowing flexible positioning of the optical head within the working area.
The adjustable optical head, 45° binocular tube option and mobile base help clinicians position the device comfortably for different procedures. The five-beam base with locking wheels allows the colposcope to be moved easily and secured in place during examination.
| Ergonomic Feature | Benefit |
|---|---|
| Adjustable Optical Head | Allows positioning for different procedures |
| 45° Tube Option | Supports comfortable viewing posture |
| 90° Tube Option | Provides alternative viewing configuration |
| Straight Stand Option | Practical standard mounting option |
| Cantilever Stand Option | Greater freedom of positioning within the working area |
| Mobile Five-Beam Base | Easy movement between examination areas |
| Locking Wheels | Keeps the colposcope stable during use |
| Chair Compatibility | Compatible with most gynaecological examination chairs |
Technical Characteristics
| Characteristic | Specification |
|---|---|
| Type of Colposcope | Optical |
| Video System Connection | Yes, optional configuration |
| Wide-Angle Eyepieces | 10x / Fn 18 mm or 12.5x / Fn 18 mm |
| Laser System Adaptation | Compatible with laser systems from different manufacturers |
| Light Source | LED lamp |
| Illumination | 75,000 lux |
| Binocular Tube | 45° or 90° |
| Magnification System | 5-step |
| Magnification Steps | 0.4 / 0.6 / 1.0 / 1.6 / 2.5 |
| Focal Length | 250 mm or 300 mm |
| Interpupillary Distance | 50 mm to 75 mm |
| Diopter Adjustment | ±7 |
| Built-In Filter | Green |
| Stand Type | Straight or cantilever with adjustable height |
| Optical Head Height Adjustment | 830 mm to 1340 mm |
| Base | Five-beam mobile base |
| Wheels | 5 wheels with position locking |
Clinical Applications
| Application | Use |
|---|---|
| Colposcopy | Detailed examination of the cervix, vagina and vulva |
| Cervical Assessment | Supports diagnosis and assessment of cervical abnormalities |
| Vaginal Examination | Visual assessment of vaginal tissue |
| Vulval Examination | Examination of external female genitalia |
| Lower Cervical Canal Assessment | Examination of the lower third of the cervical canal |
| Vascular Pattern Assessment | Green filter helps highlight blood vessels and vascular changes |
| Biopsy Guidance | Supports visualisation during targeted tissue sampling |
| Digital Documentation | Optional video system supports image capture and review |
| Teaching and Training | External monitor or laptop connection supports clinical demonstration |
Why Choose the MedPribor Prima K?
The MedPribor Prima K is a strong choice for clinics and hospitals that need a high-quality binocular colposcope with flexible video and documentation options. Its German Schott optics, five-step magnification, 75,000 lux LED illumination and built-in green filter support detailed visual examination during gynaecological assessment.
The modular design allows the system to be configured to match the user’s workflow, whether for standard optical examination, Full HD video documentation, teaching, or integration with external visualisation devices.
Suitable For
• Gynaecology clinics
• Colposcopy clinics
• Women’s health centres
• Hospitals
• Outpatient departments
• Cervical screening follow-up clinics
• Private medical practices
• Diagnostic centres
• Teaching and training environments
• Specialist gynaecological procedure rooms
Ordering Information
Available configurations may vary depending on binocular tube angle, eyepiece selection, focal length, stand type, video system, display equipment, software and laser compatibility requirements.
Please contact Nass Ventures for pricing, configuration advice, delivery, installation support and after-sales service.
Important: Video systems, adapters, monitors, laptops, software and laser compatibility may be optional or configuration-dependent. Please confirm the required optical setup, stand type and documentation package before ordering.
