Mindray M9 Portable Ultrasound Scanner

Write a review

₦0.00

Description : The Mindray M9 is a premium portable ultrasound system designed to deliver high-quality imaging, advanced diagnostic tools, and excellent workflow efficiency in a compact format.

SKU :

Availability : 2 In Stock Sold Out 2

HURRY ! ONLY 2 LEFT IN STOCK.

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Mindray M9 Portable Ultrasound Scanner

The Mindray M9 is a premium portable ultrasound system designed to deliver high-quality imaging, advanced diagnostic tools, and excellent workflow efficiency in a compact format. Built on Mindray’s next-generation mQuadro ultrasound platform, the M9 provides enhanced signal processing, improved echo detection, greater penetration, and high-resolution imaging across a wide range of clinical applications.

Its advanced transducer technology and intelligent imaging features make it suitable for demanding environments, including hospitals, clinics, emergency departments, operating theatres, and mobile diagnostic services.

Advanced Imaging Platform

The M9 uses Mindray’s powerful mQuadro platform, which improves signal transmission and reception for greater image sensitivity and accuracy. This helps clinicians achieve clearer images, better tissue differentiation, and more reliable diagnostic confidence, even in technically difficult examinations.

Single-Crystal Transducer Technology

Mindray’s advanced 3T transducer technology is used across compatible M9 probes to improve imaging performance. With single-crystal elements, the system delivers:

Improved penetration
Better spatial resolution
Enhanced colour performance
Clearer imaging in difficult or deep anatomical areas

This is especially useful when scanning challenging patients or hard-to-access regions.

Natural Touch Elastography

The M9 features Natural Touch Elastography, based on Mindray’s patented technology. This helps assess tissue stiffness with greater consistency and reduces dependence on operator technique.

Key benefits:

Effective detection of tissue stiffness and lesions
Consistent and reproducible results
Improved confidence in complex clinical examinations

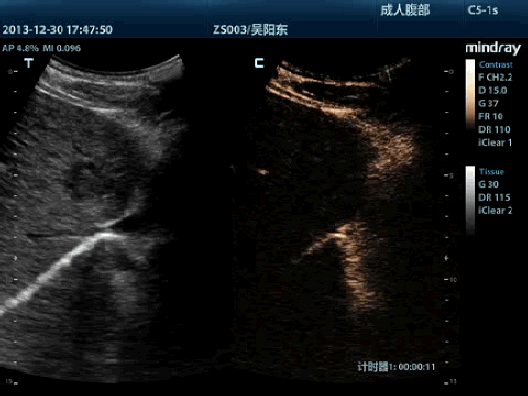

UWN+ Ultra-Wideband Nonlinear Imaging

Mindray’s UWN+ technology expands the capabilities of contrast-enhanced ultrasound imaging. It enables the system to detect both secondary harmonics and nonlinear fundamental signals, producing clearer and more sensitive contrast images.

Key benefits:

Higher sensitivity to contrast signals
Improved image quality during contrast examinations
Lower contrast agent consumption
Longer effective contrast imaging time
Reduced need for short measurement intervals

Phase Shift Harmonic Imaging

Phase Shift Harmonic Imaging helps improve contrast resolution by isolating harmonic signals. This produces sharper images with improved spatial resolution and reduced image noise.

Tissue Harmonic Imaging

Tissue Harmonic Imaging uses harmonic signals generated within tissue boundaries to improve image clarity. It enhances contrast resolution and is especially beneficial when imaging difficult anatomical areas or deeper structures.

Tissue-Specific Imaging

Tissue-Specific Imaging automatically optimises imaging parameters according to the tissue type being examined. The M9 provides dedicated settings for:

General tissue
Muscle
Fluid
Adipose tissue

This helps deliver more consistent image quality across different patient types and examination areas.

iBeam™ Spatial Compounding

iBeam™ uses multiple scanning angles to create a single enhanced image. This improves contrast resolution and provides clearer visualisation of anatomical structures.

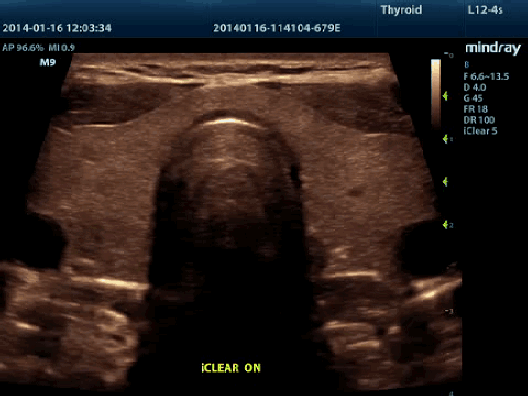

iClear™ Image Optimisation

iClear™ improves image quality through automatic structure recognition and noise reduction.

Key benefits:

Sharper tissue edges and contours
Smoother, more uniform tissue display
Reduced speckle and graininess in low-echo areas
Improved overall image clarity

Echo-Enhanced Beamforming

The M9 uses Echo-Enhanced Beamforming to capture traditionally unused echoes from adjacent beams. These are combined to form a thinner, stronger imaging beam, improving resolution and penetration.

Key benefits:

Better out-of-focus resolution
Deeper imaging penetration
Improved image sharpness
Enhanced diagnostic confidence

Multi-Beam Formation

Multi-beam formation increases signal processing speed and enables higher frame rates. This improves temporal resolution, making it especially useful for real-time imaging and dynamic studies.

Advanced Microflow Visualisation

The M9 provides advanced microflow visualisation to support the assessment of small vessel perfusion. By combining multiple image frames, the system improves visibility of low-velocity blood flow and helps evaluate vascularity around pathological areas.

iScape™ Panoramic Imaging

iScape™ provides an extended panoramic view of anatomical structures. With a speed indicator and forward/reverse scanning function, it supports easier, more consistent panoramic imaging.

ExFOV Extended Field of View

ExFOV expands the field of view on compatible convex and linear probes. This gives clinicians a broader anatomical display and more complete diagnostic information.

Trapezoidal Imaging

Trapezoidal imaging increases the viewing area when using linear transducers. This allows wider visualisation of anatomical structures and supports more complete diagnostic assessment.

B-Steer™ and iNeedle™

B-Steer™ / iNeedle™ improves needle visualisation during biopsy and interventional procedures. It allows beam steering to enhance visibility of:

Needle tips
Nerve fibres
Small vessels
Deep biopsy targets

This makes the M9 highly suitable for ultrasound-guided procedures.

Smart Workflow Tools

The Mindray M9 includes a range of intelligent workflow technologies designed to improve efficiency and reduce examination time.

iTouch™
Provides instant automatic optimisation in B-mode, Colour Doppler, and PW Doppler with one key press.

iZoom™
Allows quick full-screen image display at the touch of a button.

iWorks™
Supports standardised examination protocols and user-configurable workflows, helping reduce scanning time and improve consistency.

Auto IMT
Automatically measures intima-media thickness of the anterior and posterior carotid artery walls, supporting vascular assessment.

Raw Data Processing
Allows extensive post-processing of saved images, including parameter adjustment, measurements, annotations, and comments after the scan.

iStation™
Mindray’s patient information management system enables efficient integration, review, archiving, and retrieval of patient data.

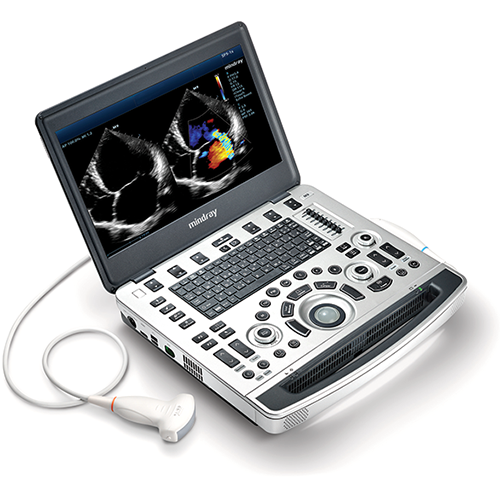

Ergonomic and Portable Design

The Mindray M9 combines advanced imaging power with a lightweight and practical portable design. It is built for clinical environments where mobility, durability, and ease of use are essential.

Design features include:

Slim magnesium alloy body
15.6-inch slim HD LED monitor
Built-in battery with up to 90 minutes of scanning time
High-capacity SSD storage for secure patient data management
Silent operation
Automatic brightness adjustment
Eco-friendly construction
Safe materials certified for restricted harmful substances

Dedicated Transport Trolley

For departments requiring mobile use, the M9 can be mounted on a dedicated transport trolley. The trolley is designed for quick movement between clinical areas while providing additional power and stability.

Trolley features include:

User-adjustable design
Built-in locking system
Fast and easy operation
Cart-mounted battery providing approximately 3.5 hours of scanning time
Practical support for bedside, emergency, and mobile scanning environments

Ideal Clinical Applications

The Mindray M9 is suitable for a wide range of diagnostic and interventional applications, including:

General imaging
Abdominal imaging
Vascular studies
Cardiology support
Obstetrics and gynaecology
Musculoskeletal imaging
Emergency and critical care
Anaesthesia and pain management
Small parts imaging
Ultrasound-guided biopsy and needle procedures

Summary

The Mindray M9 Portable Ultrasound Scanner combines high-performance imaging, intelligent workflow tools, advanced transducer technology, and excellent portability. With features such as Natural Touch Elastography, UWN+ contrast imaging, iNeedle™, iClear™, iBeam™, iScape™, and advanced microflow visualisation, the M9 provides clinicians with a powerful and flexible ultrasound solution for demanding clinical environments.
