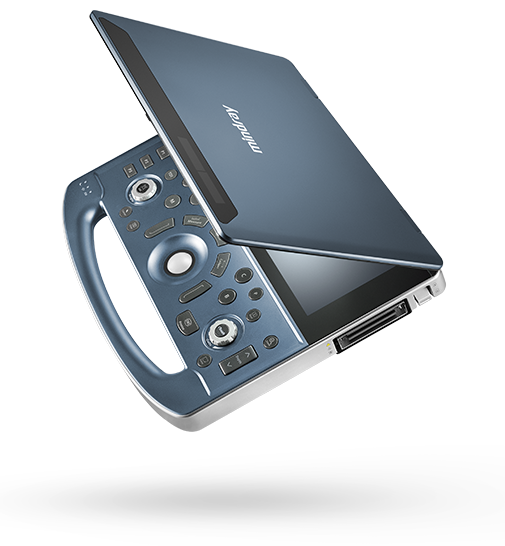

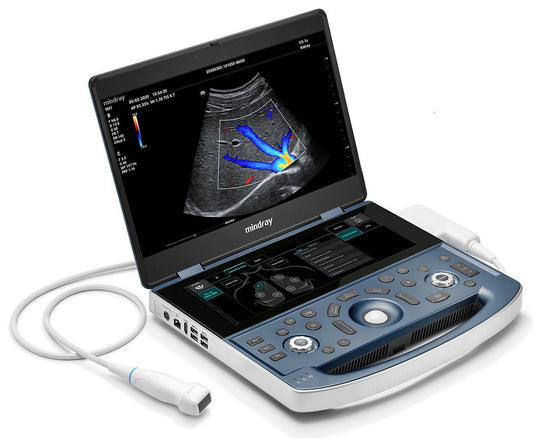

Mindray MX7 Exp Portable Ultrasound Scanner

Mindray TE7 Portable Ultrasound Scanner

The Mindray TE7 is an advanced touch-enabled portable ultrasound system designed for fast, intuitive, and reliable point-of-care imaging. Built for demanding clinical environments, the TE7 combines high-quality ultrasound performance with a simplified touchscreen workflow, making it ideal for emergency medicine, anaesthesia, critical care, vascular access, bedside scanning, and interventional procedures.

Its user-friendly interface, smart imaging tools, and ergonomic design allow clinicians to perform examinations quickly and confidently, even in busy hospital settings.

Touch Control Operation

The Mindray TE7 features a modern touchscreen interface that elevates ultrasound operation to a new level. The system can be controlled easily using fingertip gestures and remains responsive even when the operator is wearing gel-coated gloves.

This makes the TE7 especially practical for point-of-care applications where speed, hygiene, and ease of use are essential.

Touch Gesture Control

The TE7 supports familiar touchscreen gestures for fast and intuitive operation.

Touch gestures include:

• Tap to open or close functions

• Drag to change parameters or move objects

• Pinch to zoom

• Swipe to select multiple images

• Swipe gestures for zoom control

These simple controls help reduce examination time and allow users to focus more on the patient and less on system navigation.

One-Tap Wake-Up

The TE7 can be activated from sleep mode with a single touch. Within approximately three seconds, the system is ready for scanning, making it highly suitable for urgent clinical situations where immediate imaging is required.

iVocal Voice Control

The iVocal system uses voice recognition technology to control selected ultrasound functions through simple voice commands. This allows hands-free operation and supports a smoother workflow during procedures, sterile environments, or examinations where manual control is limited.

Advanced Imaging Technologies

3T Transducer Technology

Mindray’s proprietary 3T transducer technology provides a wider frequency range and improved image transmission efficiency. The triple-matching layer structure increases sensitivity and improves the signal-to-noise ratio, while fully decoupled crystal design reduces crosstalk and enhances focusing performance.

Key benefits:

• Wider frequency bandwidth

• Improved signal transmission

• Higher sensitivity

• Better signal-to-noise ratio

• Reduced crosstalk

• Improved focusing

• Enhanced lateral resolution

• Better sound wave transmission through effective thermal management

Phase-Shift Harmonic Imaging

Phase-Shift Harmonic Imaging delivers purified harmonic imaging with improved contrast resolution. This produces sharper images with superior spatial resolution and reduced image noise.

iBeam™ Spatial Compounding

iBeam™ combines ultrasound information acquired from multiple scanning angles into one enhanced image. This improves contrast resolution and supports clearer visualisation of anatomical structures.

iClear™ Image Optimisation

iClear™ improves image quality through automatic tissue recognition and image optimisation.

Key benefits:

• Clearer and more continuous tissue edges

• Smoother, more uniform tissue display

• Reduced graininess in anechoic areas

• Improved overall image clarity

B-Steer™ and iNeedle™

B-Steer™ / iNeedle™ supports deeper biopsy and needle-guided procedures by allowing adjustment of the ultrasound beam angle. This improves visualisation of:

• Needle tips

• Nerves

• Small vessels

• Deep procedural targets

This makes the TE7 highly suitable for vascular access, regional anaesthesia, biopsy guidance, and interventional ultrasound procedures.

Simplified Clinical Workflow

MedSight

MedSight is an interactive application that allows clinical images and reports to be transferred from the TE7 system to iOS smart devices via Wi-Fi. This supports faster sharing, review, documentation, and clinical communication.

MedTouch

MedTouch provides control of the ultrasound system using Android devices. It allows users to operate the machine, access patient data, and view integrated training materials from a compatible Android smart device.

Smart Track

Smart Track continuously tracks and optimises the position and tilt angle of the colour Doppler region of interest during real-time scanning. This helps improve Doppler workflow and image consistency.

iTouch™

iTouch™ provides instant automatic image optimisation in B-mode, Colour Doppler, and Pulse Wave Doppler with the press of a single key.

iZoom™

iZoom™ enables quick switching to full-screen mode with one key press, giving clinicians a larger and clearer view of the ultrasound image.

iStation™

iStation™ is Mindray’s patient information management system. It allows efficient integration, review, archiving, and retrieval of patient data, helping improve examination organisation and reporting workflow.

iScanHelper

iScanHelper provides built-in training and reference materials to support scanning accuracy and user development.

Advantages include:

• Specialised built-in training content

• Anatomical diagrams with tissue labelling guidance

• Comparison of standard reference echograms with real-time images

• Patient positioning guidance

• Transducer placement recommendations

• Support for accurate ultrasound data acquisition

This is especially useful for training, standardisation, and point-of-care ultrasound education.

Ergonomic Design

The Mindray TE7 is designed for practical everyday use in clinical environments. Its cart-based portable design combines mobility with a clean and organised working platform.

Ergonomic advantages include:

• 15-inch anti-glare touchscreen with wide viewing angle

• Three transducer connectors with on-screen probe selection

• Articulated console for comfortable positioning

• Convenient trays for medical supplies

• Built-in battery for mobile use

• Wireless network support

• Gel warming device

• Unique retractable power cord for easier transport and storage

Ideal Clinical Applications

The Mindray TE7 is suitable for a wide range of point-of-care and procedural ultrasound applications, including:

• Emergency medicine

• Critical care

• Anaesthesia

• Regional nerve blocks

• Vascular access

• Bedside abdominal scanning

• Cardiac assessment

• Lung ultrasound

• Musculoskeletal imaging

• Trauma assessment

• Biopsy and needle-guided procedures

Summary

The Mindray TE7 Portable Ultrasound Scanner is a powerful, touch-controlled ultrasound system built for fast, accurate, and efficient point-of-care imaging. With advanced technologies such as 3T transducer technology, Phase-Shift Harmonic Imaging, iBeam™, iClear™, iNeedle™, iVocal voice control, MedSight, MedTouch, and iScanHelper, the TE7 delivers a highly intuitive clinical workflow with excellent imaging performance.

Its responsive touchscreen, rapid wake-up function, smart workflow tools, and ergonomic design make it an ideal solution for hospitals, emergency departments, ICUs, anaesthesia teams, and mobile clinical environments.

Mindray M9 Portable Ultrasound Scanner

The Mindray M9 is a premium portable ultrasound system designed to deliver high-quality imaging, advanced diagnostic tools, and excellent workflow efficiency in a compact format. Built on Mindray’s next-generation mQuadro ultrasound platform, the M9 provides enhanced signal processing, improved echo detection, greater penetration, and high-resolution imaging across a wide range of clinical applications.

Its advanced transducer technology and intelligent imaging features make it suitable for demanding environments, including hospitals, clinics, emergency departments, operating theatres, and mobile diagnostic services.

Advanced Imaging Platform

The M9 uses Mindray’s powerful mQuadro platform, which improves signal transmission and reception for greater image sensitivity and accuracy. This helps clinicians achieve clearer images, better tissue differentiation, and more reliable diagnostic confidence, even in technically difficult examinations.

Single-Crystal Transducer Technology

Mindray’s advanced 3T transducer technology is used across compatible M9 probes to improve imaging performance. With single-crystal elements, the system delivers:

• Improved penetration
• Better spatial resolution
• Enhanced colour performance
• Clearer imaging in difficult or deep anatomical areas

This is especially useful when scanning challenging patients or hard-to-access regions.

Natural Touch Elastography

The M9 features Natural Touch Elastography, based on Mindray’s patented technology. This helps assess tissue stiffness with greater consistency and reduces dependence on operator technique.

Key benefits:

• Effective detection of tissue stiffness and lesions
• Consistent and reproducible results
• Improved confidence in complex clinical examinations

UWN+ Ultra-Wideband Nonlinear Imaging

Mindray’s UWN+ technology expands the capabilities of contrast-enhanced ultrasound imaging. It enables the system to detect both secondary harmonics and nonlinear fundamental signals, producing clearer and more sensitive contrast images.

Key benefits:

• Higher sensitivity to contrast signals
• Improved image quality during contrast examinations
• Lower contrast agent consumption
• Longer effective contrast imaging time
• Reduced need for short measurement intervals

Phase Shift Harmonic Imaging

Phase Shift Harmonic Imaging helps improve contrast resolution by isolating harmonic signals. This produces sharper images with improved spatial resolution and reduced image noise.

Tissue Harmonic Imaging

Tissue Harmonic Imaging uses harmonic signals generated within tissue boundaries to improve image clarity. It enhances contrast resolution and is especially beneficial when imaging difficult anatomical areas or deeper structures.

Tissue-Specific Imaging

Tissue-Specific Imaging automatically optimises imaging parameters according to the tissue type being examined. The M9 provides dedicated settings for:

• General tissue
• Muscle
• Fluid
• Adipose tissue

This helps deliver more consistent image quality across different patient types and examination areas.

iBeam™ Spatial Compounding

iBeam™ uses multiple scanning angles to create a single enhanced image. This improves contrast resolution and provides clearer visualisation of anatomical structures.

iClear™ Image Optimisation

iClear™ improves image quality through automatic structure recognition and noise reduction.

Key benefits:

• Sharper tissue edges and contours
• Smoother, more uniform tissue display
• Reduced speckle and graininess in low-echo areas
• Improved overall image clarity

Echo-Enhanced Beamforming

The M9 uses Echo-Enhanced Beamforming to capture traditionally unused echoes from adjacent beams. These are combined to form a thinner, stronger imaging beam, improving resolution and penetration.

Key benefits:

• Better out-of-focus resolution
• Deeper imaging penetration
• Improved image sharpness
• Enhanced diagnostic confidence

Multi-Beam Formation

Multi-beam formation increases signal processing speed and enables higher frame rates. This improves temporal resolution, making it especially useful for real-time imaging and dynamic studies.

Advanced Microflow Visualisation

The M9 provides advanced microflow visualisation to support the assessment of small vessel perfusion. By combining multiple image frames, the system improves visibility of low-velocity blood flow and helps evaluate vascularity around pathological areas.

iScape™ Panoramic Imaging

iScape™ provides an extended panoramic view of anatomical structures. With a speed indicator and forward/reverse scanning function, it supports easier, more consistent panoramic imaging.

ExFOV Extended Field of View

ExFOV expands the field of view on compatible convex and linear probes. This gives clinicians a broader anatomical display and more complete diagnostic information.

Trapezoidal Imaging

Trapezoidal imaging increases the viewing area when using linear transducers. This allows wider visualisation of anatomical structures and supports more complete diagnostic assessment.

B-Steer™ and iNeedle™

B-Steer™ / iNeedle™ improves needle visualisation during biopsy and interventional procedures. It allows beam steering to enhance visibility of:

• Needle tips
• Nerve fibres
• Small vessels
• Deep biopsy targets

This makes the M9 highly suitable for ultrasound-guided procedures.

Smart Workflow Tools

The Mindray M9 includes a range of intelligent workflow technologies designed to improve efficiency and reduce examination time.

iTouch™
Provides instant automatic optimisation in B-mode, Colour Doppler, and PW Doppler with one key press.

iZoom™
Allows quick full-screen image display at the touch of a button.

iWorks™
Supports standardised examination protocols and user-configurable workflows, helping reduce scanning time and improve consistency.

Auto IMT
Automatically measures intima-media thickness of the anterior and posterior carotid artery walls, supporting vascular assessment.

Raw Data Processing
Allows extensive post-processing of saved images, including parameter adjustment, measurements, annotations, and comments after the scan.

iStation™
Mindray’s patient information management system enables efficient integration, review, archiving, and retrieval of patient data.

Ergonomic and Portable Design

The Mindray M9 combines advanced imaging power with a lightweight and practical portable design. It is built for clinical environments where mobility, durability, and ease of use are essential.

Design features include:

• Slim magnesium alloy body
• 15.6-inch slim HD LED monitor
• Built-in battery with up to 90 minutes of scanning time
• High-capacity SSD storage for secure patient data management
• Silent operation
• Automatic brightness adjustment
• Eco-friendly construction
• Safe materials certified for restricted harmful substances

Dedicated Transport Trolley

For departments requiring mobile use, the M9 can be mounted on a dedicated transport trolley. The trolley is designed for quick movement between clinical areas while providing additional power and stability.

Trolley features include:

• User-adjustable design
• Built-in locking system
• Fast and easy operation
• Cart-mounted battery providing approximately 3.5 hours of scanning time
• Practical support for bedside, emergency, and mobile scanning environments

Ideal Clinical Applications

The Mindray M9 is suitable for a wide range of diagnostic and interventional applications, including:

• General imaging
• Abdominal imaging
• Vascular studies
• Cardiology support
• Obstetrics and gynaecology
• Musculoskeletal imaging
• Emergency and critical care
• Anaesthesia and pain management
• Small parts imaging
• Ultrasound-guided biopsy and needle procedures

Summary

The Mindray M9 Portable Ultrasound Scanner combines high-performance imaging, intelligent workflow tools, advanced transducer technology, and excellent portability. With features such as Natural Touch Elastography, UWN+ contrast imaging, iNeedle™, iClear™, iBeam™, iScape™, and advanced microflow visualisation, the M9 provides clinicians with a powerful and flexible ultrasound solution for demanding clinical environments.

Mindray MX8 Exp Portable Ultrasound Diagnostic System

The Mindray MX8 Exp is a premium portable ultrasound diagnostic system designed to deliver high-quality imaging, excellent mobility and efficient clinical workflow. With its ultra-thin body, lightweight construction and advanced ZST+ imaging platform, the MX8 Exp provides fast, detailed and reliable ultrasound imaging for both mobile and stationary use.

Powered by Mindray’s innovative ZST+ platform, the system delivers outstanding image detail and rapid image acquisition, with processing speeds up to 10 times faster than traditional ultrasound beamforming methods. This makes the MX8 Exp suitable for a wide range of ultrasound examinations across hospitals, clinics, mobile medical units and bedside care environments.

Key Benefits

Compact and Lightweight Design

The MX8 Exp is built with a durable aluminium-magnesium alloy casing, giving it excellent strength while keeping the system lightweight and easy to transport.

• Approximate weight: 3 kg

• Ultra-thin body: 44 mm thickness

• Laptop-style portability

• Easy to carry for mobile examinations and on-site clinical use

Extended Battery Performance

The system is designed for flexible clinical use where mains power may not always be available.

• Built-in battery supports approximately 1.5 hours of continuous operation

• Optional external U-Bank battery extends operating time up to 8 hours

• Suitable for bedside scanning, mobile clinics and emergency environments

Comfortable Operation

The MX8 Exp is engineered for practical day-to-day clinical use, offering flexibility, convenience and improved handling.

• 185-degree opening angle for comfortable viewing from different positions

• Easy image viewing from multiple angles

• Magnetic power cable connector for quick and secure connection

• Simple connection and disconnection during busy clinical use

Multi-Probe Connectivity

The optional splitter increases probe connectivity and helps reduce examination time.

• Supports connection of 2 or 3 transducers simultaneously

• Reduces the need to reconnect probes during examinations

• Helps extend connector service life

• Double splitter mounts directly on the device

• Triple splitter can be mounted on the trolley

Three Functional Displays

The MX8 Exp provides multiple display interfaces to support diagnostic imaging and efficient operation.

• High-resolution colour diagnostic display

• Touch command display, operable with medical gloves

• External display showing battery charge level

Improved Trolley Stand

The system can be used with an improved mobile trolley for secure placement and convenient storage.

• Secure trolley design with protective side limits

• Helps prevent accidental movement or collision

• Three storage trays for accessories and probes

• Mobile chassis for easy movement between rooms

ZST+ Zone Sonography Technology

The Mindray MX8 Exp uses the advanced ZST+ platform, based on Mindray’s Zone Sonography Technology. This imaging technology represents a major advancement in ultrasound diagnostics, combining zone scanning with channel-based data processing to improve image quality, speed and consistency.

ZST+ technology has been proven on Mindray’s Resona series ultrasound systems and brings high-end imaging performance to a portable platform.

Imaging Advantages

• Generates ultrasound images up to 10 times faster than traditional methods

• Works with solid-state drive technology for rapid data processing

• Dynamic pixel-by-pixel focusing provides uniform image quality across the entire scanning depth

• Intelligent sound speed selection optimises imaging parameters for different tissue types

• Retrospective echo-signal processing improves image clarity and visualisation quality

• Helps clinicians achieve more accurate and confident diagnostic results

Clinical Use

The Mindray MX8 Exp is suitable for a broad range of ultrasound applications, including general imaging, abdominal scanning, obstetrics and gynaecology, vascular imaging, cardiology, small parts, emergency medicine, critical care and bedside examinations.

Its combination of advanced imaging, compact design and extended battery options makes it a strong choice for healthcare providers requiring a powerful portable ultrasound system without compromising image quality.

Mindray M7 Portable Ultrasound Scanner Probes Based on 3T Technology

• The transducers are based on Mindray's proprietary technology and provide increased throughput and signal transmission efficiency.



  • This technology provides increased sensitivity, increased bandwidth, and improved signal-to-noise ratio.
  • Total-cut technology reduces crosstalk, improves directivity, and increases lateral resolution.
  • Thermo-regulating design improves acoustic signal transmission

PSHITM (Phase Shift Harmonic Imaging)

Isolated harmonic imaging for improved contrast resolution, providing sharper images with superior spatial resolution and less noise

iBeamTM (partial compound imaging)

Allows the use of multiple scanning angles to form a single image, resulting in increased contrast resolution and improved visualization.

iClearTM (speckle-suppressed imaging)

• Allows you to improve image quality based on automatic structure recognition.

  • Sharper edges and contours
  • Smooth and uniform display of fabrics
  • Reduced graininess in “no-echo areas”

Multi-beam formation

Increase the signal processing speed of a single beam by up to 8 times, enabling superior temporal resolution and higher frame rates.

Stress echocardiography

Provides an accurate measurement of myocardial function in response to external stress or medication.

Free Xros MTM

Anatomical M-Mode. Allows for precise anatomical measurements by freely placing M-Mode lines at any angle. Optimal image quality is achieved by simultaneously using up to three M-Mode lines.

Tissue Doppler imaging (TDI)

Tissue Doppler ultrasound imaging allows for quantitative determination of cardiac muscle movement and function, and provides a full range of tissue Doppler modes to reduce time and improve the accuracy of ultrasound diagnostics.

Quantitative analysis of tissue Doppler imaging (TDI)

Free Xros CMTM

Envelope (nonlinear) M-mode. Allows for comprehensive information on cardiac muscle movement during various contraction phases and simultaneously determines the degree of myocardial synchronization. High frame rate ensures accurate results.

Performing iTouchTM (Automatic Image Optimization) workflows

Allows instant automatic image optimization in B, Color and Pulse Wave (PW) modes with the press of a single key.

Auto IMT (automatic determination of intima-media thickness)

Automatic measurement of anterior and posterior wall thickness, providing accurate information on the condition of the carotid artery.

iStationTM

Mindray's unique patient information management system allows you to efficiently integrate, view, archive, and retrieve patient data.

iZoom

Provides instant switching to full screen mode with the press of a single key.

Network storage

Direct transfer of images and reports to a PC over a computer network.

iRoamTM

Solution for wireless data transmission.

DICOM

Comprehensive DICOM solution.

Ergonomics

• Advantages:
  • Lightweight and portable design
  • A special trolley for installation and transportation of the device
  • Rechargeable battery allows for continuous scanning
