Automated Stitching
Long-length exams are automated. With the patient in position, either at the wall stand or on the table, the technologist utilizes the tube head controls to mark the top and bottom of the anatomy to be imaged. The system then calculates the number of exposures needed, and correct image overlaps. With the patient remaining in place, the technologist holds the exposure switch, and the system makes the first exposure, repositions the tube angle and detector, exposes, and continues until the full anatomy is imaged. The system then automatically stitches the images to present an integrated long-length image.
Flexible Positioning

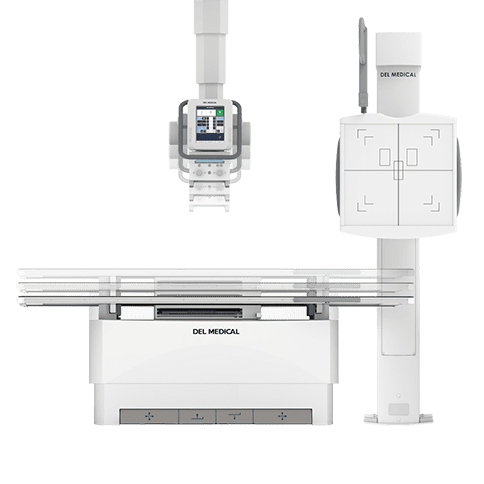

The OTC18S ceiling-mounted tube crane highlights an advanced, technologist-friendly touchscreen interface providing seamless operation of your radiographic system by displaying tube angulation, SID values, and customizable generator controls. Color-coded movement identification buttons provide optimal precision when setting up views. Effortless movements enable fast and secure adjustments of the tube head while electromagnetic braking provides quiet and secure locking. Its five-tier telescoping column delivers exceptional vertical movement of 71 in (180 cm), capable of performing complete head-to-toe radiographic procedures including upright weight-bearing and recumbent tabletop exams.
Ergonomic Tube Head Design
10.4″ Touchscreen Interface
- Patient side display of system status, SID, tube angle, and collimation. Selectable controls for workstation, generator settings, AEC, and tracking.
Lock Release Buttons, Including Column Rotation
All Locks Release at Main Handle
- Longitudinal, Transverse, Vertical movement with grab-and-go convenience
Collimator Light is Automatically Activated
- With tube, vertical table, and wall stand movement, or by pressing any movement button
Stitching Controls
- With long length exam selected, the technologist selects the top of the anatomy, the bottom, and selects start. The exam is automatically performed, and a long-length image is stitched
Auto-Collimation
Accelerates patient positioning and reduces radiation exposure by automatically selecting the proper field of view for each body part. During stitching studies, the OTC18S with DELWORKS DR software optimizes collimation settings to acquire images with minimal overlap for reduced patient exposure.
EV800T Elevating Table
The motorized receptor of the EV800T enables synchronization and longitudinal tube tracking. The elevating four-way float top table delivers outstanding safety, durability, and usability. Featuring an exclusive four-point lift system and exceptionally quiet motor drive, its smooth, scratch-resistant tabletop lowers to a height of just 22 in (56 cm) to ensure stress-free patient transfers and adjustments. Offering a high patient weight capacity of up to 800 lbs (363 kg), stable continuous movement is possible through conveniently placed recessed foot treadles and table-side controls, suitable for increasing technologist performance and satisfaction.
VT300T Tilting Wall Stand
The motorized receptor of the VT300T enables synchronization and vertical tracking to the x-ray tube and provides quiet and effortless positioning. The wall stand features a tilting image receptor, promoting comfort and precision for standing or seated examinations. This makes the VT300T accommodating to all users regardless of size or strength.
Flex Tray
Del Medical’s Flex Tray is an in-tray charging solution that keeps detectors powered, protected, and ready for use while supporting streamlined workflow. Built in-house with durable steel construction, it charges detectors directly in the tray, eliminating the need for external charging stations or added cable management. The tray supports both 14×17 in and 17×17 in detectors, with rotation available when used in the 14×17 configuration to enhance positioning flexibility. A secure locking mechanism with an easy-release handle holds the detector firmly in place, helping reduce handling and extend detector life.
Mobile Stitching and Positioning Stand
The DEL MEDICAL Patient Stitching Stand’s simple and sleek design improves efficiencies and outcomes at an affordable price. The stand helps keep the patient immobile during multiple or single exposures. With four 360° lockable swivel casters, height-adjustable handles, and a slim, lightweight design, this immobilization device can be easily placed in position and removed for storage. The Patient Stitching Stand may be equipped with a radiopaque ruler to help verify stitching accuracy.
Technical Specifications
| Room Height | 105 – 119 in (267 – 302 cm) |
|---|---|
| Room Height (with Optional Telescopic Extension) | 105 – 127 in (267 – 322 cm) |
| Vertical Telescopic Travel Range | 70.8 in (180 cm) with minimum 32.7 in (83 cm) focal spot to ceiling distance / 15.5 in (39.4 cm) focal spot to floor distance with a 9 ft ceiling height |
| Longitudinal Travel Range | Standard: 14 ft rail included, 136 in (346 cm) min Optional: rail extensions: 220 in (558.5 cm) max |
| Transverse Travel Range | Standard: 10 ft (3 m) track / 86.6 (220 cm) Optional: 13 ft (4 m) track / 140 in (355 cm) |
| Longitudinal Detent Positions | Configurable during installation |
| Tube Rotation Range (Horizontal Axis) | -120°, +120°, Detent positions at -90°, 0°, +90° |
| Tube Rotation Range (Vertical Axis) | -182°, +154°, Detent positions at -180°, -90°, 0°, +90° |
| Locks | All Lock release sensor on bottom handle to release transverse, longitudinal, and vertical locks Individual membrane lock releases – Roll Lock – Column Rotate – Up – Down – Longitudinal – Transverse – Vertical – Vertical/ Longitudinal / Transverse |
| Weight (with Collimator and Tube) | 507 lbs (230 kg) |
| Power Requirements | 24 VDC 8A (Supplied by the DM-PSI) |
