Motorized Mobile X-ray System
Elevate Your Imaging Mobility

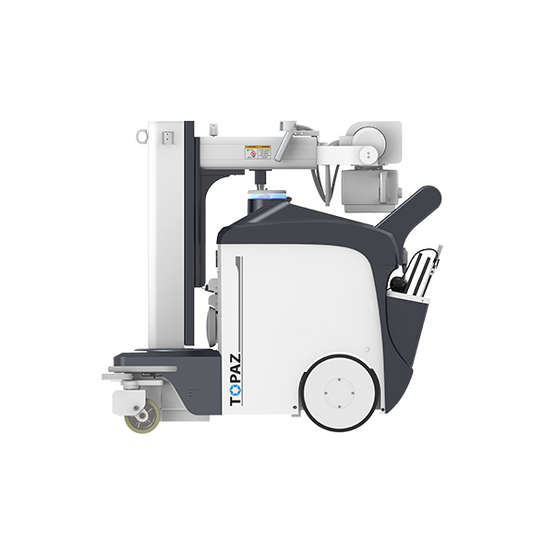

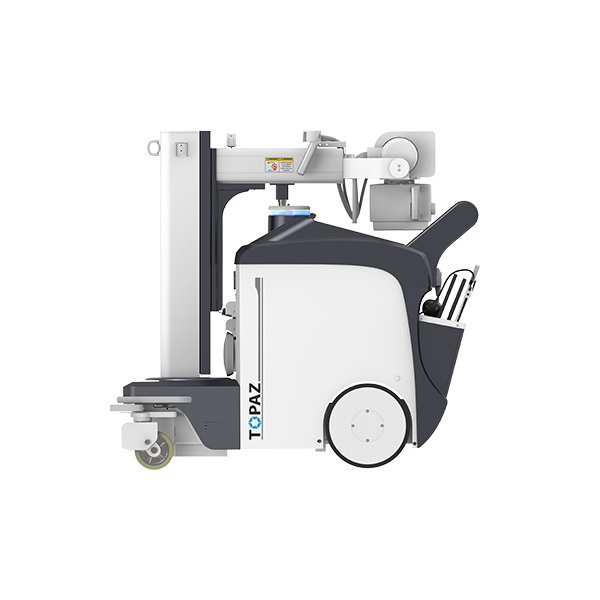

TOPAZ Collapsible is a mobile digital X-ray system designed for smooth maneuverability with clear view ahead while moving, enhancing workflow in any setting.
Your Path to Effortless Imaging
TOPAZ Motorized Mobile X-ray System combines superior performance with user-friendly design. Offering effortless, stable mobility, it allows medical professionals to operate with confidence and ease, even in tight spaces like hospital rooms and ICUs (Intensive Care Units). Its collapsible structure, 21.5-inch touch console, powerful 40kW generator, wider coverage, incline navigation, and live streaming camera, software grid ensure precision, safety, and high-quality imaging in diverse clinical settings.
Superior Driving Experience
The TOPAZ system provides superior driving experience, ensuring smooth maneuverability in various environments. Its robust design allows effortless navigation, making it ideal for busy hospital settings and tight spaces like intensive care units and patient rooms.
21.5-inch Wide Touch Console
The 21.5-inch wide touch console offers a clear and concise interface, making operations intuitive and user-friendly. Its design enables medical professionals to easily access critical functions, enhancing workflow efficiency during imaging procedures.
Easy Tube Rotation
RAYMO’s tube rotation system unlocks only while the operator presses the side buttons on the collimator handles, allowing the tube to move freely and smoothly for precise positioning. When the operator releases the buttons, the brake engages automatically.
Built-in Camera for Safe Driving
RAYMO’s built-in driving camera provides a clear forward view during movement, even in dim or low-visibility environments thanks to its Day/Night Vision support. The live feed on the monitor helps operators navigate safely, avoid obstacles, and drive confidently through narrow or crowded clinical spaces.
40kW Generator For Superior Quality
Equipped with a powerful 40kW generator, the TOPAZ system delivers superior imaging quality. This ensures precise diagnostics, providing detailed X-ray images to support accurate medical assessments and patient care.
Better Positioning with Extended Reach
With an extended arm stroke and high column, TOPAZ offers wider coverage, enabling better patient positioning for various imaging scenarios. This feature enhances workflow by accommodating diverse patient needs and ensuring optimal image capture.
Mobility on 10° Inclines
TOPAZ excels in mobility with its ability to navigate inclines of up to 10 degrees. This expanded mobility makes it suitable for use across various terrains within medical facilities, ensuring consistent performance and reliability.
Clear View Ahead While Traveling
The system is designed with a collapsible structure, providing operators with a clear view ahead while traveling. This feature enhances safety and maneuverability, allowing smooth navigation in dynamic healthcare environments.
Live Video Streaming
The integrated live streaming camera provides real-time visualization during imaging procedures. This feature enhances precision, enabling the operator to maintain optimal alignment and positioning throughout the exam.
Software Grid
The software grid technology reduces scatter radiation effects without requiring a physical grid. It improves image contrast and quality, particularly in portable imaging scenarios, making diagnostics faster and more reliable.
Shipment
Benefit from reliable delivery options
Every day, we ship our laboratory equipment throughout Nigeria and internationally. We work with trusted and experienced logistics and courier partners to ensure safe and timely delivery. Shipping costs and delivery times depend on the items ordered and the recipient’s location. Alternatively, you may arrange to collect your order in person by appointment. Below is an overview of our shipping options and policies.
Shipping within Nigeria
All goods are insured as standard up to a value of ₦ equivalent of €25,000. Shipping costs are calculated based on the weight, dimensions, value of the shipment, and delivery destination within Nigeria. For detailed shipping information, please contact us directly—we will be happy to assist.
International shipping
For accurate international shipping costs, we require details of the specific product(s) you wish to order.
Please contact us by telephone or email for a tailored quotation.
Freight forwarding, sea or air freight
For large, heavy, or specialized equipment, we provide personalised quotations for road freight, sea freight, or air freight. Taking current logistics conditions into account, we aim to offer the best possible price-to-performance ratio.
Incoterms 2020
All shipments are handled in accordance with Incoterms® 2020 (ICC). Please contact us to confirm and agree on your preferred delivery terms.
Self-collection
If required, you may collect your goods in person by prior appointment. Please note that pricing and availability may vary between Nigeria and other countries.
Standard deliveries
Standard shipments within Nigeria are handled by reputable courier and logistics providers. Upon request, we can also arrange alternative carriers to meet specific delivery requirements.
Insurance
All deliveries are insured up to a maximum value of ₦ equivalent of €25,000. If the value of your goods exceeds this amount, we will contact you to arrange additional insurance coverage.
Delivery time
Delivery times depend on product availability and order volume. High-demand items may be subject to delays beyond our control. If you require urgent delivery, please inform us in advance, and we will do our best to accommodate your request.
Q: Saves time
A: This reason might be the most obvious, but it’s a clear benefit of an FAQ page. Not only does the FAQ page save customers time, but it also saves employees time as well. Having an FAQ page ensures customers don’t have to sit on the phone for hours waiting for simple answers, and employees don’t have to individually answer all questions.
Q: Earns trust
A: Information is available at the click of a button, but as we all know, information is not always true. Because of this, customers are more skeptical than ever before. They hunt for products by sifting through reviews, looking at the product on multiple websites, and doing price checking across the internet.
Q: Provides new insights
A: It’s difficult to get into the head of a shopper. Some buy on impulse, and others buy after thorough research. By tracking the clicks on your FAQ page, you can gather insights about your product or service that you didn’t know before. You can then inform your product team of these insights. From there, the product team can make changes to improve the product or experience.
Q: Drives internal page views
A: If you want your FAQ to be extremely thorough, which it should be, you can link to resources within your FAQ for your customers to find out more information. Whether you link to a blog that goes into more detail or a product page, this content helps the shoppers get the full story before making a purchase.
A: Prevents negative reviews
A: When looking through negative reviews, there’s almost always one thing in common: the problem could’ve been avoided.
Related Products
Moviplan 800: the complete and reliable X-ray room
Moviplan 800 is a modular Bucky system designed for general radiography, musculoskeletal diagnostics, or emergency wards, combining high image quality with ease of use and speed. It offers various configurations to suit different performance needs and budgets, making it ideal for both small private practices and mid-sized public institutions.
Lem Plus iC: the accurate and intuitive ceiling tubestandLem Plus iC is a ceiling-mounted tubestand designed for seamless integration with Moviplan iC. Its intuitive touch screen interface gives immediate control of key parameters, while ergonomic handles with pushbuttons allow precise, effortless positioning. Wide lateral and vertical movement ensures full room coverage, making the system highly flexible, modern, and efficient for any radiology department. |
 |
 |
flexibility and efficiency
Lem Plus iC offers maximum positioning flexibility with its lightweight, telescopic design for easy operator control. Electromagnetic brakes, released via handle pushbuttons, enable quick, precise positioning. Wide ceiling suspension movements ensure full room coverage. Motorized motions, auto-tracking, and auto-positioning functions enhance user comfort and streamline workflow for efficient exam setup. |
|
versatility of configurations
Lem Plus iC, combined with Moviplan iC table and Tele iC chest stand, creates a complete radiographic room ideal for high-throughput departments and the needs of emergency rooms. |
|
Moviplan iC: the new tailor-made X-ray room
Moviplan iC is the new generation bucky room that provides the modularity, usability and functionality needed in any radiological center that wants to easily increase productivity and efficiency in every working situation. The complete modularity facilitates configuration of a tailor made system able to fit every requirement. The extreme usability enables fast and intuitive control of the system that dramatically improves workflow. The full range of functionality converts the bucky room into a multipurpose system able to perform a wide range of exams on any patient.
FUNCTIONAL DESIGNMoviplan iC is designed for maximum ergonomics, efficiency, and safety. Hidden cables enhance its clean look and operator safety. In floor-mounted setups, low-profile rails eliminate tripping hazards. In ceiling-mounted configurations, controls on both sides of the table improve usability, ensuring optimal functionality without compromising on design or performance. |
|
|
|
|
|
|
 |
 |
Configuration with floor-mounted columnThe floor-mounted Moviplan iC is a compact, multifunctional radiographic system ideal for small spaces and limited budgets. The entry-level version features a basic LCD display and optional auto-tracking. The advanced version offers a touch screen, motorized movements, and electronic tomography. Digital models can include stitching, auto-positioning, and can be paired with the Tele iC stand for upright exams. |
|
configuration with ceiling tubestand
The Lem Plus iC ceiling tubestand ensures maximum workflow speed, flexibility, and throughput. Its motorized 5-axis movement offers efficiency and user comfort. A user-friendly touch screen allows intuitive control. The system can be completed with the Tele iC tilting chest stand for upright or stretcher-based exams |
 |
 |
Exclusive support system for stitchingThe original Tele iC SR (Stitching Ready) chest stand, streamlines and enhances full-leg and full-spine imaging with its integrated vertical patient support, which can be swiftly retracted to a parked position when not in use. |
Collapsible Column Design
The compact collapsible column of the MDR makes it easy for operators to navigate through crowded spaces without the visual obstruction of a standard column.
|
|
Maneuverable and Safe
Its motor assisted drive adapts to the operator’s preferred walking pace, creating smooth and predictable control in tight spaces. A comfortable, fail-safe drive handle ensures user confidence by automatically stopping system movements when released. Also, a touch sensing anti-collision bumper is included to alert users of accidental contact.
Motor-Assisted Inching
System controls are conveniently placed on the tube head to allow subtle forwards, backwards, right and left movement to deliver added precision when setting up bedside examinations. This functionality prevents the need for the operator to return to the drive handle.
|
|
Single-User Interface
The DELWORKS driven MDR workstation acts as a control hub by seamlessly integrating all system components. This allows technologists to easily view and continuously monitor all vital generator and detector information directly from a large 19” touchscreen monitor. Its high contrast ratio and wide viewing angles provide technologists with superior viewing capability.
Convenient Storage
The MDR provides users with a large storage area to comfortably hold and access all necessary accessories such as grids, additional batteries, and most importantly — DELWORKS E-Series DR detectors. Also incorporates a detector charging cable.
Full Day Battery Life
The MDR features a lead-acid maintenance-free battery design that provides up to 8 hours of movement and imaging without requiring a charge. A power cord reel gives operators access to nearby outlets without dealing with tangled cords.
Technical Specifications
| Width (Transport Position) | 22.7 in (57.6 cm) |
|---|---|
| Length (Transport Position) | 46.2 in (117.3 cm) |
| Height (Transport Position) | 53.3 in (135.4 cm) |
| Transport Handle Height | 35 in (89 cm) |
| Focus-ground Distance | 27.2 to 80. in (69 to 204.5 cm) |
| Max Height | 85.7 in (217.7 cm) |
| Arm Extension (Telescopic) | 14.2 in (36 cm) |
| Front Range | 28 to 42 in (71 to 107 cm) |
| Lateral Range | 20 to 34.5 in (51.7 to 87.7 cm) |
| Rotation of X-ray Tube Head | A-swivel, ±180° B-swivel, ±320° (from transport position) C-swivel, 127° (90° forward, 37° backward) |
| Speed Forwards (In Transport Position) | 0-3 mph (0 – 1.4 m/s) |
| Speed Forwards (In Working Position) | 0-1.6 mph (0 – 0.72 m/s) |
| Speed Backwards | 0-1.6 mph (0 – 0.72 m/s) |
| Weight (Batteries Included) | 959 lbs (435 kg) |
Automated Stitching
Long-length exams are automated. With the patient in position, either at the wall stand or on the table, the technologist utilizes the tube head controls to mark the top and bottom of the anatomy to be imaged. The system then calculates the number of exposures needed, and correct image overlaps. With the patient remaining in place, the technologist holds the exposure switch, and the system makes the first exposure, repositions the tube angle and detector, exposes, and continues until the full anatomy is imaged. The system then automatically stitches the images to present an integrated long-length image.
Flexible Positioning
The OTC18S ceiling-mounted tube crane highlights an advanced, technologist-friendly touchscreen interface providing seamless operation of your radiographic system by displaying tube angulation, SID values, and customizable generator controls. Color-coded movement identification buttons provide optimal precision when setting up views. Effortless movements enable fast and secure adjustments of the tube head while electromagnetic braking provides quiet and secure locking. Its five-tier telescoping column delivers exceptional vertical movement of 71 in (180 cm), capable of performing complete head-to-toe radiographic procedures including upright weight-bearing and recumbent tabletop exams.
Ergonomic Tube Head Design
10.4″ Touchscreen Interface
- Patient side display of system status, SID, tube angle, and collimation. Selectable controls for workstation, generator settings, AEC, and tracking.
Lock Release Buttons, Including Column Rotation
All Locks Release at Main Handle
- Longitudinal, Transverse, Vertical movement with grab-and-go convenience
Collimator Light is Automatically Activated
- With tube, vertical table, and wall stand movement, or by pressing any movement button
Stitching Controls
- With long length exam selected, the technologist selects the top of the anatomy, the bottom, and selects start. The exam is automatically performed, and a long-length image is stitched
Auto-Collimation
Accelerates patient positioning and reduces radiation exposure by automatically selecting the proper field of view for each body part. During stitching studies, the OTC18S with DELWORKS DR software optimizes collimation settings to acquire images with minimal overlap for reduced patient exposure.
EV800T Elevating Table
The motorized receptor of the EV800T enables synchronization and longitudinal tube tracking. The elevating four-way float top table delivers outstanding safety, durability, and usability. Featuring an exclusive four-point lift system and exceptionally quiet motor drive, its smooth, scratch-resistant tabletop lowers to a height of just 22 in (56 cm) to ensure stress-free patient transfers and adjustments. Offering a high patient weight capacity of up to 800 lbs (363 kg), stable continuous movement is possible through conveniently placed recessed foot treadles and table-side controls, suitable for increasing technologist performance and satisfaction.
VT300T Tilting Wall Stand
The motorized receptor of the VT300T enables synchronization and vertical tracking to the x-ray tube and provides quiet and effortless positioning. The wall stand features a tilting image receptor, promoting comfort and precision for standing or seated examinations. This makes the VT300T accommodating to all users regardless of size or strength.
Flex Tray
Del Medical’s Flex Tray is an in-tray charging solution that keeps detectors powered, protected, and ready for use while supporting streamlined workflow. Built in-house with durable steel construction, it charges detectors directly in the tray, eliminating the need for external charging stations or added cable management. The tray supports both 14×17 in and 17×17 in detectors, with rotation available when used in the 14×17 configuration to enhance positioning flexibility. A secure locking mechanism with an easy-release handle holds the detector firmly in place, helping reduce handling and extend detector life.
Mobile Stitching and Positioning Stand
The DEL MEDICAL Patient Stitching Stand’s simple and sleek design improves efficiencies and outcomes at an affordable price. The stand helps keep the patient immobile during multiple or single exposures. With four 360° lockable swivel casters, height-adjustable handles, and a slim, lightweight design, this immobilization device can be easily placed in position and removed for storage. The Patient Stitching Stand may be equipped with a radiopaque ruler to help verify stitching accuracy.
Technical Specifications
| Room Height | 105 – 119 in (267 – 302 cm) |
|---|---|
| Room Height (with Optional Telescopic Extension) | 105 – 127 in (267 – 322 cm) |
| Vertical Telescopic Travel Range | 70.8 in (180 cm) with minimum 32.7 in (83 cm) focal spot to ceiling distance / 15.5 in (39.4 cm) focal spot to floor distance with a 9 ft ceiling height |
| Longitudinal Travel Range | Standard: 14 ft rail included, 136 in (346 cm) min Optional: rail extensions: 220 in (558.5 cm) max |
| Transverse Travel Range | Standard: 10 ft (3 m) track / 86.6 (220 cm) Optional: 13 ft (4 m) track / 140 in (355 cm) |
| Longitudinal Detent Positions | Configurable during installation |
| Tube Rotation Range (Horizontal Axis) | -120°, +120°, Detent positions at -90°, 0°, +90° |
| Tube Rotation Range (Vertical Axis) | -182°, +154°, Detent positions at -180°, -90°, 0°, +90° |
| Locks | All Lock release sensor on bottom handle to release transverse, longitudinal, and vertical locks Individual membrane lock releases – Roll Lock – Column Rotate – Up – Down – Longitudinal – Transverse – Vertical – Vertical/ Longitudinal / Transverse |
| Weight (with Collimator and Tube) | 507 lbs (230 kg) |
| Power Requirements | 24 VDC 8A (Supplied by the DM-PSI) |
Mobile DR System
Compact, Intelligent
& Full-Featured Mobile X-ray
DRGEM’s next-generation mobile X-ray combines compact design, intelligent AI-powered features, and a full range of clinical capabilities.
Now Lighter. Even Smaller.
RAYMO features a compact design with 20 percent less volume compared to previous mobile systems, making it easier to move through tight clinical spaces. Its reduced size and optimized balance support smoother navigation and faster positioning while maintaining the full performance needed for precise, high-quality imaging.
Haptic Feedback for SID Positioning
RAYMO alerts the operator with gentle haptic feedback as the system approaches the user-defined SID target. This tactile guidance helps ensure precise alignment without relying solely on the display, enabling faster and more confident bedside positioning.
Parking Unlock Assist
When the tube is released from its parked position, RAYMO provides automatic upward assistance against gravity. This support reduces lifting effort, allowing operators to raise the tube smoothly and comfortably during setup for imaging.
Easy Tube Rotation
RAYMO’s tube rotation system unlocks only while the operator presses the side buttons on the collimator handles, allowing the tube to move freely and smoothly for precise positioning. When the operator releases the buttons, the brake engages automatically.
Built-in Camera for Safe Driving
RAYMO’s built-in driving camera provides a clear forward view during movement, even in dim or low-visibility environments thanks to its Day/Night Vision support. The live feed on the monitor helps operators navigate safely, avoid obstacles, and drive confidently through narrow or crowded clinical spaces.
Tilting Touchscreen on Tube
The tube-mounted touchscreen tilts manually for a better viewing angle, enabling quick checks and adjustments during bedside imaging.
Anti-theft Secured Detector Tray
The detector tray features an integrated anti-theft locking system that securely holds the flat-panel detector in place. This mechanism prevents accidental removal and protects the detector during daily clinical workflows.
All-In-One Digital X-ray System
Fully Automatic Operation
DIAMOND is a fully automatic digital X-ray solution with auto-positioning and advanced image processing.
Automated Precision in X-ray Imaging
With a wide selection of anatomical studies on the imaging software, DIAMOND automatically sets pre-programmed parameters of the X-ray generator, adjusting the position of the motorized radiographic stand, X-ray collimation, and post-processing of the selected studies to enhance user efficiency and performance.
Key Features
Automatic Collimation provides motorized control of the X-ray field size, automatically adjusting to correspond with different Source-to-Image Distances (SIDs). It also includes a user-adjustable lamp timer with an on/off switch for added convenience, ensuring precise field alignment and efficient operation.
Automatic Positioning is a feature of the DIAMOND system, a fully-automatic diagnostic solution. It includes motorized movements and pre-programmed data for effortless automatic positioning, which can be easily reprogrammed by the operator to suit specific needs. This ensures precision, efficiency, and adaptability in various imaging procedures.
Automatic Stitching in the DIAMOND system uses source tilting to seamlessly combine multiple images into one long composite image. This advanced feature simplifies the process of capturing full-spine or long-bone views, enhancing workflow efficiency and ensuring high-quality, consistent imaging results.
Outstanding Image Quality
DIAMOND delivers enhanced workflow, faster exams, and greater comfort through digital X-ray using a flat panel detector. The detector features a CsI screen that offers excellent spatial resolution, high MTF and DQE, and consistent performance with fine pixel pitch. For optimized dose control, a 3-field ion chamber is included to support the AEC function.
